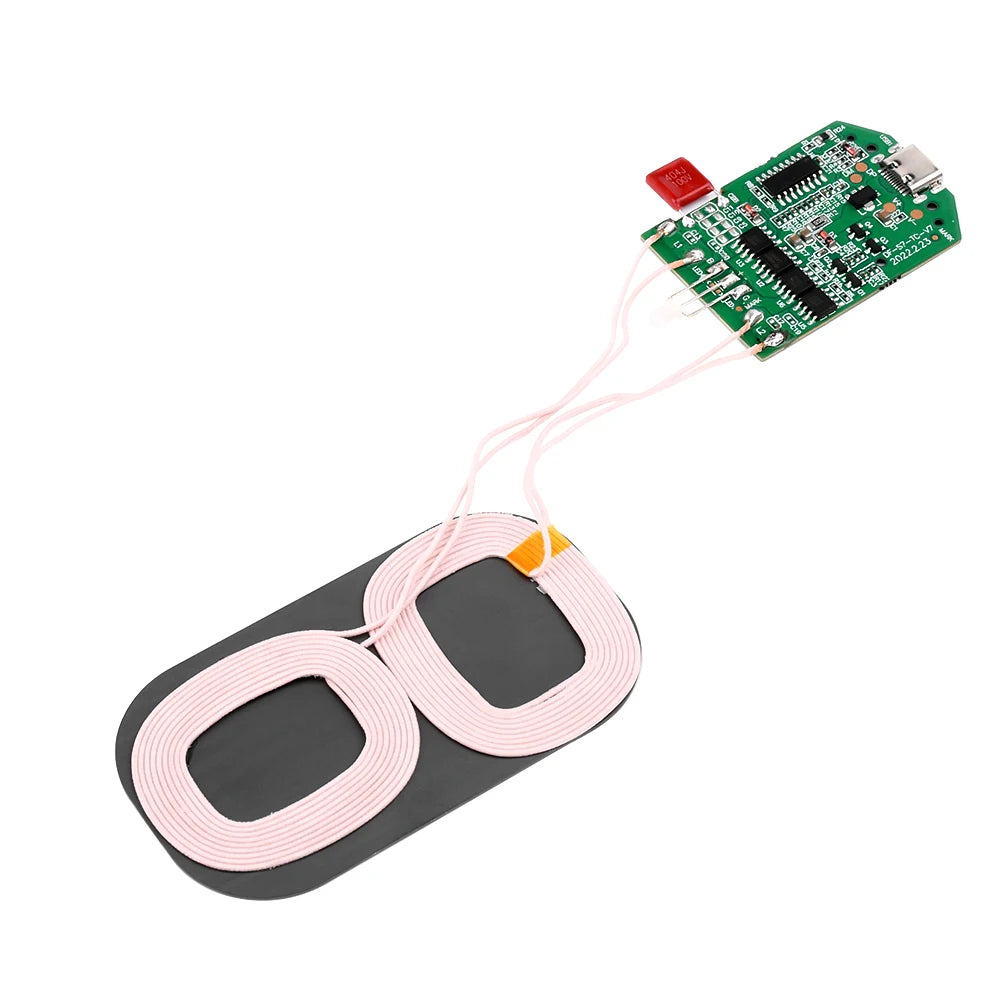

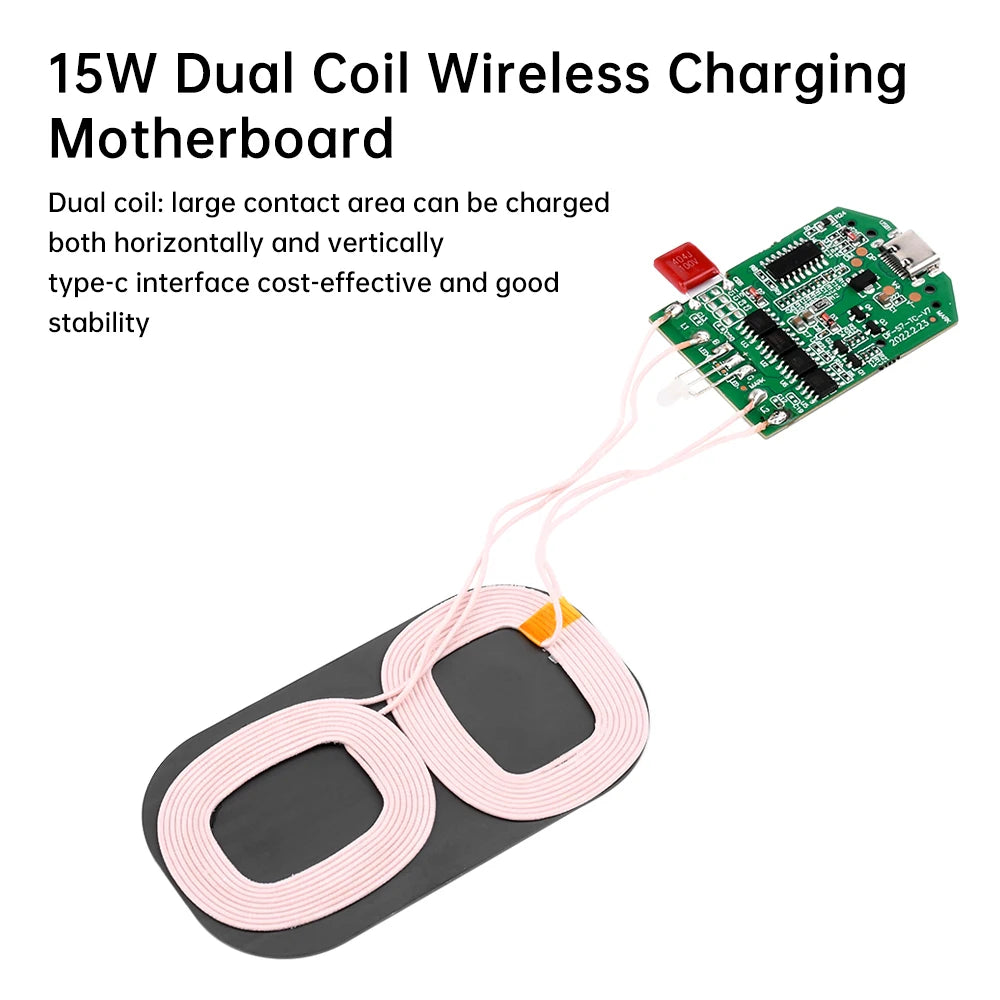

15W dual coil wireless charging module wireless charger PCBA multi-purpose home car equipment wireless charging Type-C interface
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
15W dual coil wireless charging module wireless charger PCBA multi-purpose home car equipment wireless charging Type-C interface
SPECIFICATIONS
Application: MOBILE PHONE
Brand Name: diymore
Choice: yes
Compliant with WPC V1.2.3 wireless charging specifications: Product standard: QI
Condition: New
Dissipation Power: 100-200Khz
High-concerned chemical: None
Input voltage/current 5V-2A, 9V-1.67A, 12V-1.5: Output current: 5V-1A, 9V-1.1, 9V-1.66
Operating Temperature: -40℃-105℃
Origin: Mainland China
Package: TQFP
Quantity: 1
Sensing distance ≤ 8mm: Working frequency: 100-200Khz
Supply Voltage: 5V-2A 9V-1.67A
Support Foreign Object Inspection (FOD): Motherboard size: 48mm * 33mm * 2.7mm
Support Samsung fast charging protocol, compatible with iPhone x/8/8p/12/13 charging protocol: Built in MCU, 12 bit high-precision ADC, communication decoding
Support dynamic energy balance: Intelligent recognition, 5W/7.5W/10W/15W charging
Supports a maximum power output of 15W: Efficiency reaches 75% -85%
Type: Module
is_customized: Yes

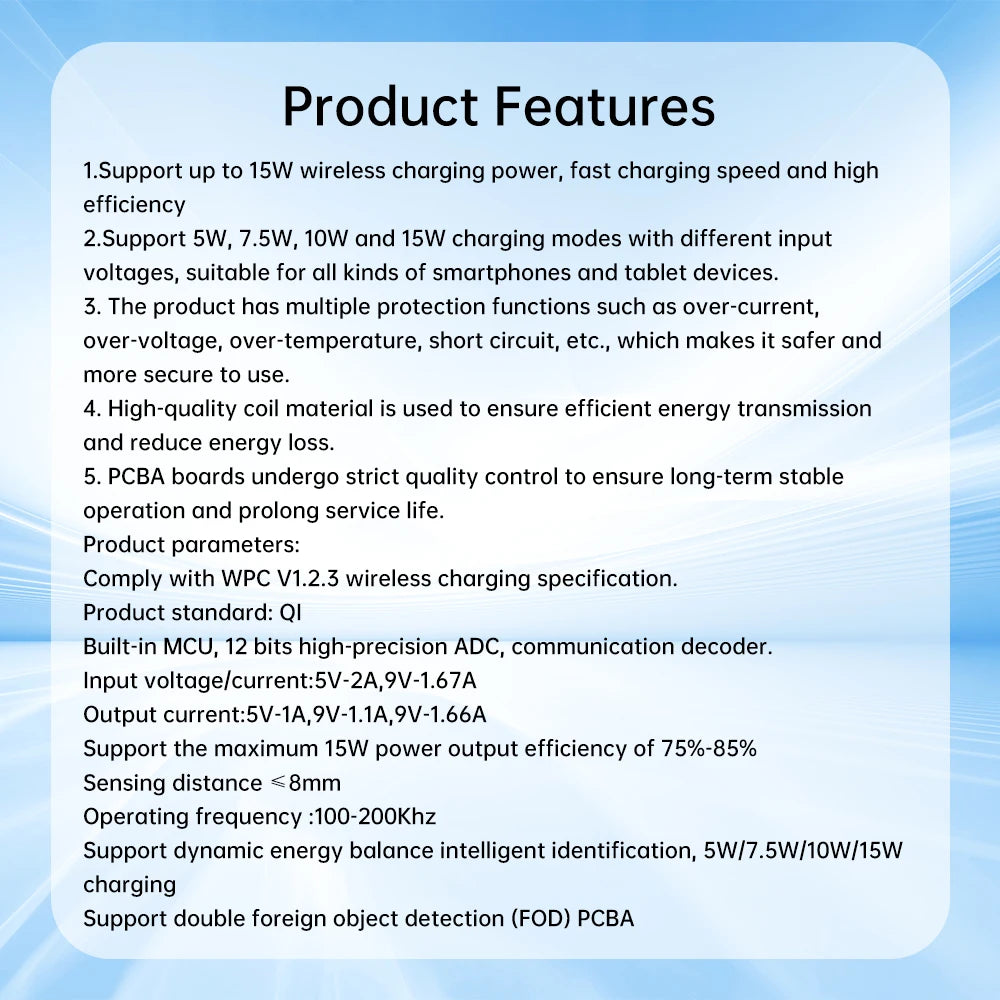

Product features:

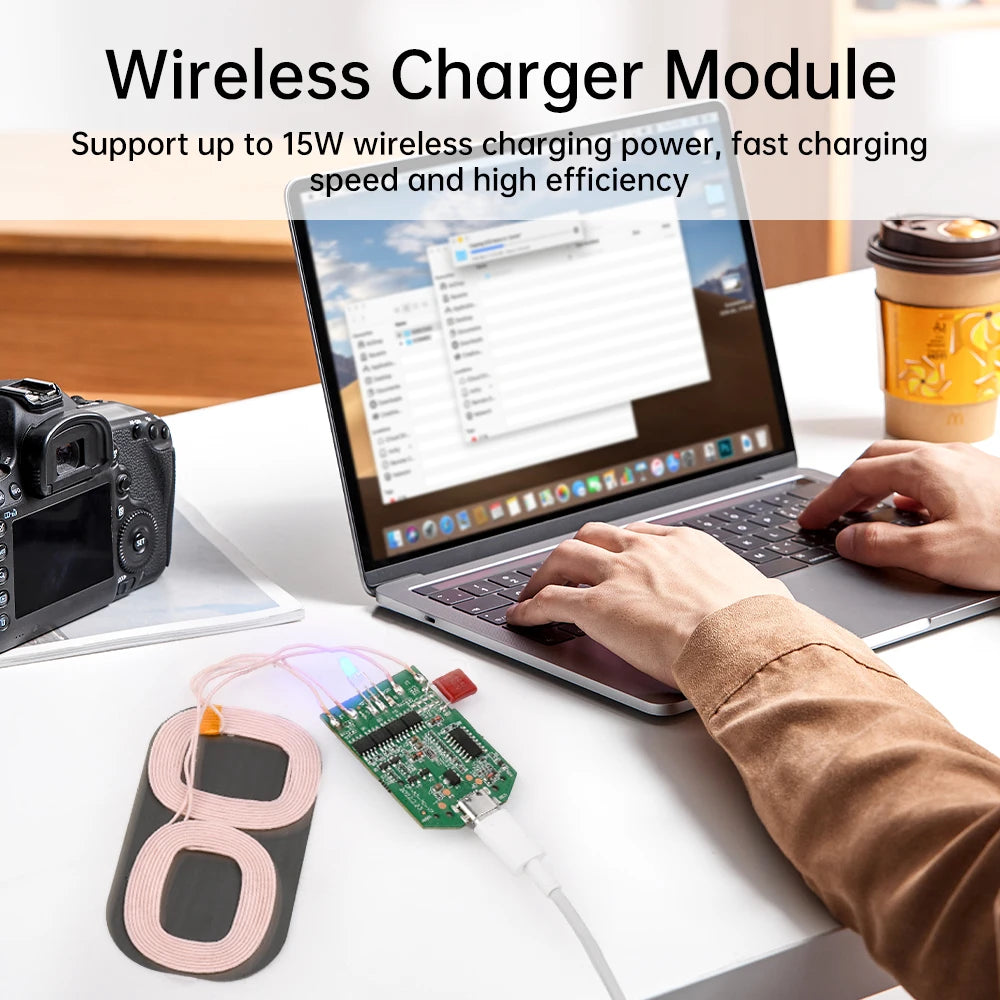

1. Supports up to 15W wireless charging power, fast charging speed, and high efficiency

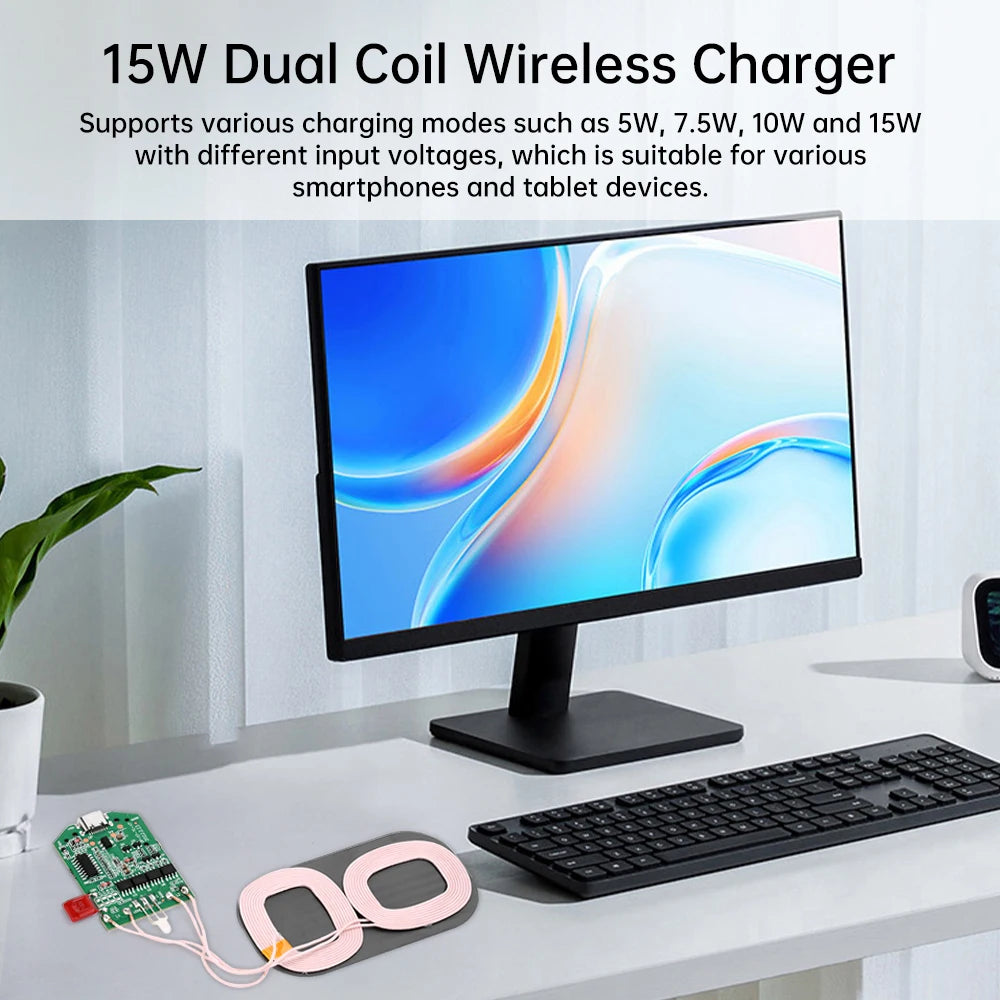

2. With different input voltages, it supports multiple charging modes such as 5W, 7.5W, 10W, and 15W, and is compatible with various smartphones and tablets

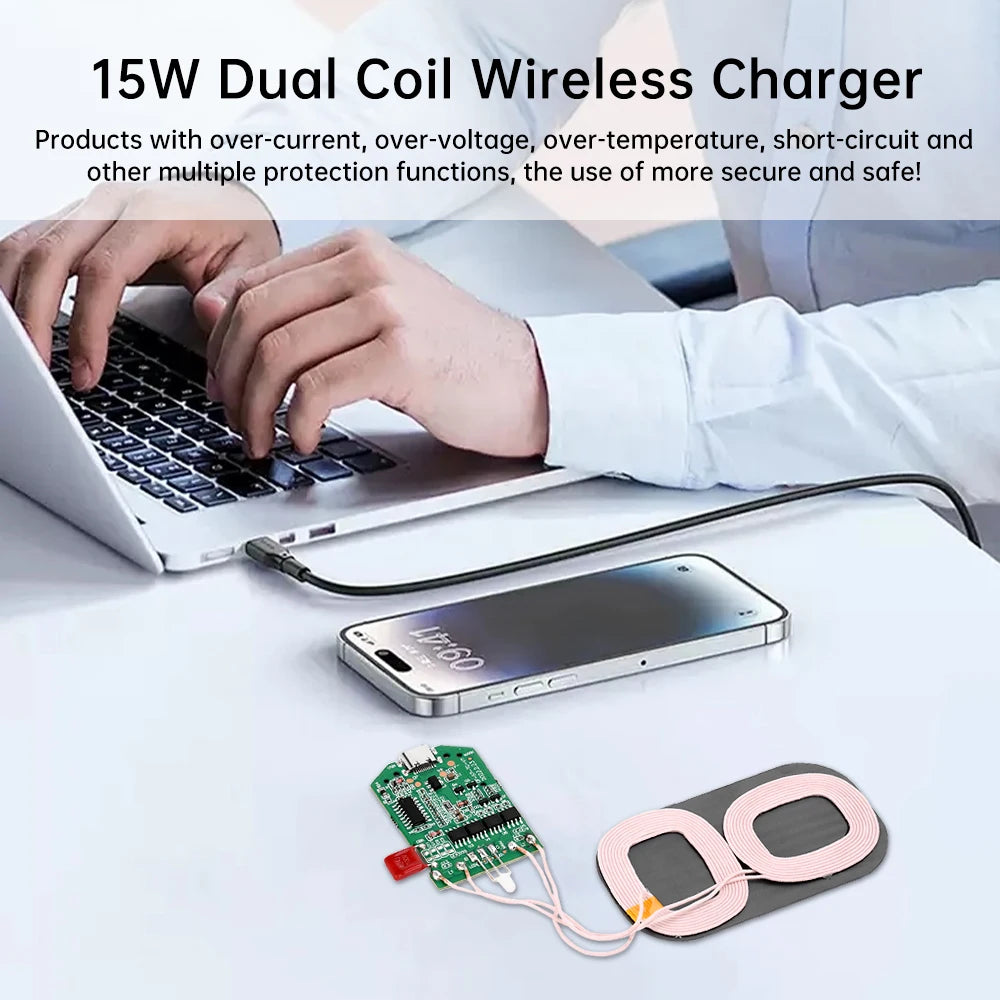

3. The product has multiple protection functions such as overcurrent, overvoltage, overheating, and short circuit, making it safer and more reassuring to use

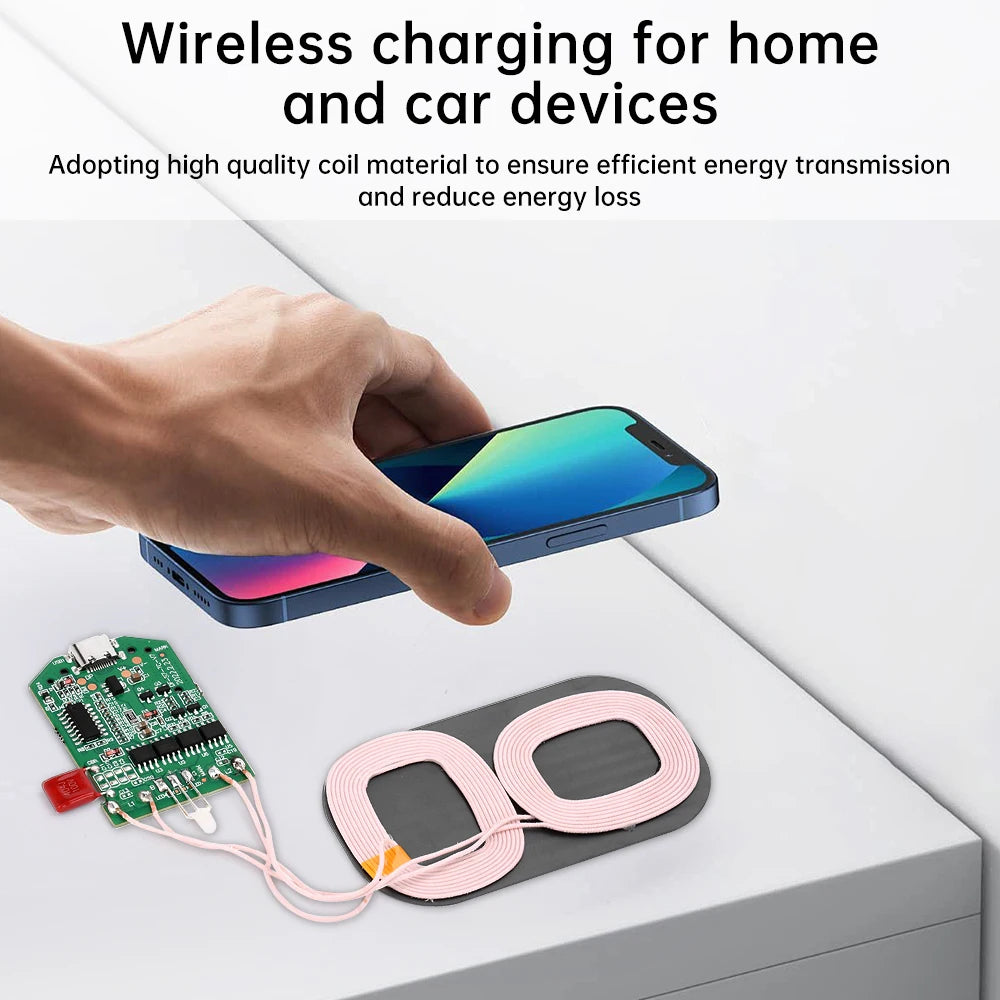

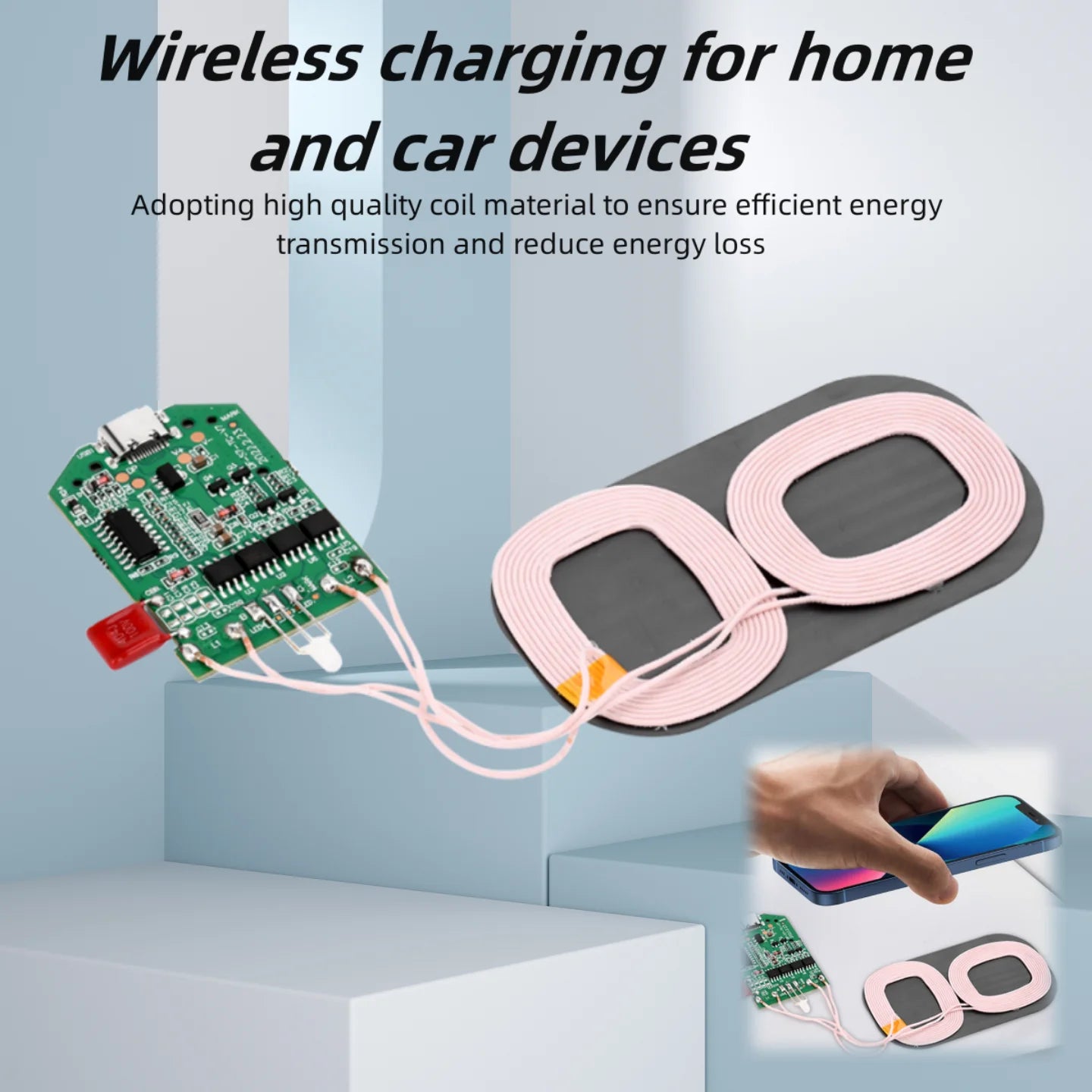

4. Using high-quality coil materials to ensure efficient energy transmission and reduce energy loss

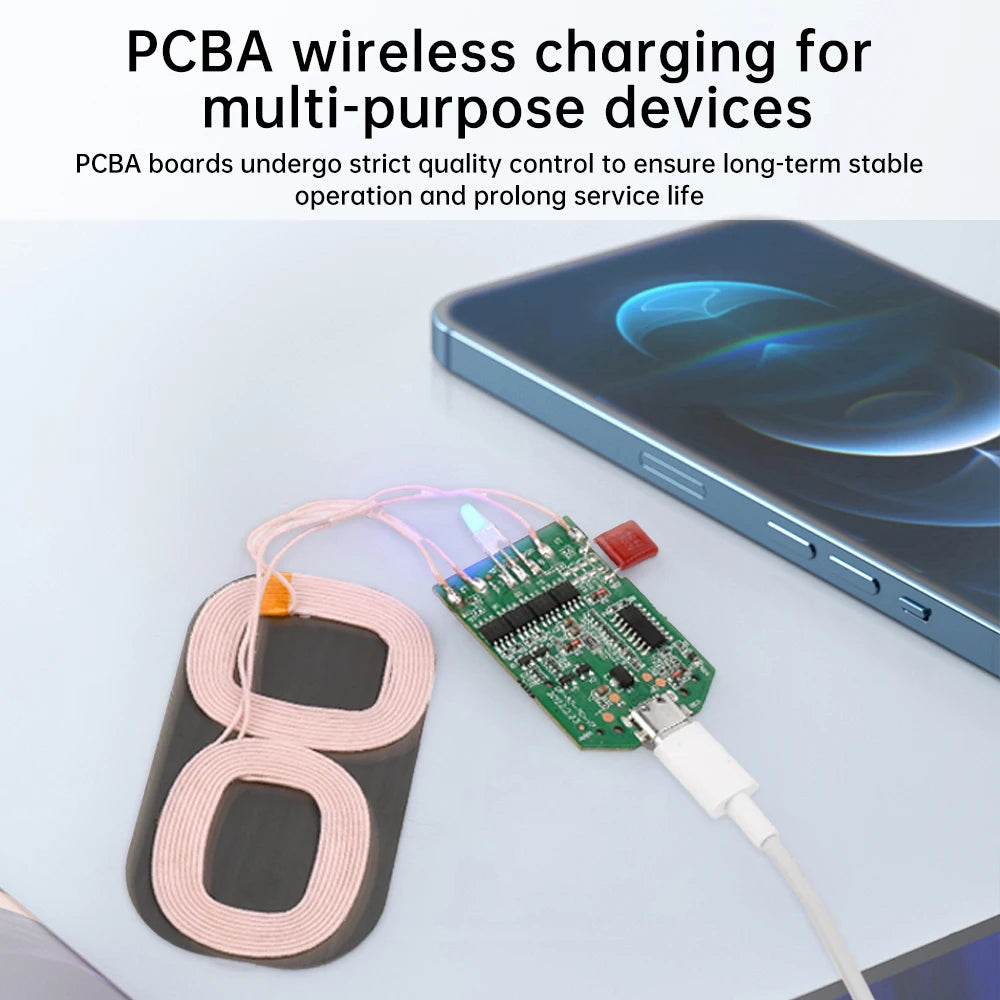

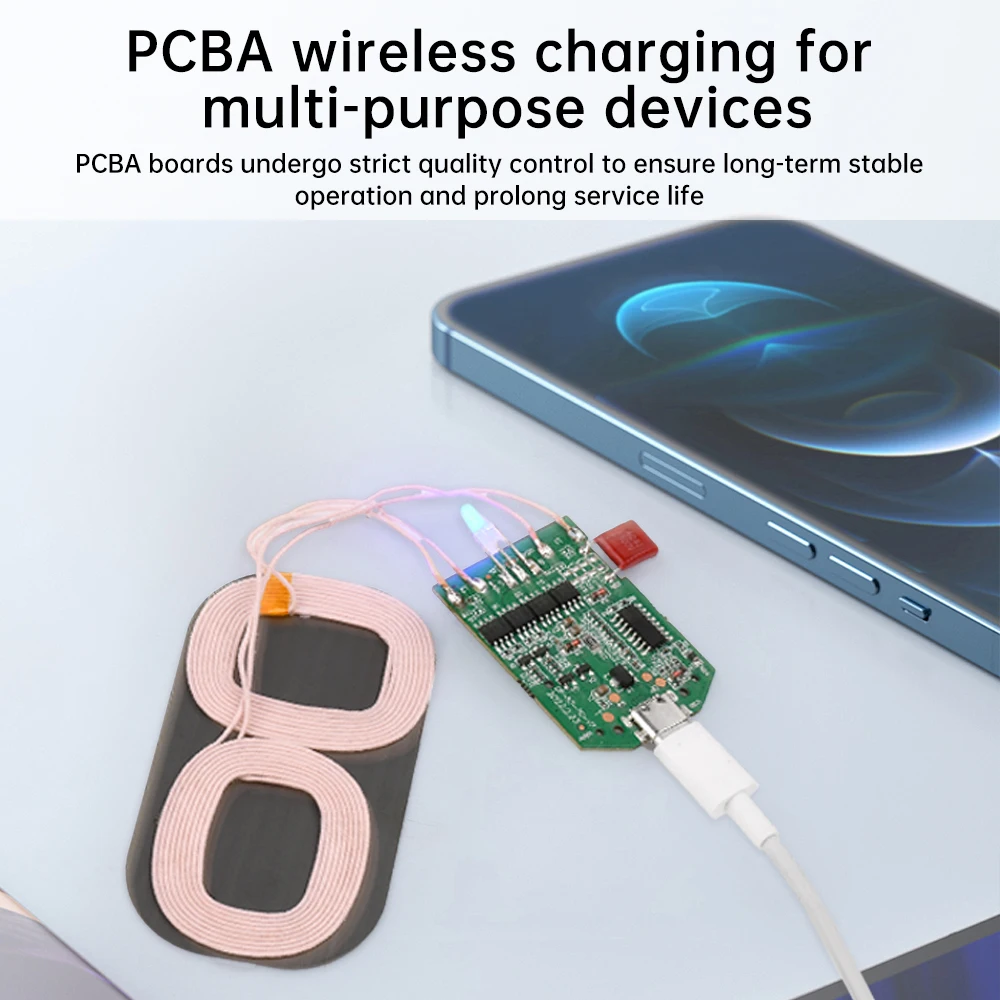

PCBA boards undergo strict quality control to ensure long-term stable operation and extend their service life
Product parameters:
Compliant with WPC V1.2.3 wireless charging specifications
Product standard: QI
Support Samsung fast charging protocol, compatible with iPhone x/8/8p/12/13 charging protocol
Built in MCU, 12 bit high-precision ADC, communication decoding

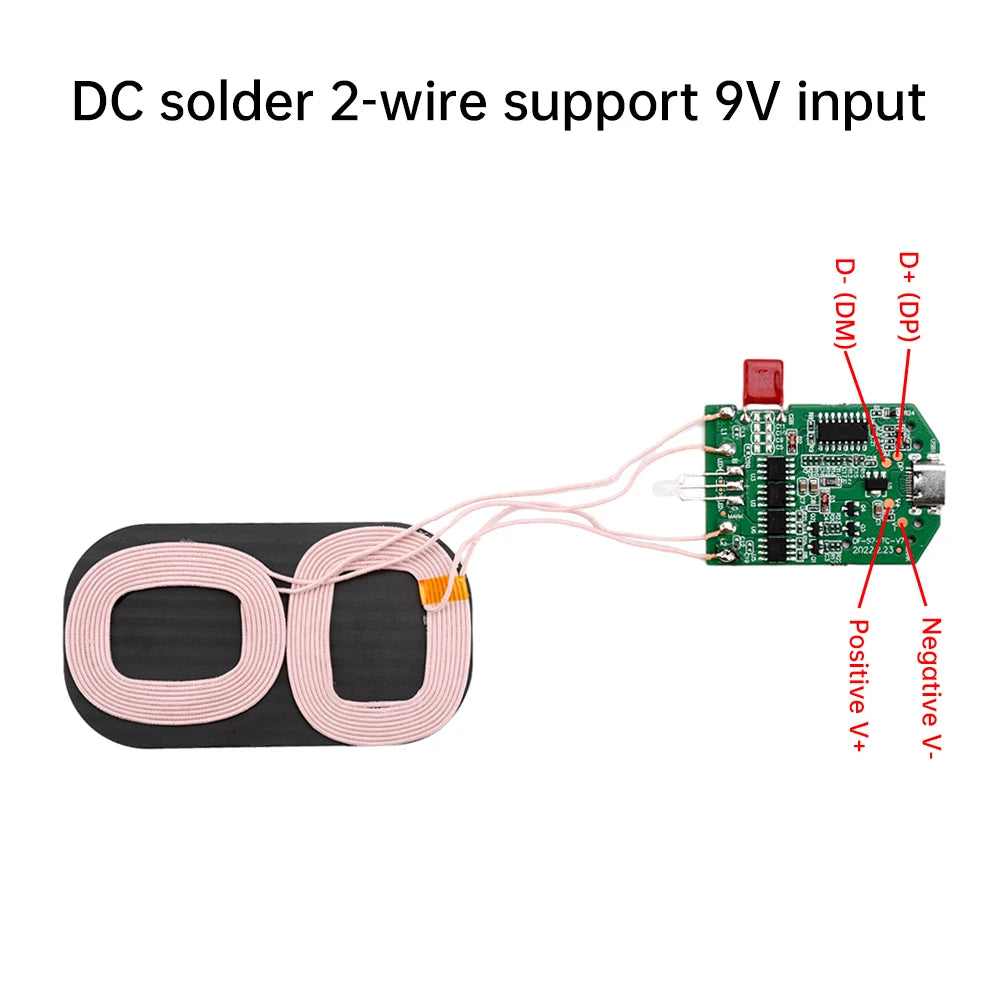

Input voltage/current: 5V-2A, 9V-1.67A, 12V-1.5
Output current: 5V-1A, 9V-1.1, 9V-1.66
Supports a maximum power output of 15W
Efficiency reaches 75% -85%
Sensing distance ≤ 8mm
Working frequency: 100-200Khz
Support dynamic energy balance
Intelligent recognition, 5W/7.5W/10W/15W charging
Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit
Support Foreign Object Inspection (FOD)
Motherboard size: 48mm * 33mm * 2.7mm
Coil size: 82mm * 46mm (outer diameter)
Shipping List:
Wireless charging transmission module X1
