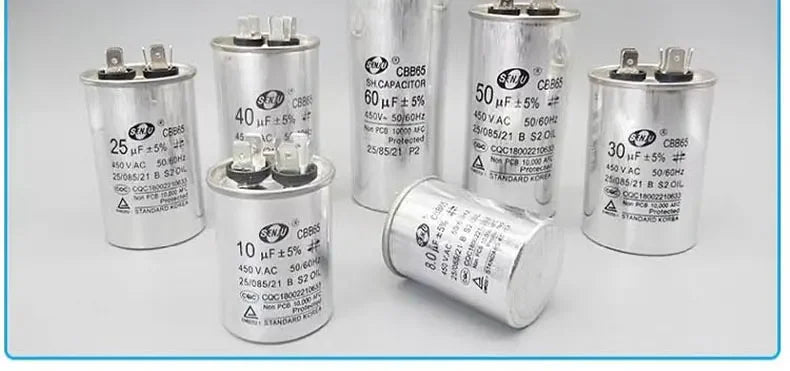

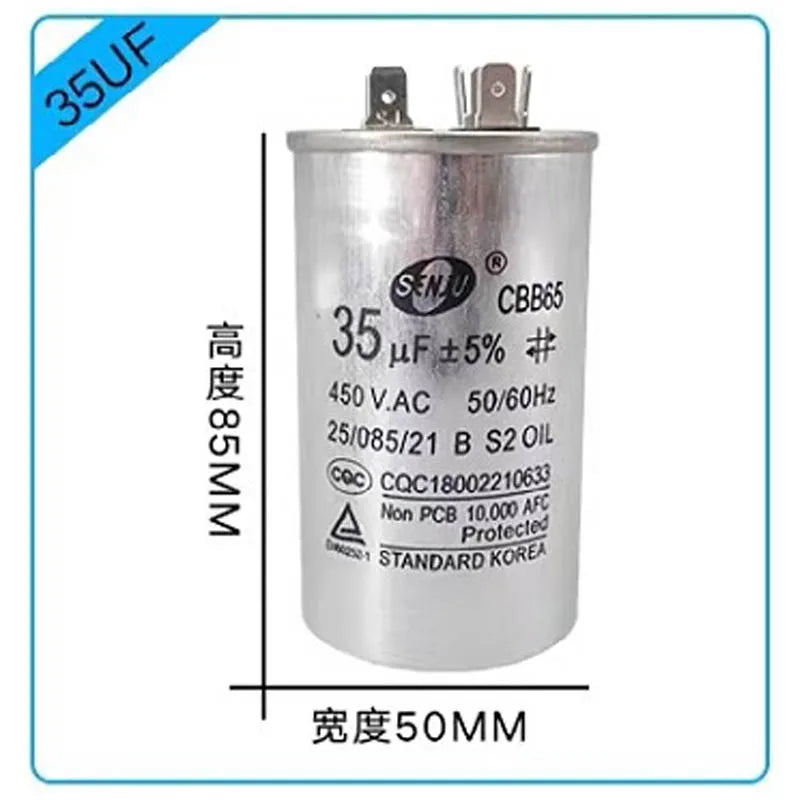

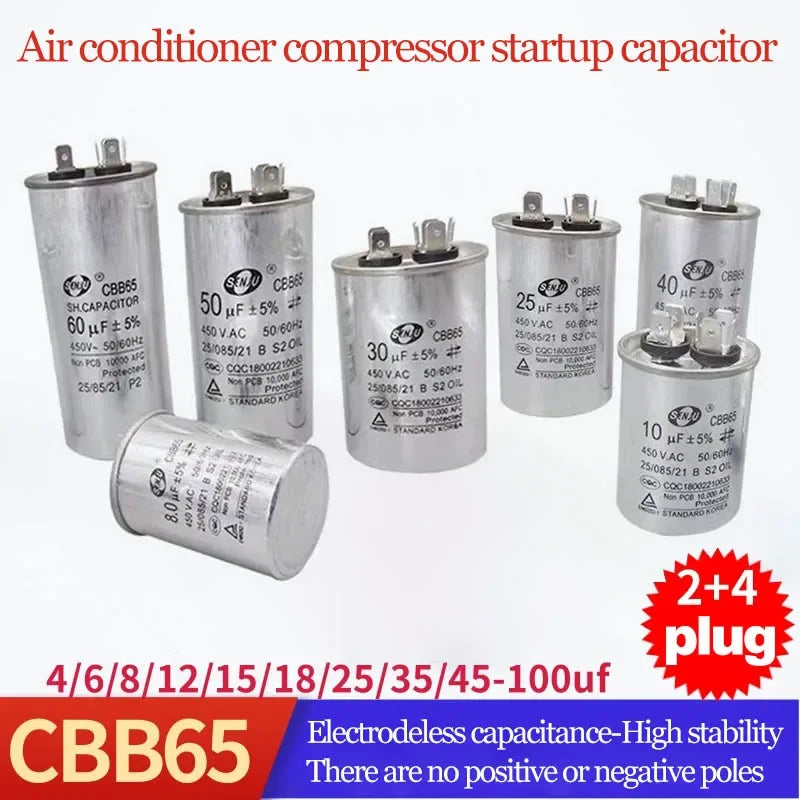

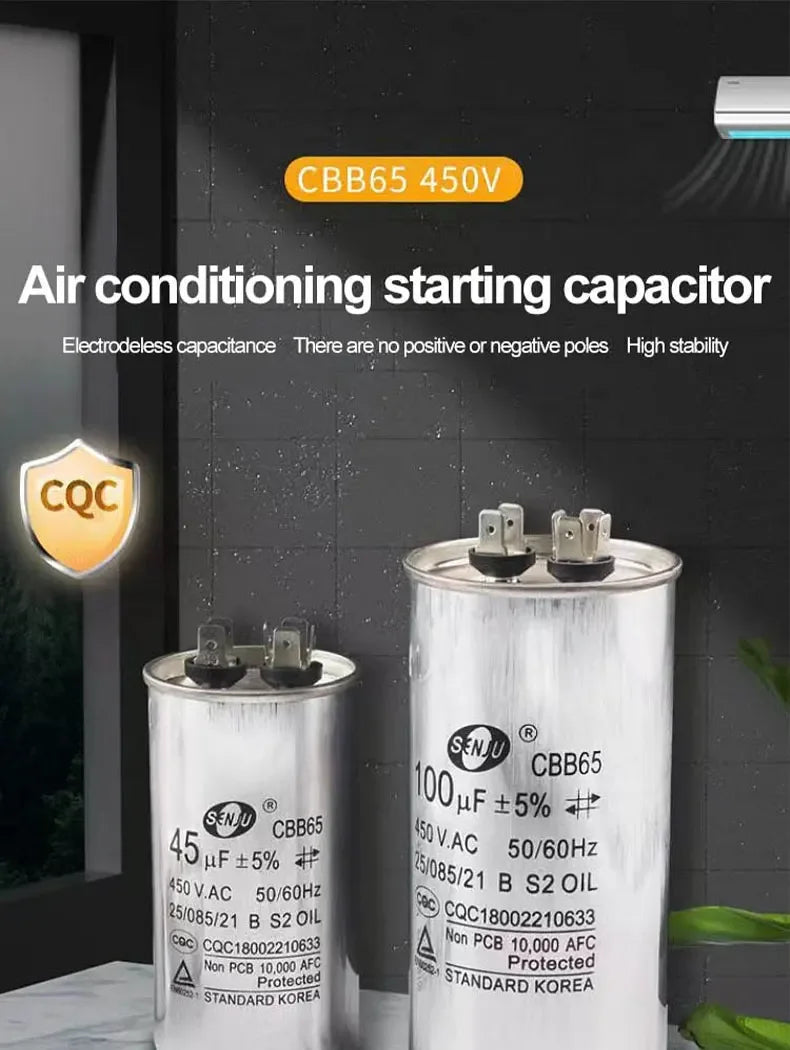

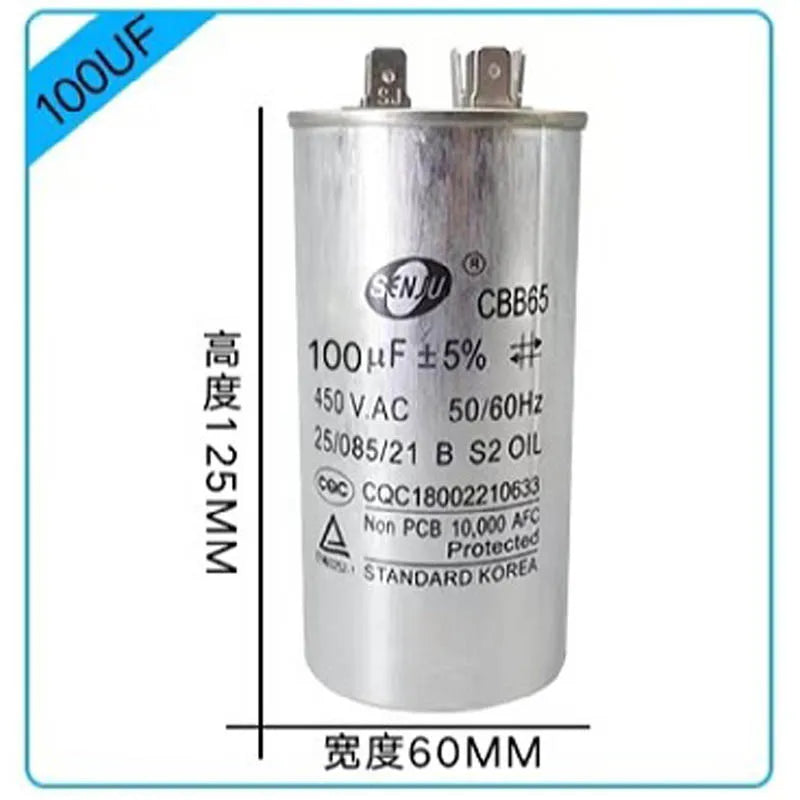

20UF25UF30UF 35UF 40UF 45UF 50UF 55UF 60-100UF CBB65 Air Conditioner Capacitor Compressor Motor Runs Starting Capacitor 450VAC
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
20UF25UF30UF 35UF 40UF 45UF 50UF 55UF 60-100UF CBB65 Air Conditioner Capacitor Compressor Motor Runs Starting Capacitor 450VAC
SPECIFICATIONS
Application: Home
Article No. (Article number): 5uF~100uF 450V
Brand Name: NONE
Certification: CE
Choice: yes
High-concerned chemical: None
Lead spacing: 18.5MM-21MM
Lv.: S2
Model Number: CBB65
Model number: 450V4uF~100uF

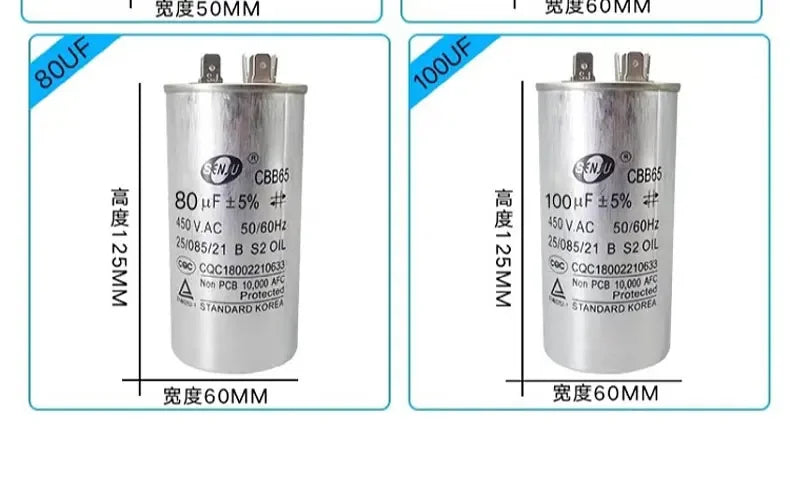

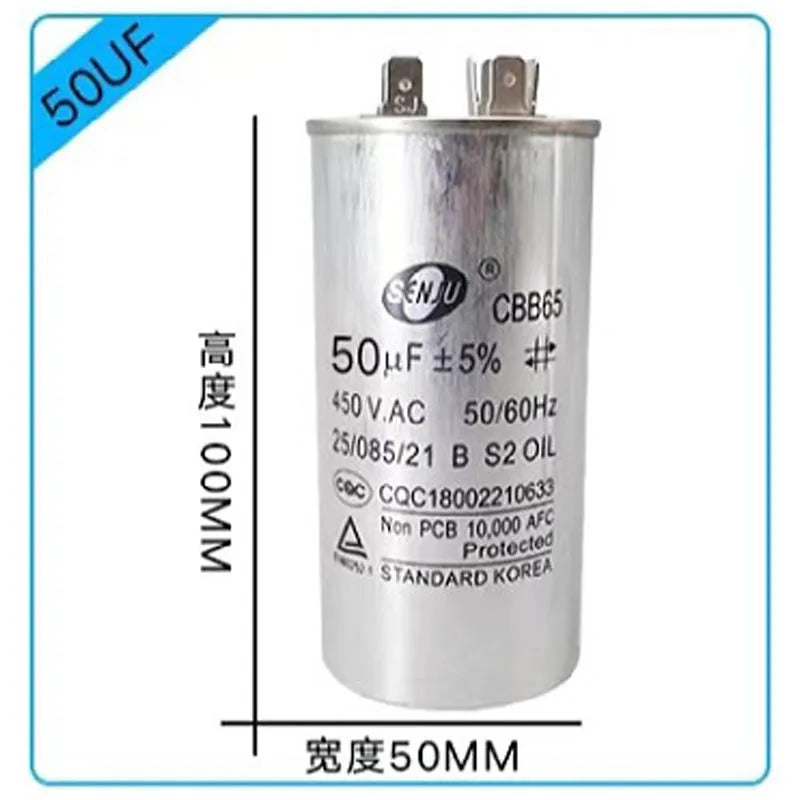

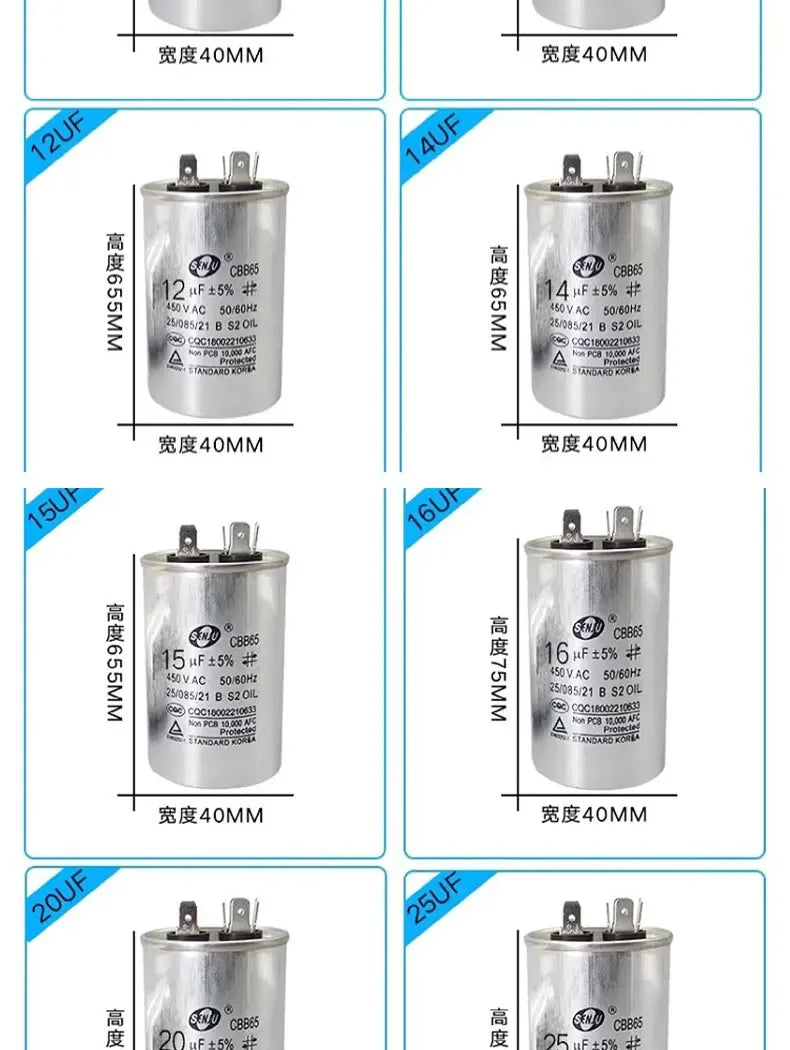

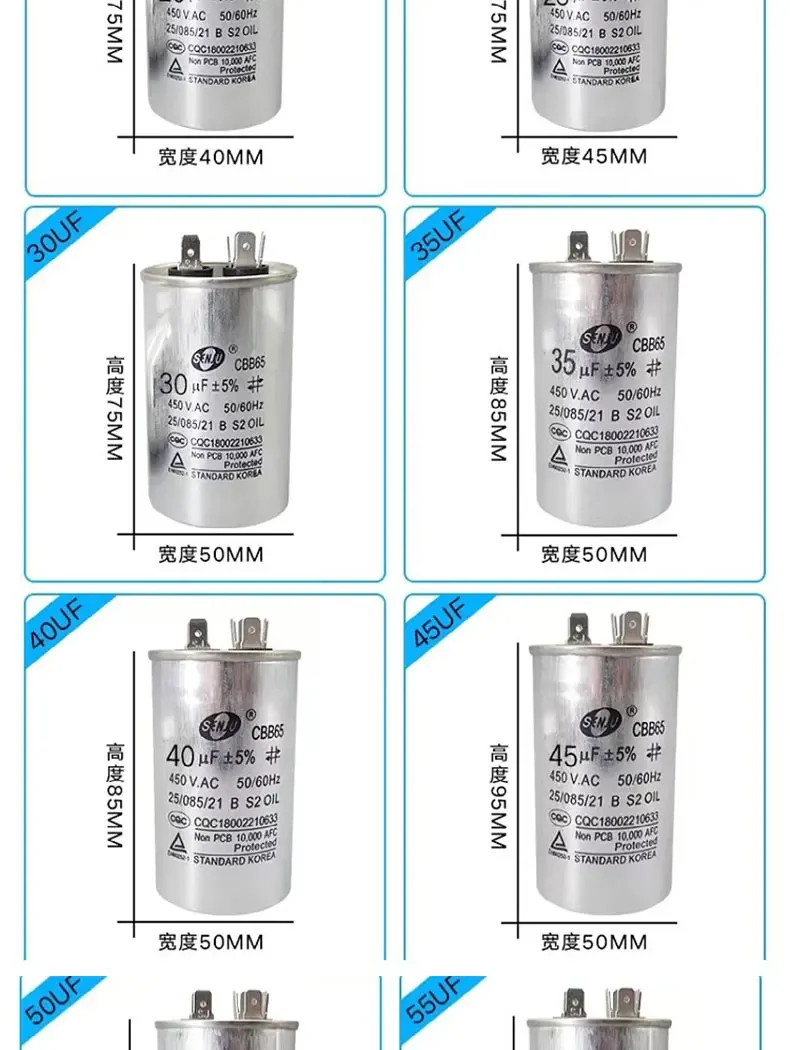

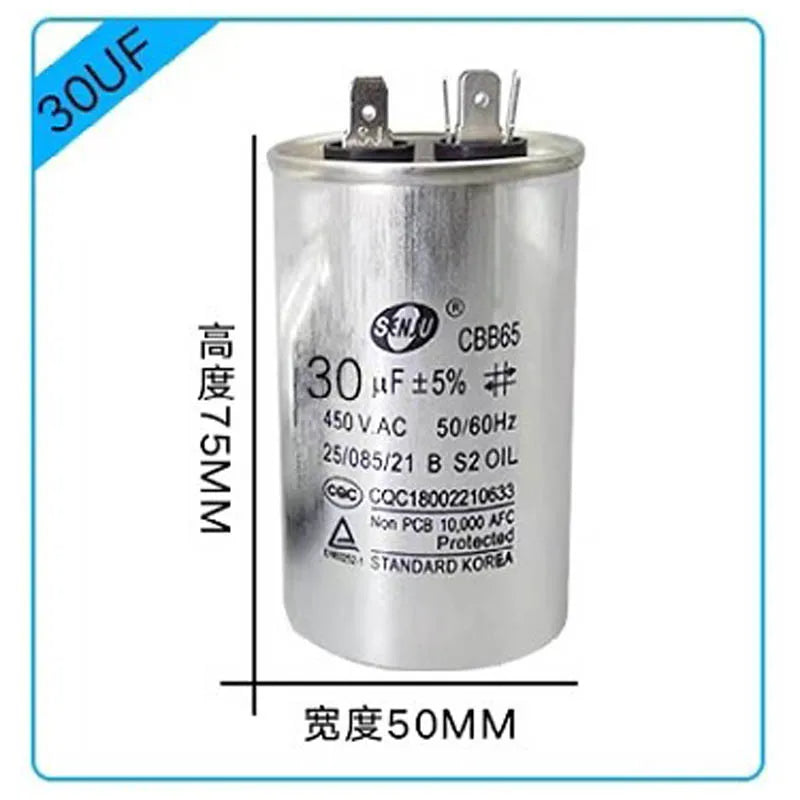

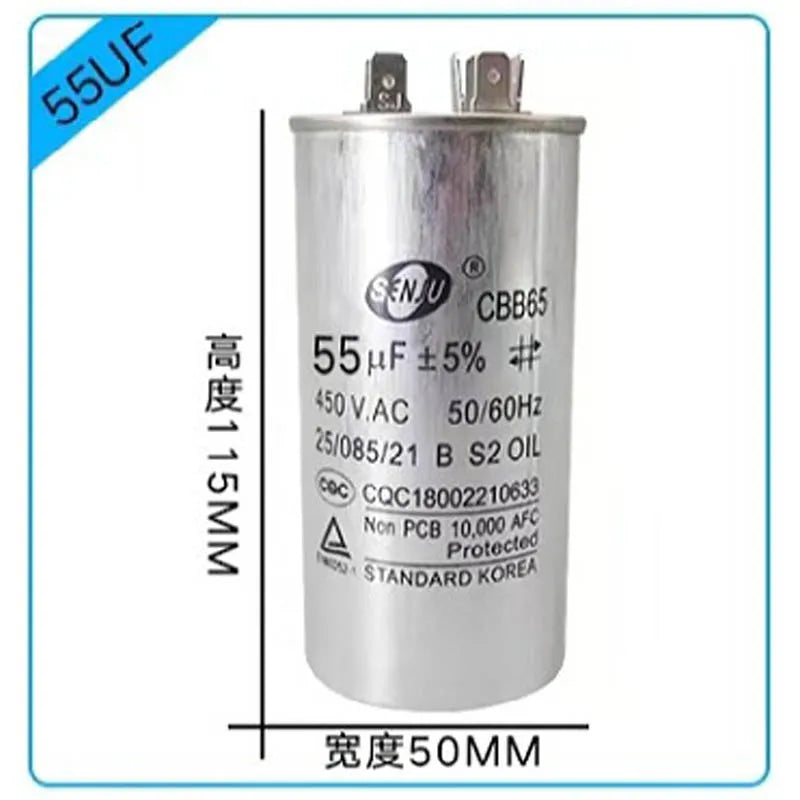

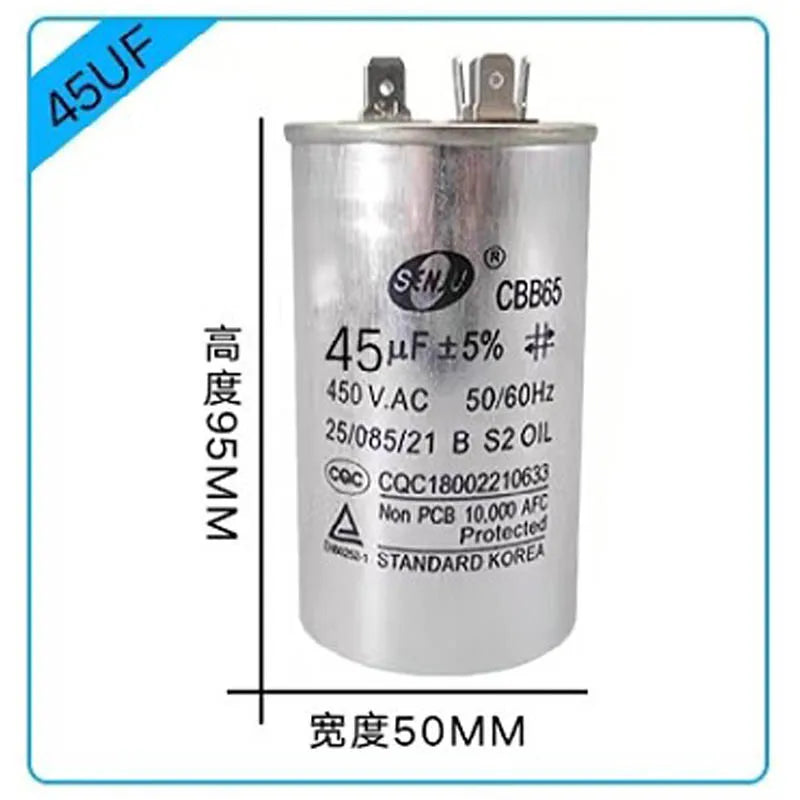

Nominal capacity: 20UF25UF30UF 35UF 40UF 45UF 50UF 55UF 60-100UF
Origin: Mainland China
Package: Aluminum
Peculiarity: Activate
Scope of application: Air conditioning compressor
Termination type: 2+4insert
Type: Compressor,Air Conditioner Parts
Product introduction：

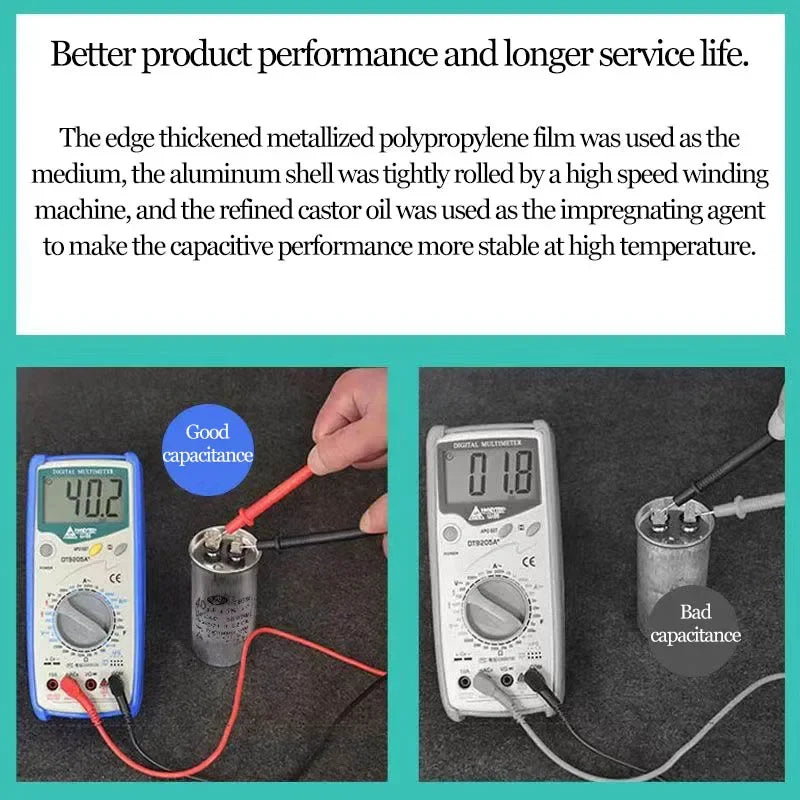

The CBB65 air conditioning capacitor adopts the metallized zinc-aluminum film with thickened edges as the electrode and medium. The film is wound by a winding machine and placed in an aluminum shell, which is then filled with high purity castor oil to maintain a vacuum and make the product resistant to high temperatures. Such products have better performance and longer service life.
Scope of application:
Widely used in household air conditioners and other frequency 50Hz/60Hz AC power supply of single motor start and operation

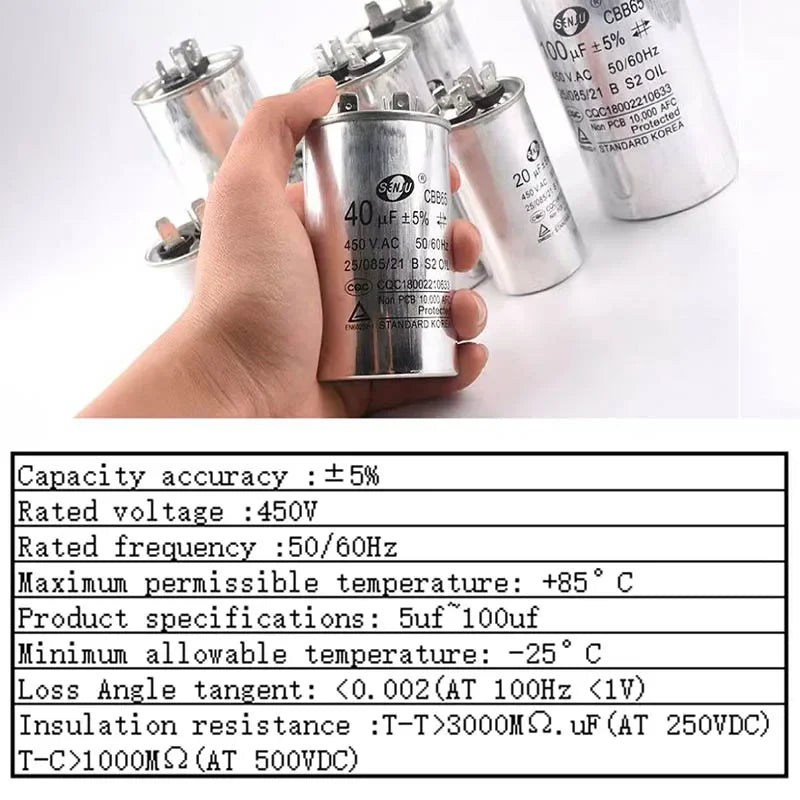

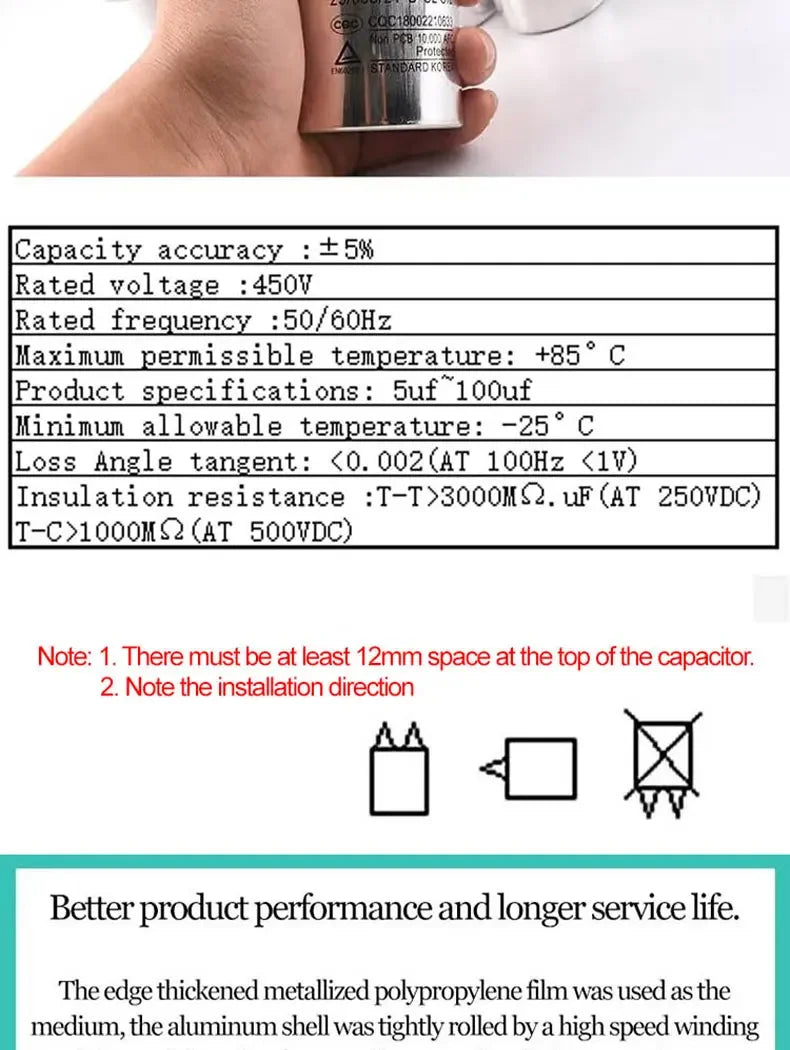

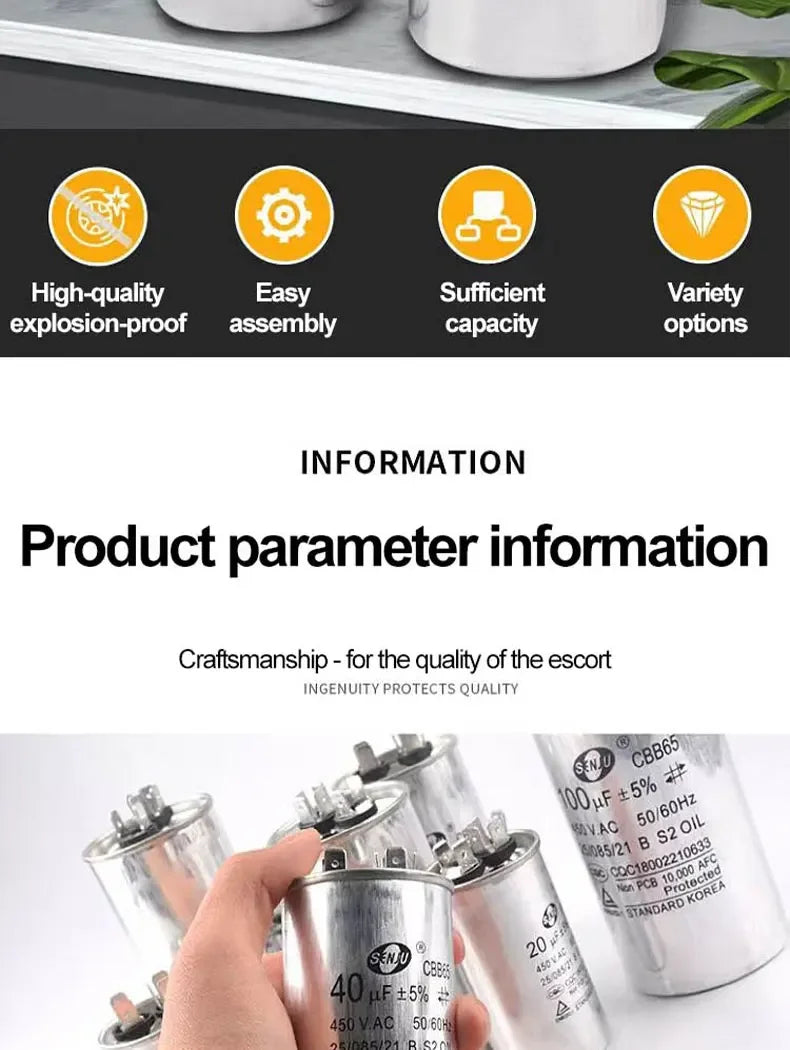

Product parameter：
Capacity accuracy :±5%
Rated voltage :450V
Rated frequency :50/60Hz
Maximum permissible temperature: +85°C

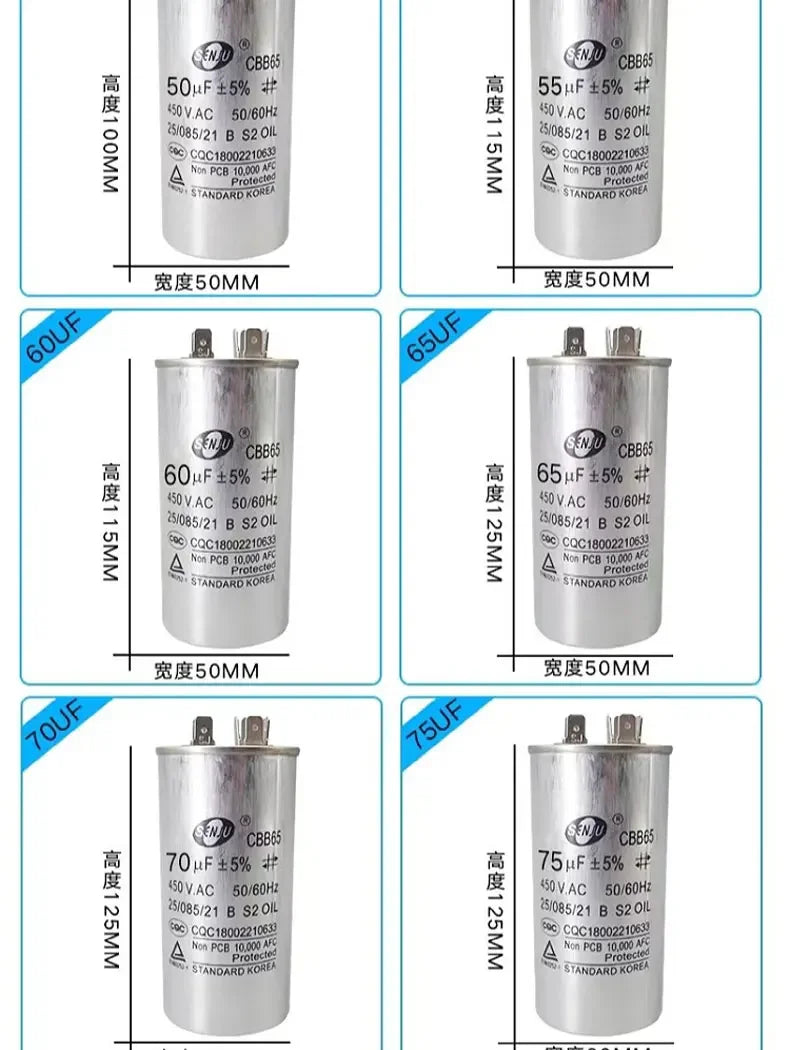

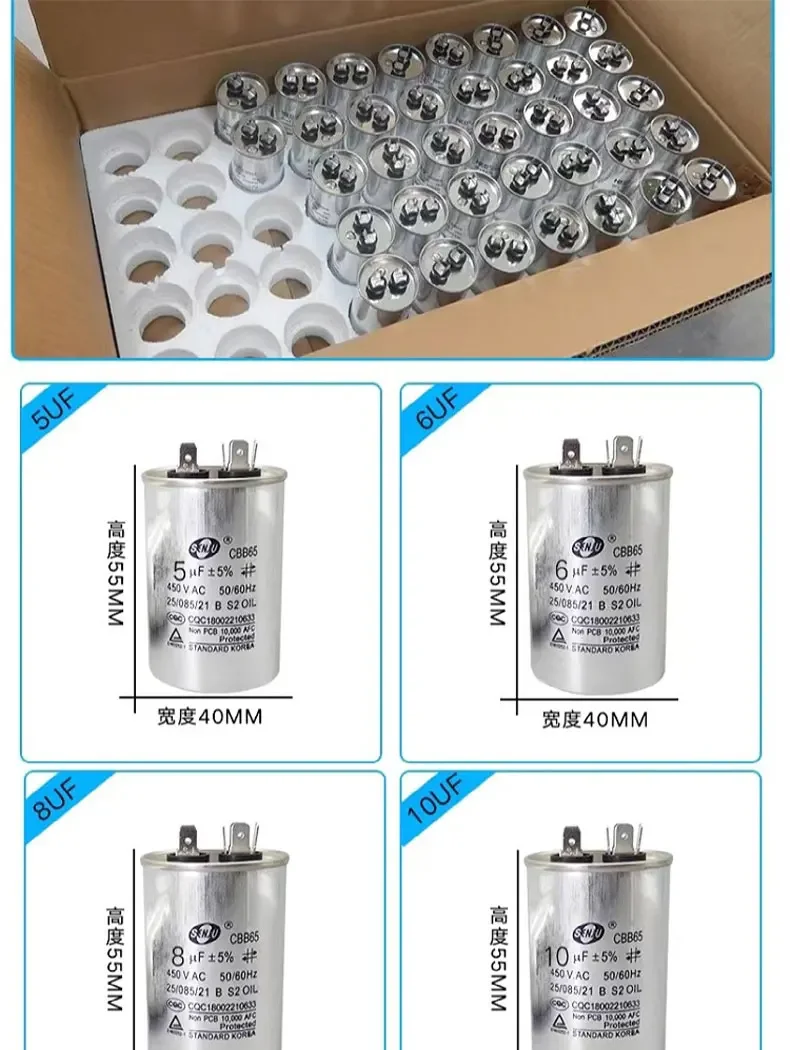

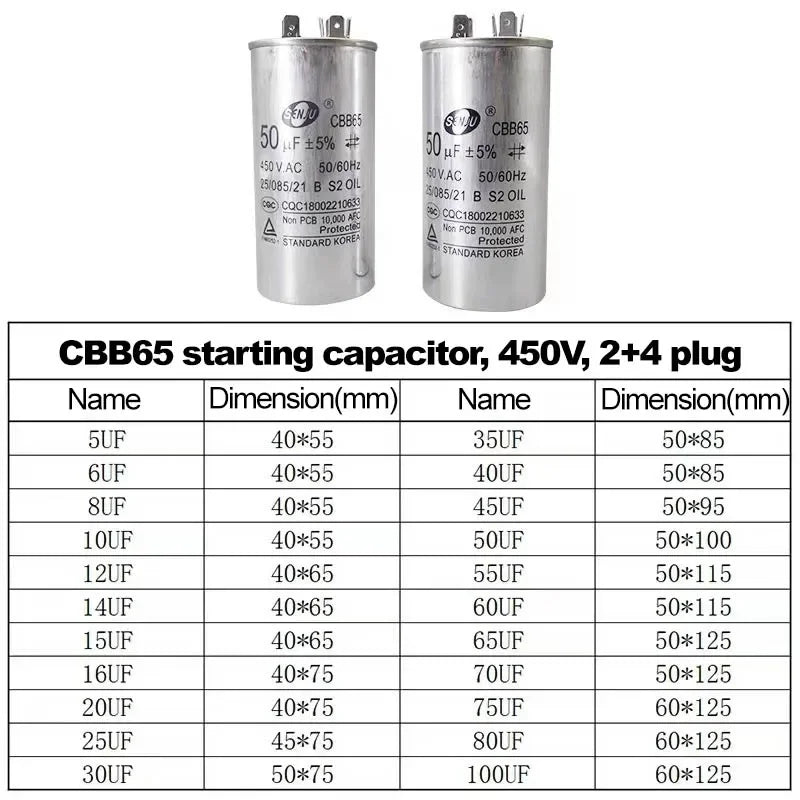

Product specifications: 5uf~100uf
Minimum allowable temperature: -25°CLoss Angle tangent: <0.002(AT 100Hz <1V)
Insulation resistance :T-T>3000MΩ. uF(AT 250VDC) T-C1000ΜΩ(AT 500VDC)
20UF 25UF 30UF 35UF 40UF 45UF 50UF 55UF 60-100UF CBB65 A air conditioner capacitor compressor motor runs starting capacitor 450VAC
Notes:

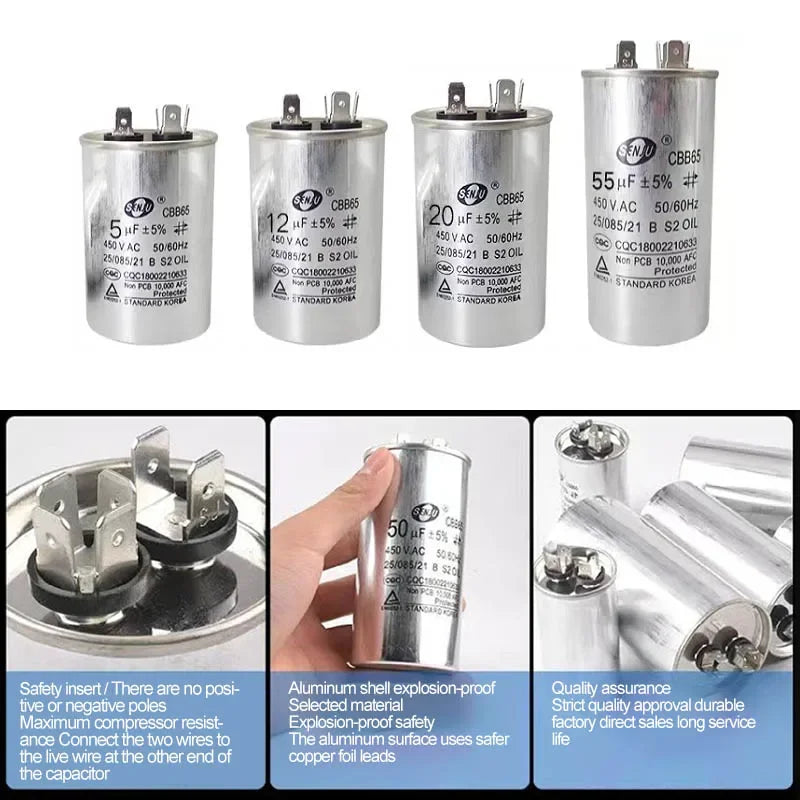

The starting capacitor is not divided into positive and negative poles, and the two wires of the compressor resistance value are connected to the live wire at the other end of the capacitor

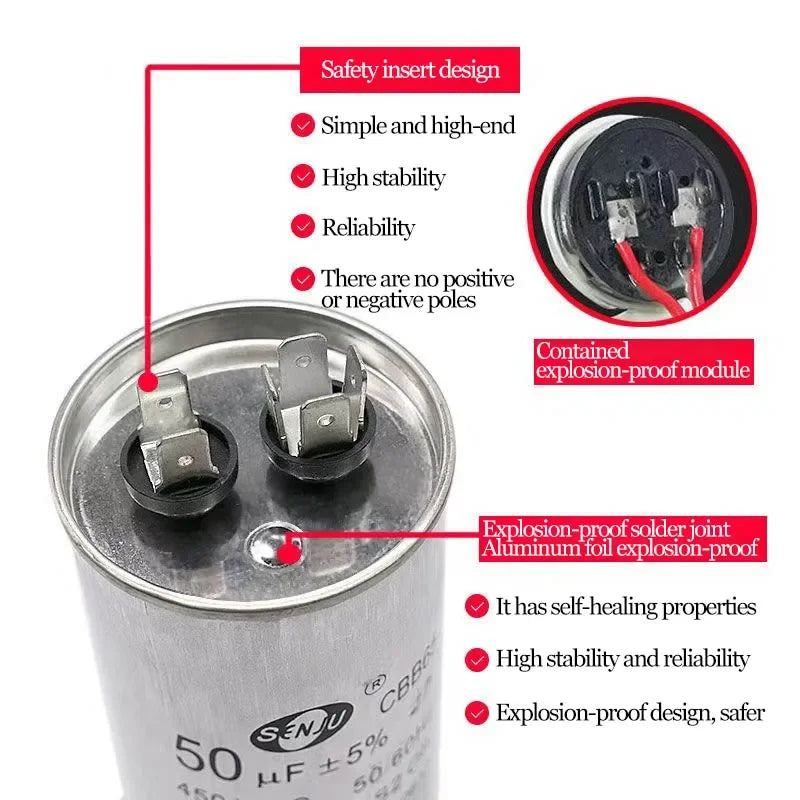

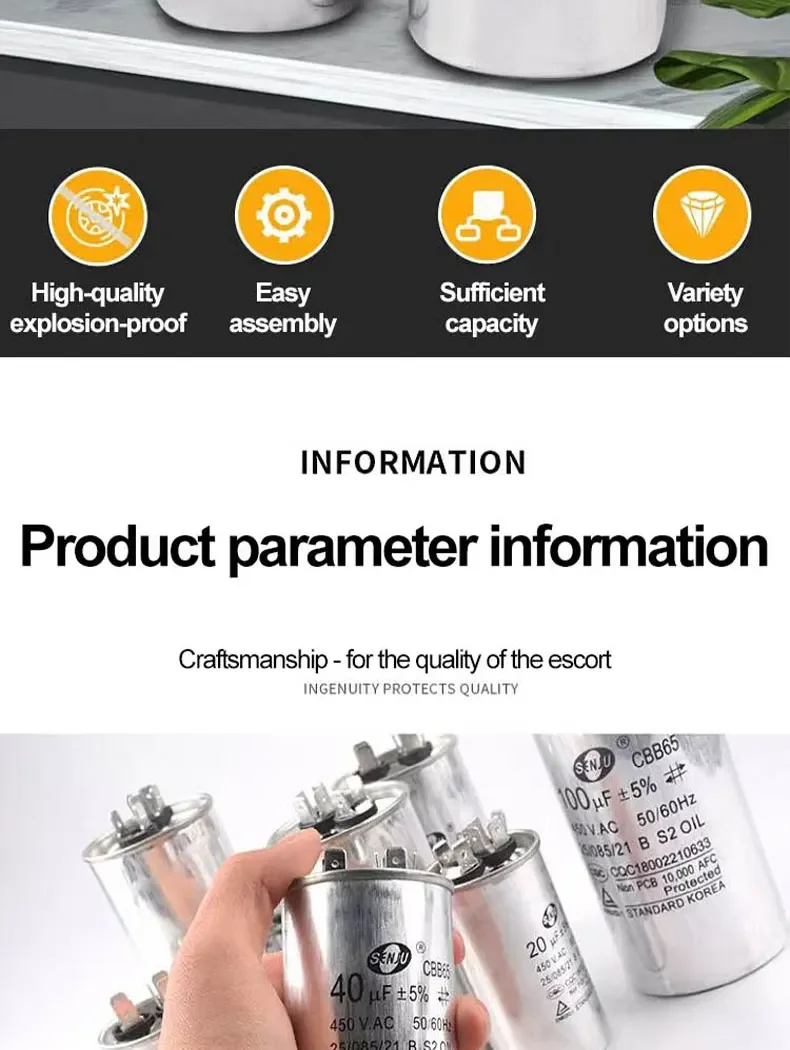

The product has been upgraded to the explosion-proof design of the second-generation model, which is safe and reliable to use
Under high temperature use, the capacitor has better heat dissipation effect and more stable performance
