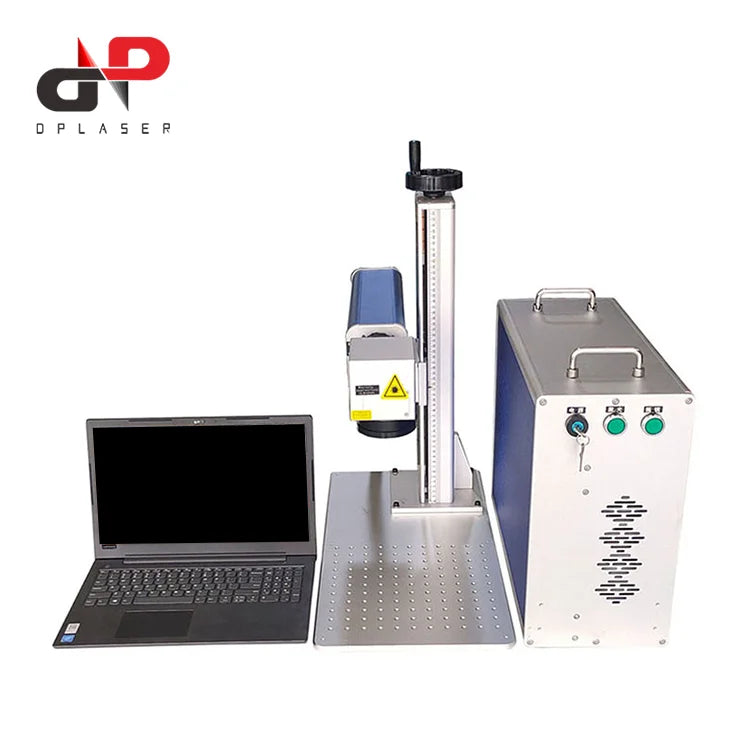

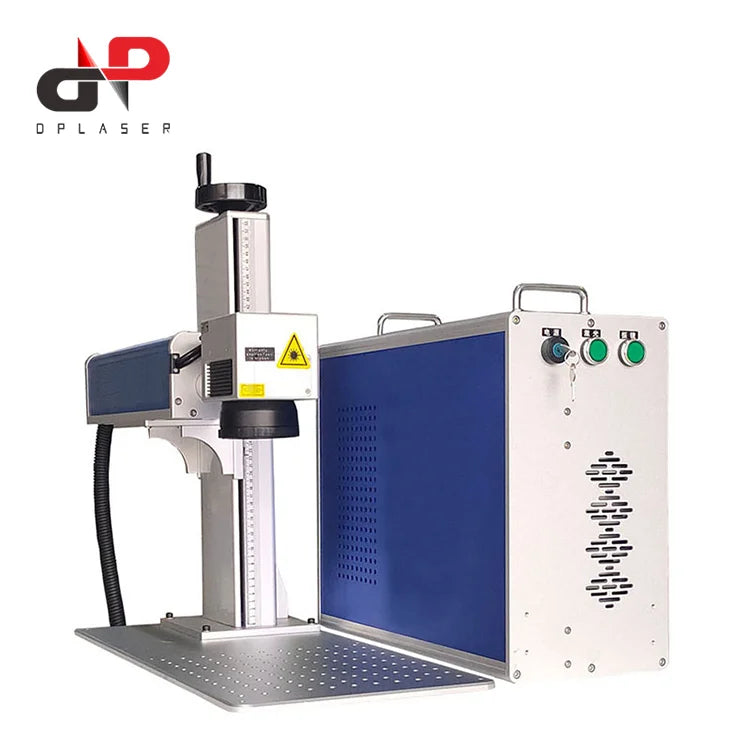

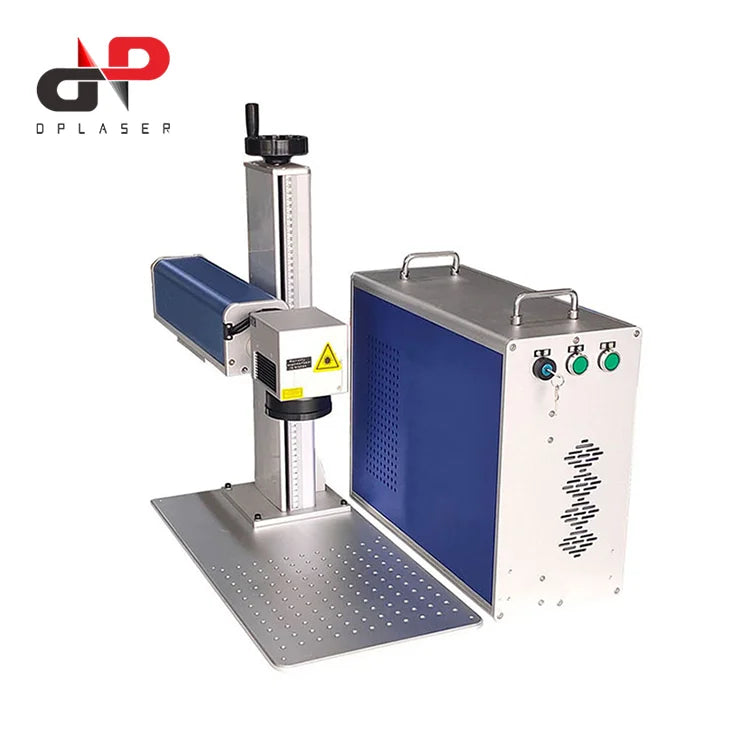

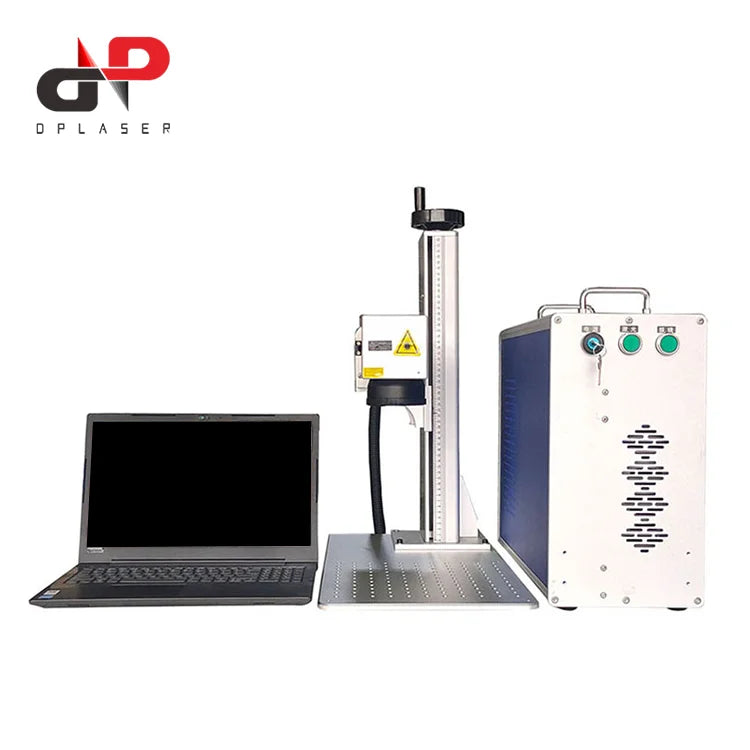

20W 30W 100w Split Type Mini Portable Fiber Laser Marking Machine for Jewelry
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
20W 30W 100w Split Type Mini Portable Fiber Laser Marking Machine for Jewelry
SPECIFICATIONS
After-sales Service Provided: Overseas engineers provide door-to-door service
Applicable Material: Metal Nonmetal Materials
Application: Laser Marking
Cooling System: Air Cooling
Function: Marking Logo Metal Non Metal
Laser power: 20W 30W
Laser source: Raycus MAX IPG JPT Laser Source
Laser wavelength: 1064nm
Marking Depth: 0.1-0.5 mm
Marking Speed: 1000-3000 mm/s,0-8000mm/s
Power supply: 110V/220V Optional
Product name: Fiber Laser Marking Engraving Machine
Weight: 45 KG
brand name: DP LASER
cnc or not: Yes
condition: New
configuration: Hand-Held
control software: EZCAD
feature: Air-Cooled
graphic format supported: AI,PLT,DXF,BMP,Dst,Dwg,LAS,DXP
key selling points: High-Accuracy
laser type: Fiber Laser
mode of operation: Pulsed
place of origin: Guangdong, China
warranty: 1 Year
working accuracy: 0.01mm
20W 30W Split Type Mini Portable Fiber Laser Marking Machine For Jewelry
| Laser Power | 20W 30W Optional |
| Laser Source | Raycus/Max/IPG/JPT MOPA |
| Control Board | BJJCZ |
| Control Software | EZCAD |
| Galvo Head | Sino-Galvo |
| F-theta Lens | 70mm-400mnm Optional |
| Laser Lifespan | 100,000 Hours |
| Laser Wavelength | 1064nm |
| Marking Speed | 0-8000mm/s |
| Power Consumption | ≤800W |
| Cooling Mode | Air Cooling |
| Supported characters | Any fonts downloaded on computer |
| Supported format | DWG,DFX,BMP,JPG,PNG,TIF,PCX, TAG, GIF, PLT etc.. |
| Supported Bar code | CODE39, EAN, CODE128, Data Matrix, PDF417 etc.. |
| Voltage | 110V/220V Optional |
