SPECIFICATIONS

Application: Computer

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: None

Origin: Mainland China

Package: TQFP

Quantity: 1

Type: Voltage Regulator

is_customized: Yes

Features:
1.Color screen display, with 3 options and models to choose from
2.The 22.5W program for this model has been updated. The maximum output power of each protocol can be adjusted to the maximum input power of 21W, and the maximum output power of 22.5W. Not only does SCP output 22.5W, but protocols such as QC and PD are also adjusted to the maximum 22.5W.
3.Both Type-A USB sockets are designed with 5P high current USB sockets, with thicker and wider copper contacts to increase overcurrent capacity and reduce heat generation and losses.
4.Support SCP and VOOC high current output

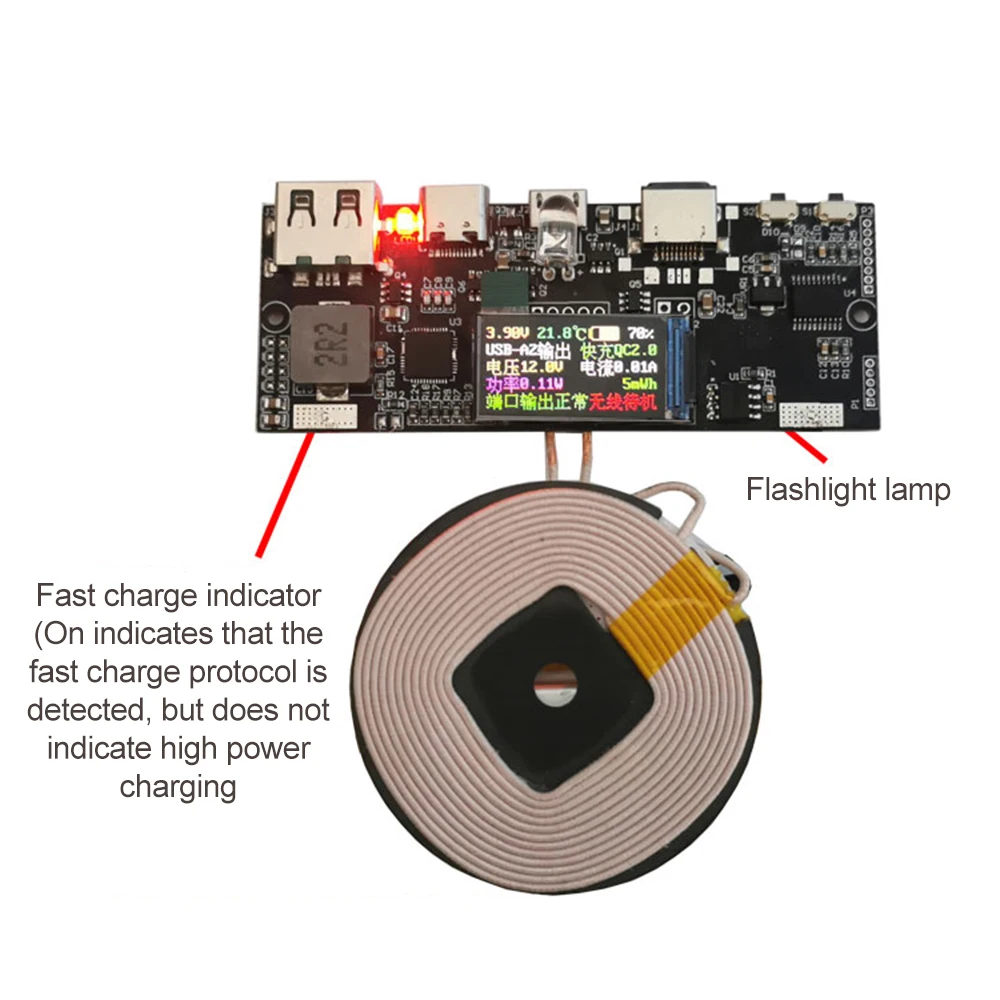

5.The fast charging indicator light is on, indicating recognition of the fast charging protocol and not necessarily high-power charging

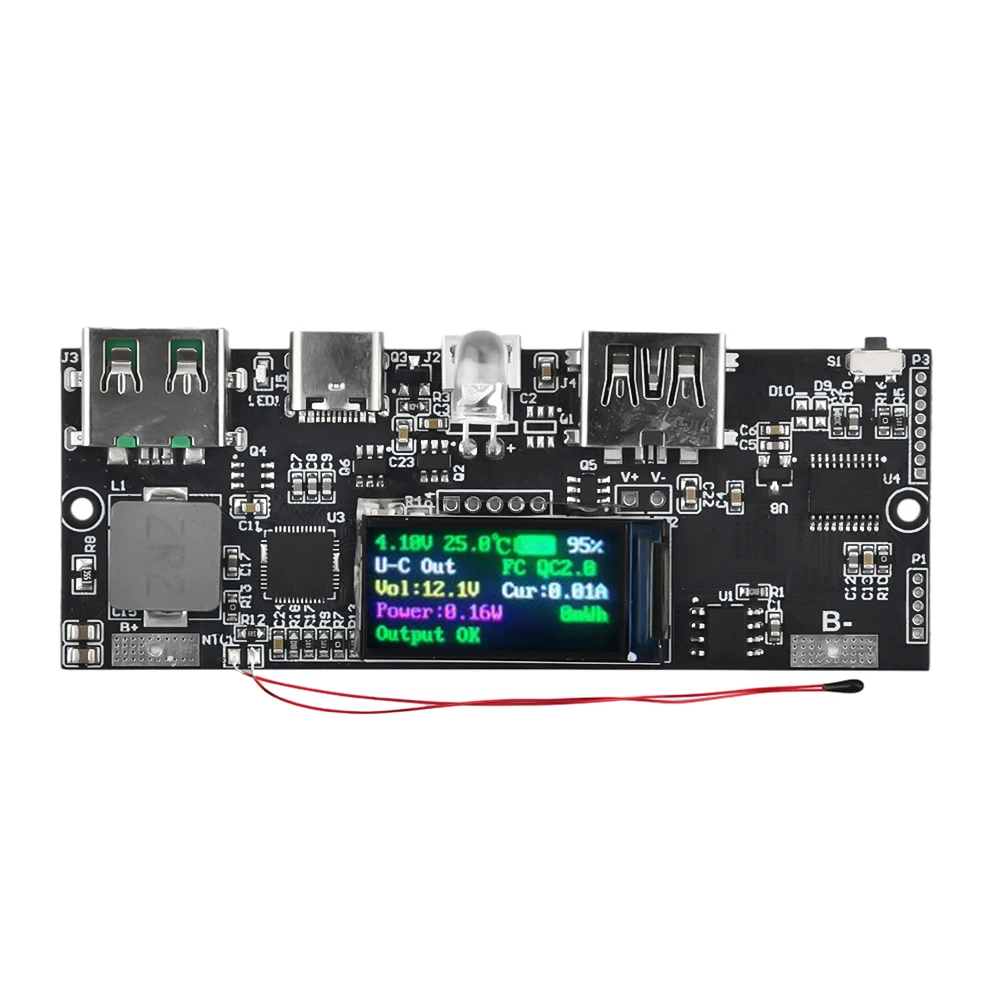

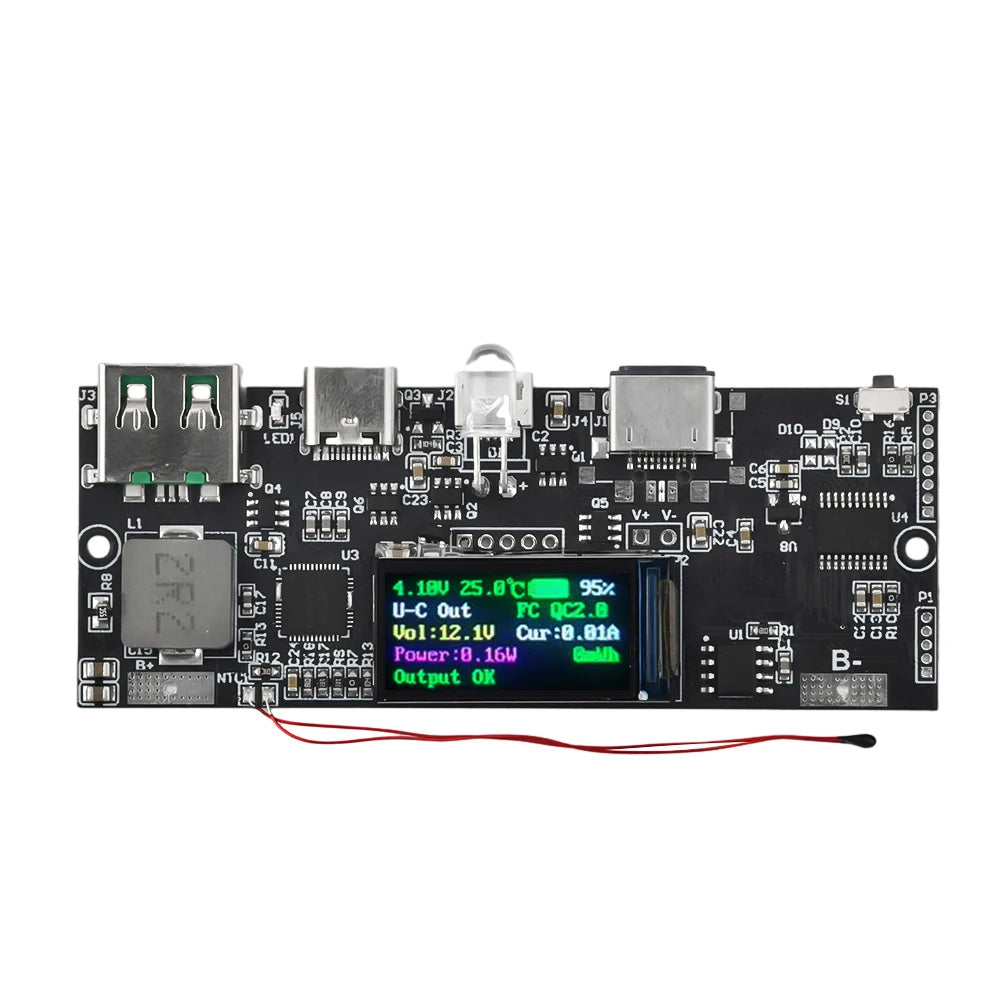

6.There are four parameter displays in the first line of the screen, namely: battery voltage, external temperature display (battery temperature), battery icon display, battery percentage, battery percentage is fixed in white, and the left three will change colors based on voltage temperature and battery level

Parameters:

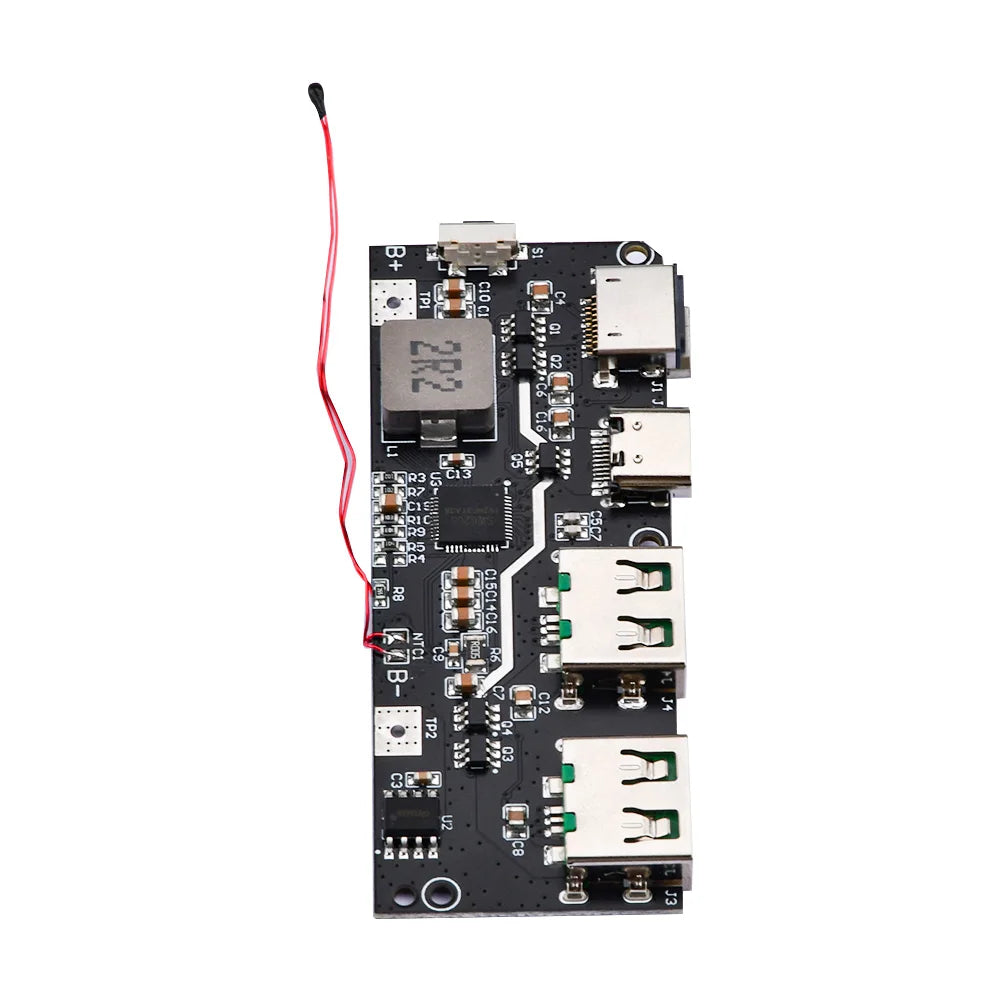

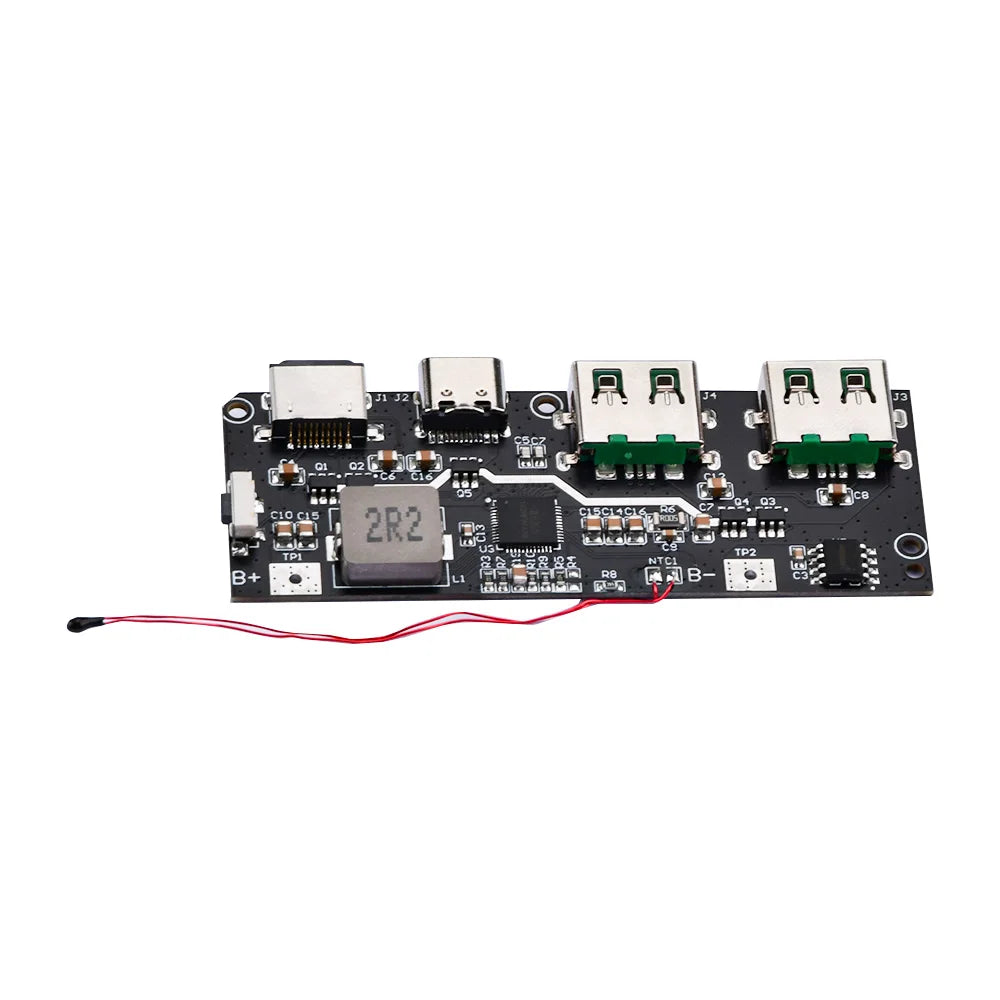

The motherboard has 5 USB ports by default, Type-C, Lightning, Micro USB, Type-A1, Type-A2
Lightning supports PD2.0 fast charging input.
Type-C supports AFC/FCP/SCP/PE1.1/PD3.0/PD2.0/QC4+/QC4/QC3.0/QC2.0 fast charging input;
Support PPS/PD3.0/PD2.0/AFC/FCP/PE2.0/PE1.1/QC4/QC4/QC3.0/QC2.0/SFCP fast charging output.
Type-A1/Type-A2
Supports PPS/PD3.0/PD2.0/AFC/FCP/PE2.0/PE1.1/VooC/QC4+/QC4/QC3.0/QC2.0/SCP/SFCP output Micro USB supports AFC/FCP/PE1.1/QC3.0/QC2.0 fast charging input;
Type-C supports bidirectional fast charging of input and output. Input support 5V/9V/12V voltage PPS output support 5-5.9V@3A 、 5-11V@2A ,
PD3.0/PD2.0 output support 5V@3A 、 9V@2.4A 、 12V@1.75A 。
QC2.0 output support 5V@3.2A 、 9V@2.4A 、 12V@1.75A 。
QC3.0 supports 5V-12V output voltage, 200mV/Step.
AFC output supports 5V/9V/12V. Input supports 5V/9V voltage.
FCP output supports 5V/9V/12V. Input supports 5V/9V voltage.
SCP output support 5V@4.5A 。 Input support 5.5V@3A 。
PE2.0 output supports 5V to 12V, 500mV/Step.
PE1.1 output supports 5V/7V/9V/12V. Input supports 5V/9V voltage.
SFCP output supports 5V/9V/12V.
VOOC output support 5V@4A 。
Support Type-A1/Type-A2/Type-C ports for simultaneous external discharge. maximum 5V@4.2A

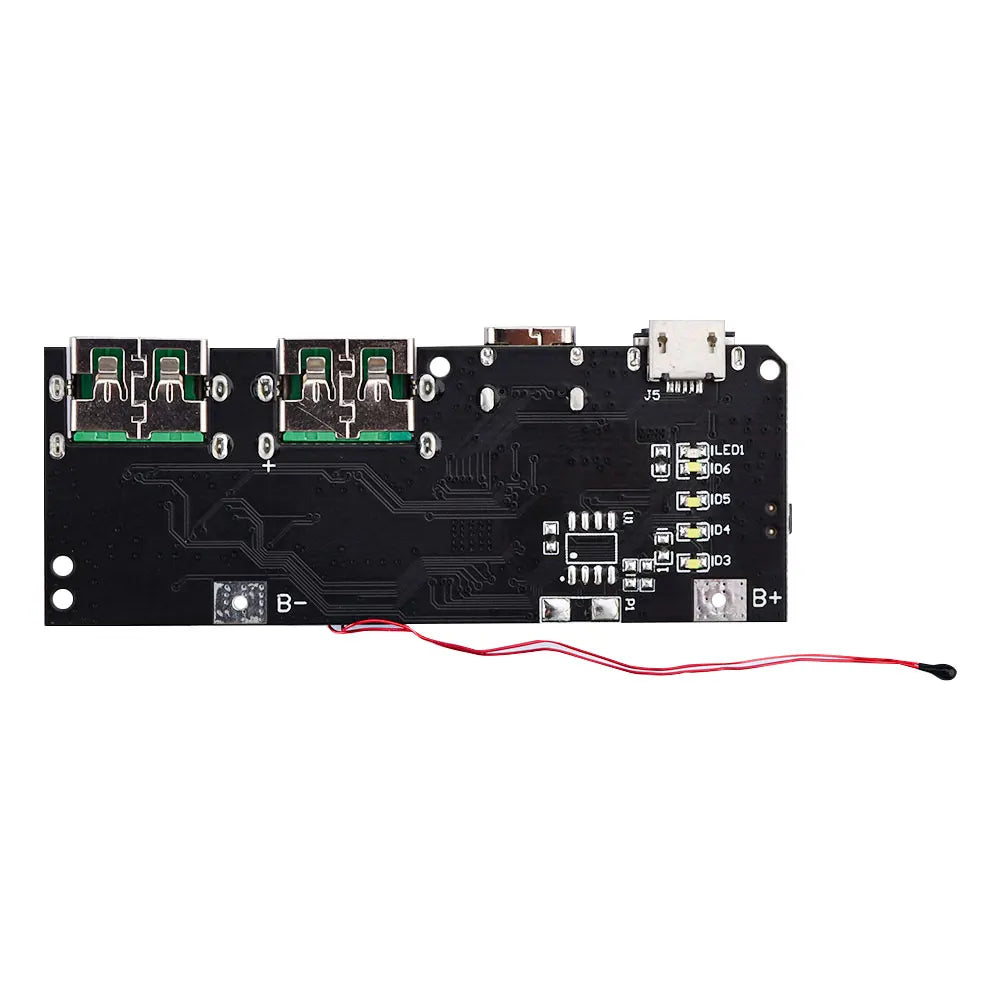

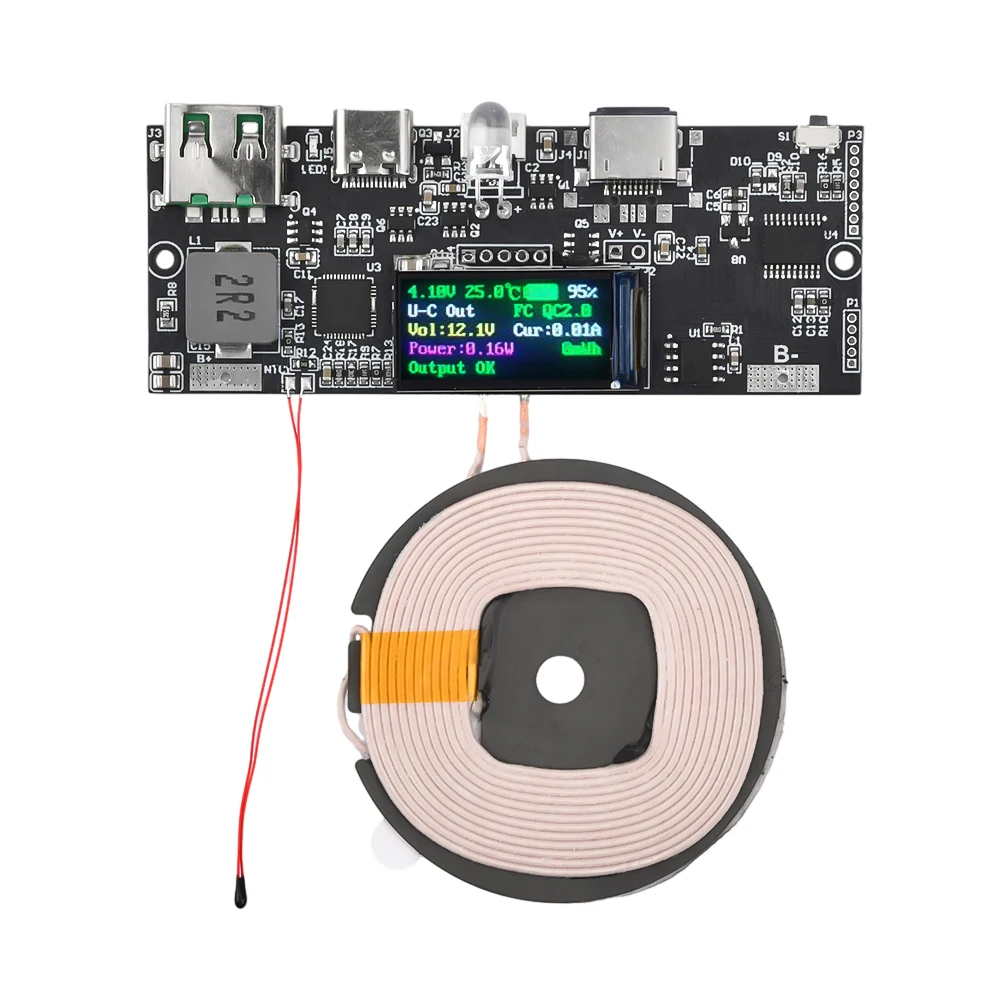

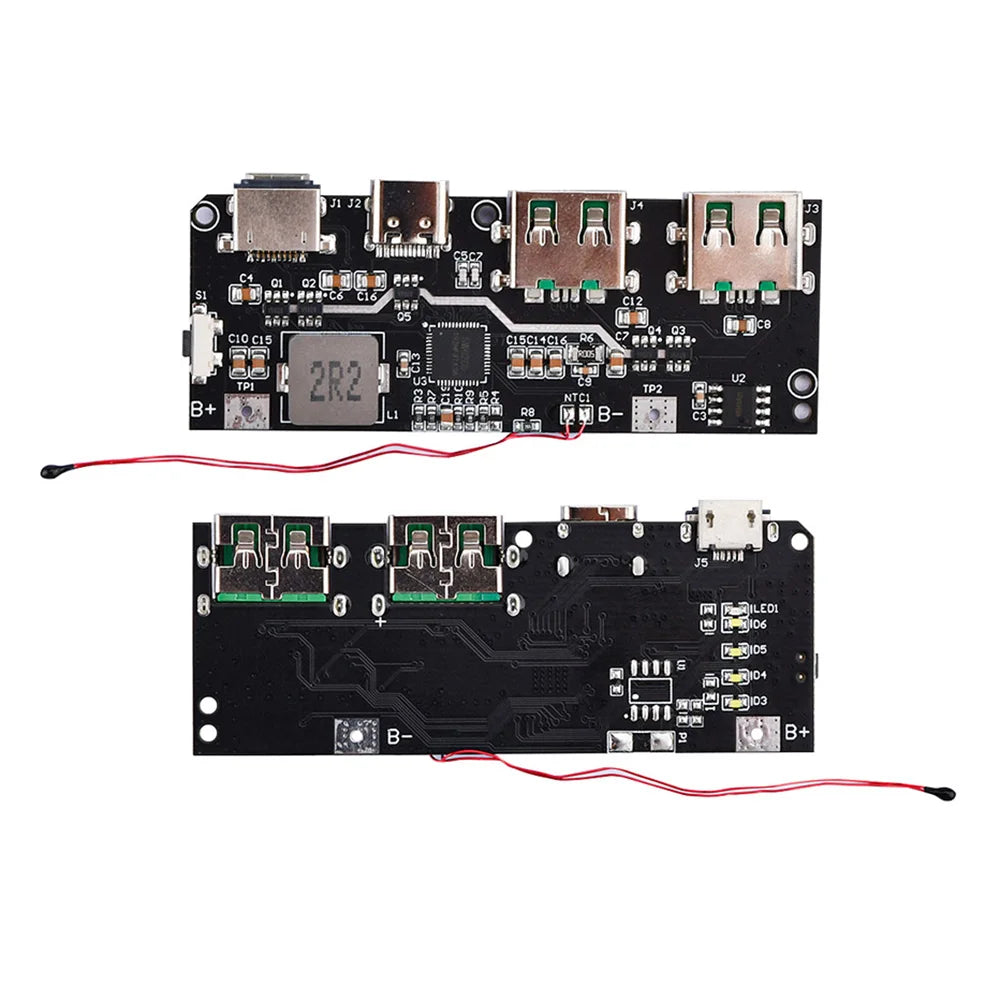

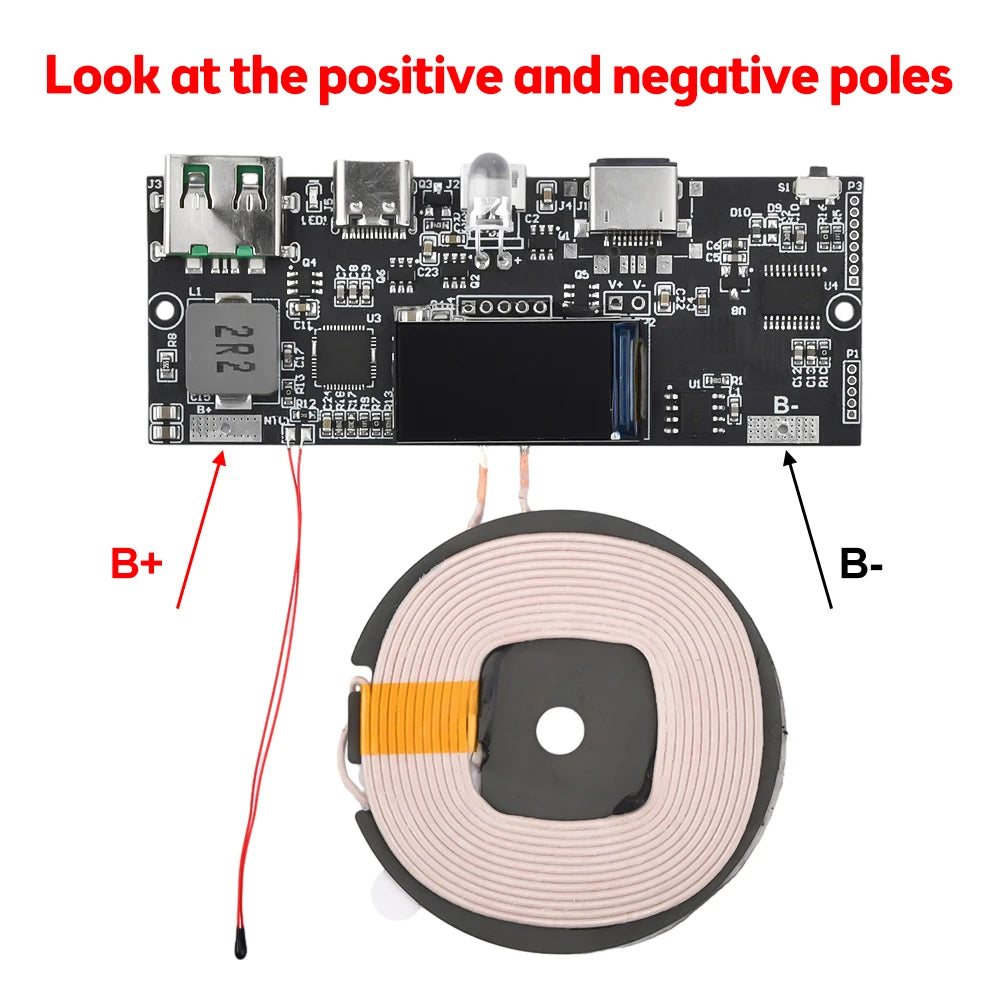

The back of the board with wireless charging will be soldered with components, while the back of the board without wireless charging will not be soldered,

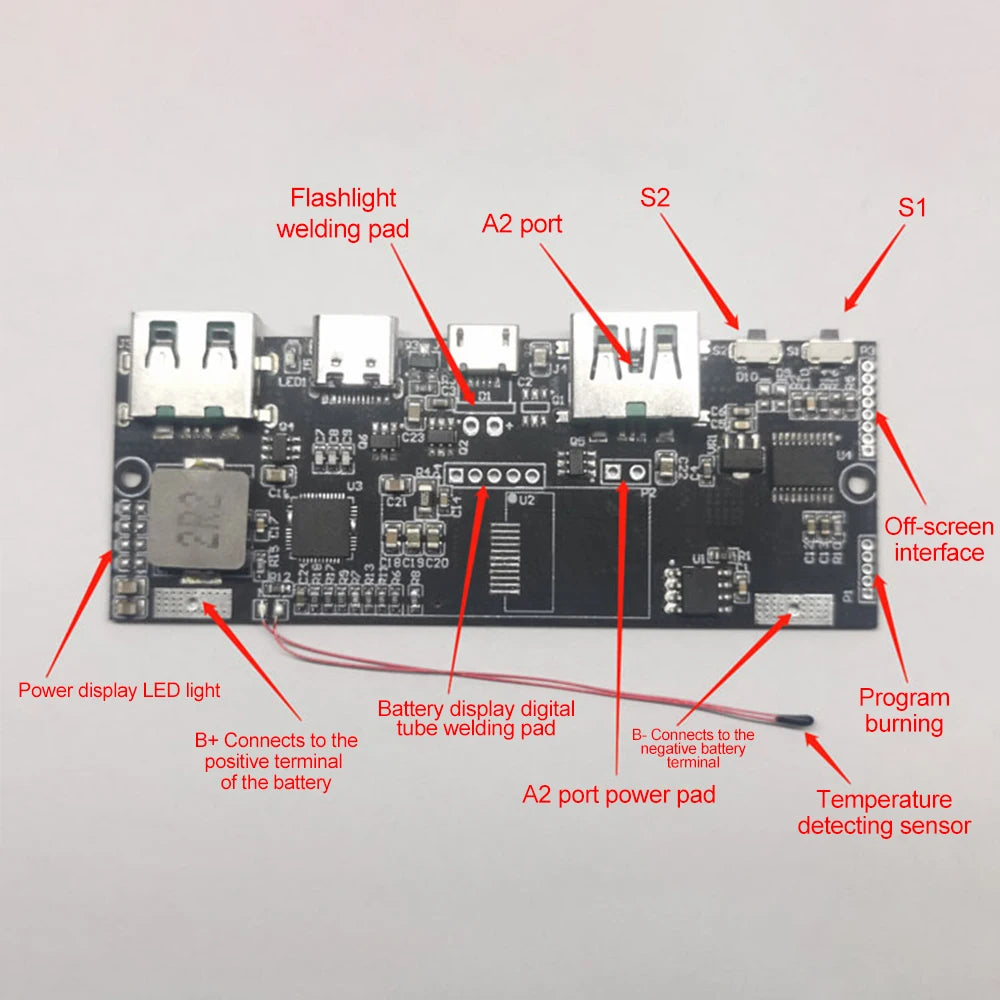

Key function: (S1 only, S2 currently has no function, and will not be welded by default)
Short press: Power the wireless charger with wireless charging. Open A1 port output without wireless charging. Double click: Force shutdown.
Long press: Turn on and long press to turn off the low current mode. Turn off the flashlight by long pressing the switch. (The low current function can charge small current devices such as watches, Bluetooth, etc. without turning off within 2 hours. In fact, it does not detect the output of too small current. The output of too large current is still protected. It does not mean that it is low-power charging when turned on, and the low current mode ≠ low-power charging.)

Package include:
1X module
