3.5 inch display WT32-SC01screen lcd module 320*480 lcd with touch screen smart displays esp32 development board for iot device
-
Estimated Delivery:Mar 06 - Mar 10
-
Free Shipping & Returns: On all orders over $75
3.5 inch display WT32-SC01screen lcd module 320*480 lcd with touch screen smart displays esp32 development board for iot device
SPECIFICATIONS
Blue-tooth: V4.2 BR/EDR/BLE Standard
Brand Name: Wireless-tag
CPU: Dual core Xtensa 32 bit LX6 mcu
Certification: RoHS,ISO9001
Display Size: 3.5inch
Part No: WT32-SC01
Place of Origin: Guangdong, China
Power: DC 5V 2A
Resolition: 320*480
Screen: capacitive touch screen
Supplier Type: original factory support
Temperature: -20~85
Touch Screen: Capactive Multi Touch Screen
Type: TFT
WIFI: 2.4G wii 802.11 b/g/n protocol
WT32-SC01 ESP32 Dev-kitC with 3.5inch display / lcd display touch screen monitor based on ESP32-WROVER-B Wifi&BLE module
WT32-SC01 is a development board for visual touch screen. The board is equipped with self-developed GUI platform firmware and supports graphical drag-and-drop programming to help users complete the development of a custom control platform.
We are the original factory to produce and R&D the WT32-SC01, ensure authenticity, quality, technical support and best price!
Plz feel safe to place order or inquiry us!
Description

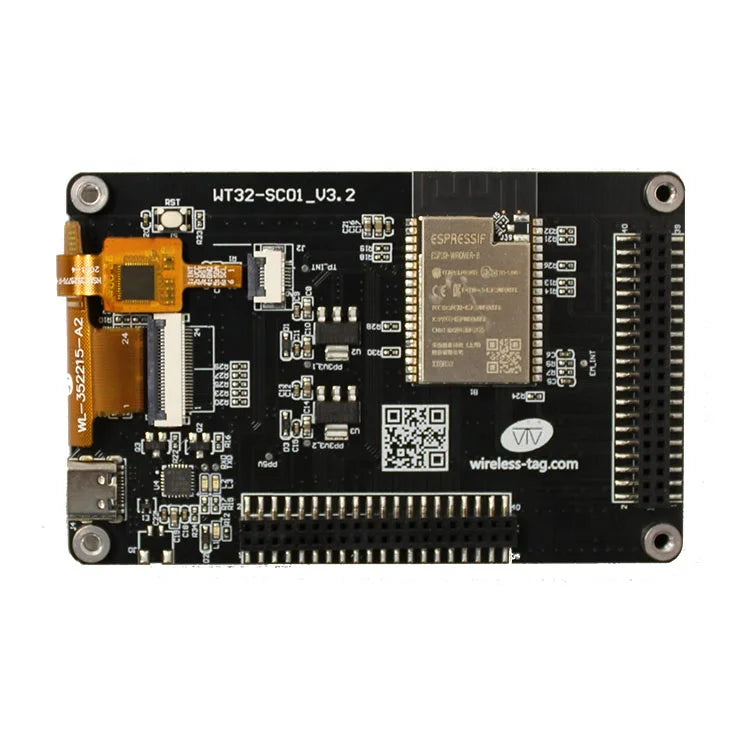

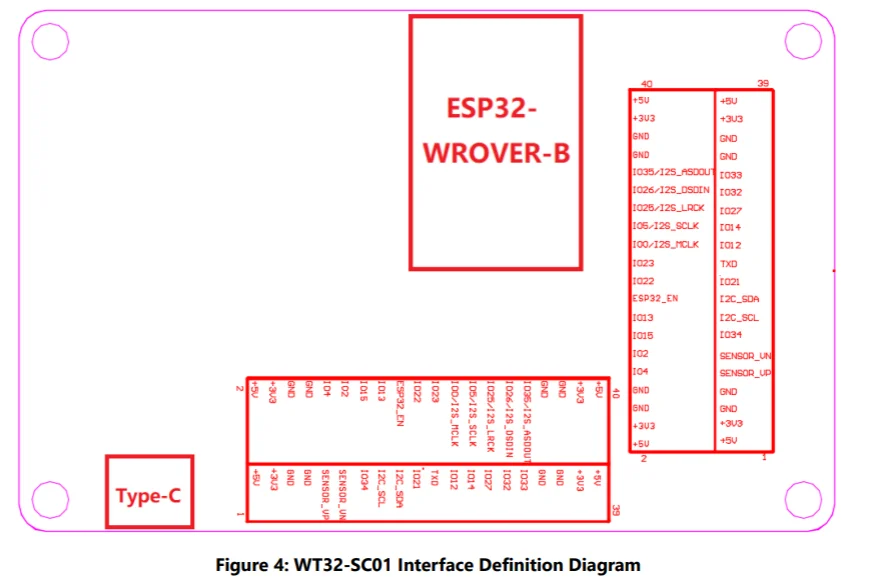

WT32-SC01 is a development board for visual touch screen. The board is equipped with self-developed GUI platform firmware and supports graphical drag-and-drop programming to help users complete the development of a custom control platform. The main control of the WT32-SC01 development board adopts the ESP32-WROVER-B module, which is a general-purpose Wi-Fi+BT+BLE MCU module with 16MB SPI Flash and 8MB PSRAM. The WT32-SC01 development board can also develop and debug button, voice, camera and other functions through the expansion interfaces on both sides, which greatly shortens the user’s development cycle.
Feature
> Adopt ESP32-WROVER-B module
> Blue-tooth v4.2 BR/EDR and BLE standards
Application
Home automation
Smart home control panel
Wearable electronics
