3.5 Inch IPS LCD Display Module 480x320 Capacitive Touch Screen ST7796 TFT SPI LCD Module for Mega2560/C51/STM32/ESP32/Arduino
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
3.5 Inch IPS LCD Display Module 480x320 Capacitive Touch Screen ST7796 TFT SPI LCD Module for Mega2560/C51/STM32/ESP32/Arduino
SPECIFICATIONS
Brand Name: NONE
Display Color: 65K colors
Display Interface: 4-Line SPI
Display Mode: null
Driver IC: ST7796U
High-concerned chemical: None
Model Number: 3.5 inch IPS
Origin: Mainland China
Resolution: 320*240,480x320
Screen Type: IPS
Touch Screen: Capacitive Touch
Touch Screen Driver IC: FT6336U
Type: TFT
is_customized: Yes
>Product Feature

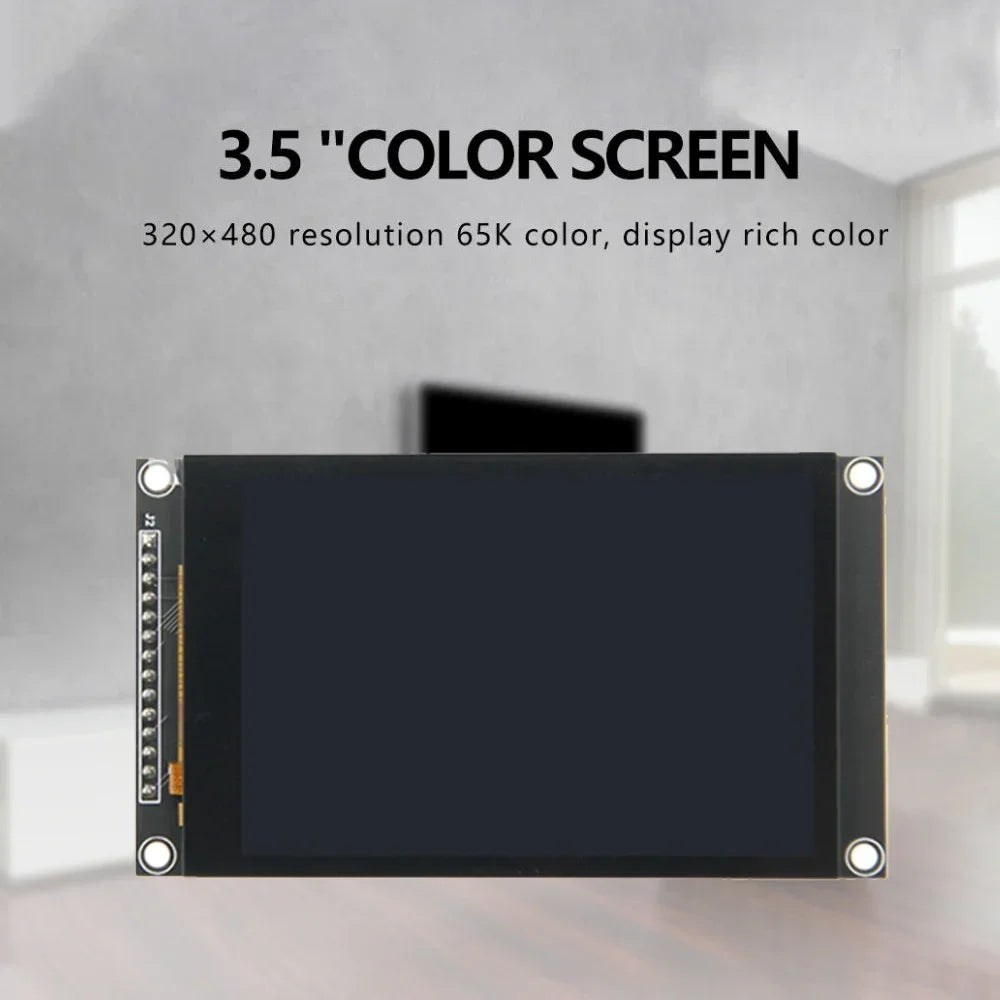

● 3.5inch color screen with 320x480 resolution of 65K colors and rich display colors
● The upgrade adopts IPS full view panel, with a good visual angle

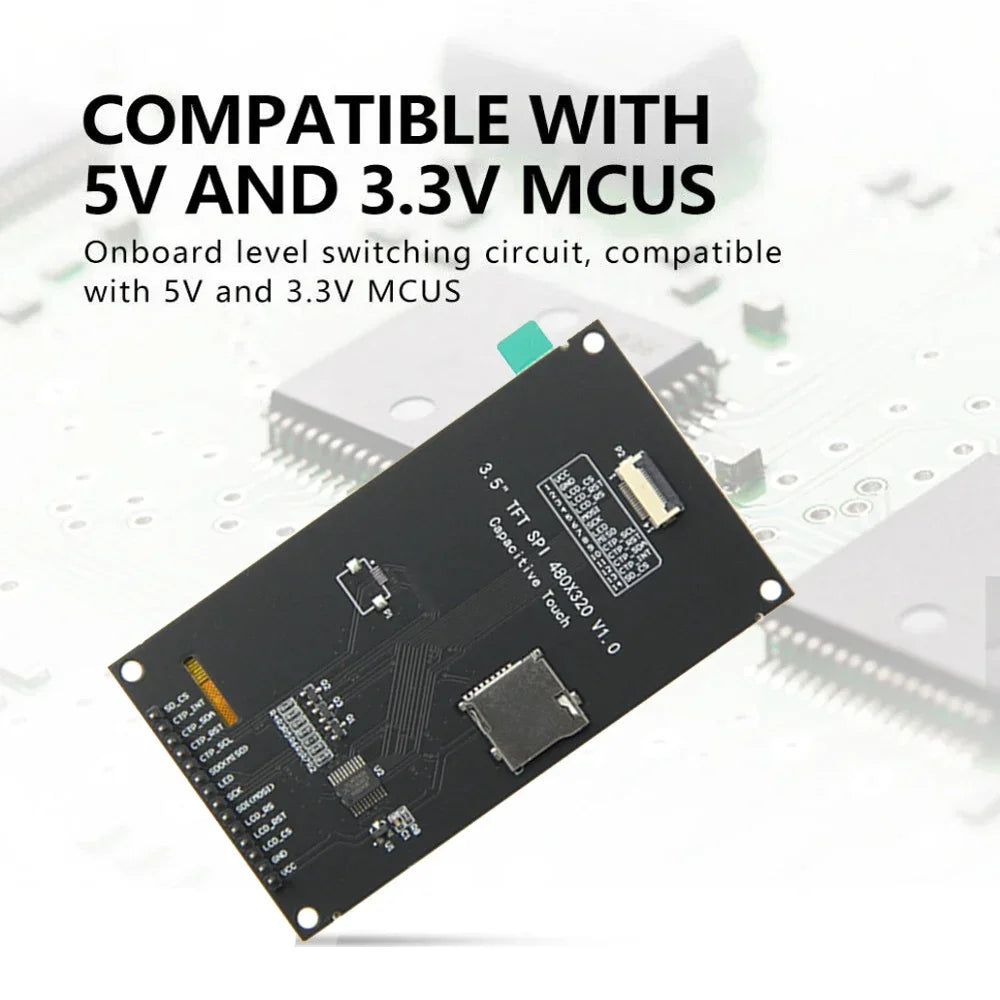

● On-board level conversion circuit, compatible with 5V and 3.3V MCU
● Adopting a 4-wire SPI serial bus to save I/O pins
● Optional capacitive touch/no touch function for modules

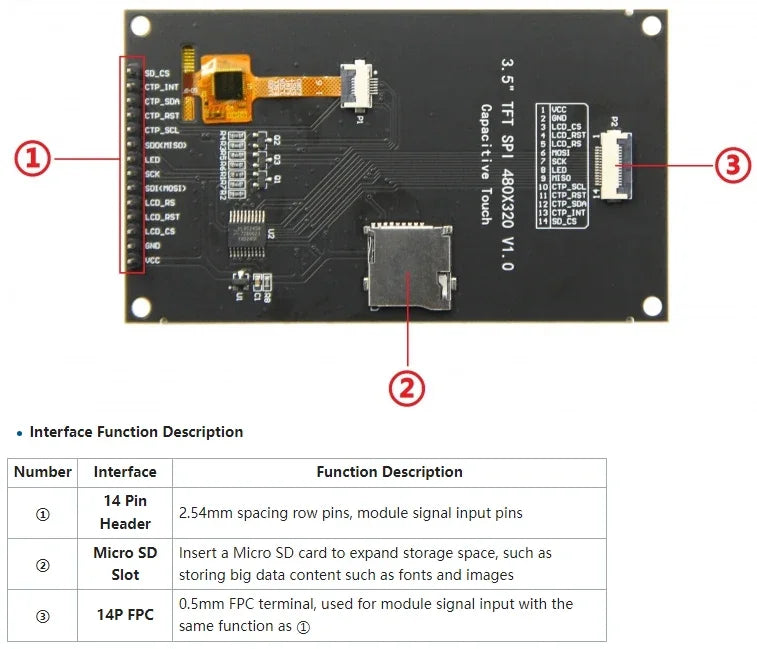

● Module input supports 2.54 pin interface and FPC extension interface
● Equipped with micro TF card slot for easy storage expansion
● Provide rich example learning programs (ESP32/STM32/Arduino UNO&Mage2560/C51/CH32)
● Provide low-level driver technical support, and update WIKI information online
● Multiple tests for module aging can meet high standards, supporting long-term stable work
>Click here for user manual

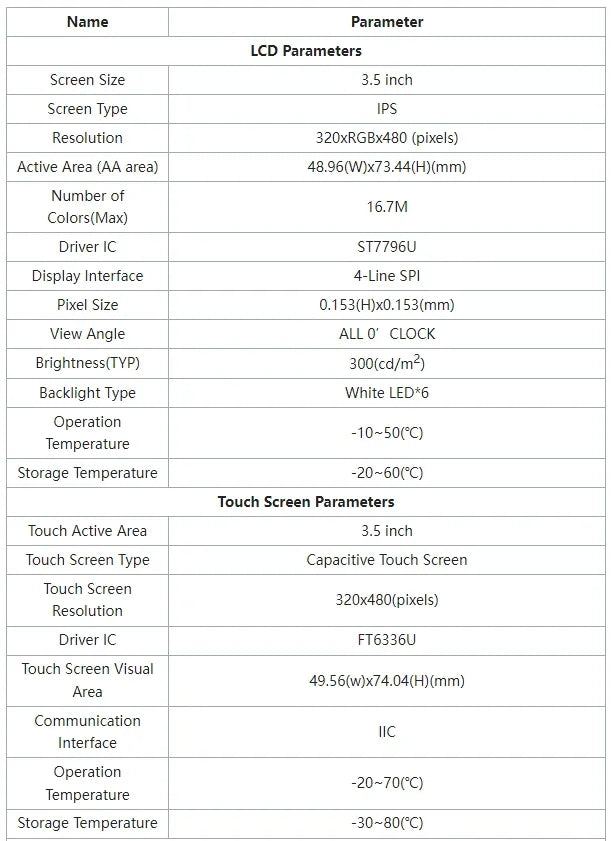

>Product Parameters

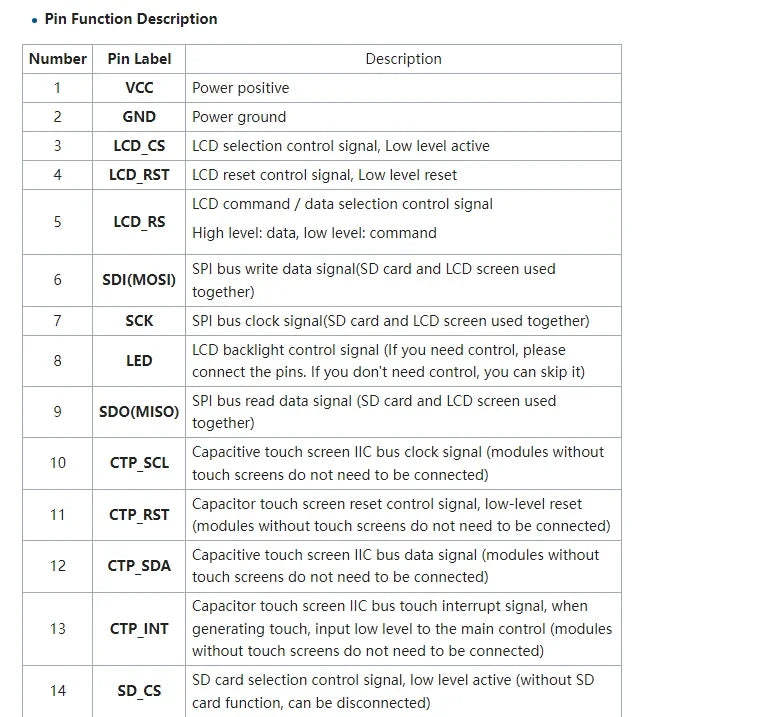

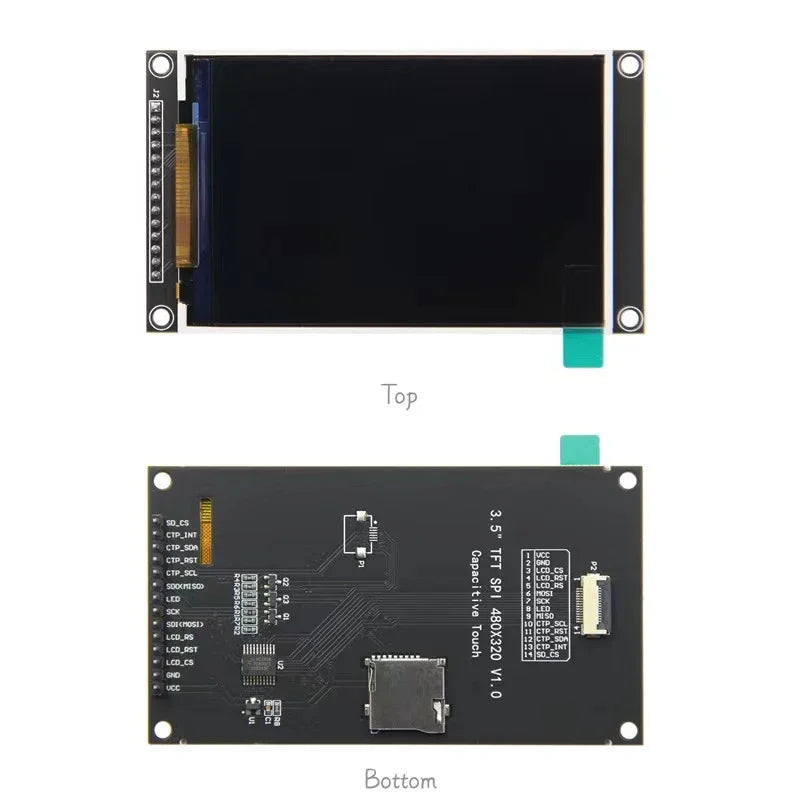

Interface Definition
>Product Show

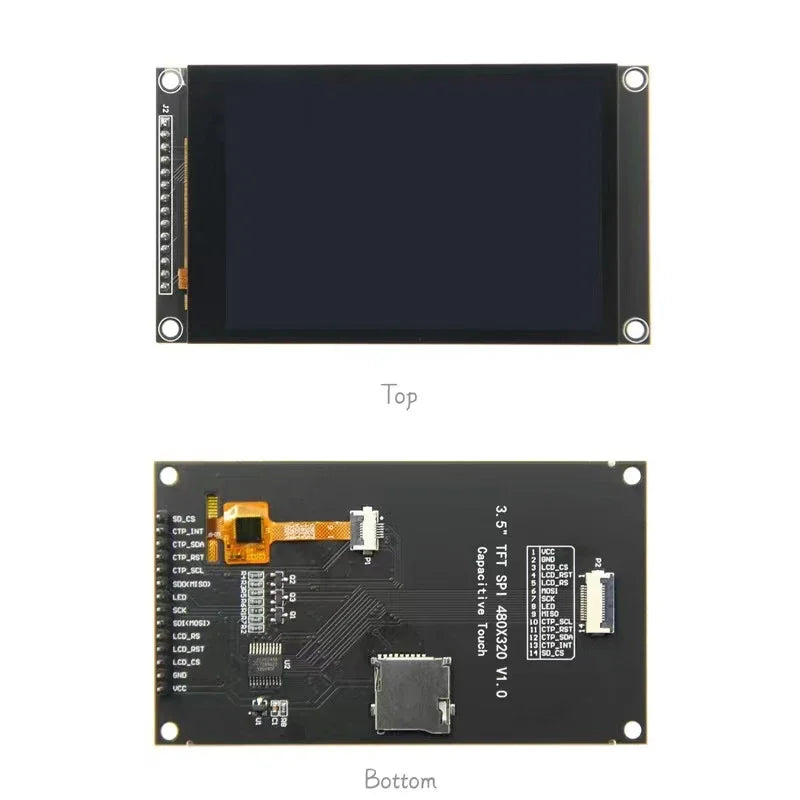

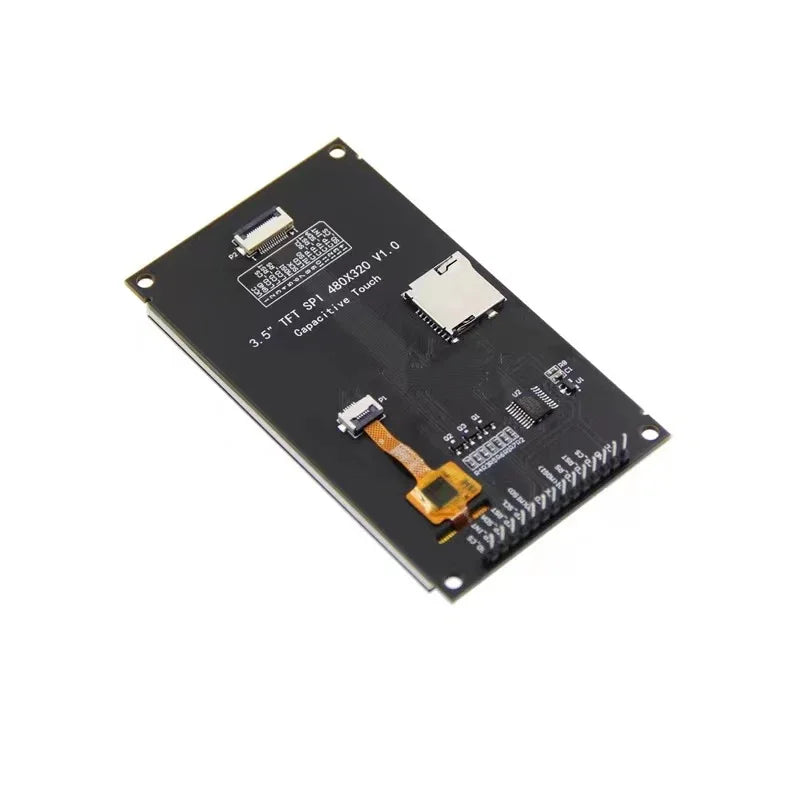

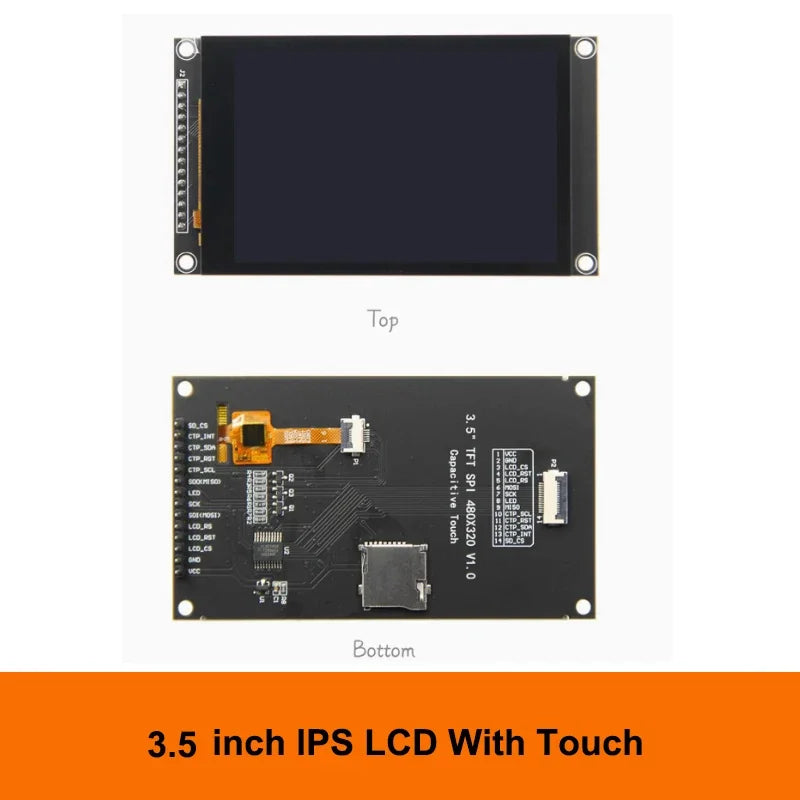

3.5 inch with Capacitive Touch

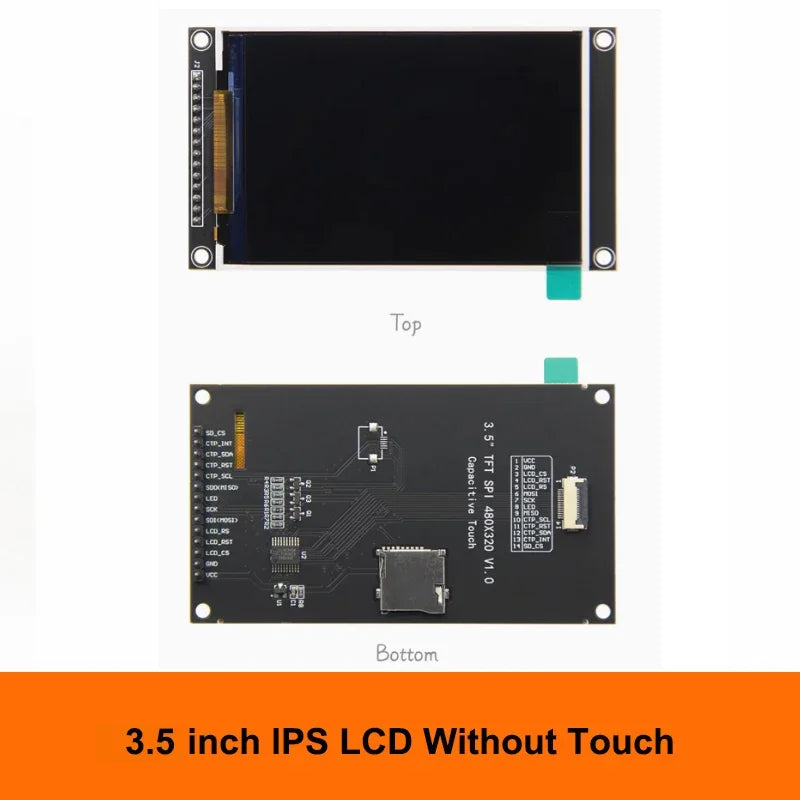

3.5 inch without Capacitive Touch

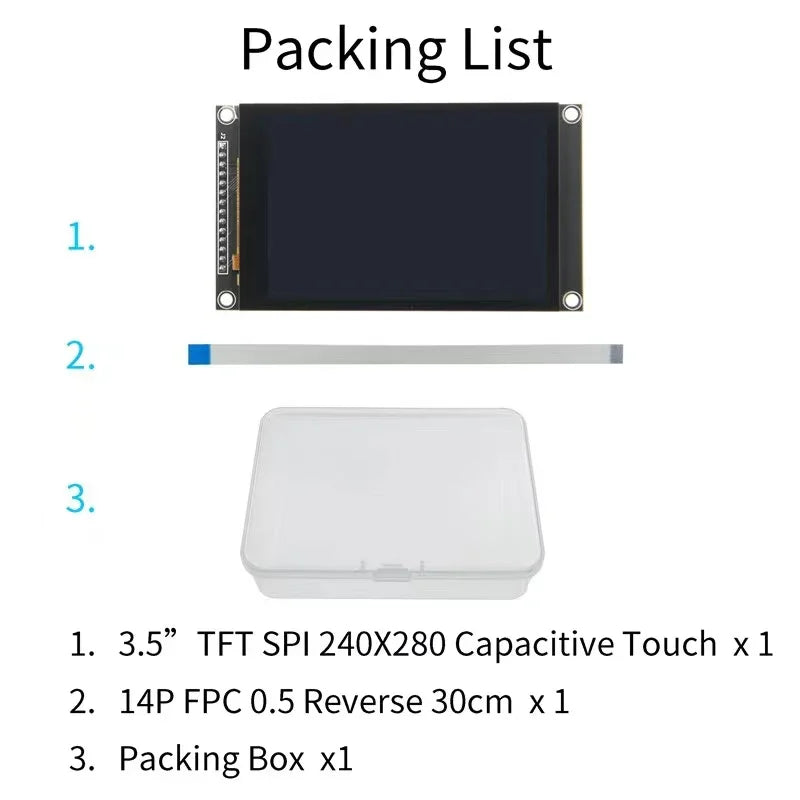

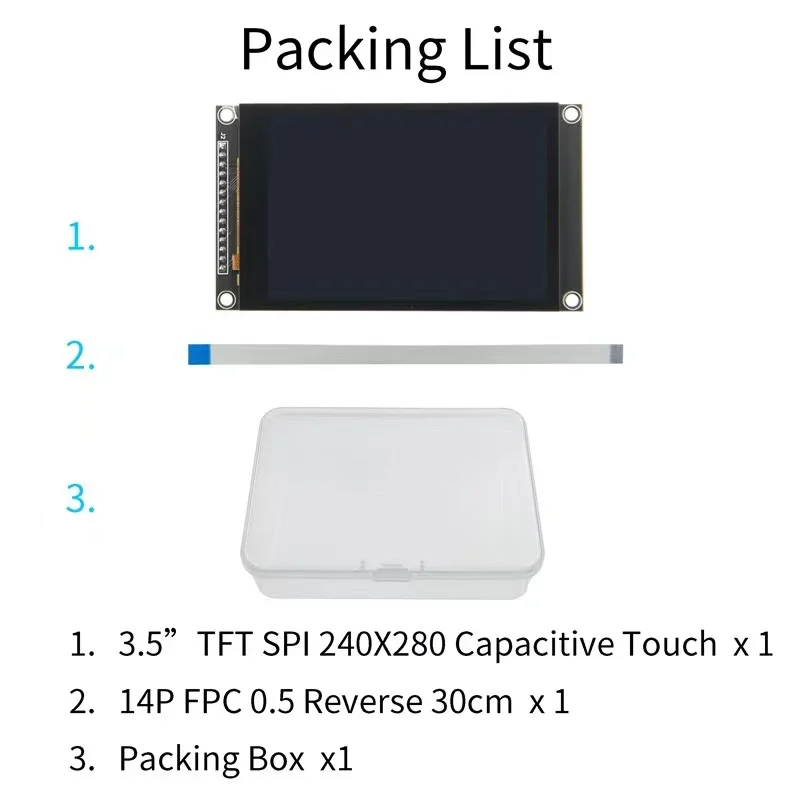

>Packing List
