32CH Nvr Human Detection Cctv Cameras Poe System 8Mp Waterproof Cctv Camera Surveillance Kit
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
32CH Nvr Human Detection Cctv Cameras Poe System 8Mp Waterproof Cctv Camera Surveillance Kit
SPECIFICATIONS
APP: XMeye Pro
Brand Name: Techage/OEM
Certification: CE FCC ROHS
Channel: 32 Channels
Customized support: Online Technical Support,Customized Logo,OEM, ODM,Software Reengineering
Data Storage Options: Full HD,Cloud,NVR
Function: Waterproof / Weatherproof,Wide Angle,Built-In Siren,Two-Way Audio,Pan-Tilt,Night Vision,Alarm I/O,Reset,Built-In Mic
HDD: 2*SATA Port (Max 14TB)
IR Distance: 30m
IR LED: 6 infrared light,6 white light
Lens: 3.6mm
Model Number: 7932K-32-DM27SP-AI-80N
Place of Origin: Guangdong, China
Power Supply: POE 48V/DC12V 1A
Product name: 8MP 32CH POE NVR Camera Kit
Resolution: 8mp
Sensor: CMOS
Special Features: Pan-Tilt,Built-In Siren,Night Vision,Two-Way Audio,Human Motion Tracking,Motion Detection,Waterproof / Weatherproof
Video Compression Format: H.265
Warranty: 1 Year

1. Our New 4K POE Camera System. 8 Channel NVR Design, Support To Connect Up To 8pcs Cameras, You Can Buy Techage POE IP Cameras To Expand Your CCTV System.
2.All Cameras Are Built-In Microphone And Speaker, Support Two-Way Audio Sound Recording.
3. Support DIY Alert Voice and Alarm Bell / Customized.
3. Newest AI Cameras Support Face Detection.
4. Three Night modes Setting: Day Vision, Night Vision, Full Color Night Vision.
5. P2P Remote Access/Multi-User : P2P technology let you be able to view the live situation of your house wherever you are , just with the P2P account on the app via your Smartphone or tablet.
32CH H.265X IP NVRPower Supply: DC 12V 4A
Plug and play,free install
Video Compression: H.265X
Encode capacity: 32CH 4K 5MP
Video Outputs: VGA/HD-MI HD Output
Recording Resolution: 4k/8MP/5MP
Recording Modes: Manual/Motion/Schedule/P2P Remote View
Hard Drive (HDD): 2*SATA port (each up to 14TB)
P2P Remote View: Support iOS, Android
20+ Languages Available: English, Chinese, French, German, Italian, Arabic, Portuguese, Russian, Spanish, Thai and so on

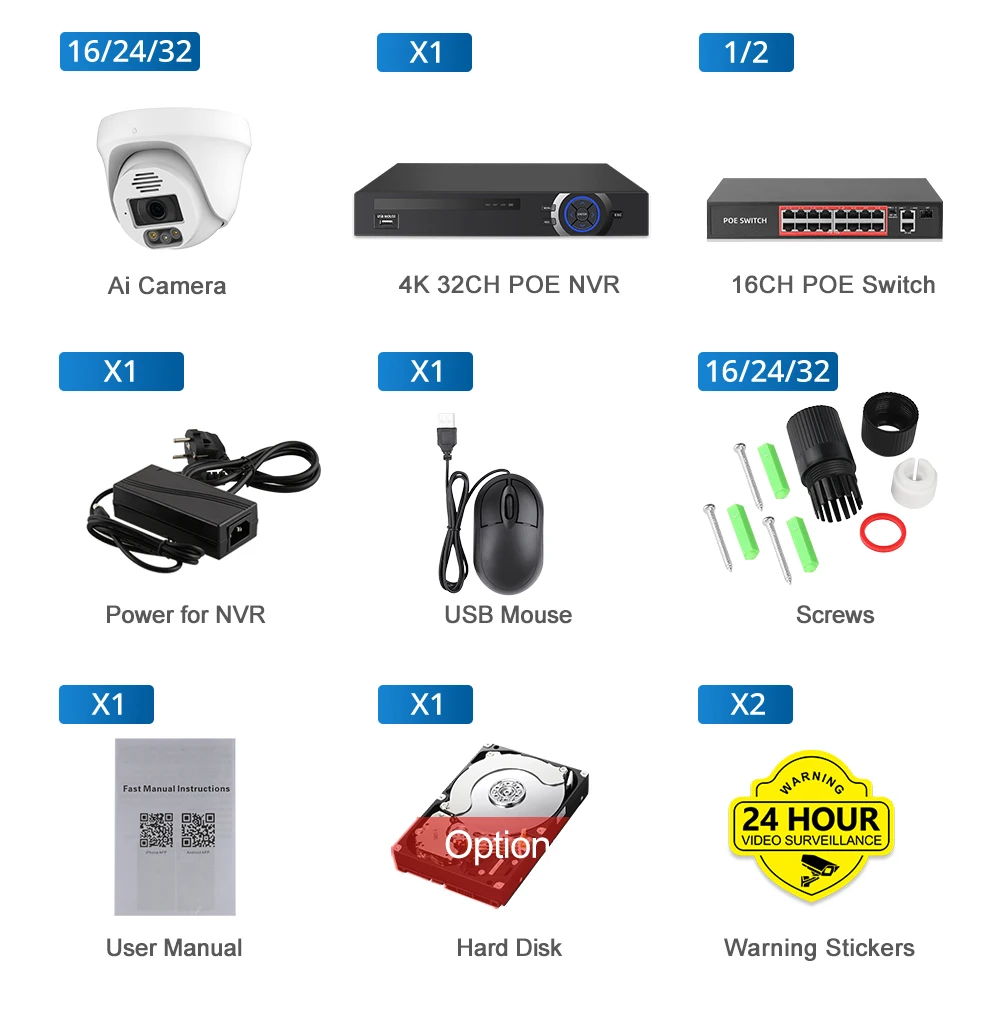

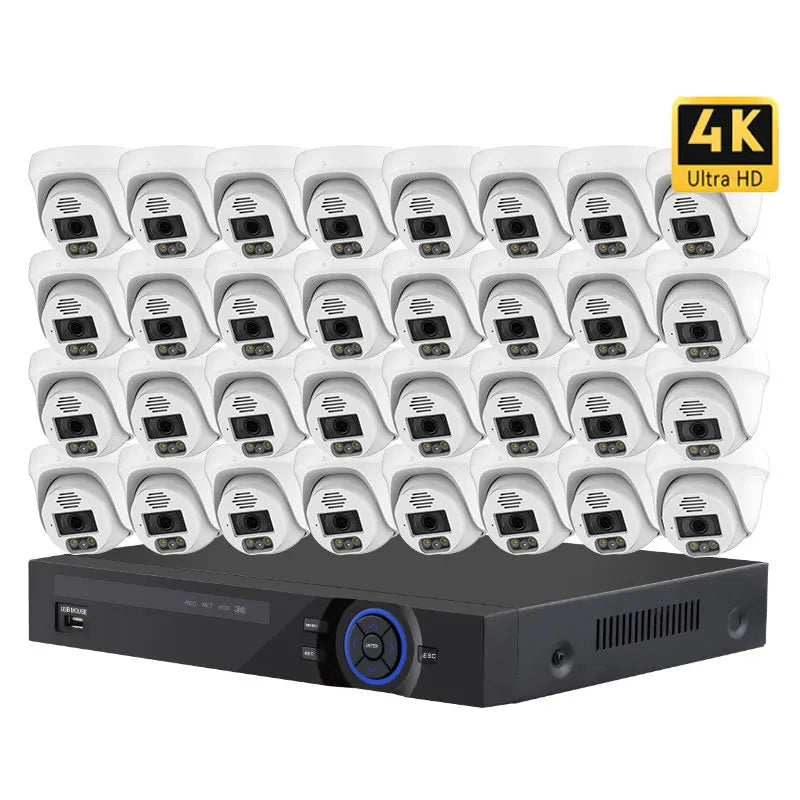

32CH NVR Camera Kit Included as Below:
*1 x 32CH 4k 5MP Normal IP NVR
*32 X 8MP Poe Cameras
*2 X 16CH Poe Switch
*1 x DC 12V 4A Power Supply for NVR
*1 x Mouse for NVR
*1 x User manual
*32 X Pack Screws&Waterproof connector For IP Cameras
*2 x Warning Sticker
*1 x Remote Control (No Battery)
NO HDD or 2TB,3TB,4TB HDD for Optional
Multiple Alarm Detection And Notification Methods And Sound Alarms
Support Buzzer,Email and APP push notification methods.
Support Active light and cound alarms


Avoid 99% False Alarm
*Notice: Alarm will be triggered only when both of human head and shoulder show up in camera's coverage. Please adjust camera's angle based on the camera's live feed image.

Real-time Two-way Audio Communication
Never miss a moment with your family.

Smart Dual Light Modes /Enhanced Night Vision
Built-in 2Pcs White LED and 2Pcs IR LED . Monitor moving objects, automatically illuminate.This is an impressive little weapon against crime .

Experience With 8MP Super HD System

H.265 POE CCTV System
Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.

Power Over Ethernet
complete the installation without the knowledge about the computer or network and start enjoy the super easy monitoring among your smart-phone, tablet or PC.

Transmission Distance

IP66 Waterproof Security Camera

Multi-system Compatible

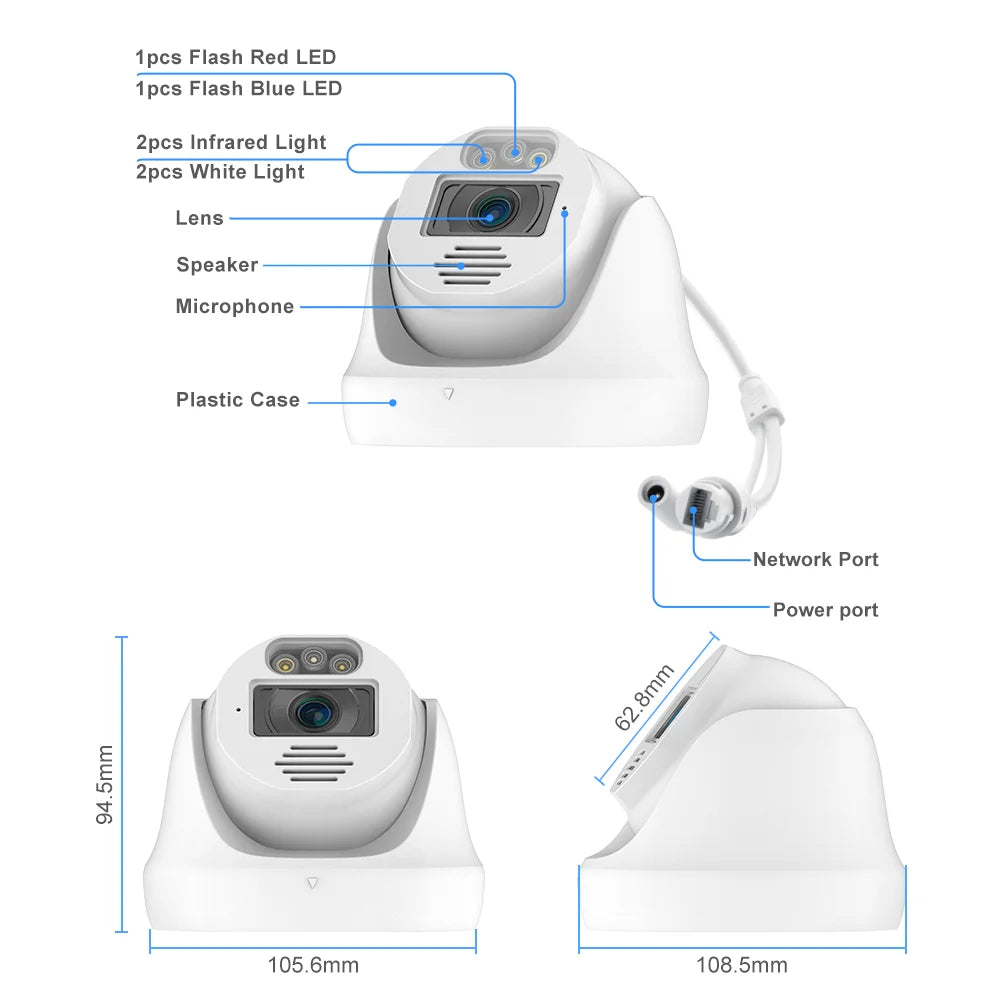

Model |
Model Type: |
POE Camera |
Model No. |
XM-DM27SP-AI-80N |
|
System |
System structure |
Embedded RTOS design, dual core 32-bit DSP, pure hard compression, watchdog |
Video |
Sensor |
8 million black light CMOS sensor SC8239; colour 0.0001Lux@F1.2 , black and white 0.0001Lux@F1.2 |
Video processing |
H.265AI encoding, double stream,AVI format; |
|
Image output |
main stream: 8M 3840*2160@15fps;5M 2880*1616@25fps;4M 2560*1440@25fps;3MP 2304*1296@25fps;2MP 1920*1080@25fps;Substream: 800*448@25fps |
|
Shutter |
1/50(1/60)to 1/10000 of a second |
|
Noise reduction |
2 d / 3 d noise reduction |
|
Wide dynamic |
Digital-wide dynamic |
|
Lens |
3.6mm hd lens |
|
Night vision |
IR-CUT,Infrared night vision, color filter automatically switch |
|
light distance |
Infrared 15m ,white light 10m(2 infrared light,2 white light) |
|
Audio |
Audio processing |
G.711A,two way audio |
Audio interface |
-33dB high sensitive mic, 8 Ω 1W horn |
|
Network |
Network interface |
One RJ45 Ethernet port,10/100M auto-sensing |
Alarm |
Human detection, Motion detection, Smart AI alarm, Face detection |
|
Red and blue alarm warning light |
||
APP push, voice alarm, video recording, capture pictures |
||
Video |
Video mode |
Timing video, event video |
Playback mode |
Event playback, time playback |
|
Other |
Reliability |
Comprehensive lightning protection,7*24 hours 65℃ high temperature test is stable and reliable |
ONVIF |
support |
|
Cell phone monitoring |
Mobile phone monitoring (iOS, Android) |
|
power |
POE/12V |
|
Material |
Metal Housing |
|
Work environment |
Temperature |
-20℃ to +55℃ |
Humidity |
30% to 80% RH |
System |
Main processor |
NT98323 |
Operating System |
Embedded Linux |
|
System resources |
Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
|
Interface |
Operator interface |
16-bit true color graphic menu operation interface, support mouse operation |
Preview |
1/2/4/6/8/9/16/25/32 |
|
Video |
Video input (IP) |
32*4K |
Video compression |
H.265AI/H.265+(compatible H.265/H.264) |
|
Display quality |
Max:4K |
|
Playback quality |
4K/5M/4M/3M/1080P |
|
VR |
Unsupport |
|
human shape / Face |
Support(depend on camera) |
|
Audio |
Audio compression |
G.711A |
Intercom |
unsupport |
|
Record & playback |
Recording mode |
Manual>Alarm>Dynamic Detection>Timing |
Local payback |
4K(1+2)5M(2+3)/4M(2+5)/3M(3+6)/1080P(5+9) |
|
Search mode |
Search by Time/Calendar/Event/Channel /Face |
|
Record storage |
HDD、Network、Cloud |
|
Backup mode |
Network backup, USB hard disk, USB burner, SATA burner |
|
External interface |
Video output |
1ch VGA,1ch HD output |
Audio I/O |
1/1(3.5MM) |
|
Alarm I/O |
0/0 |
|
Network interface |
1*RJ45 10M/100M/1000M Adaptive Ethernet port |
|
USB interface |
2*USB2.0 ports |
|
HDD |
2 SATA(Up to 14TB for each disk |
|
ESATA |
No |
|
Serial interface |
No |
|
Other |
ONVIF |
Support |
Power supply |
12V/4A |
|
Power Consumption |
<10W(Without HDD) |
|
Work environment |
Temperature:0℃ -55℃ , Humidity:10%-90%RH , Atm:86kpa-106kp |
