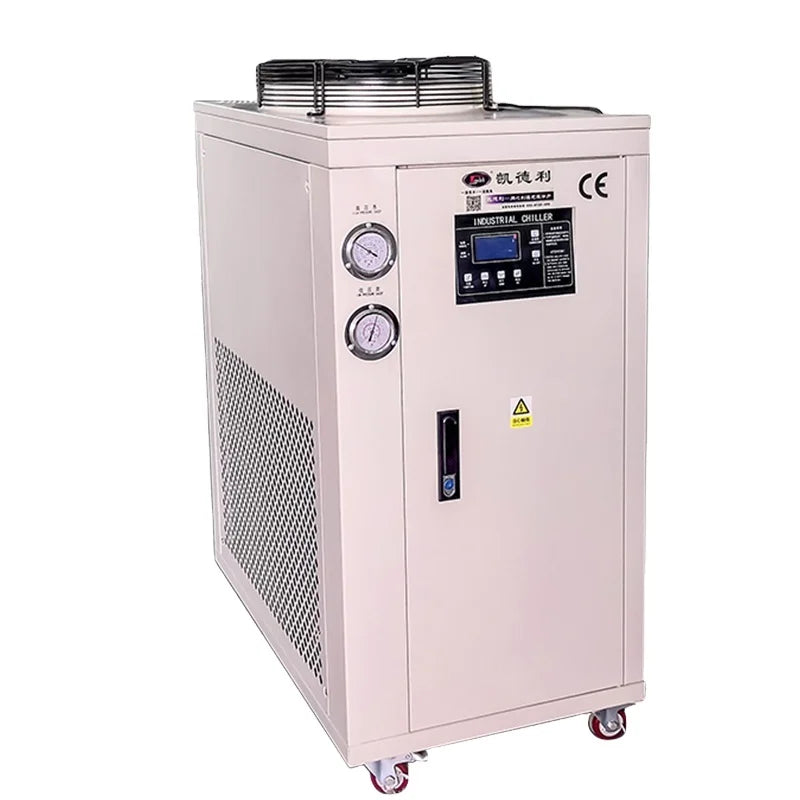

3HP Laser Melt Flow Cooling for Mask Industry Water Chiller Industrial Evaporative air Cooler Chiller for Textile Industry
Regular price
$9,240.00
Sale price
$9,240.00
Regular price
$0.00
Unit price
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
🔒 Secure Checkout
💰 Money Back Guarantee
↩️ Free Returns
🚚 Fast Shipping

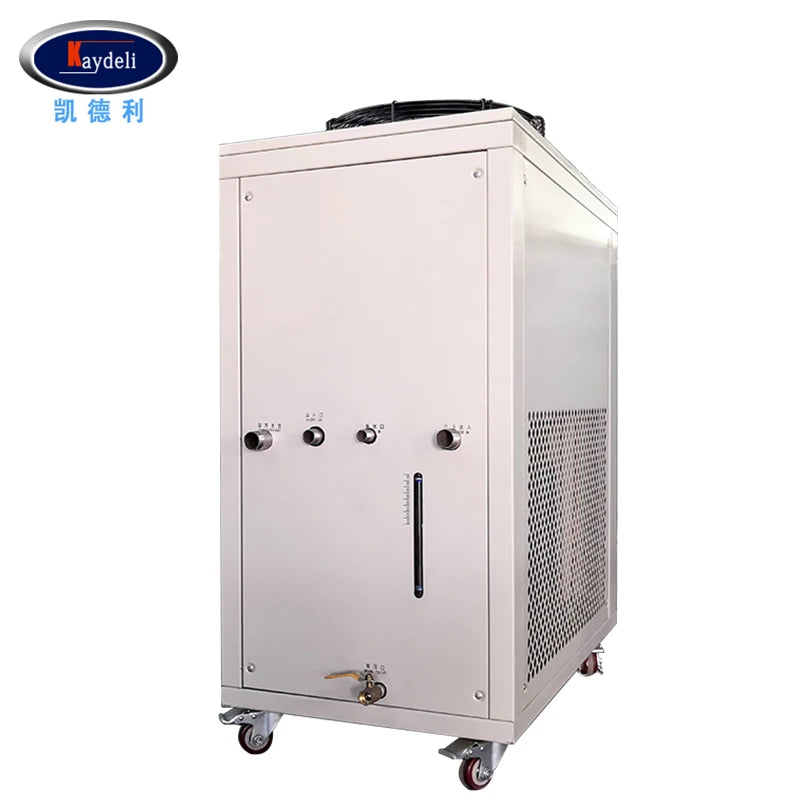

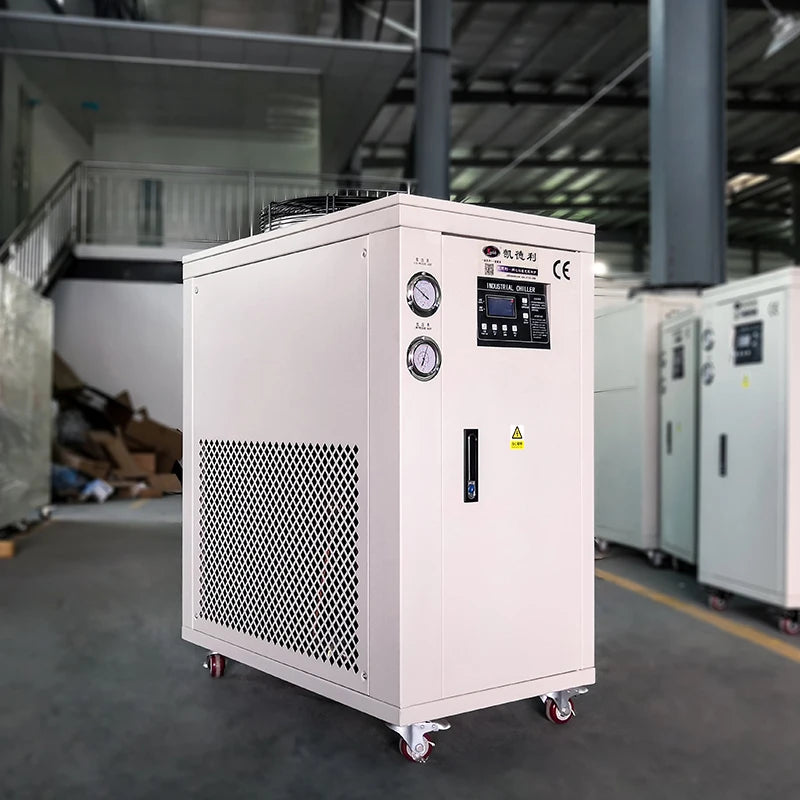

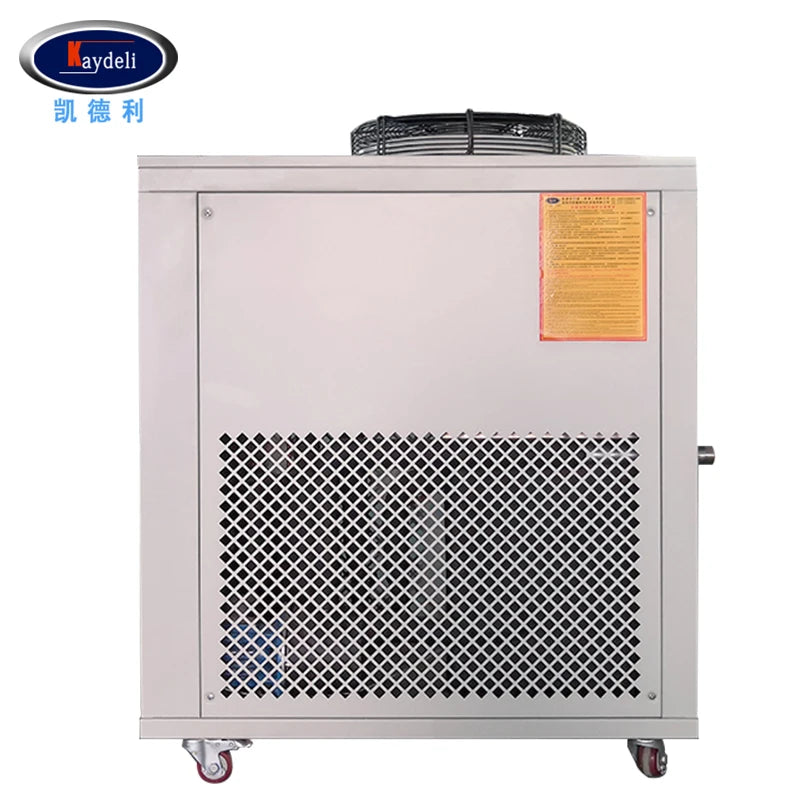

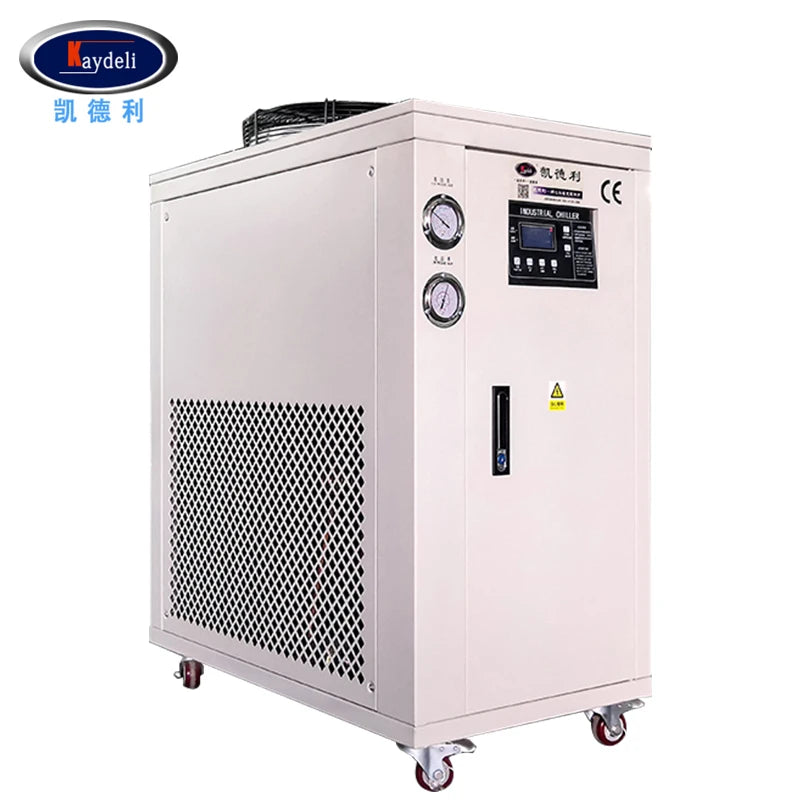

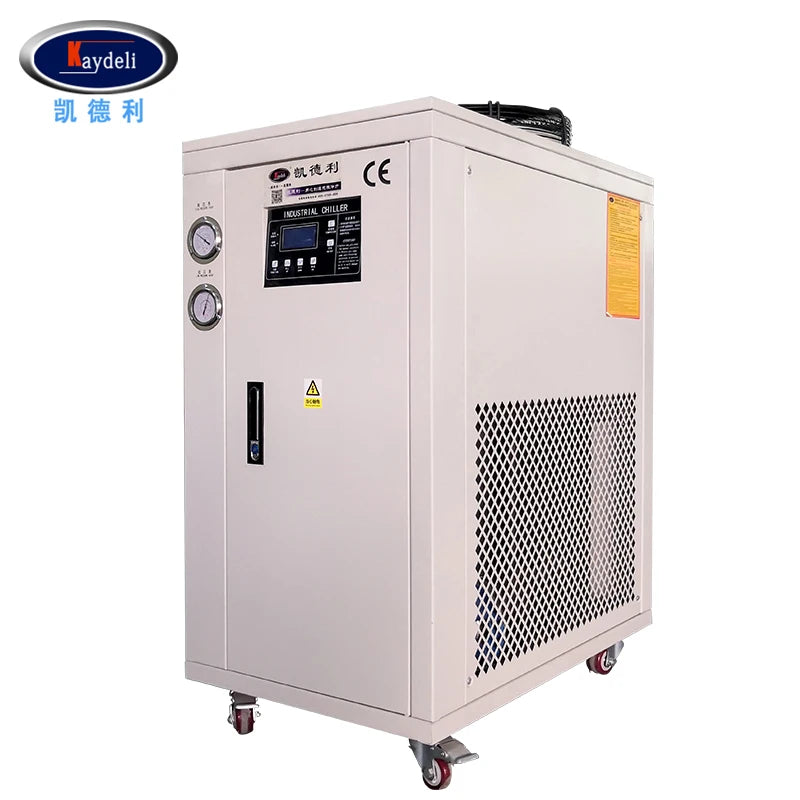

3HP Laser Melt Flow Cooling for Mask Industry Water Chiller Industrial Evaporative air Cooler Chiller for Textile Industry
Product reviews
Product description
Shipping & Return
SPECIFICATIONS
Compressor: Hermetic Scroll
Condenser: High efficient finned copper tube
Condenser Surface area / row(M2): 0.62/3R
Container Volume: 25L
Cooling capacity: 9kw
Cooling fan: Low noise axial flow(Low noise outer rotor fan)
Evaporator type: High Efficiency Copper Tubeshell
Plug Type: US Plug
Pump Type: Pump
Pump power: 2.2 Kw
Refrigerant: R-407C,R-410A,R134a,R134a/R407c/R410a
Weight (KG): 150
brand name: kaydeli
compressor brand: Copeland
core components: PLC,Engine,Bearing,Motor,Gear,Pump
dimension(l*w*h): 930*520*975mm
key selling points: Easy To Operate
machinery test report: Provided
model number: KC-003
place of origin: Guangdong, China
power: 2.65KW
video outgoing-inspection: Provided
voltage: 3PH-380V-50HZ
warranty: 1 Year
working temperature range: 0-45
Our Company
Kaydeli Factory
*1966 Established in Texa. U.S.A, open China factories in 2012
Customer Case
Glass line part
In 3D curved surface forming, slight deviations in temperature and precision can also cause serious quality problems for glass, and even fryer accidents. Through the introduction of professional semi-automatic hot bending machines, and professional process engineers for molds, plates, The adjustment of process parameters is conducive to improving the yield of curved surface thermoforming. The design of the cooling system is also a factor that cannot be ignored in the production of 3D glass, and many manufacturers do not pay enough attention to the traditional cooling water system, which leads to low output and yield and affects the economic benefits of enterprises.

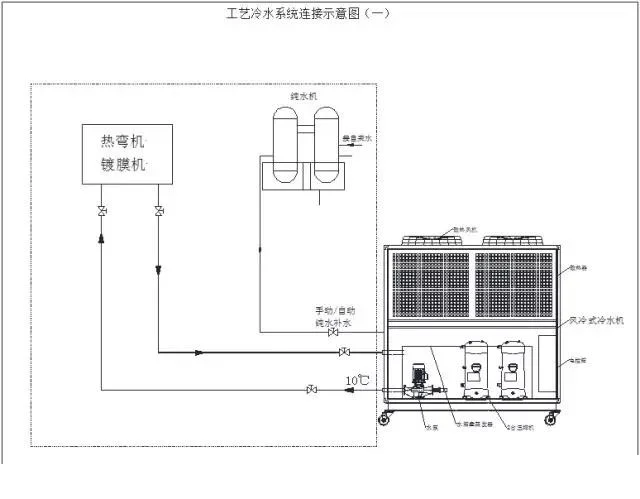

Option 1: Single air-cooled refrigeration system Customer case 1: Guangdong Shenzhen Jieyi Optical Technology
The air-cooled refrigeration system takes away the heat generated by equipment such as heat benders and dissipates the heat into
the atmosphere. This refrigeration system consists of an air-cooled chiller, suitable for enterprises with less production
equipment,and smaller the pipeline engineering volume Very few, easy to install, suitable for one-to-one equipment cooling
components.
the atmosphere. This refrigeration system consists of an air-cooled chiller, suitable for enterprises with less production
equipment,and smaller the pipeline engineering volume Very few, easy to install, suitable for one-to-one equipment cooling
components.
Refrigeration requirements: three dedicated hot bender air-cooled refrigeration systems
Solution: Adopting a single air-cooled refrigeration system, Kaydeli provides three KC-020DA air-cooled chillers to solve the
cooling system requirements of the glass bending machine
Solution: Adopting a single air-cooled refrigeration system, Kaydeli provides three KC-020DA air-cooled chillers to solve the
cooling system requirements of the glass bending machine

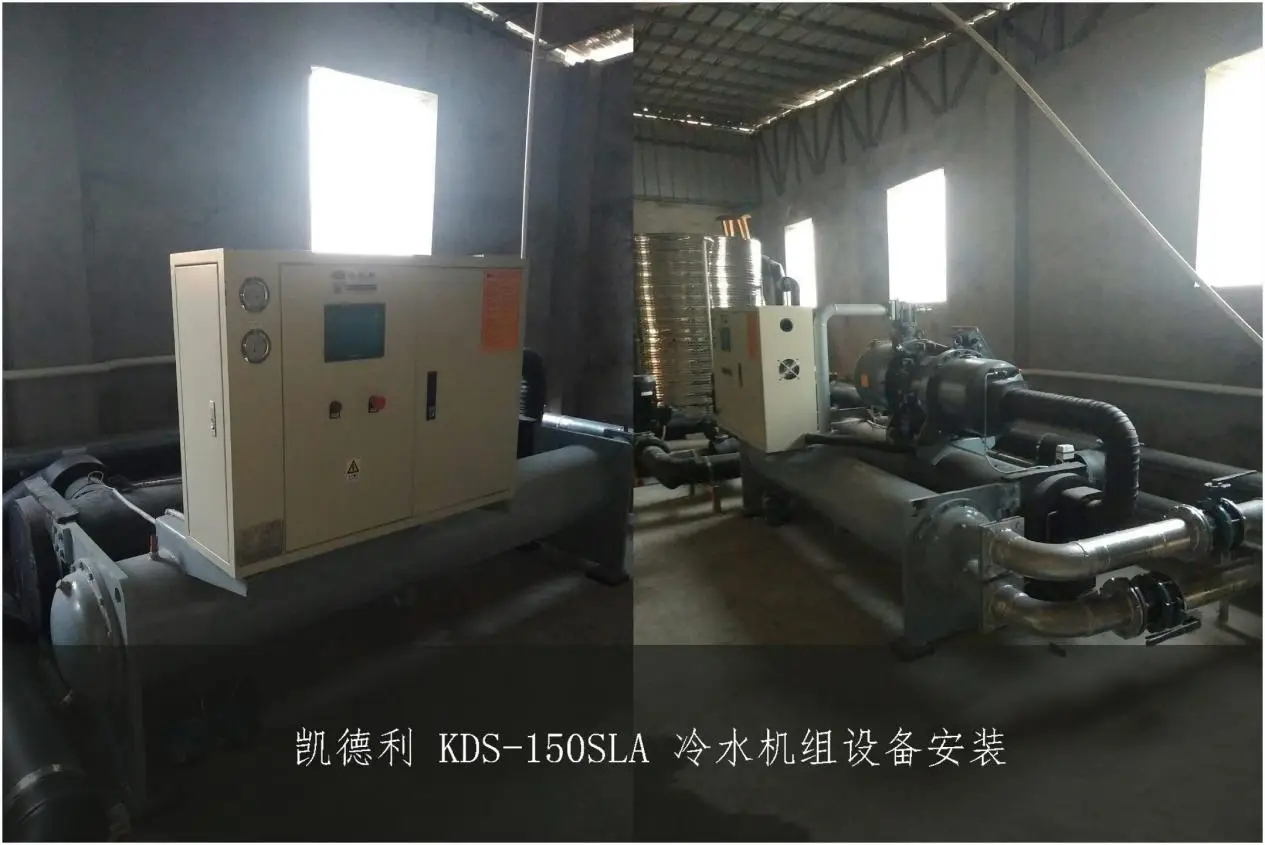

Customer case 2: Guangxi Beihai Runrui Technology
Refrigeration requirements: refrigeration capacity ≥450KW, chilled water flow ≥85m³/h, water tower, water pump and other refrigeration equipment.
Solution: Adopting a single water-cooled refrigeration system solution, Kaydeli provides 1 KDS-150SLA water-cooled screw chiller, 175T cooling water tower, 3 circulating water pumps (2 used and 1 prepared), 5T water tank and other cooling equipment.
Achieving the goal: The centralized cooling requirements of multiple equipment have been realized, the continuous operation of multiple production equipment has been realized, the expected production capacity has been reached, and the product competitiveness has been improved.
Solution: Adopting a single water-cooled refrigeration system solution, Kaydeli provides 1 KDS-150SLA water-cooled screw chiller, 175T cooling water tower, 3 circulating water pumps (2 used and 1 prepared), 5T water tank and other cooling equipment.
Achieving the goal: The centralized cooling requirements of multiple equipment have been realized, the continuous operation of multiple production equipment has been realized, the expected production capacity has been reached, and the product competitiveness has been improved.
Kaydeli's refrigerating equipment is favored by the industry due to its excellent quality standards (have passed 11 tests by the National Household Electrical Quality Supervision and Inspection Center) and good after-sales guarantee (Ping An Group of China underwrites 30 million equipment guarantees). , Kaydeli will continue to establish extensive connections with enterprises in the 3D glass industry, and use high-quality industrial refrigeration equipment to help the improvement and rapid development of China's 3D glass industry chain. As we all know, high-quality products are inseparable from good process specifications and high-performance production equipment, which together determine the output and yield of 3D glass. The use of advanced technology and equipment in the same industry is the material and equipment foundation for 3D glass companies to win the market. .

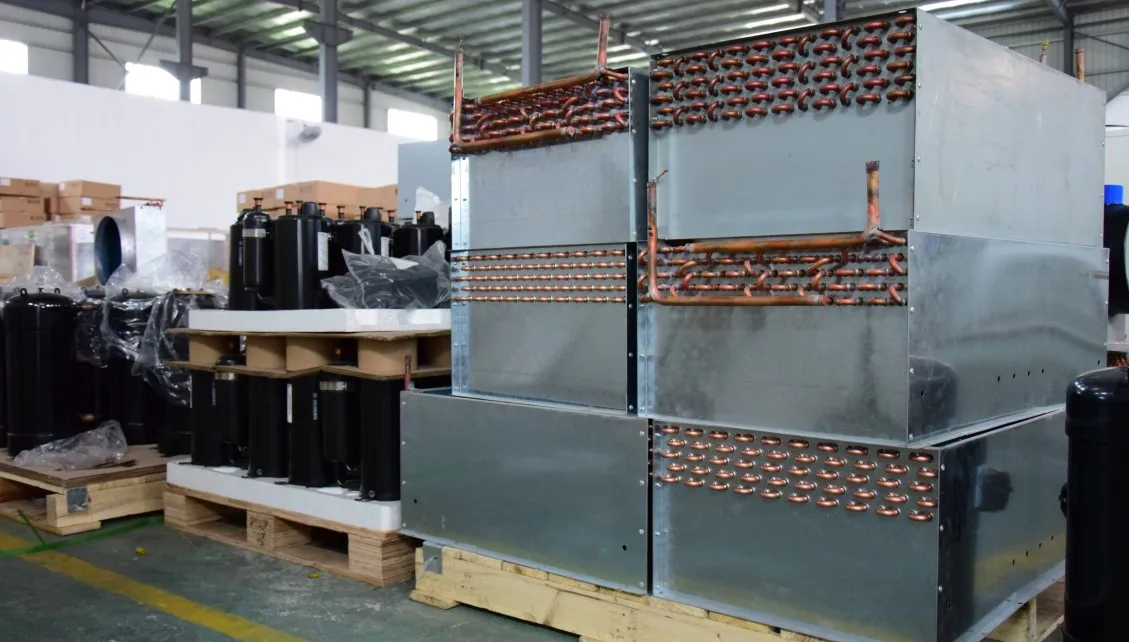

Raw Material storage

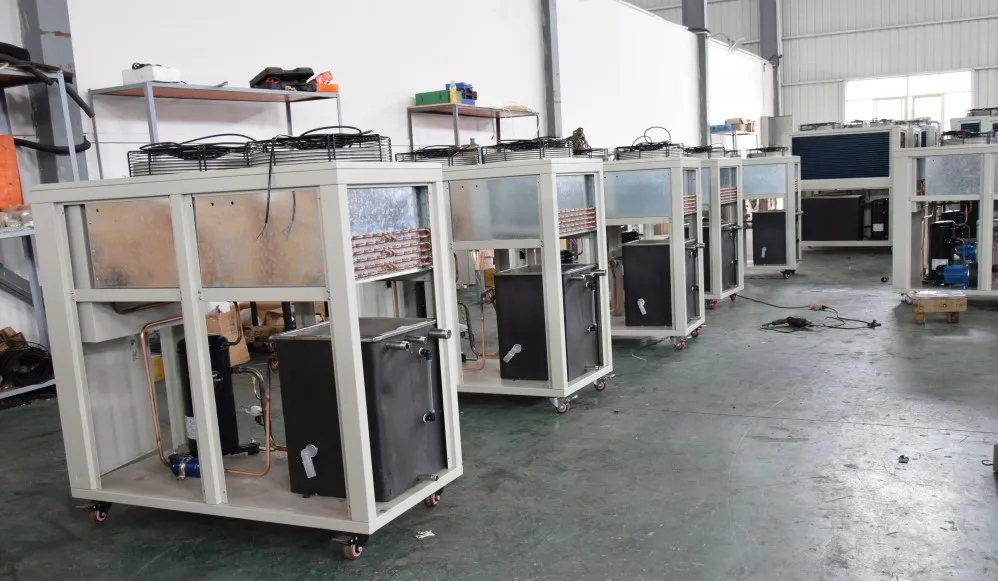

Semi-finished products

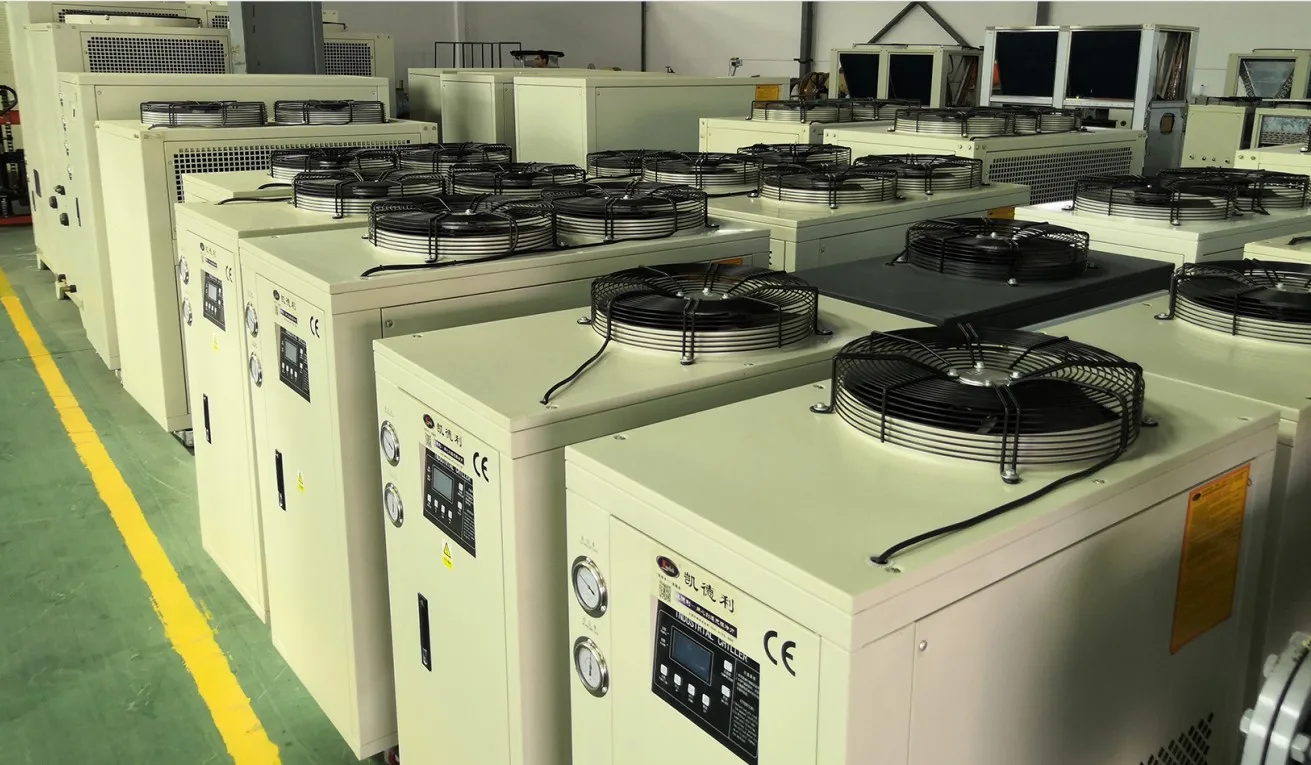

Finished products storage
Astronomical weather station project
American low temperature project
University's Project
Product Description
Product Application
KC series industrial chiller is mainly applied in Plastic & Rubber industry; it can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve the production efficiency. They are also widely used in Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating, Construction.
Main Features
opted world famous brand compressors and high efficiency condenser and evaporator, ensure high cooling efficiency, low energy consumption, low noise and long service life.
Chilled water temperature range 5℃ to 35℃.
R22 charged, CFC free type R407C, R410A, R404A, R134A for option, high cooling efficiency.
Over sized evaporator and condenser ensure the chiller unit running under 45C high ambient temperature.
Microcomputer control system offering accurate temperature stability within ±0.1~±1℃.
Low noise and big volume air blower.
Standard equipped Iron pump, stainless steel or high lift pump for option.
Multi-protection devices ensure the chiller unit running safely.
The innovative evaporator-in-tank configuration ensures a stey water temperature offered, as the evaporator also cools the tank itself, reduces ambient heat gain, and increases the efficiency.
KWB water cooled industrial chiller opted shell and tube condenser, features speed heat dissipation and high cooling efficiency, it is good to be used in High ambient temperature area with abundant water.

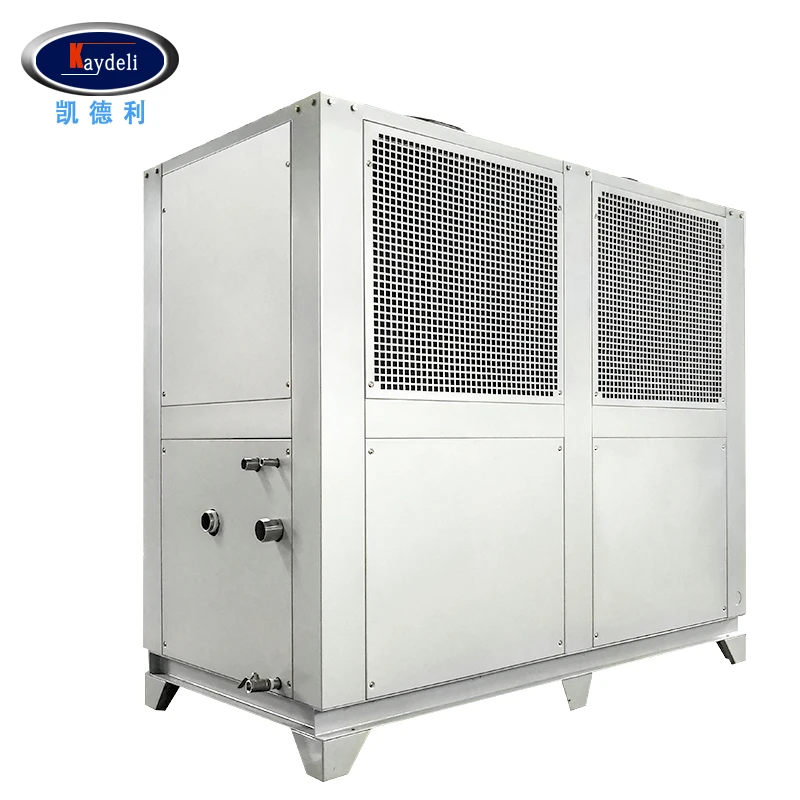

KC air cooled industrial chiller opted aluminum fin/copper tube type condenser, easy for cleaning and installation.
Power supply: 1PH 220V/50HZ-----1/2HP to 2HP
3PH 220V/380V/415V 50HZ-----3HP to 60HP
Certifications
Detailed Images
Name: Compressor
Brand: Panasonic/Danfoss/Copeland
Original: Japan/Danmark/America
In the operation, the fuzzy control principle is adopted to balance the running time of the compressor as much as possible to achieve balanced wear and balance the life of the compressor, that is, after the chiller system stopped, the compressor with short running time started firstly, and the compressor with a long running time is started secondly; The energy level adjustment of the two compressors during operation is alternately loaded or alternately unloaded.Extend the life of the compressor and the safety of operation greatly.

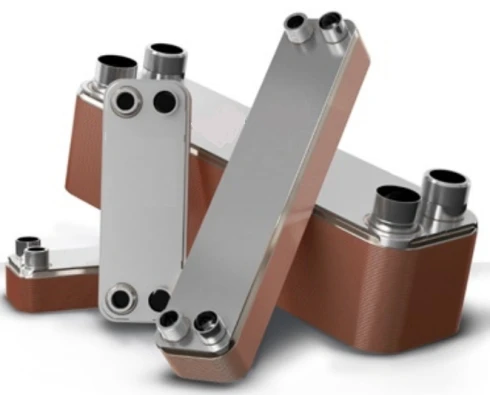

Heat exchanger choice 1
Brand: Kaydeli
Type: Plate type
Material: Stainless steel
High efficiency
Heat exchanger choice 2
Brand: Kaydeli
Type: Water tank with coil
Material: Stainless steel
High efficiency
Heat exchanger choice 3
Brand: Kaydeli
Type: Shell& tube
Material: cast iron(tap water)/PVC+Titanium tube(salt water)
High efficiency
Main Features
Name: Electrical components
Brand: Schneider
Original: France
Between energy generation and its usage, Schneider Electric provides technology and integrated solutions to optimize energy usage in markets like energy &infrastructure, industry, data centers, buildings and residential. With a unique portfolio in electrical distribution, industrial automation, critical power & cooling, building management and security, Schneider Electric is the only global specialist in energy management and a world leader in energy efficiency.
PLC Intelligent control system:
Name: Computer control system
Brand: Kaydeli
Original: Shenzhen.China
Simple and intuitive operation: the unit adopts microcomputer program controller (English display / digital tube display), follow the prompt menu on the screen/panel to select the operation, straight start the unit with the touch of a button at the touch of a button. The panel can display the running status of the unit at any time, and can be used as a text table.The way of the grid parameter is displayed at a glance.
Main Features
Name: Stainless Steel Finned condenser
Brand: Kaydeli
Original: Shenzhen.China
Kaydeli Condenser adopt high-efficiency heat transfer tubes, and the main engine adopts imported high-efficiency fully enclosed scroll compressor with structure compact, small size, light weight,small installation position and many other advantages.

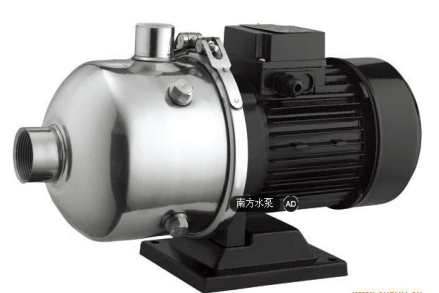

Water pump
Brand: Nanfang/Lingxiao pump
Type: Centrifugal pump
Type: Centrifugal pump
Material: Stainless steel
Durable& high quality
Durable& high quality

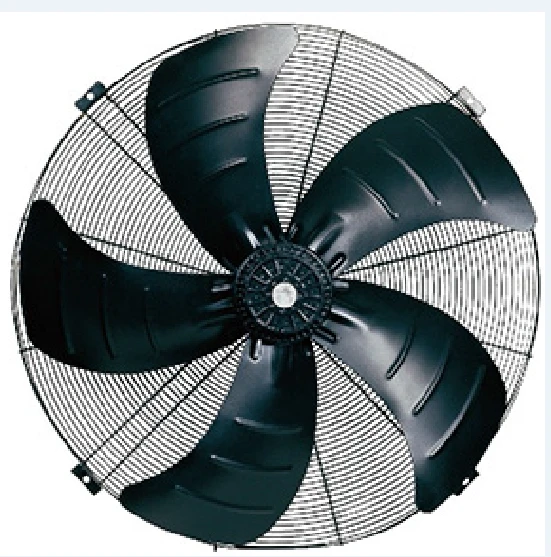

Fan
Brand: MAER
Type: Outer rotor axial type
Type: Outer rotor axial type
Material: iron
Durable& safety
Durable& safety
Exhibition
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Production plan making support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging |
||
Size |
580 (L) * 430 (W) * 750 (H) |
|
Weight |
72kg |
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
|
FAQ
Q1. Do you have any MOQ limit for chiller?
A: Low MOQ, 1pc for sample checking is available.
Q2. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea, we could ship the standard chiller in 3-15 days, customized chiller in 25-35working days.
Q3. Do you offer guarantee for the products?
A: Yeas, we offer 12 months warranty to our products.
Q4: Where the application?
A: Our products have been widely used in many industries, like Plastic machinery,PCB Machinery, New Energy industry,Pharmaceutical Industry, Petrochemical industry, Environmental protection industry and other industries.
Q5: Are your products can be customized?
A: Yes. Also welcomed to customized non-standard products, can achieve to -180 degree Celsius and EXDIIBT4 Explosion-proof chiller.
Q6: Whats your payment term?
A: International term-30% deposit for production, 70% balance before shipment.
