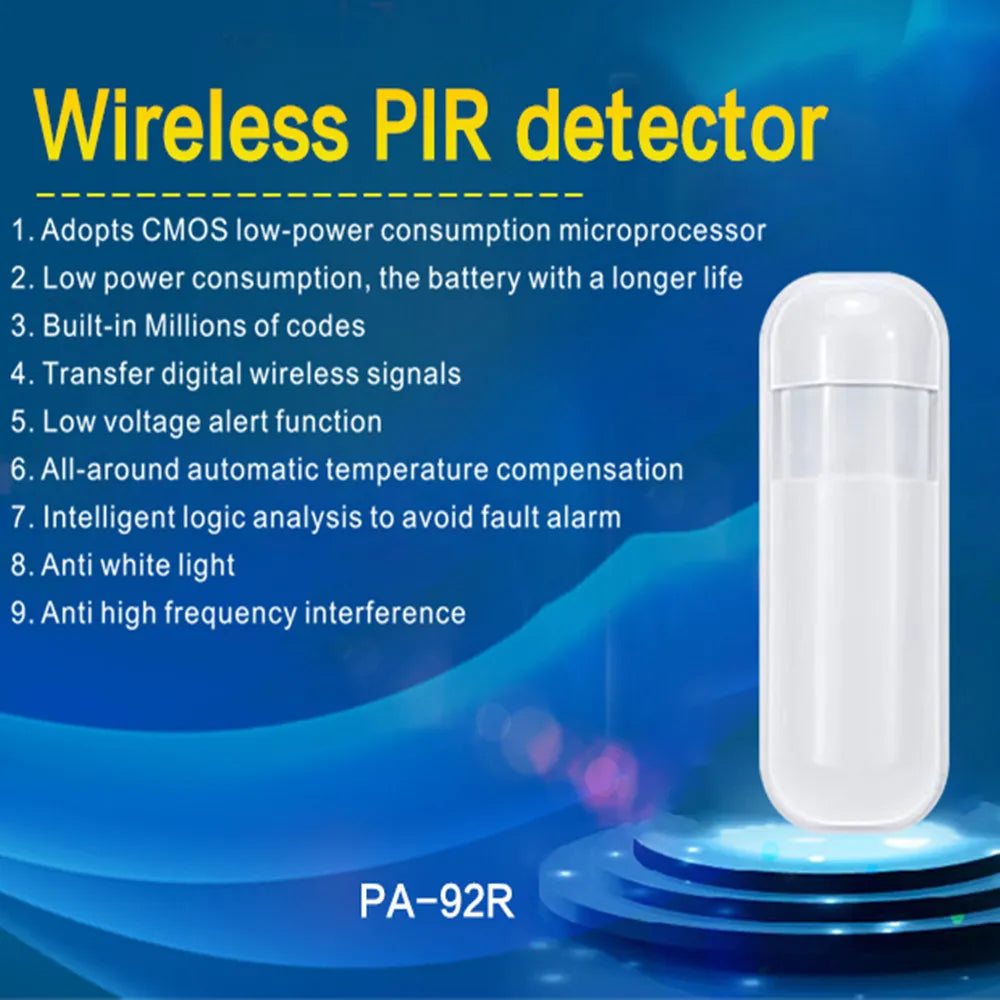

433 Mhz EV1527 Wireless Mini PIR Motion Sensor Alarm Detector Infrared Sensor PIR Sensor Motion Detector for Home Alarm System
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
433 Mhz EV1527 Wireless Mini PIR Motion Sensor Alarm Detector Infrared Sensor PIR Sensor Motion Detector for Home Alarm System
SPECIFICATIONS
Brand Name: NONE
Certification: CE
Choice: yes
Detecting angle: 110°
Detecting distance: 8m~12m (25℃ )
Emission distance: ≥ 80m(open space)
Emission frequency: 315MHz/433MHz (ASK) 868MHz (FSK)
Emission power: ≤ 10dB
High-concerned chemical: None
Installation: wall
Installation height: 1.8~2.2m
Model Number: PA-92R
Origin: Mainland China
Smart home platform: None
Static current: ≤ 30uA
Working current: ≤ 25mA
Working temperature: -10℃ ~55℃
Working voltage: 3V AAA*2 alkaline battery
semi_Choice: yes
Battery for 2 years.
1. This infrared detector cannot be used alone and must be used with the alarm host.
2.All the alarm hosts in our store can be used with this infrared detector.
3. The alarm host used to match the infrared detector must meet three conditions:
A. Frequency: 433MHz
B. IC model number: 1527
C. Resistance 330K ohms

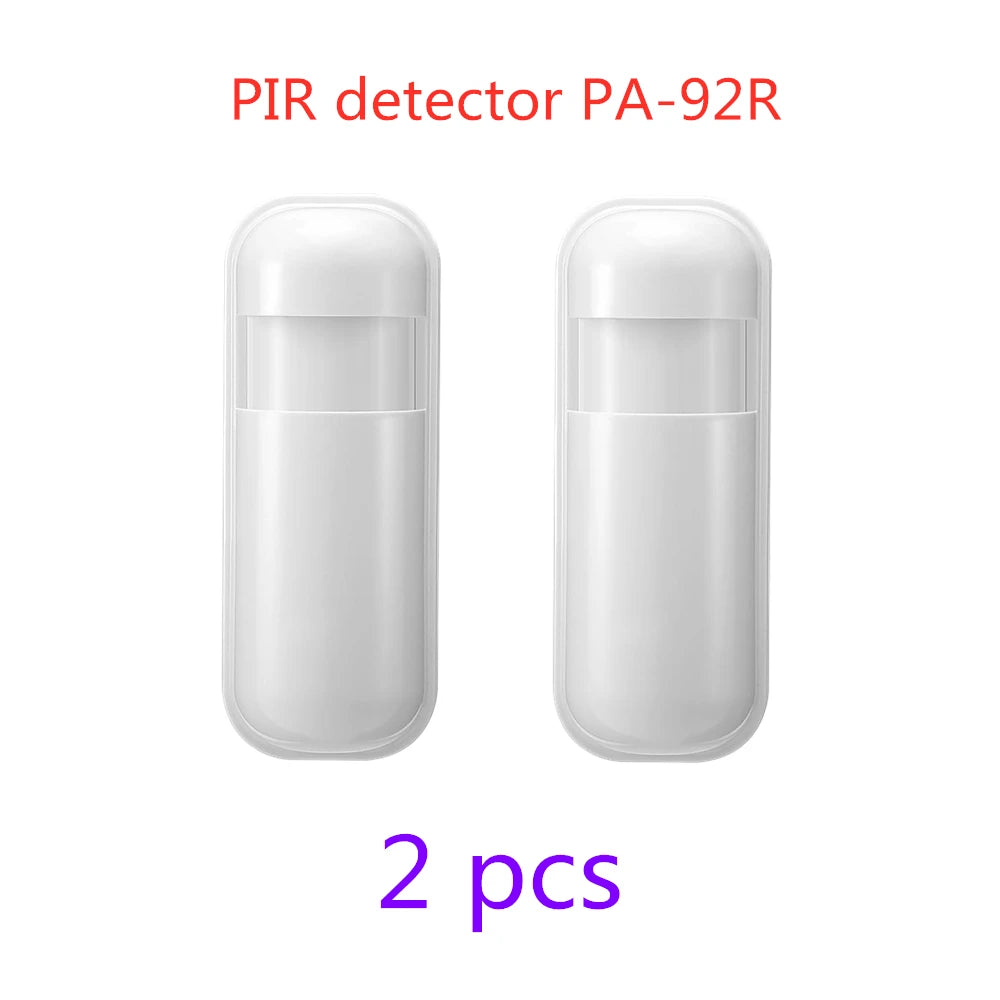

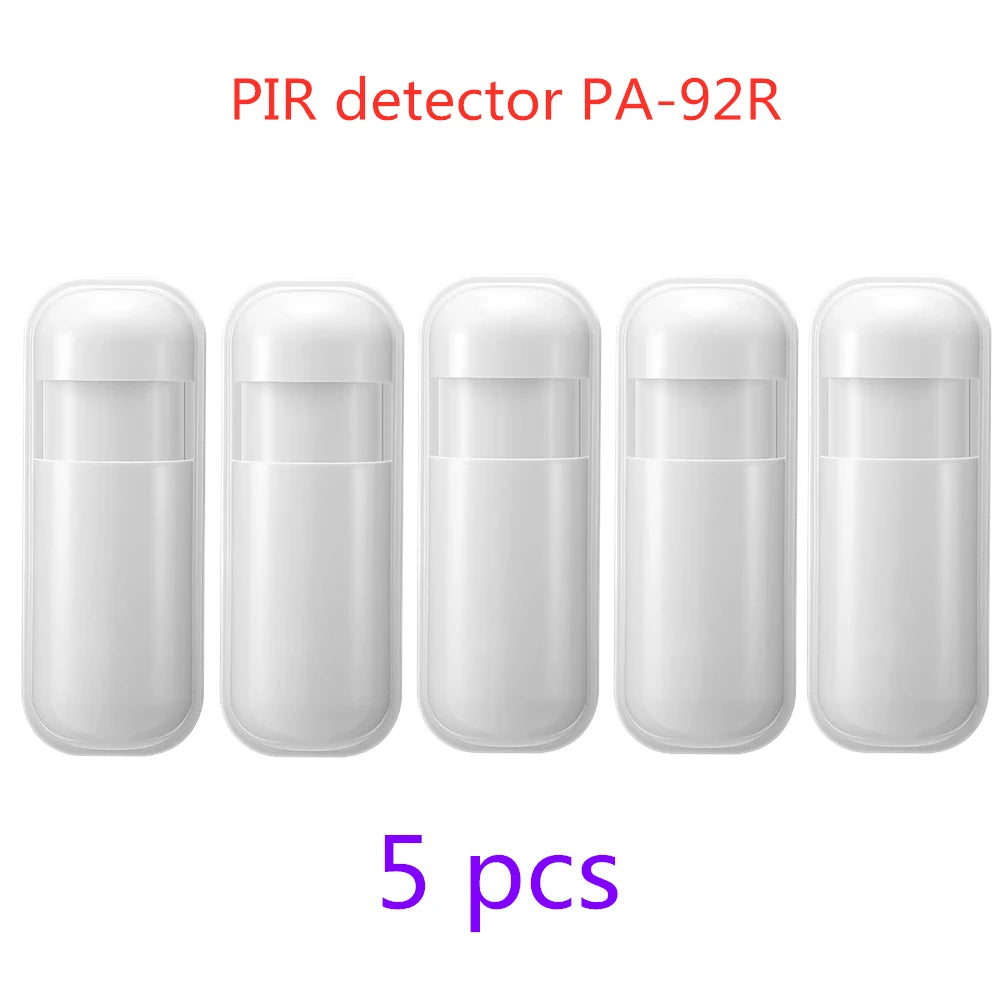

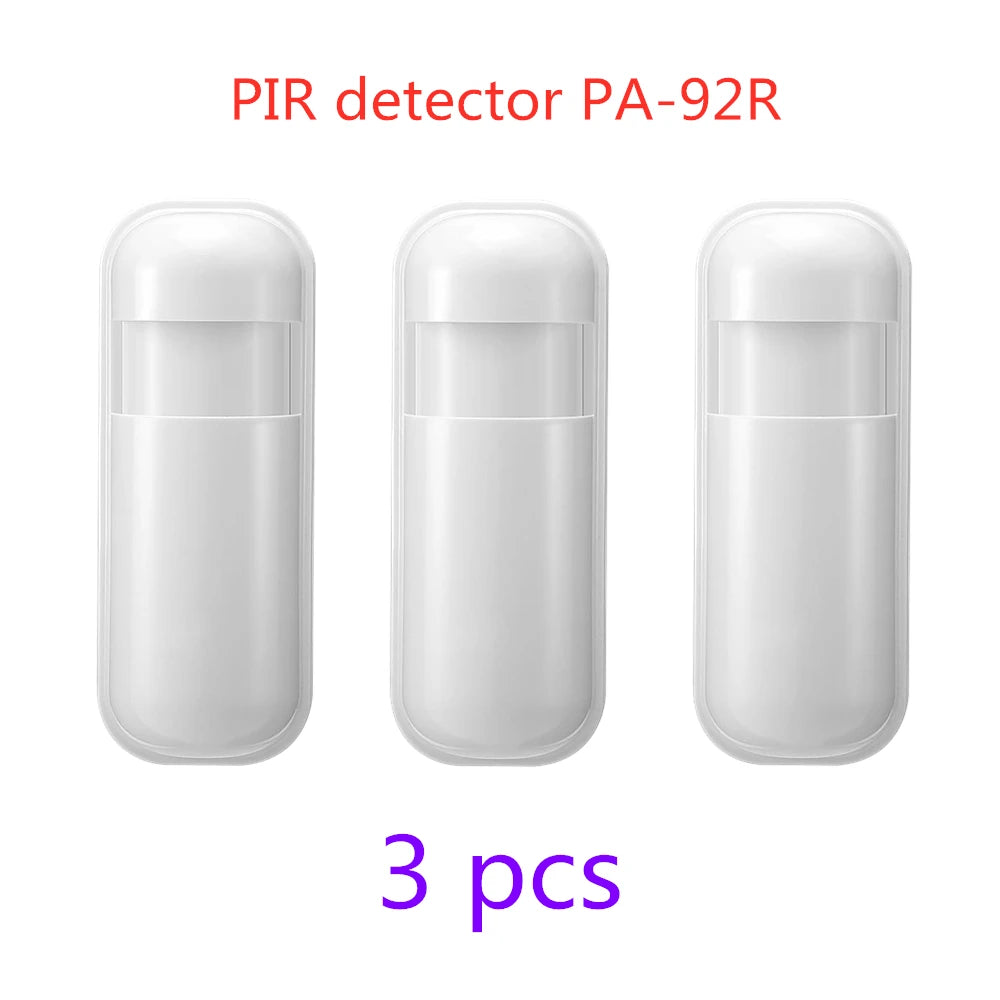

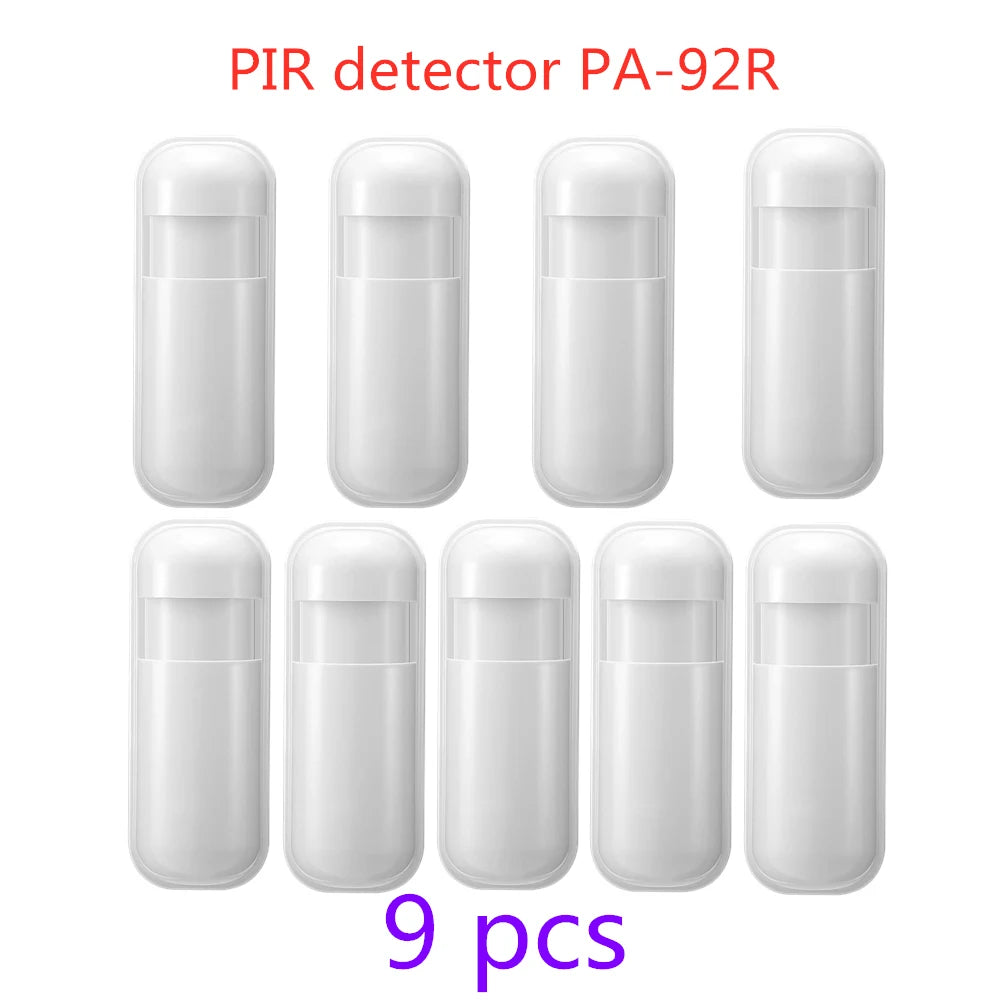

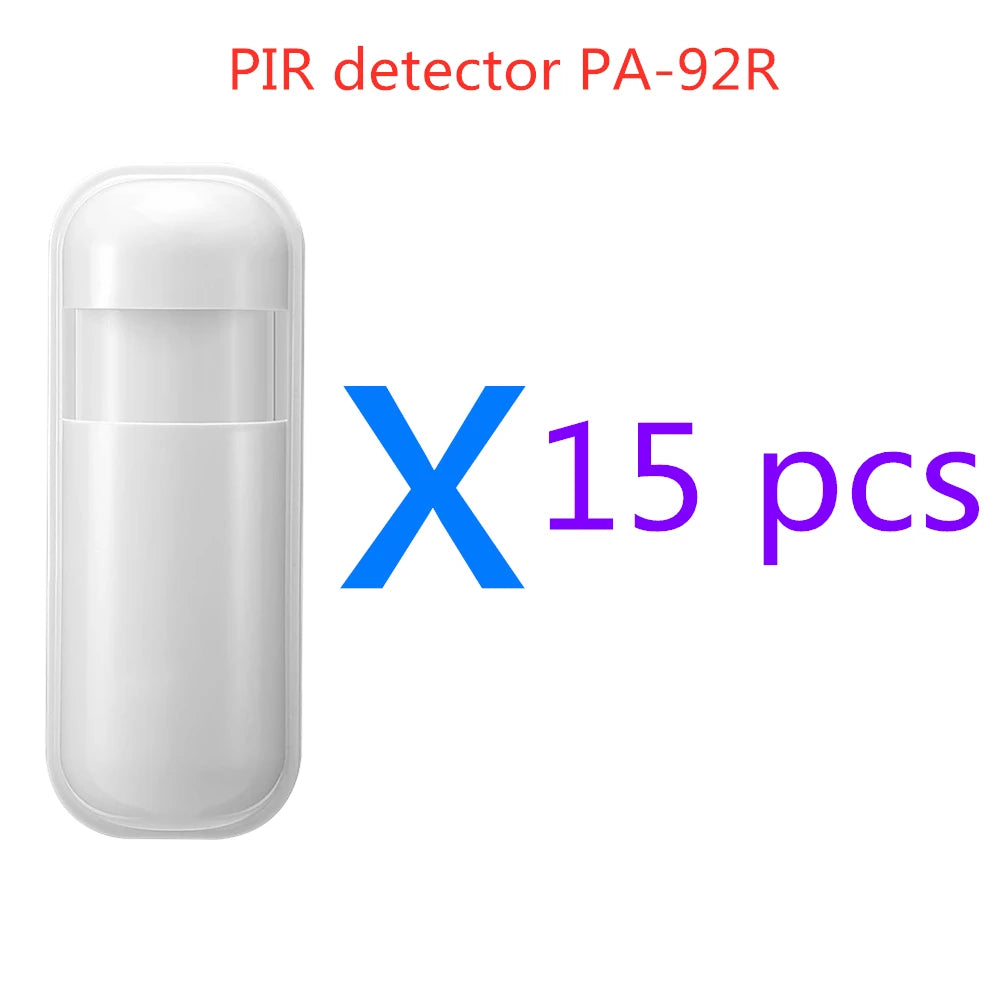

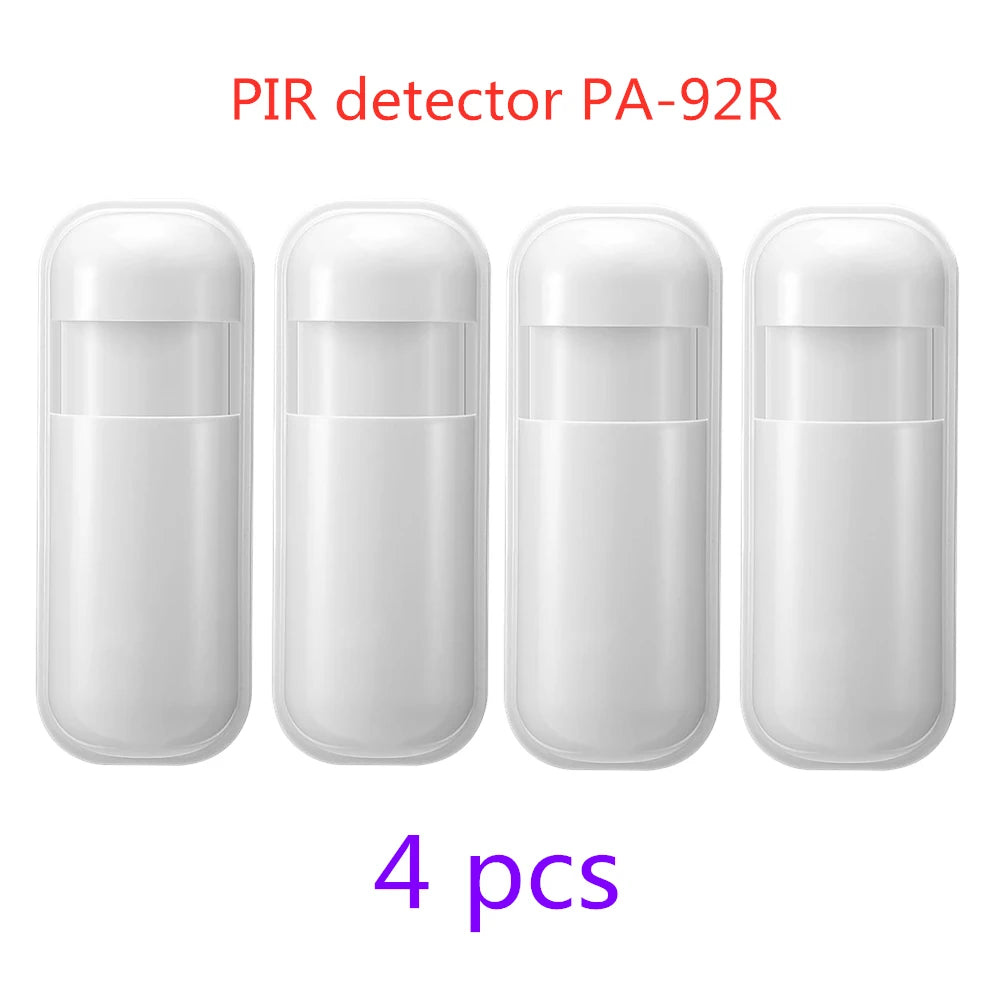

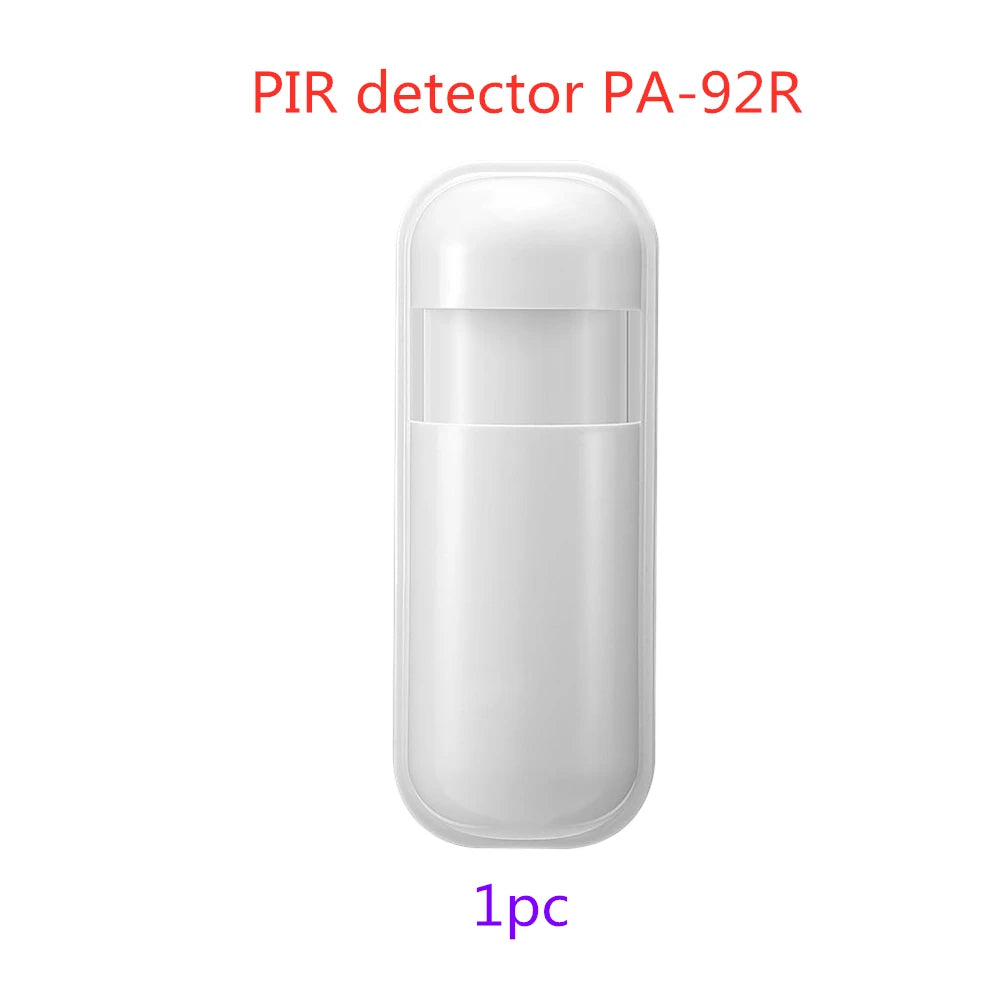

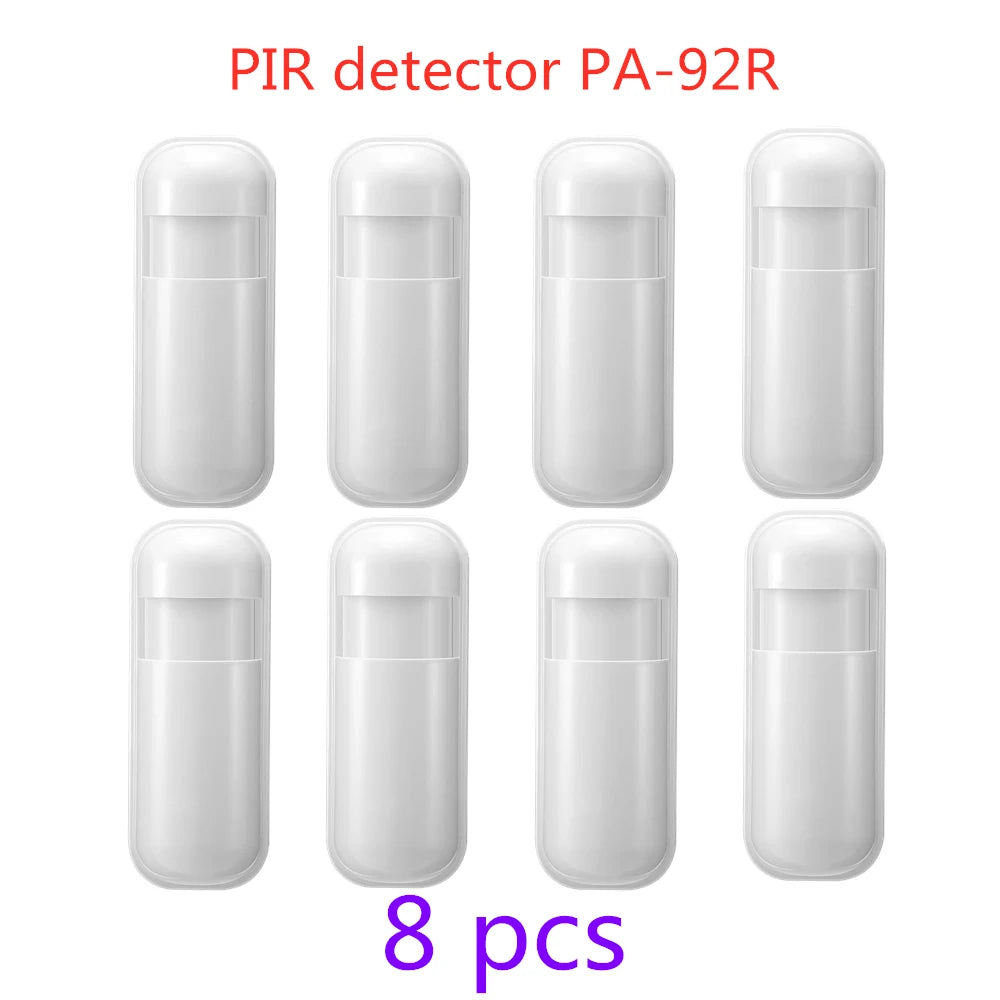

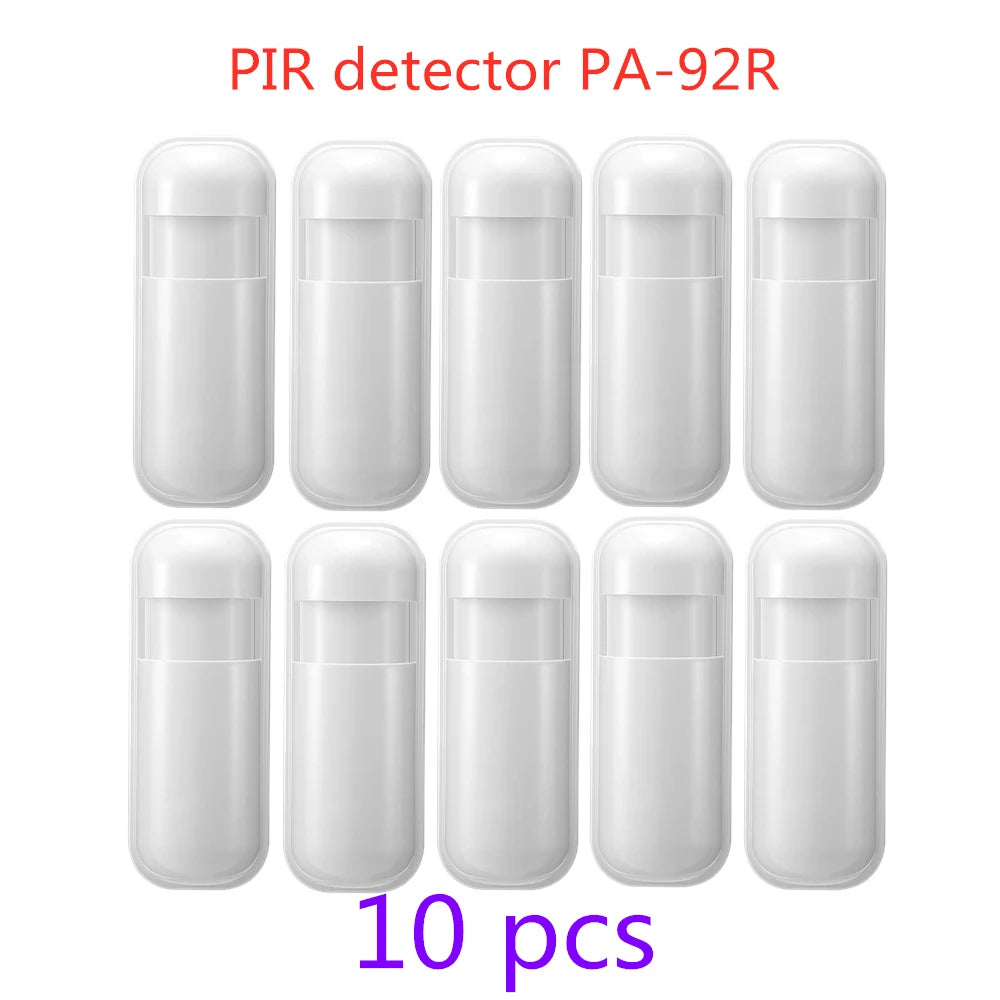

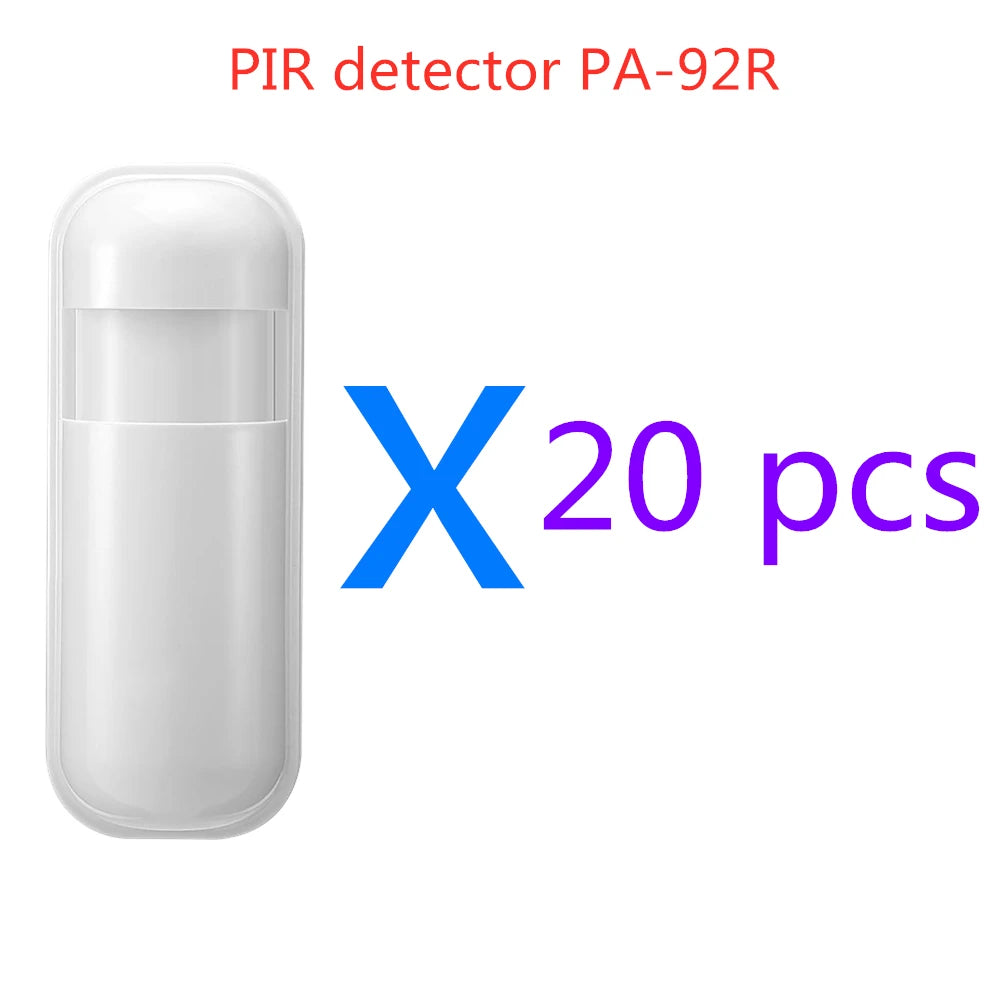

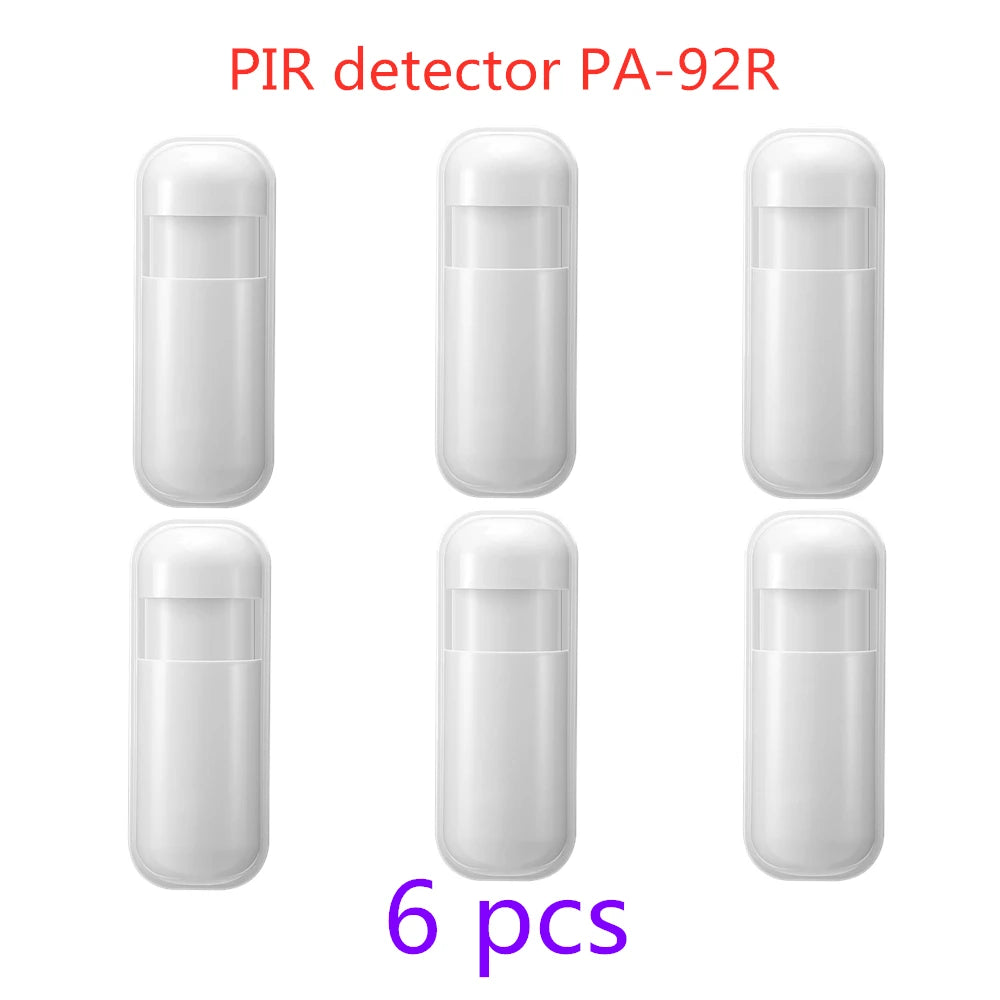

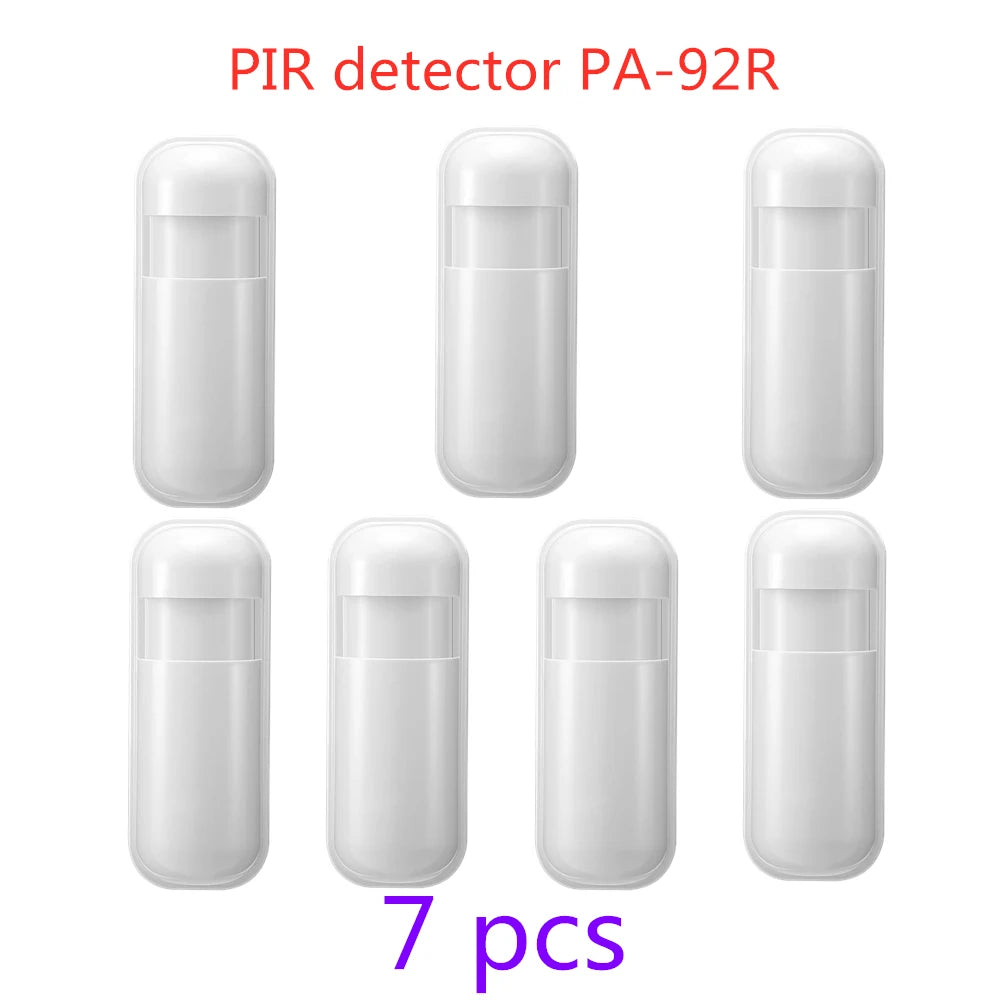

PIR detector PA-92R
Working voltage: 3V AAA*2 alkaline battery
Working current: ≤ 25mA
Static current: ≤ 30uA
Emission frequency: 315MHz/433MHz (ASK) 868MHz (FSK)
Emission power: ≤ 10dB
Emission distance: ≥ 80m(open space)
Detecting distance: 8m~12m (25℃ )
Working temperature: -10℃ ~55℃
Installation: wall
Installation height: 1.8~2.2m
Detecting angle: 110°
Anti-theft security pictures

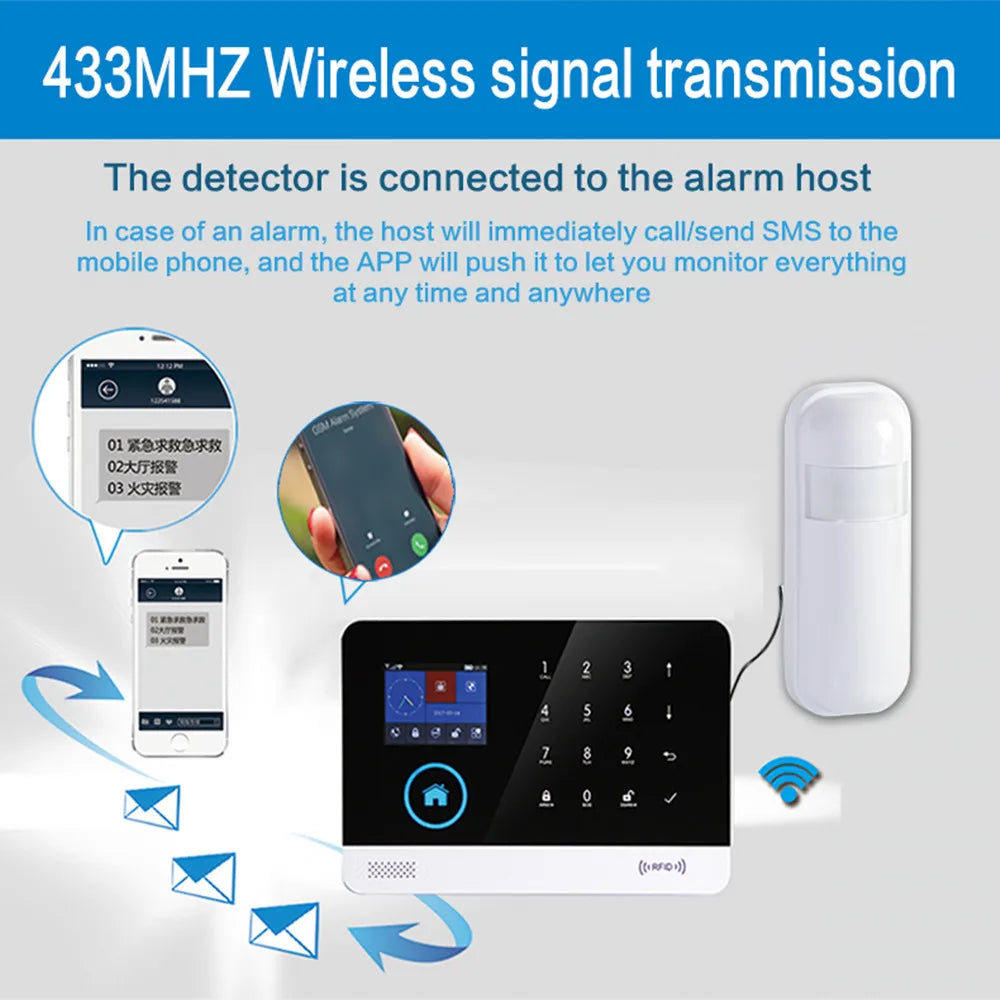

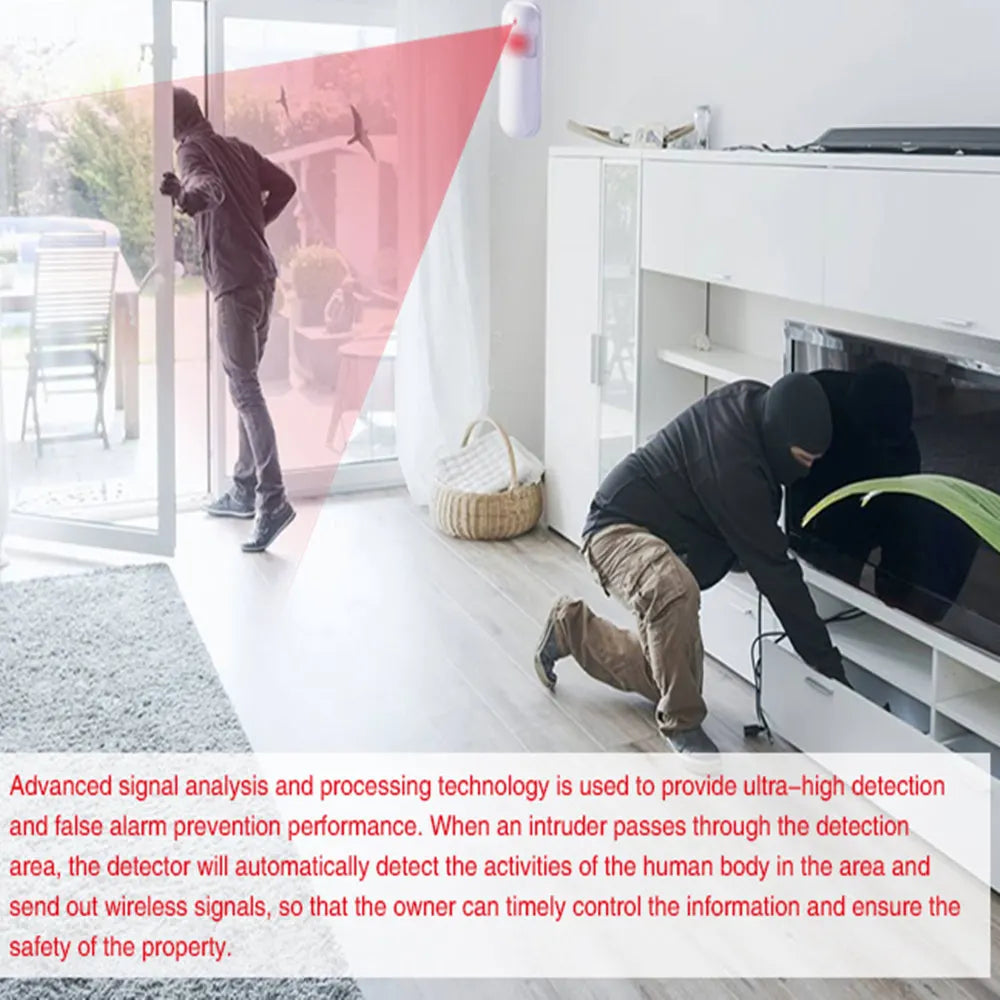

1. This infrared detector can detect strangers who break into your home.
2. When it detects a stranger, it will transmit the signal to the alarm host.
3.When the alarm host receives the signal from the infrared detector, it will alarm. Then send the alarm signal to your phone.Notify you that a stranger has broken into your home.
Internal structure

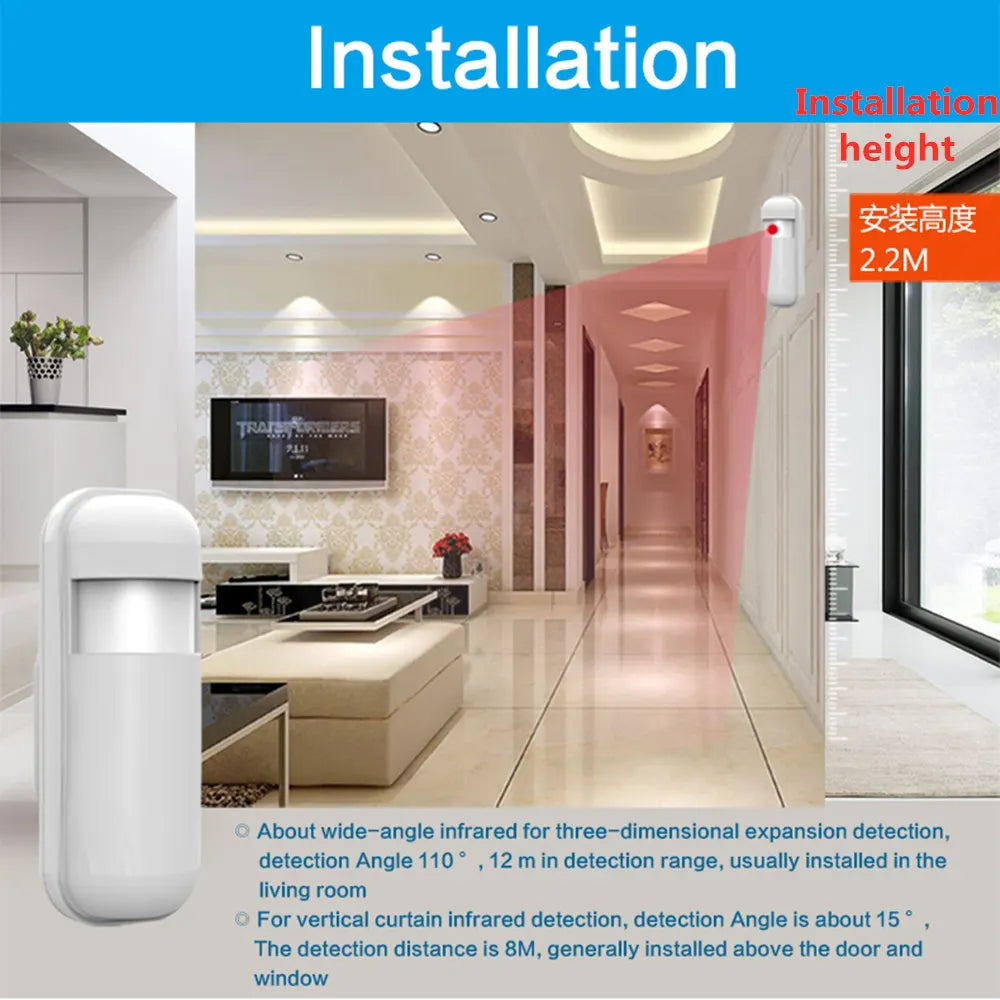

Place of use
