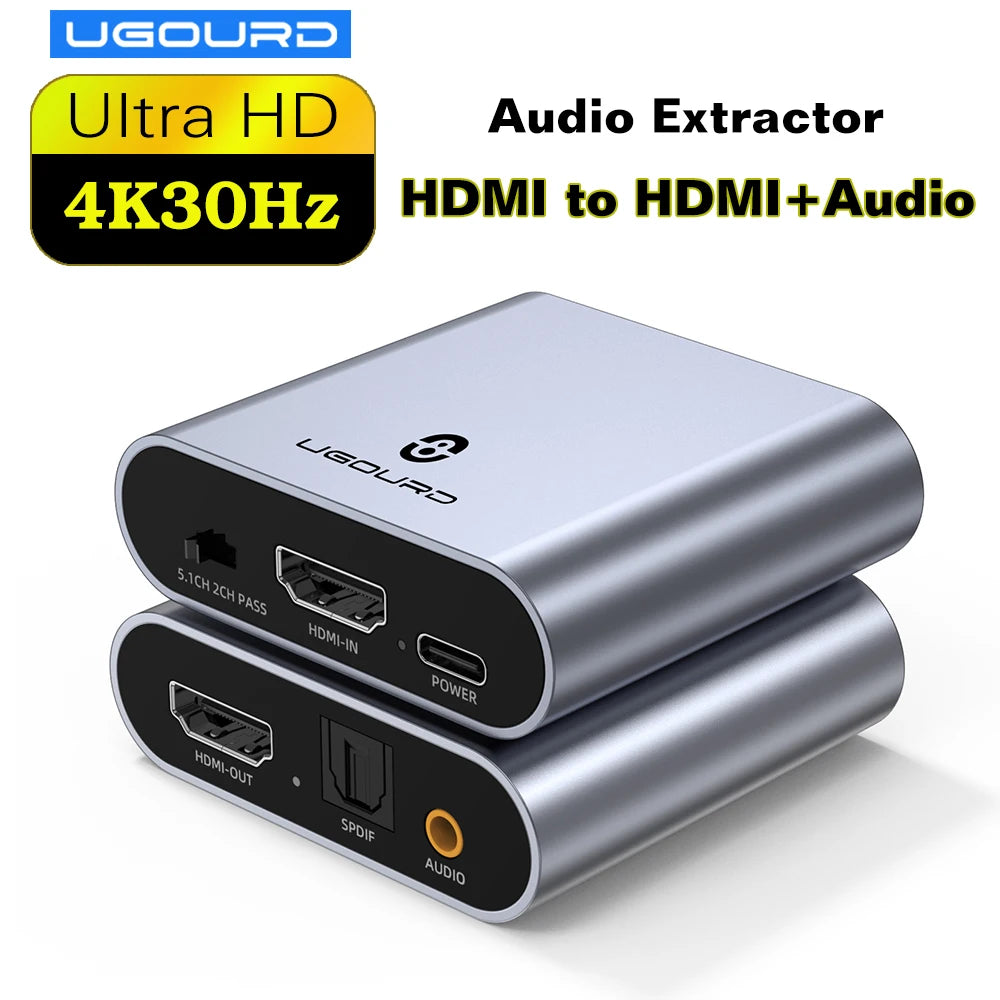

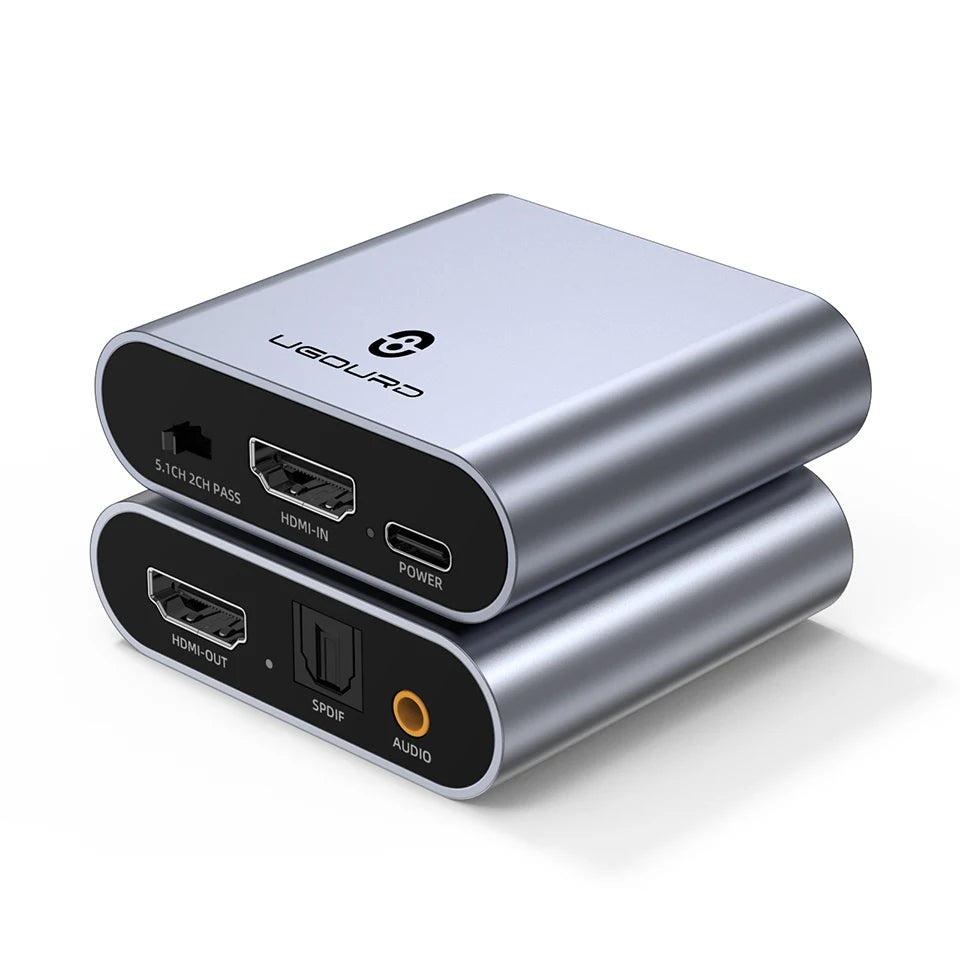

4K 30HZ HDMI-Compatible Audio Extractor Stereo Audio Converter 3.5mm 4k X 2k Audio Splitter Adapter For PS4 TV DVD Home Theater
-
Estimated Delivery:Jul 22 - Jul 26
-
Free Shipping & Returns: On all orders over $75
4K 30HZ HDMI-Compatible Audio Extractor Stereo Audio Converter 3.5mm 4k X 2k Audio Splitter Adapter For PS4 TV DVD Home Theater
SPECIFICATIONS
Brand Name: UGOURD
Cable length: 0.5m
Certification: CE,RoHS
Choice: yes
High-concerned chemical: None
Origin: Mainland China
Type: HDMI Converters
semi_Choice: yes
★ Product Introduction:
This product can separate video and audio from HDMI-compatible sources, extract digital audio signals, and convert them through 3.5mm L/R analog output and SPDIF output.Both RCA L/R and SPDIF outputs can support 2CH audio or 5.1CH audio, including Dolby Digital 5.1CH and DTS 5.1CH (does not support Dolby Digital Plus)
★ Product Features:

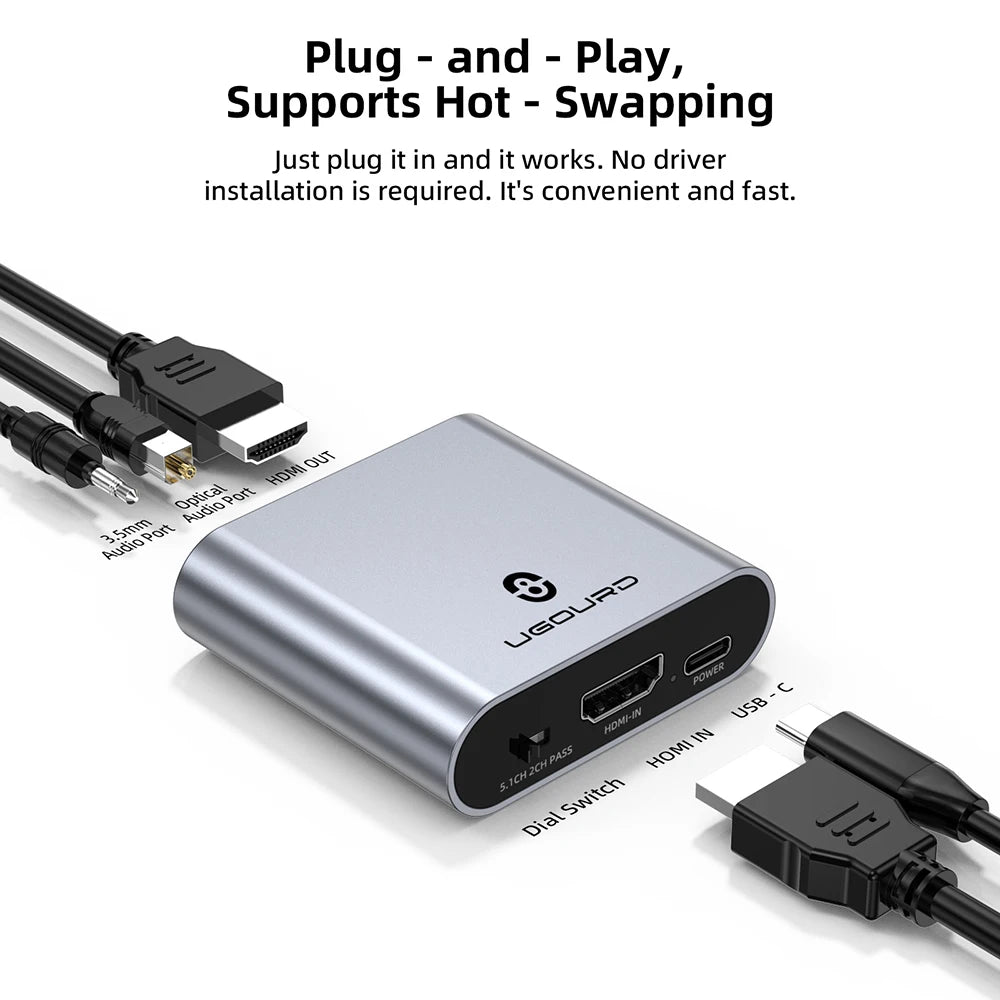

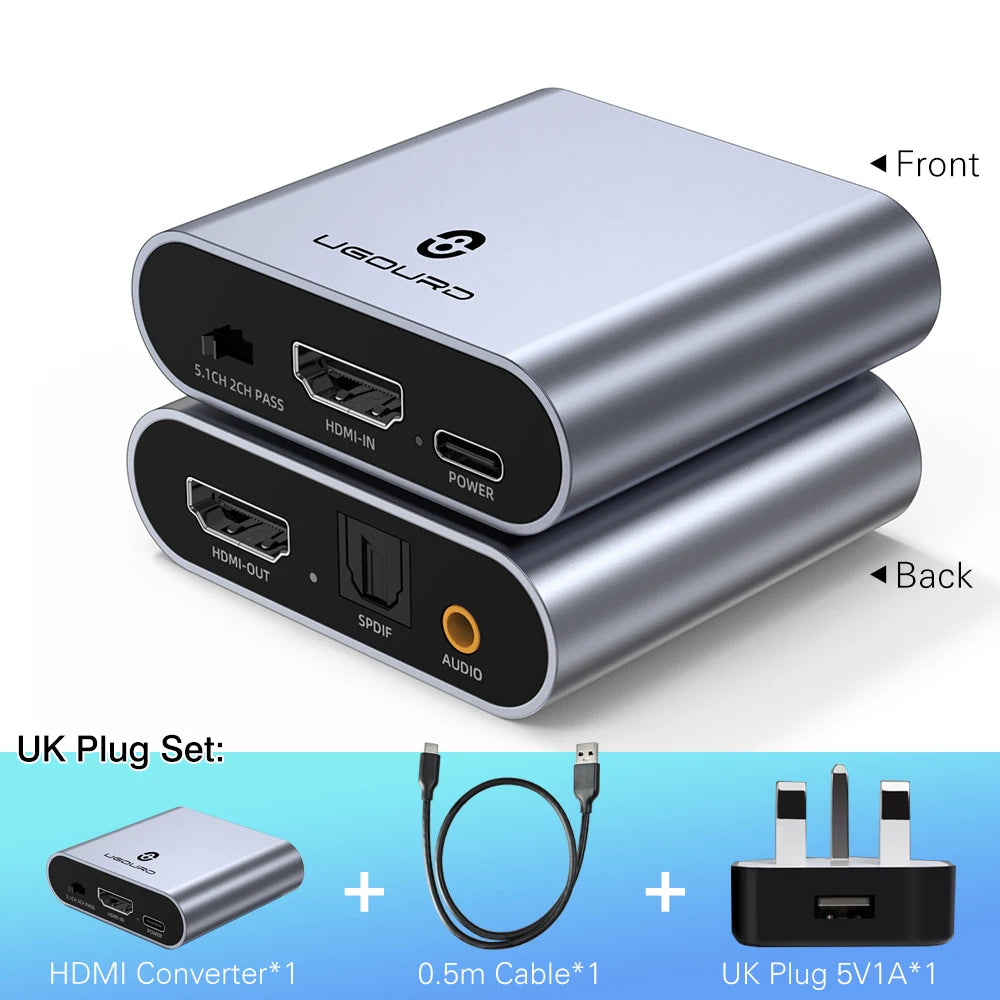

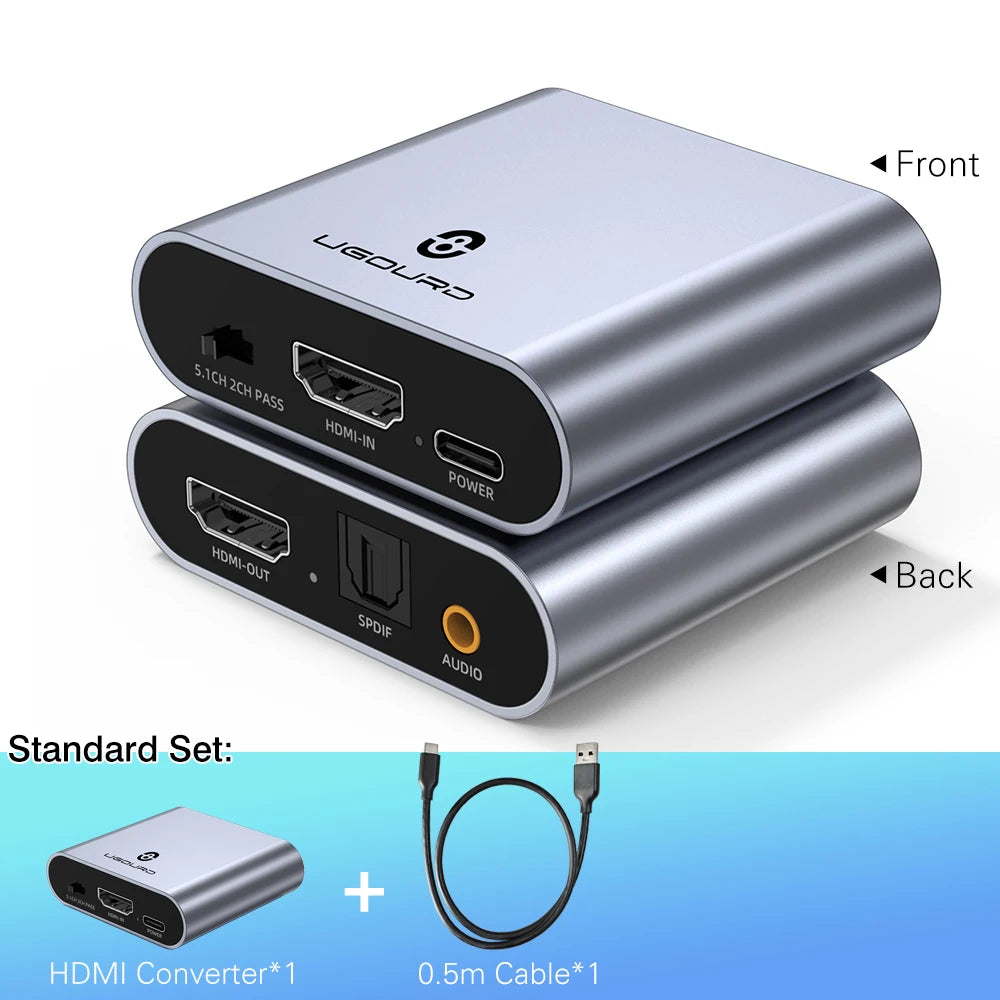

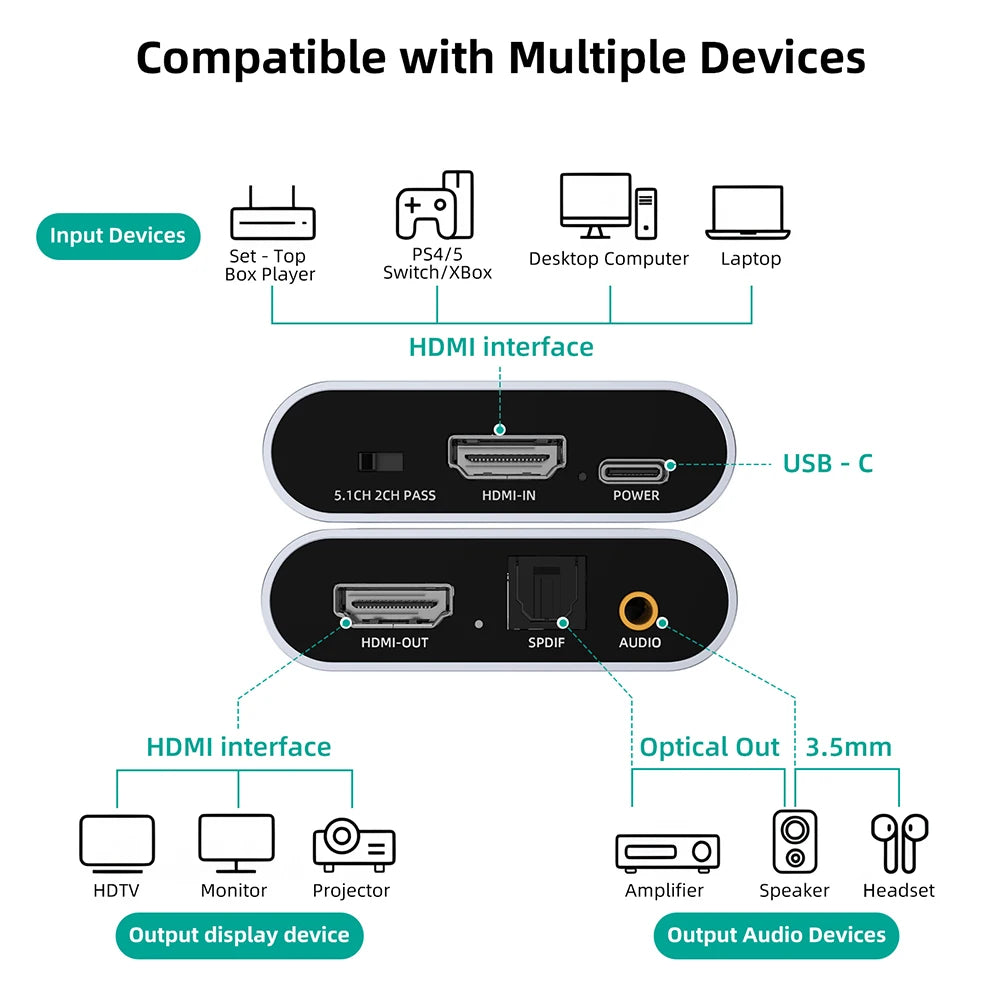

●Convert HDMI-compatible source to 1 HDMI-compatible video signal+1 Audio (SPDIF) output+3.5mm Analog audio output
● Input Resolution: up to 3840x2160@30Hz ; 4096x2160@30Hz.

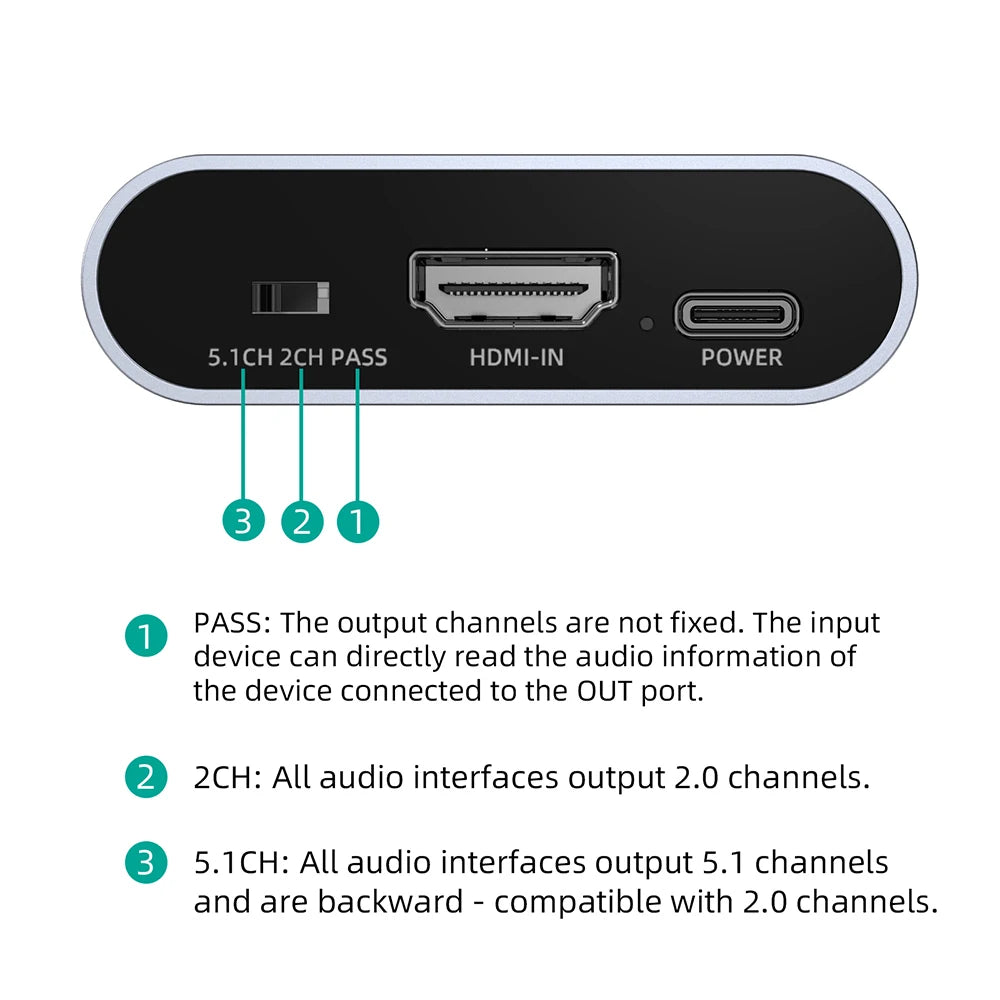

●There are three audio mode options: PASS/2.0CH/5.1CH.
★Three switching audio EDID settings:
●Pass: HDMI-compatible pass mode. The audio and video can be convertered from the HDMI-compatible output. SPDIF and L/R will not output any sound.
●2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI-compatible input and convert it to 2CH analog stereo output through its RCA style L/R analog output and SPDIF output at the same time.
●5.1CH Mode: Extract Dolby Digital / DTS and output via SPDIF or RCA L/R. It does NOT support 5.1 Dolby Digital Plus.

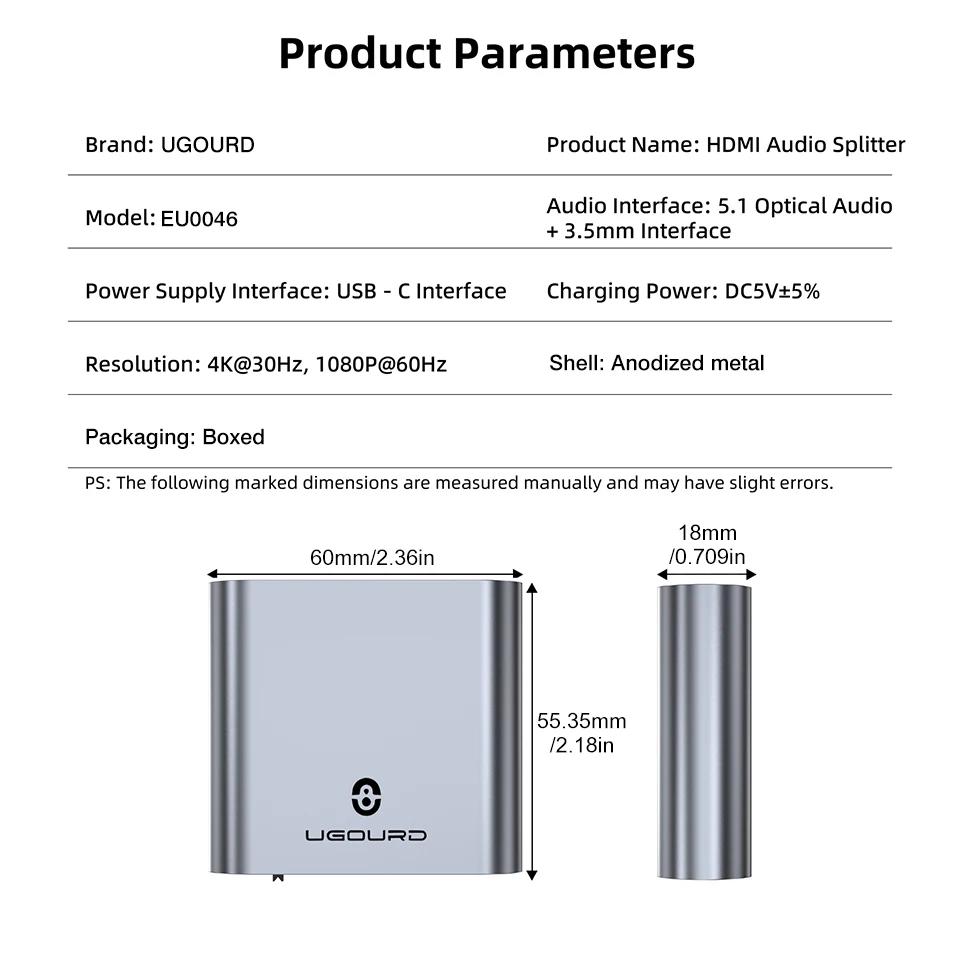

★Parameters：
HDMI-compatible Version----------HDMI-compatible1.4b
HDMI-compatible Resolution----------2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i
Support Video Color Format----------24bits/deep color 30bit,36bit
Audio Output----------SPDIF+3.5mm Audio
Max Bandwidth----------340MHz
Max Baud Rate----------10.2Gbps
Input/ Output TMDS signal----------0.5-1.5Volts p-p(TTL)
Input/ Output DDC signal----------5Volts p-p(TTL)
Input Cable Distance----------<=7m AWG26 standard cable HDMI-compatible
Output cable distance----------<=8m AWG26 standard cable HDMI-compatible
★Notes:
Does not support Dolby Digital Plus audio. It supports DTS audio and Dolby Digital audio.

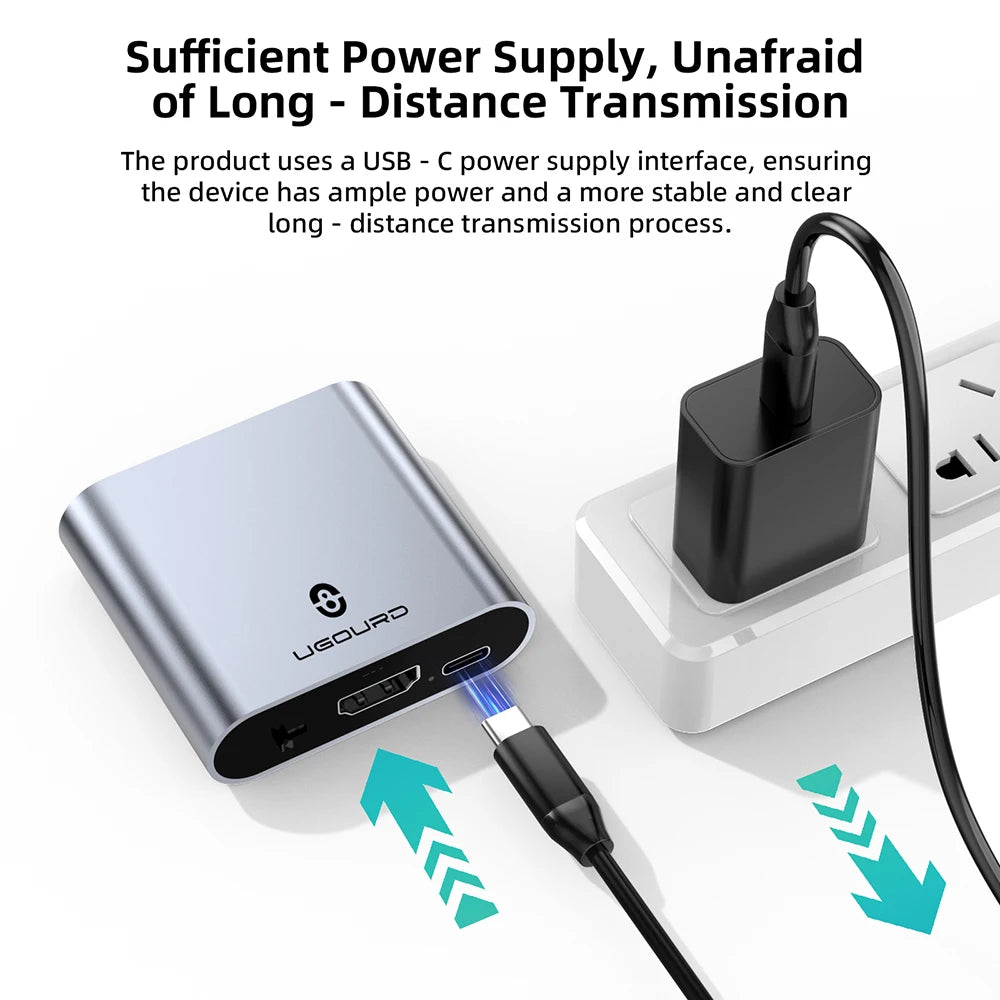

For devices with low power HDMI-compatibleports, a 5V / 1A telephone adapter can be used to connect the .
does not support copyright protected content.
