SPECIFICATIONS

18650 power bank: diy lithium battery box

Brand Name: diymore

Certification: NONE

Choice: yes

DIY Supplies: Electrical

Data Record: No

Electronic: No

High-concerned chemical: None

Material: Plastic

Model Number: UPS Uninterrupted Power Supply

Origin: Mainland China

Output Voltage: 5V9V12V

Style: UPS Uninterrupted Power Supply

Temperature range: -20~60℃

Type: UPS Uninterrupted Power Supply

uninterruptible power supply: backup battery power supply

ups battery backup & surge protector: battery backup

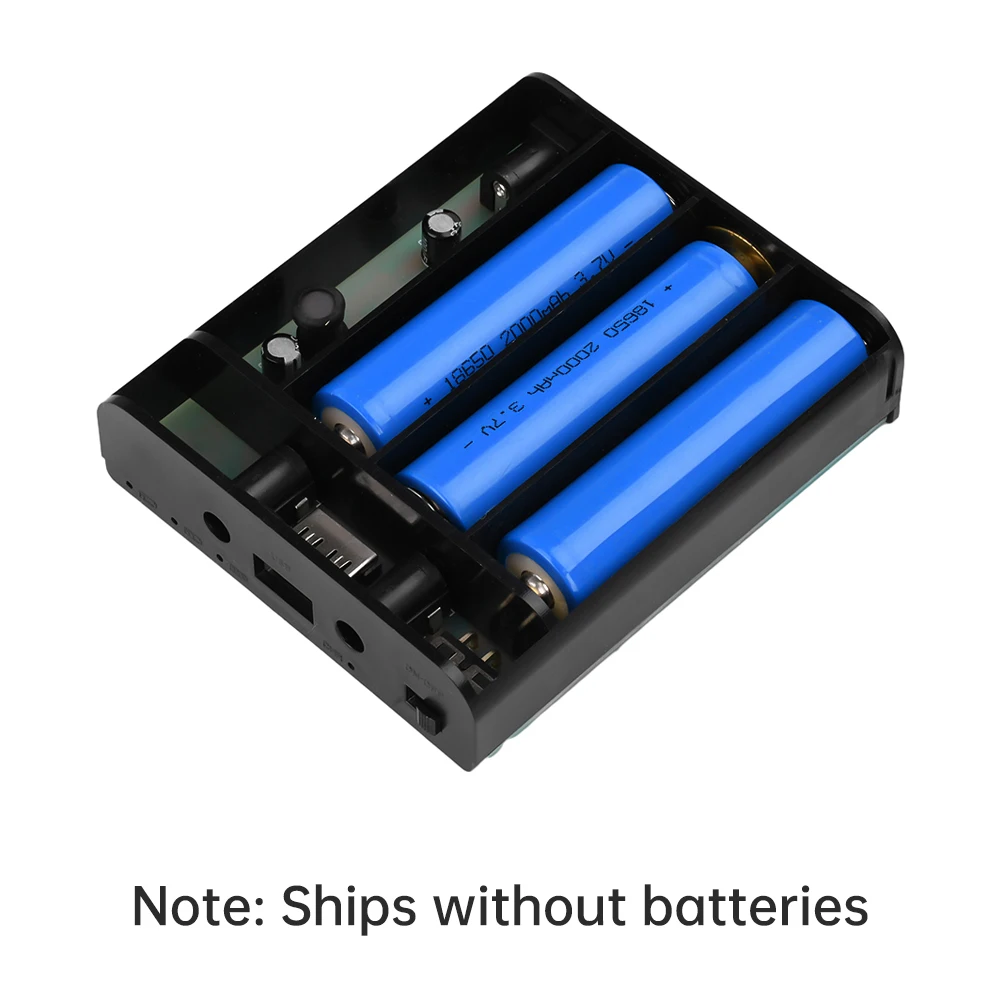

3x 18650 Battery
Parameter:
Capacity: Loadable Battery Capacity: 3 * 3.7V * 3400mah = 37 Watt-Hours; (Batteries Provided By The User)
Output Power: Independent Output 12V3A, 9V1A, Usb5V2-3A Without Considering Ups Input.

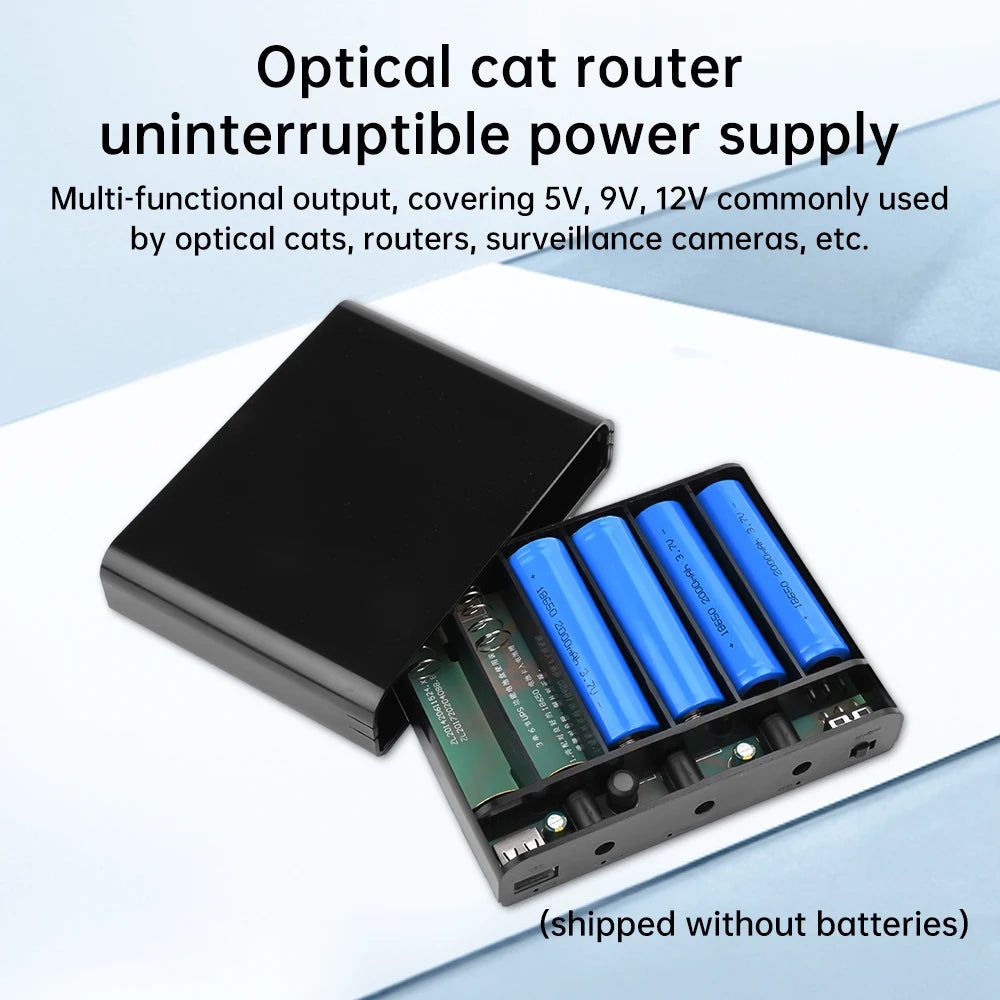

Whether Voltage Regulator: Not Regulated, 3 Batteries In Series Direct Output, Full 12.6V, Low Voltage Protection 8V, Voltage Increases Or Decreases With The Amount Of Electricity Application Type: This Product Is Designed For Modem, Router, Surveillance Camera Equipment Specially Designed
Battery Type: 3.7V Cylindrical 18650 Battery
Ups Input Voltage: 12-13V Range Charging, Can Not Exceed 13V, Below 12.6V Can Not Be Filled, Recommended 12.7V
Ups Input Power: Input Adapter Power Must Meet >= Load Power + Internal Battery Charging Power Of 6 Watts; The Greater The Stability Of The Larger Power
Protection Circuit Parameters: Overcharge Protection: 4.25V * 3; Low Voltage Protection: 2.75V * 3; Overcurrent Detection Voltage: 0.1V +-0.025V
Temperature Range：-20~60℃
Dc Interface Standard: Dc5.5*2.1mm (Inside Positive And Outside Negative)

Precautions:

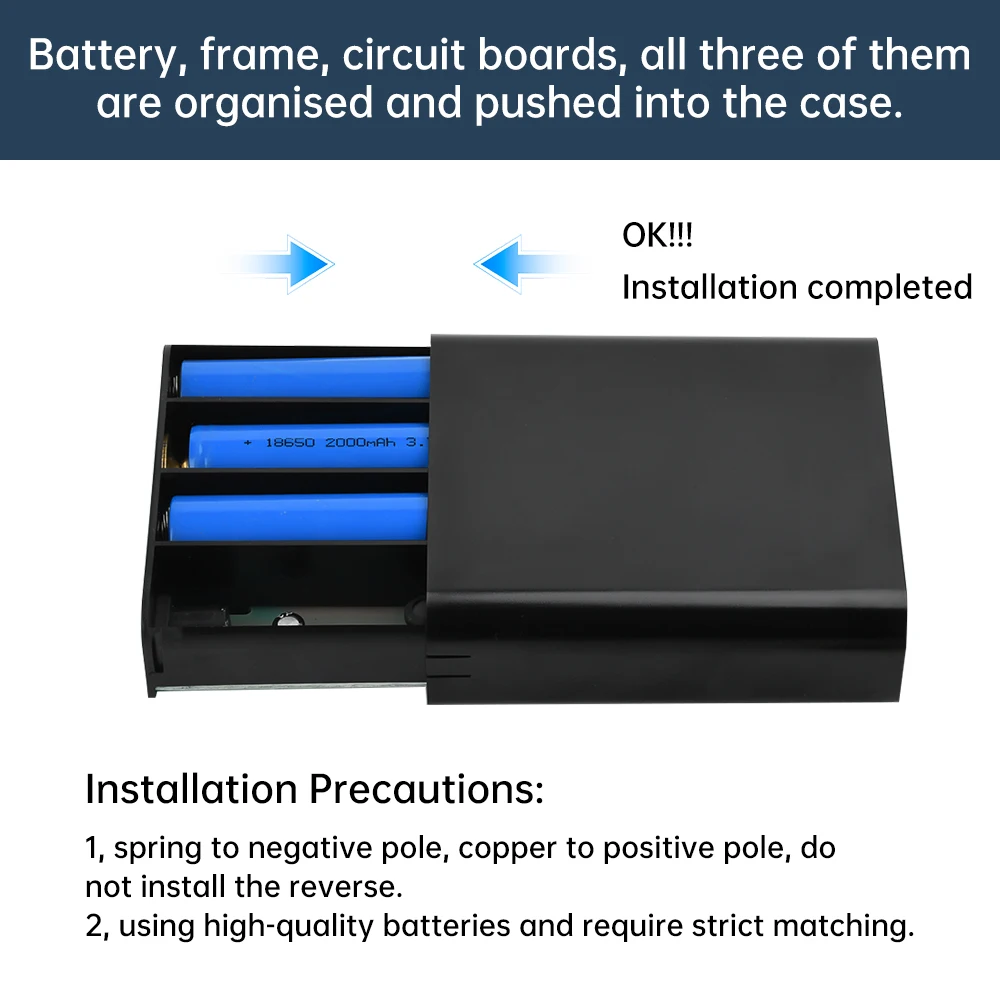

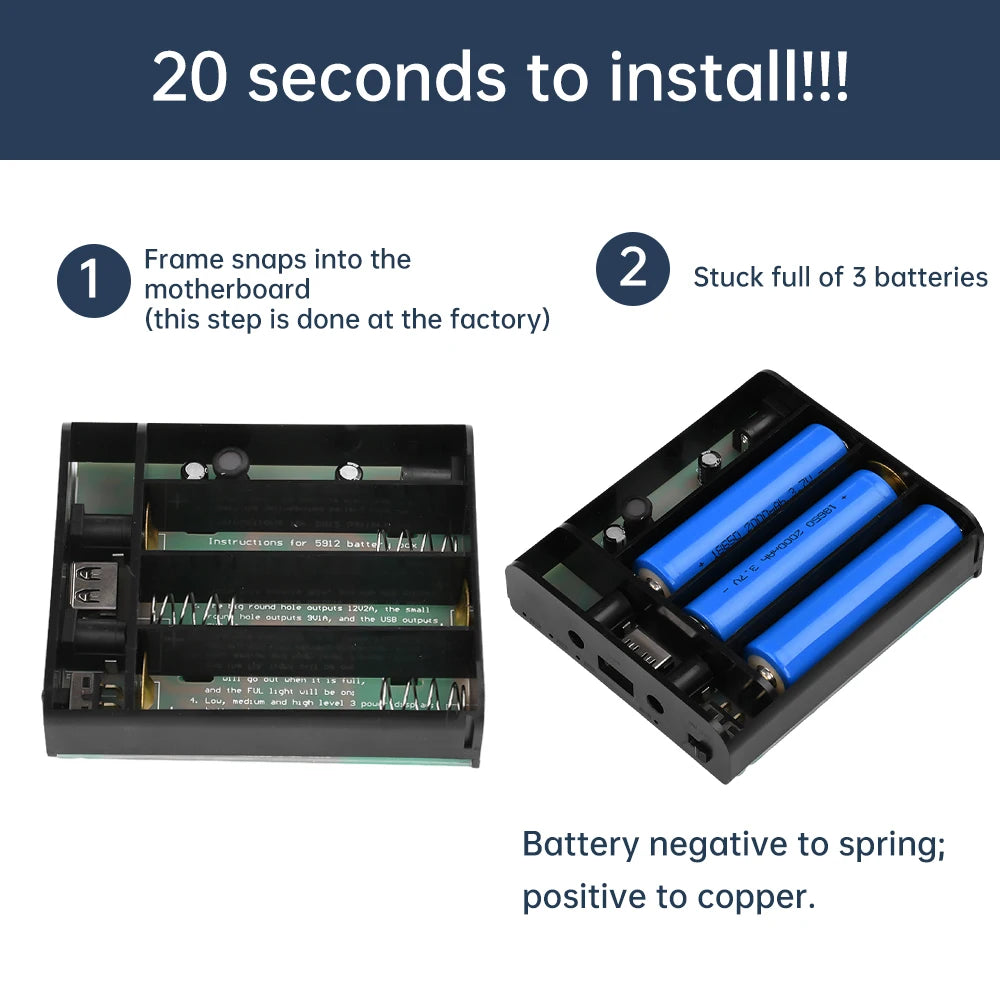

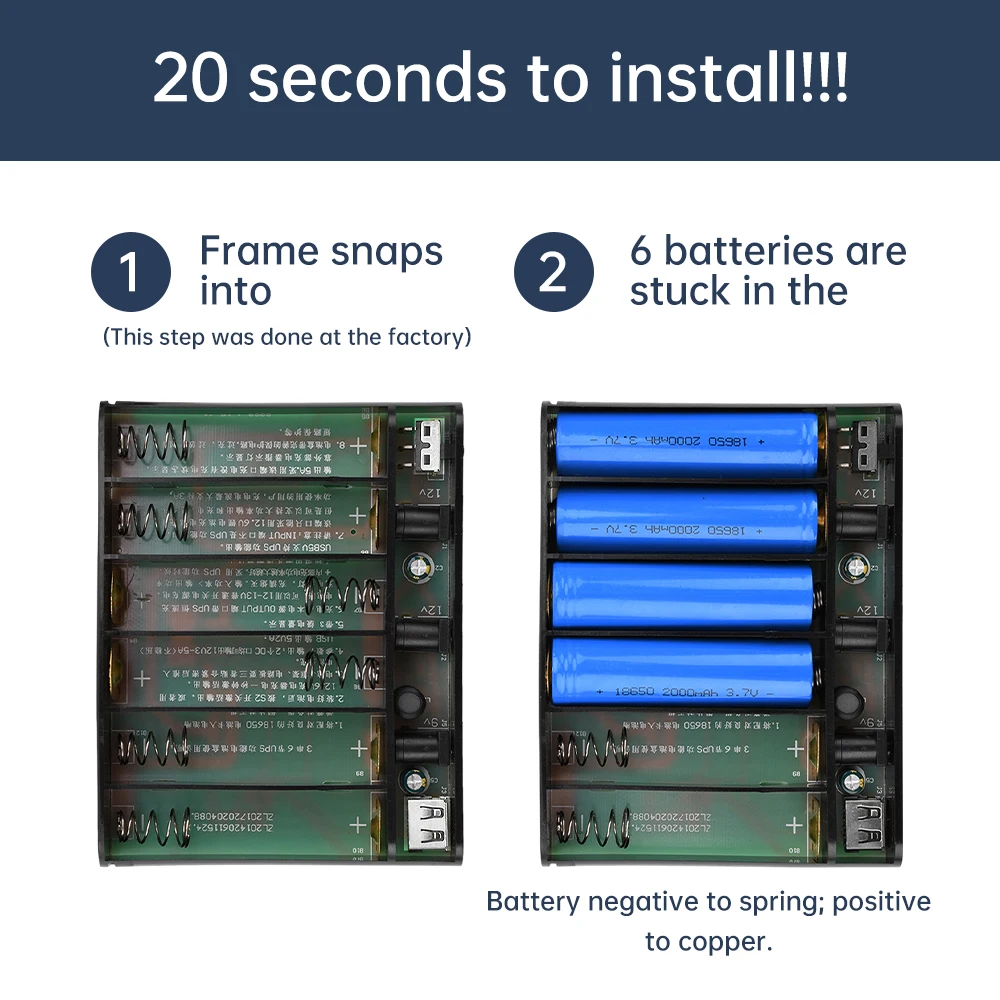

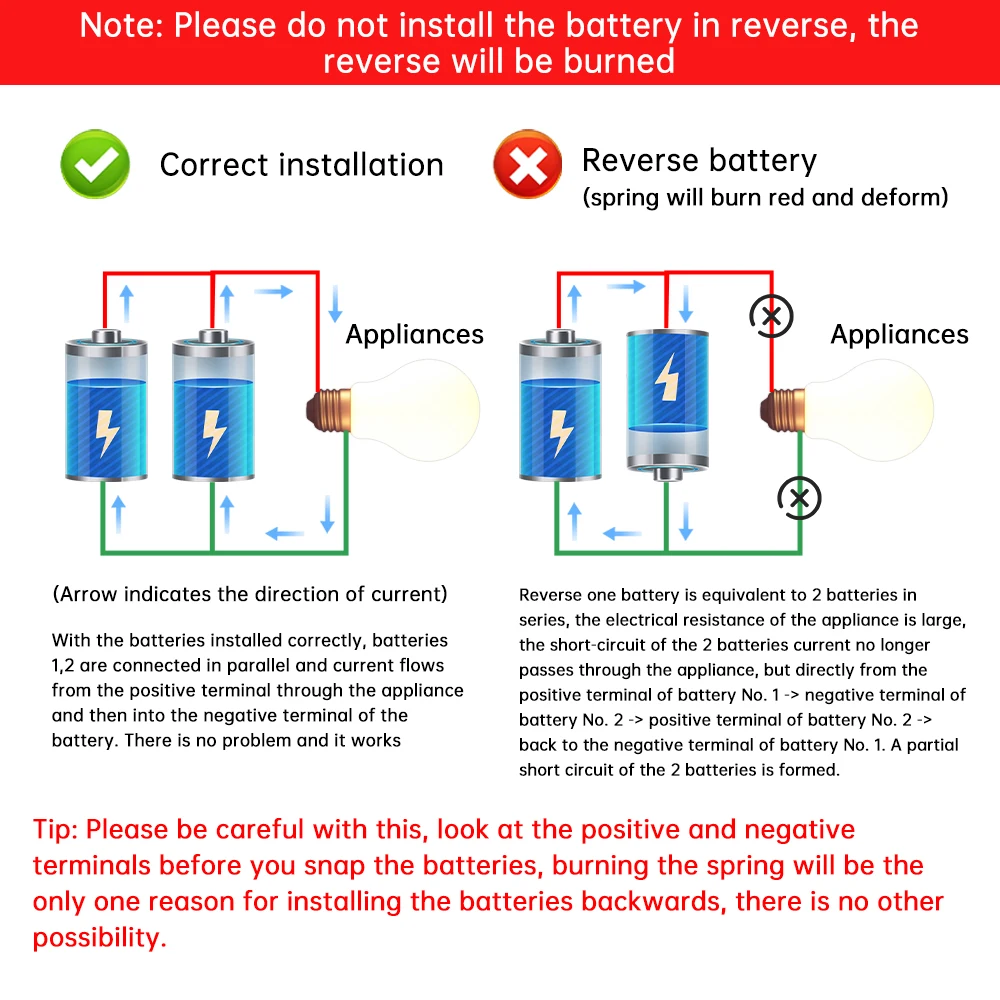

1. Spring To The Negative Pole, Copper To The Positive Pole, Do Not Install The Reverse, Install The Reverse Will Burn!

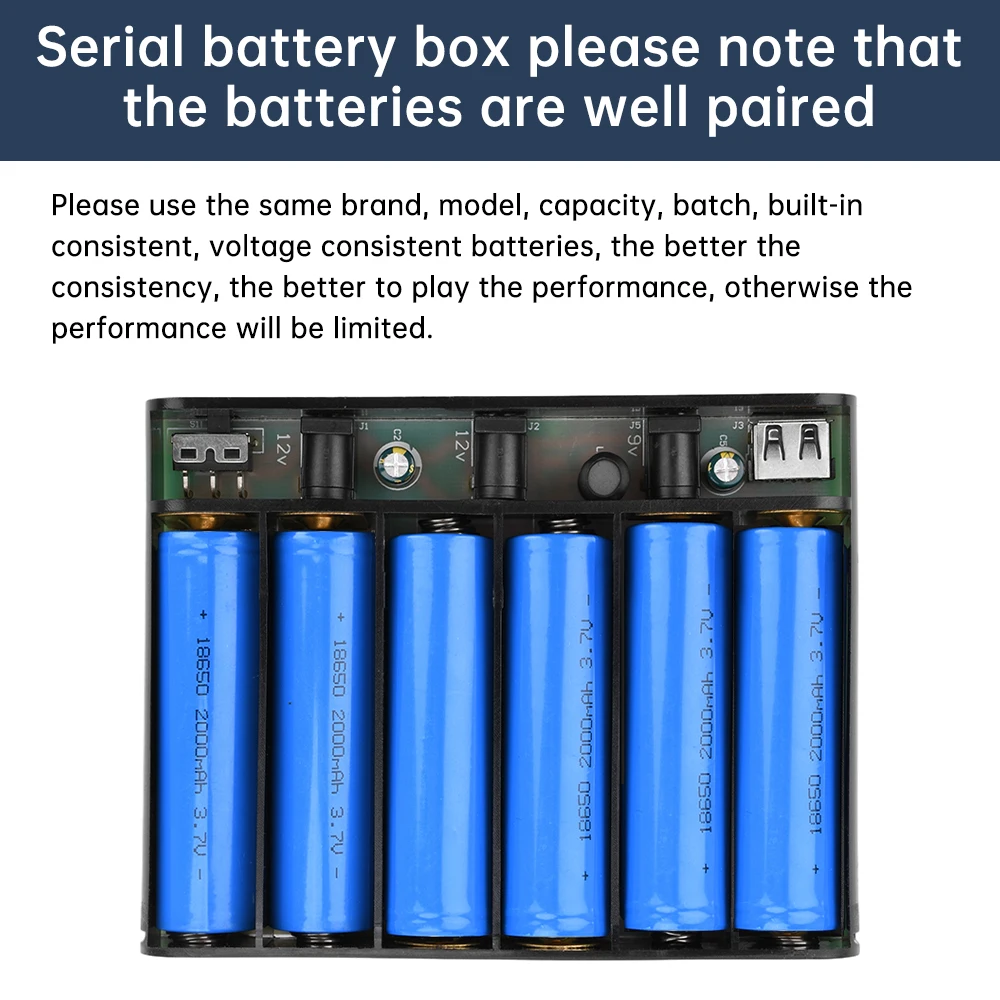

2. The Use Of High-Quality Batteries And Require Strict Pairing, Composed Of Battery Packs Of Each Individual Battery Should Be The Same Parameters As Far As Possible!
3.This Product Can Only Use Flat 18650 Batteries, Pointed Batteries Longer Than 2Mm, Can Not Be Used!

Package Include:

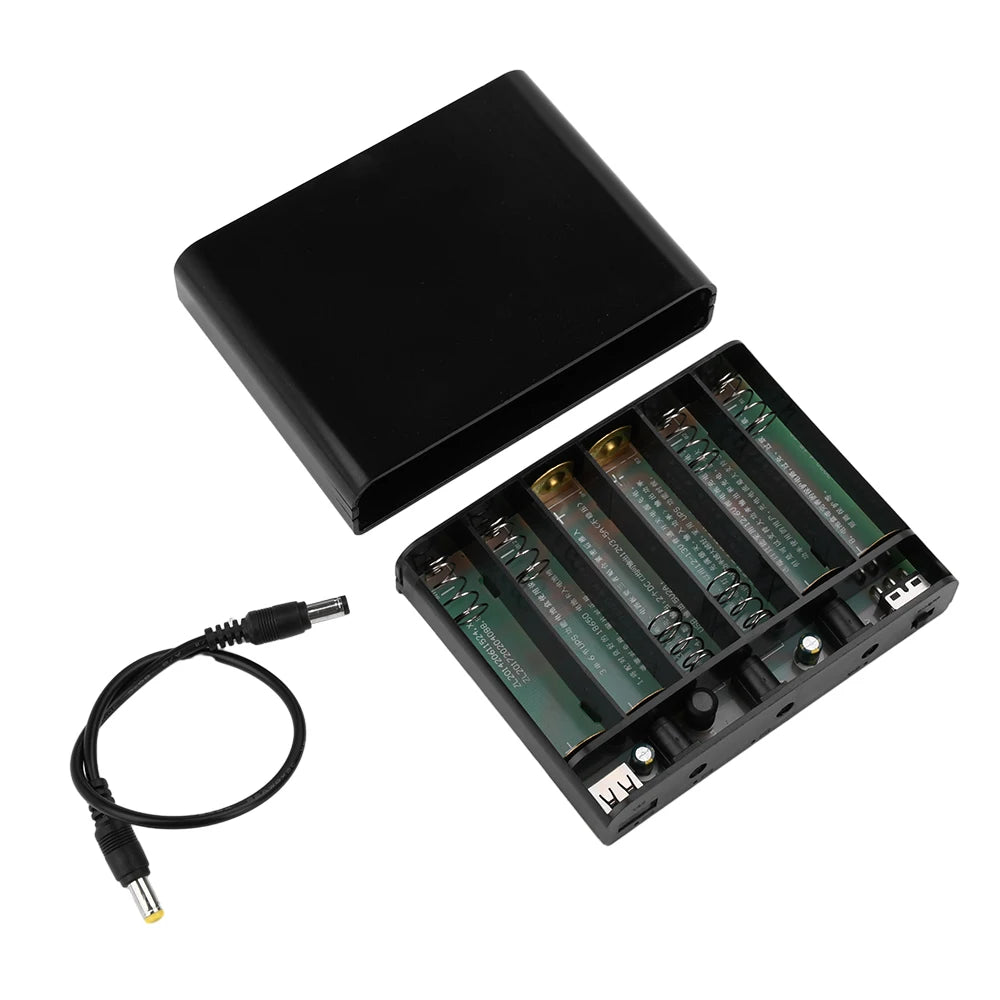

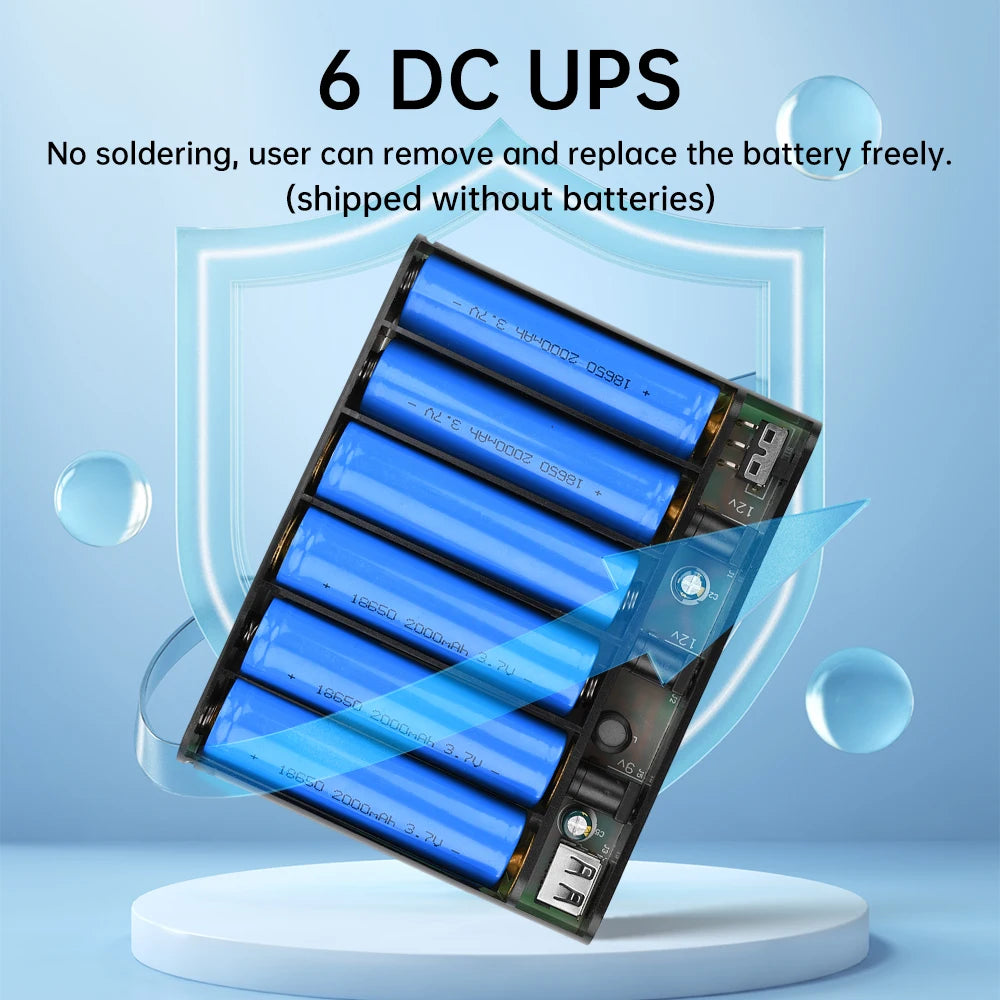

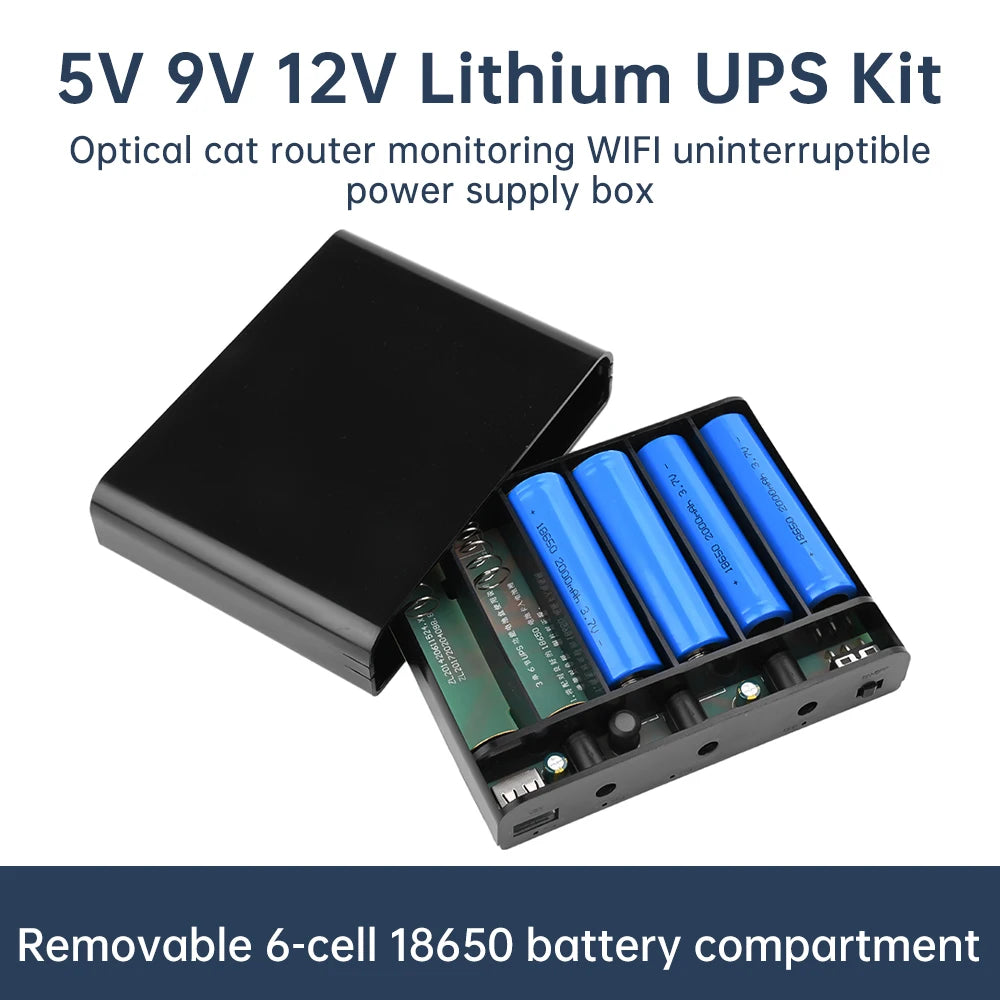

Welding-Free Battery Box * 1

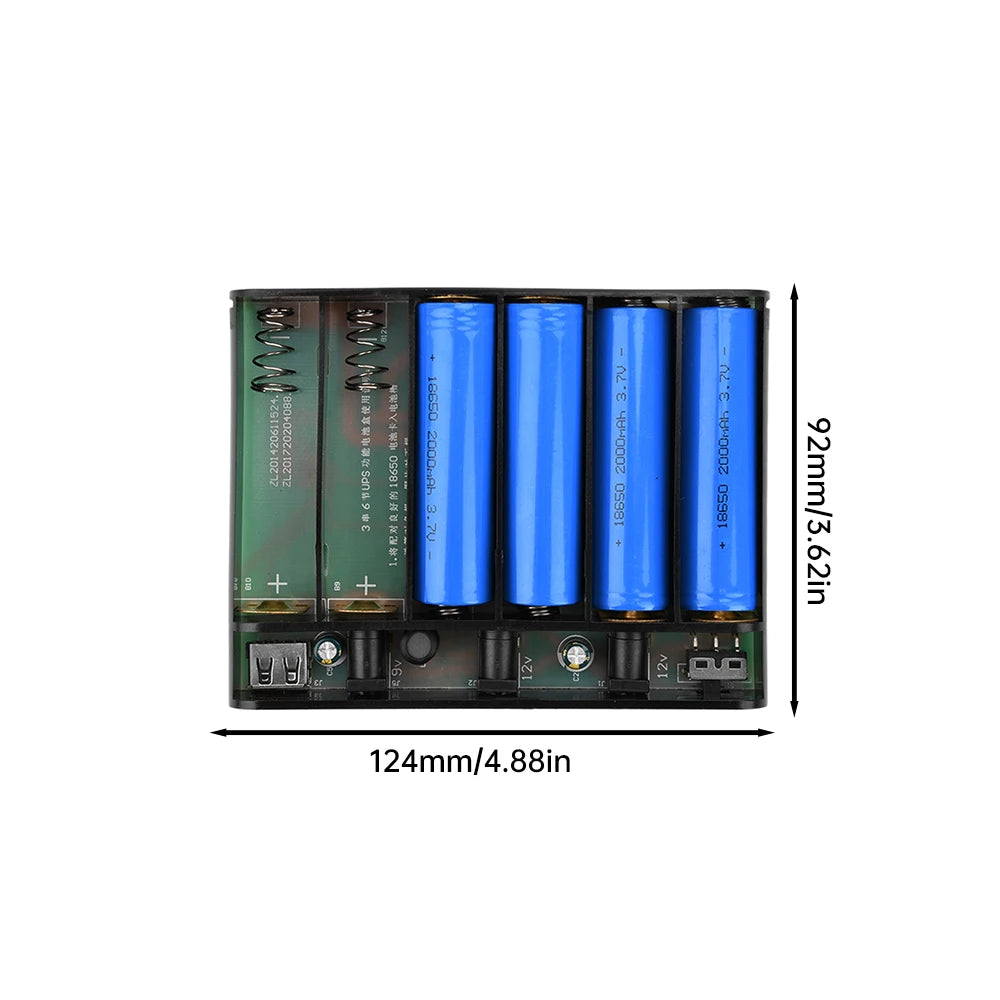

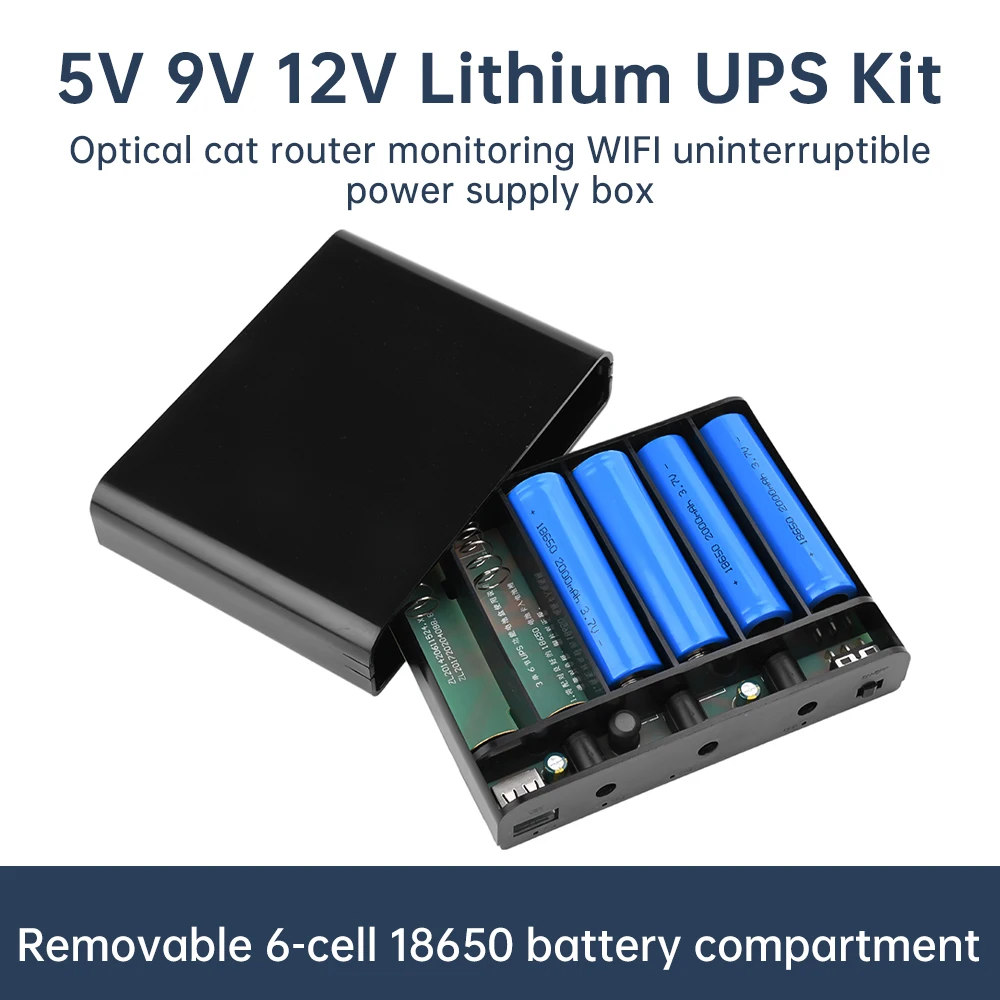

6x 18650 Battery
Installable Battery Capacity: 6 * 3.7V * 3400mah = 74 Watt-Hours (Battery Users To Provide)

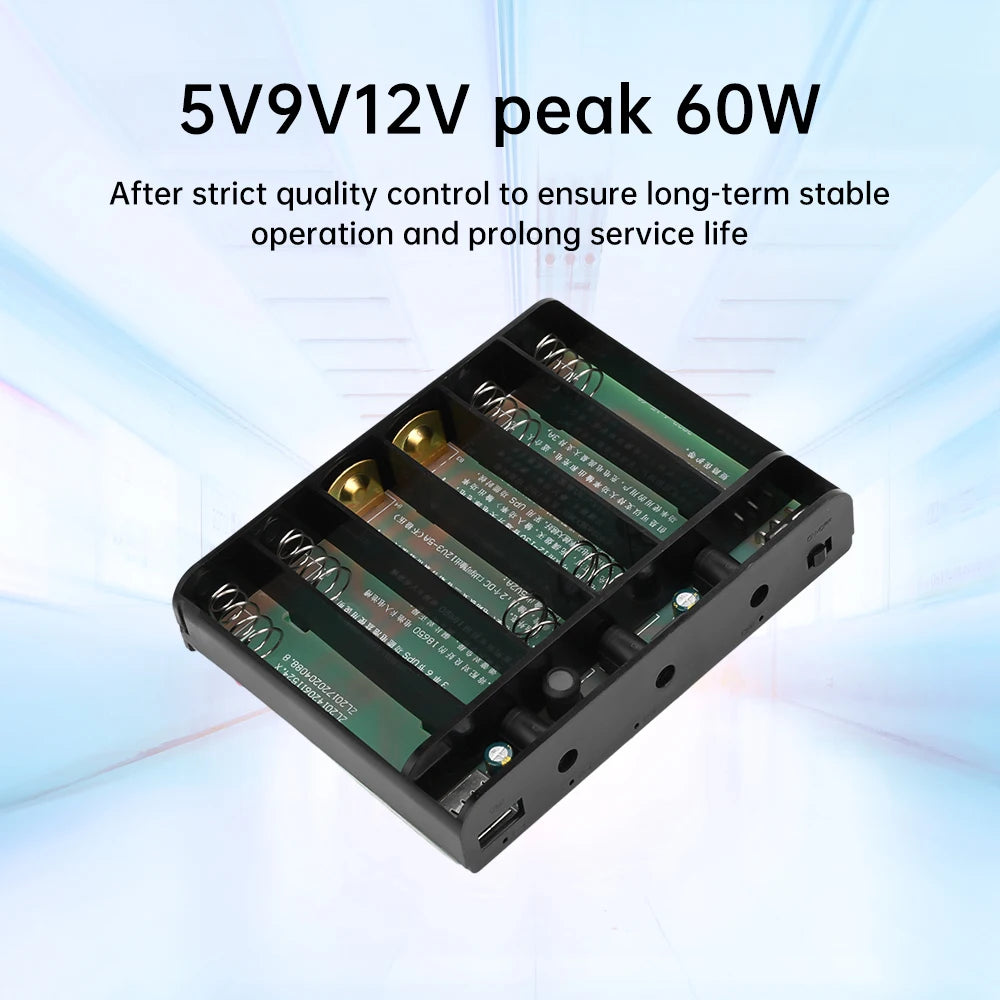

Rated Output Power: 12V5A = 60W; The Actual Output Power From The Battery Itself Output Power

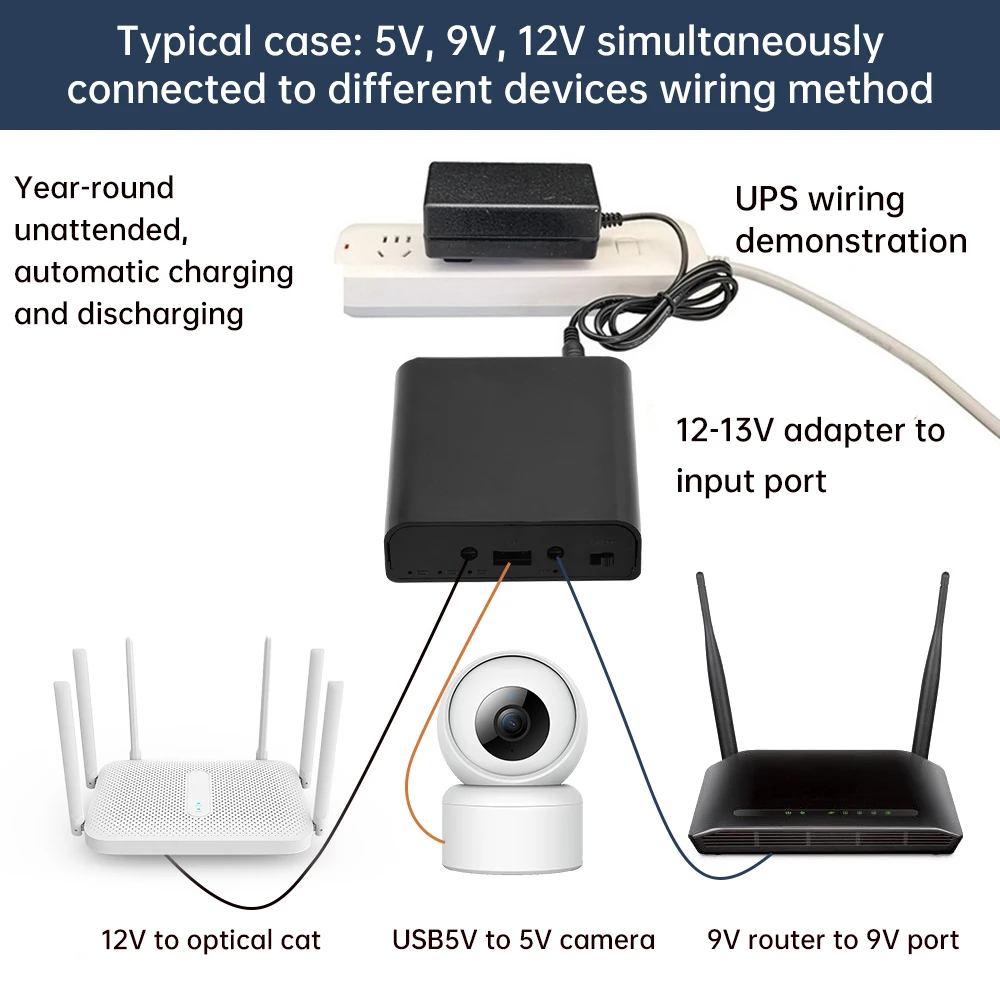

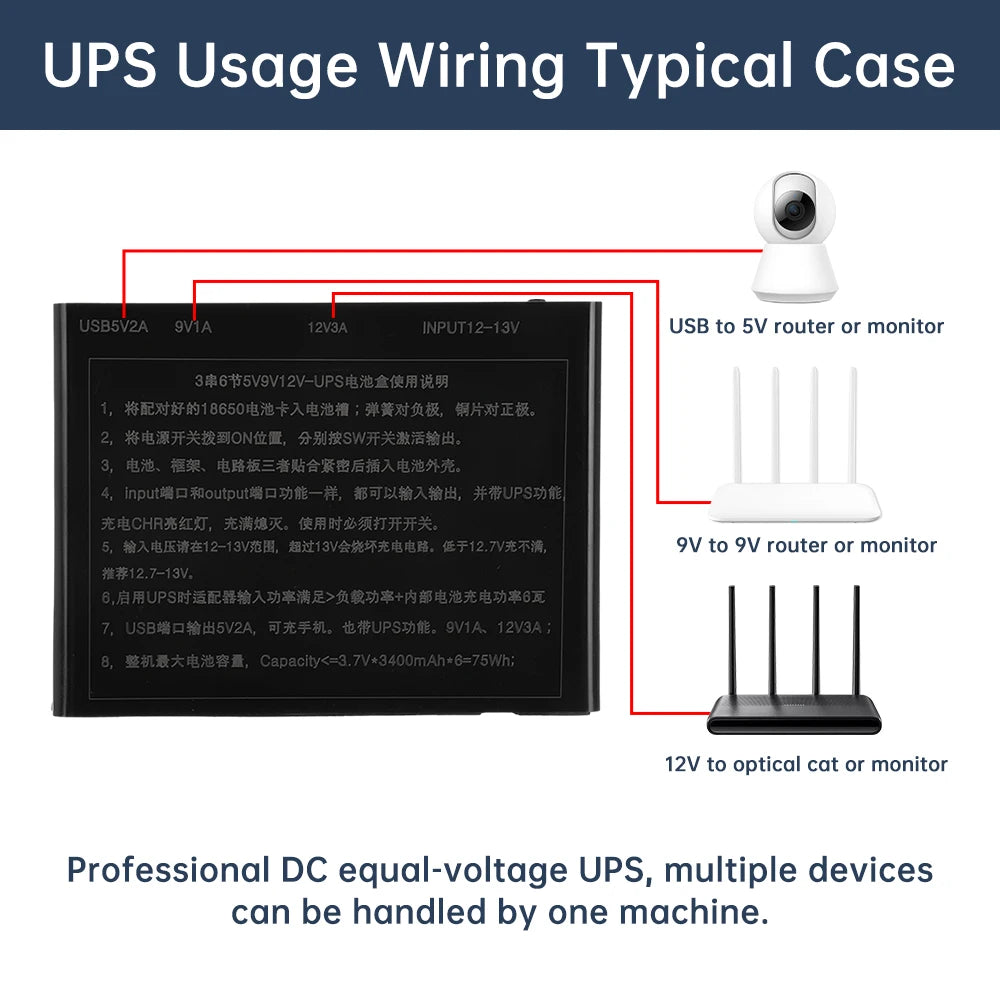

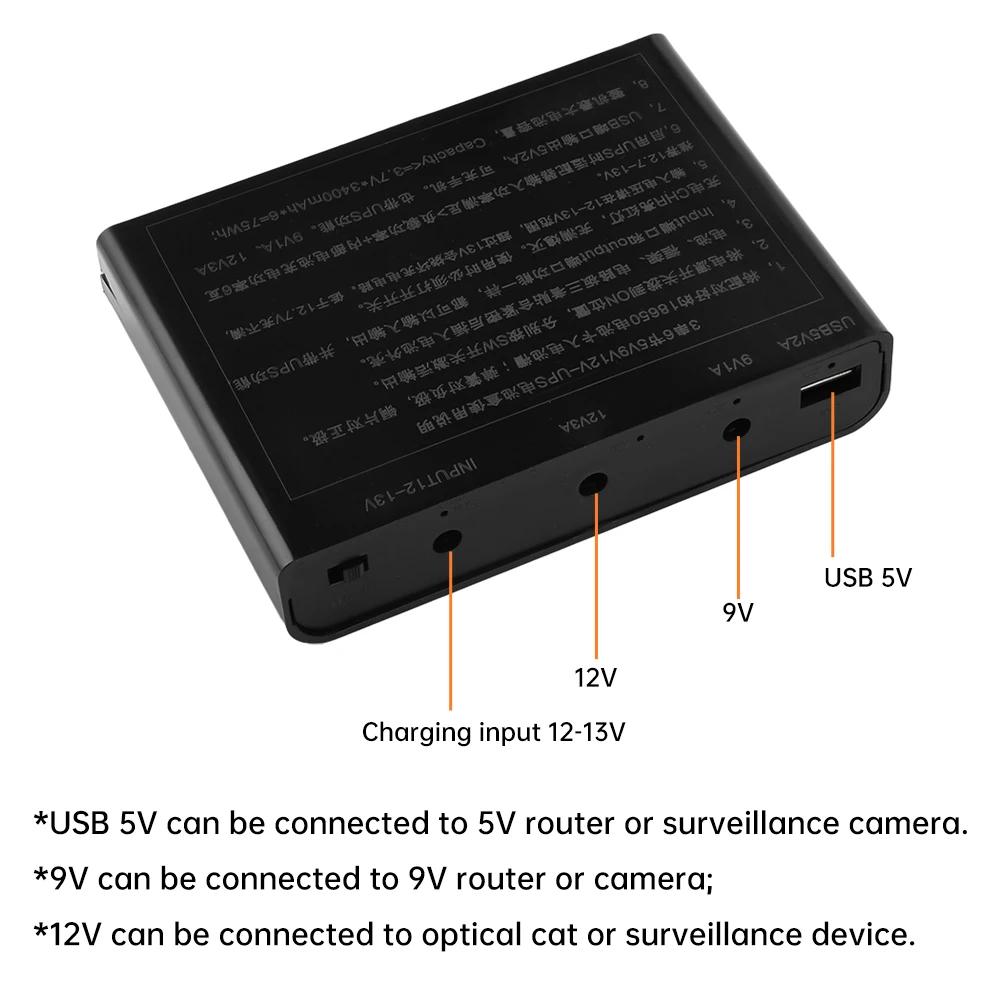

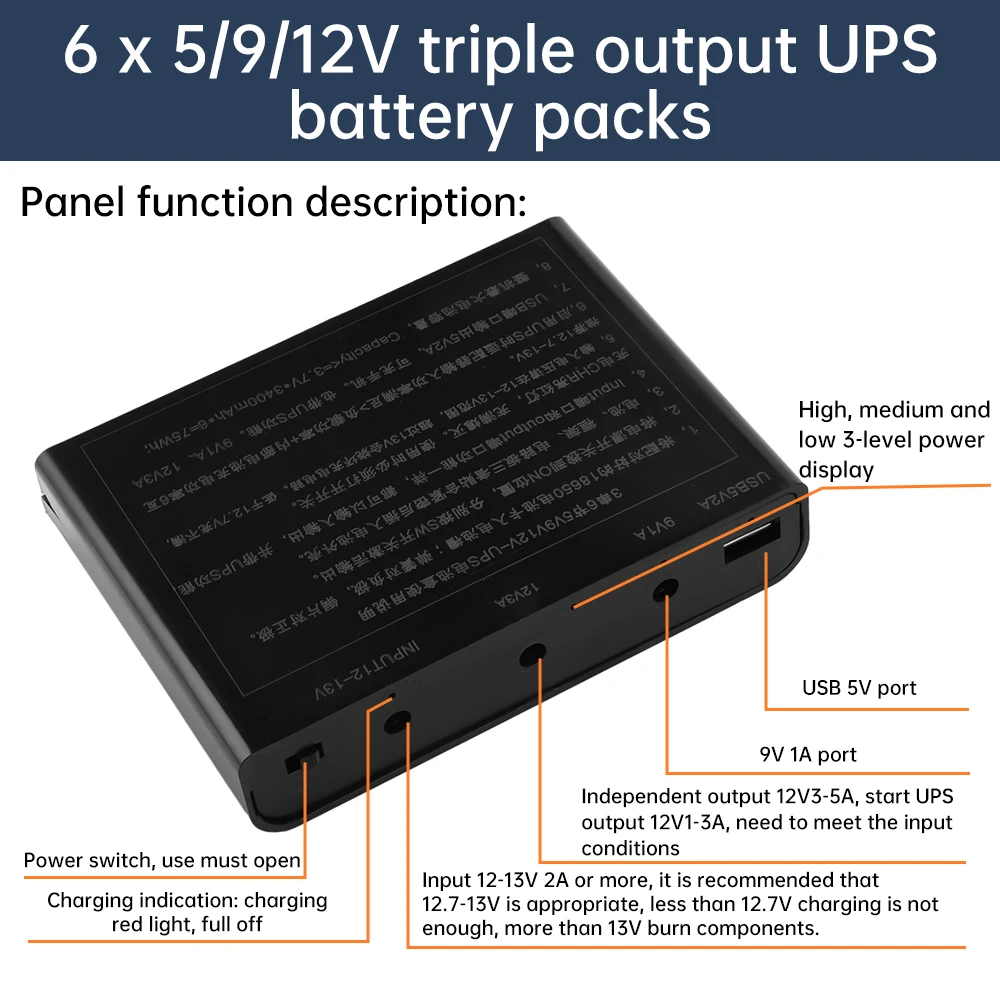

Output Voltage: Independent Output 12V3-5A; 9V1A; Usb5V2-3A; Enable Ups Function Need To Meet The Input Power Conditions

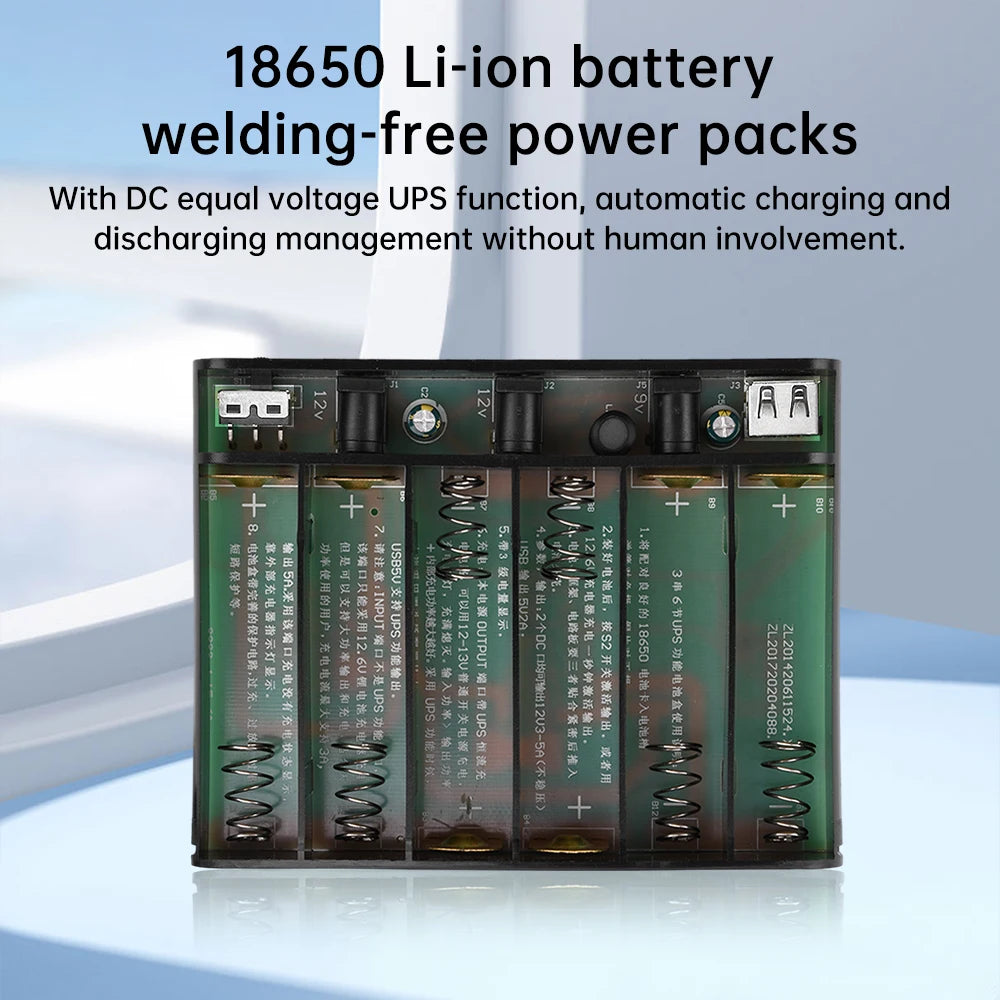

The Product Is Not Voltage Stabilized, The Batteries Are Connected In Series And Output Directly, The Voltage Increases Or Decreases With The Amount Of Power.
Suitable For High-Power Appliances That Do Not Require Voltage Regulation, Electric Motors, Led Lights, Stereos, Solenoid Valves, Printers, Etc.
Applicable Batteries: 3.7V Cylindrical Flat 18650 Batteries (Recommended Power Battery)

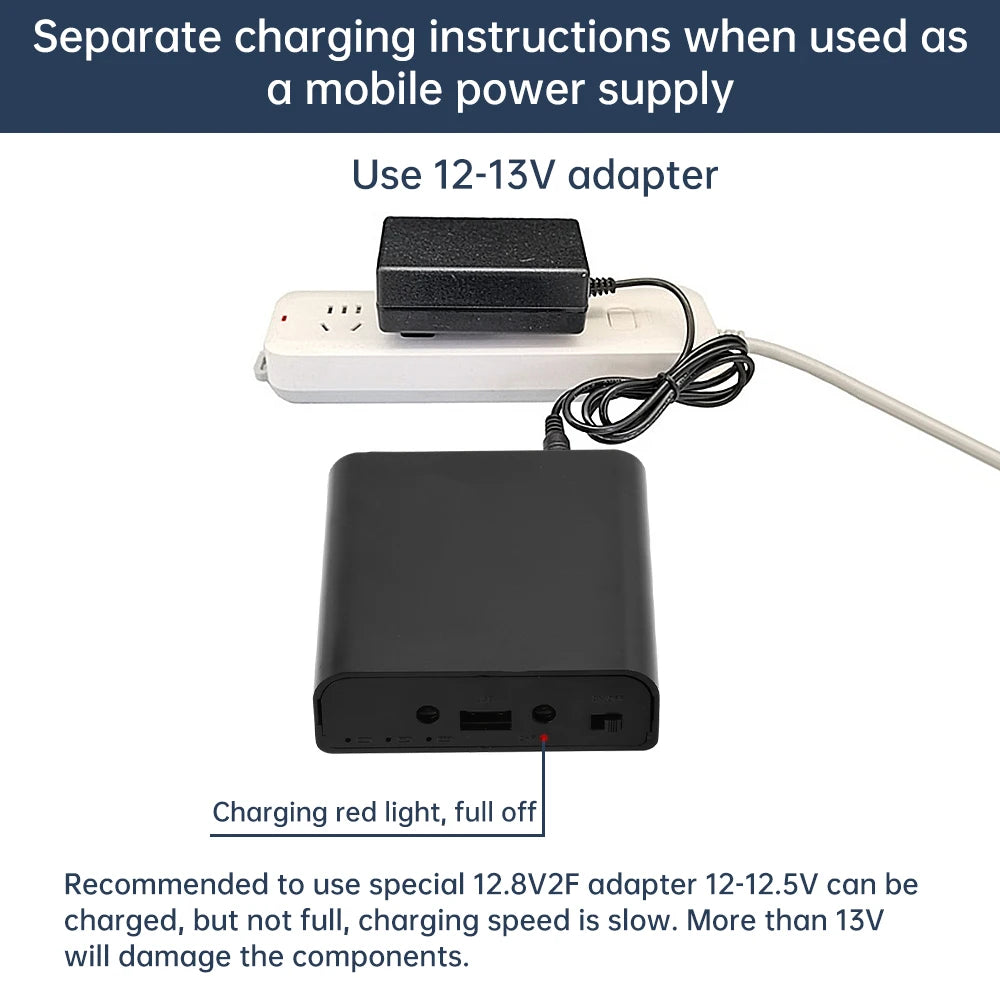

Charger Type: Internal Charging Current Limiting Circuit, Can Be Charged With 12-13V Adapter, When The Ups Is Used, The Greater The Input Power The More Stable
Charging Power: Input Adapter Power To Meet >= Total Load Power + Battery Charging Power 6W
Overcharge Protection: 4.25V*3
Low Voltage Protection: 2.75V*3
Overcurrent Detection Voltage: 0.1V+-0.025V
Temperature Range: -20~60°C
Dc Interface Standard: Dc5.5*2.1mm (Inside Positive And Outside Negative)

Precautions:

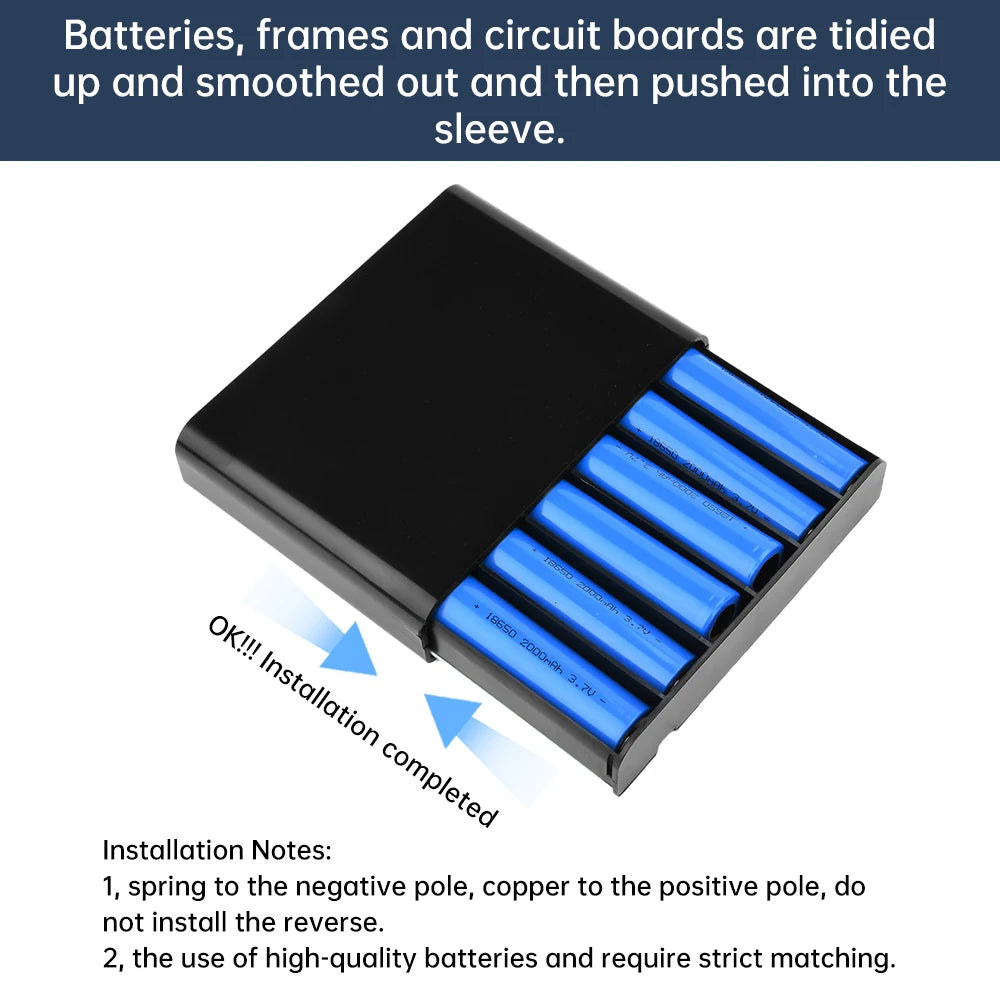

1. Spring To The Negative Pole, Copper To The Positive Pole, Do Not Install The Reverse, Install The Reverse Will Burn!
2. The Use Of High-Quality Batteries And Require Strict Pairing, Composed Of Battery Packs Of Each Individual Battery Should Be The Same Parameters As Far As Possible!
3.This Product Can Only Use Flat 18650 Batteries, Pointed Batteries Longer Than 2Mm, Can Not Be Used!

Package Include:
Welding-Free Battery Box * 1
0.3 Meters Line *1
