SPECIFICATIONS

Brand Name: mountainone

Camera: camera

Color: Black

Display Type: Touch Screen

Feature: Easy Installation,Water Resistance

Model Number: SY816MJSENO11

Place of Origin: Guangdong, China

Power: 220V

Resolution: 720P

Type: Video Door Phone

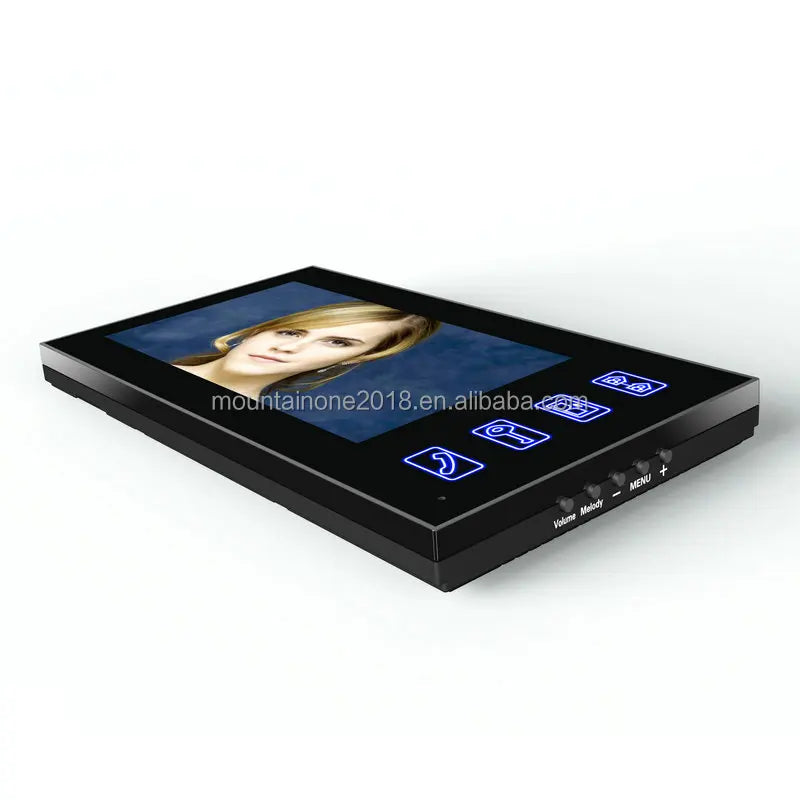

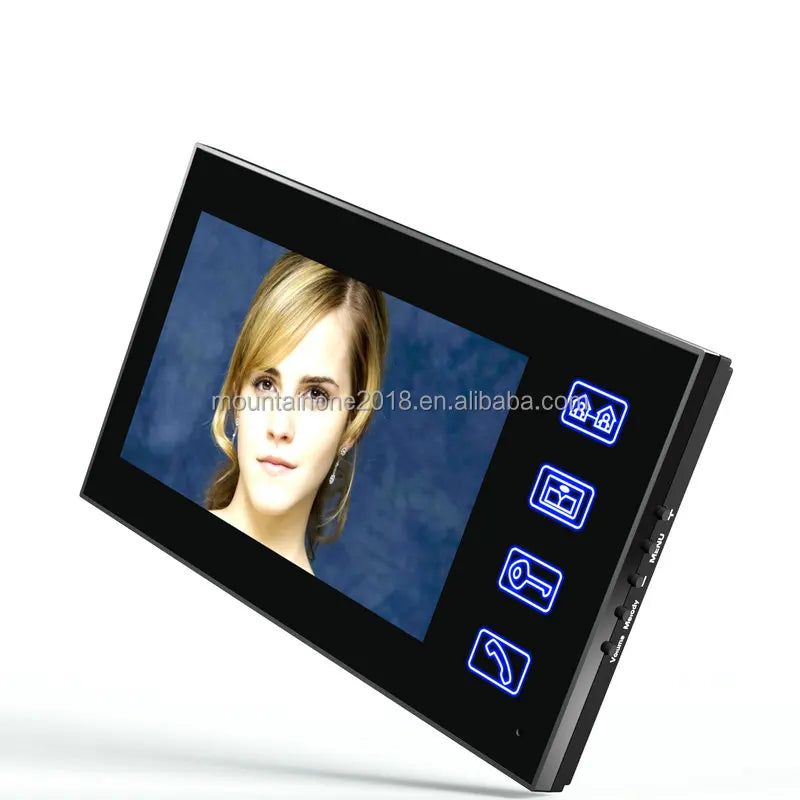

1. 7 inch Ultra-slim design indoor monitor, nice and luxurious, available for wall-mounted.25  kinds of door bell rings, ring volume, chroma and brightness adjustable

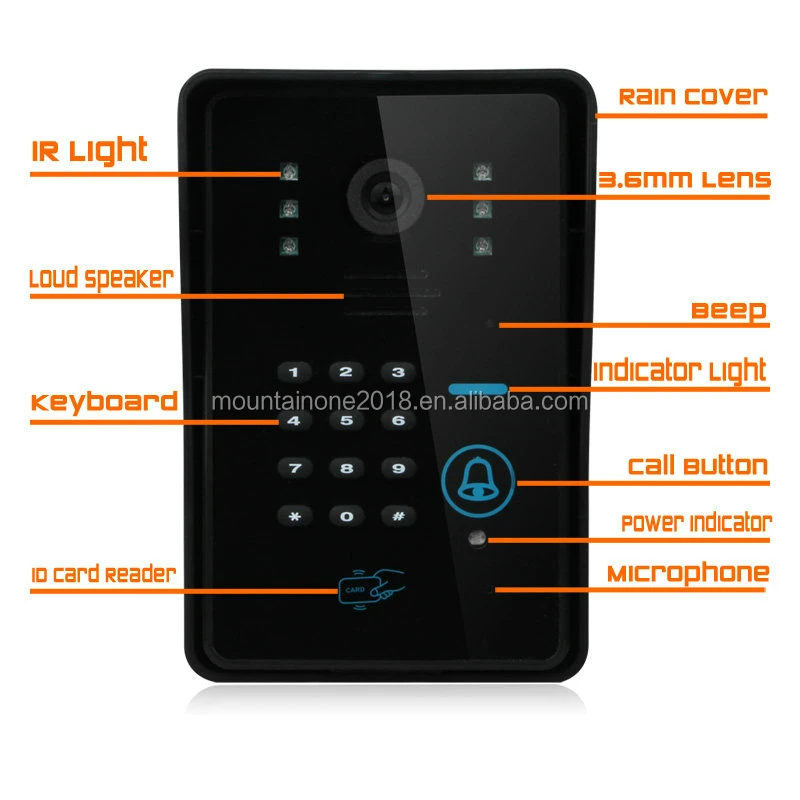

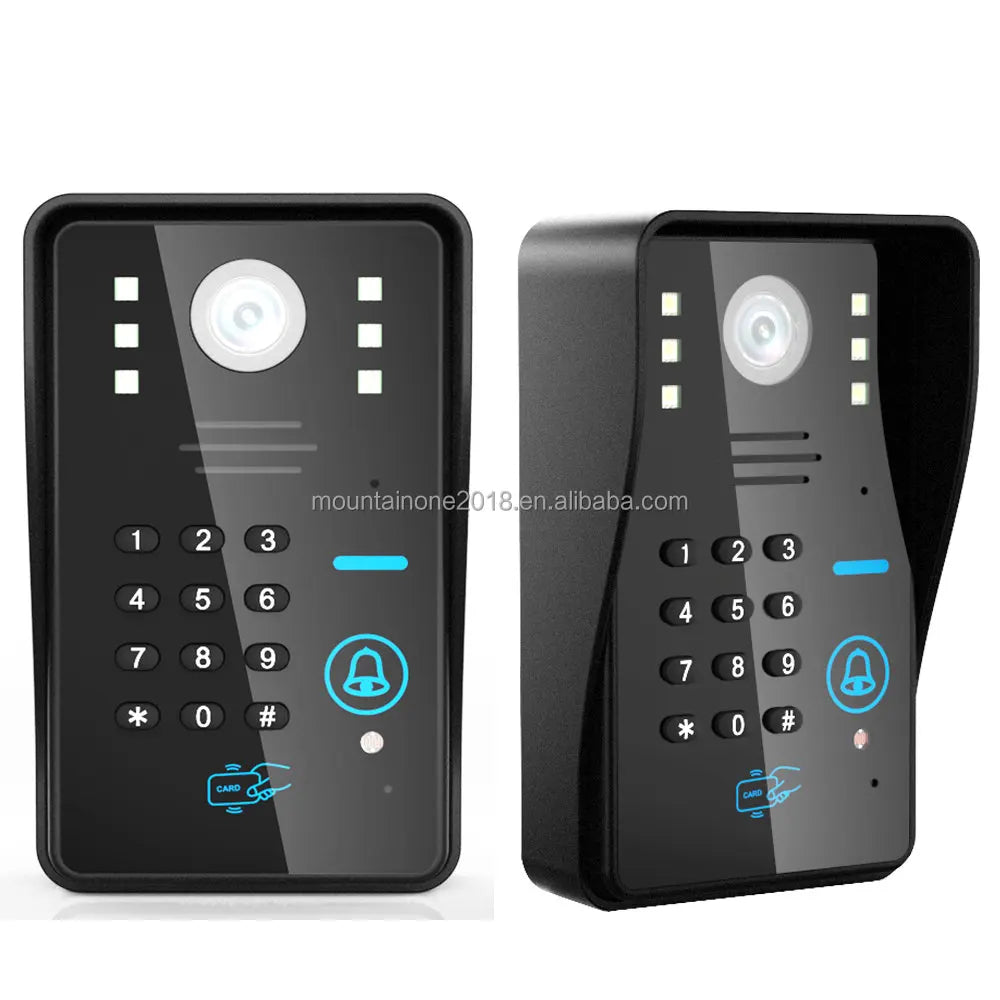

2.Durable Outdoor Camera:Little rain and oxidation-proof for the durable ABS outdoor unit,is  well protected by weatherproof cover,camera with IR-CUT,the image is colorful and clear.Support 2000 ID cards unlock,2000 passwords unlock,10 remote controls unlock.

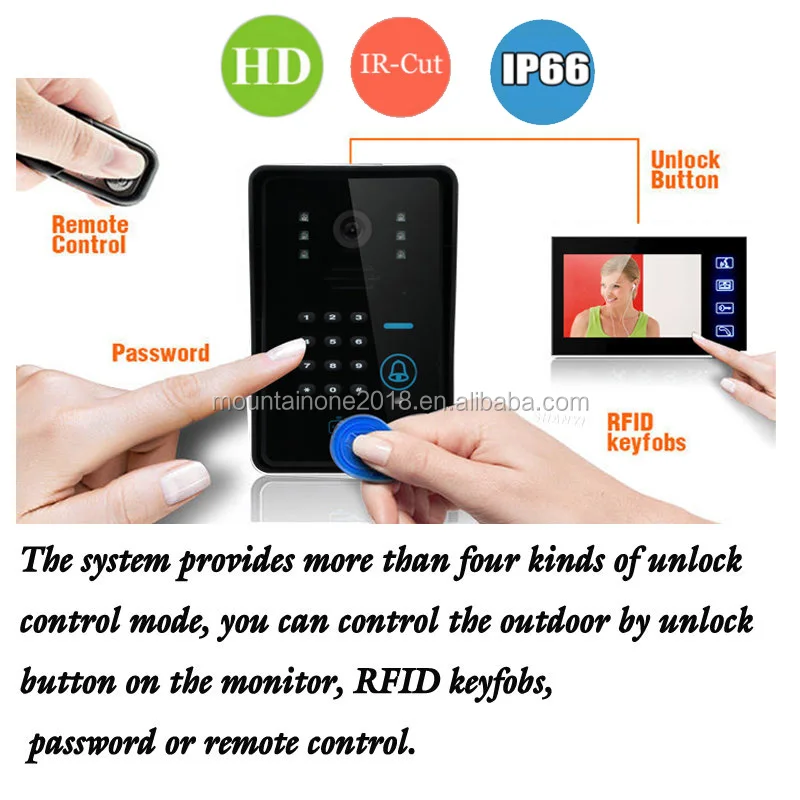

3. Easy Talk and Unlock: Monitoring the outside of the door. simply stay in your favorable chair  and press the monitor button to check who is at your door and say "Hello". Then press the unlock  button on the monitor to open the door for your visitors

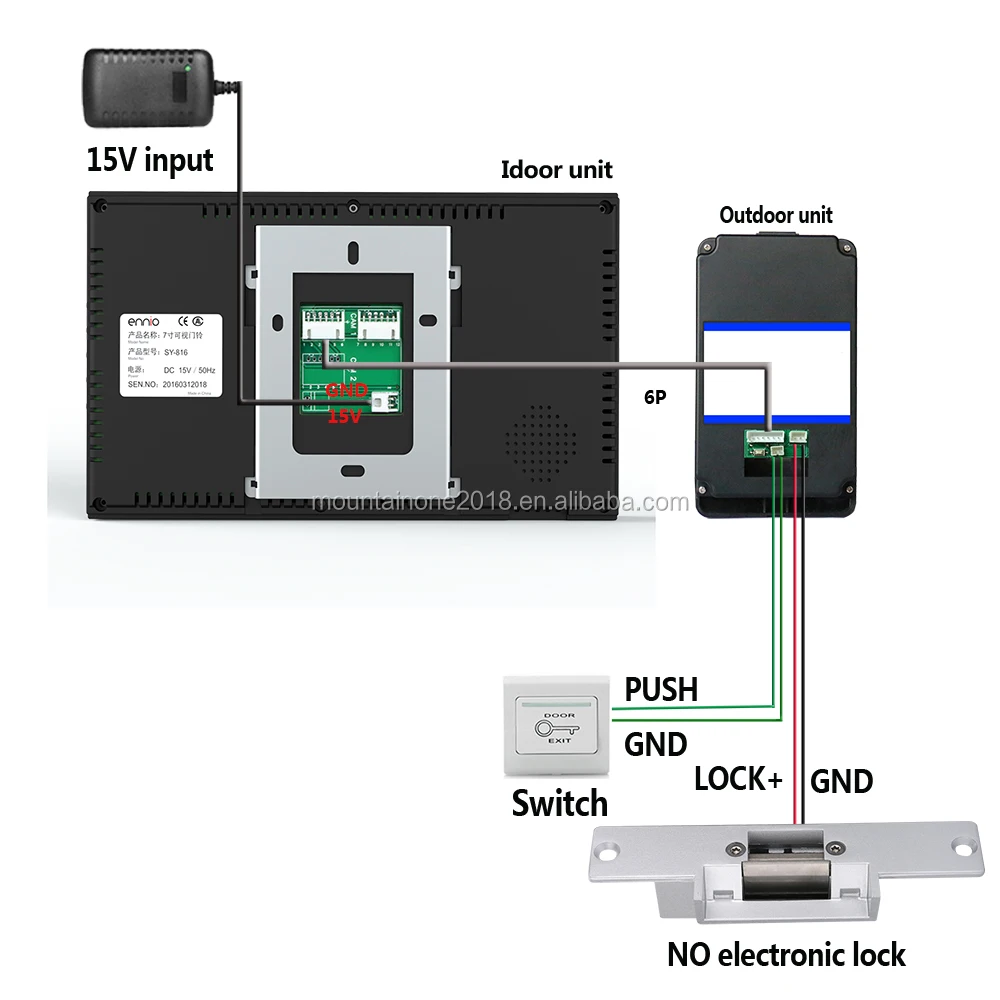

4. Easy installation by yourself with adapter and cable we provide in this kit.Widely used in  villas, apartments, houses, hotels, offices, public buildings and so on

5.Embedded 'IR-Cut Filter' provides Enhanced Picture & Color Quality

Features:

1.7" color TFT LCD with sensitivity touch panel. No radiation, low power consumption.

2.Infared LEDs fornight vision,more convenient.

3.Rainproofcover design, antioxidative Outdoor Unit with piano bakes lacquer panel.

4.25 kinds of rings for selection.

5.Piano bakes lacquer panel design on indoor unit, more fashionable and luxury.

6.Hands free intercom,one-button touch makes perfect experience.

7.Support maximum 1 outdoor unit with 4 indoor units

8.Support 2000 ID cards unlock, passwords unlock,remote controls unlock.

9.Embedded 'IR-Cut Filter' provides Enhanced Picture & Color Quality

Specifications:

1.Screen: 7" TFT

2.Resolution: 960 * 480

3.Camera: 1/3"  HD 1000 TV Line

4.Camera lens: 3.6mm

5.Camera viewing angle: 92 degrees (adjustable)

6.Infrared LED: 6 pcs

7.Infrared lighting distance approximate : 2 meters

8. Support 2000 ID cards unlock,2000 passwords unlock,1 remote controls unlock.

9.Call duration time: 120 Seconds

10.Monitor duration time: 60 Seconds

11.Power consumption: Static state <0.5W, calling <10W

12.Power output: DC15V 2A

13.Effective distance: 200M(6×0.75M2)

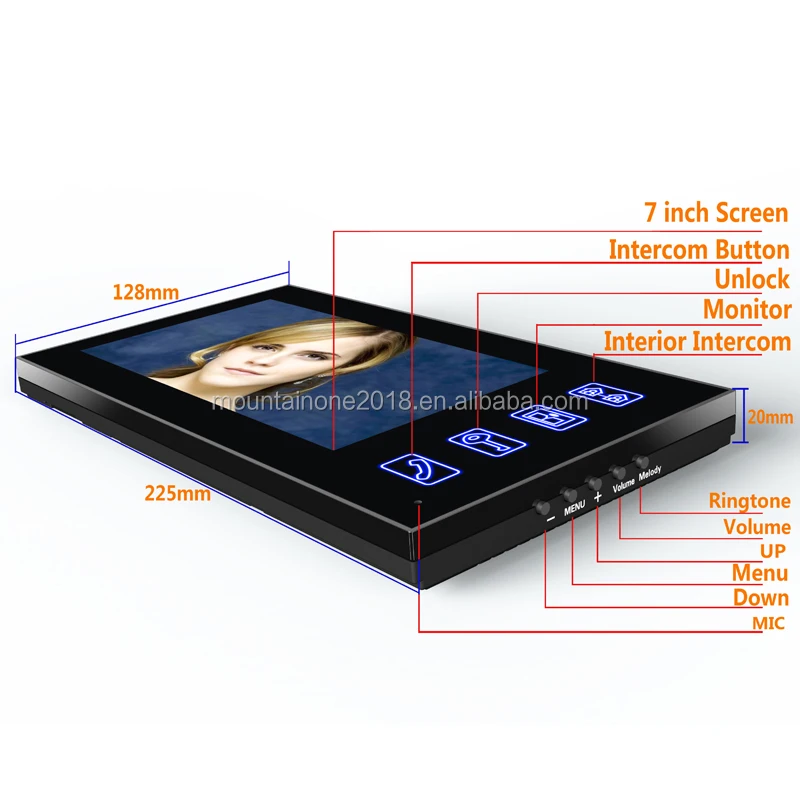

14.Indoor monitor: 225 * 128 * 20m

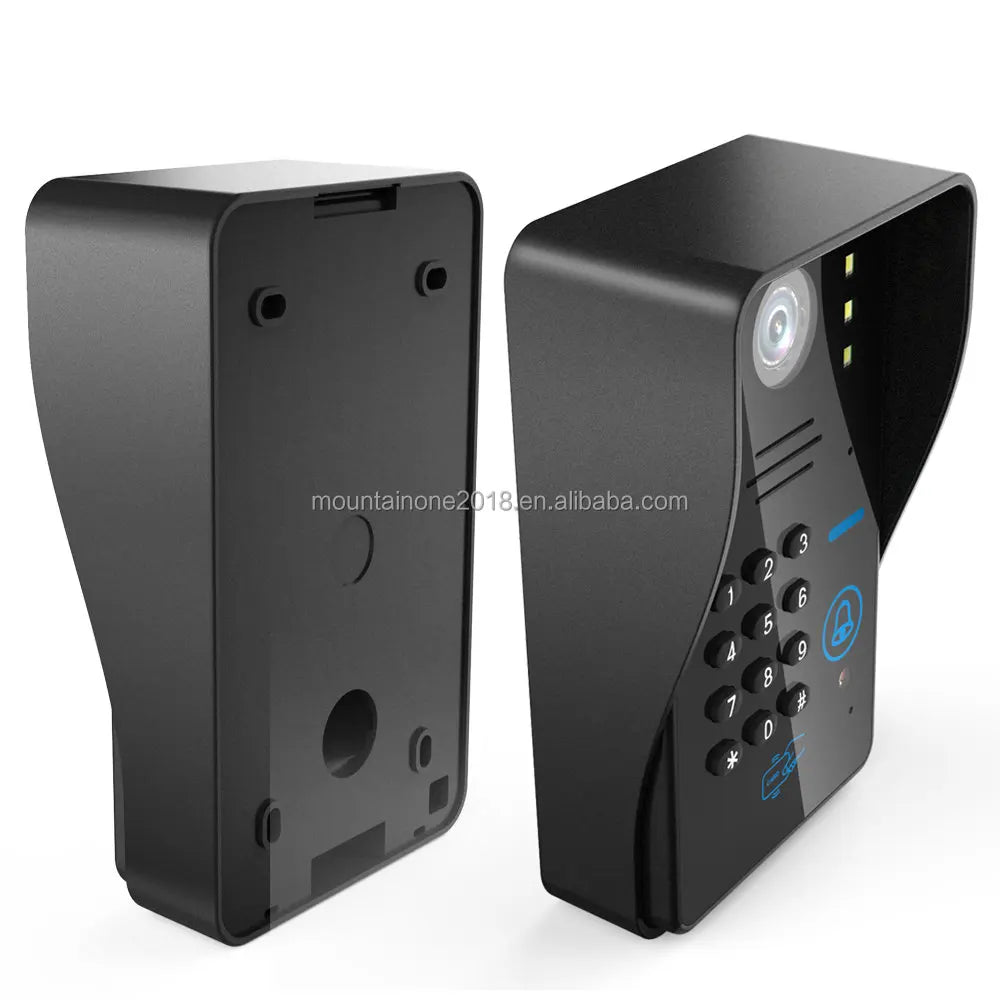

15.Outdoor camera: 155 * 95 * 55mm

Electric Strike Lock NO:

1.Holding 500kg

2. Aluminum, Stainless Steel Bolt

3. Testing to 1000000 cycles

4. Lock Size: 150Lx39.5Wx34H(mm)

5. lt structure: Stainless Steel

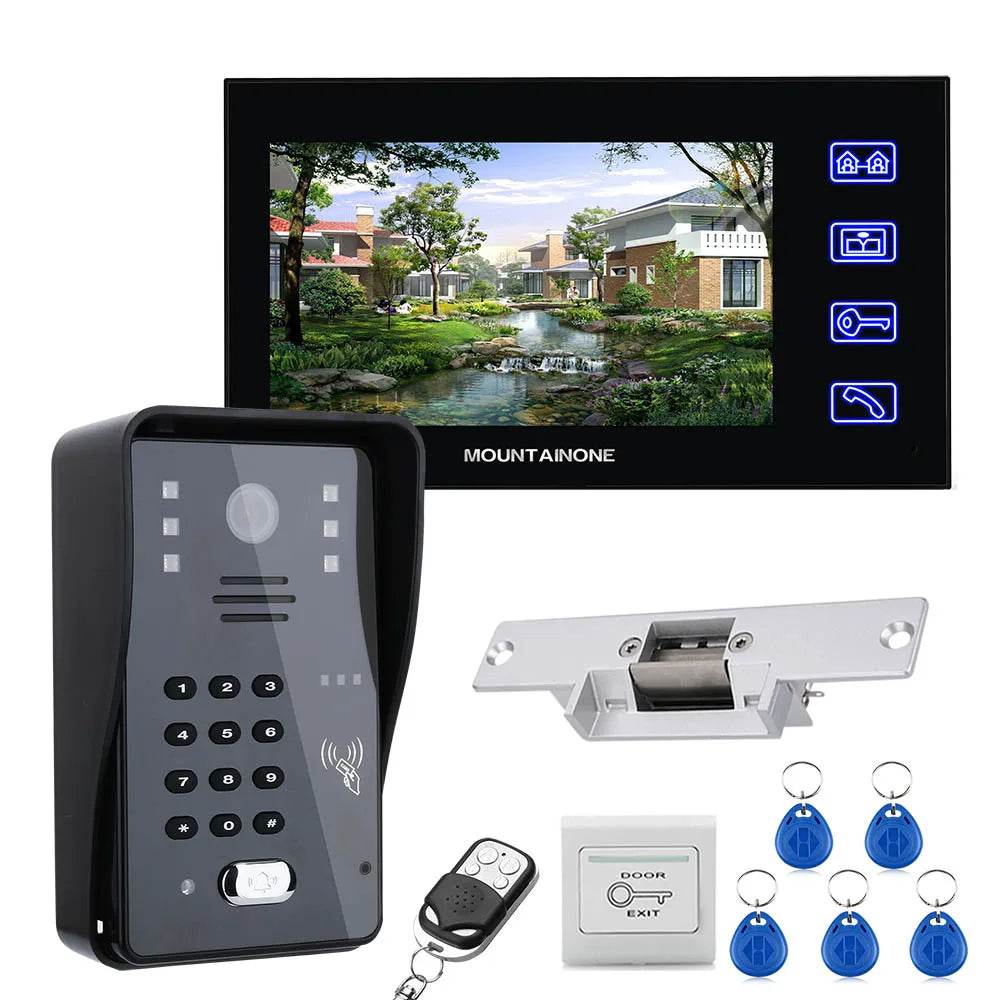

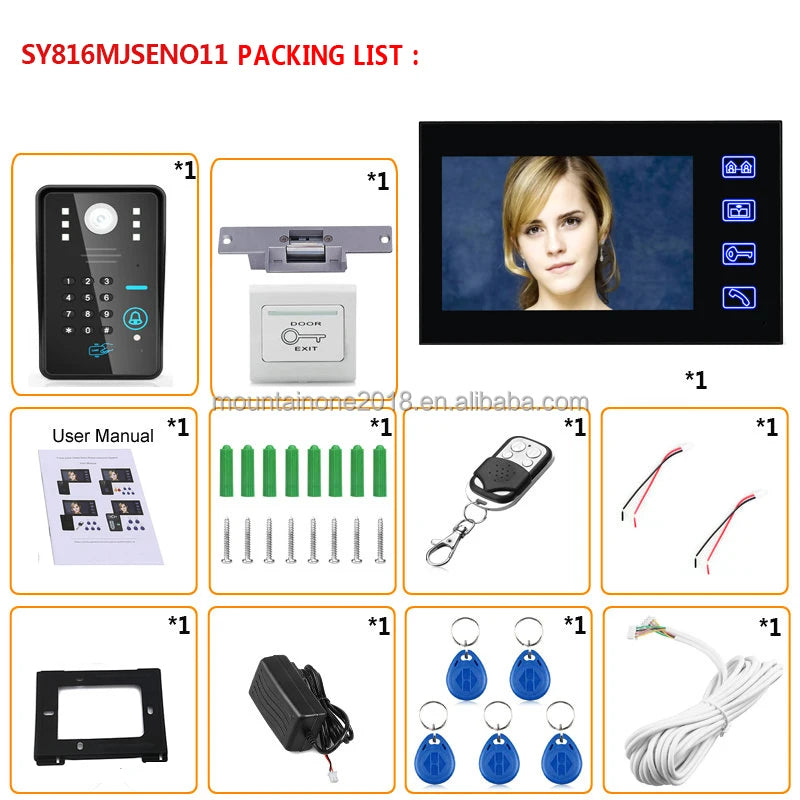

Package includes:

1 * Outdoor camera

1 * Indoor monitor

1 * AC adapter

1 * 5m 6-core Connection cable

2 * 2-core Connection cable

5 *125KHz RFID Cards

1 * Electric Strike Lock

1 * Exit Button

1 * Remote Control

1 * Package of screws

1 * User manual - English
