SPECIFICATIONS
Advantage: Red Blue Flashing Light Alert
Alarm System: Motion Detection + Email Alert +APP Push
Audio Input/output: HDMI
Brand Name: Techage
Camera Lens: 3.6mm
Customized support: Online Technical Support,Customized Logo,OEM, ODM,Software Reengineering
Data Storage Options: Cloud
Function: Waterproof / Weatherproof,Built-In Siren,Two-Way Audio,Night Vision,Alarm I/O,Built-In Mic
Hard Disk Drive (HDD): 1*SATA Port (support up to 14TB)
IR Distance(m): 25M
IR LED: 2 infrared light,2 white light
Model Number: 6708KR-DM27SP-AI-80N
Operation System: Android,IOS,Windows 10
PCS of Camera: 2/4/6/8pcs
Place of Origin: Guangdong, China

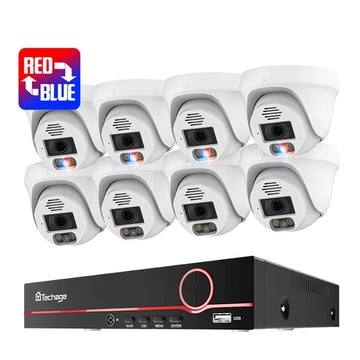

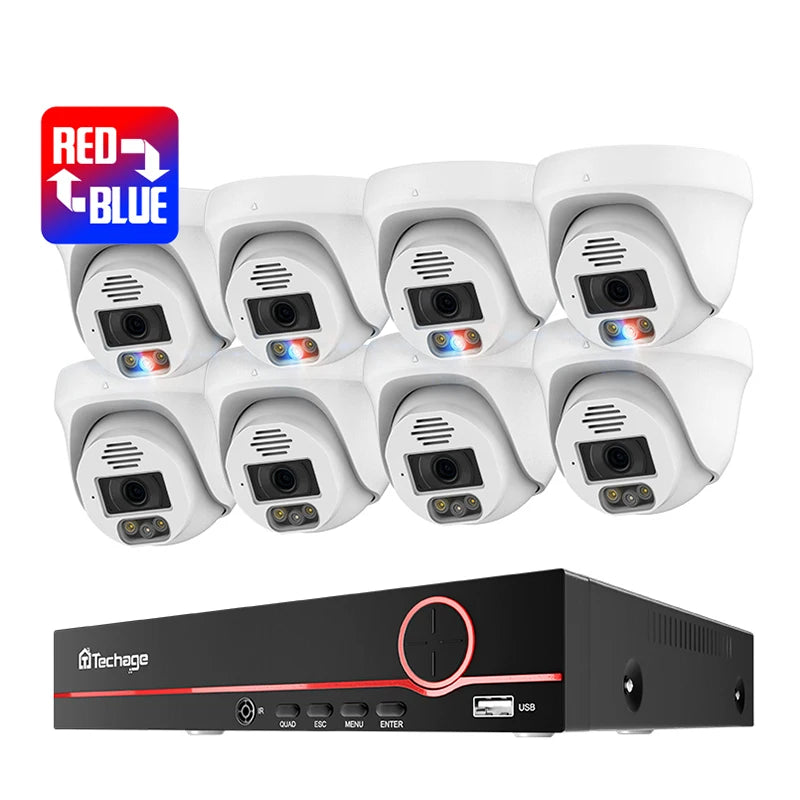

Products name: 8CH 8MP POE camera system
Resolution: 8MP
Sensor: CMOS
Special Features: Human Motion Tracking,Motion Detection,Face Detection
Video Compression Format: H.265
Viewing Angle: 90°
Warranty: 1 Year
protocol: ISO 14443B
Features:
1. Our New 4K POE Camera System. 8 Channel NVR Design, Support To Connect Up To 8pcs Cameras, You Can Buy Techage POE IP Cameras To Expand Your CCTV System.
2.All Cameras Are Built-In Microphone And Speaker, Support Two-Way Audio Sound Recording.
3. Support DIY Alert Voice and Alarm Bell / Customized.

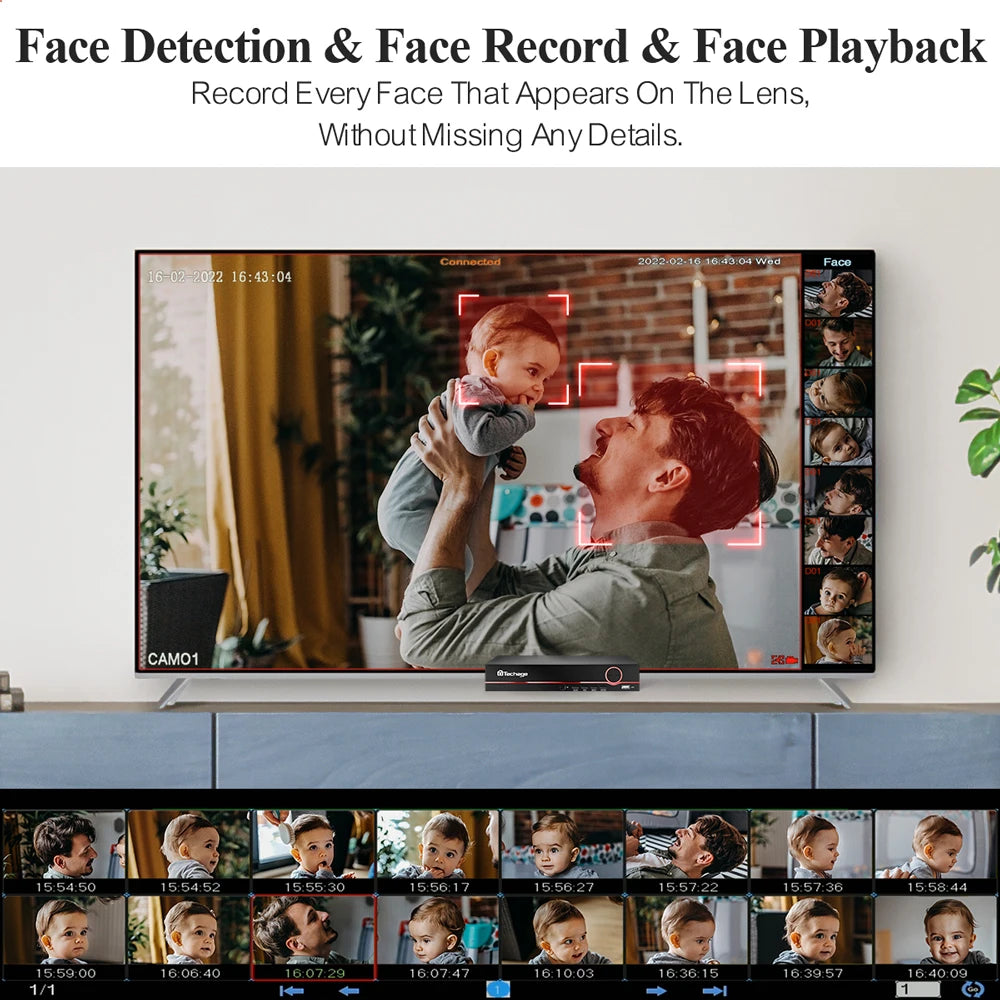

4. Newest AI Cameras Support Face Detection.
5. Three Night modes Setting: Day Vision, Night Vision, Full Color Night Vision.
6. P2P Remote Access/Multi-User : P2P technology let you be able to view the live situation of your house wherever you are , just with the P2P account on the app via your Smartphone or tablet.
Package Including:
1 x H.265 8CH 4K POE NVR
2/4/6/8 x 4K POE IP Cameras
2/4/6/8 x 20M Network Cable for Cameras

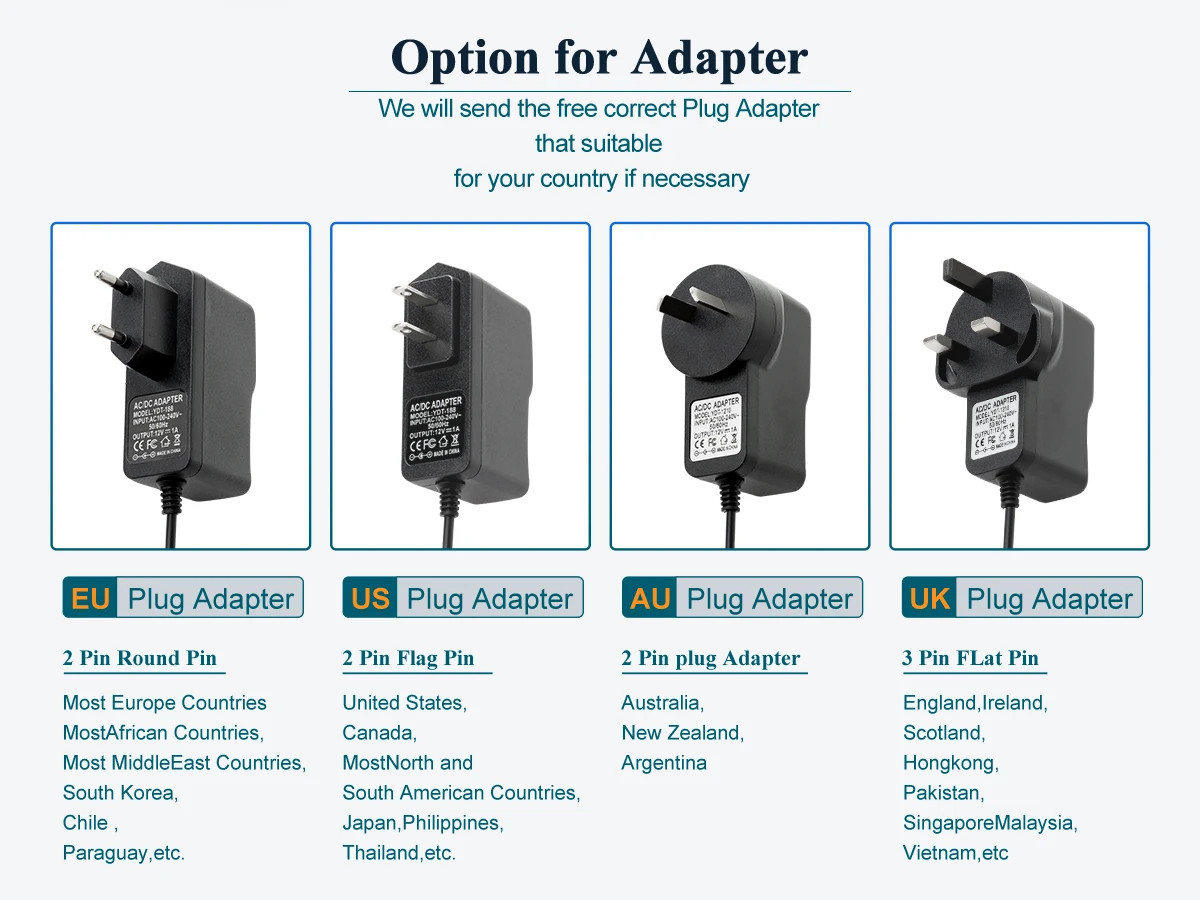

1 x Power Supply for NVR
1 x USB Mouse for NVR
1 x User Manual
2 x Warning Sticker (gift)
2/4/6/8 x Waterproof Connector for Cable (gift)
1 X Remote Control (No Battery)
NO HDD / 1TB/ 2TB/ 3TB HDD for Optional
8CH Set: 8CH POE NVR + 8 Cameras / 8CH POE NVR + 6 Cameras / 8CH POE NVR + 4 Cameras / 8CH POE NVR + 4 Cameras for Optional
No HDD / 1TB / 2TB / 3TB / 4TB/ 6TB / 8TB HDD for Optional.
Two Install Methods
Show Higher-Quality Images, With Better Experience.
AI Humen Detection & Email Alert & Alarm Sound
When motion is detected the NVR will save the footage into hard disk without missing any important events. You can even ensure that false alarms are avoided by setting the motion detection "mask" to block areas with constant movement.
When Someone Breaks Into Shooting Area,The Camera Will Alarm Messages Will Be Pushed To Your Phone App.
Camera Built in Microphone And Speaker Support Two-Way Audio
This home security camera system lets you listen in and talk back through the built in speaker and microphone that work directly through your iPhone or Android Mic. Enjoy the convenient communication when you're resting or busying.

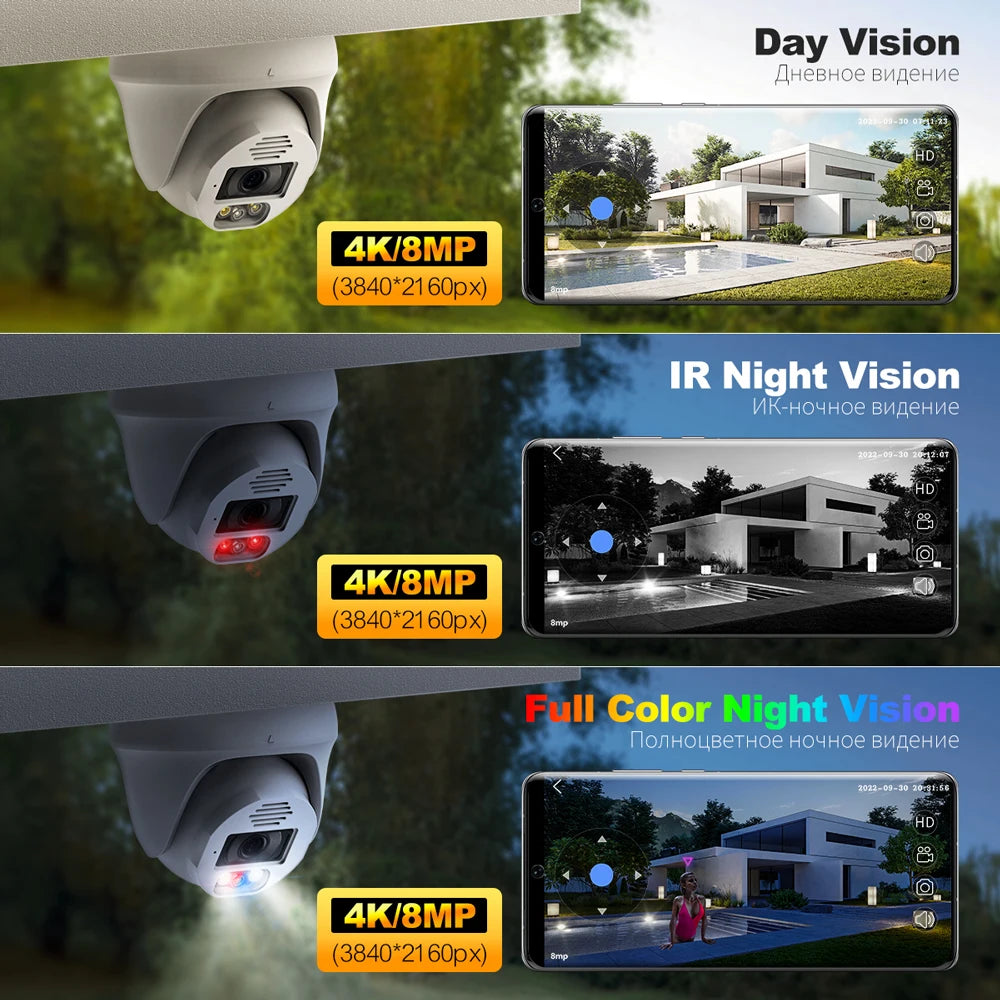

Smart IR-Cut Full Color Night Vision
The smart IR-Cut filter switches automatically between day and night to reduce color cast in day time and enhance image brightness at night making sure you can get vivid surveillance footage from dawn to dark;
Night activating Color once detecting movement.
IP66 Weatherproof Security Camera
Our Camera All Can Suit For Both Outdoor And Indoor Usage.
Save Your HDD Storage Space And Reduce Your Purchase Cost
H.265 Only Need a Lower Bandwidth, Speed Loading Faster, Play Video More Smoothly.

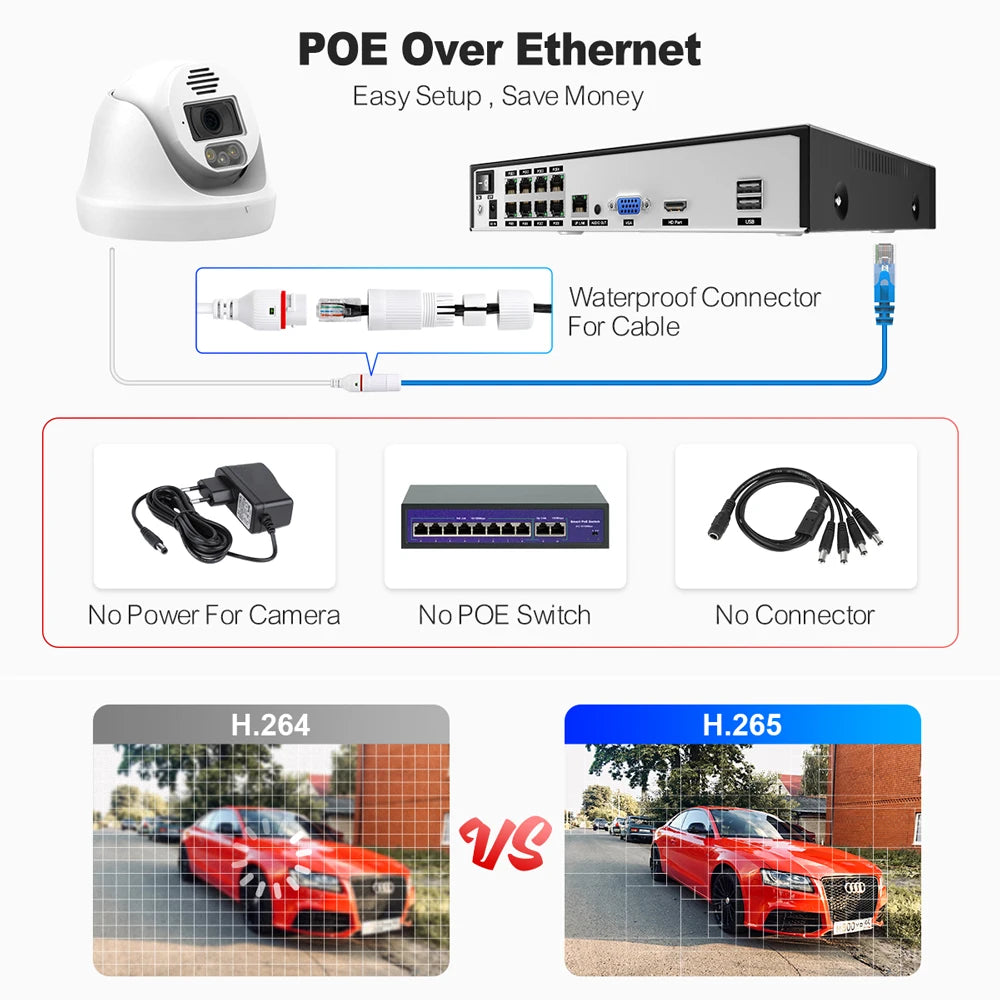

POE Advantage, Why Choose POE ?
Don't Need Extra Power Cables or Adapters or Switch.Plug And Play And Easy Setup.
Save Money And Convenient, POE NVR = NVR + POE Switch

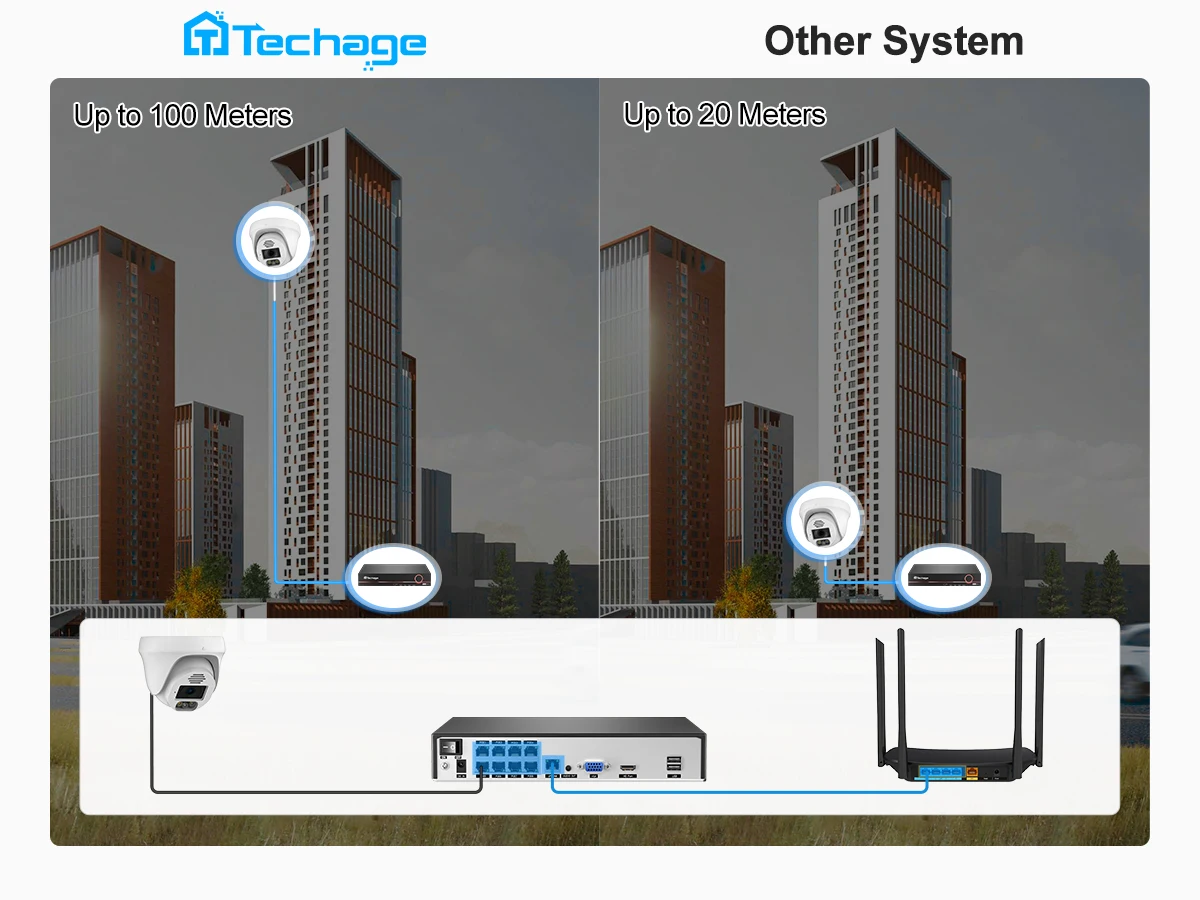

Max Support 100 Meters Cables Transmission Distance
Which Greatly Increases Home Installation Convenience.

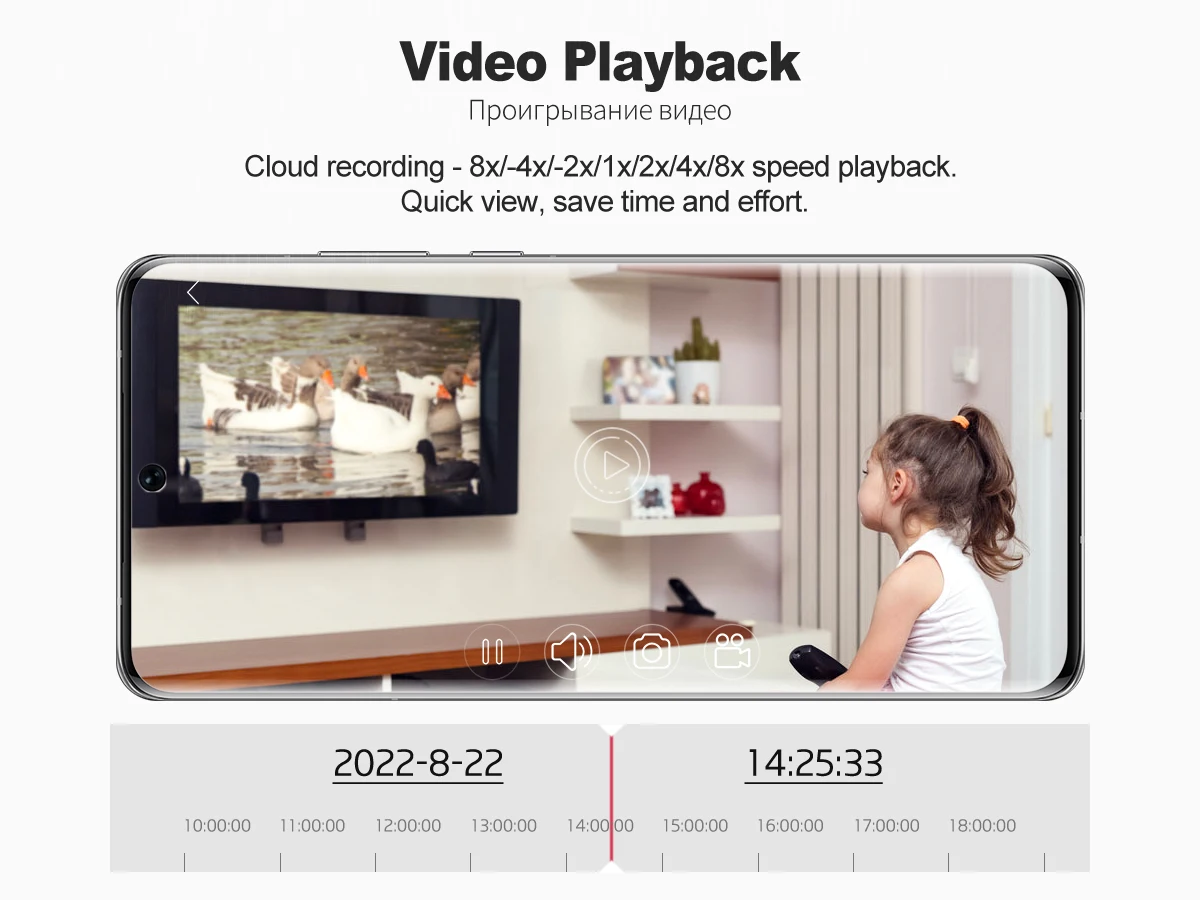

Video With Smart Playback
Smart Playback Available With Customizable Searching Area,
Playback Time Is Greatly Reduced By Speeding Through Unimportant Videos.

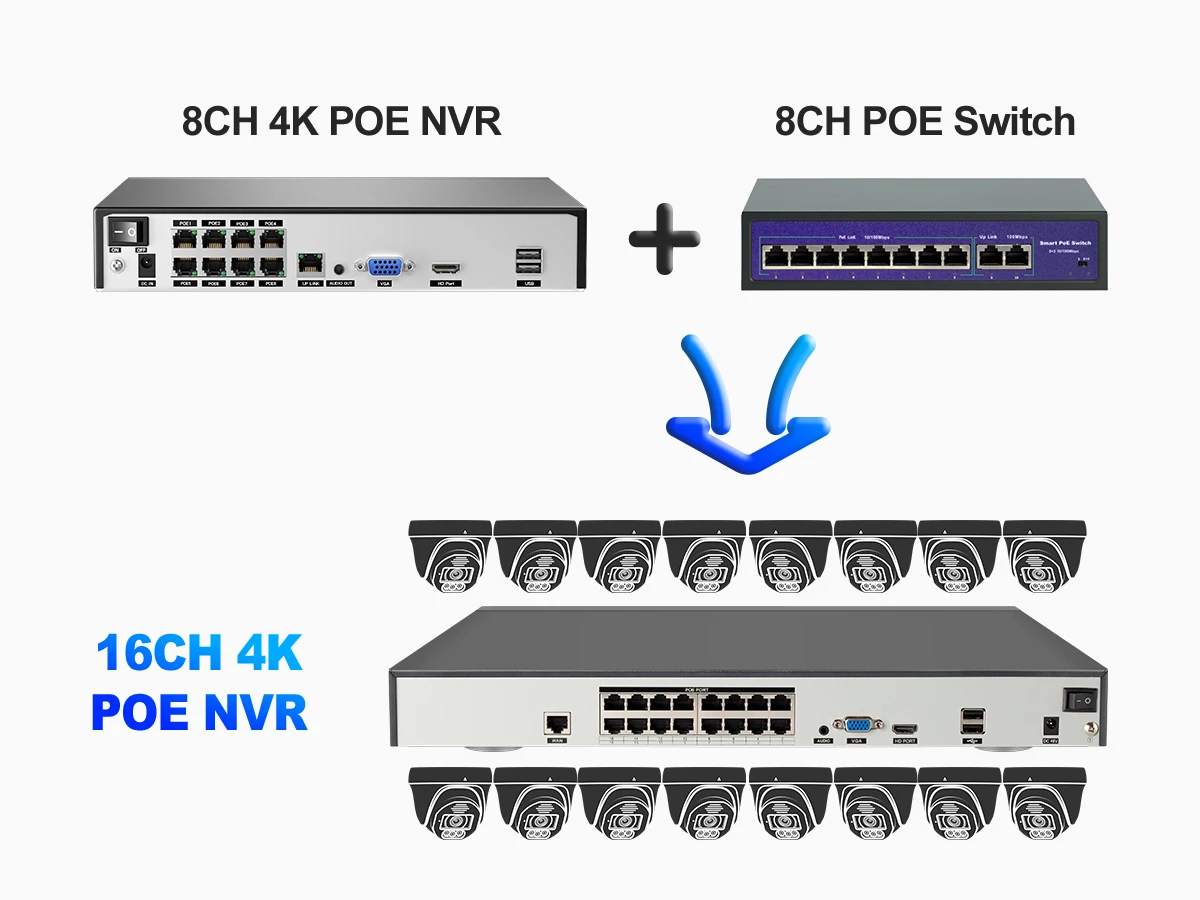

It Can be Extended to 16pcs 5MP POE Camera if use 8CH POE Switch Together.
Video With Smart Playback
Smart Playback Available With Customizable Searching Area,
Playback Time Is Greatly Reduced By Speeding Through Unimportant Videos.

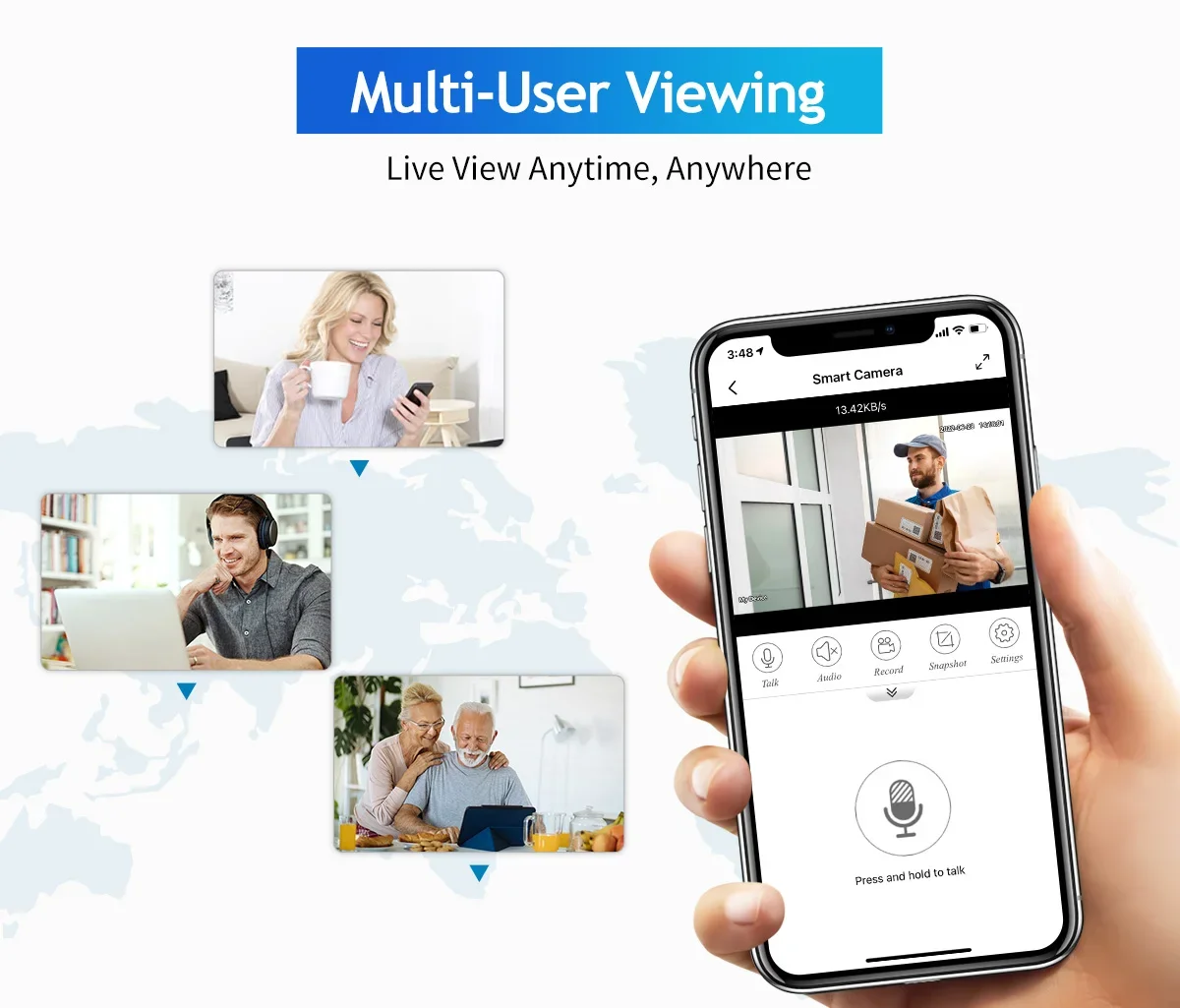

P2P Remote Access & Multi-user
Based on P2P (peer to peer) technology, support plug-and-play installation. Access the IP camera through its web interface via Internet Explorer, also comes with a free smartphone App (Android & iPhone) for remotely view from anywhere.
Support iOS and Android Device Access. Scan QR-Code to login. Download free app in Apple App store / Google play.
Model |
Model Type: |
POE Camera |
|
Model No. |
XM-DM27SP-AI-80N |
System |
System structure |
Embedded RTOS design, dual core 32-bit DSP, pure hard compression, watchdog |
Video |
Sensor |
8 million black light CMOS sensor SC8239; colour 0.0001Lux@F1.2 , black and white 0.0001Lux@F1.2 |
|
Video processing |
H.265AI encoding, double stream,AVI format; |
|
Image output |
main stream: 8M 3840*2160@15fps；5M 2880*1616@25fps；4M 2560*1440@25fps；3MP 2304*1296@25fps；2MP 1920*1080@25fps；Substream:
800*448@25fps |
|
Shutter |
1/50(1/60)to 1/10000 of a second |
|
Noise reduction |
2 d / 3 d noise reduction |
|
Wide dynamic |
Digital-wide dynamic |
|
Lens |
3.6mm hd lens |
|
Night vision |
IR-CUT，Infrared night vision, color filter automatically switch |
|
light distance |
Infrared 15m ，white light 10m(2 infrared light,2 white light) |
Audio |
Audio processing |
G.711A，two way audio |
|
Audio interface |
-33dB high sensitive mic, 8 Ω 1W horn |
Network |
Network interface |
One RJ45 Ethernet port,10/100M auto-sensing |
Alarm |
|
Human detection, Motion detection, Smart AI alarm, Face detection |
|
|
Red and blue alarm warning light |
|
|
APP push, voice alarm, video recording, capture pictures |
Video |
Video mode |
Timing video, event video |
|
Playback mode |
Event playback, time playback |
Other |
Reliability |
Comprehensive lightning protection，7*24 hours 65℃ high temperature test is stable and reliable |
|
ONVIF |
support |
|
Cell phone monitoring |
Mobile phone monitoring (iOS, Android) |
|
power |
POE/12V |
|
Material |
Metal Housing |
Work environment |
Temperature |
-20℃ to +55℃ |
|
Humidity |
30% to 80% RH |
System |
Main processor |
Hi3536E |
|
Operating System |
Embedded Linux |
|
System resources |
Simultaneous multi-channel real-time
recording, playback, network operation,
USB backup |
Interface |
Operator interface |
16-bit true color graphic menu operation
interface, support mouse operation |
|
Preview |
1/2/4/6/8/9/16 |
Video |
Video input (IP) |
16*4K（Access bandwidth 72Mbps） |
|
Video compression |
H.265AI/H.265+(compatible H.265/H.264) |
|
Display quality |
Max:4K |
|
Playback quality |
4K/5M/4M/3M/1080P |
|
VR |
Unsupport |
|
human shape / Face |
Support(depend on camera) |
Audio |
Audio compression |
G.711A |
|
Intercom |
unsupport |
Record
&
playback |
Recording mode |
Manual>Alarm>Dynamic Detection>Timing |
|
Localpayback(real-time+ Un
real-time) |
4K（1*real-time）/5M（1+1）/4M（2+1）/
3M（3+1）/1080P（4+1） |
|
Search mode |
Search by Time/Calendar/Event/Channel/Face |
|
Record storage |
HDD、Network |
|
Backup mode |
Network backup, USB hard disk, USB burner,
SATA burner |
External
interface |
Video output |
1ch VGA，1ch HDMI HD output |
|
Audio I/O |
0/1（3.5MM audio output） |
|
Alarm I/O |
0/0 |
|
Network interface |
1*RJ45 10M/100M Adaptive Ethernet port，Eight POE ports |
|
USB interface |
2*USB2.0 ports(one USB extension
interface is reserved) |
|
HDD |
1 SATA(Up to 14TB for each disk) |
Other |
ONVIF |
Support |
|
Power supply |
52V/2.5A |
|
Power Consumption |
<10W(Without HDD) |
|
Work environment |
Temperature:0℃ －55℃ ,
Humidity:10%－90%RH , Atm:86kpa－106kp |
