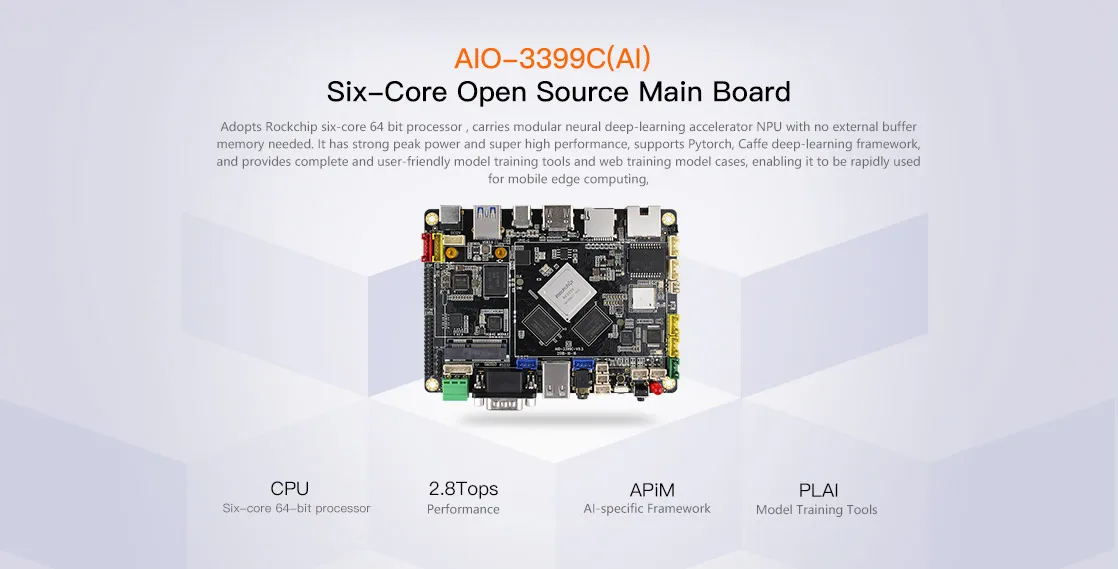

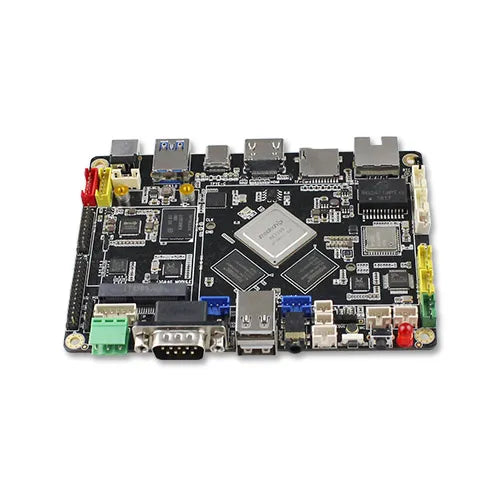

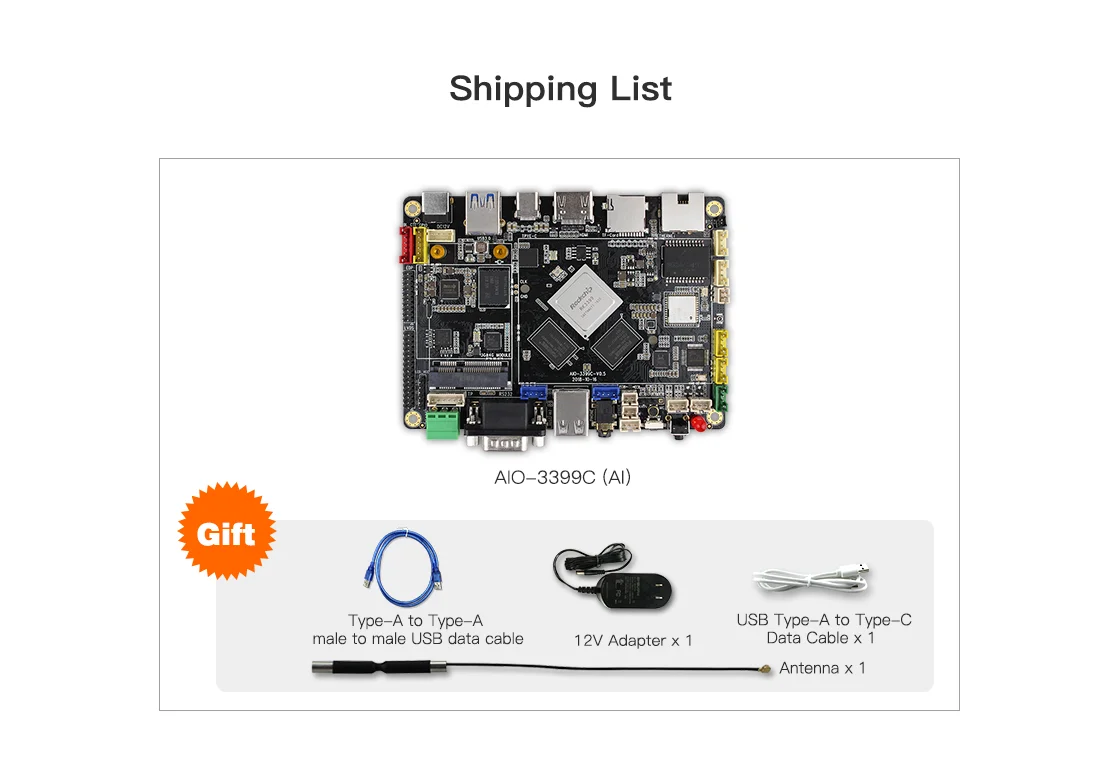

AIO-3399C Open Source AI Development Board Main Board for Mobile Edge Computing Smart Home Devices Facial Recognition AI Server
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
AIO-3399C Open Source AI Development Board Main Board for Mobile Edge Computing Smart Home Devices Facial Recognition AI Server

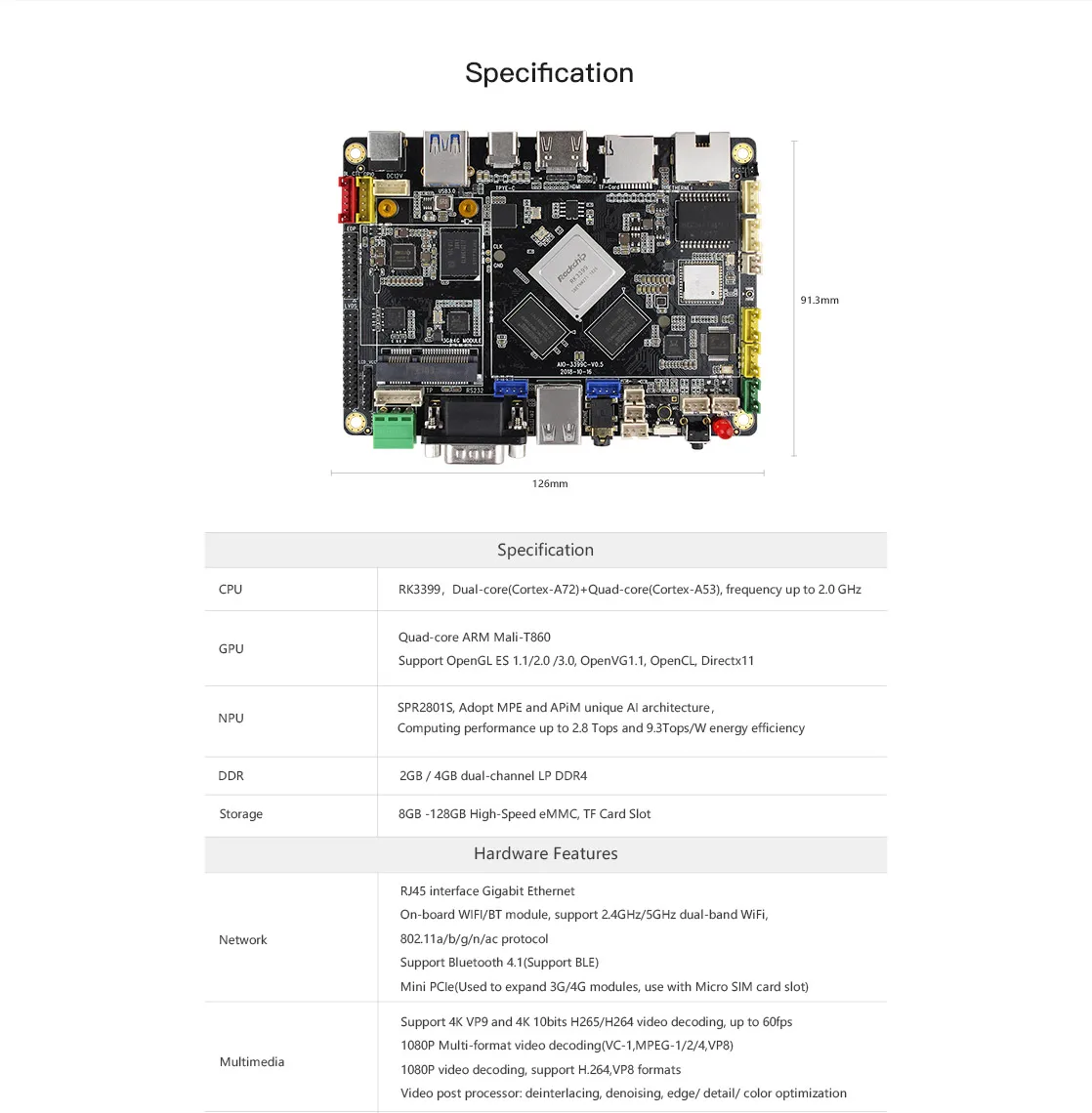

SPECIFICATIONS
Board Type: Evaluation Platform
Brand: Firefly
Brand Name: Firefly
Demo Board Type: ARM
Description: AIO-3399C(AI)Six-Core AI Open Source Main Board
Embedded: Yes, FPGA / CPLD
Framework: Support PyTorch, Caffe framework, follow-up support TensorFlow
Intergrated Feature: 10/100/1000Mbps,bluetooth
Main Purpose: Not Applicable
Model Number: AIO-3399C,AIO-3399C
Origin: Mainland China
Package: EVB Board
Place of Origin: Shanghai, China
Processor Brand: Rockchip
Series: Rockchip

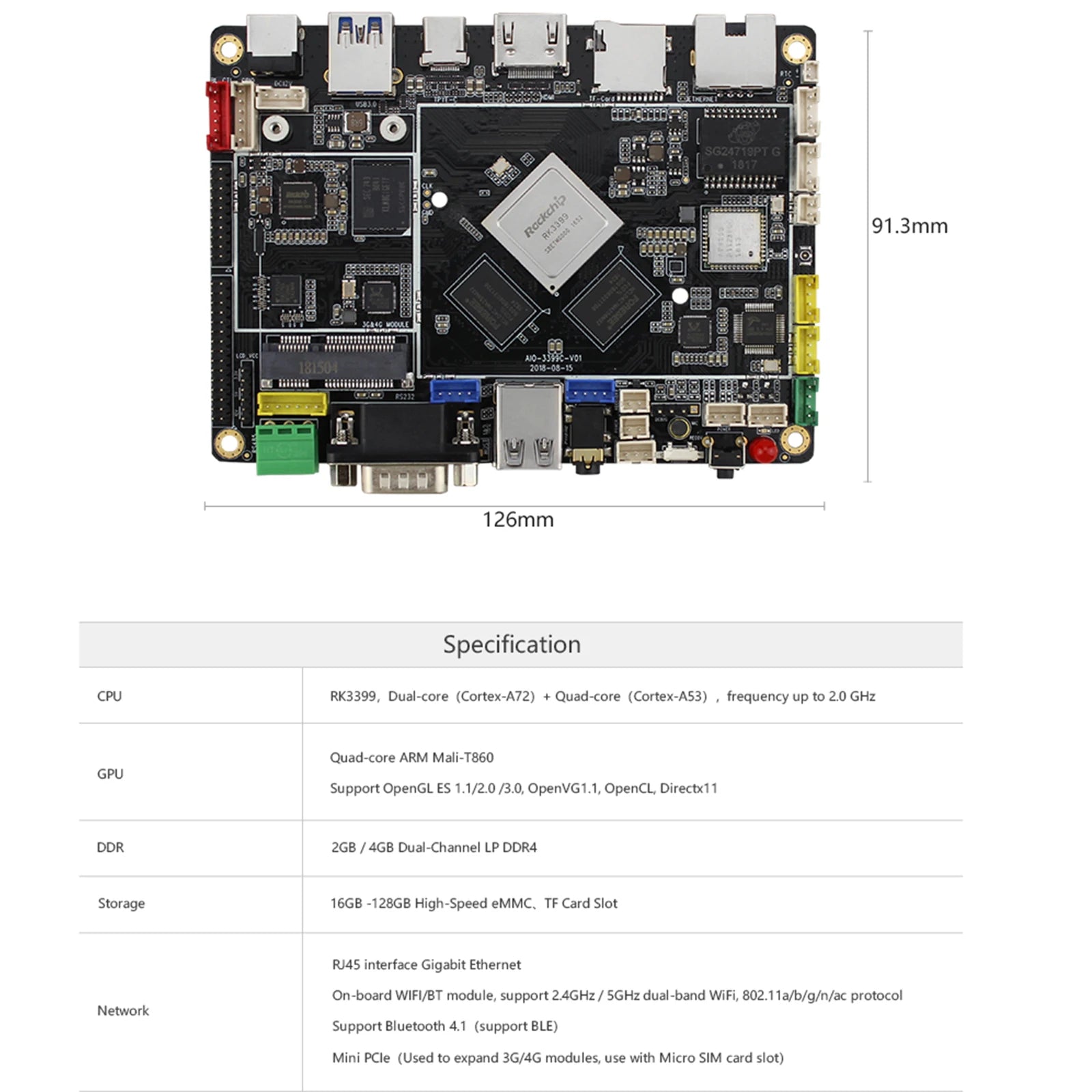

Size: 126 mm*91.3mm

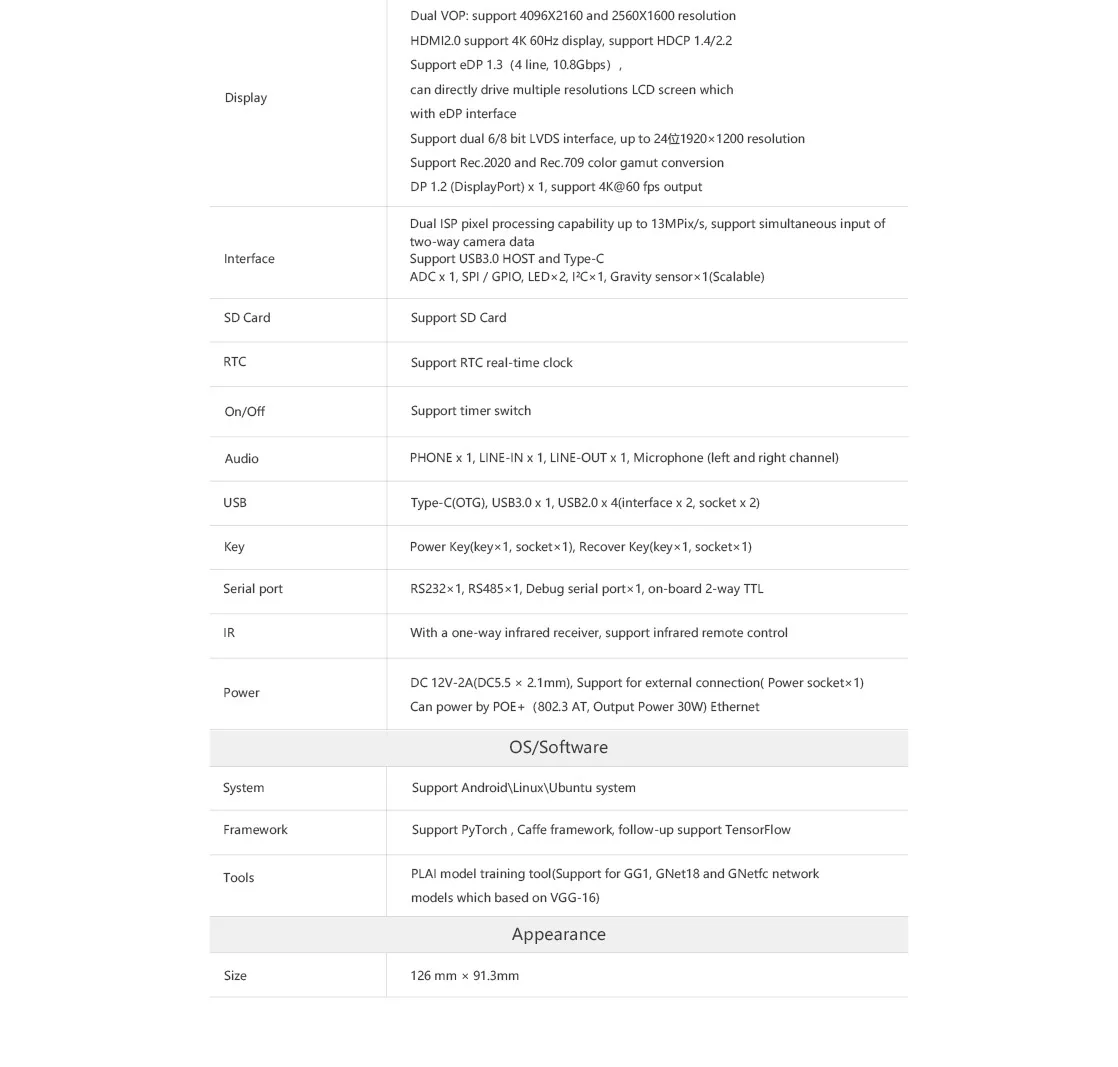

System: Support Android\Linux\Ubuntu system
Type: Development Board

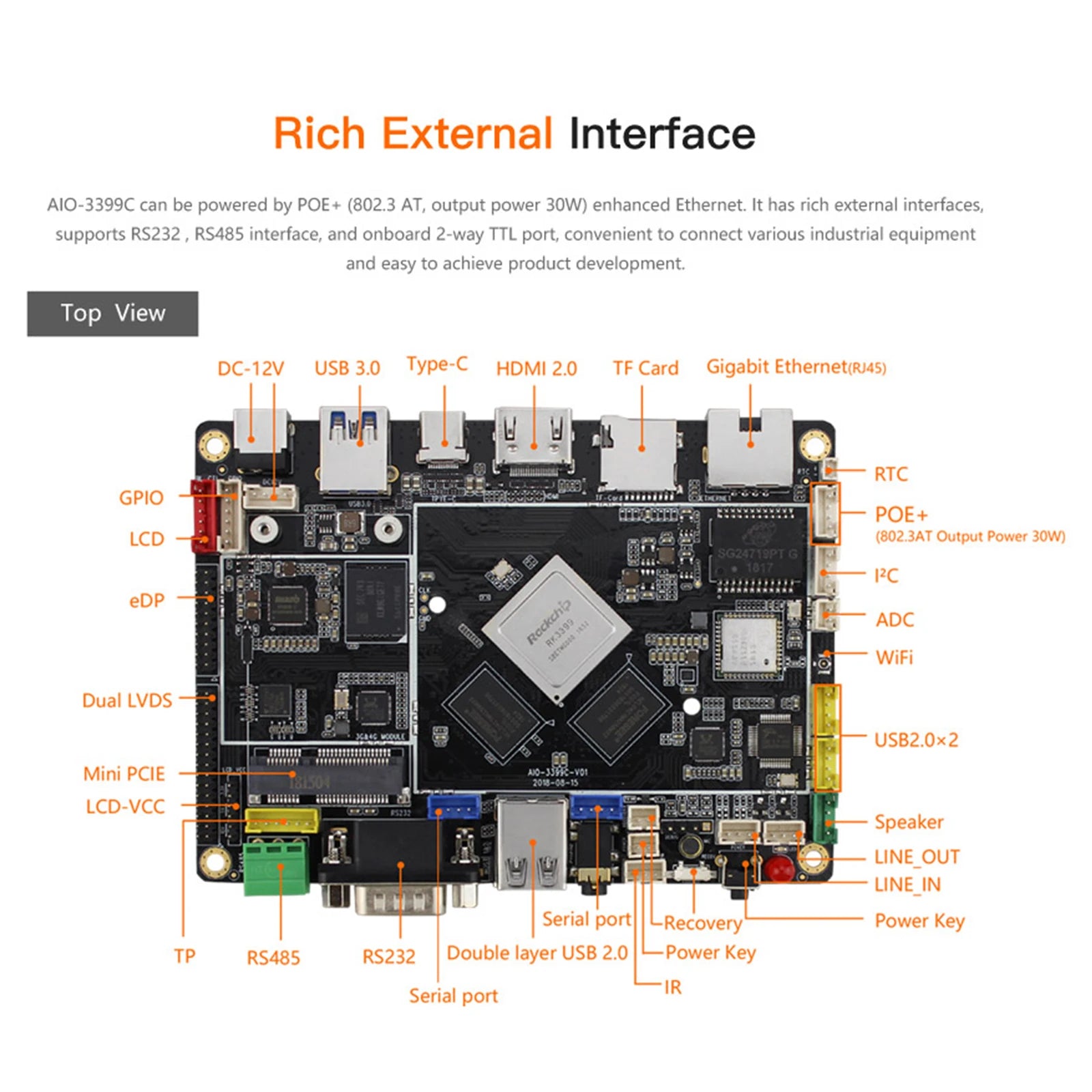

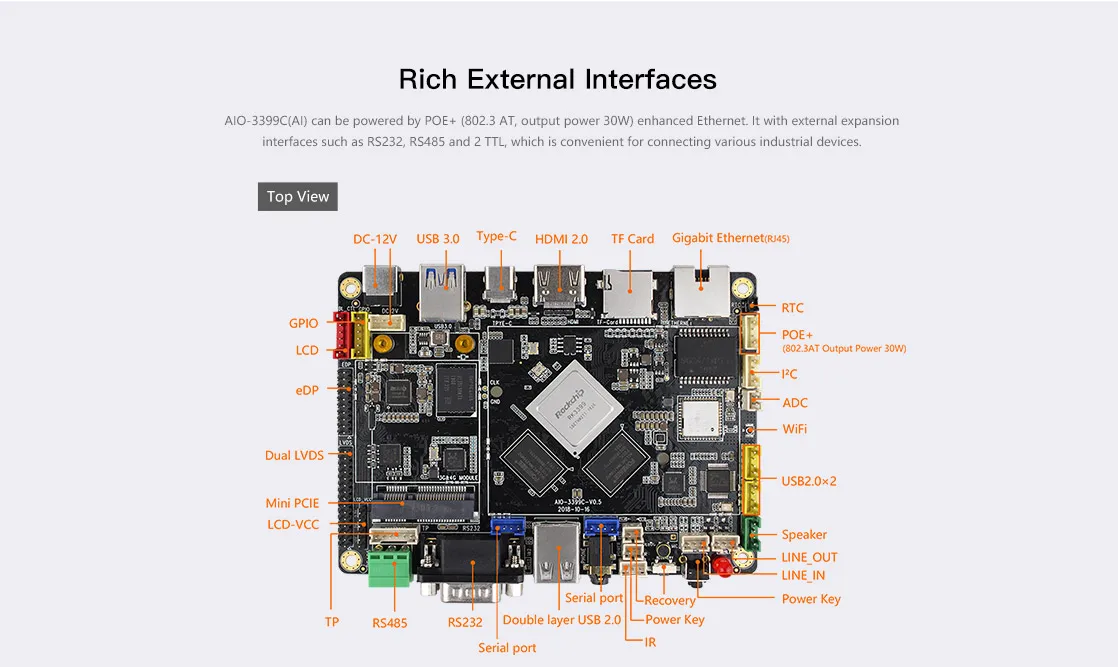

USB: Type-C(OTG), USB3.0*1, USB2.0*4(interface*2, socket*2)


GPU |
Quad-core ARM Mali-T860
Support OpenGL ES 1.1/2.0/3.0, OpenVG1.1, OpenCL, Directx11
|
NPU |

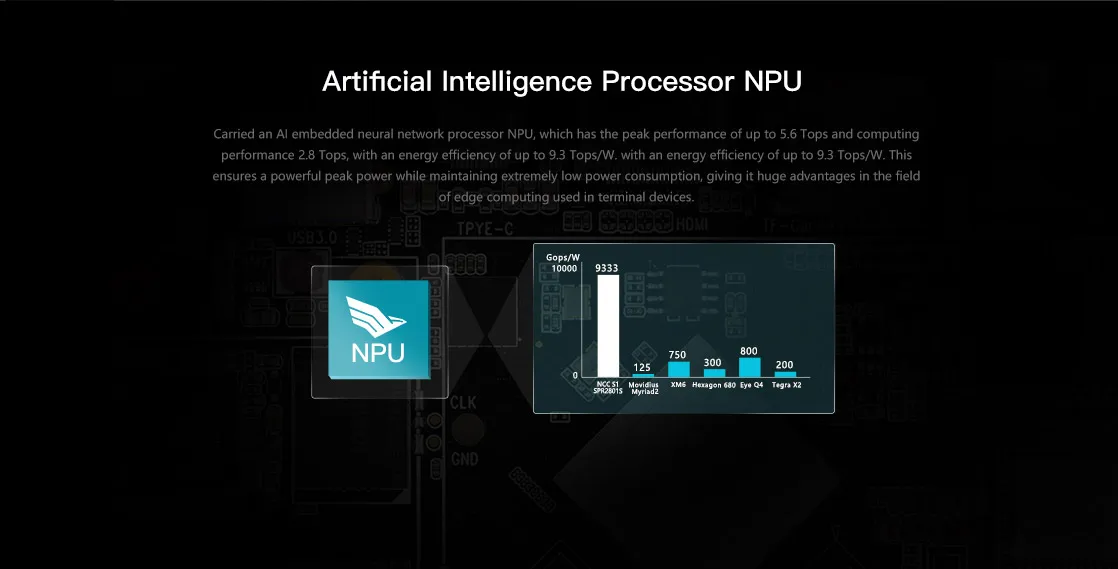

SPR2801S, Adopt MPE and APiM unique Al architecture, Computing performance up to 2.8 Tops and 9.3Tops/W energy efficiency |
DDR |
2GB/4GB dual-channel LP DDR4 |
Storage |
8GB-128GB High-Speed eMMC, TF Card Slot |
CPU |

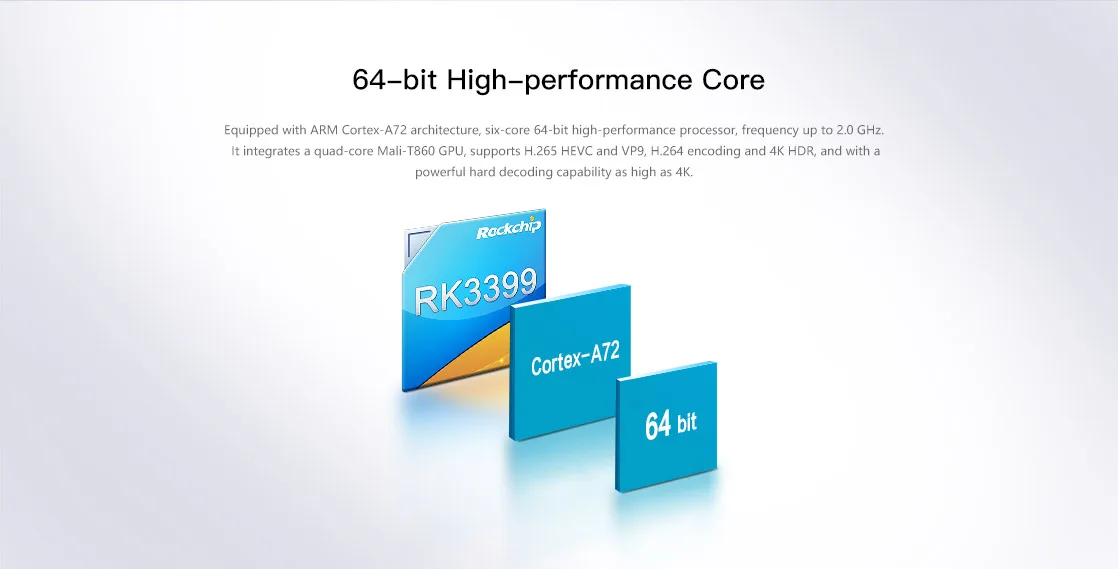

RK3399, Dual-core(Cortex-A72)+Quad-core(Cortex-A53), frequency up to 2.0 GHz |
