SPECIFICATIONS

Brand Name: Aiyima

Certification: NONE

Channels: 2 (2.0)

High-concerned chemical: None

Maximum Power Per Channel: 50 W

Model Number: TPA3116D2

Origin: Mainland China

Package: No

Type: Home Amplifier

Description:

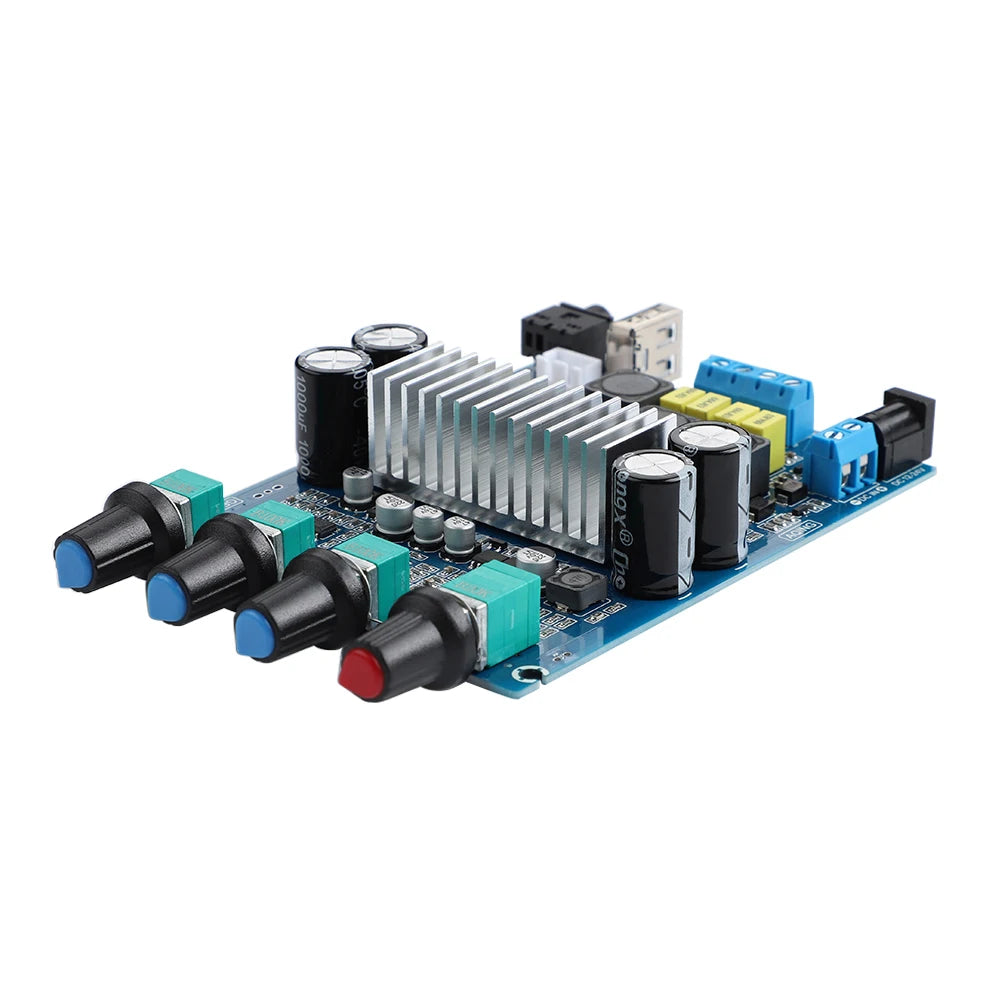

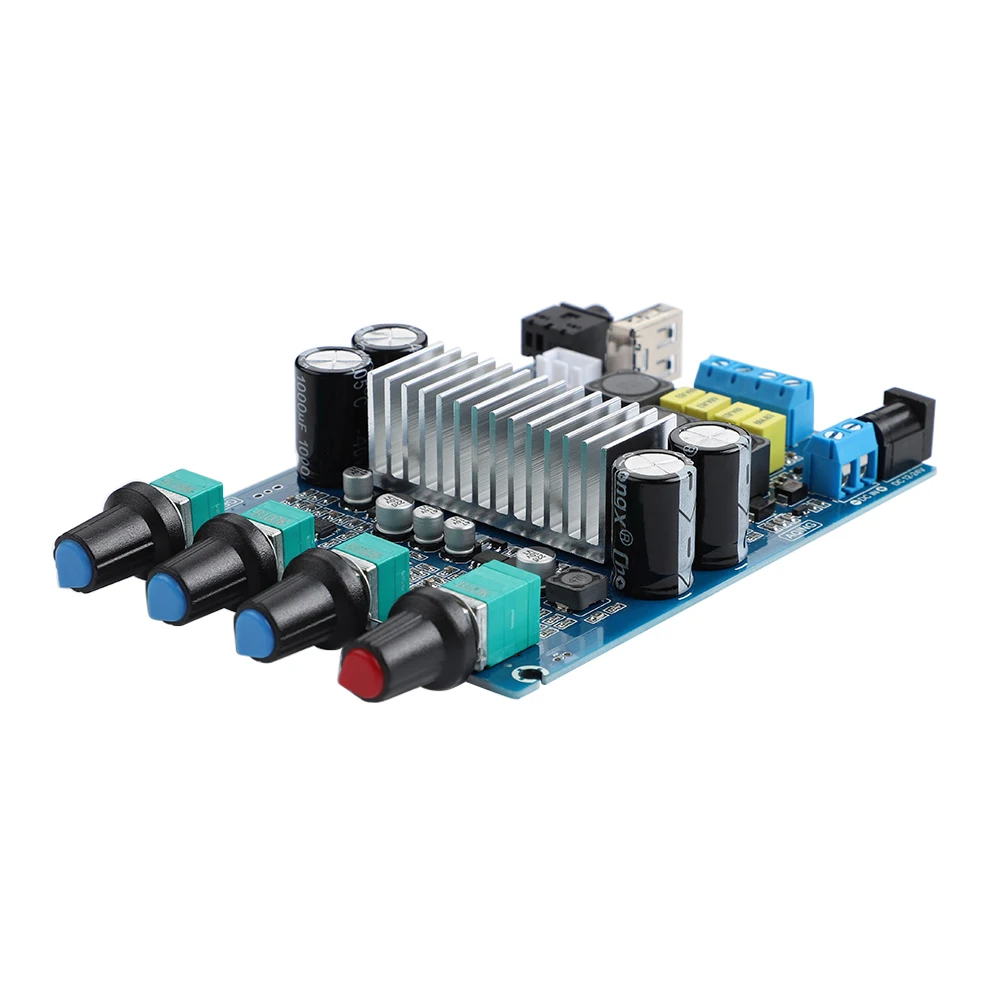

1.This is a DC powered 12-24V power supply, using TI's TPA3116D2 high-performance digital power amplifier chip as the core, one to do parallel bridged bass channel power amplification output, one to do left and right channel power amplification output.support 50W (left channel) + 50W (right channel) 2-channels output.



2.Support Bluetooth 5.0 ,external audio input interface with preamplifier, bass crossover processing; bass volume, Midrange volume,treble Volume, function control switch / total volume, 4 adjustment potentiometers.

3.Wide working voltage, energy-saving design, efficiency up to 90%. You can use a good performance switching power supply, laptop switching power supply, you can also use a charging bottle, or car power supply, etc...

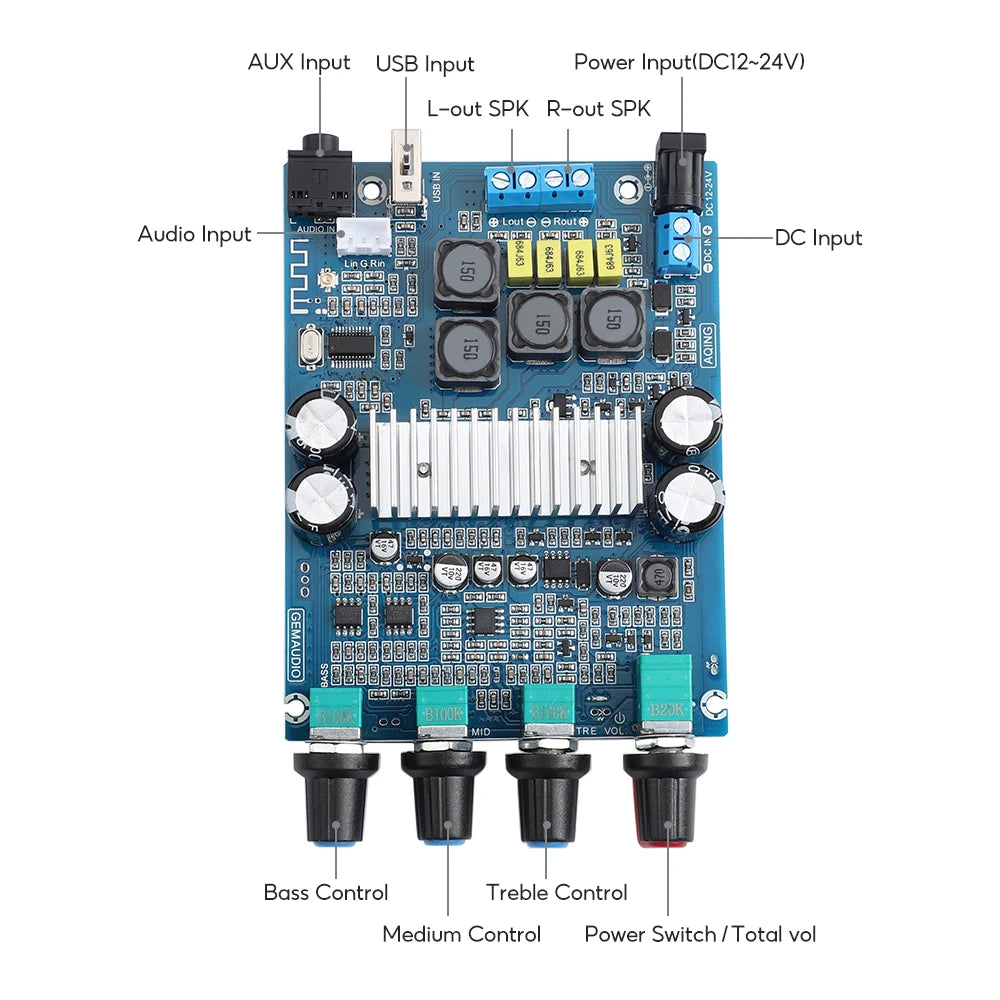

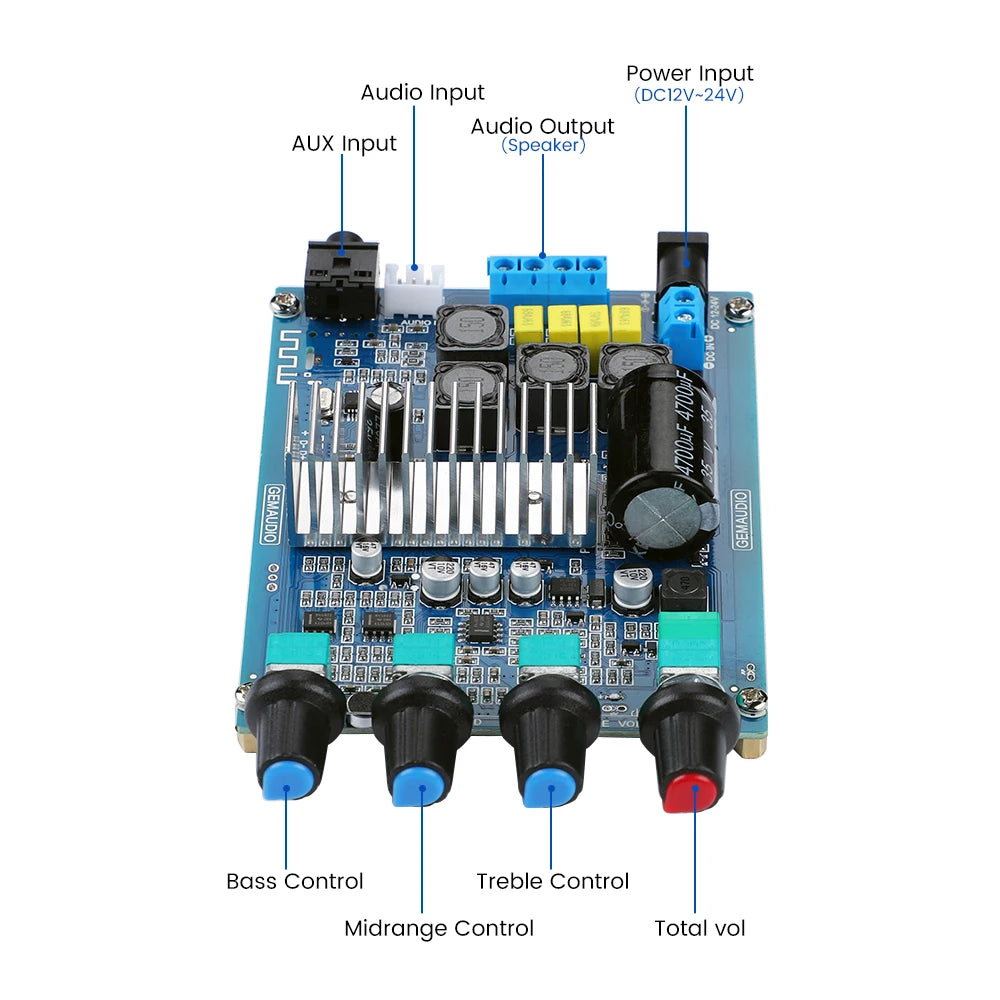

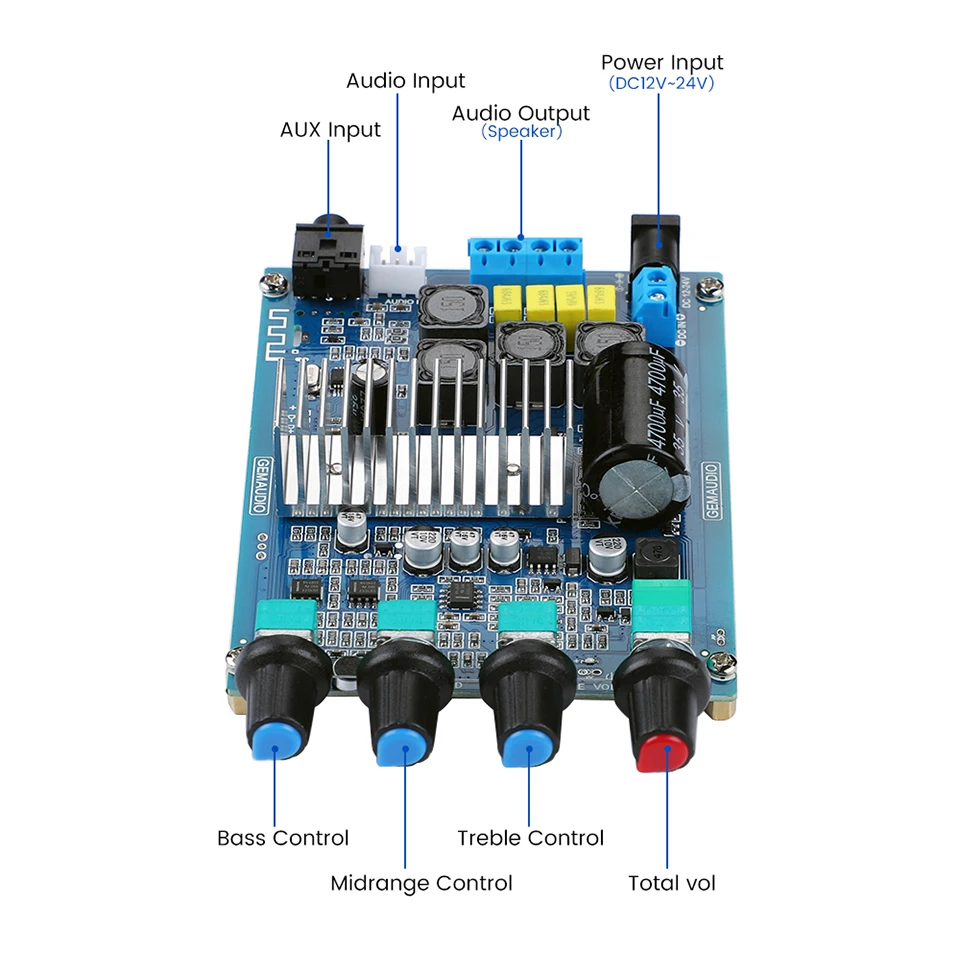

4.The board is a finished board that has been soldered and tested. Connect the speaker box according to the picture, connect the appropriate power supply, connect to the audio device to play, or connect the sound source input correctly.

The main Parameters:

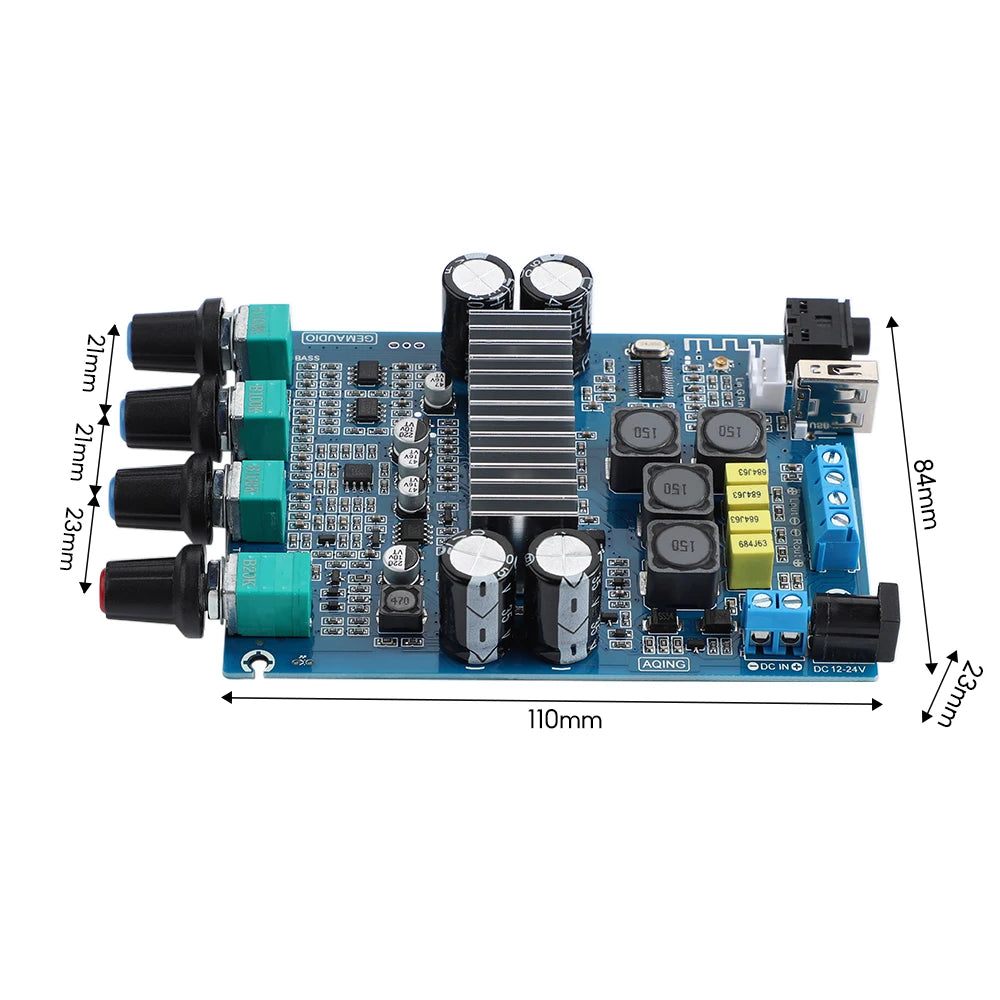

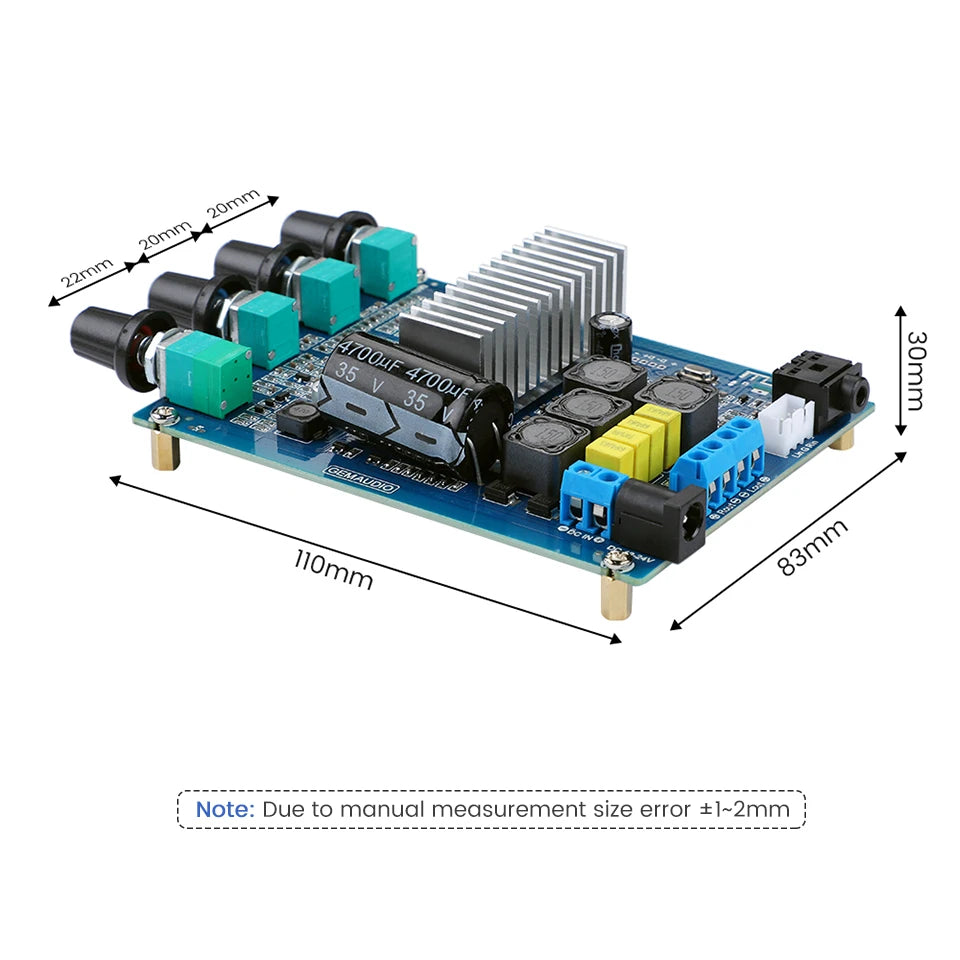

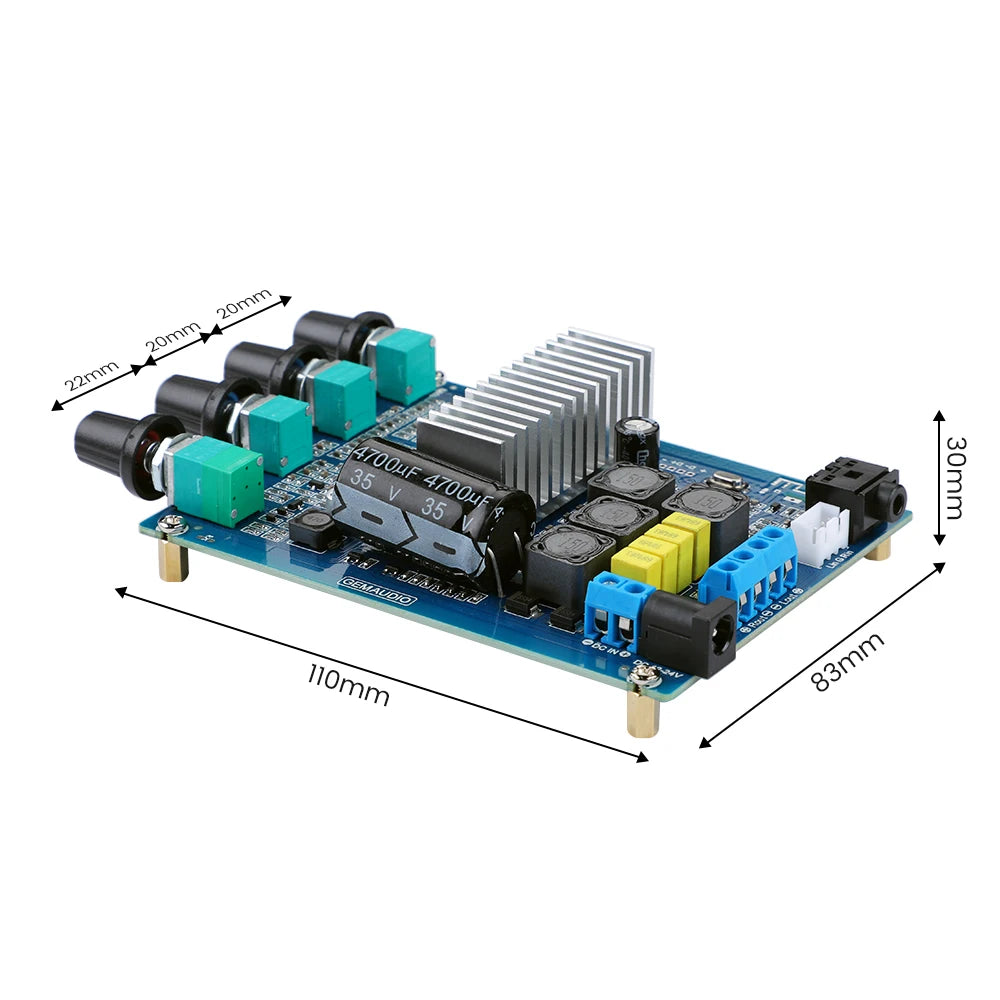

Size (L * W * H): 110 x 83 x 30mm, excluding potentiometer and socket projection

Operating voltage range: DC 12-24V(current 3-4A, or 19-24V / 4-5A, such as high power requirements 20-24V / 8-9A above)

Note that the DC no-load voltage should not be greater than 25.5V.

Audio input sensitivity: 600-800mV

Frequency response range: 20Hz-20KHz

Speaker impedance:left and right channel speakers: 4-8 ohm,bass speaker impedance: 2-8 ohm

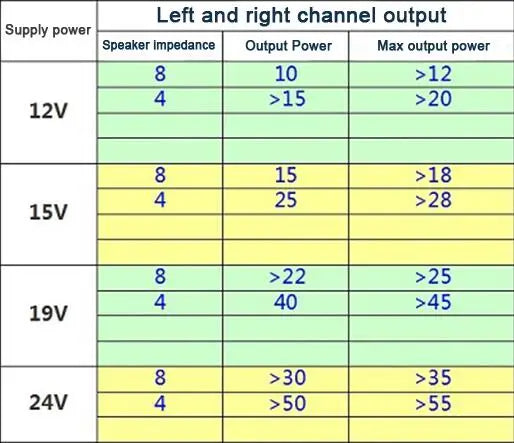

The output power is related to the supply voltage/current, the speaker impedance, and the size of the audio input. When the power supply voltage/current is sufficient, usually the power supply voltage is higher and the relative output power can be made larger. Speakers with different impedances have different output powers. Usually, the speaker impedance is smaller and the power is easier to achieve.

Package included:

1*amplifier board(power adapter is not included)

Bluetooth version

Bluetooth and USB version
