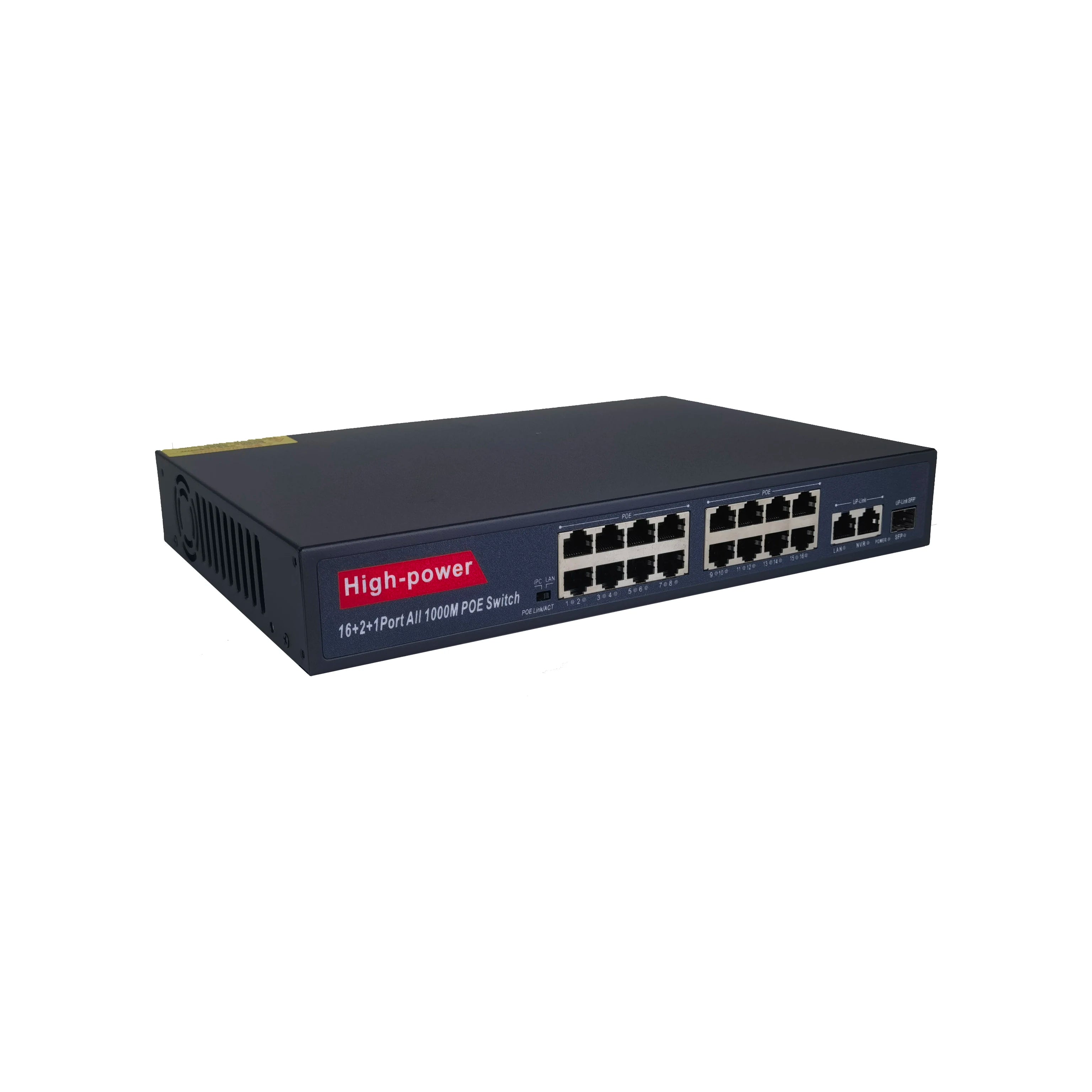

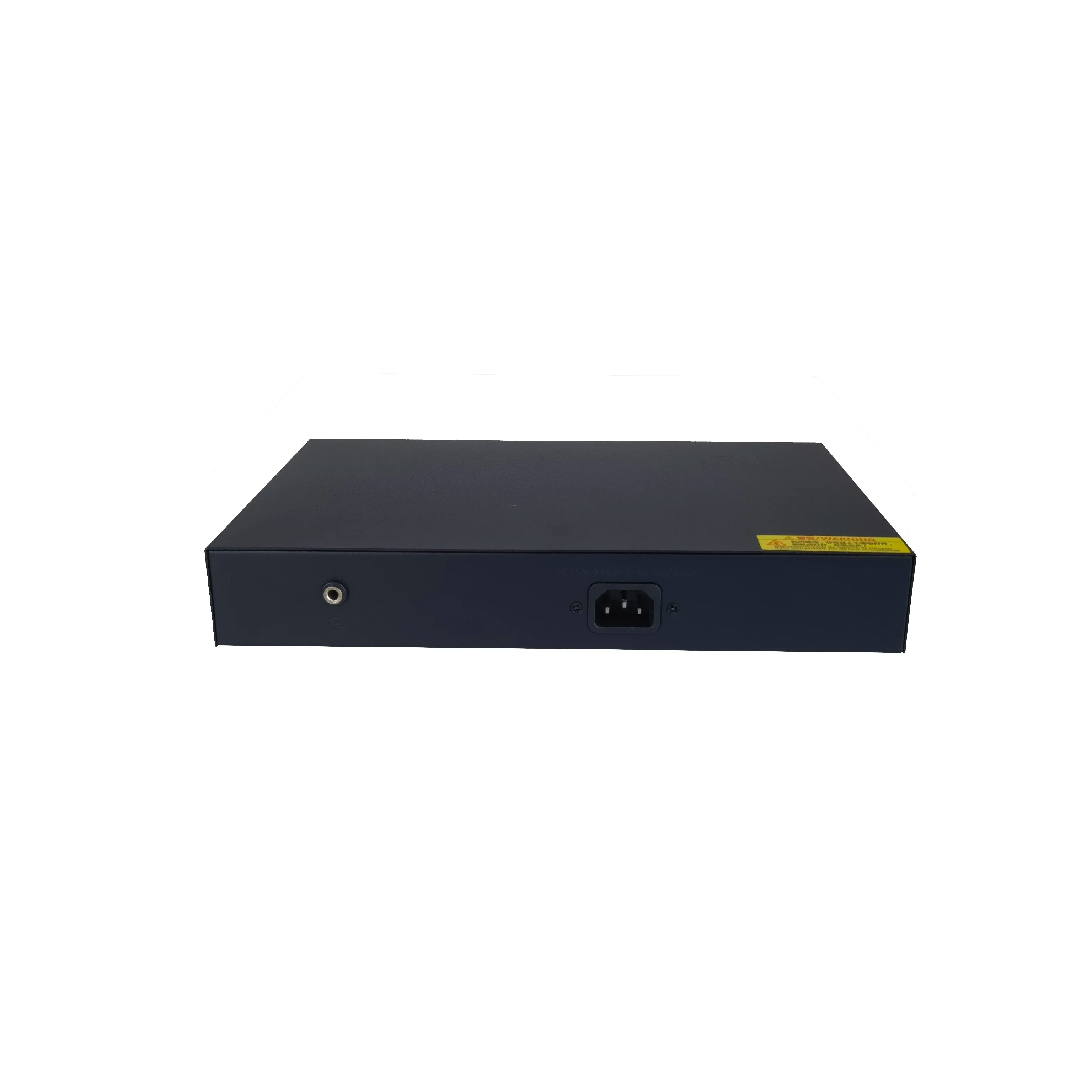

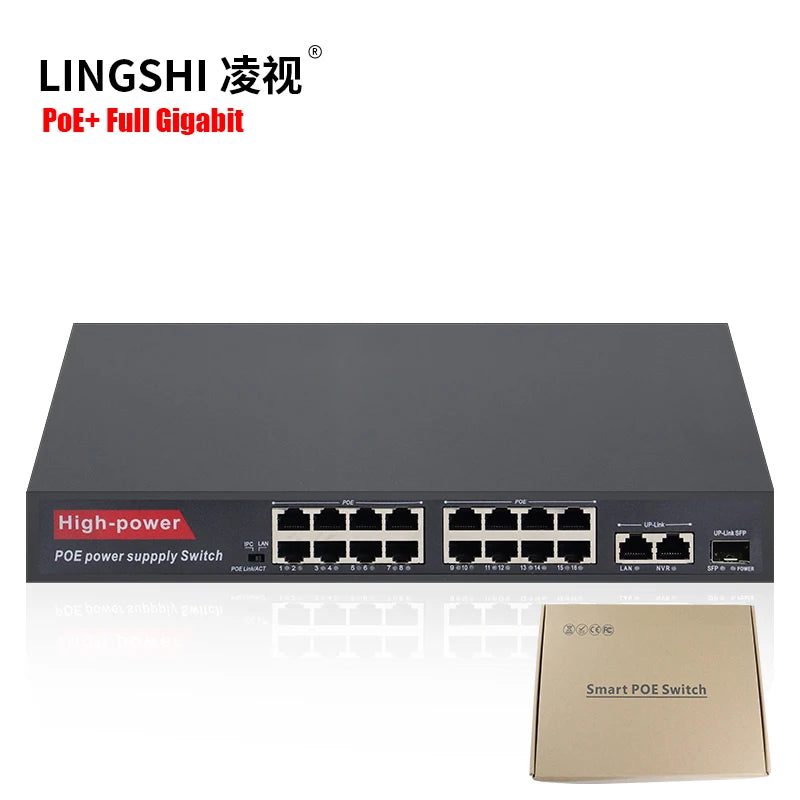

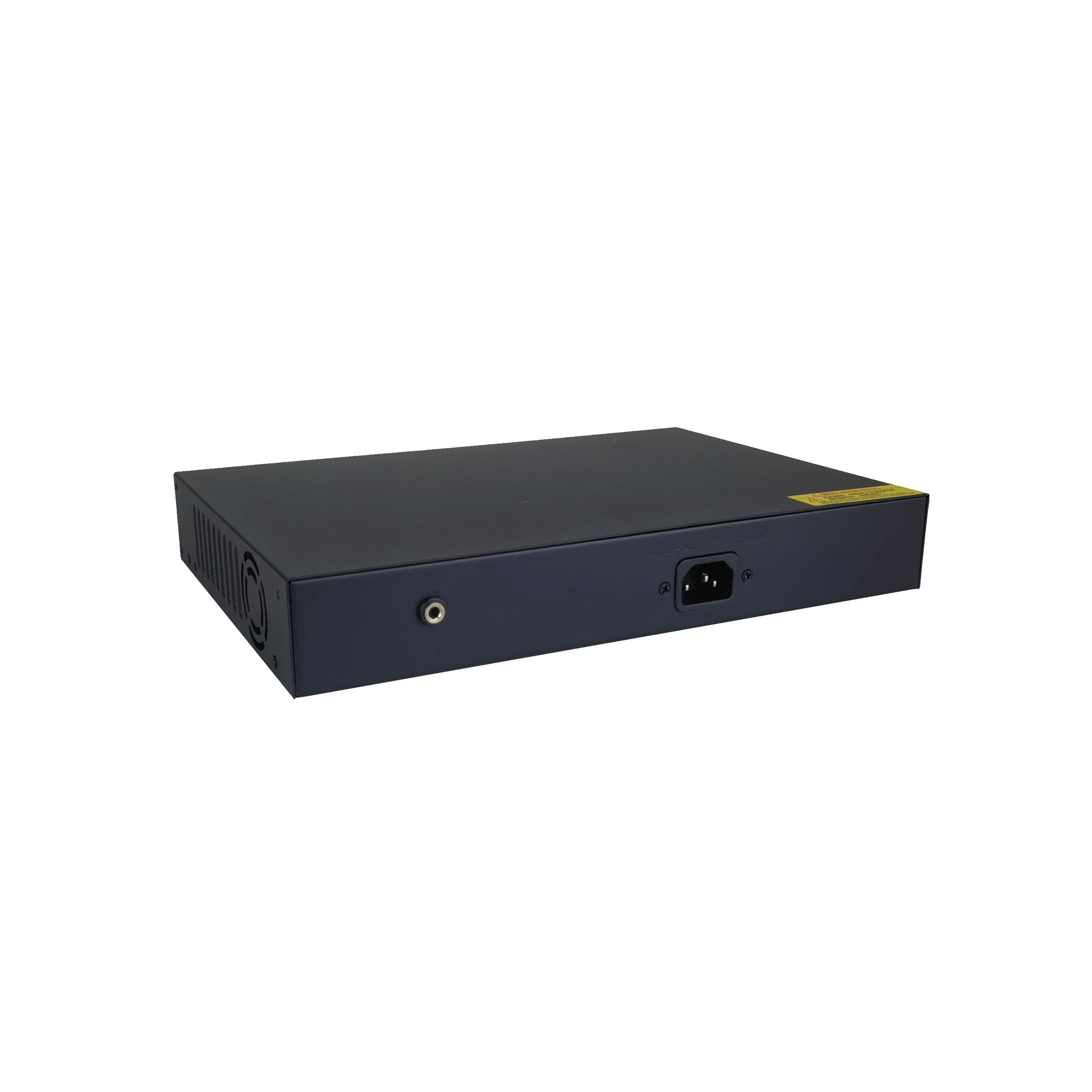

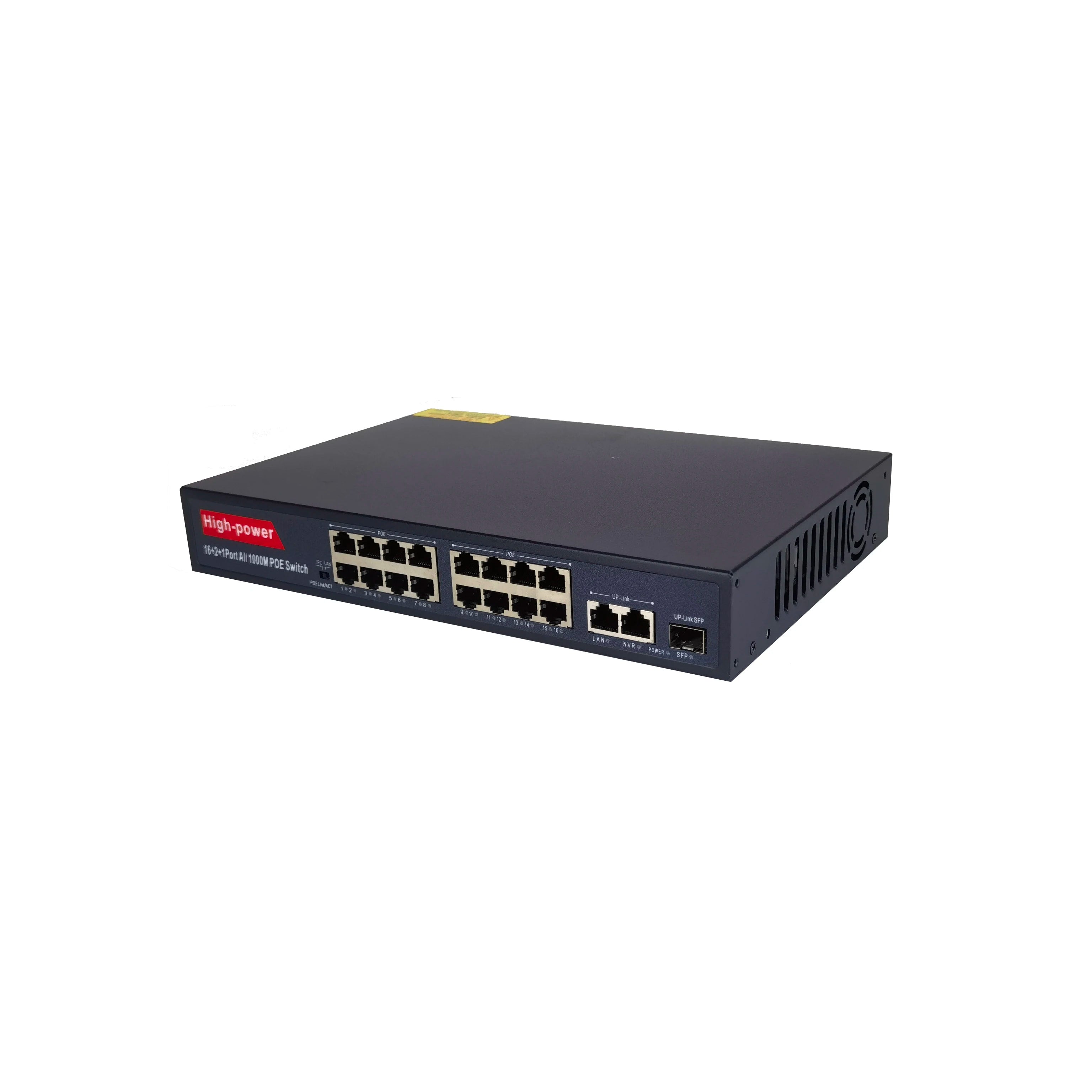

All Port Gigabit 16 Port Poe Switch with 2 Gigabit Uplink and 1SFP Port Network Vlan Switch Hub Unmanaged 1000Mbps
Regular price
$356.04
Sale price
$356.04
Regular price
$0.00
Unit price
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
🔒 Secure Checkout
💰 Money Back Guarantee
↩️ Free Returns
🚚 Fast Shipping
All Port Gigabit 16 Port Poe Switch with 2 Gigabit Uplink and 1SFP Port Network Vlan Switch Hub Unmanaged 1000Mbps
Product reviews
Product description
Shipping & Return
SPECIFICATIONS
Dimensions: 290*200*44mm
Jumbo frames: 9216-byte
LS-DS1603A-G2: 4*RTL8367S+2*IP808AR
MAC Address: 2K
POE Port Output Power: Single port output max. 30W, total power 300W
Packet Cache: 1.5Mbits
Packet Forwarding Rate: 28.272Mpps
Power Supply: AC:100-240V 50/60Hz built-in DC:52V,300W
Static power consumption: Maximum:2.628W (220V/50Hz)
Switching Capacity: 38Gbps
brand name: LingShi
communication mode: Full-Duplex & Half-Duplex
function: LACP,POE,QoS,SNMP,Stackable,VLAN Support
model number: LS-DS1603A-G2
place of origin: Guangdong, China
ports: 16 GE POE+2GE UPLINK+1GE SPF
private mold: Yes
products status: Stock
switch capacity: 38G
transmission rate: 10/100/1000Mbps
Product Description

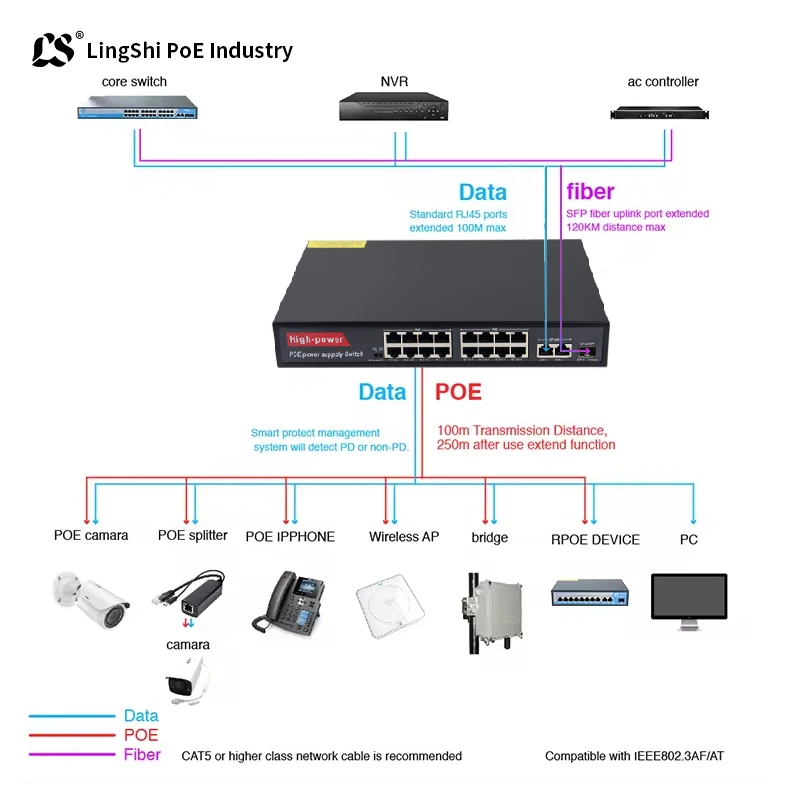

LS-DS1603A-G2 This is a high-performance, low-power Gigabit Ethernet standard POE switch, which is the prime choice for organizing medium and small LANs. It provides 16 10/100/1000Mbps ports, plus 2 10M/100M/1000Mbps UP LINK ports and 1 10M/100M/1000Mbps SFP UP LINK port, which can be used to connect upstream devices with higher bandwidth. Adopts store-and-forward technology to ensure bandwidth is efficiently distributed to each port. Full wire-speed Gigabit connectivity to workgroups or servers for easy plug-and-play. With this flexible, non-blocking architecture, user usage can be unrestricted by bandwidth and media networks. The switch supports half-duplex and full-duplex operation modes, each switch port supports adaptive function, the port adopts store-and-forward mode, the product has superior performance, easy to use, convenient and intuitive, providing an ideal networking solution for workgroup users or small LAN.
Product Features
◆ Supports IEEE 802.1Q VLANs
◆ Full-duplex and half-duplex operation with IEEE 802.3X flow control and backpressure
◆ Supports 9216 byte jumbo packet length forwarding at wire speeds
◆ Supports 96 ingress ACL rules
◆ Support 4K MAC address
◆ Support 32K-byte EEPROM configuration.
◆ Support IEEE802.3 af/at.
◆ Support IVL, SVL, and IVL/SVL
◆ Supports IEEE 802.1x access control protocol.
◆ Support IEEE 802.3az EEE (Energy-Efficient Ethernet)
◆ Supports 25M clock, RFC MIB counter.
Supports downstream 16-port speed limit of 10M and port isolation.

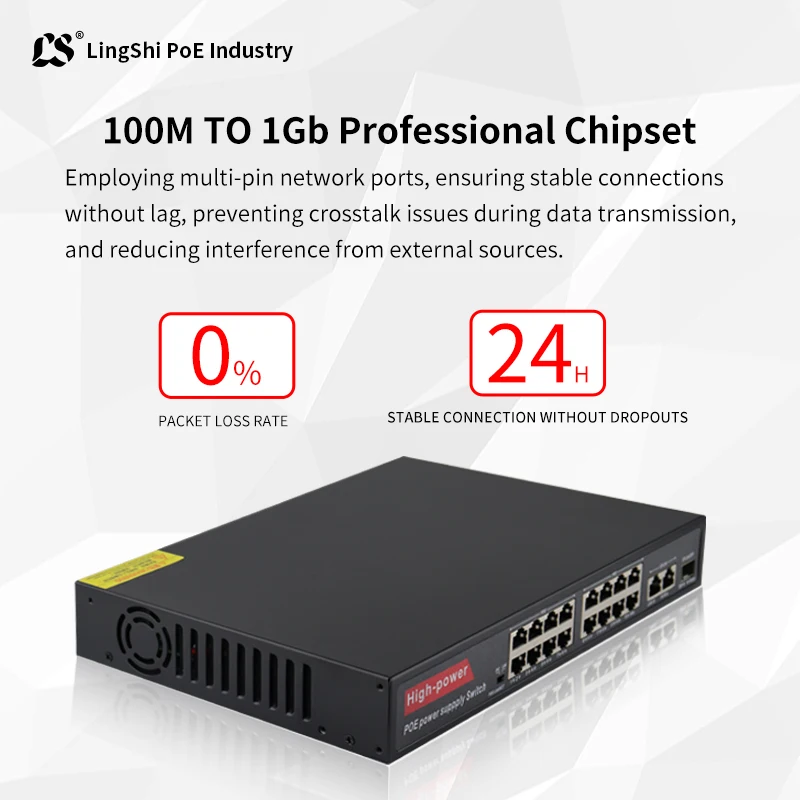

Chip Solutions |
4*RTL8367S+2*IP808AR |
||||||
Standards/Protocols |
IEEE 802.1Q , IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af/at |
||||||
Topology |
Star |
||||||
Network Media |
10BASE-T: Unshielded Category 3, 4, 5 twisted pair (max. 100m) 100BASE-TX/100BASE-T: Unshielded Category 5, Ultra Category 5 or above twisted pair (max. 100m) 1000BASE-TX/1000BASE-T: Super Category 6 or above twisted pair (max. 100m) |
||||||
Interfaces |

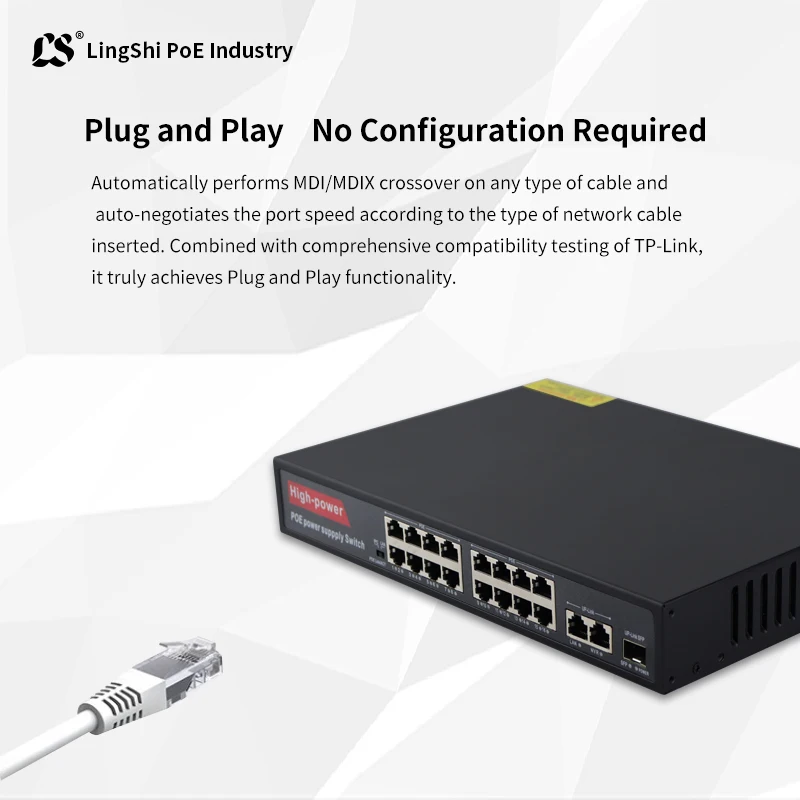

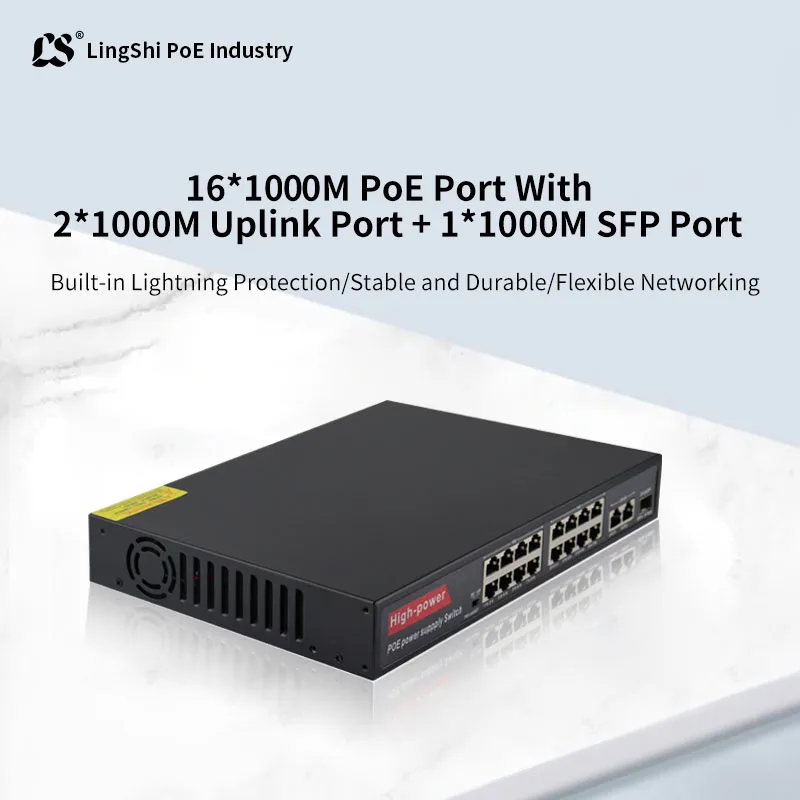

16 10/100M/1000M RJ45 ports (Auto Negotiation/Auto MDI/MDIX) 2 10/100/1000M UP-LINK ports, 1 SFP 10M/100M/1000Mbps UP LINK port |
||||||
Cascade |
UP-LINK port only |
||||||
Forwarding Mode |
store-and-forward (computing) |
||||||
MAC Address Capacity |
2K |
||||||
Switching Capacity |
38Gbps |
||||||
Packet Forwarding Rate |
28.272Mpps |
||||||
Packet Cache |
1.5Mbits |
||||||
Jumbo frames |
9216-byte |
||||||
Indicator Lights |
Machine |
Power.System (Power:red) The indicator state is: always on when the load is connected. |
|||||
Port |
Link/Activity (Link/Act:Green) Indicator status when signal is connected: Blinking |
||||||
Power Supply |
AC:100-240V 50/60Hz built-in DC:52V，300W |
||||||
Power Supply Pins |
1/2（+），3/6（-）(POE ports only) |
||||||
POE Port Output Power |
Single port output max. 30W, total power 300W |
||||||
Speed Limit Function |
POE port speed limit 10M (POE transmission distance up to 250 meters at 10M speed limit) |
||||||
Static power consumption |
Maximum：2.628W （220V/50Hz） |
||||||
Environment |
Operating Temperature: -10℃~70℃ (32℉~127℉) Storage Temperature: -40 ℃~85 ℃ (-97℉~142℉) Operating Humidity:10%~90% non-condensing Storage Humidity:5%~95% non-condensing |
||||||
Customized Service Operating System Dimensions (L×W×H) Housing Material |
Standard Hardware Enclosure 290×200×44mm |
||||||
Details Images
Recommend Products

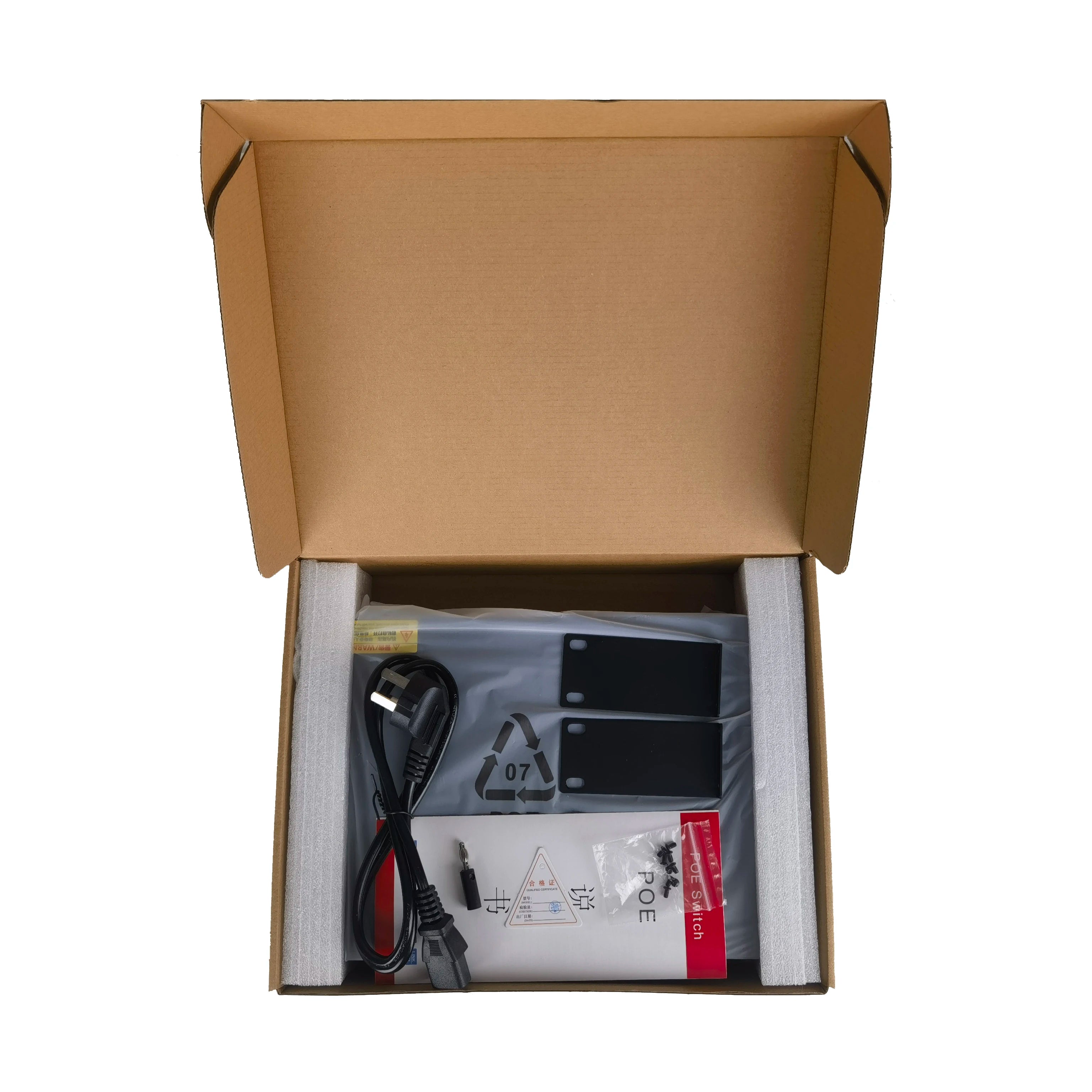

Packing & Shipping
