SPECIFICATIONS

Applicable room temp.: -5~5℃/-15~-25℃

Compressor brand: Embraco, Tecumseh etc

Compressor type: hermetic

Cooling Capacity: 0.75HP~4HP

Defrosting type: Electrical heating

Installation type: Wall mounted/Roof mounted

Refrigerant: R404A, R290 etc

Temp. controller: Wired type or build-in type

Temperature: -5°C ~ +10°C, -10°C ~ -25°C

Weight (KG): 90

core components: Compressor,Condenser,Evaporator,Thermostat,Expansion valve,Sight glass,Solenoid valve,Filter

dimension(l*w*h): Up to different models

key selling points: High-Accuracy,Easy To Operate,Competitive Price,High Productivity,Long Service Life,Energy Saving,Low Maintenance Cost,Accurate Temperature Control

model number: BC Series

place of origin: Zhejiang, China

video outgoing-inspection: Provided

voltage: 220V-50Hz/60Hz-1Ph, 380V-50Hz-3Ph

warranty: 18 months

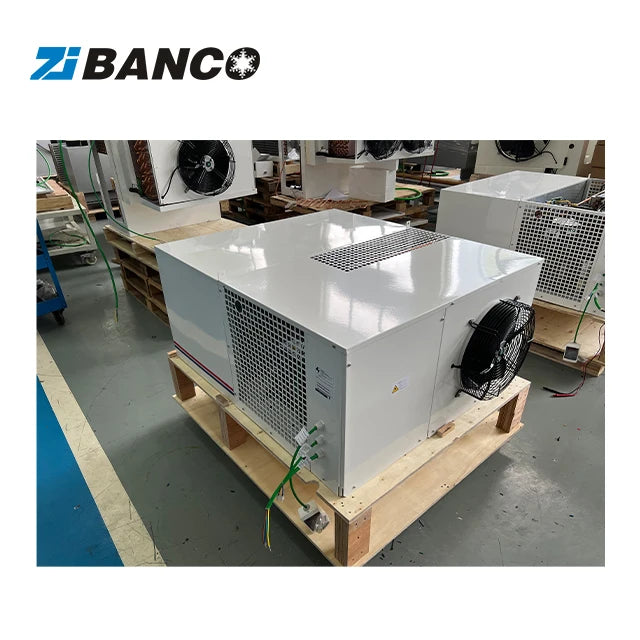

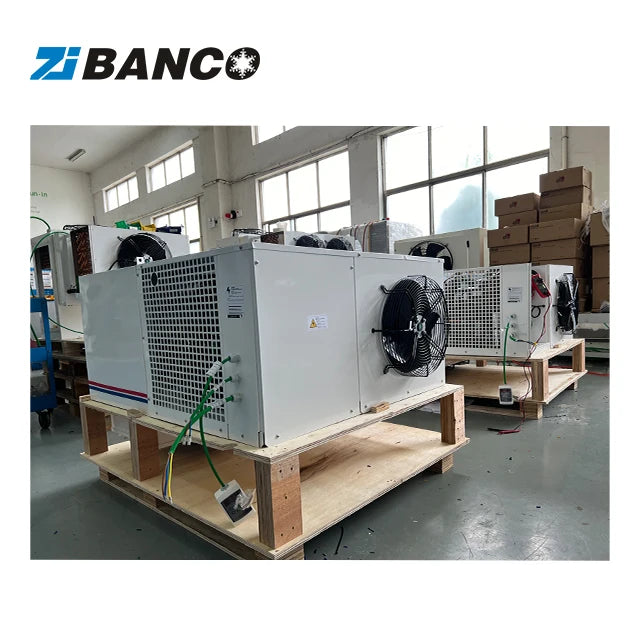

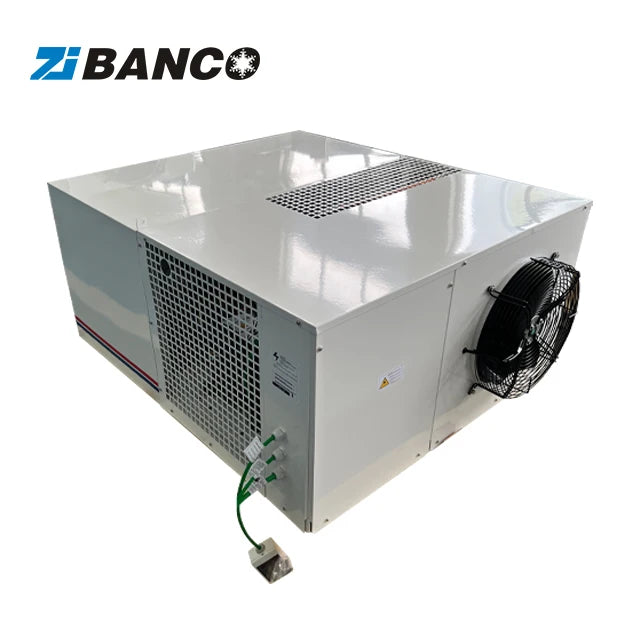

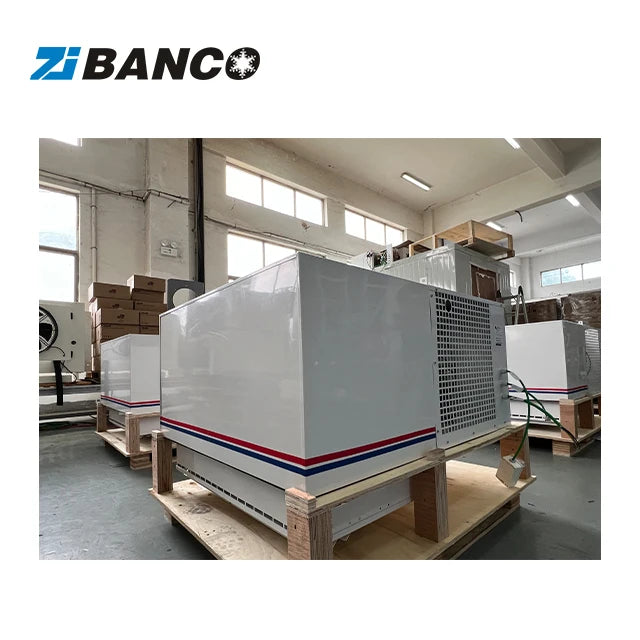

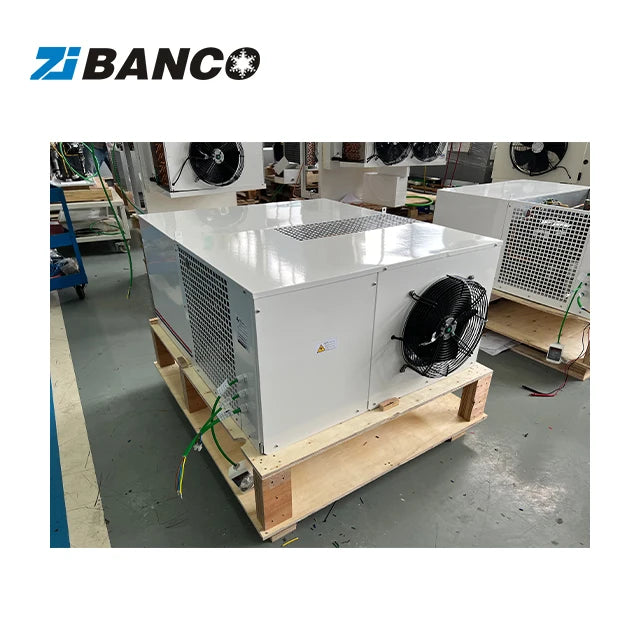

The BC series of machine, called Integrated machine for cold room, that integrate evaporator, condenser, compressor, electrical control units into one compact body.

It can be widely used for small cooled and cold storage room of Temperature of -5°C ~ +10°C or -10°C ~ -25°C, in hotels, restaurants, medicines, agricultural, chemicals industries all other place where cold room is needed.

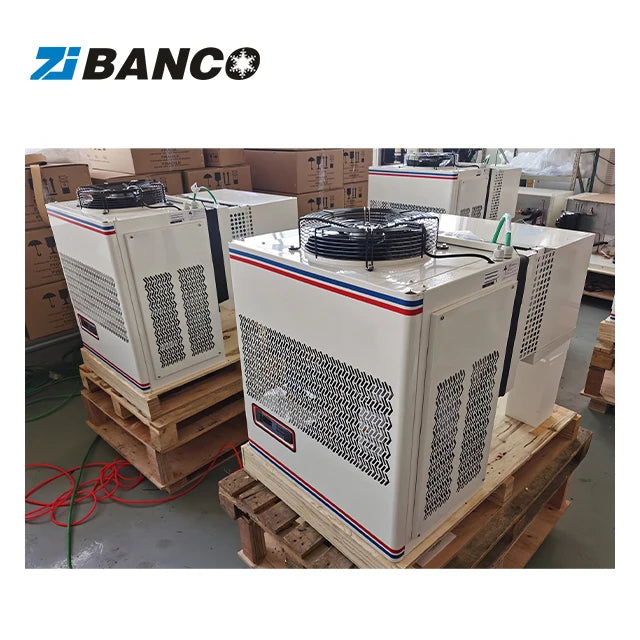

Wall Mounted

Mid temperature series:

Low temperature series:

Rooftop Mounted

Mid temperature series:

Low temperature series:

World famous brand refrigeration parts are employed for all products;
Embraco or Tecumseh compressor;
Heat exchanger with high efficient in grooved copper tube and aluminum fin;
Electronic control board with functions of automatic temperature set, control, and hot gas defrosting;
Protection devices for over loading, sub-heating, lack of phase, high & low pressure etc;
Eeasy installation.

Q: What information is needed to provide the quotation?
A: Generally, for Monoblock Unit(Condensing Unit) we'd like to know the following information to recommend model and provide quotation.
1) Cold room temperature or evaprating temperature of condensing unit.
2) Cooling Capacity.
3) Power Supply.
4) Refrigerant.
5) Working place. Such as restaurant, farm, cold chain logistics central etc.
6) Order Quantity etc.

Q: What is the warranty of Monoblock Unit(Condensing Unit)?
A:
1) One year warranty: non-artificial free exchange damaged parts along with the shipment in warranty
2) Per your special requests are welcome for discussion.
3) After-sale: Salesmen phone 24 hours a day, if you meet any question, we will serve you at any time.

Q: What is the Payment Terms?
A:
1) Total mount less than 10,000USD should be paid 100% in advance.
2) Total amount more than 10,000USD is 30%T/T in advance, 70% should be paid before shipment.
3) L/C is also acceptable.
4) Per your special requests are welcome for discussion.

Q: What is the package of Monoblock Unit(Condensing Unit)?
A: Plywood pallet.
