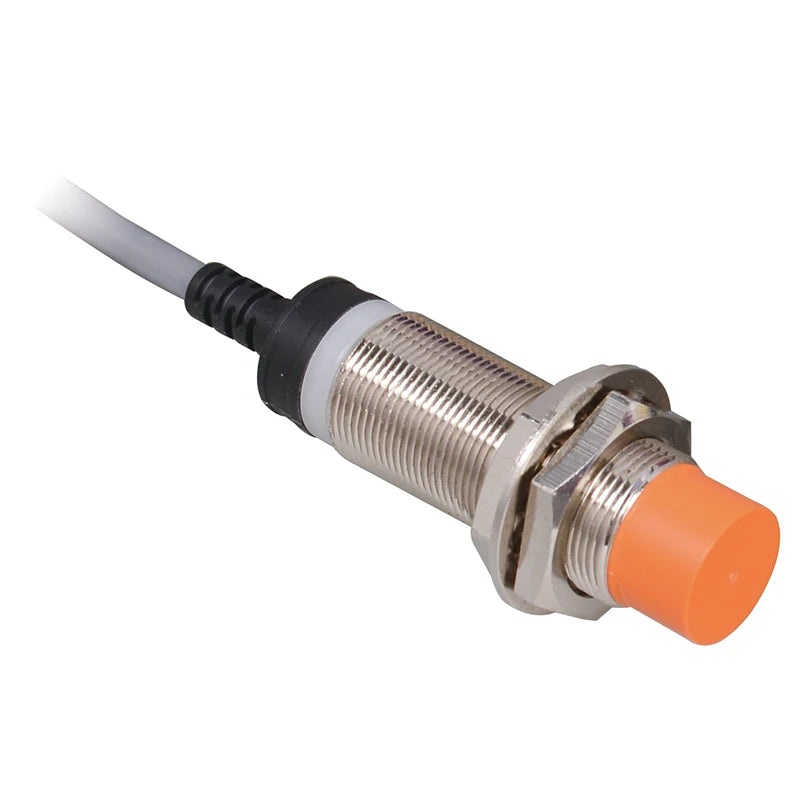

CNTD CJY18E-08 IP67 Inductive Proximity Sensor with Inside Surge Protection Cylindrical Type with Orange Head
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75

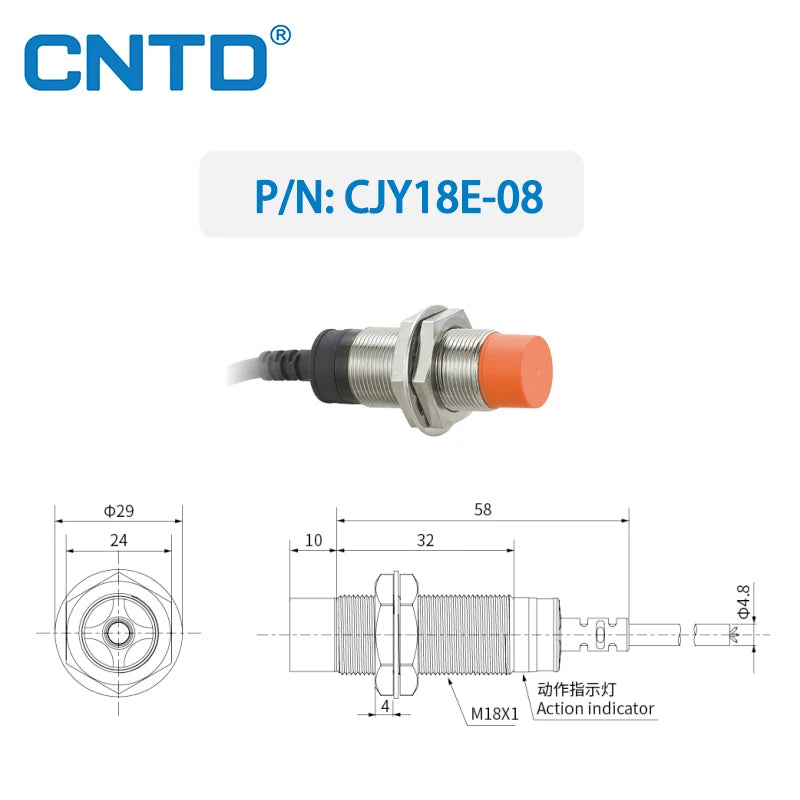

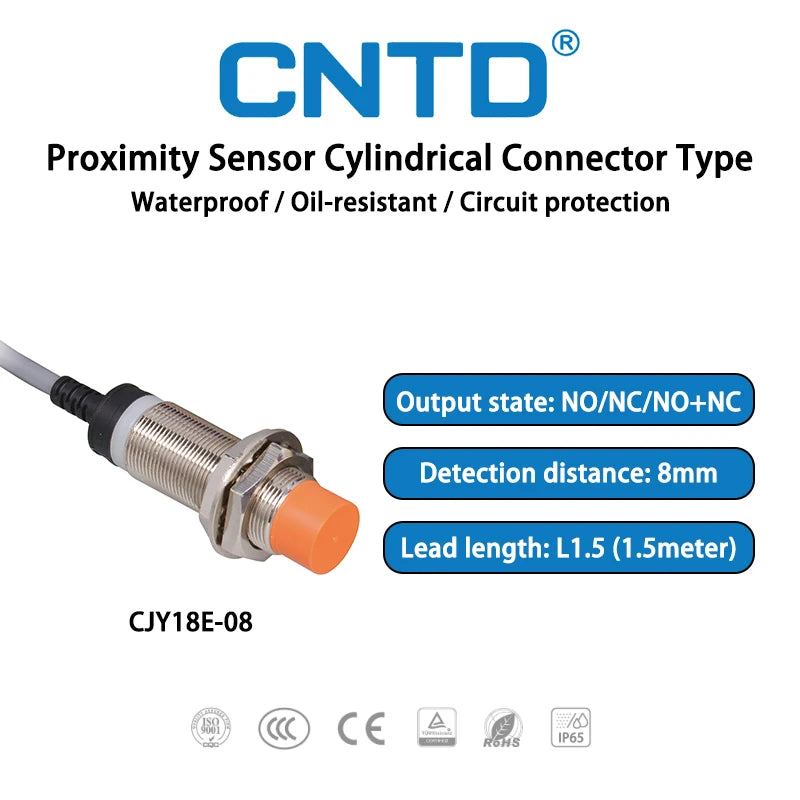

CNTD CJY18E-08 IP67 Inductive Proximity Sensor with Inside Surge Protection Cylindrical Type with Orange Head
SPECIFICATIONS
Ambient Humidity: 35~95%RH (With no condensation)
Ambient Temperature: -25~+70℃ (With no icing)
Brand Name: CNTD
Control Output: Max. 200mA
Description: Inductive Proximity Sensor,Cylindrical Proximity Sensor
Dielectric Strength: 1500VAC 50/60Hz for 1 minute
Features: IP67
Hysteresis: Max. 10% of sensing distance
Indicator: Operation indicator (Red LED)
Insulation Resistance: Min. 50MΩ (at 500VDC megger)
Material - Body: PBT,PVC
Model Number: CJY18E-08
Mounting Type: Sensor
Output: NO/NC/ NO+NC
Place of Origin: Zhejiang, China
Product Name: Proximity Sensor
Protection: IP67
Response Frequency: 350Hz
Sensing Distance: 8mm
Series: CJY-E
Shock: 500m/s²(approx. 50G) X, Y, Z directions for 3 times
Supply Voltage: 12-24VDC
Termination Style: smd (smt) tab
Theory: Inductive Proximity Sensor
Type: Proximity Sensor
Usage: Industrial
indicator: Led
Features
Model Number Structure
No |
Item |
Code |
Description |
1 |
Classification code |
CJ |
inductive type |
2 |
Shape code |
Y |
Cylindrical copper tube of metal |
3 |
Size code |
12 |
08=M8、12=M12、18=M18、30=M30 |
4 |
Product category |
E |
Economical |
5 |
Detection distance |
05 |
02=2mm、04=4mm、05=5mm、08=8mm、10=10mm、15=15mm |
6
|
Operating voltage
|
A |
90...250VAC |
D |
12...24VDC |
||
E |
24..60VDC |
||
J |
6..36VDC |
||
7
|
Output mode
|
N |
NPN |
P |
PNP |
||
K |
AC Two-Wire |
||
L |
DC Two-Wire |
||
8
|
Output state
|
A |
NO |
B |
NC |
||
C |
NO+NC |
||
9
|
Connection form
|
None |
Lead type free outlet end |
M |
M12 pin straight head 4-core A coding |
||
M囗囗囗囗 |
M-type connector M囗囗囗囗 |
||
D囗囗囗囗 |
DT-type connector D囗囗囗口 |
||
A囗囗囗囗 |
AMP-type connector A囗囗囗囗 |
||
S囗囗囗囗 |
SM-type connectors囗囗囗口 |
||
10
|
Wire material
|
None |
PVC |
U |
PUC |
||
VP |
PVC+Shield |
||
UP |
PUC+Shield |
||
11 |
Lead length |
L1-L5 |
L1 means 1 meter line (line length is not limited to L5) |

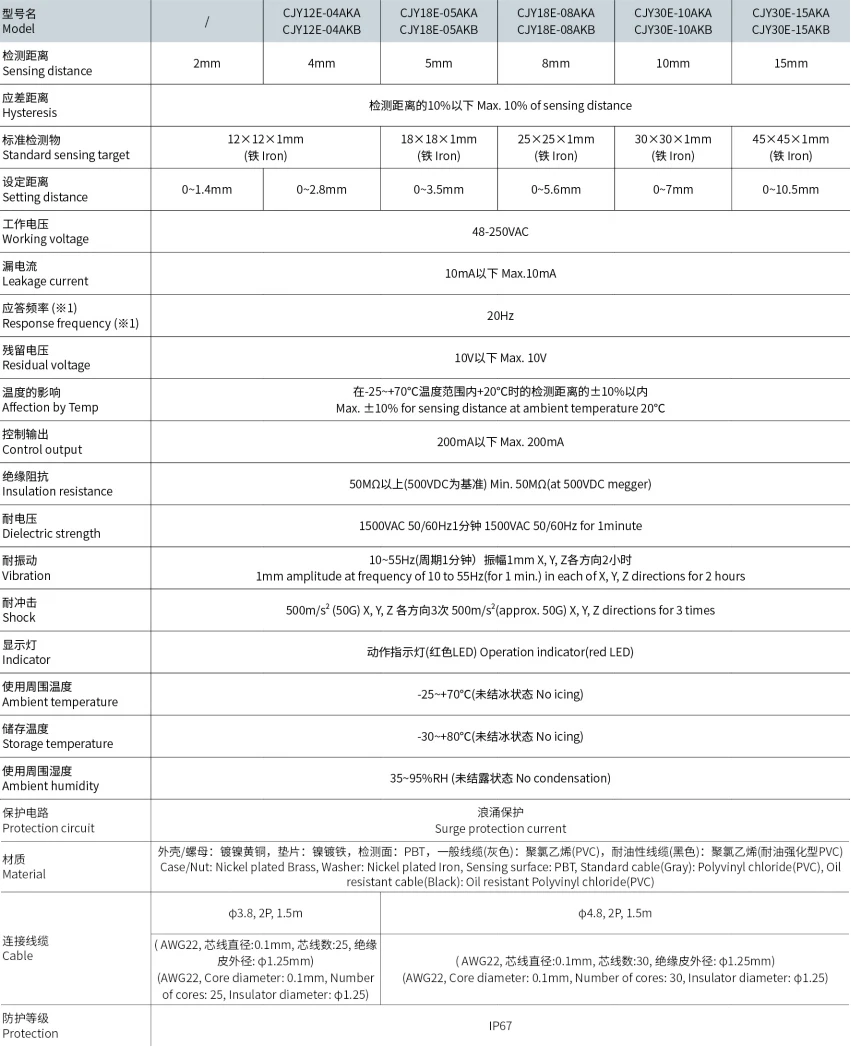

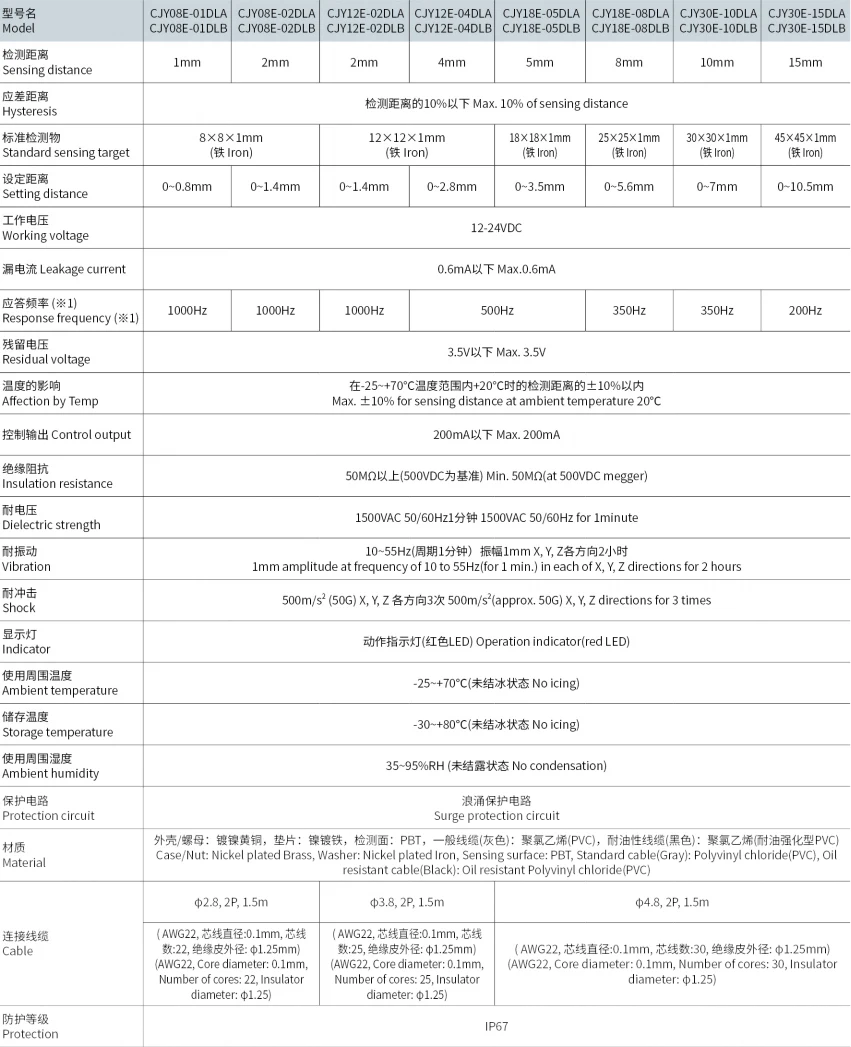

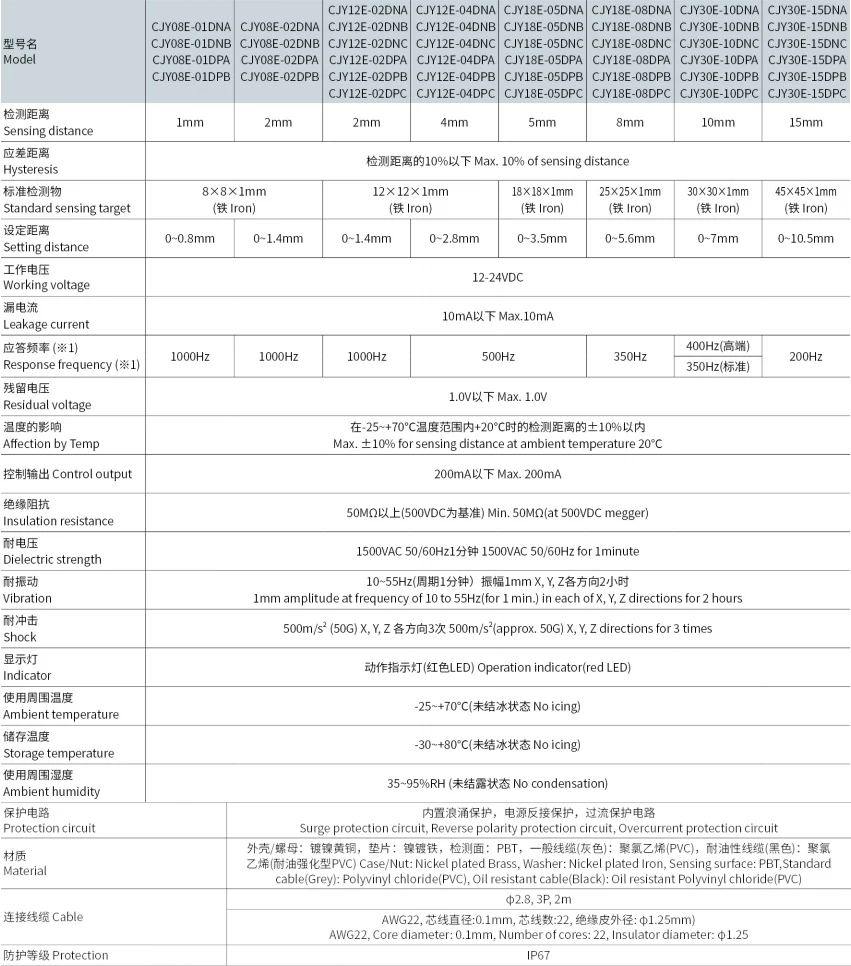

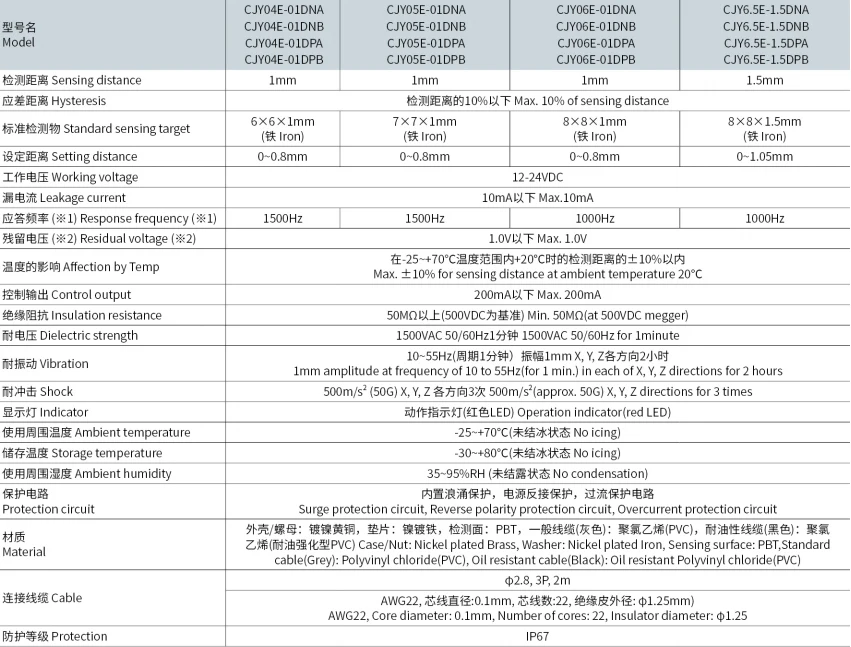

Specifications

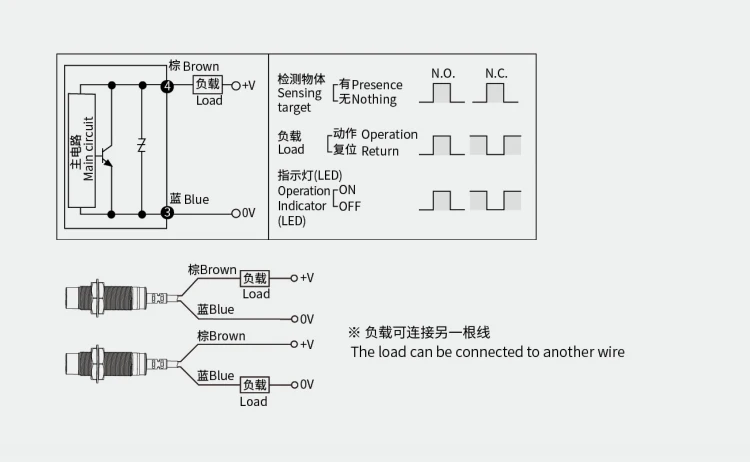

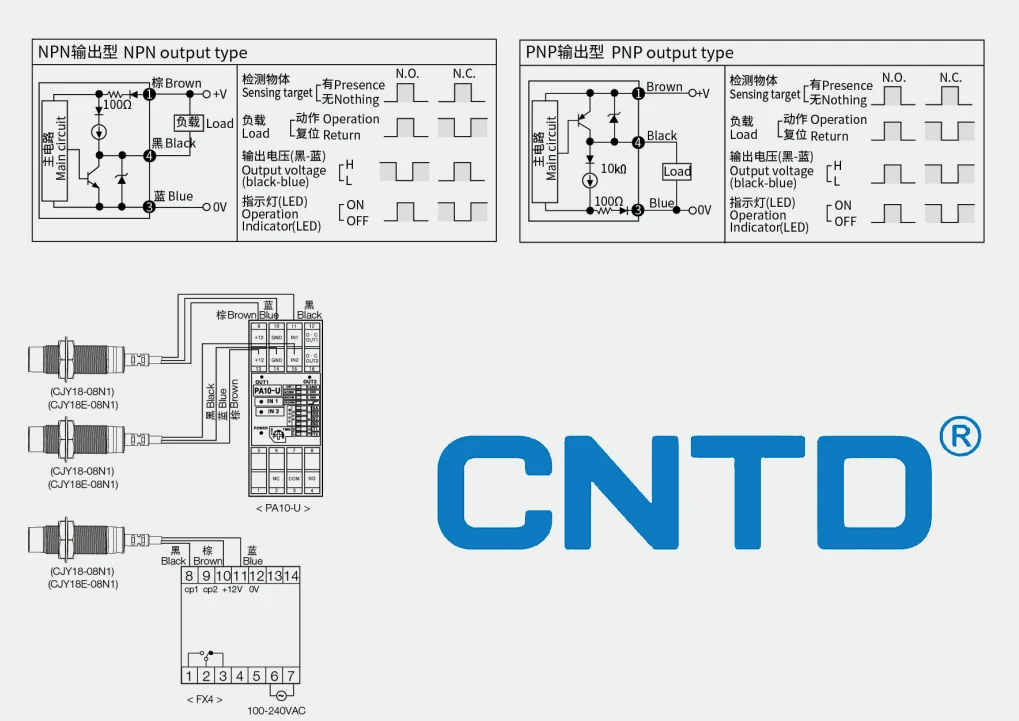

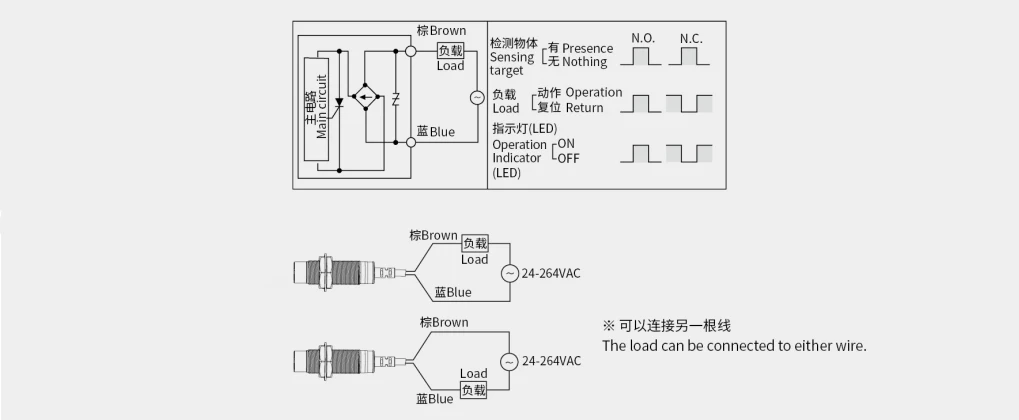

Control output Diagram

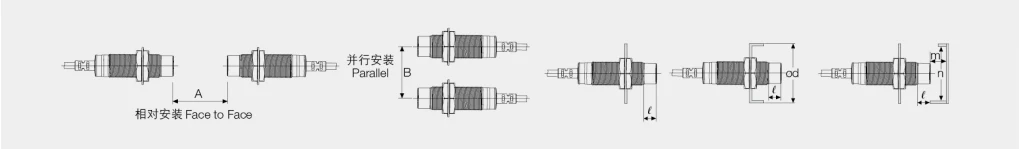

Proper Usage
