DC 12v 360 Degree PIR Microwave Wired Ceiling Mounted PIR Detector for Home Security System
Regular price
$320.25
Sale price
$320.25
Regular price
$0.00
Unit price
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
🔒 Secure Checkout
💰 Money Back Guarantee
↩️ Free Returns
🚚 Fast Shipping
DC 12v 360 Degree PIR Microwave Wired Ceiling Mounted PIR Detector for Home Security System
Product reviews
Product description
Shipping & Return
SPECIFICATIONS
Alarm Output: NC/NO ; 3A/220V
Alarm Type: Used in conjunction with the alarm host
App Support: Not applicable
Brand Name: SICUREZZA
Detection Angle: 360 degree 12m*12m
Detection Range: Up To 10 m
Detection unit: PIR Microwave Dual Technology
Feature: alarm
Install high: 2.2m-4m
Installation: Ceiling Mounted
Item: DC 12v 360 Degree PIR Microwave Wired Ceiling Mounted PIR Detector
Material: Plastic
Model Number: HS-263P
Network: wired
Place of Origin: Guangdong, China
Sensor Type: Motion Sensor
Size: 125mm*50mm
Temperature: -10℃/+55℃
Working Voltage: DC 12v to 24v
Working current: 40mA
Product Paramenters
PIR Microwave Dual Technology Indoor 360 Degree Ceiling Mount PIR Motion Sensor
The detector this is a top detector that combines infrared and microwave technology. Its unique and accurate spherical lens is The infrared sensor provides a 360 degree detection range. The threeLED can clearly display the two detection results, and at the same time,The detector also provides the installation user with NO/NC output selection mode, which can be directly used to activate the CCTV system and access control system. Detectors can be used in a variety of indoor applications, such as warehouses, hotel rooms, offices, etc.
-Adopt intelligent processing technology,full analysis and reduce false alarm rate
-Three color LED display infrared,microwave and alarm signal
-AND-OR mode selection suitable for various environment
-Adopt fully sealed relay
-Microwave range adjustable continuously
-Passive infrared range adjustable continuously
-Unique full temperature compensation technology
-Anti EMI
-Anti white light interference
-31 beams Fresnel lens with down-view window
-Fully sealed optical Accessories
-Detection angle:360 degree
-Detection distance:12m*12m
Specification for Ceiling Mount PIR Motion Sensor |
||
Operation Voltage |
DC 12v to 24v |
|
Operation Current |
40mA |
|
Detection range |
12m*12m 360 degree |
|
Installation Height |
2.2m-4m |
|
Alarm time |
3s |
|
Microwave frequency |
10.525GHz |
|
Detect speed |
0.2m/s to 3.5m/s |
|
Detection unit |
PIR Microwave Dual Technology |
|
Installation |
Ceiling mounted |
|
Anti RFI/EMI |
0.1-500MHz/3V/m |
|
Anti-white light |
>10000LUX |
|
Alarm Output |
NC/NO 3A/220V |
|
Tamper Output |
NC 200mA/125V |
|
Operation Temperature |
-10℃/+55℃ |
|
Humidity(RH) |
95% |
|
Size |
125mm*50mm |
|
Packing & Delivery
Packing Details for Ceiling Mount PIR Motion Sensor |
||
PACKING |
Neutral color box or customer's packing |
|
PCS/CARTON |
100PCS |
|
GW/CARTON |
19.0KG |
|
CARTON SIZE |
54*45*34CM |
|
Products Description

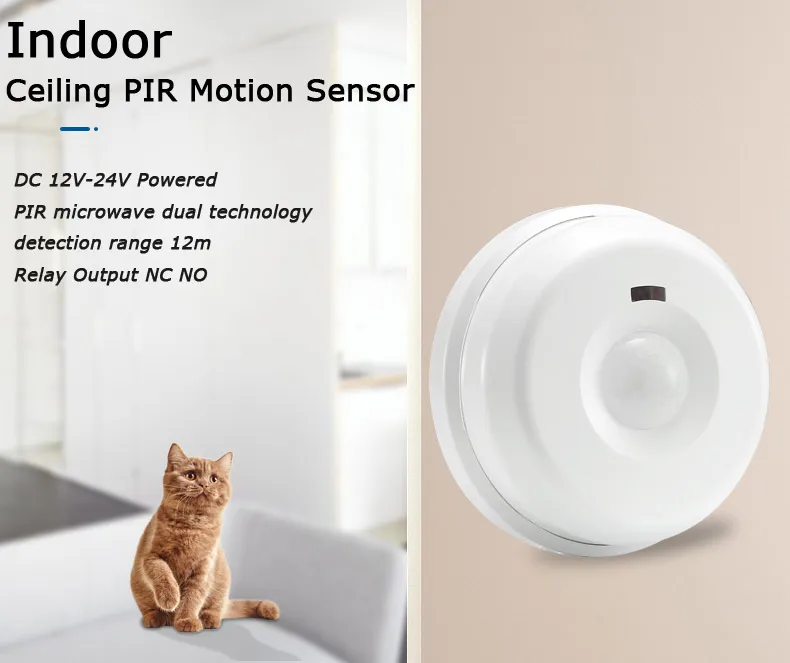

Indoor PIR Microwave Dual Technology 360 Degree Ceiling PIR Motion Sensor
DC 12v-24v Powered / Detection Range 12m / Relay Output NC NO /PIR Microwave Dual Technology

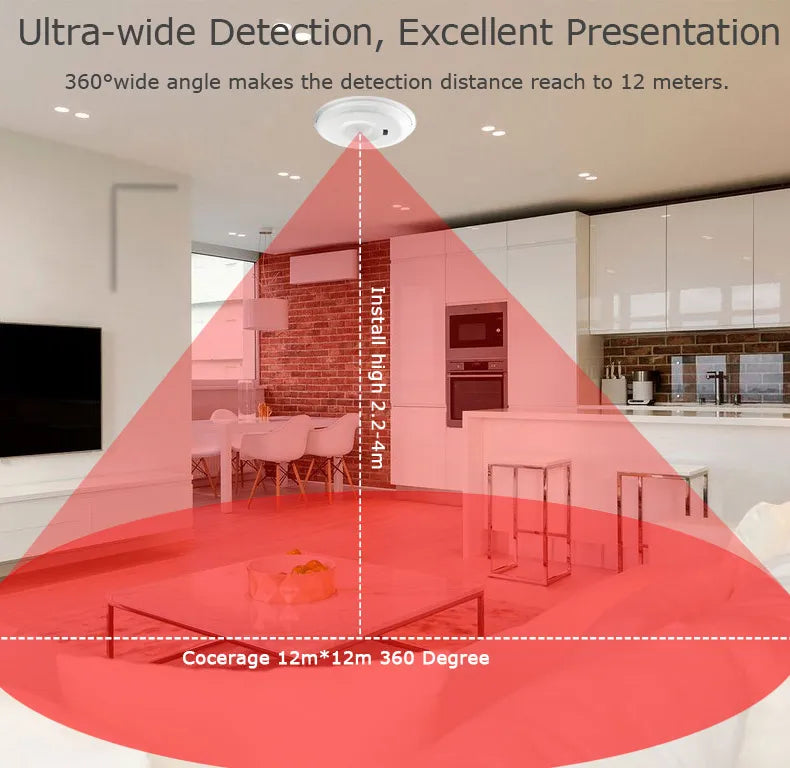

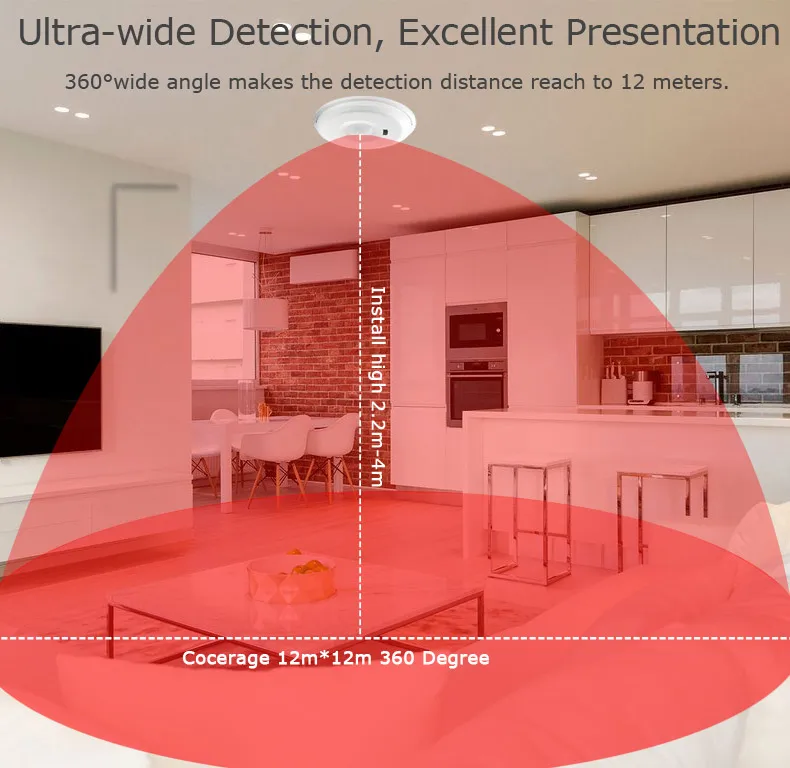

Ultra-wide Detection, Excellent Presentation
360°wide angle makes the detection distance reach to 12 meters.
Intelligent Recognition and Pet-proof
Adopt Fresnel optical lens and advanced multi-grades digital signal processing detection technology
to prevent false alarms caused by small pets under 10KG
