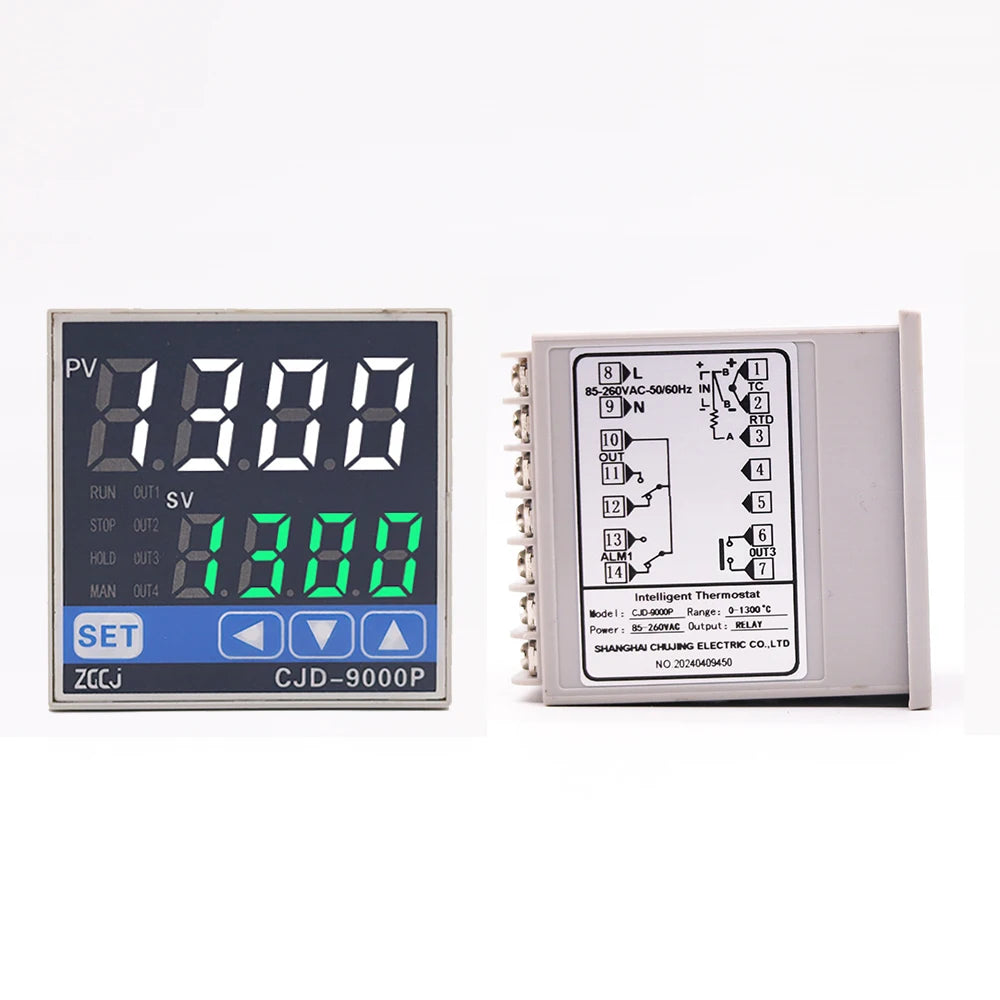

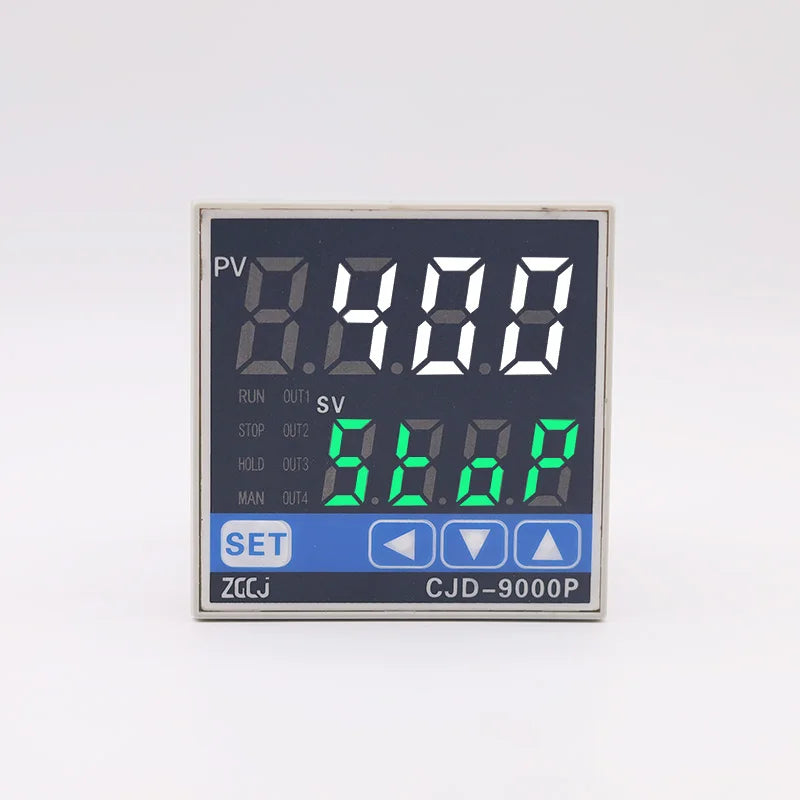

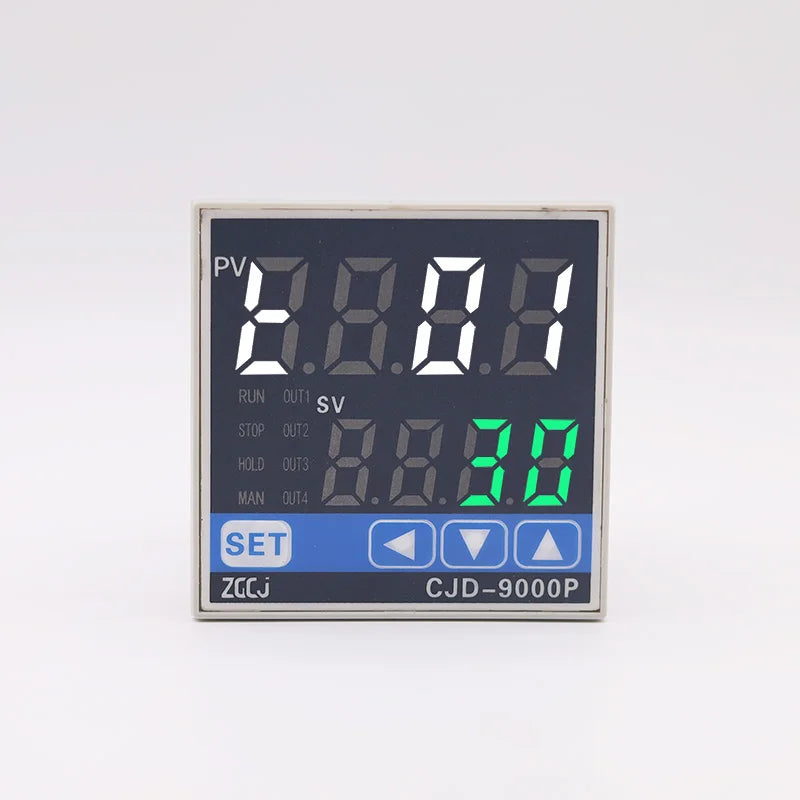

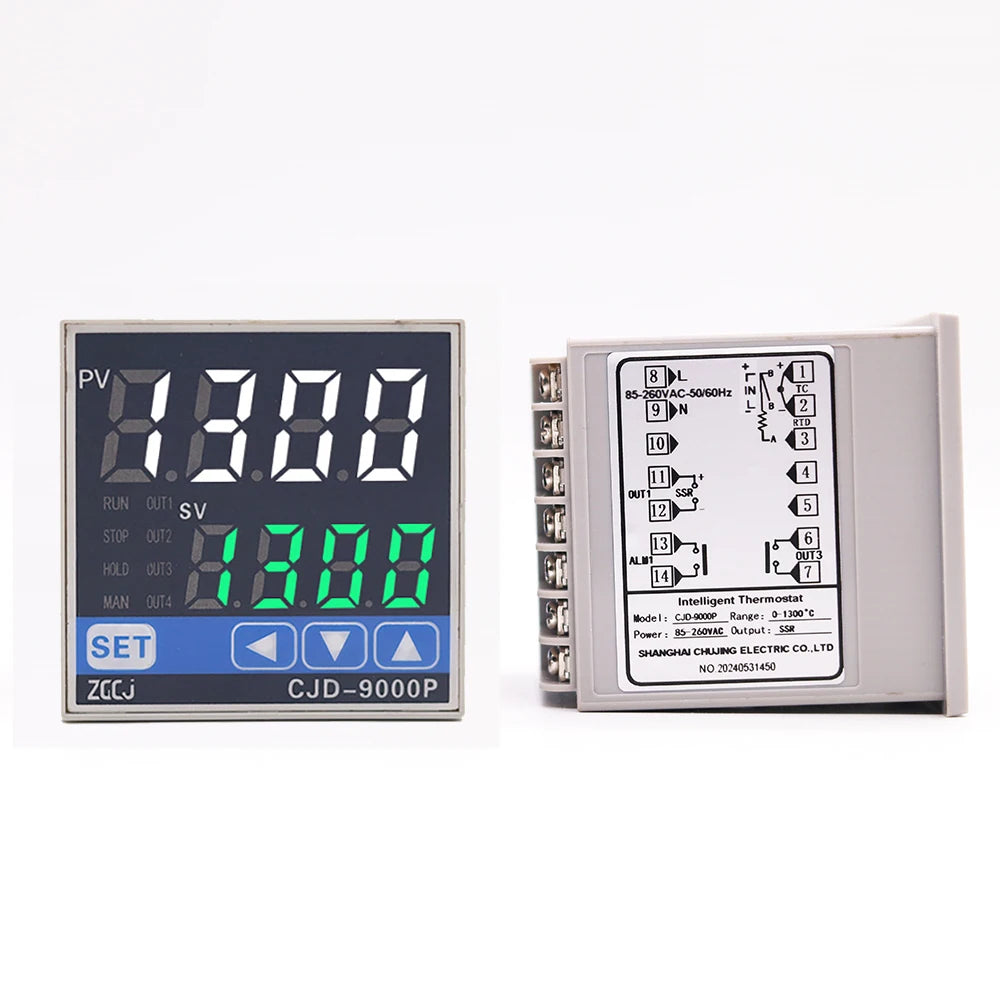

Temperature and timer 2 in 1 pid controller hold keep temperature for several minutes or hours temperature curve thermostat

Package will include:

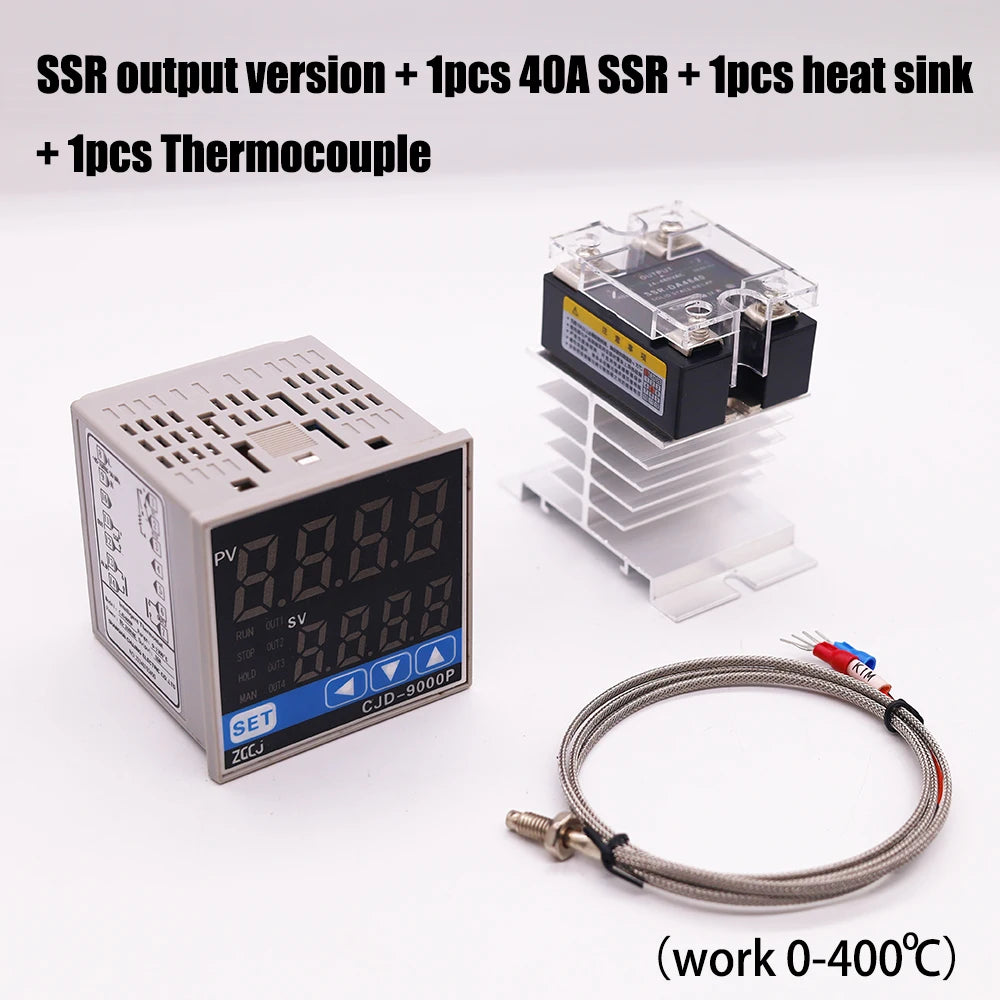

1 pcs thermostat

1 pcs English manual

Features:

Power supply voltage: 80-260VAC.50/60Hz

Which thermocouple can be worked with this controller ?

Measure temperature range and input type default : K , 0-1300'C ( user can set measure temperature range inside)

Output: RELAY output or SSR output

Dimension of controller: 72*72*72mm

Time unit: minute / second (user can select inside)

Set time range: 0-9999

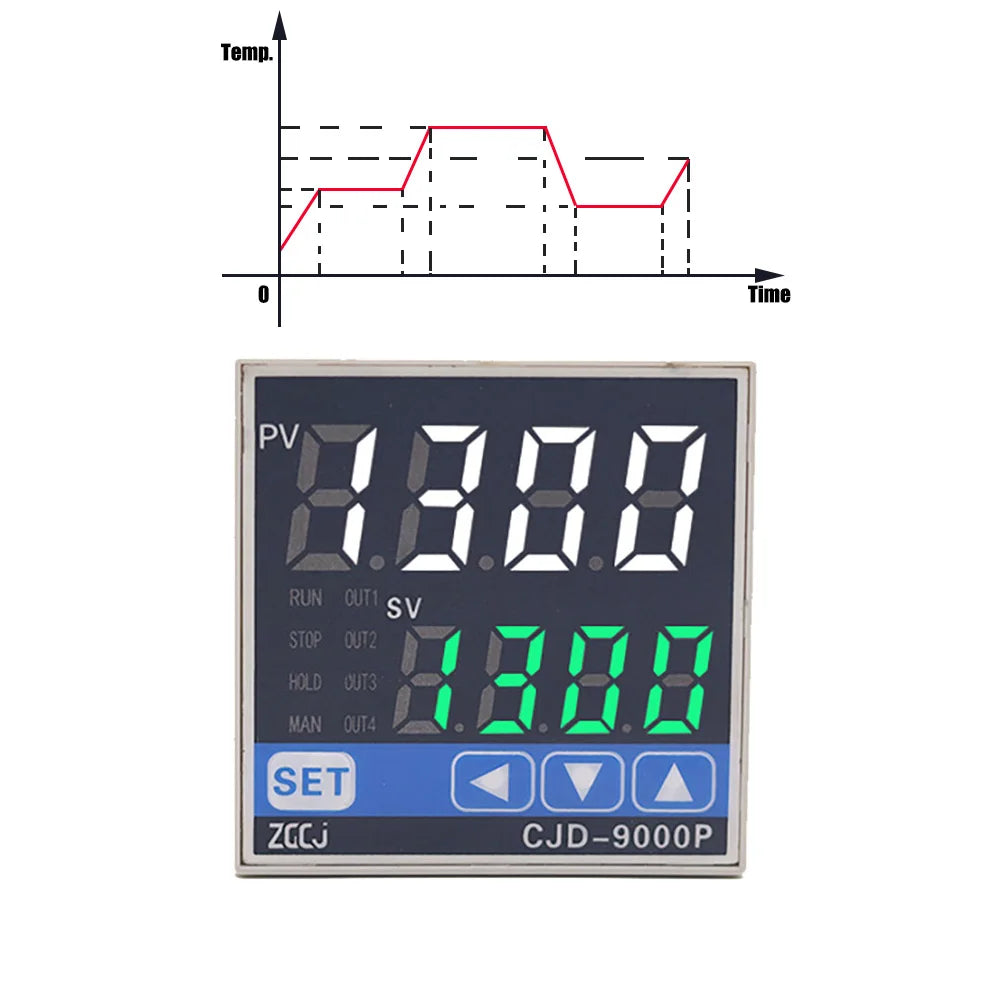

Storage curve function: User can store 4 curves at the most in controller . And can set 20 ramps at the most in one curve .

Self tuning function

Measurement value correction function

Decimal point setting function

Power-off memory function

*****************************FAQ**********************************

Q: Does the controller support temperature profile programming (temperature change over time) with the ability to automatically run the program without intervention?

A: Yes , it support.

Q: Can it store the curve which I program ?

A : Yes . It can store the set values which set by you . And user can store 4 curve at the most in controller.

Q: How many segments can be programmed in one curve ?

A: 20 segments

Q:Is it possible to program the program to stop automatically after all steps are completed?

A: Yes .

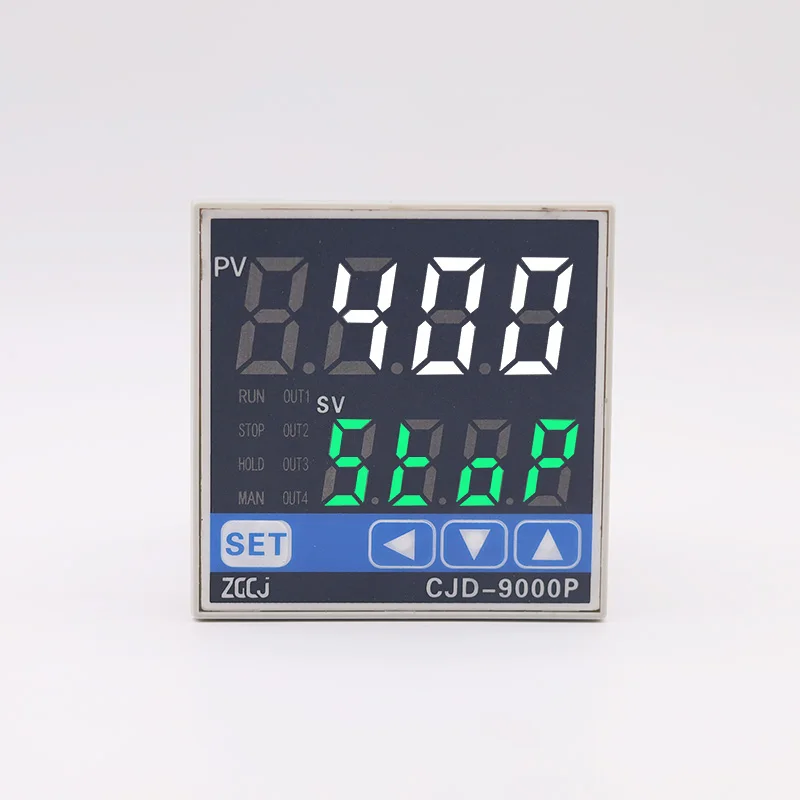

Q:Can the operation be manually stopped or pause during the curve running process?

A: Yes .

Q: Can it be programmed to run a curve in cycle automatically ?

A: Yes

Q: Does the controller have a pause function or wait until the desired temperature is reached before moving on to the next step?

A: Yes , it has Preparation function (rdY)

Q: What the unit of time ? Can I program the unit ?

A: The time unit is Minute or Second , user can choose one time unit through programming .

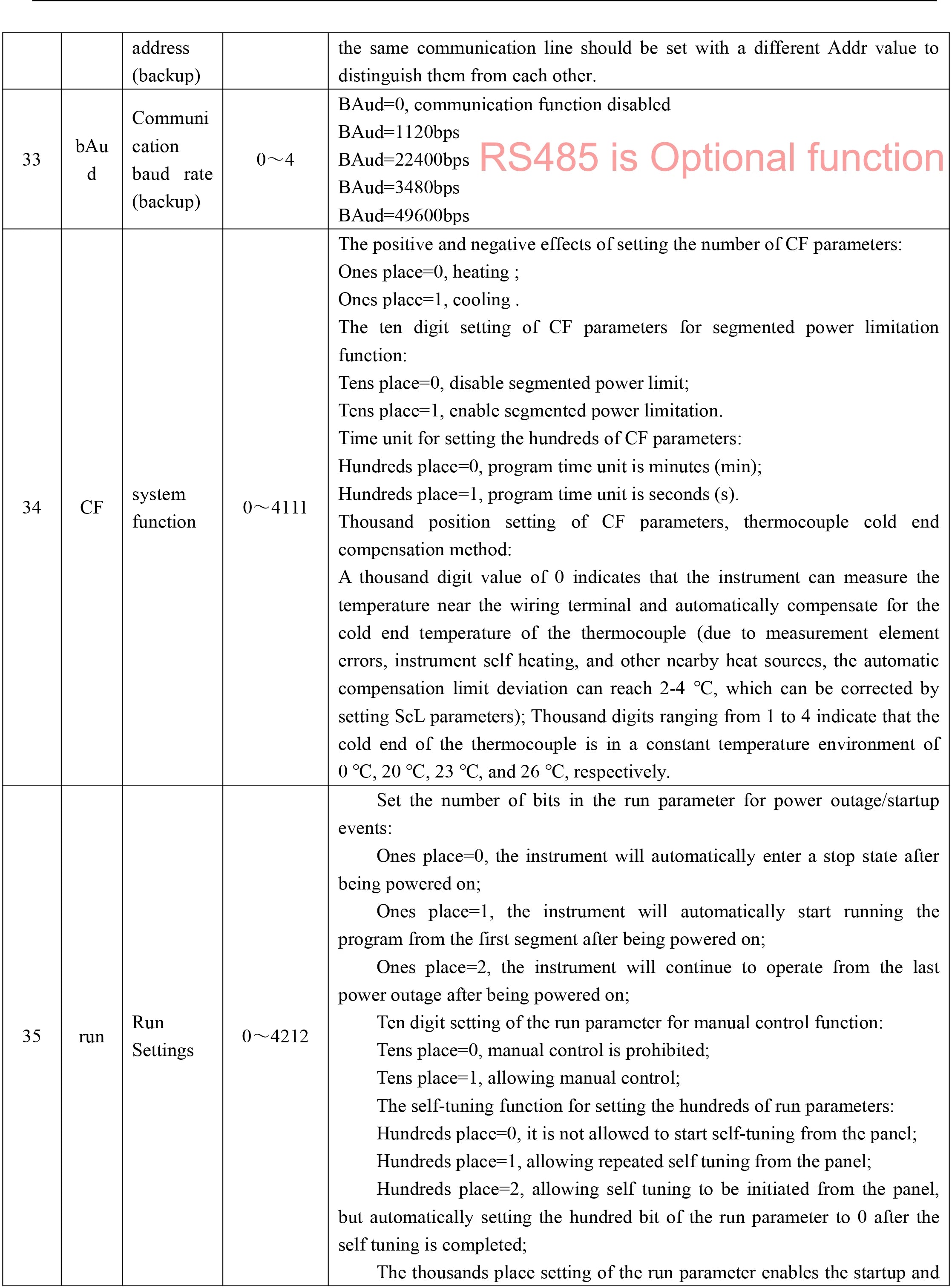

Q:If there is a sudden power outage during program execution , and after power is restored, which step will the controller start running from ?

A: There are three options available. User can program it for one option.

Option 1: Controller automatically enter a stop state after being powered on.

Option 2: Controller automatically start running the program from the first segment after being powered on;

Option 3: Controller will continue to operate from the last step when power outage after being powered on

Q: Can I set heating rate ?

A: User can not set heating rate directly , The set logic is "temperature - time - temperature" , example : rise temperature from 100 degree to 400 degree during 20 min . set menu C01=100, t01=20, C02=400.

Q: What is the output for controlling the heater?

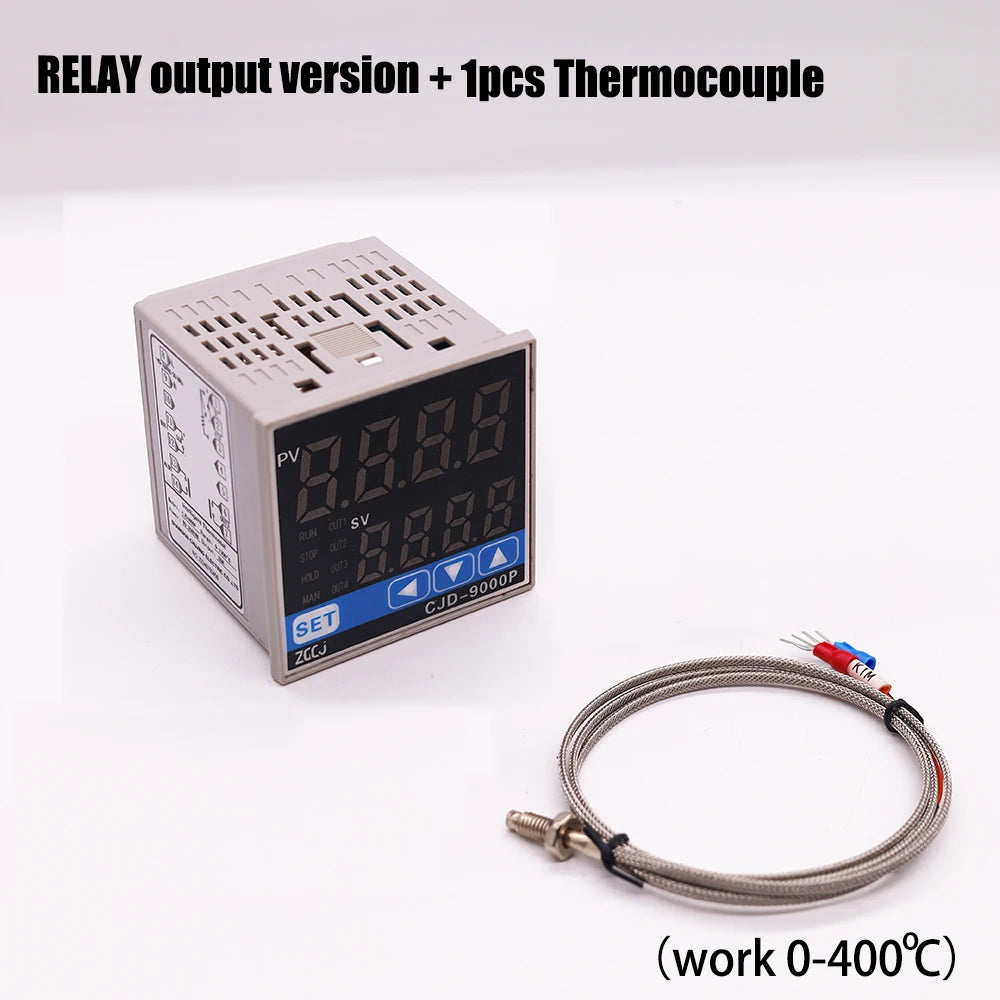

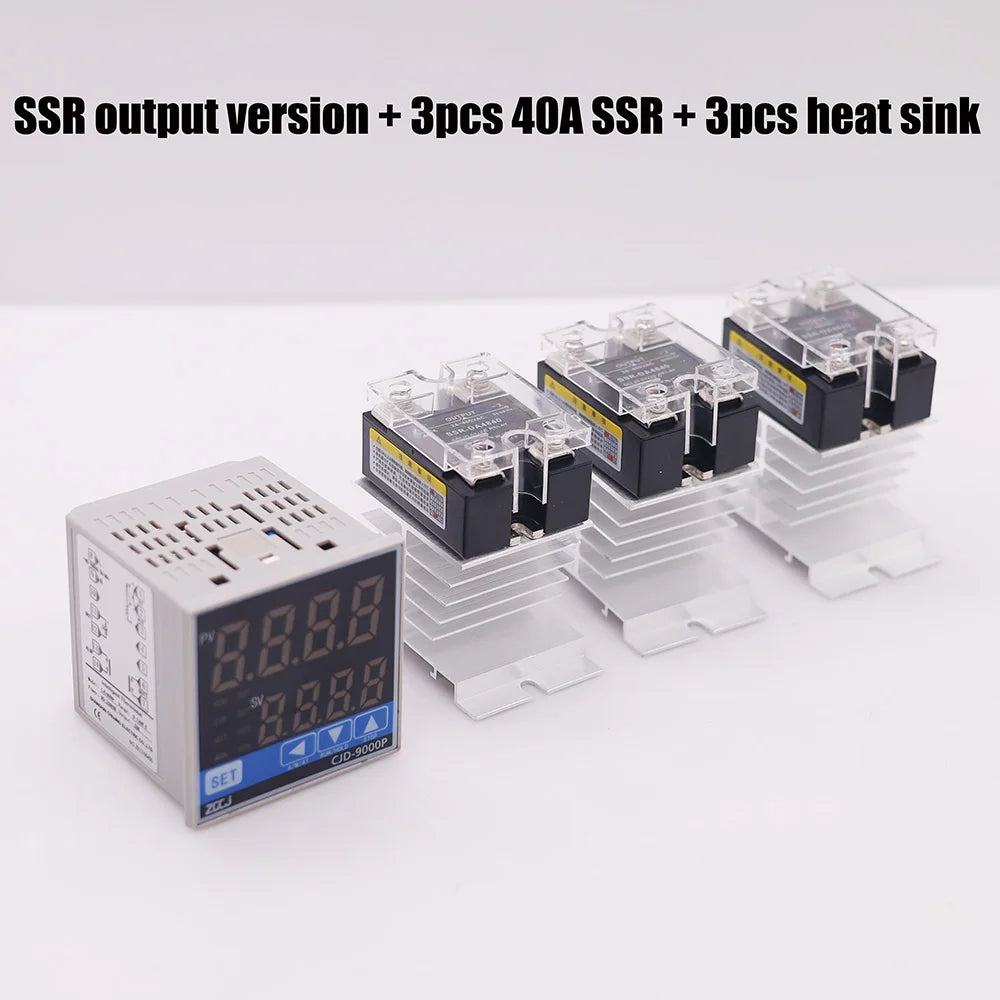

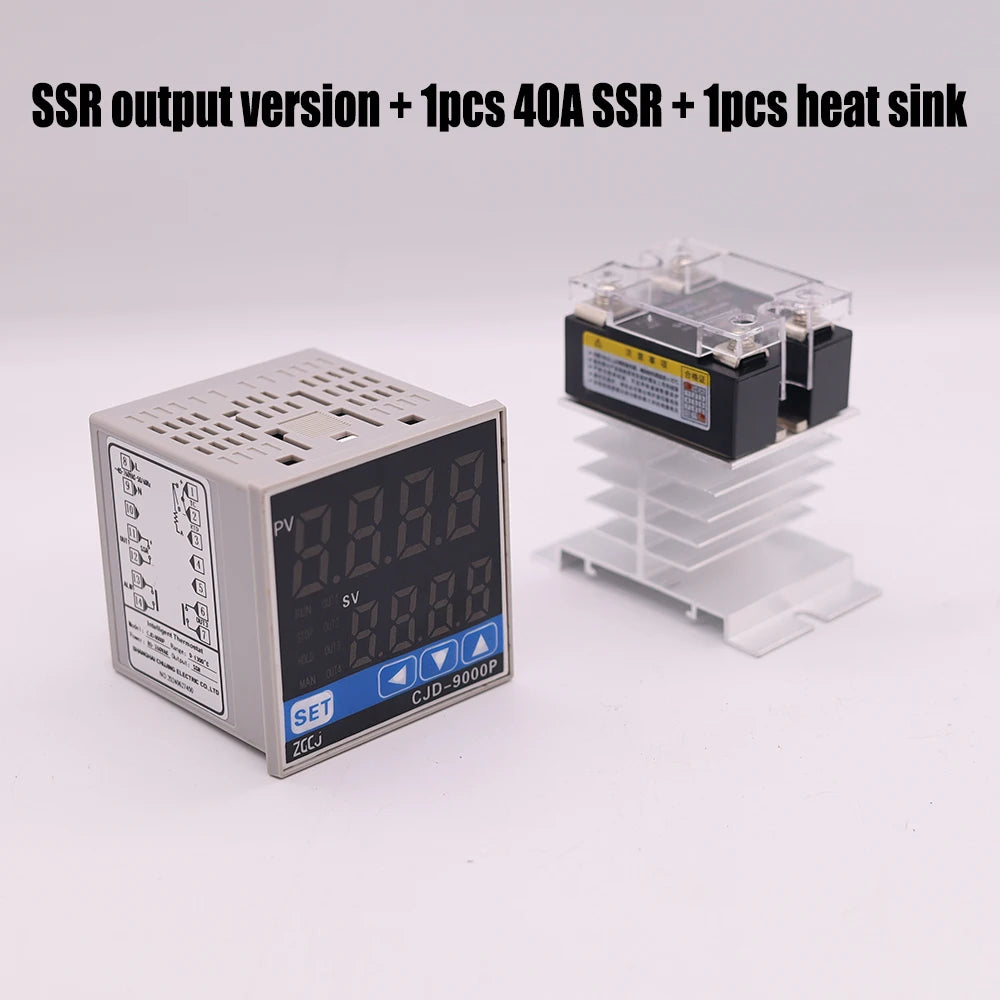

A: RELAY or SSR output , buyer specify it when place an order.

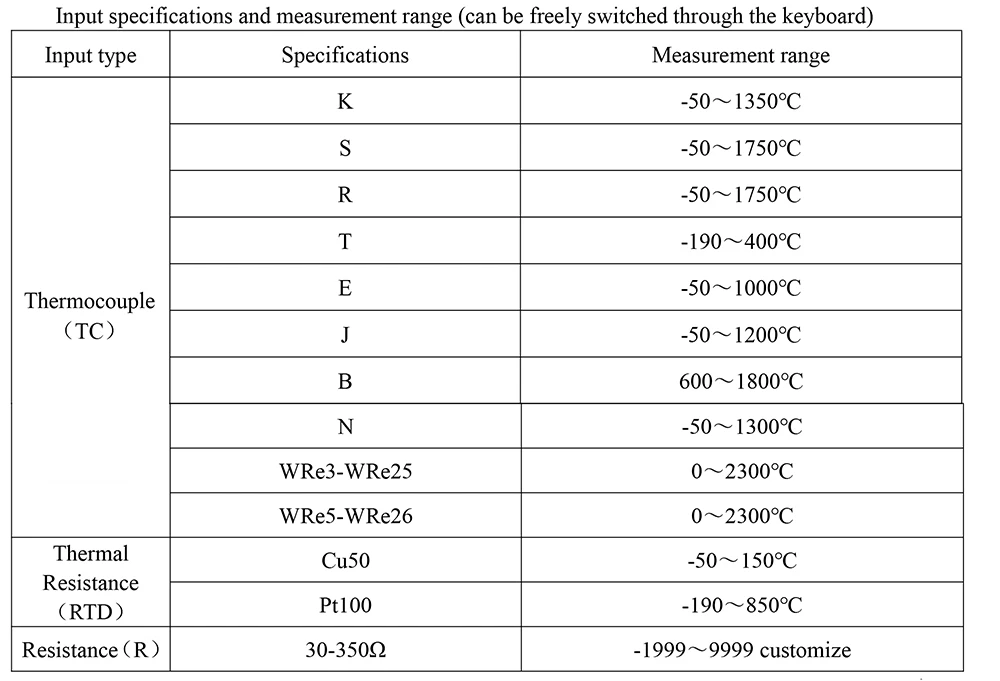

Q: What temperature sensors does the controller support?

A: K , S, R, T, E,J, B, N,Pt100, Cu50,WRe3-WRe25,WRe5-WRe26

Q:Is it normal for there may be a deviation during the heating stage or cooling stage?

A: The curve control generates a positive deviation during linear heating and a negative deviation during linear cooling. The magnitude of this deviation is proportional to the heating rate and the lag time of the instrument, which is a normal phenomenon. If the set temperature rise and fall slope exceeds the range supported by the device hardware, it may cause significant overshoot. Reducing the temperature rise and fall slope or adding a buffer section can reduce overshoot and smoothly transition to the constant temperature section.

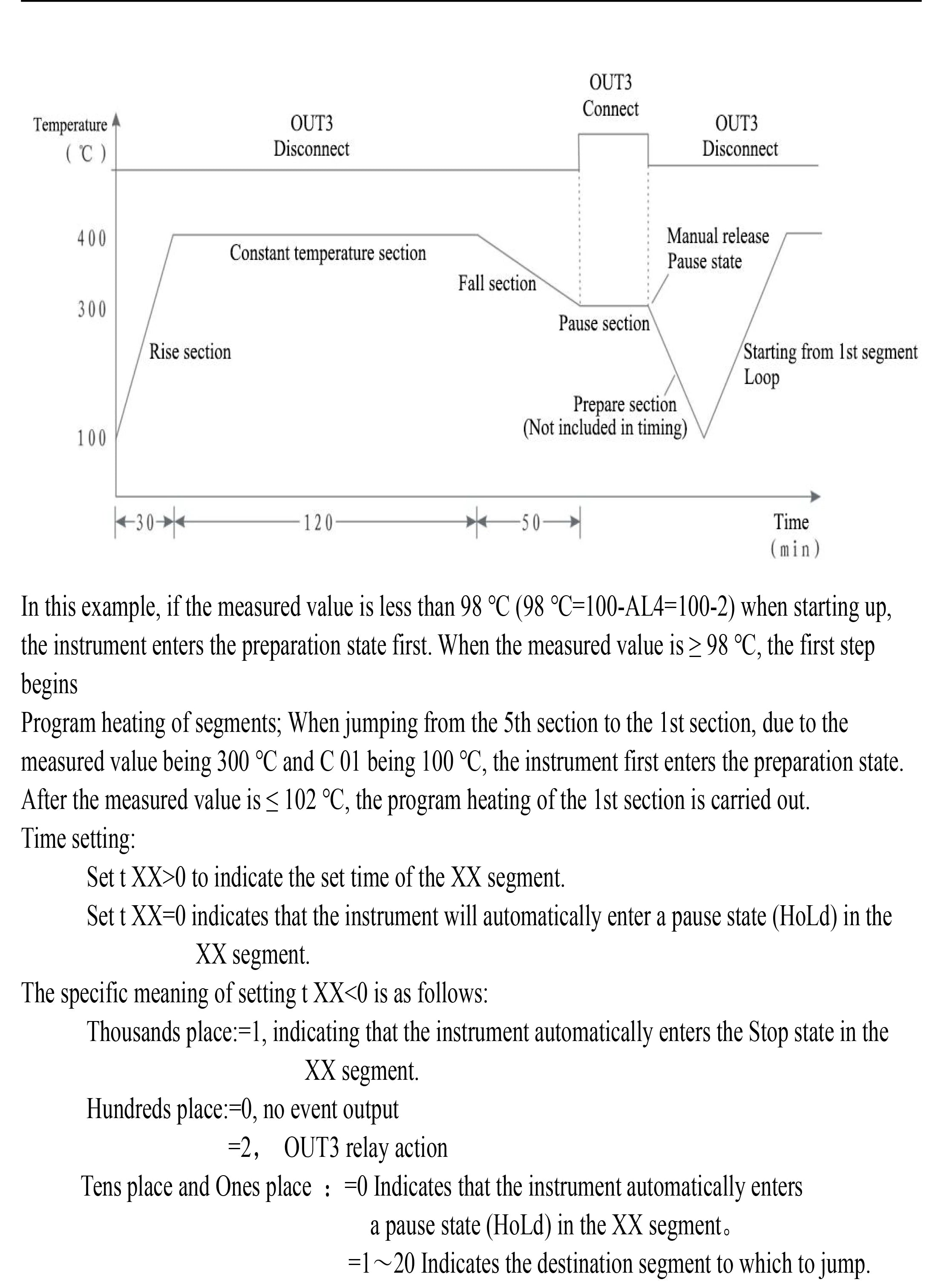

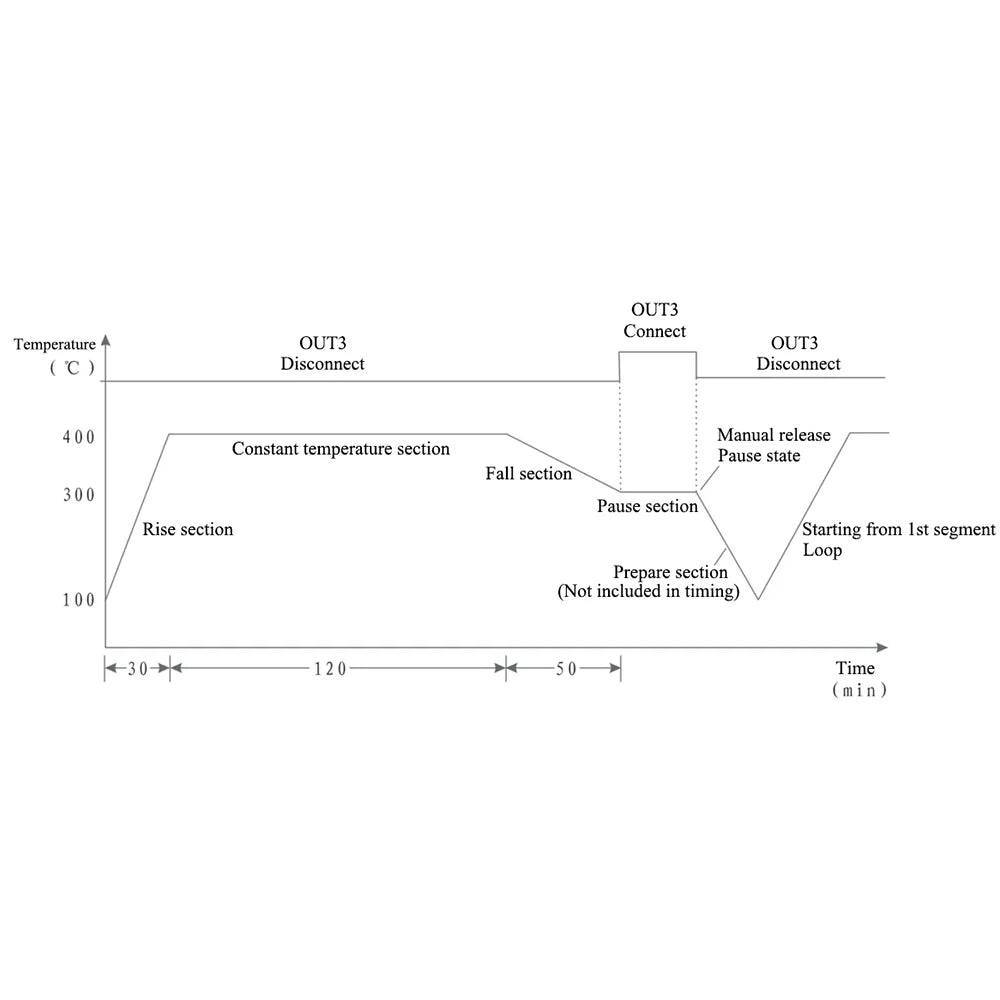

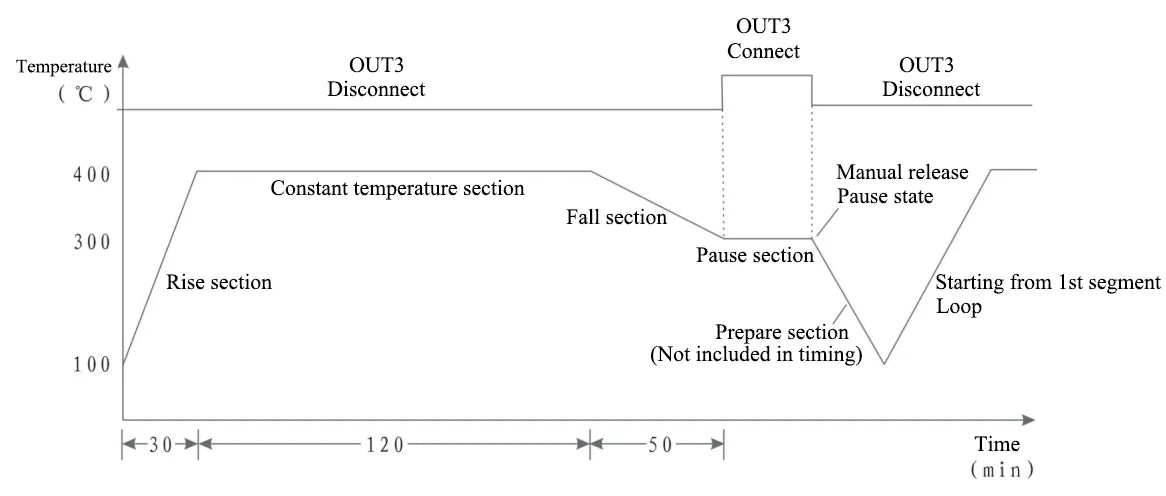

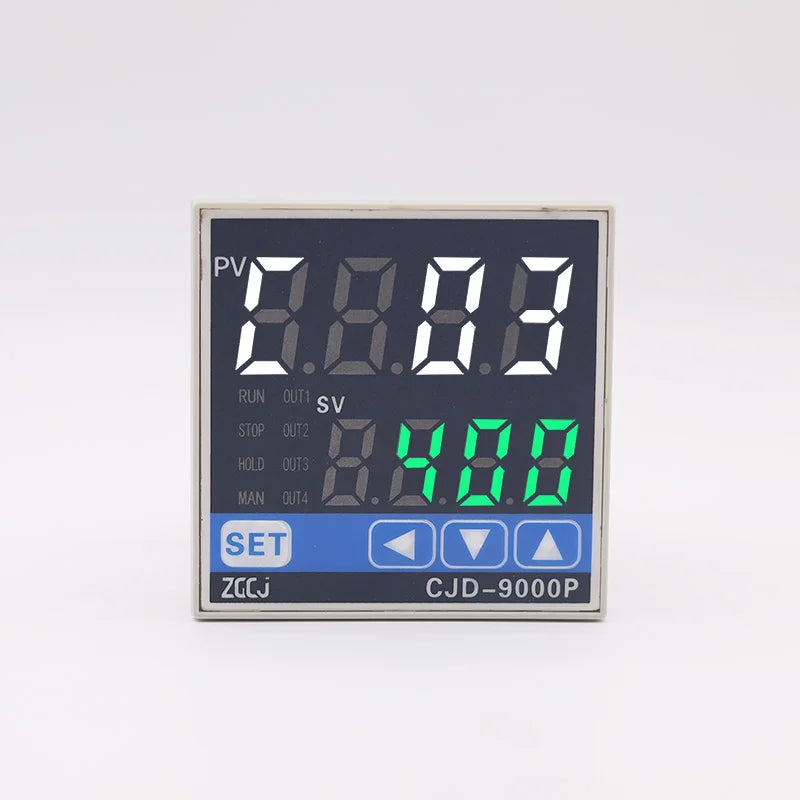

Function example:

1, Rise temperature from 100 degree to 400 degree during 30min.

2, Hold temperature on 400 degree for 120min.

3, Fall from 400 degree to 300 degree during 50min.

4, Pause , OUT3 relay action .

5, Manual release pause state

6, Prepare section

7,Start from 1st segment , loop.

How to set it ?

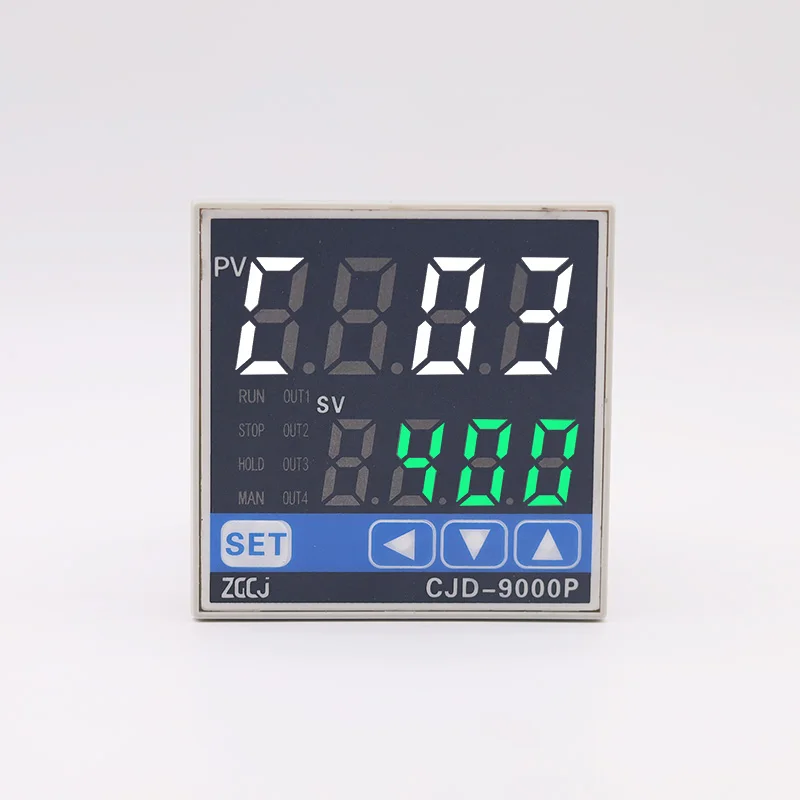

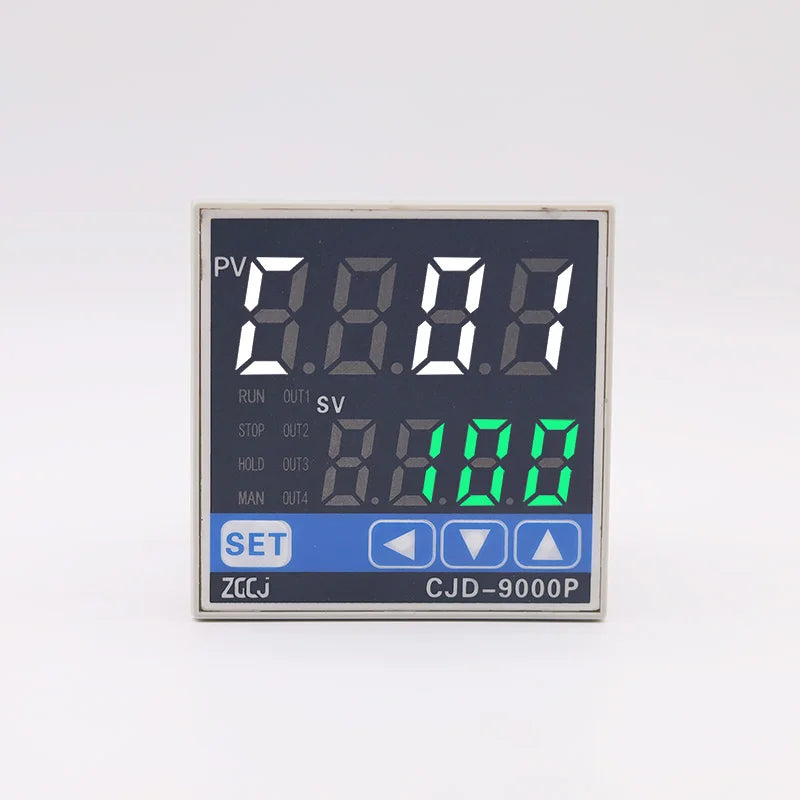

Segment 1    Set C 01=100  t 01=30; Linear heating starts from 100 ℃ and lasts for 30 minutes

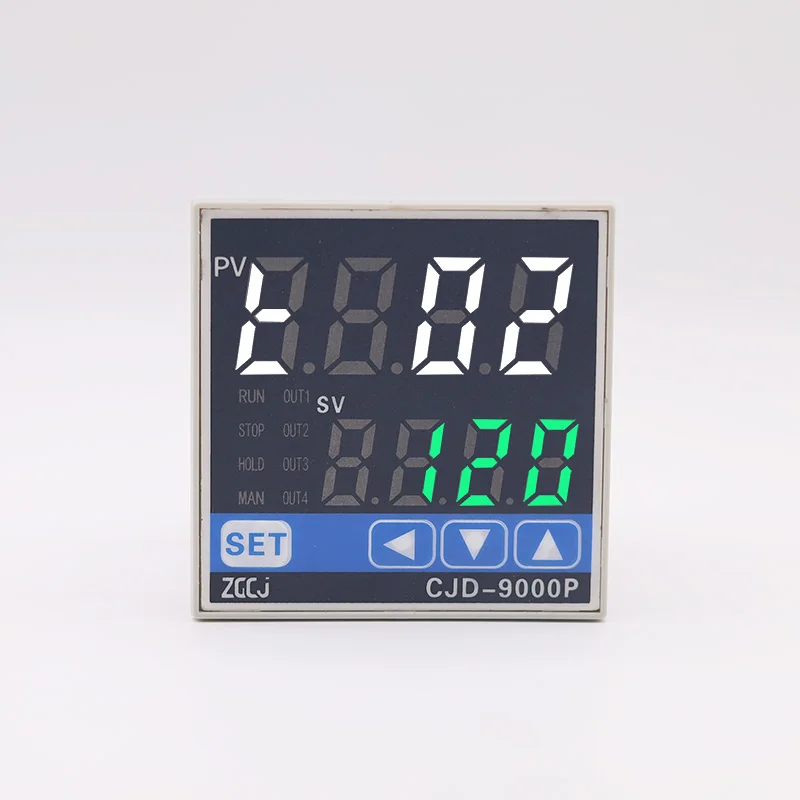

Segment 2    Set C 02=400  t 02=120; Heat up to 400 ℃ with a heating slope of 10 ℃/min. The constant temperature time is 120 minutes

Segment 3    Set C 03=400  t 03=50; Cooling stage, cooling time of 50 minutes, cooling slope of 2 ℃/min

Segment 4    Set C 04=300  t 04= -200; Cool down to 300 ℃, turn on switch OUT3 and enter pause mode

Segment 5    Set C 05=300  t 05= -501; The operator executes the operation and jumps to the first segment of operation, while closing OUT3

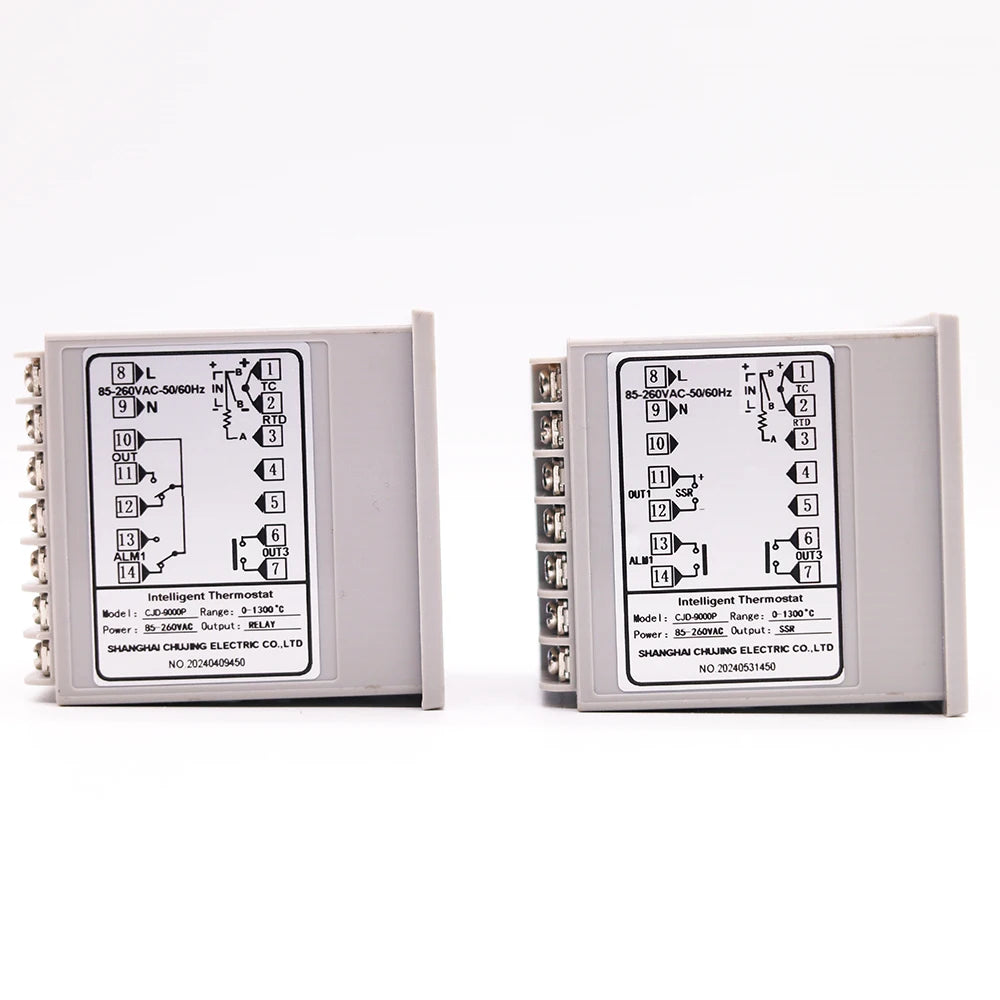

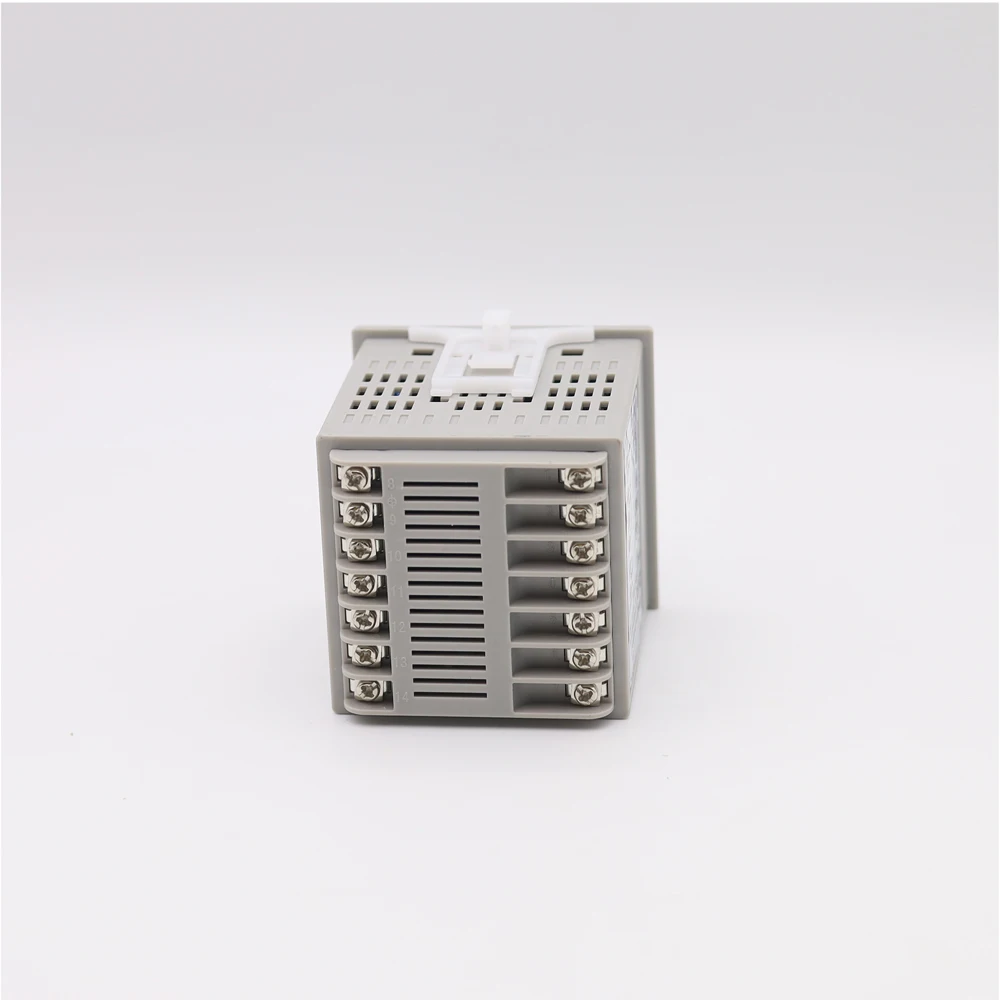

Wiring examples:

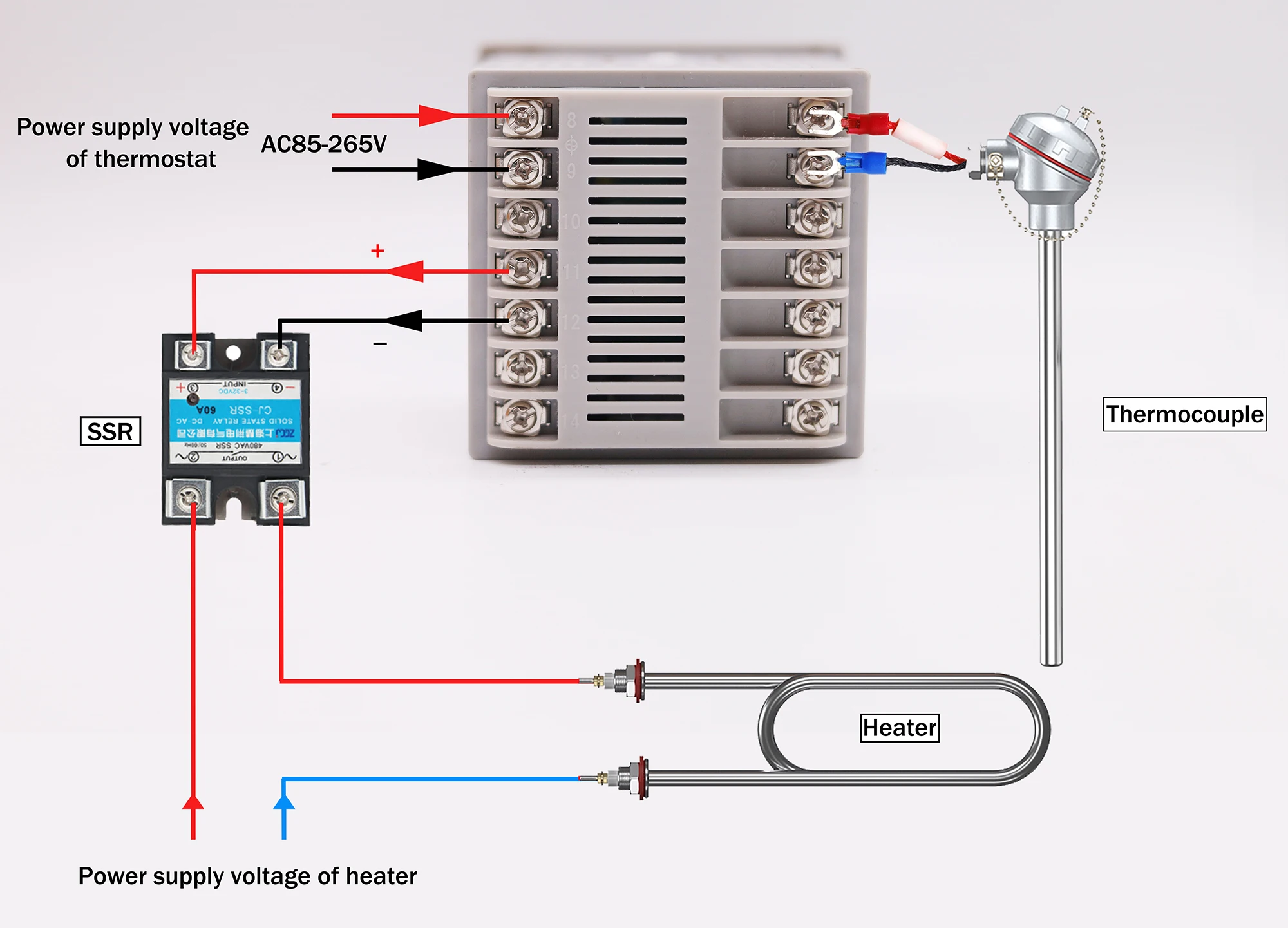

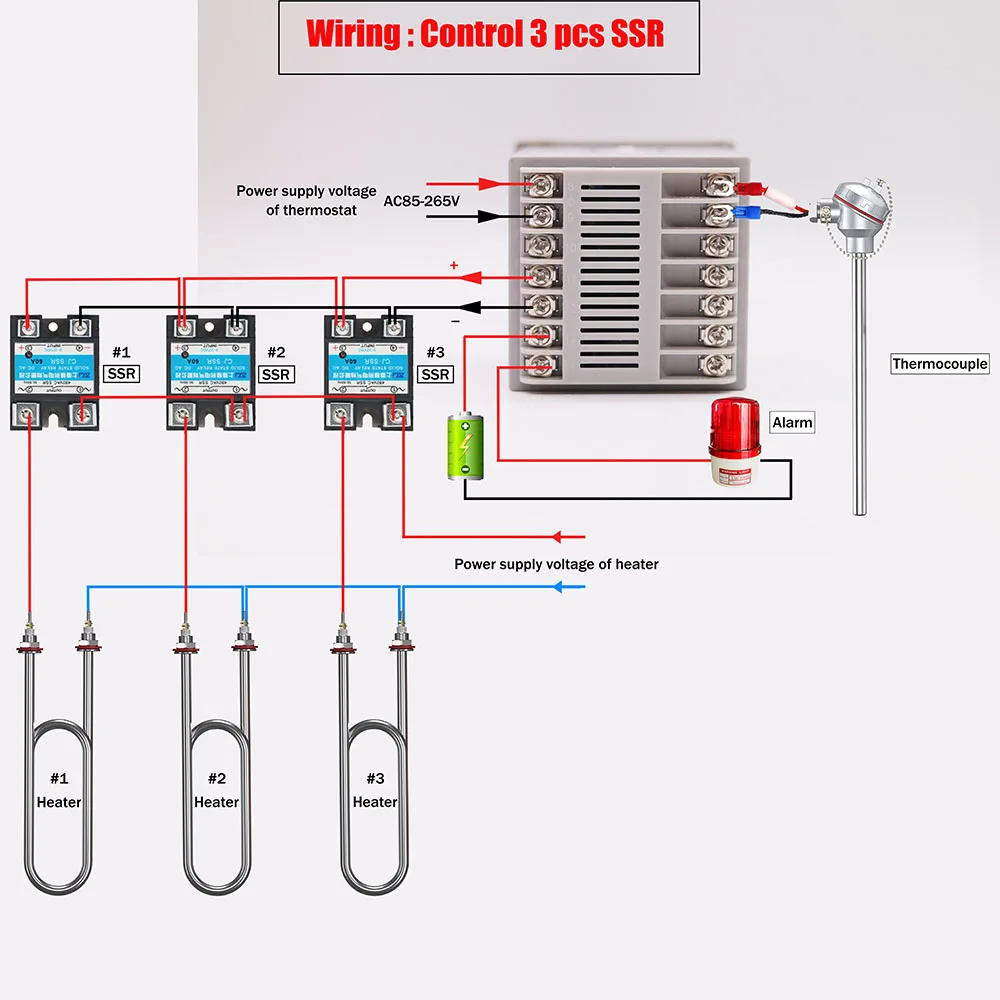

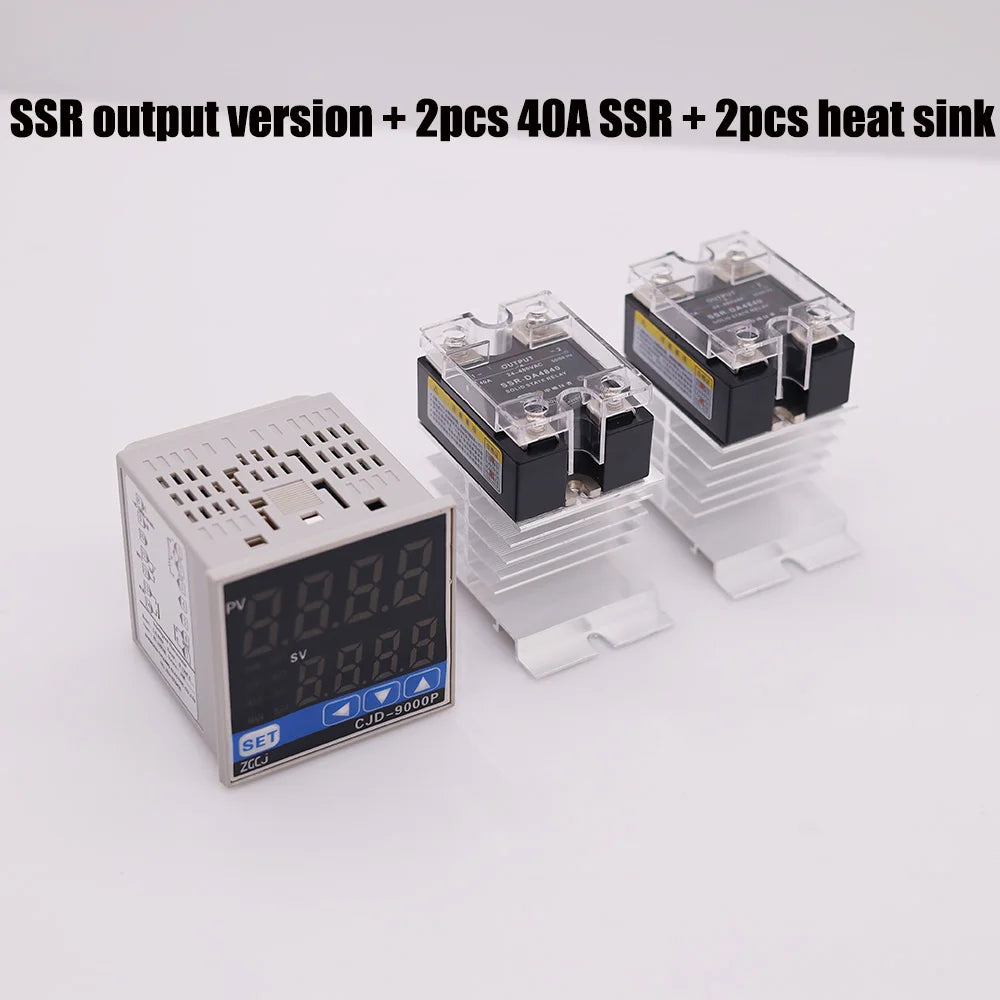

SSR output version should work with DC-AC SSR:

Wring example:

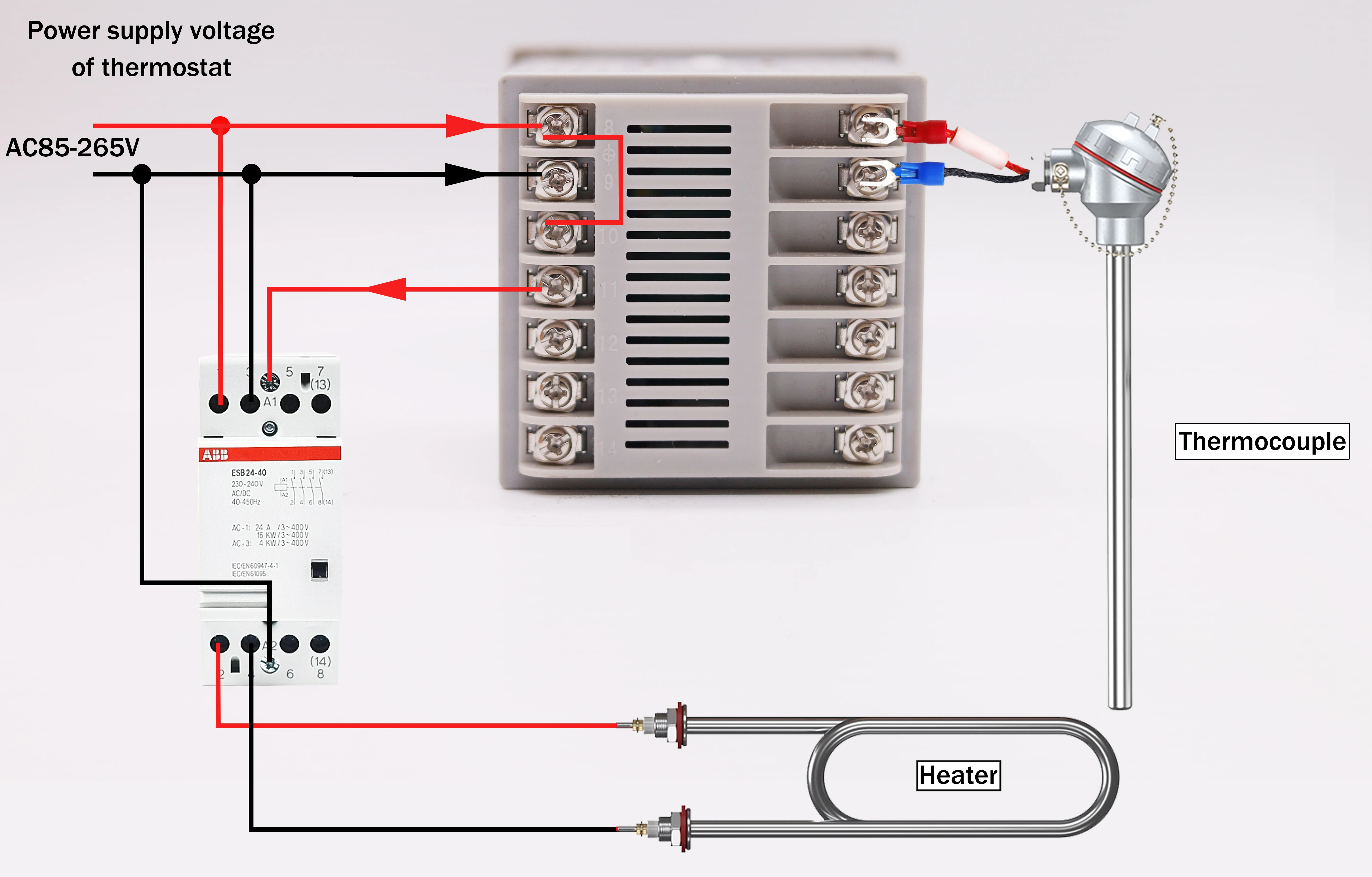

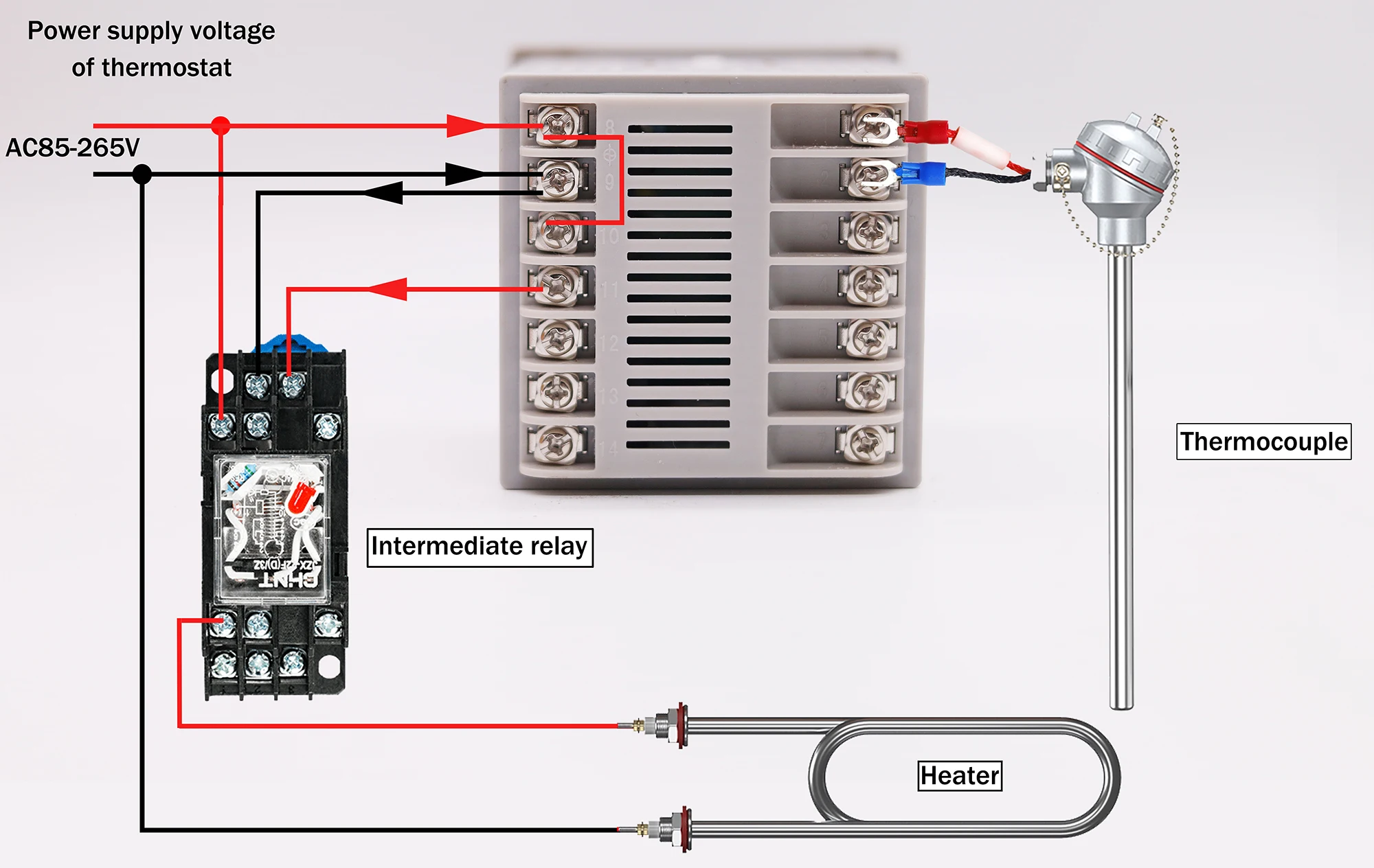

RELAY output version should work with Intermediate relay or AC contactor:

wiring example:

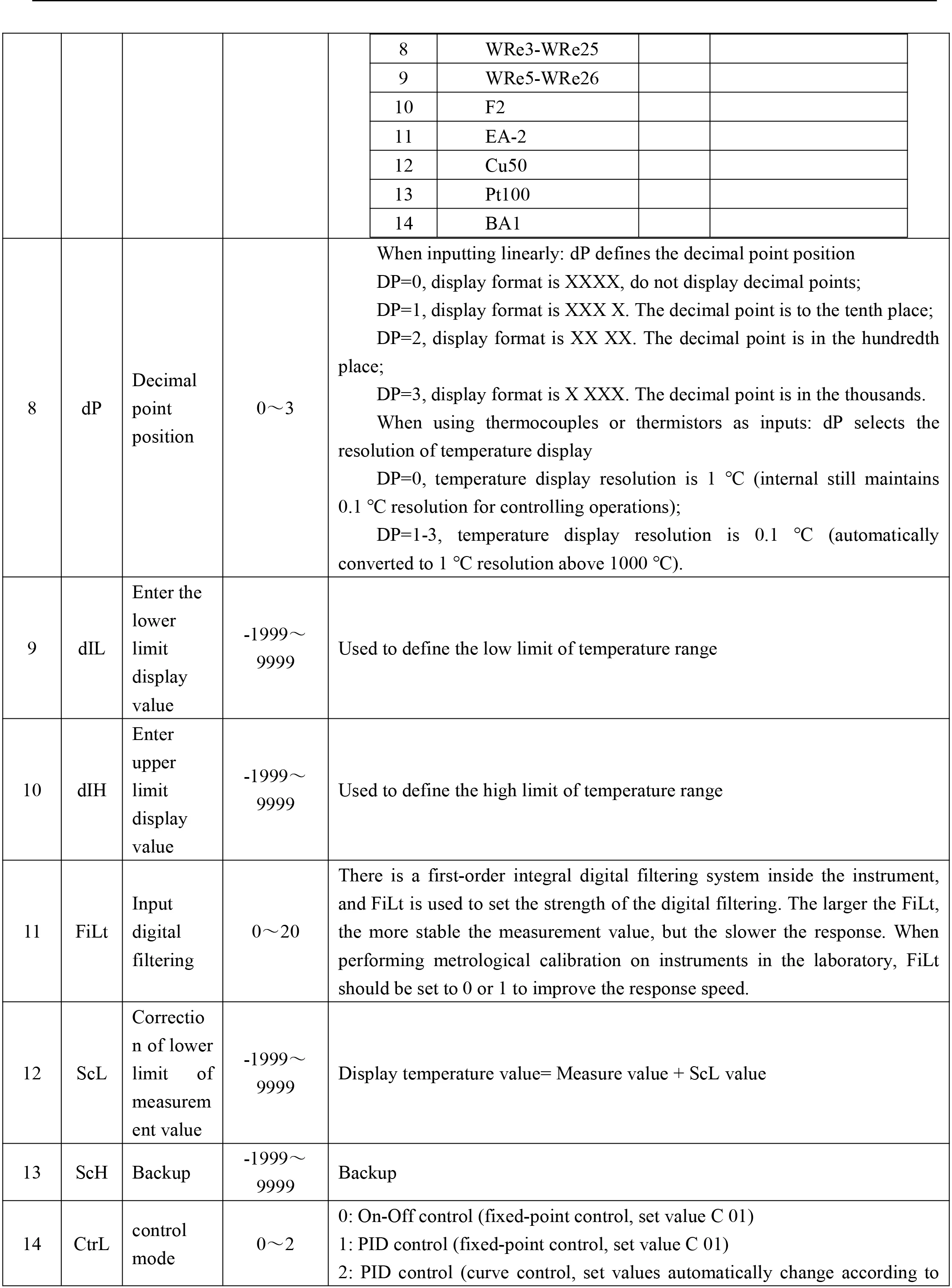

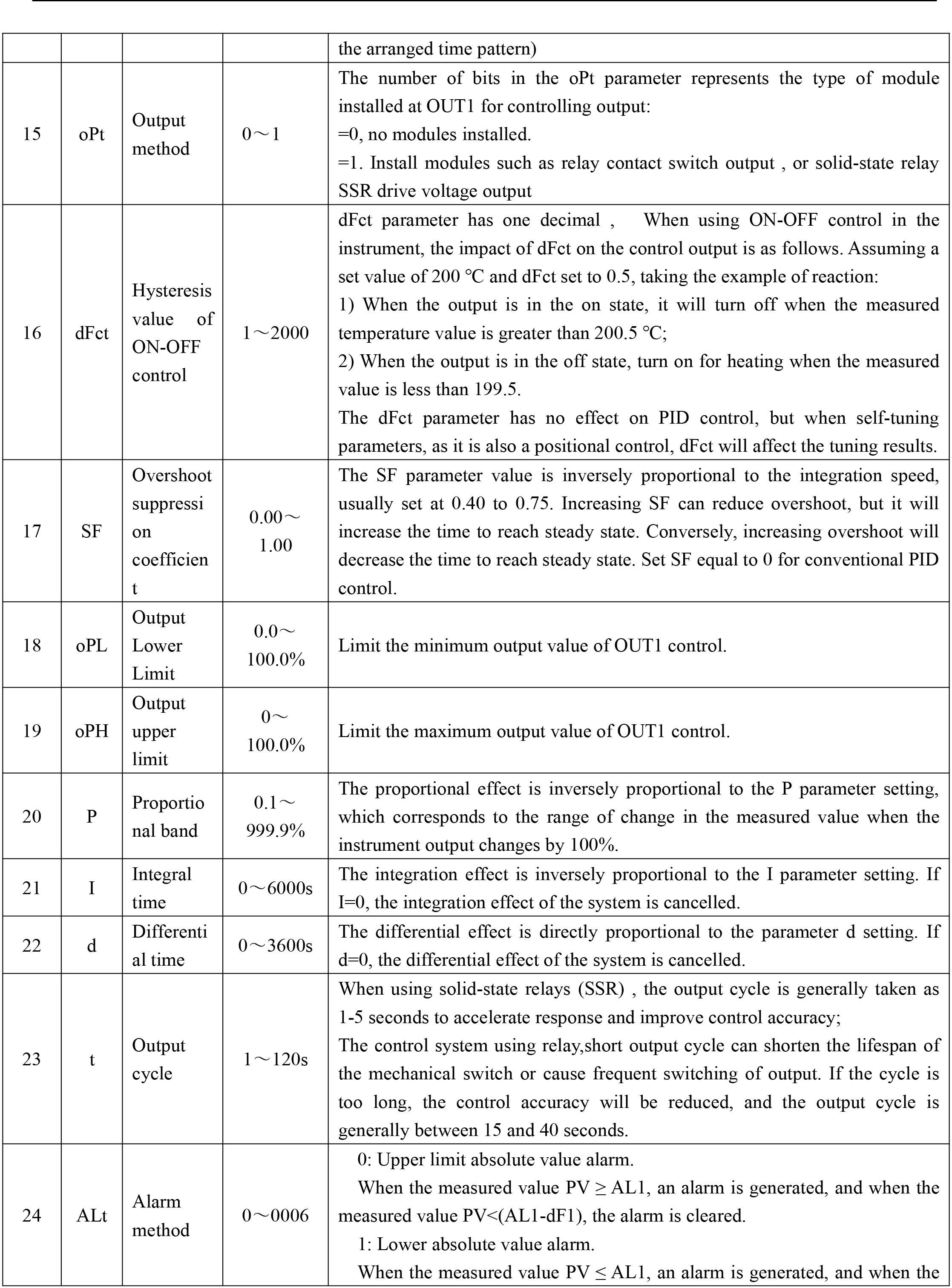

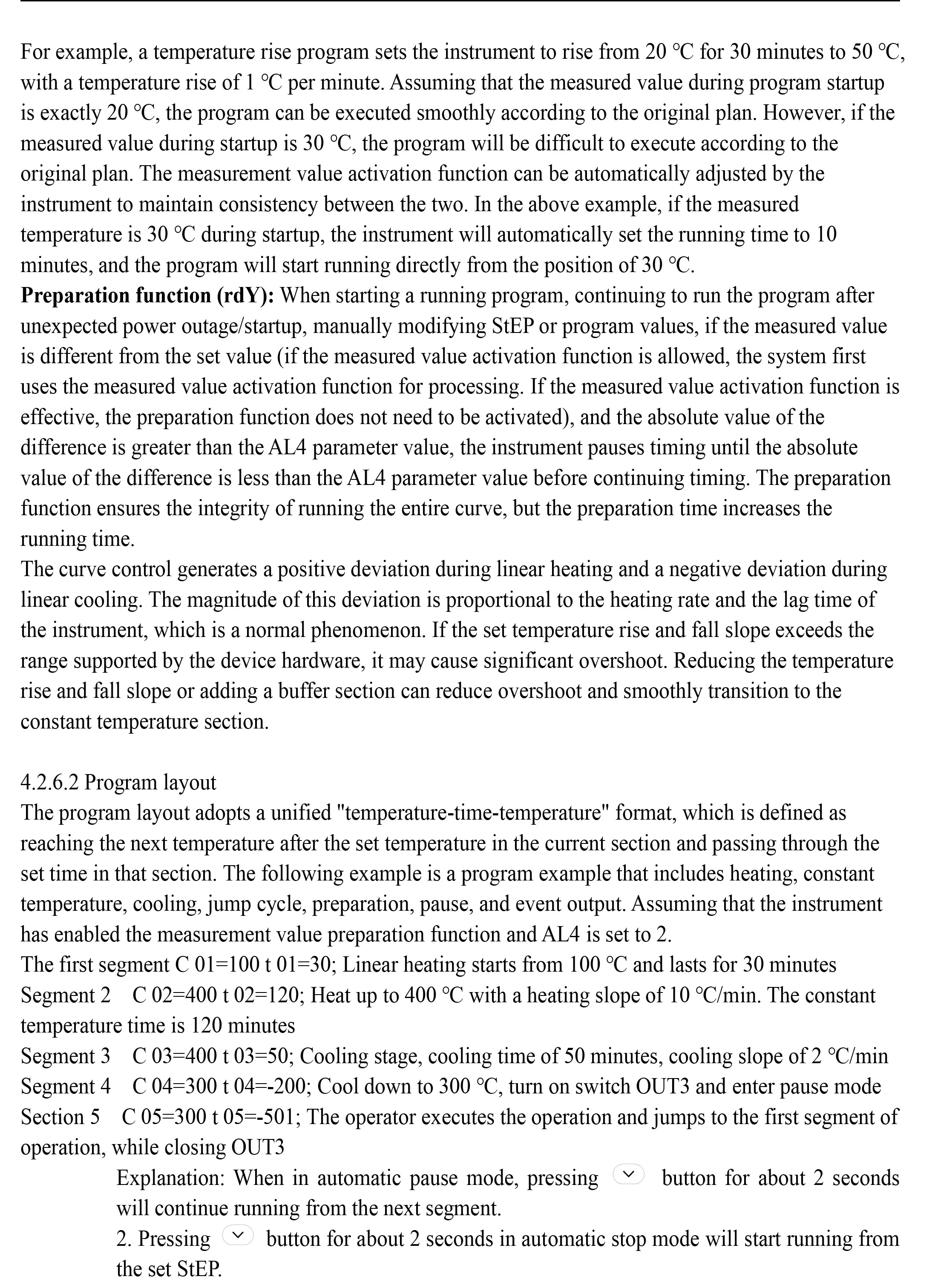

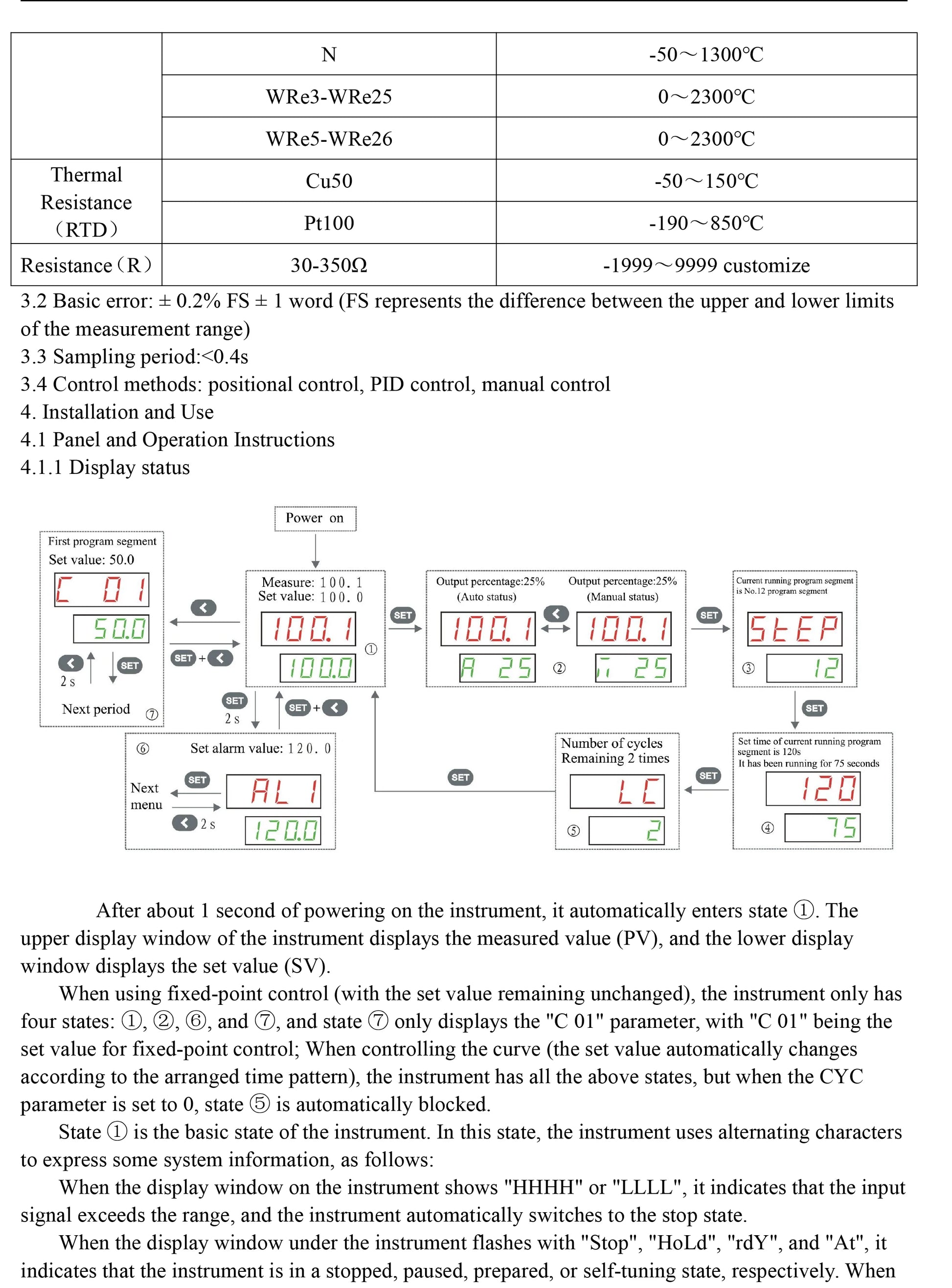

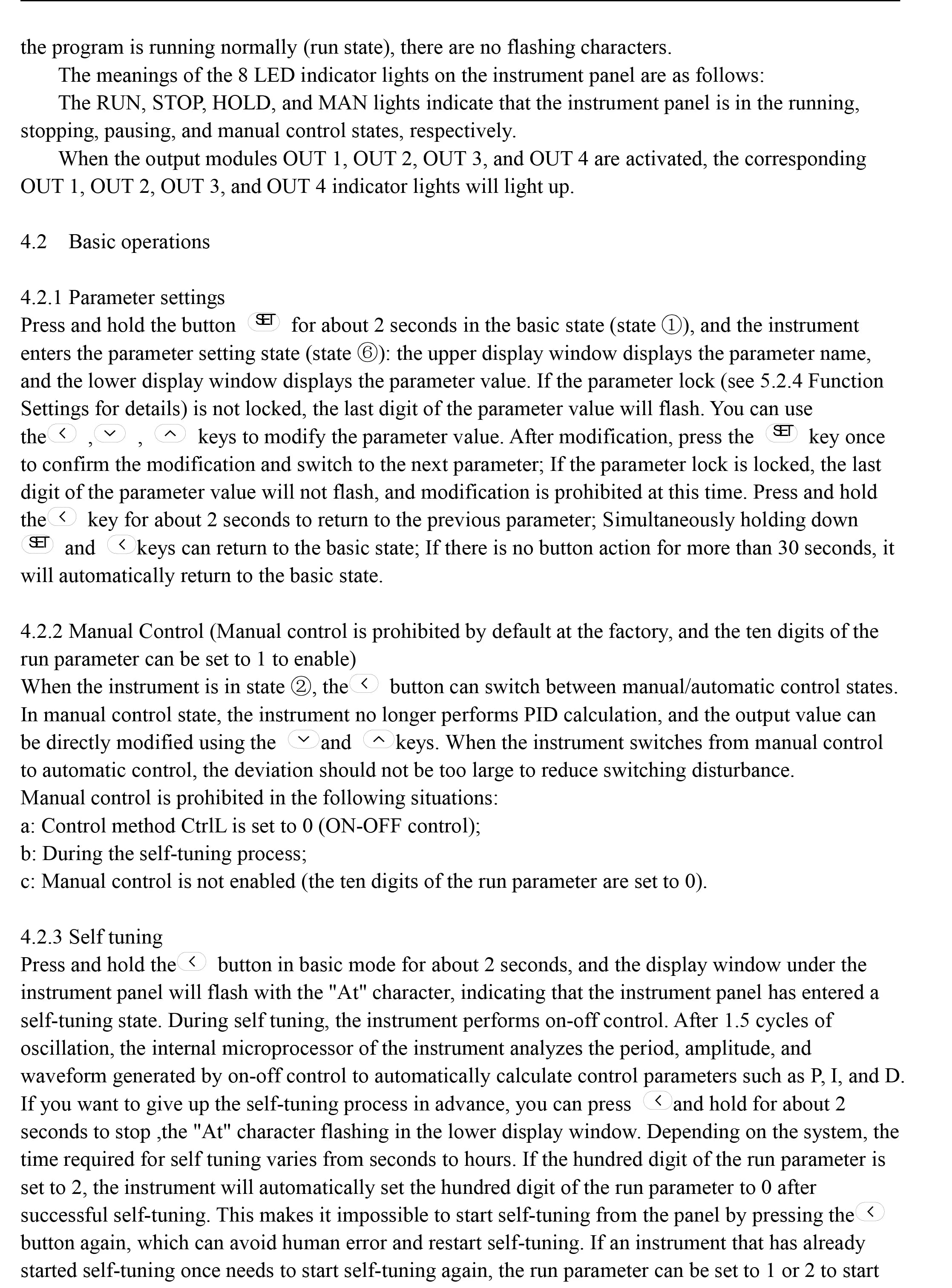

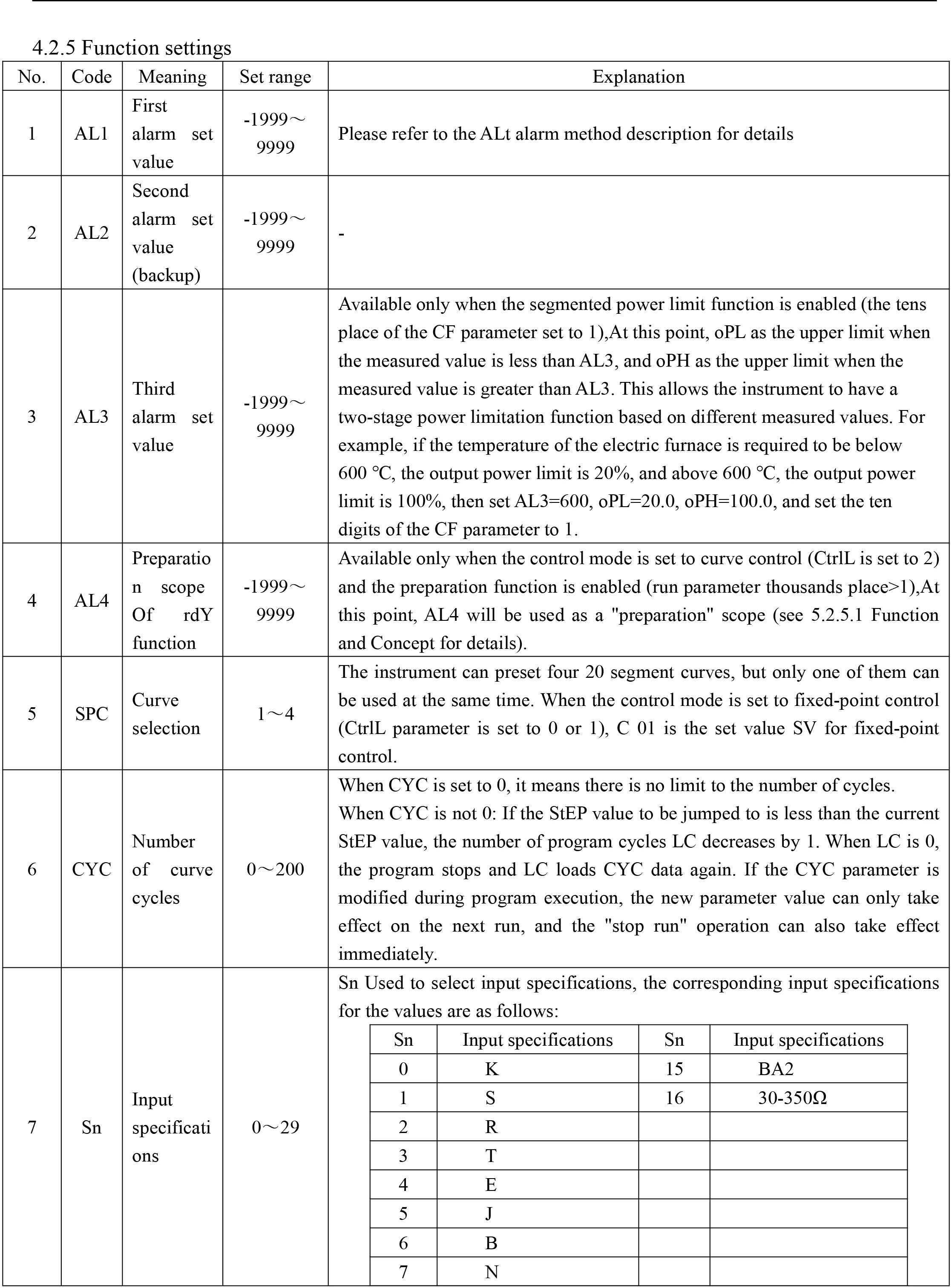

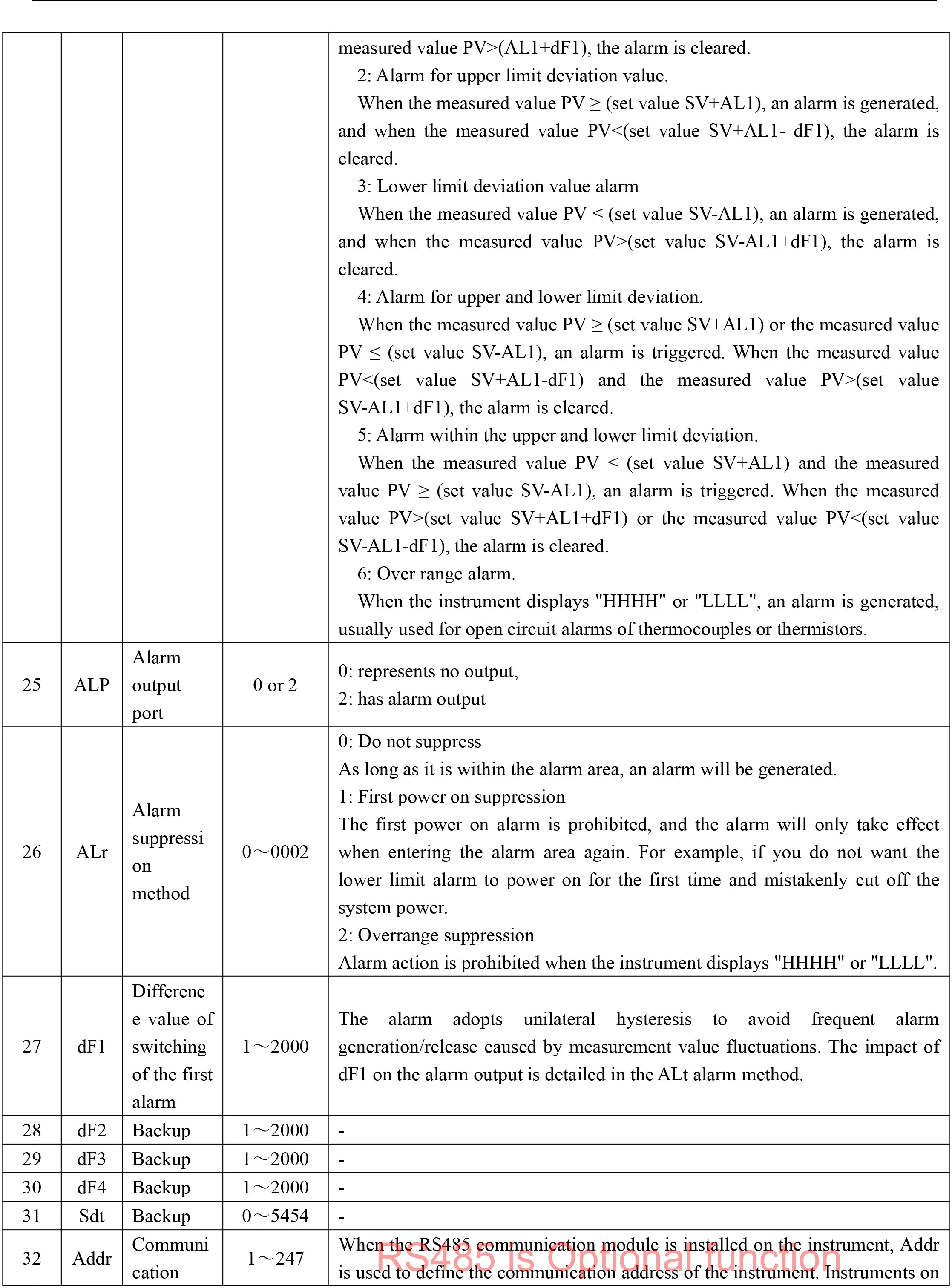

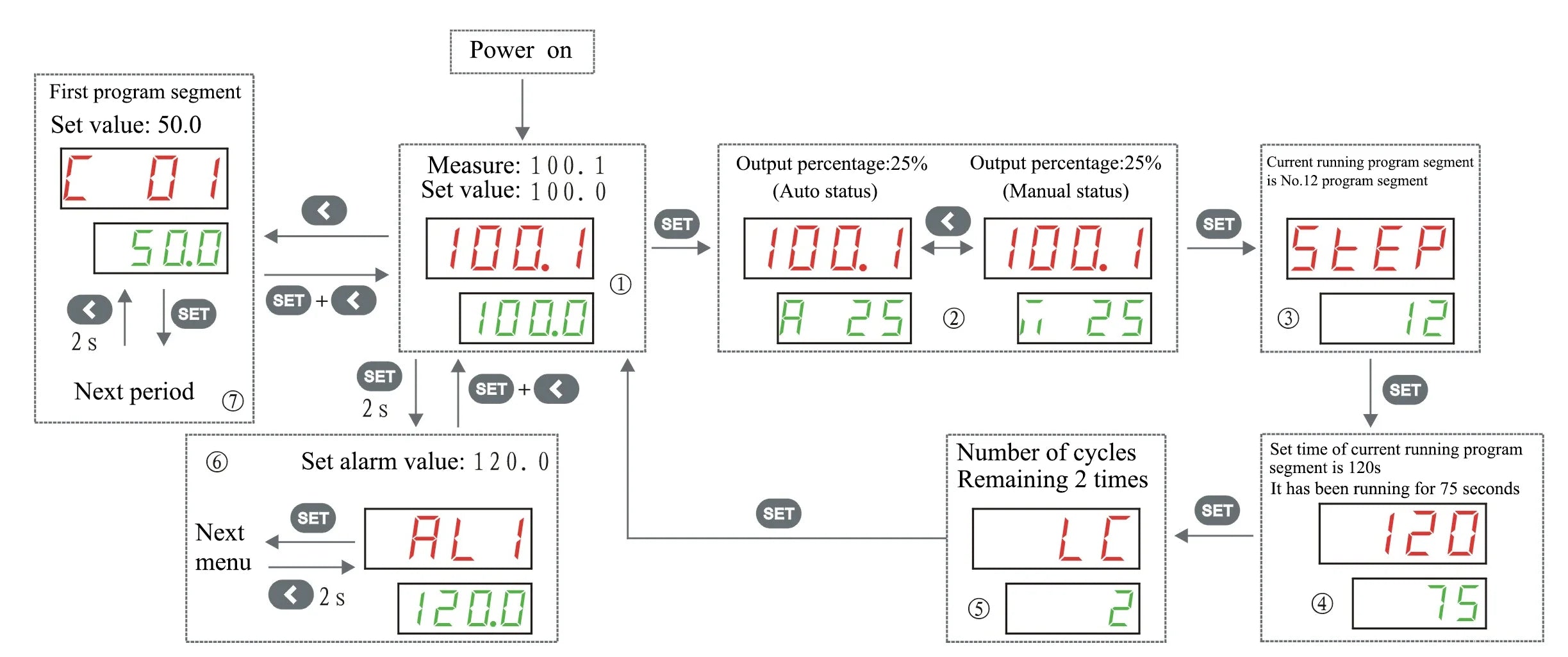

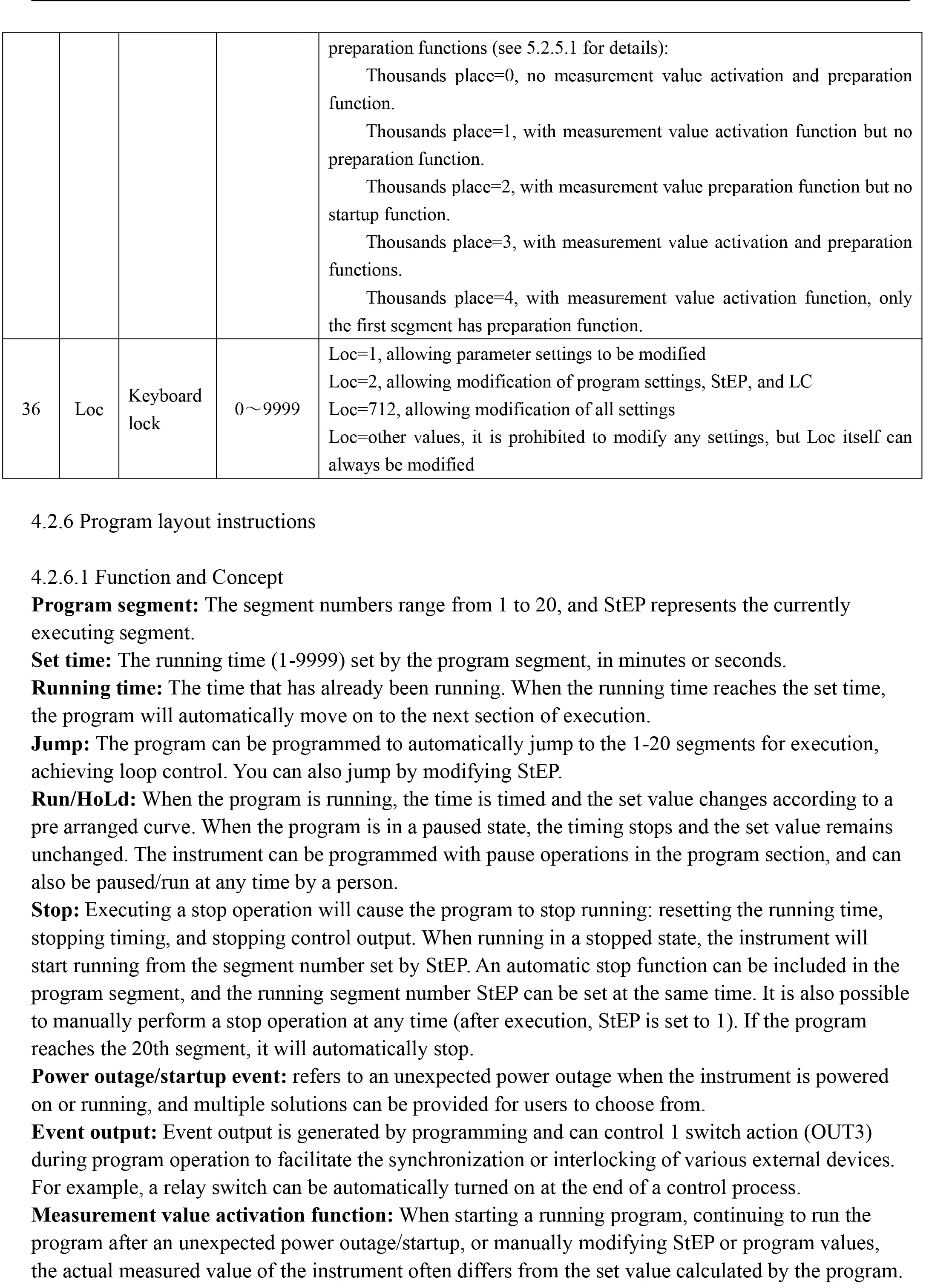

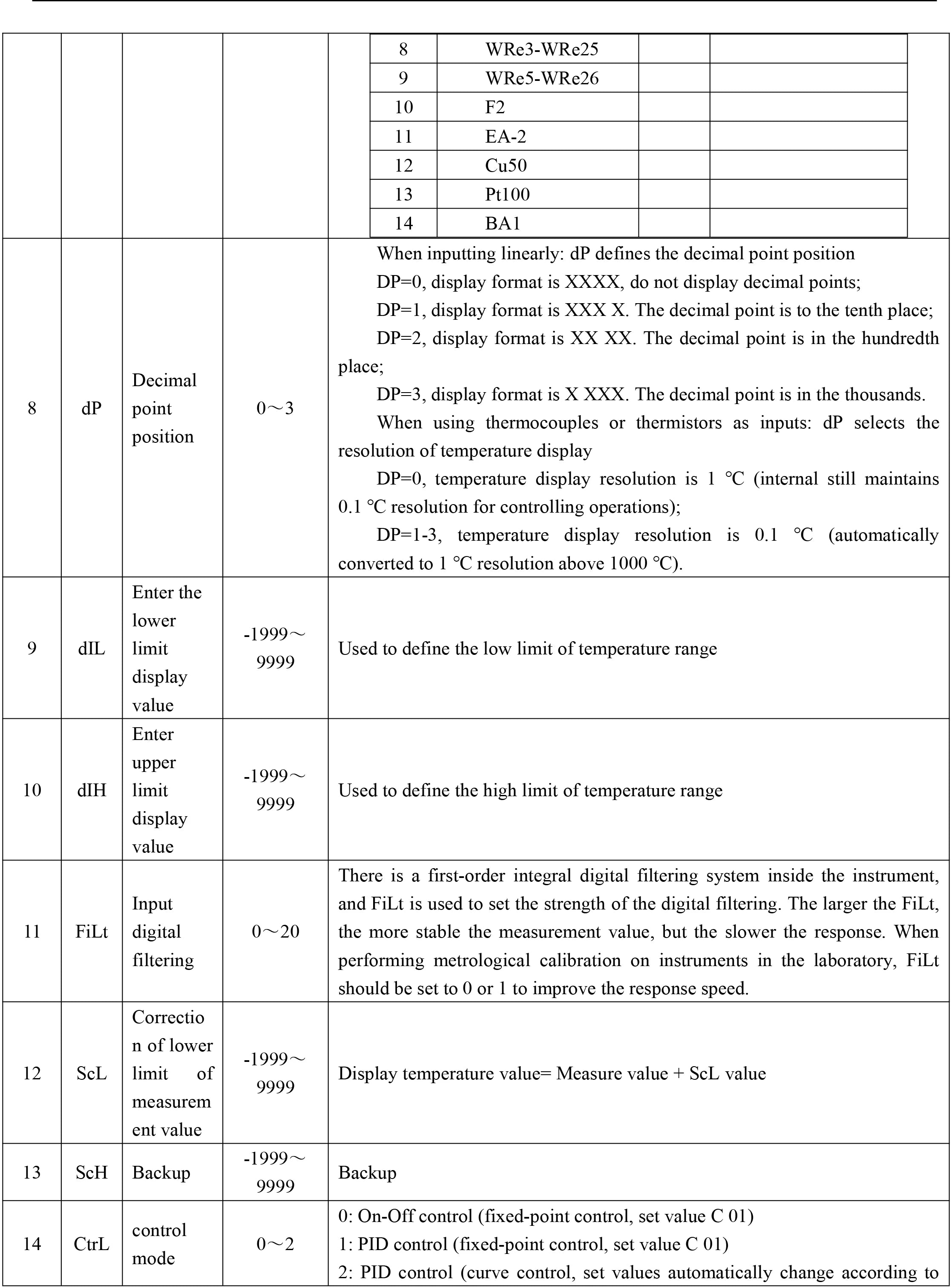

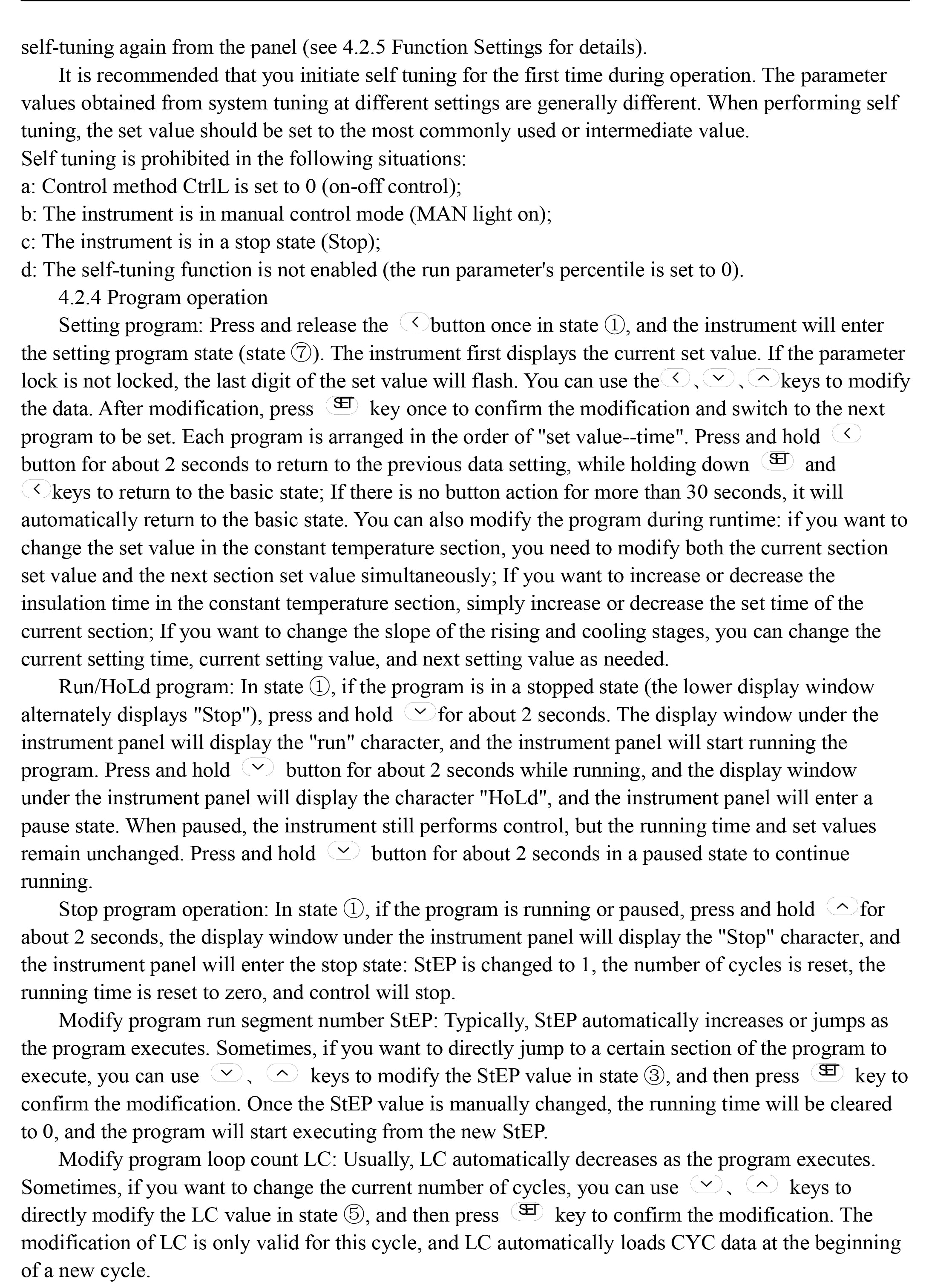

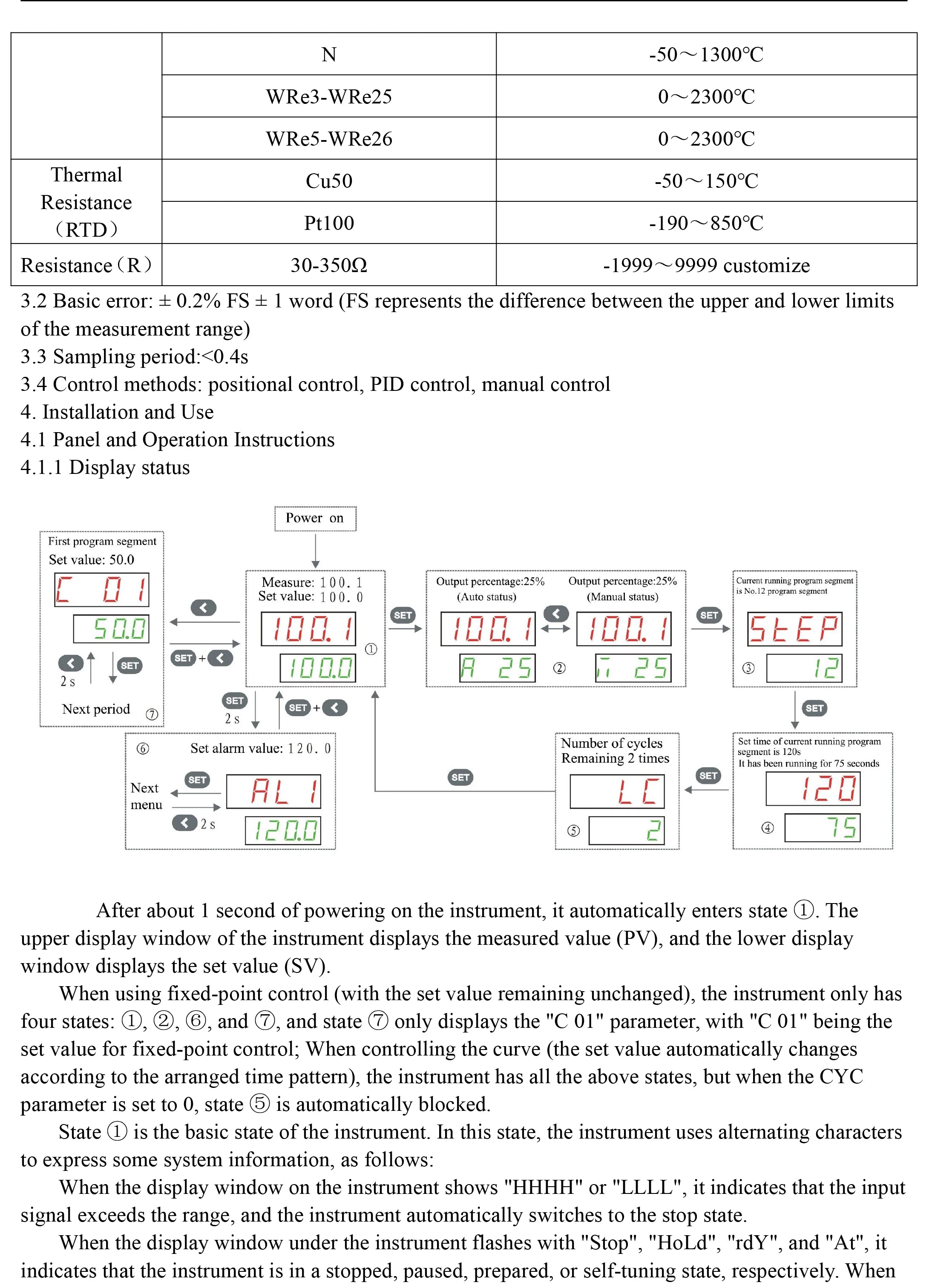

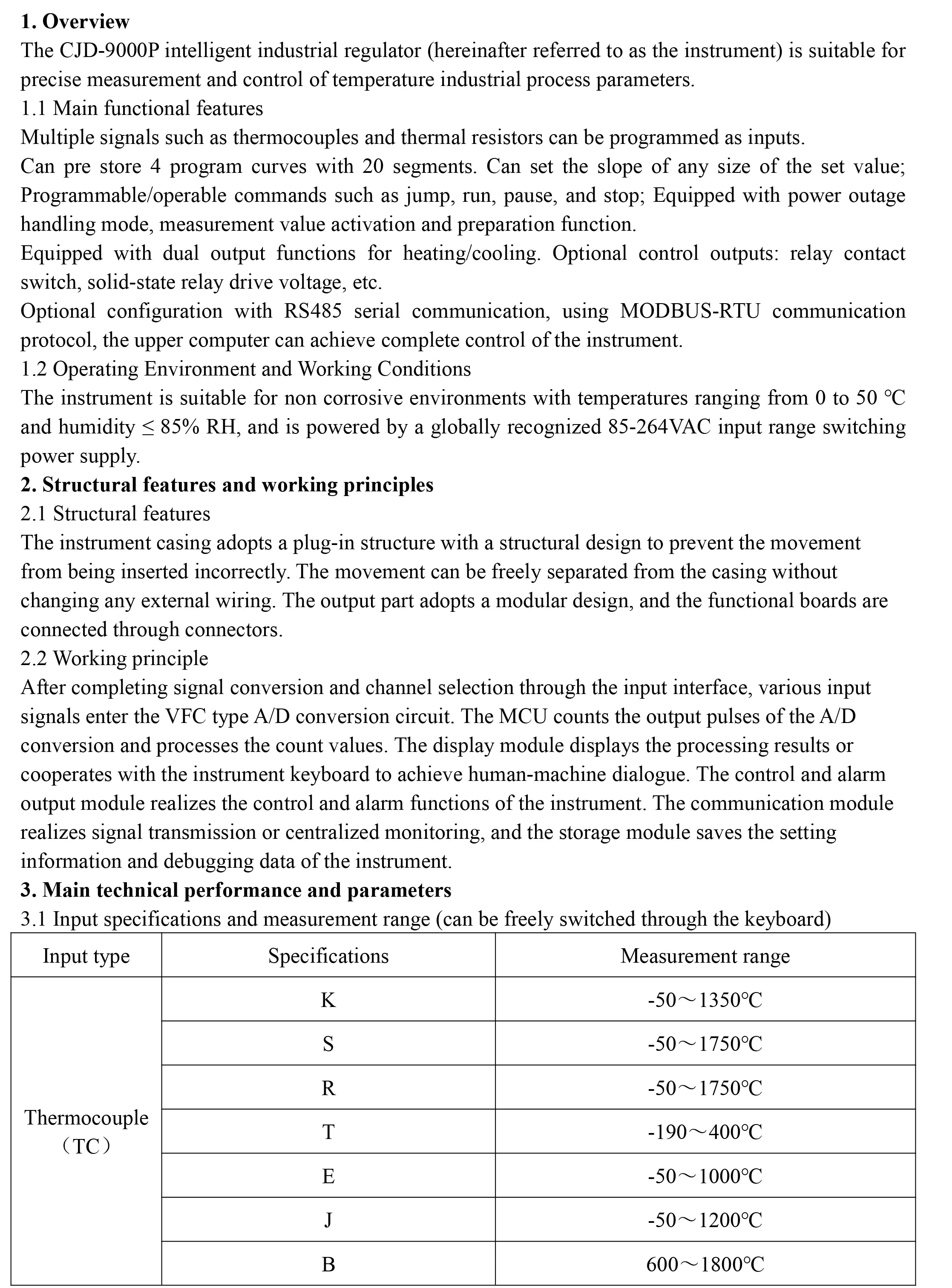

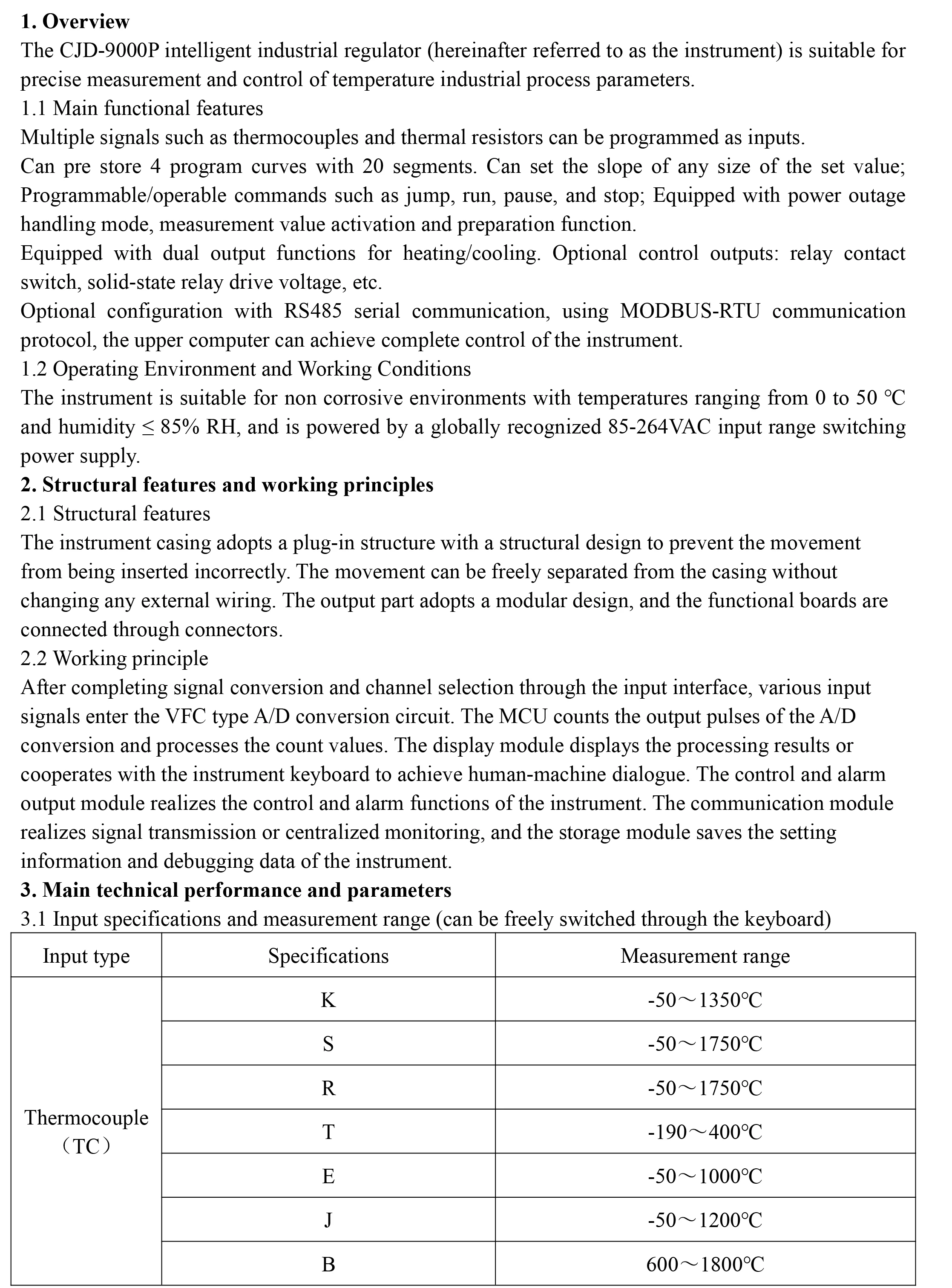

Manual:
