(1) 1PC 1200P Global Shutter USB Camera Module
(2) 1PC 1m USB Cable

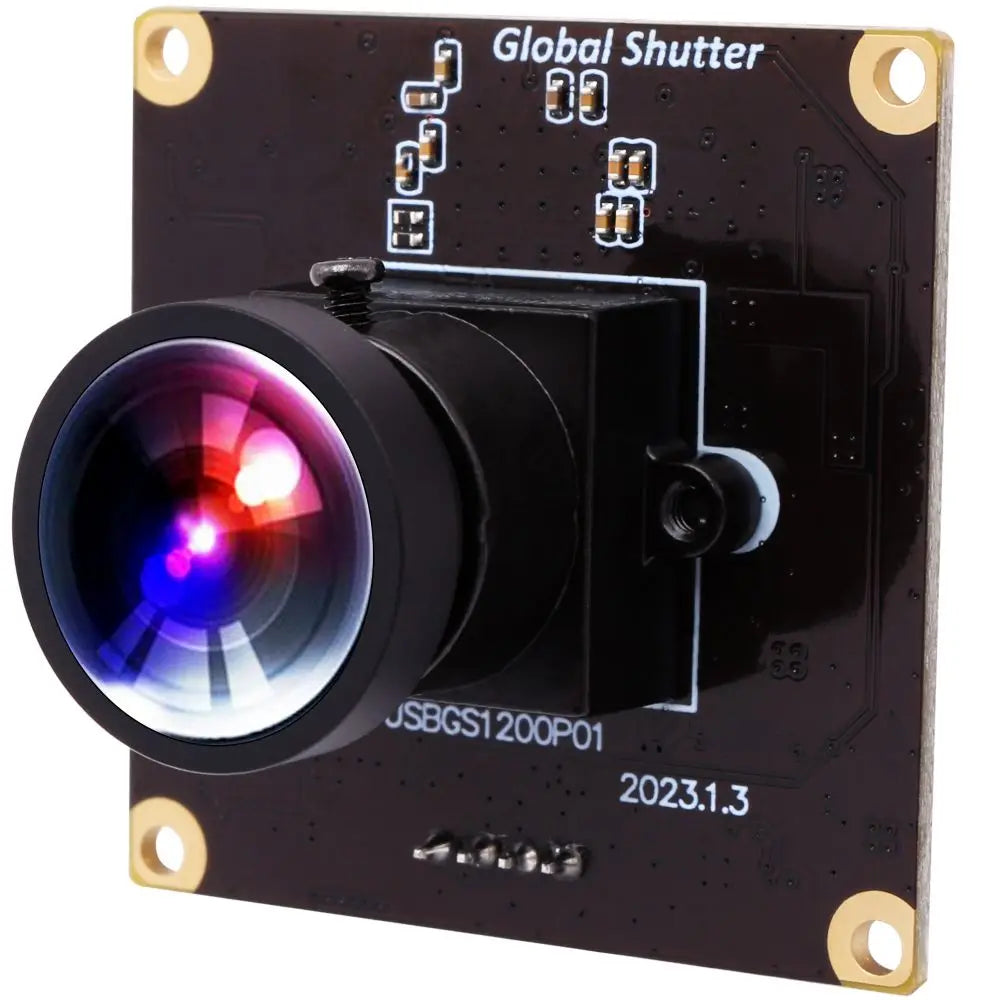

ELP 1200P HD Global Shutter USB Webcam Module High Speed 90fps Small Mini Cameras with CCTV No Distortion M12 Lens
Regular price
$974.12
Sale price
$974.12
Regular price
$0.00
Unit price
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
🔒 Secure Checkout
💰 Money Back Guarantee
↩️ Free Returns
🚚 Fast Shipping
ELP 1200P HD Global Shutter USB Webcam Module High Speed 90fps Small Mini Cameras with CCTV No Distortion M12 Lens
Product reviews
Product description
Shipping & Return
SPECIFICATIONS
Certification: CE,FCC
Customized Support: Logo & OEM & ODM
Lens Parameter: M12 mount No Distortion H120 lens ,HFOV 126degree
Material: Metal/Plastic
Max resolution: 1920x1200
Mini Cameras: with 38X38mm mini board
Sensor: Aptina AR0234 (1/2.6")
Support OS: Windows, Android, Linux, MAC
Warranty: 1 Year
Wide Application: In door, Out door , Machine vision camera, industrial camera
additional function: Global Shutter,No Distortion Lens,Wide Angle
brand name: ELP
imaging sensor: CMOS
interface: Usb
media type: NO
optical zoom: Fixed Focus
place of origin: Guangdong, China
private mold: No
wideangle: No Distortion Lens
Key Features:
* 1920*1200 2MP Global Shutter USB Camera Module
* Deliver 90fps in 1200P/1080P/720P
* Aptina AR0234 (1/2.6”) CMOS color image sensor
* With No Distortion HFOV 126 deg lens, 68/85/101/112 degree lens optional
* With 38x38mm mini board size for embedded applications
* High speed USB 2.0 plug&play port suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
* Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc.
* Deliver 90fps in 1200P/1080P/720P
* Aptina AR0234 (1/2.6”) CMOS color image sensor
* With No Distortion HFOV 126 deg lens, 68/85/101/112 degree lens optional
* With 38x38mm mini board size for embedded applications
* High speed USB 2.0 plug&play port suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
* Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc.
Specification
Model |
ELP-USBGS1200P01-H120 |
Optional Models |
ELP-USBGS1200P01-V100 (Fov about 85 degree) ELP-USBGS1200P01-LC1100 (Fov about 68 degree) ELP-USBGS1200P01-H100 (Fov about 101 degree) ELP-USBGS1200P01-H110 (Fov about 112 degree) |
Sensor |
Aptina AR0234 (1/2.6”)Global Shutter |
Max Resolution |
1920 (H) *1200 (V) |
Sensor Size |
1/2.6 inch(4:3) |
Pixel Size |
3.0μm |
Compression Format |
MJPEG / YUV2 (YUYV) |
Resolution & Frame rate |
1920x1200 @ 90fps MJPEG/1920x1080 @ 90fps MJPEG 1280x1200 @ 90fps MJPEG/1280x960 @ 90fps MJPEG 1280x720 @ 90fps MJPEG/1024x768 @ 90fps MJPEG 960x720 @ 90fps MJPEG/800x600@ 90fps MJPEG 640x480 @ 90fps MJPEG/320x240 @ 90fps MJPEG |
Surface Mount Technology |
SMT |
Focus |
Fixed |
Central Definition |
600LW/PH (Center) |
S/N Ratio |
37dB |
Dynamic Range |
70dB |
Sensitivity |
1.4V/lux-sec@550nm |
Min Illumination |
0.3lux |
Shutter |
Global Shutter |
Interface |
USB2.0 High Speed |
AEC |
Support |
AWB |
Support |
AGC |
Support |
Adjustable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure |
Lens Parameters |
126 degree No distortion/ micro distortion lens. Optional: 2.1mm/2.8mm/2.9mm/3.6mm/6mm/8mm/12mm/16mm/25mm... No Distortion Lens (FOV 65~130 degree optional) Fisheye lens 150 degree /180 degree etc. |
LED board power connector |
Support 2P-2.0mm socket |
Power Supply |
USB BUS POWER4P-2.0mmsocket |
Operating Voltage |
DC 5V |
Working Current |
160mA- 190mA |
Dimension |
38mmx38mm |
Storage Temperature |
-20°C to 80°C |
Working Temperature |
0°C to 60°C |
USBCable |
1M(2M/3M/5M ... Optional ) |
Operating System Request |
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Product Description

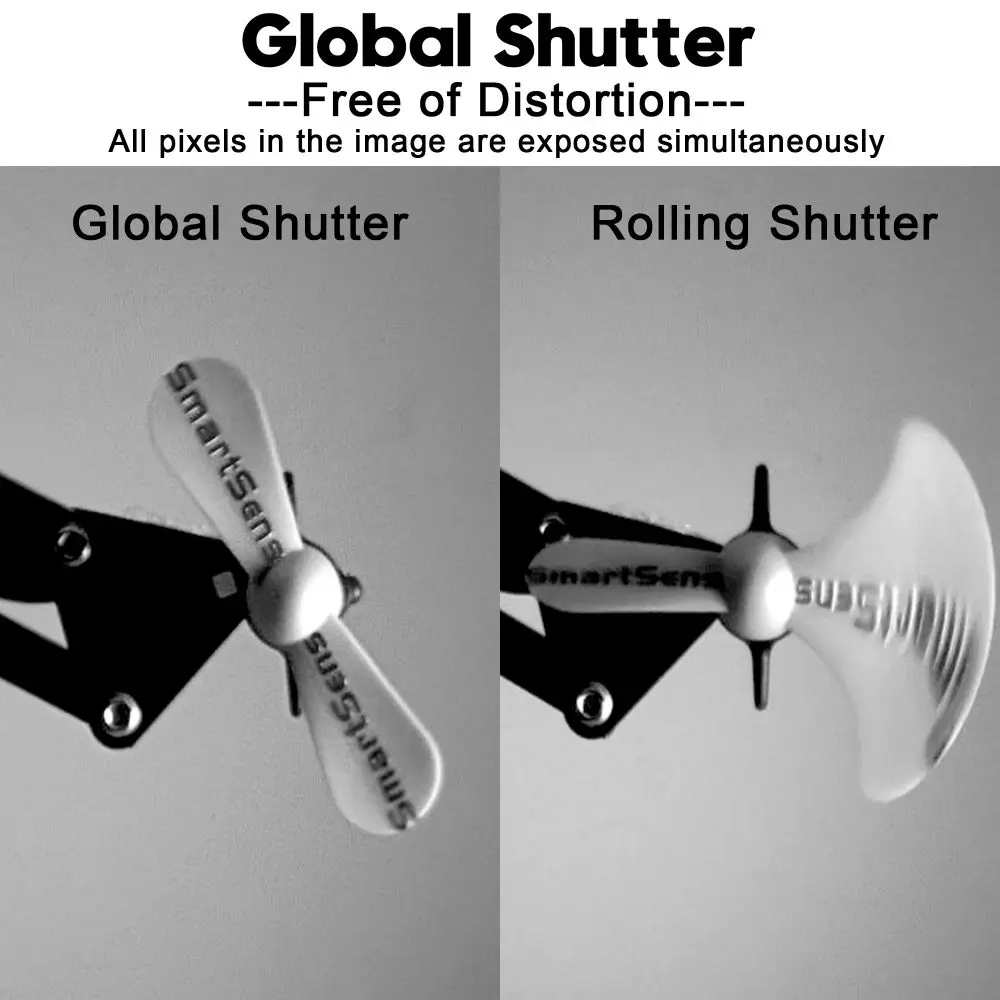

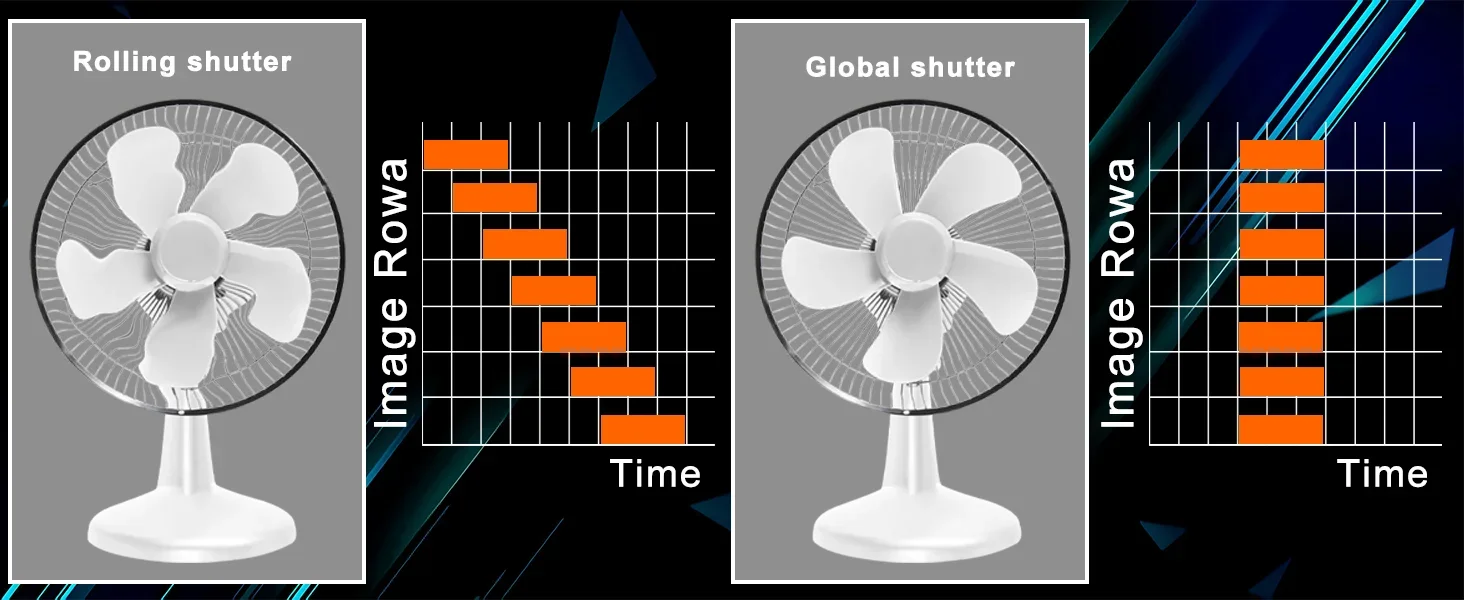

90fps Global Shutter Camera
-1920x1200P 2Megapixel Full HD Small Camera
-Global Shutter Webcam, delivers 90fps in 1200P/1080P/720P

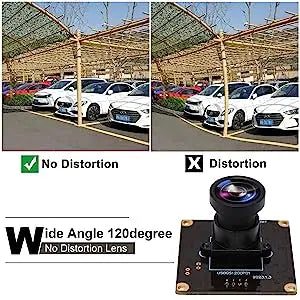

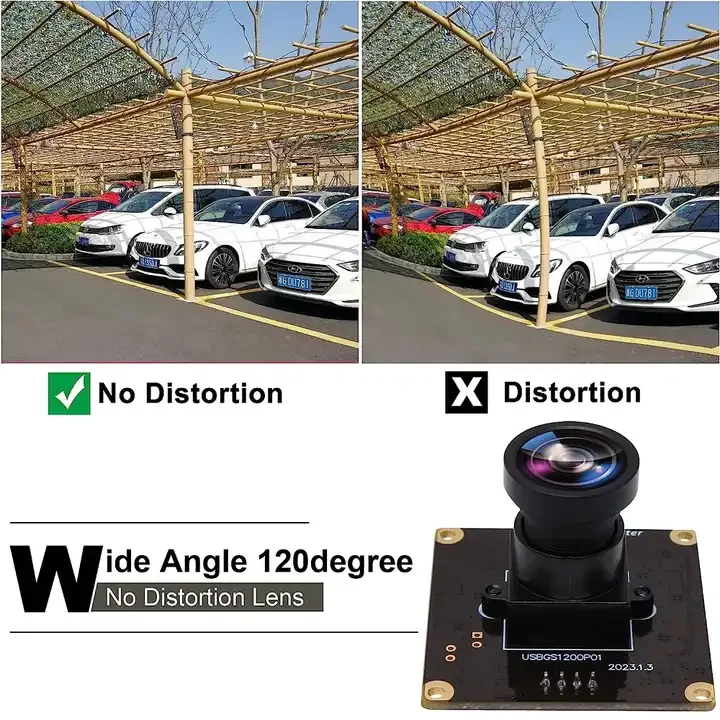

Mini Camera with No Distortion Lens

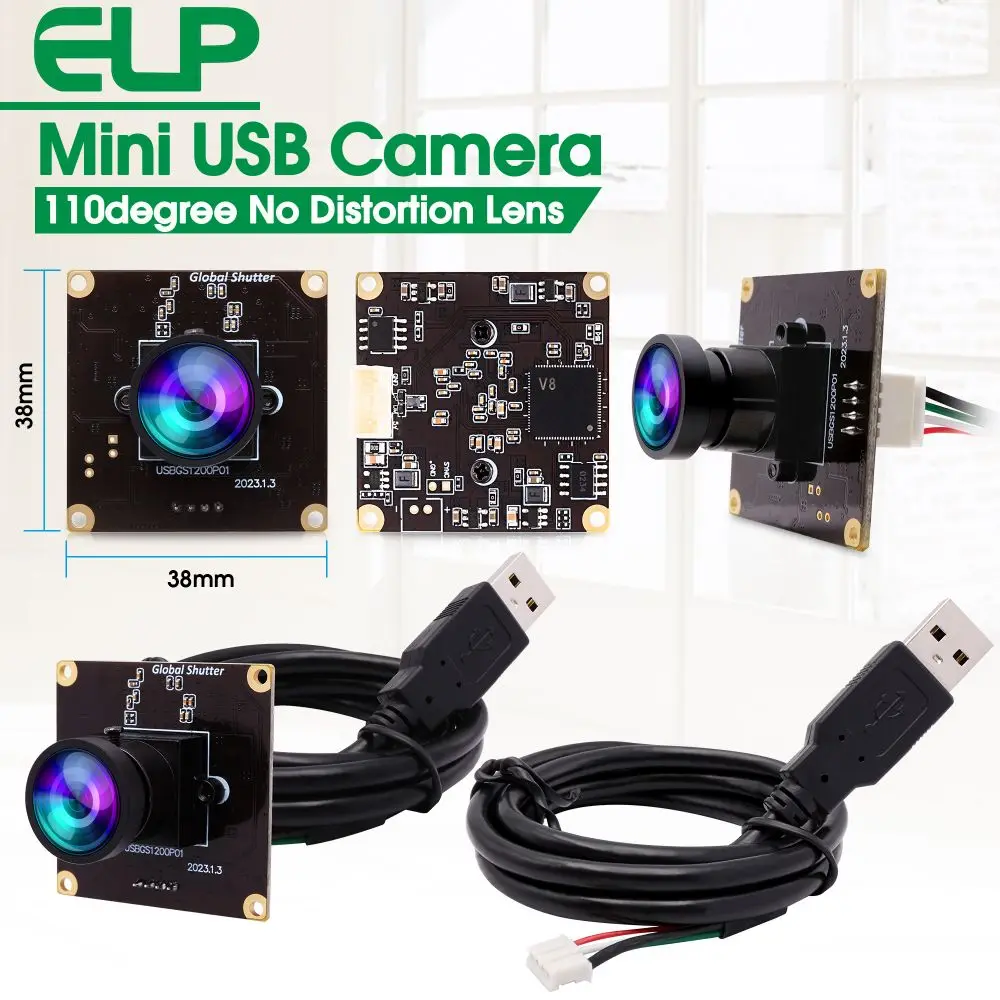

-38x38mm small cctv camera
-with wide angle no distortion H120 lens, HFOV about 126degree

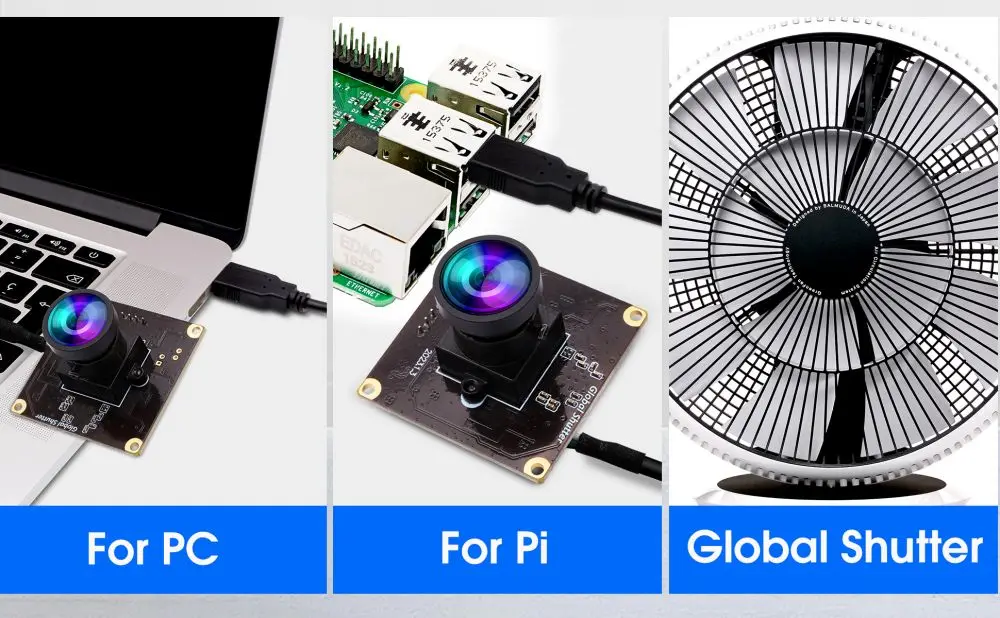

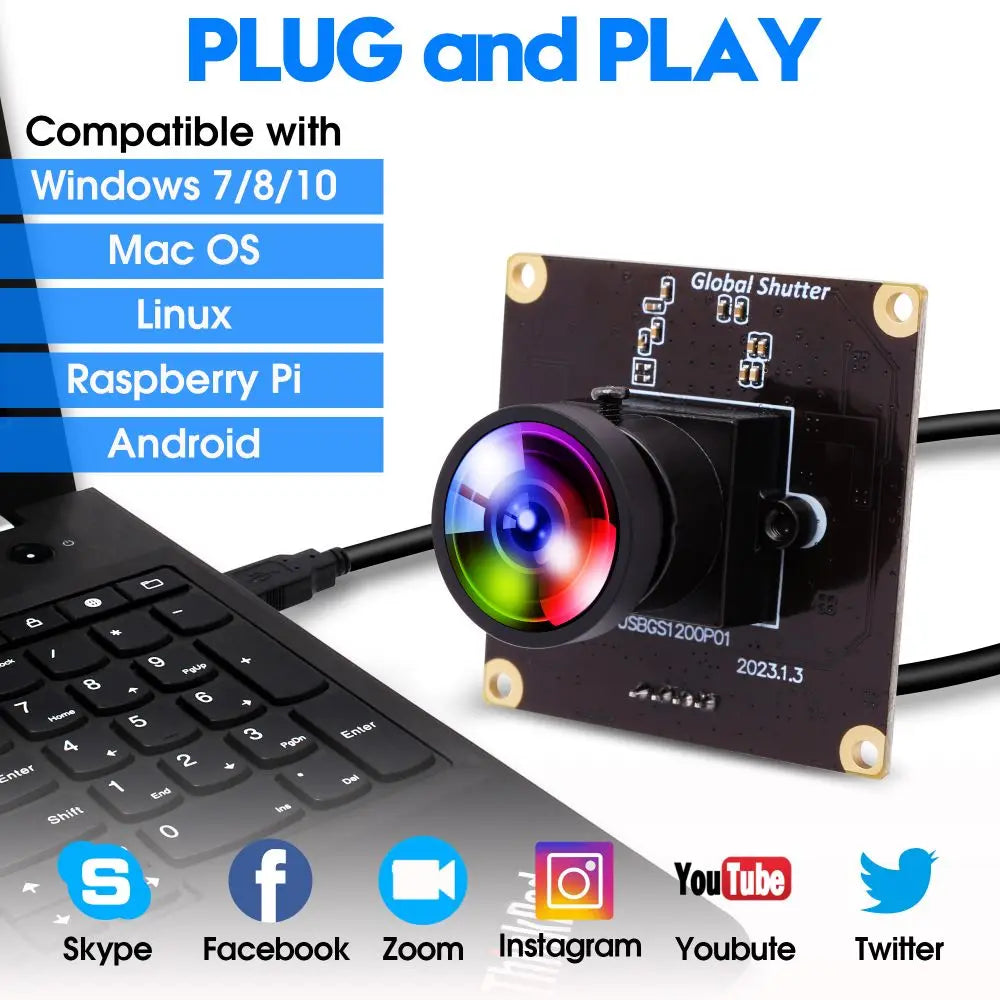

USB2.0 Interface,Free Driver, Plug and Play
-Multi OS supported ,Windows, Linux, MAC, Android , Raspberry Pi, secondary development board ,
Jeston Nano,etc
-Support many third-party live streaming app, Zoom, Skype, Youtube..
Jeston Nano,etc
-Support many third-party live streaming app, Zoom, Skype, Youtube..
Application
ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment,machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box,notebook, video door phone, Tablet external,
on-the-spot law enforcement, Recognition algorithm attendance machine, simple security system, teaching system, Interactive system,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Packing & Delivery
Packing includes:
Company Profile
Shenzhen Ailipu Technology Co.,Ltd, who have 16 years history, is a professional manufacturer of surveillance system . Ailipu has its own brand ELP, which already well know in security surveillance system.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
At present,Shenzhen Ailipu Technology Co., Ltd produce traditional analog CCTV camera, standalone DVR recorder for cctv camera,but also produce popular megapixel network IP cameras, NVR recorder for IP cameras too.Besides, Ailipu Technology Co., Ltd already developing its own special USB Cameras for industrial vision. Recently, Ailipu company present new USB cameras module range from 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel to 5megapixel autofocus, which already used in all kinds of industrial system.
Shenzhen Ailipu manufacturer can also OEM or customize products specially by customers' requirements.
We always believe"Together everybody achives more!", and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10.Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for
Linux,Camerafi,VLC Player
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10.Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for
Linux,Camerafi,VLC Player
