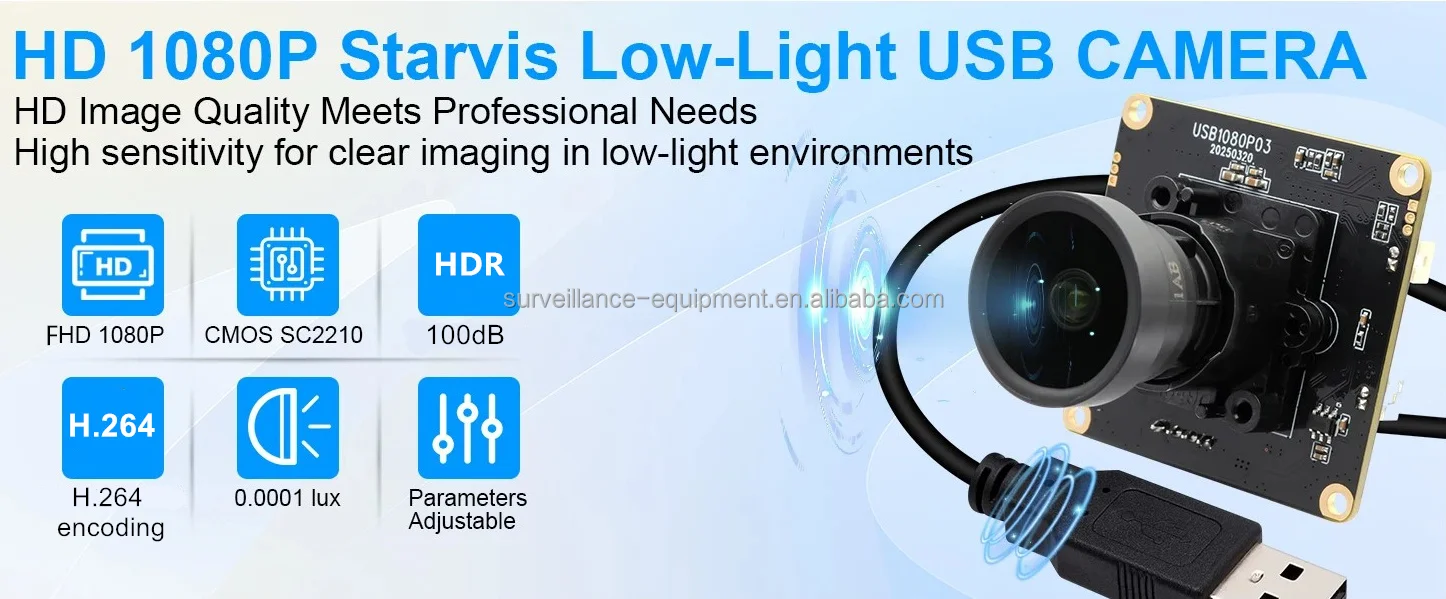

ELP Starvis HDR H.264 USB Camera Module 0.0001 Lux Star Black Low Light 1080P Webcam Module with F1.0 Aperture Lens for Security
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
ELP Starvis HDR H.264 USB Camera Module 0.0001 Lux Star Black Low Light 1080P Webcam Module with F1.0 Aperture Lens for Security
SPECIFICATIONS
Brand Name: ELP
Customized support: Online Technical Support,Customized Logo,OEM, ODM
F 1.0 Big Aperture Lens: 4/6/8mm Lens optional
H.264 on Board Encoding: for optimized bandwidth/storage usage
Hight Dynamic Range: 100dB
Max Resolution: 1920*1080 2MP
Model Number: ELP-USB1080P03-F1L4
Network: SDK
PCB Board Size: 38mm*38mm
Packaging: Color Box
Parameter Adjustable: Brightness, Contrast, Saturation, Gamma,White balance, Exposure
Pixels: 2MP
Place of Origin: Guangdong, China
Sensor: CMOS,1/1.8" SmartSens SC2210
Special Features: Free Driver,OTG Support,Multiple OS Support,Low Power Comsuption,Mini Compact Size,High Compatibility,Ultra Low Light,HDR,H.264 On Board Encoding
Storage: Cloud
Support OS: Android, Linux, Windows, MAC
UVC Compliant: Free Driver, Plug & Play
Ultra Starlight Low Light: 0.0001 Lux
Video Compression Format: H.264,MJPEG,YUY2
Warranty: 1 Year
Waterproof: No
Efficient H.264 Video Processing: 1080P resolution with on board H.264 encoding for optimized bandwidth storage usage
Advanced HDR Technology: 100dB dynamic range preserves details in high-contrast scenes (backlight/ sunlight conditions)
Ultra-Compact Design: 38×38mm mini board size for space-constrained embedded applications
Plug-and-Play Compatibility: Free driver, universal OS/driver support enables immediate deployment without complex configuration
Mobile Compatibility: USB OTG support for flexible device connections
Why Choose HDR Camera?

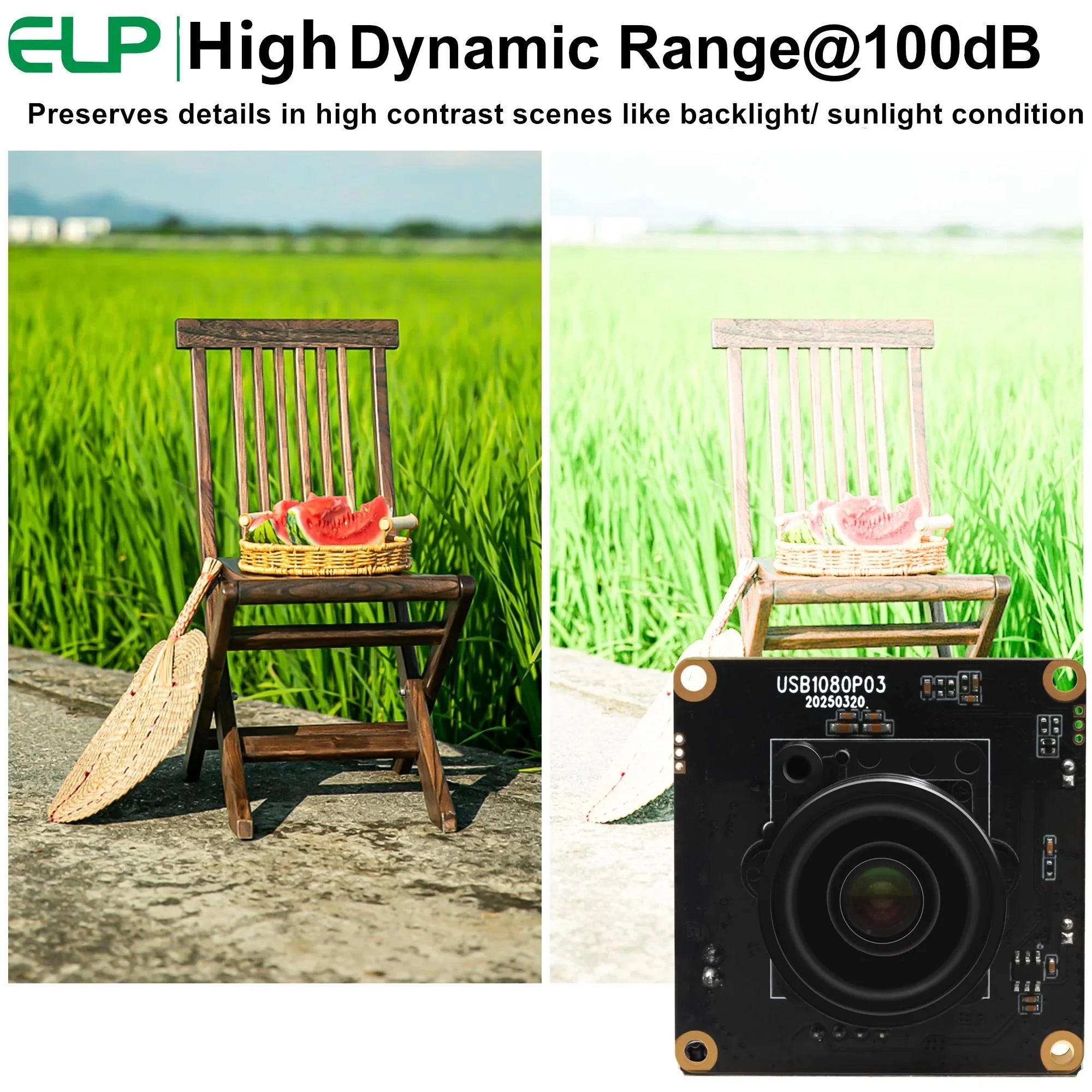

High Dynamic Range Technology Incorporates 100dB HDR (High Dynamic Range) to maintain detail in high contrast light condition, ensuring balanced exposure for both bright and dark areas
Why Choose H.264 USB camera?
1)Reduce Bandwidth Usage:H.264 compression significantly lowers data transmission requirements compared to raw formats like YUV or MJPEG enabling smoother USB video streaming.
2)Lower Host CPU Load: Onboard encoding offloads processing from the host device , crucial for resource-limited systems (like embedded hardware, single-board computers).
3)Wider Device Support: H.264 decoding is universally supported across devices, unlike newer codecs requiring specific hardware.

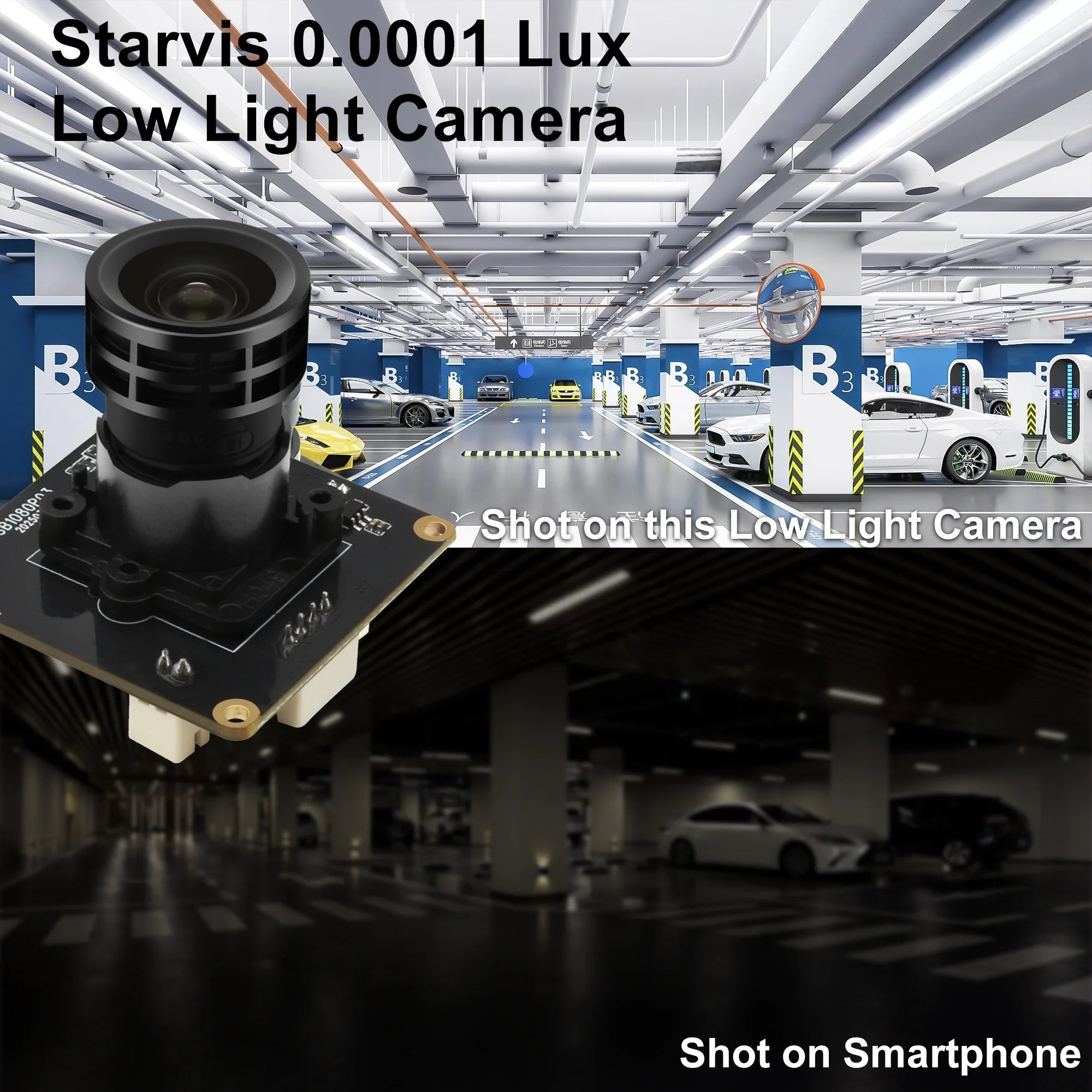

Delivers exceptional 0.0001 Lux sensitivity for clear image capture in near-total darkness, making it ideal for night time surveillance and low-light industrial environments.
bandwidth.With an onboard H.264 compression chip so that all of the video compression is done onboard and doesn't place much load on the main computer.
Incorporates 100dB HDR (High Dynamic Range) to maintain detail in high-contrast lighting conditions, ensuring balanced exposure for both bright and dark areas

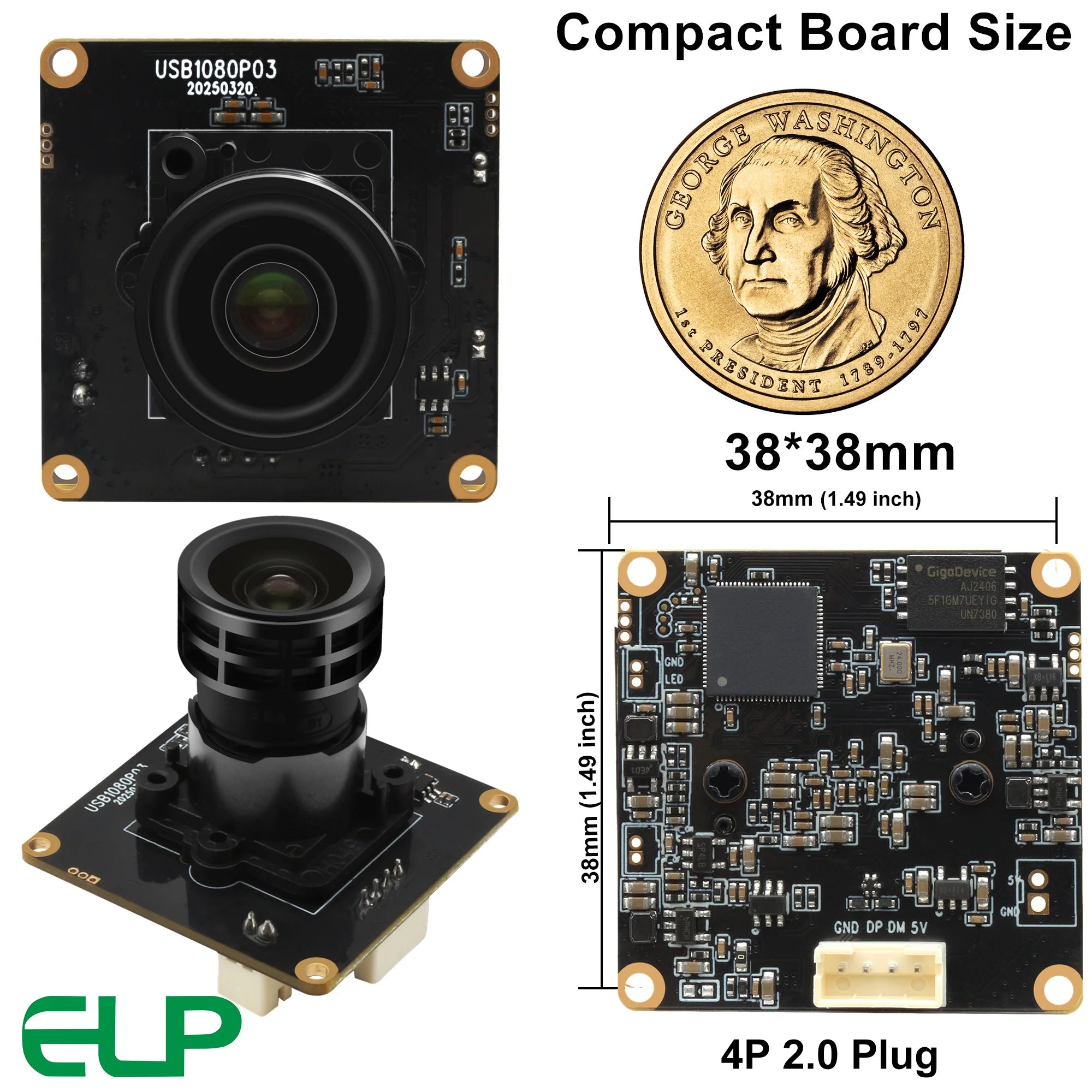

The space efficient 38×38mm form factor with standardized mounting options enables seamless integration into embedded systems with size constraints.
F1.0 lenses capture 4x more light than F2.0 lenses, enabling clear imaging in near total darkness (like moonlight, dim
interiors) without excessive ISO noise. This expands creative possibilities for night photography and low light scenarios.
Supports USB OTG functionality for driver-free operation and direct mobile device compatibility, significantly reducing deployment complexity.
Model |
ELP-USB1080P03-F1L4 (HFOV about 95 degree) ELP-USB1080P03-F1L28 (HFOV about 110 degree) ELP-USB1080P03-F1L6 (HFOV about 59degree) |
Sensor |
1/1.8” SmartSens SC2210 |
Max Resolution |
1920(H)*1080(V) |
Sensitivity |
1.08V/lux-sec |
Pixel Size |
4.0µm x 4.0µm |
Video Compression |
MJPEG / YUY2(YUYV) / H.264 |
Resolution & Frame Rate |
1920x1080 MJPEG 30fps/ H.264 30fps / YUY25fps 1280x720 MJPEG 30fps/ H.264 30fps / YUY210fps 1024x576 MJPEG 30fps/ H.264 30fps / YUY215fps 960x540 MJPEG 30fps/ H.264 30fps / YUY215fps 640x480 MJPEG 30fps/ H.264 30fps / YUY230fps 640x360 MJPEG 30fps/ H.264 30fps / YUY230fps |
Image Processing Time |
About 5 seconds after opening the preview software |
Central Definition |
1000LW/PH(Center) |
S/N Ratio |
UP to 100dB |
Min illumination |
Minimum to 0.0001Lux |
Shutter Type |
Electronic Rolling Shutter/ Frame Exposure |
Connecting Port Type |
USB2.0 High Speed |
AEC |
Support |
AWB |
Support |
AGC |
Support |

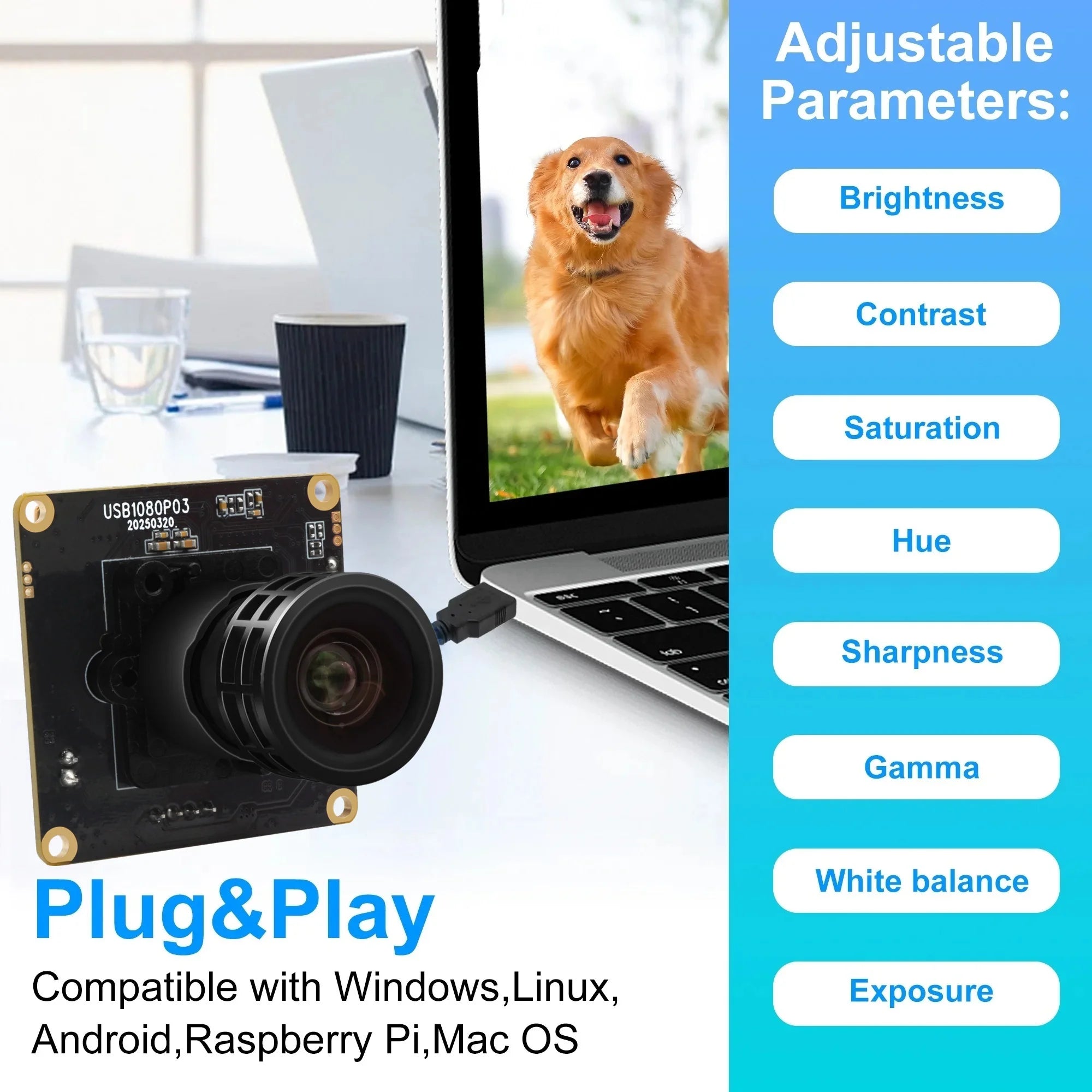

Adjustable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, WhiteBalance, Backlight Compensation, Exposure |
Lens Parameter |
No distortion H100 lens, HFOV about 117 degree, VFOV about 82 degree (M12 S-mount:16-190 degree Lens；M16: 2.8mm, 4mm, 6mm Lens； CS Mount: 3.6-10mm, 5-50mm Lens optional) |
Power Supply & Connector |
USB BUS POWER 4P-2.0mm Socket |
Operating Voltage |
DC 5V |
Working Current |
150-180mA |
Dimension |
38x38mm |
Storage Temperature |
-20°C to 80°C |
Working Temperature |
-10°C to 70°C |
USB Cable |
1M(2M/3M/5M optional) |
Operating System Request |
Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC MAC-OSX10.4.8 or later Android5.x or above |
Working temperature |
0～60℃ |
Storage temperature |
-20～75℃ |
Board size /Weight |
38X38mm / about 30g |
Cable |
Standard 1M (optional 2M,3M,5M) |
Operating system request |
WinXP/Vista/Win7/Win8 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment, machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm attendance machine, simple security system, teaching system, Interactive system,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Yes, we are designer and manufacturer for usb camera for more than 18 years
♦Can you OEM camera module?
Yes, we can offer OEM USB Camera according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal 2.1/2.8/3.6/6/8/12mm Fixed and Varifocal M12 lens, M7/M8 mini lens and also wide angle fisheye lens and varifocal C/CS mount lens option.
♦What operating system your cameras support?
Android, Windows , Linux , Mac OS
♦What certificate you have?
Our factory is certificated with ISO 9001. And our cameras have CE, FCC, partial have RoHS BIS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP, Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player, Quick Time, USB Camera, Photo Booth, Facetime, Zoom, Quick Time etc.
