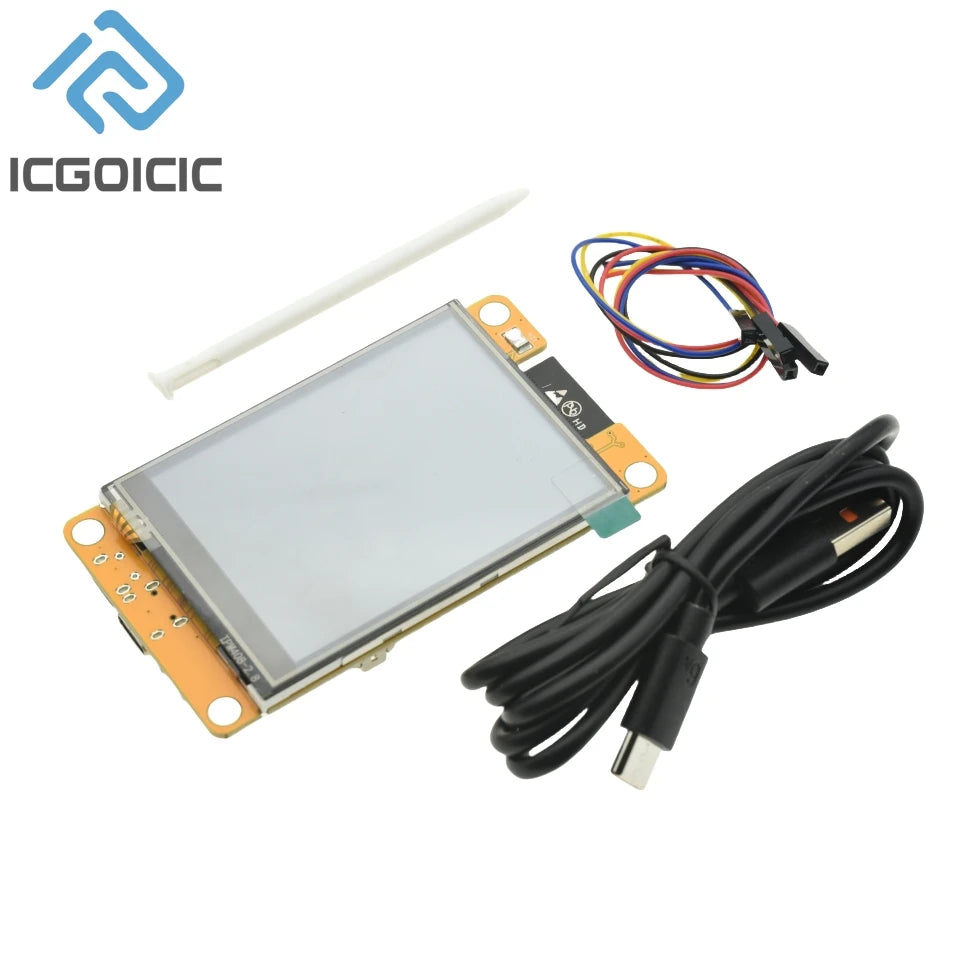

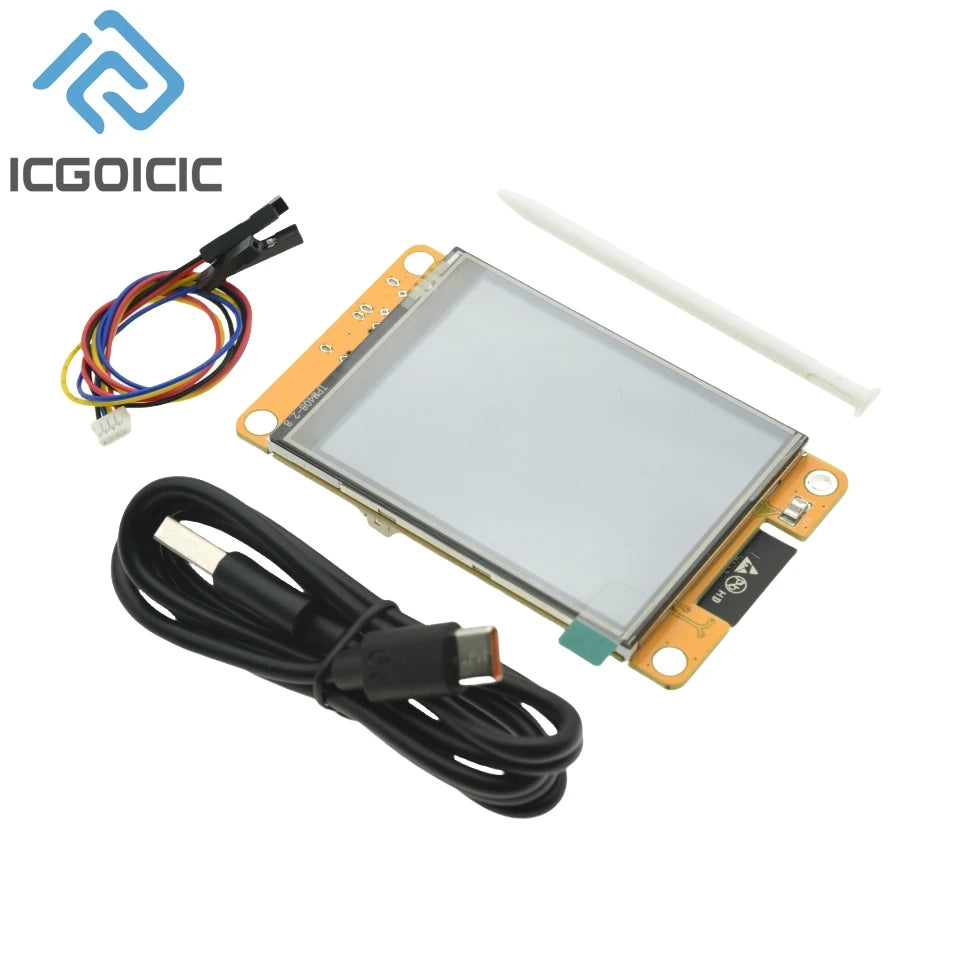

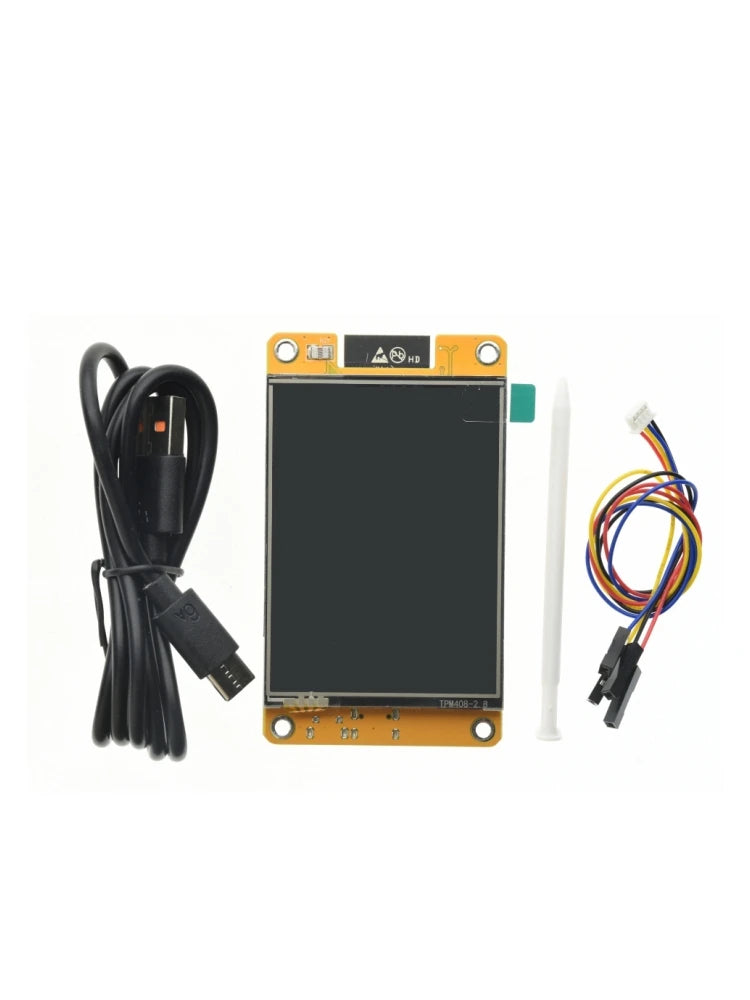

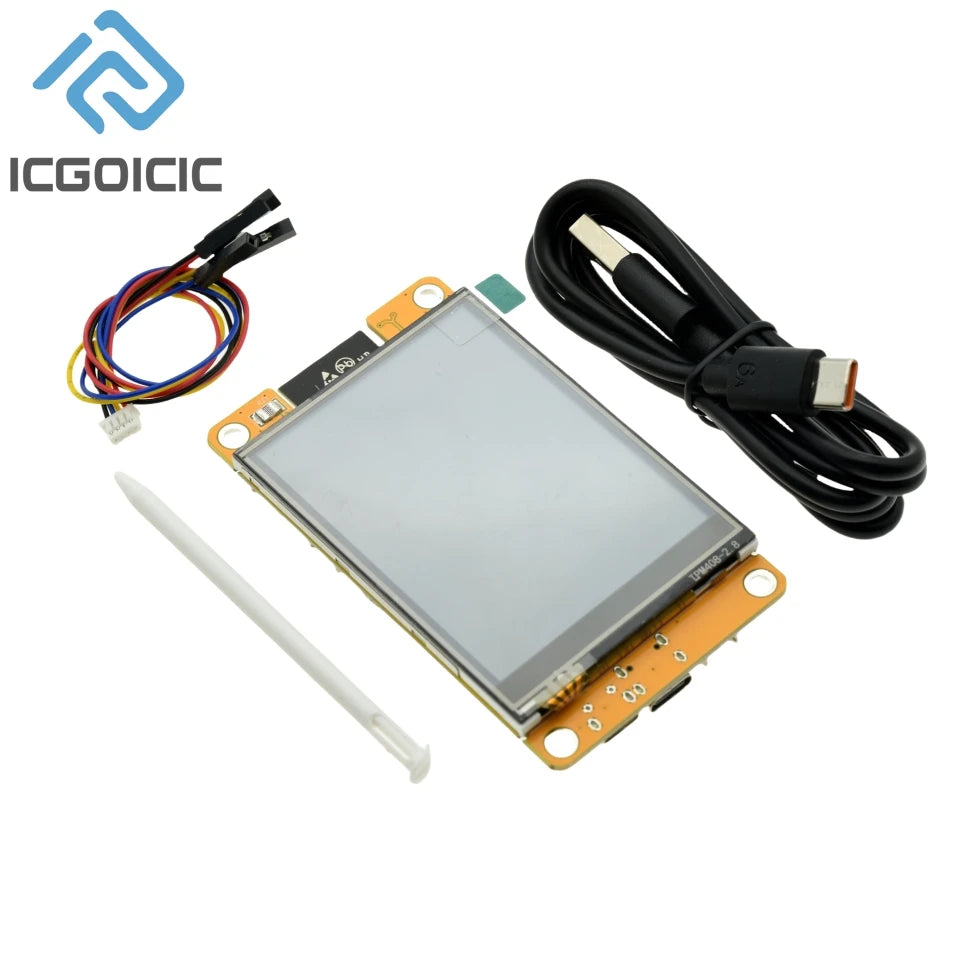

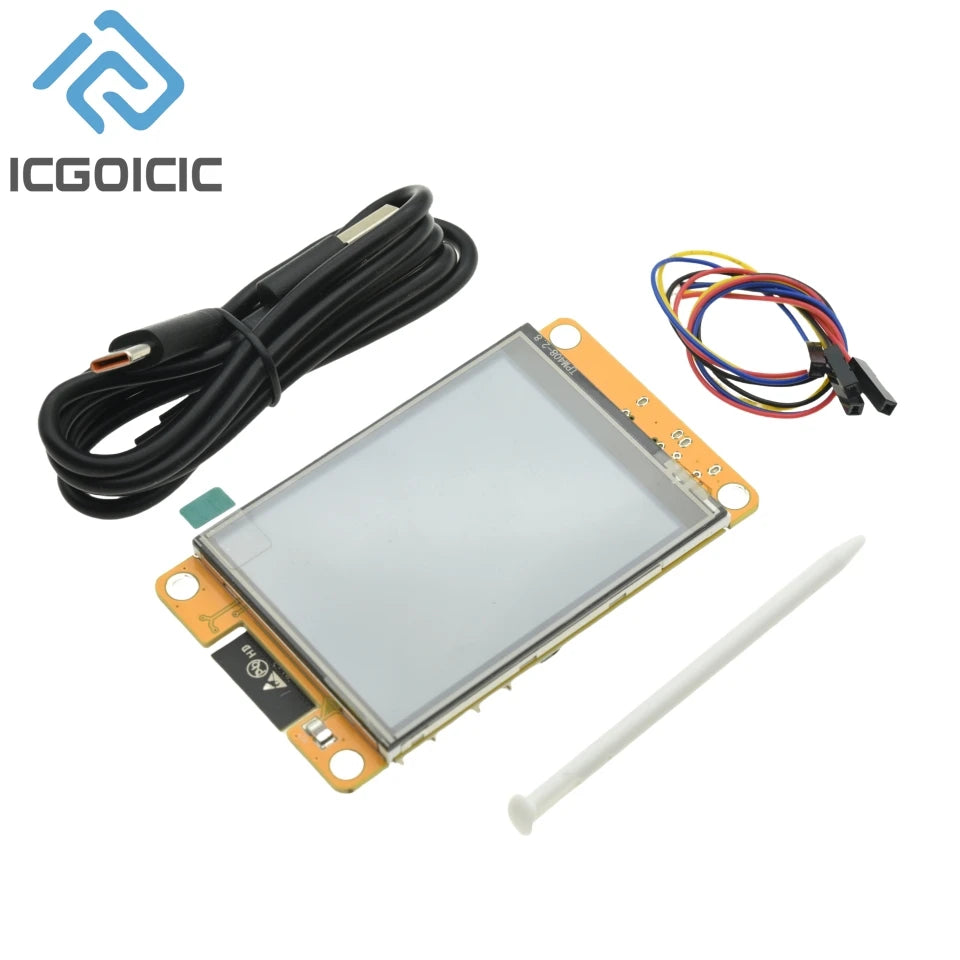

ESP32 for Arduino LVGL WIFI&Bluetooth Development Board 2.8 " 240*320 Smart Display Screen 2.8inch LCD TFT Module With Touch
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
ESP32 for Arduino LVGL WIFI&Bluetooth Development Board 2.8 " 240*320 Smart Display Screen 2.8inch LCD TFT Module With Touch
SPECIFICATIONS
Brand Name: ICGOICIC
Choice: yes
Display Mode: 320*240
High-concerned chemical: None
Model Number: 2.8inch LCD TFT Module With Touc
Origin: Mainland China
Resolution: 320*240
Type: TFT
is_customized: Yes

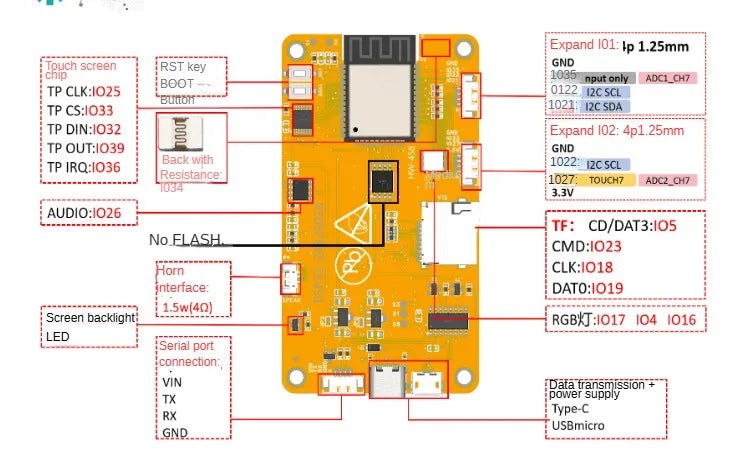

Product features:

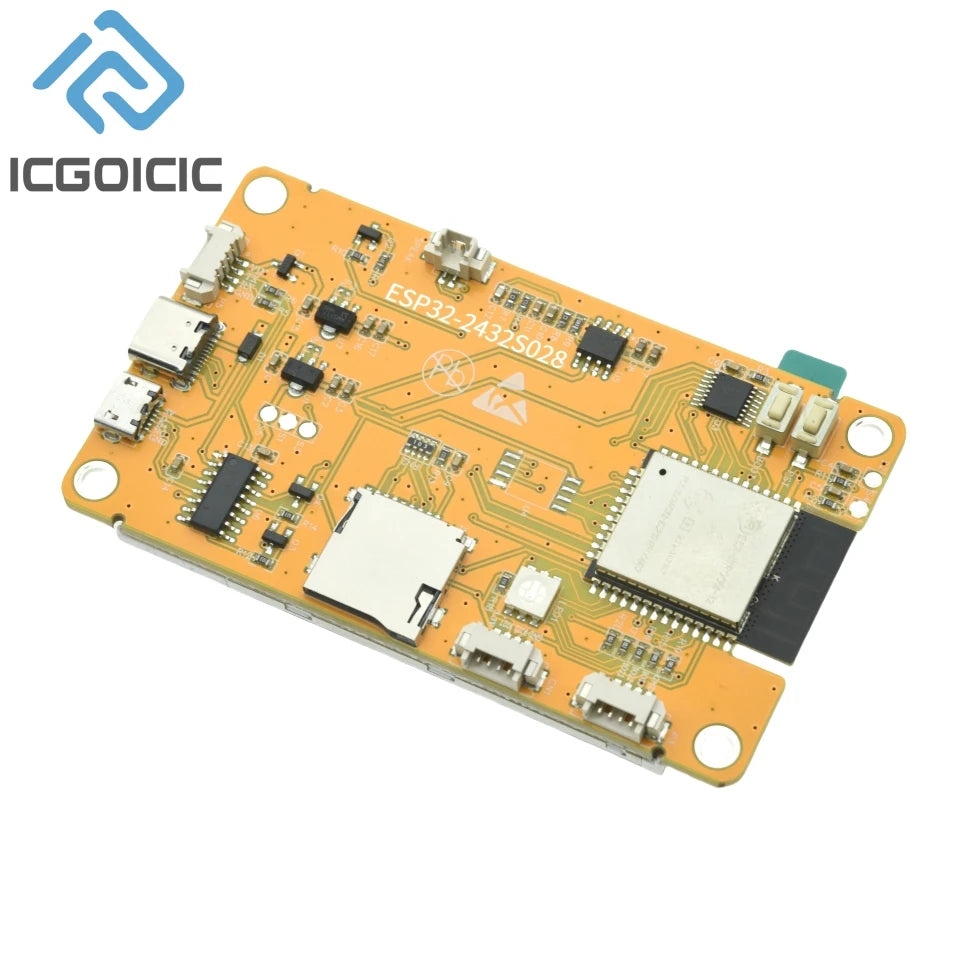

Module body ESP-WROOM-32 module, the module has the traditional ESP32 full
The department features and integrates a 2.8-inch touch screen. Resolution 240x320.

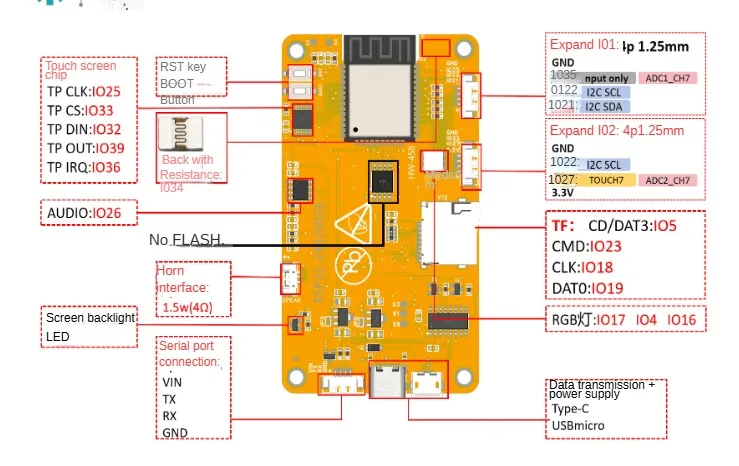

Has Type-C+USBmicro two power supply + data transmission interface, while supporting
CtoC data cable. Can be equipped with 1.5w (4 OhMs) speaker, extended IO2 can be directly connected
Enter the DHT11 Temperature and humidity sensor. Serial port, extended IO1, and extended IO2 are
4pin1.25mm port.
Main features:
The module is the development board of ESP-WROOM-32, and the parameter characteristics of ESP-WROOM-32 are also the parameter characteristics of the module.
802.11b/g/WiFi+BT module;
Low power dual-core 32-bit CPU, can be used as an application processor;
Main frequency up to 240MHz, computing power up to 600DMIPS;
Built-in 520KBSRAM;
Support UART/SPI/I2C/PWM/DAC/ADC and other interfaces;
Support openOCD debugging interface;
Support a variety of sleep modes, deep sleep, current as low as 6.5uA;
Embedded Lwip and FreeRTOS;
Support STA/AP/STA+AP mode;
Support SmartConfig/AirKiss one-click network distribution;
General AT instruction, easy to get started;
Supports local serial upgrade and remote upgrade (FOTA).

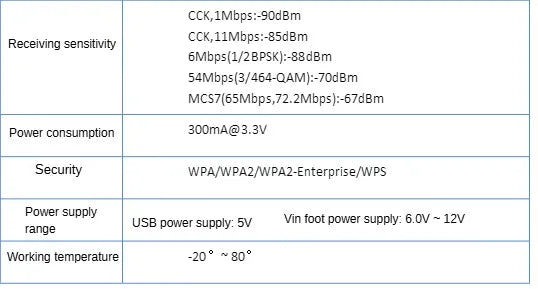

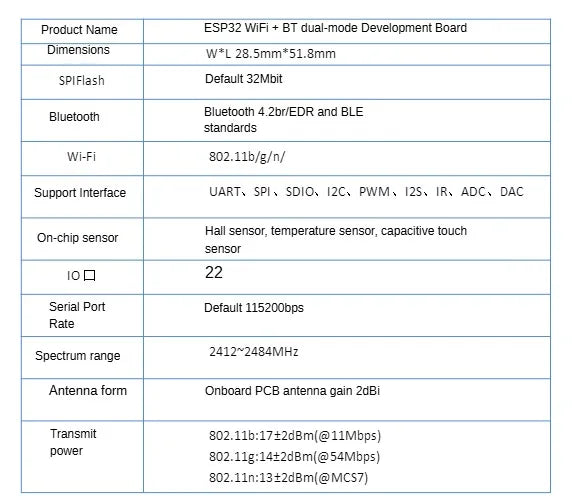

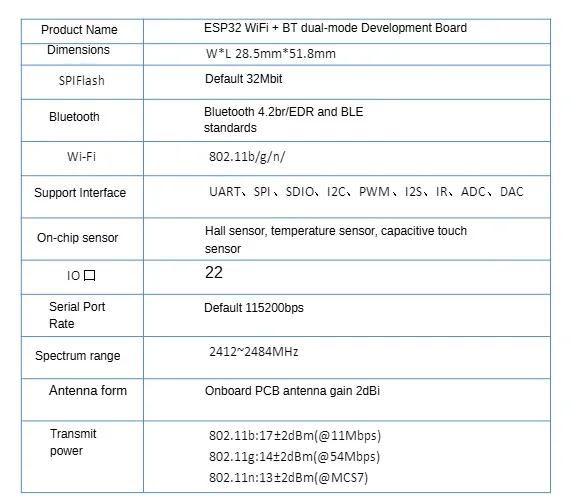

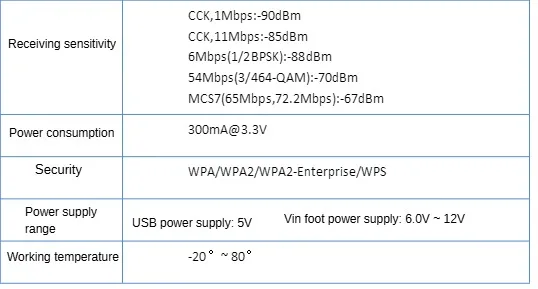

Product parameters:
