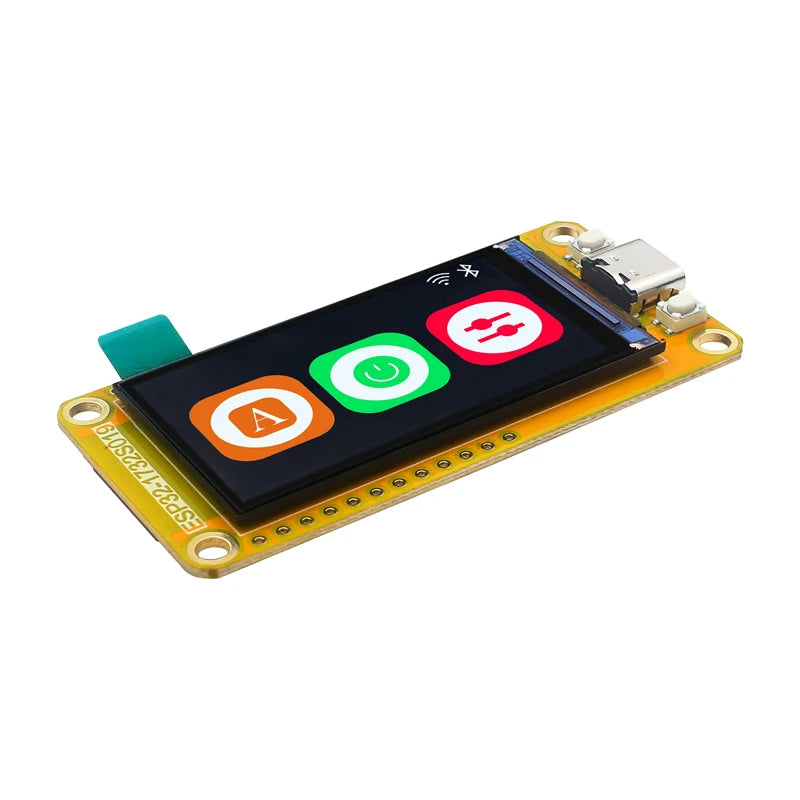

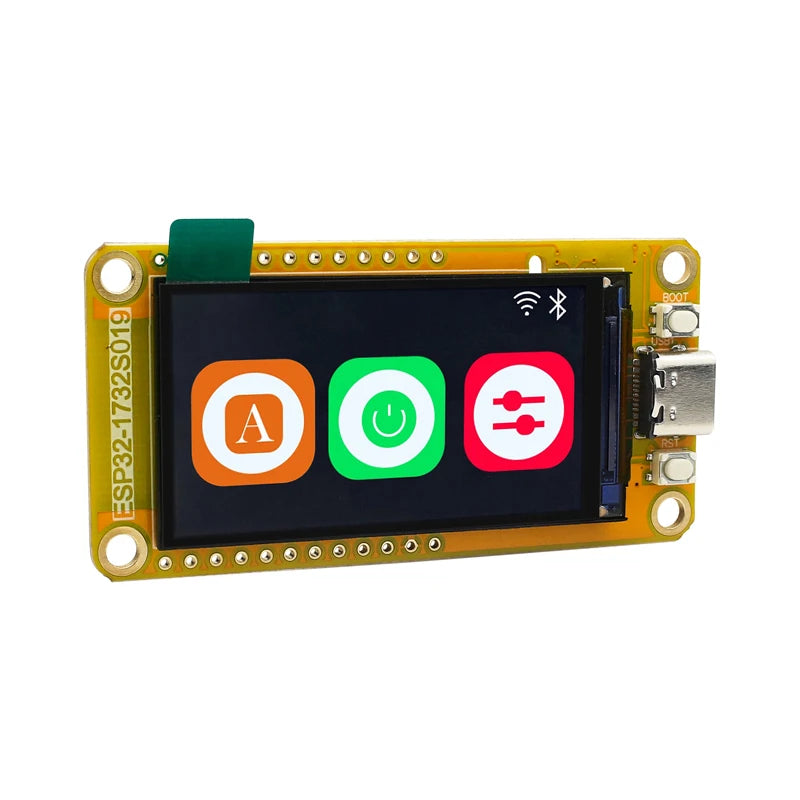

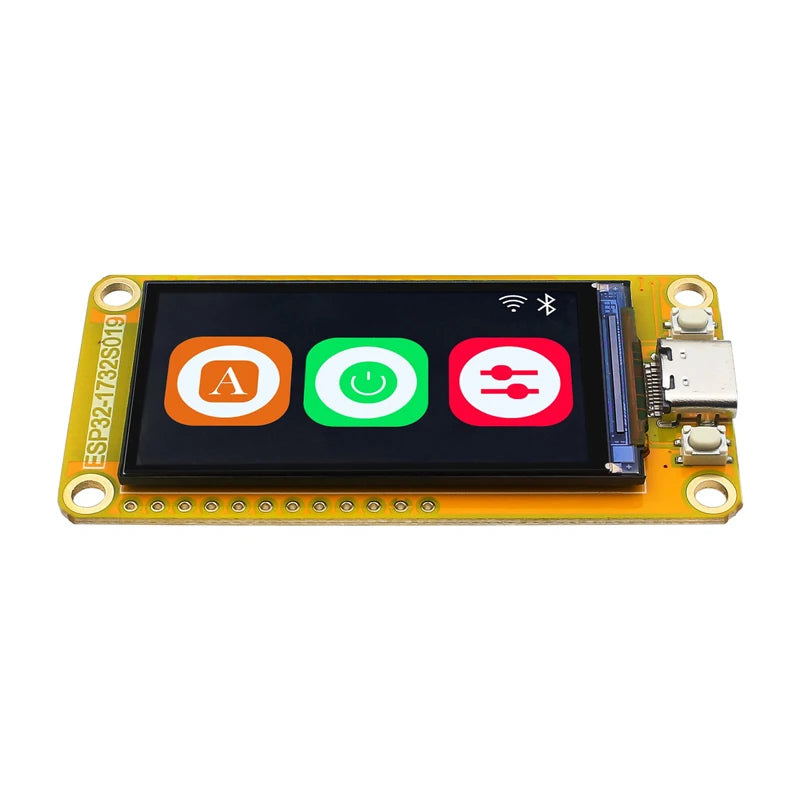

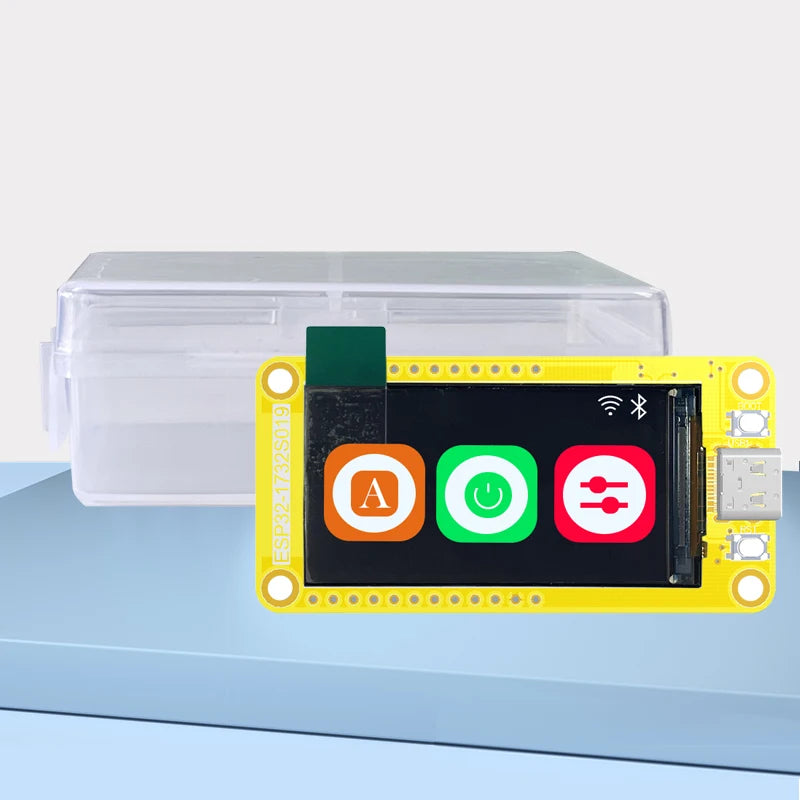

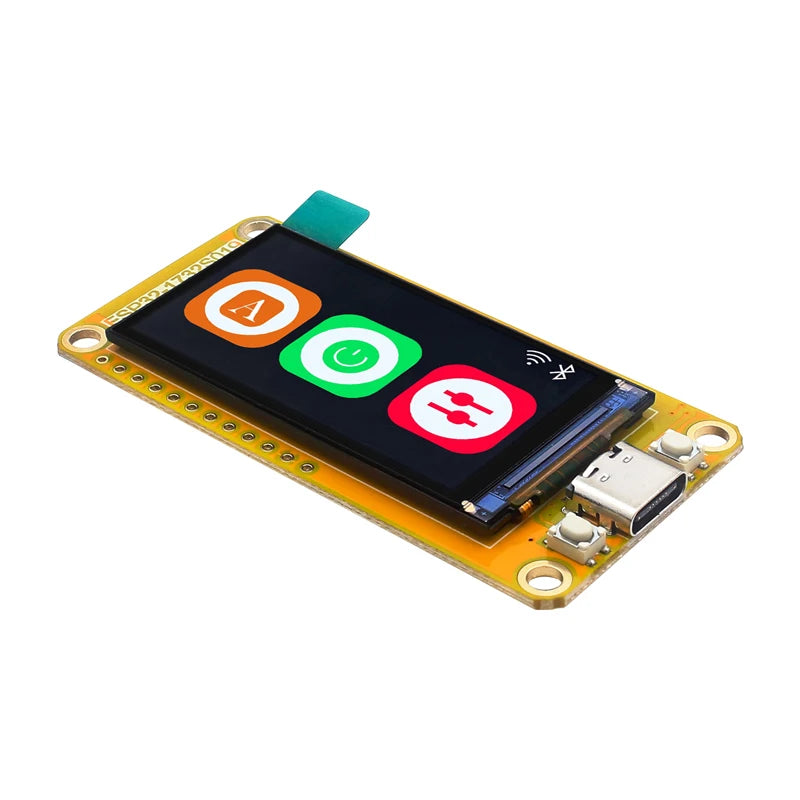

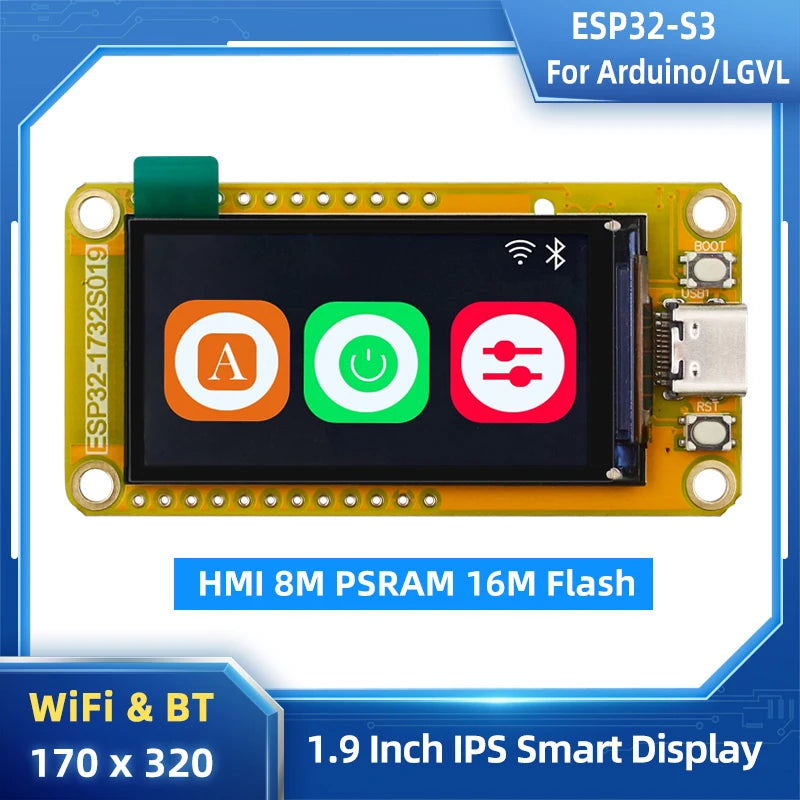

ESP32-S3 HMI 8M PSRAM 16M Flash for Arduino LVGL WIFI&Bluetooth 1.9 Inch 170*320 Smart Display Screen IPS LCD TFT Module
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
ESP32-S3 HMI 8M PSRAM 16M Flash for Arduino LVGL WIFI&Bluetooth 1.9 Inch 170*320 Smart Display Screen IPS LCD TFT Module
SPECIFICATIONS
Accessory Type: LCD Screen
BT: Bluetooth Bluetooth 4.2BR/EDR and BLE standard
Battery Included: No
Brand Name: SHCHV
Choice: yes
Compatible With: For Arduino/ESP32/LGVL
High-concerned chemical: None
Origin: Mainland China
RAM: Internal 520KB
Resolution: 170 x 320
SPIFlash: Default 32Mbit
Screen panel: IPS

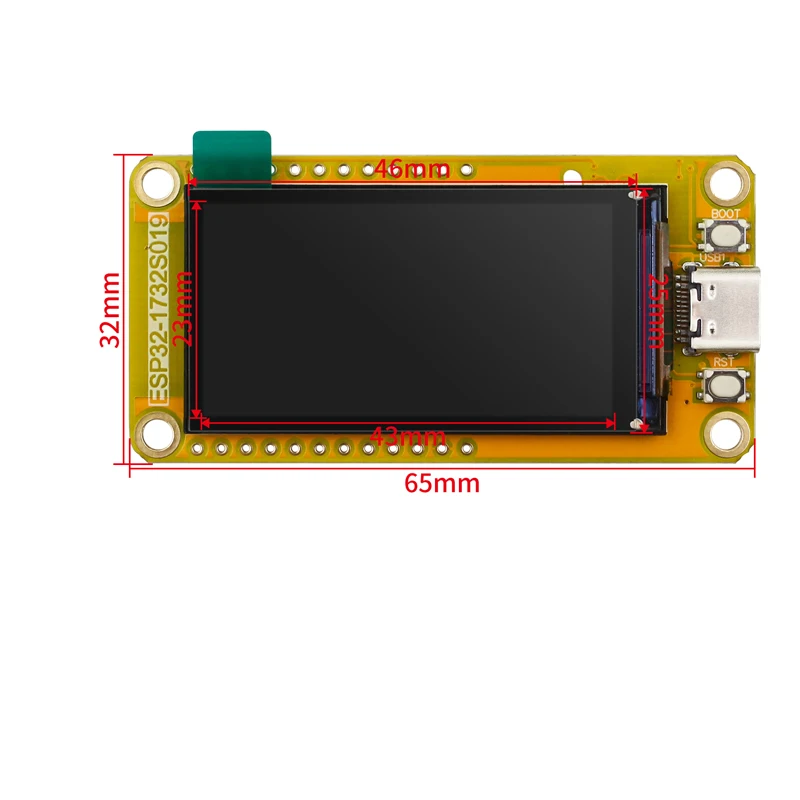

Size: 1.9 inch
Wi-Fi: 802.11b/g/n/e/i
Working voltage: 4.75-5.25V
semi_Choice: yes

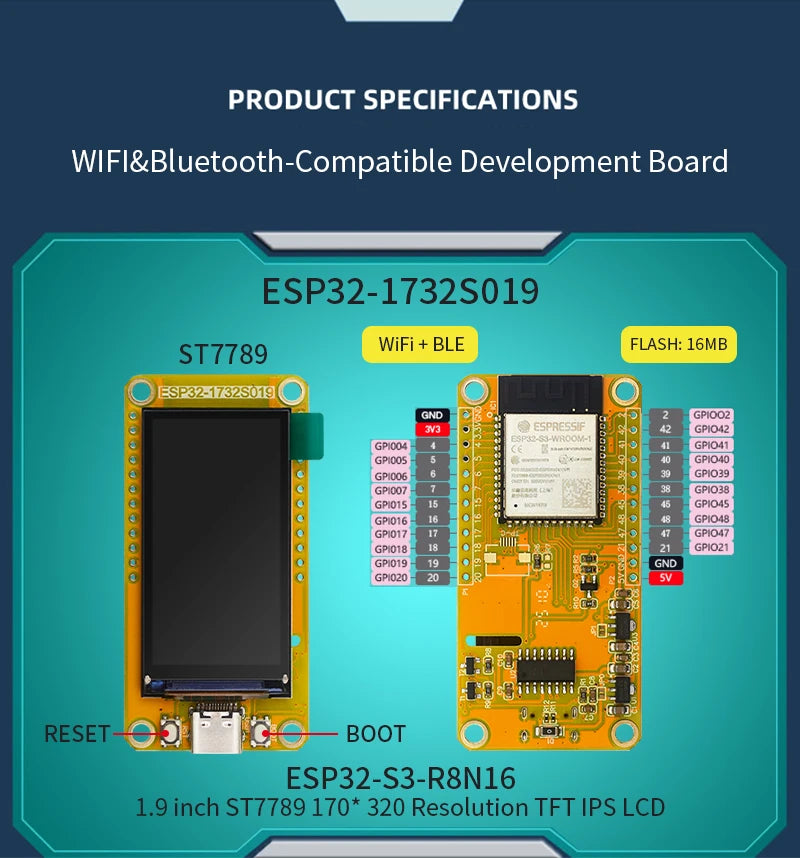

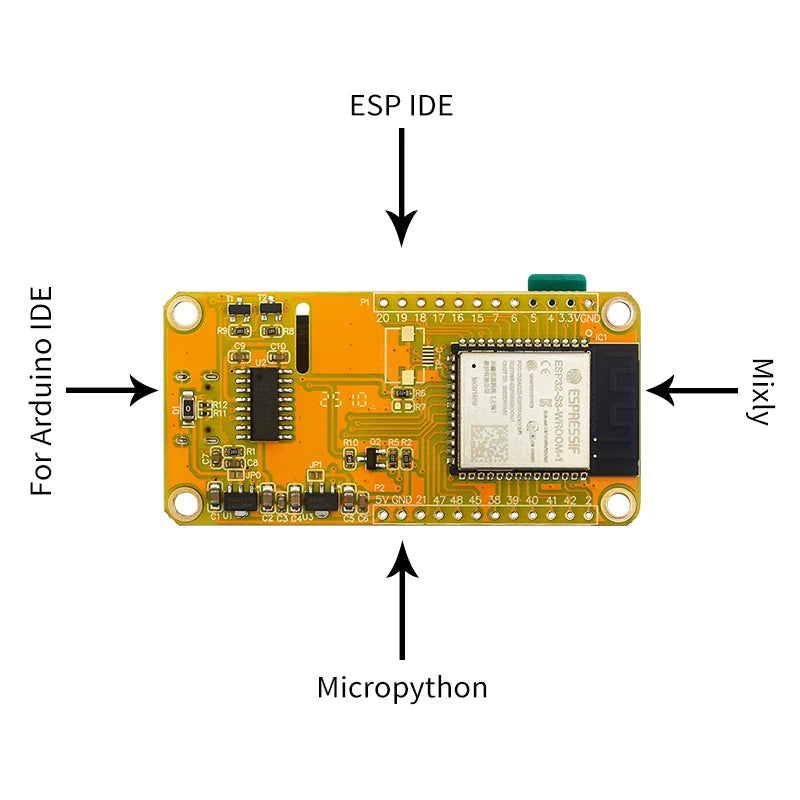

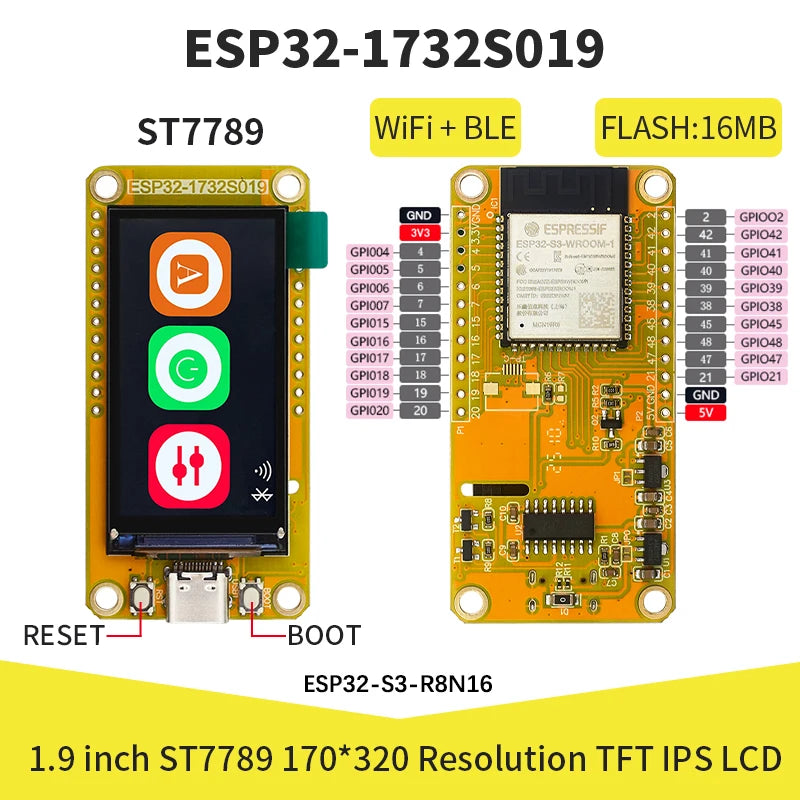

ESP32-S3 Development Board 8M PSRAM 16M Flash 1.9 Inch TFT Screen IPS Smart Display Support One-key Automatic Download Provide LVGL Demo and Arduino Examples
Download link
http://pan.jczn1688.com/directlink/1/ESP32%20module/1.9inch_ESP32-1732S019.zip
Application
Home smart device image transmission
Wireless monitoring
Smart agriculture
QR wireless recognition
Wireless positioning system signal
And other IoT applications
Parameter

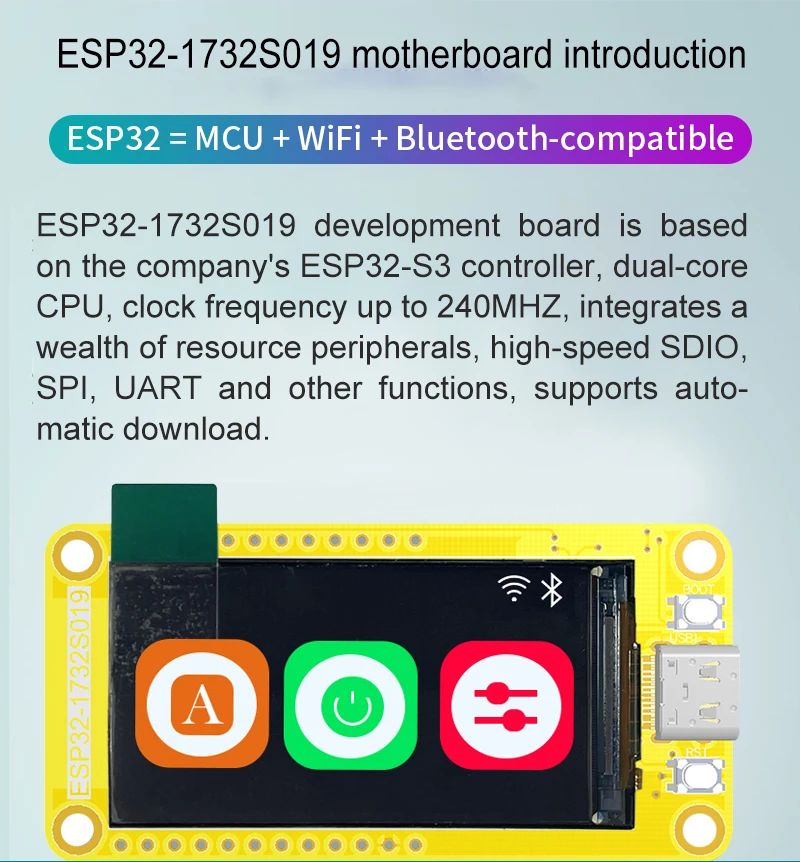

Use low-power dual-core 32-bit CPU, which can be used as an application processor.
The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
Built-in 520 KB SRAM
Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
Support OV2640 and OV7670 cameras, built-in flash
Support picture WiFI upload
Support TF card
Support multiple sleep modes.
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click network configuration
Support secondary development
Specifications
Working voltage 4.75-5.25V
SPIFlash default 32Mbit
RAM internal 520KB
Wi-Fi 802.11b/g/n/e/i
Bluetooth Bluetooth 4.2BR/EDR and BLE standard
Support interface (2Mbps) UART, SPI, I2C, PWM
Support TF card, maximum support 4G
IO port 9
Serial port rate default 115200bps
Spectrum range 2400 ~2483.5MHz
Antenna form Onboard PCB antenna, gain 2dBi
Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE
Packaging method DIP-16
Transmit power 802.11b: 17±2dBm (@11Mbps)
802.11g: 14±2dBm (@54Mbps)
802.11n: 13±2dBm (@MCS7)
Receiving sensitivity CCK, 1Mbps: -90dBm
CCK, 11Mbps: -85dBm
6Mbps(1/2BPSK): -88dBm
54Mbps (3/464-QAM): -70dBm
MCS7 (65Mbps, 72.2Mbps): -67dBm
Power consumption Turn off the flash: 180mA@5V
Turn on the flash and adjust the brightness to the maximum: 310mA@5V
Deep-sleep: The lowest power consumption can reach 6mA@5V
Moderm-sleep: the lowest can reach 20mA@5V
Light-sleep: the lowest can reach 6.7mA@5V
Security WPA/WPA2/WPA2-Enterprise/WPS
Working temperature -20 ℃~ 70 ℃
Storage environment -40 ℃~ 125 ℃, <90%RH
