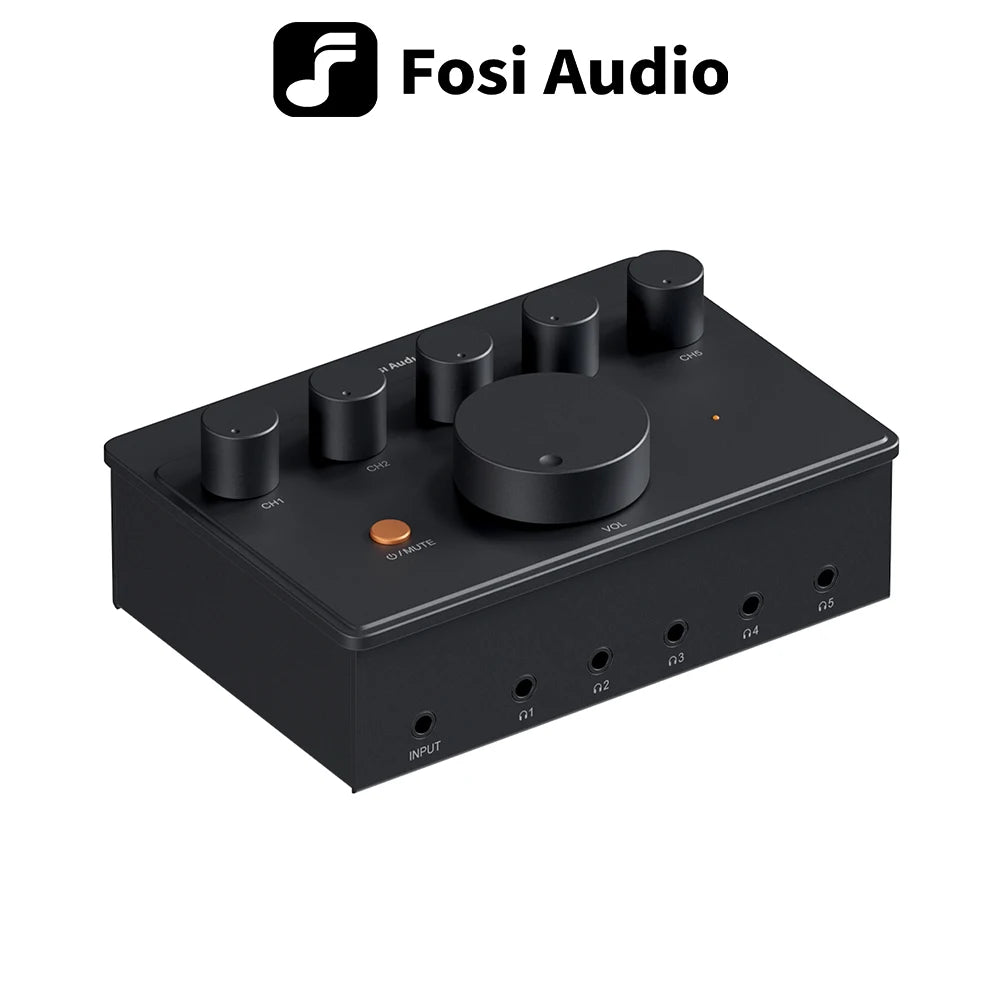

Fosi Audio PH05 5 Channel Headphone Amplifier, Mini Desktop Amp with Audio Interface Podcast Monitor Supports 16-300 Ω with 12V
-
Estimated Delivery:Jul 08 - Jul 12
-
Free Shipping & Returns: On all orders over $75
Fosi Audio PH05 5 Channel Headphone Amplifier, Mini Desktop Amp with Audio Interface Podcast Monitor Supports 16-300 Ω with 12V
SPECIFICATIONS
Bluetooth: No
Body Material: aluminum
Brand Name: Fosi Audio
Built-in Battery: No
Certification: CE
Channels: 5 (4.1)
Connectivity Tech: Wired
Connector Type: 3.5mm Jack, Stereo Audio
Control Type: Button Control
DAC Model: no
DSD (Direct Stream Digital): No
Dimensions (WxHxD): 103 x 57 x 43MM
High-concerned chemical: None
Input Type: LINE IN (AUDIO IN)
Model Number: PH05
Operational Amplifier Chips Model: NE5532
Origin: Mainland China
Output Type: LINE OUT (AUDIO OUT)
Output Voltage: 310mW in 32Ω
Package: yes
Recommended Headphone Maximum Impedance: 251 - 300 Ohm
Signal To Noise Ratio: 105dB
Type: Mini Amplifier
WIFI: No
feature: Portable Headphone,Headphone Amplifier Stereo Audio Amp
highlight: Splitter for Studio and Stage
Fosi Audio PH05 5 Channel Headphone Amplifier, Mini Desktop Amp with Audio Interface，Podcast Monitor Supports 16-300 Ω with 12V
Features:

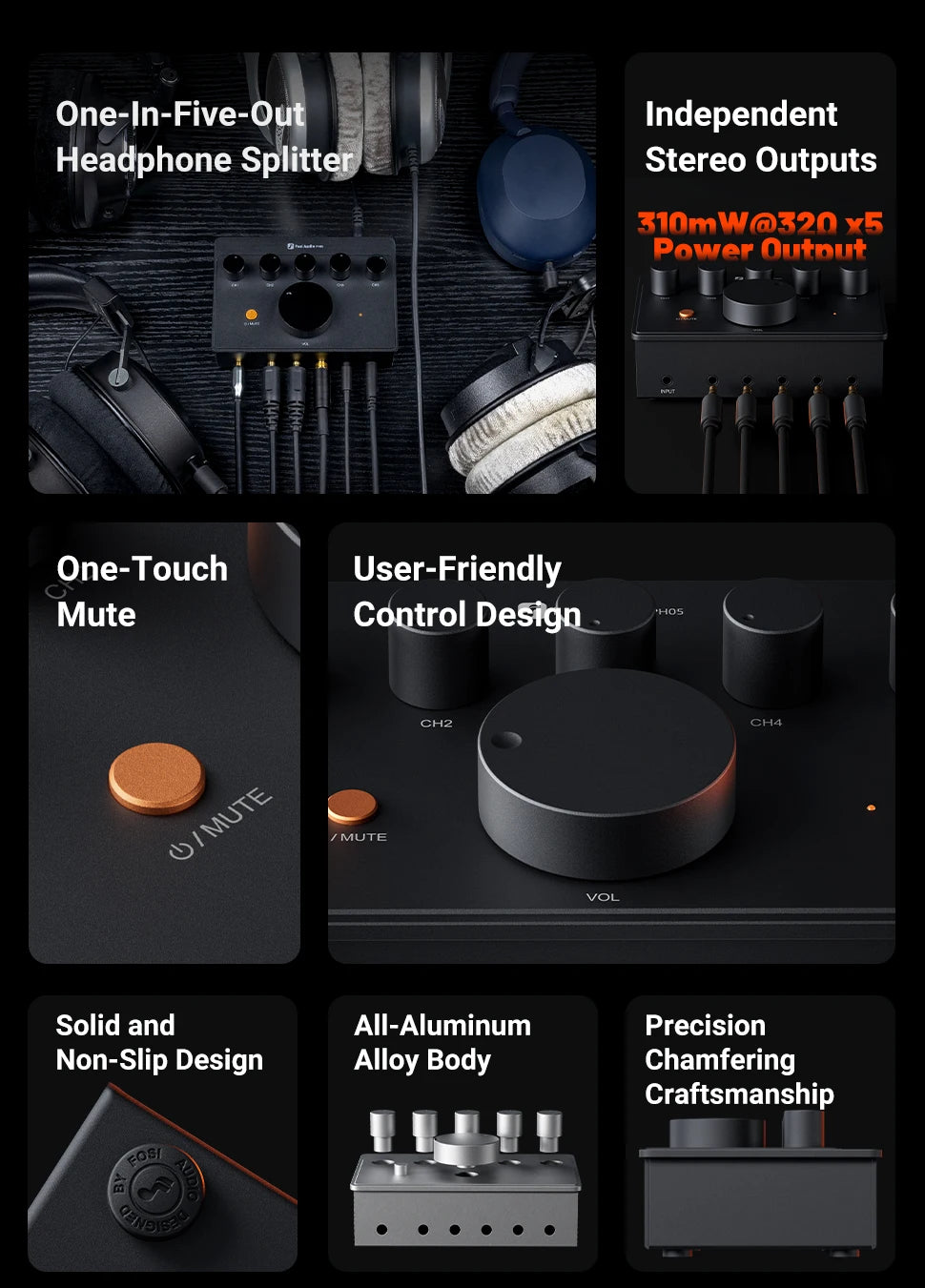

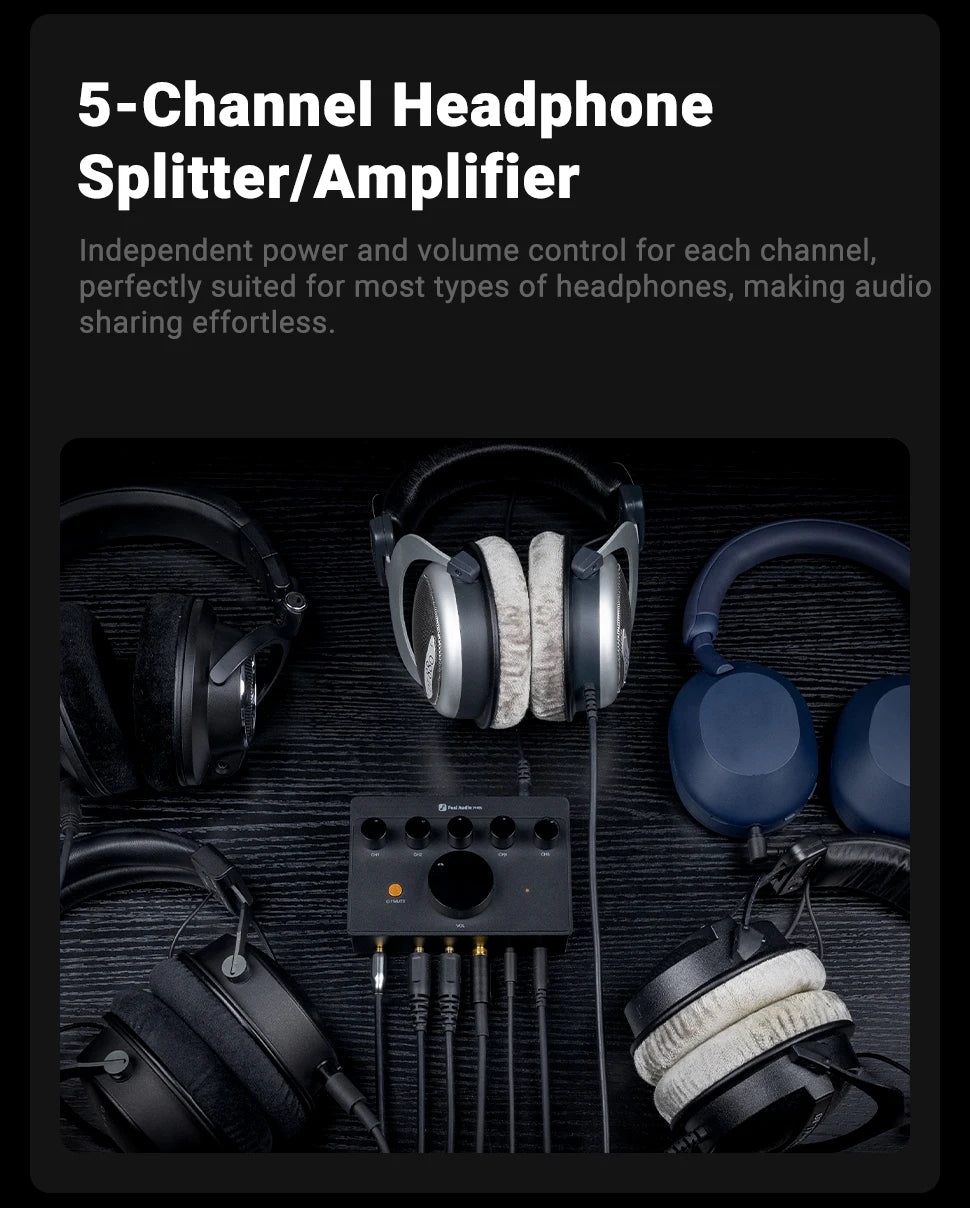

Pro Splitter Amp:he PH05 is a versatile one-in-five-out stereo headphone splitter/amplifier, allowing you to connect up to five sets of headphones simultaneously, adapting to multiple audio-sharing and distribution scenarios. Whether for professional music studio production, podcasting, teaching, or everyday use like seniors watching TV, it will serve as your excellent companion.

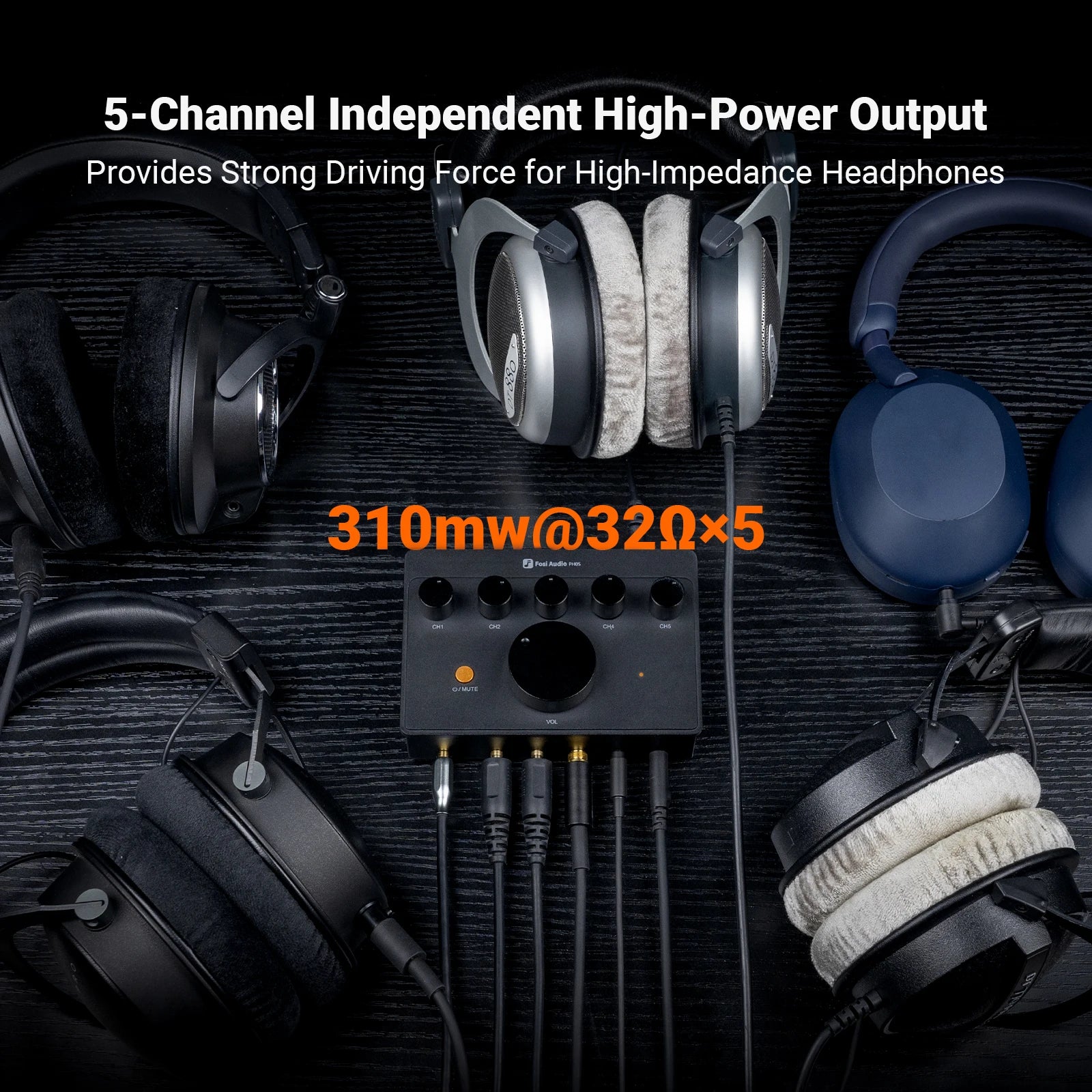

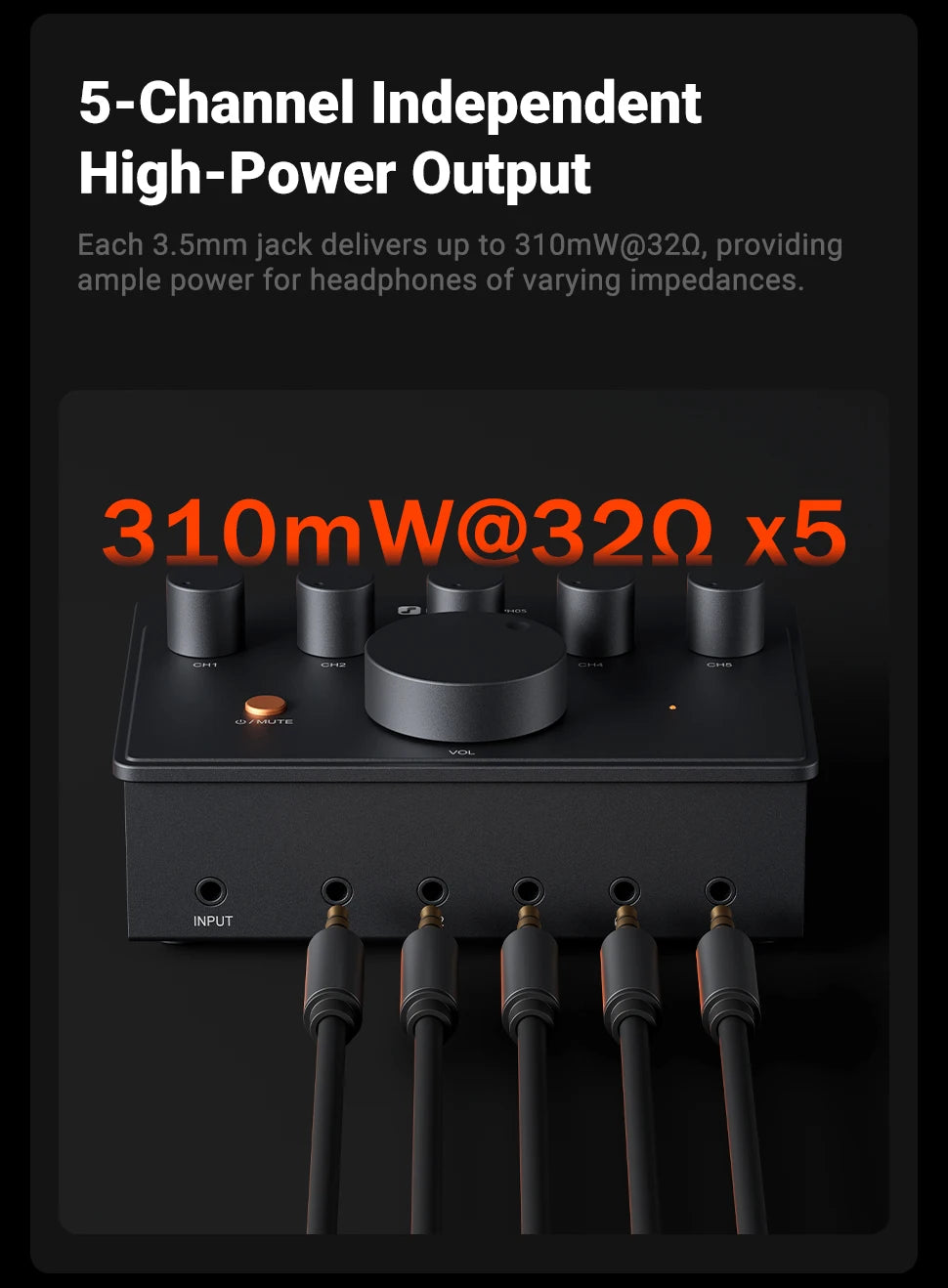

Independent Amplification: Each of the five channels can independently output power up to 310mW@32Ω, perfectly compatible with a variety of monitor headphones and IEMs with impedance ranging from 16 to 300 ohms, providing flexible audio sharing. PH05 is an upgrade model of PH04 which offers one more channel and higher power output.

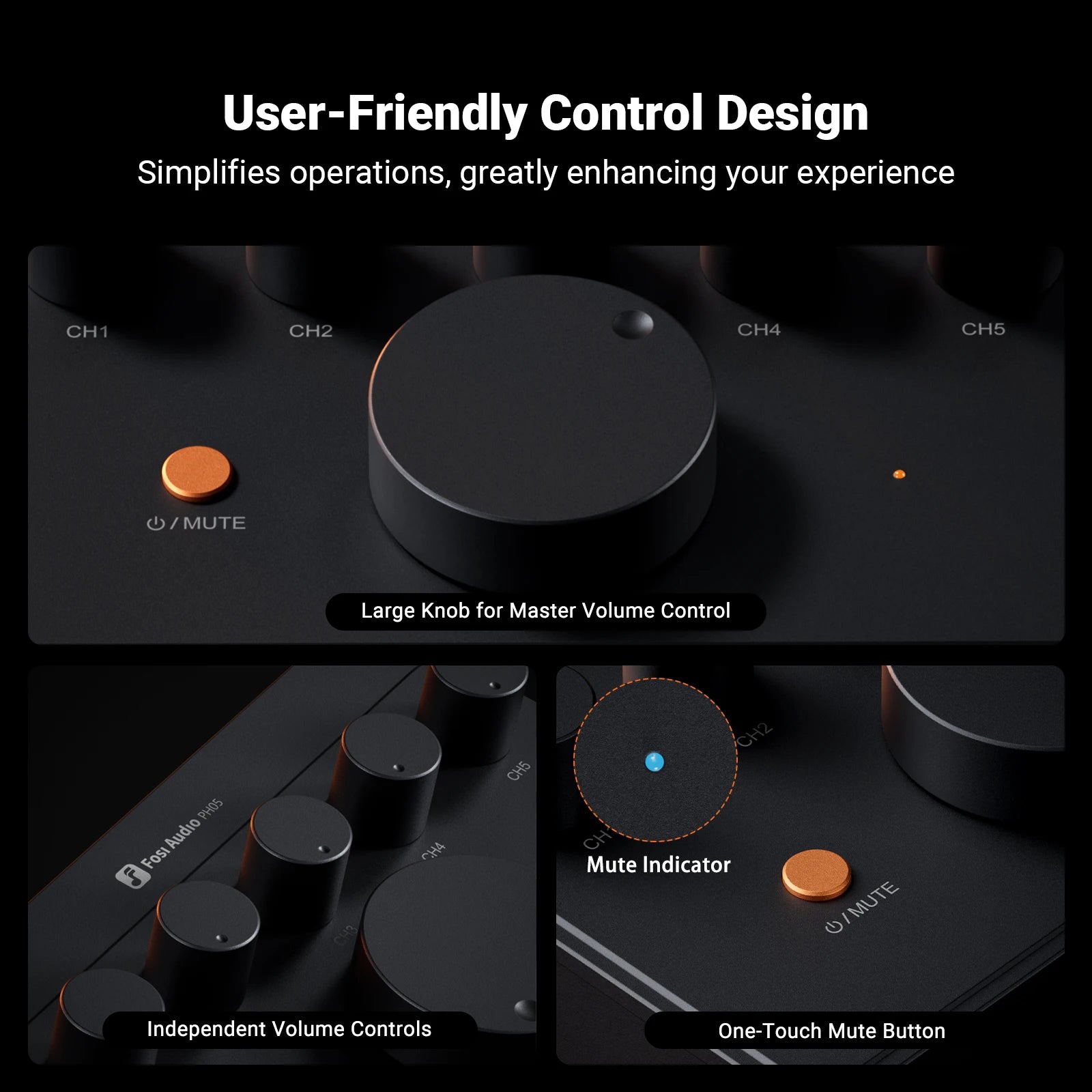

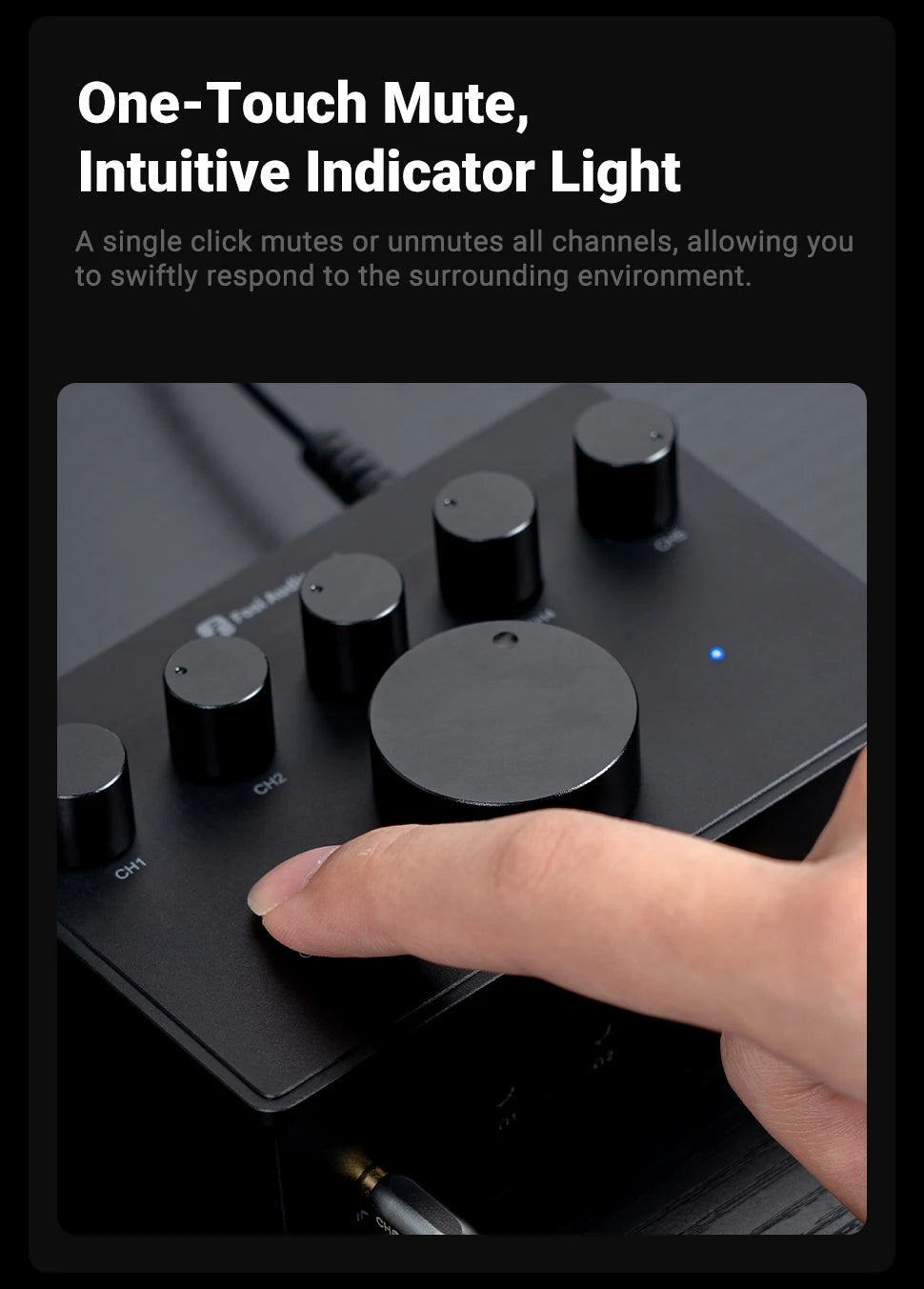

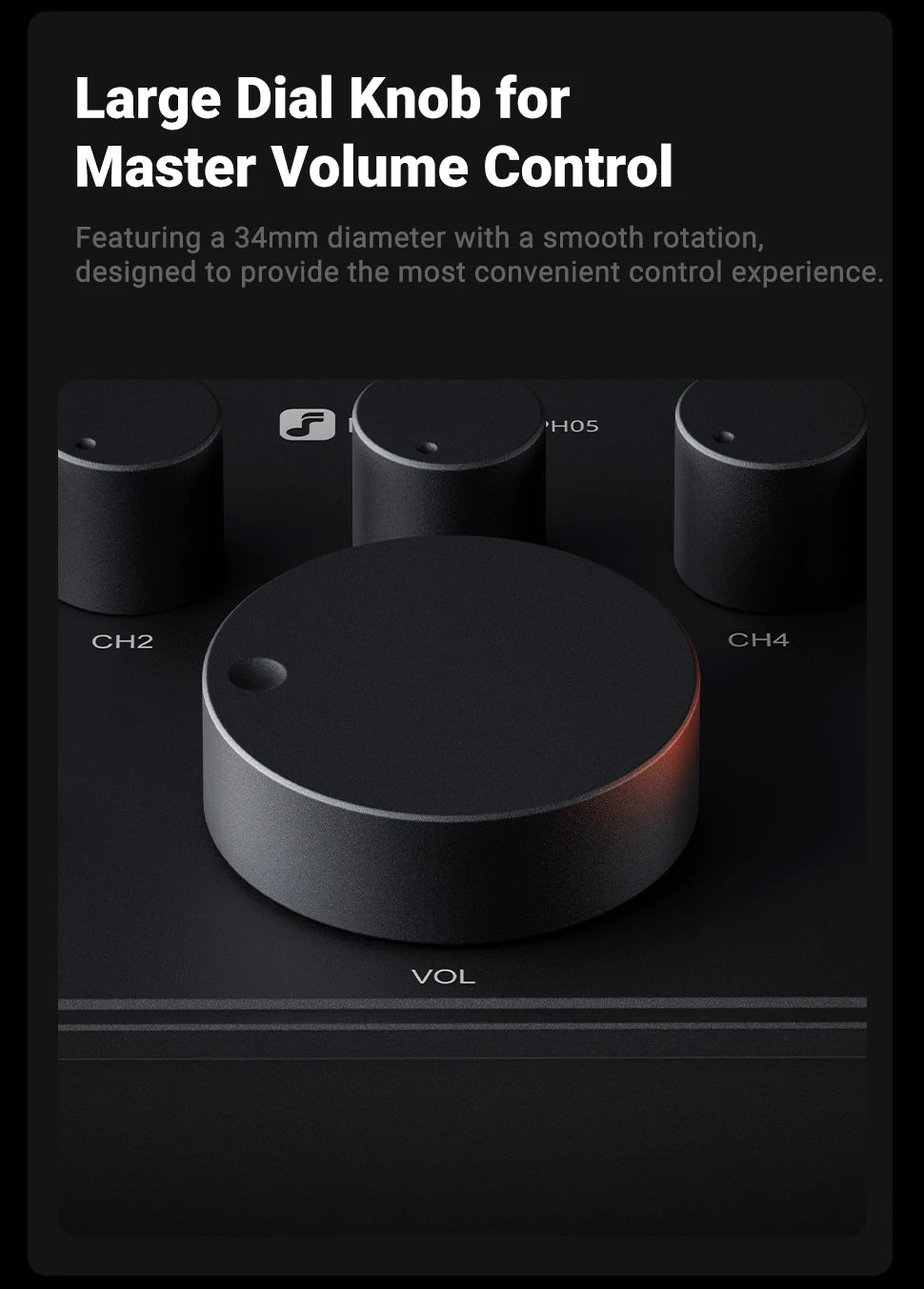

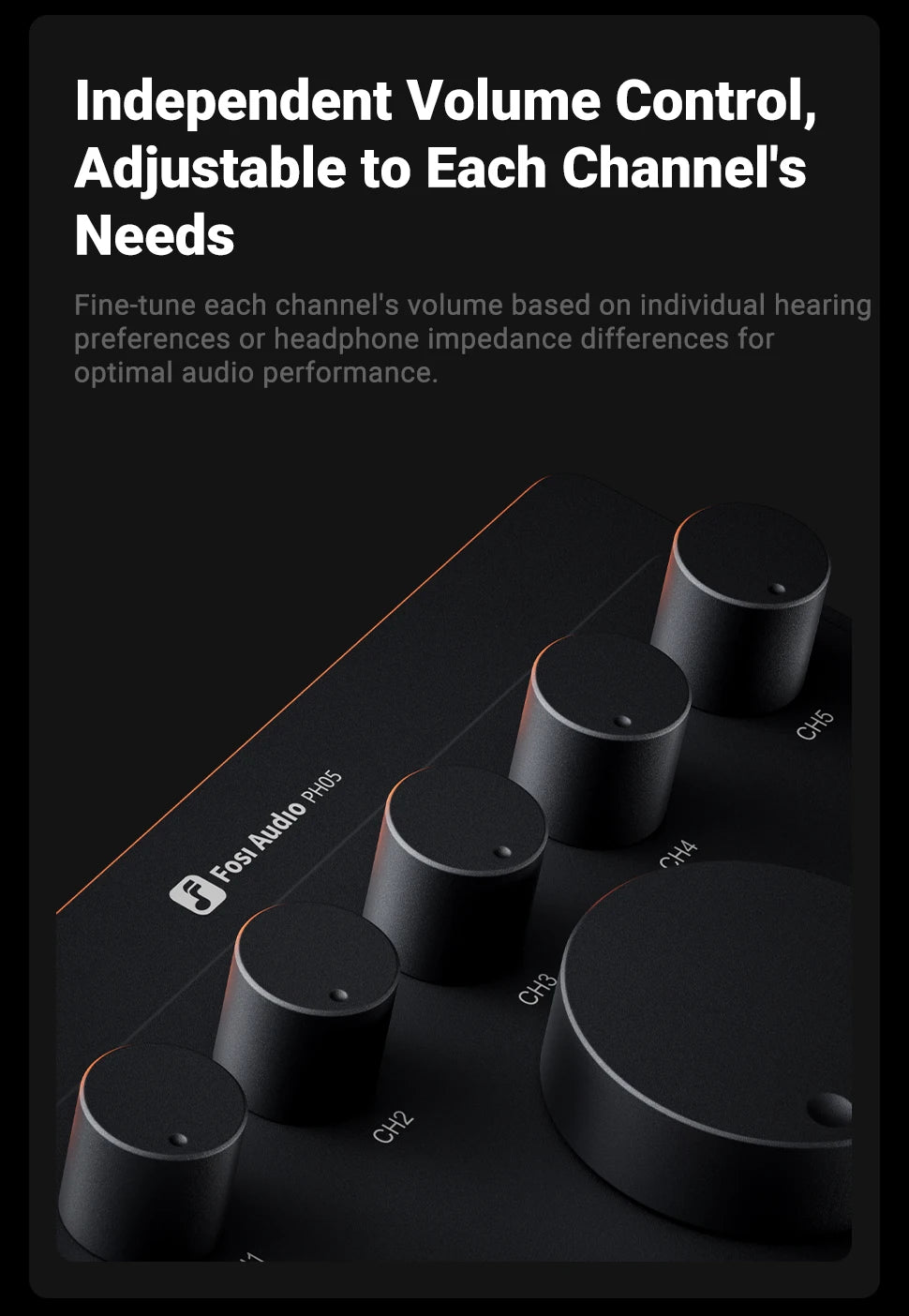

User-Friendly Control: Equipped with independent level control knobs for each channel, ensuring that adjustments made to one channel do not affect others, allowing personalized volume settings for each headphone. Additionally, features a large-diameter master volume control and a one-touch mute button, greatly enhancing ease of use.

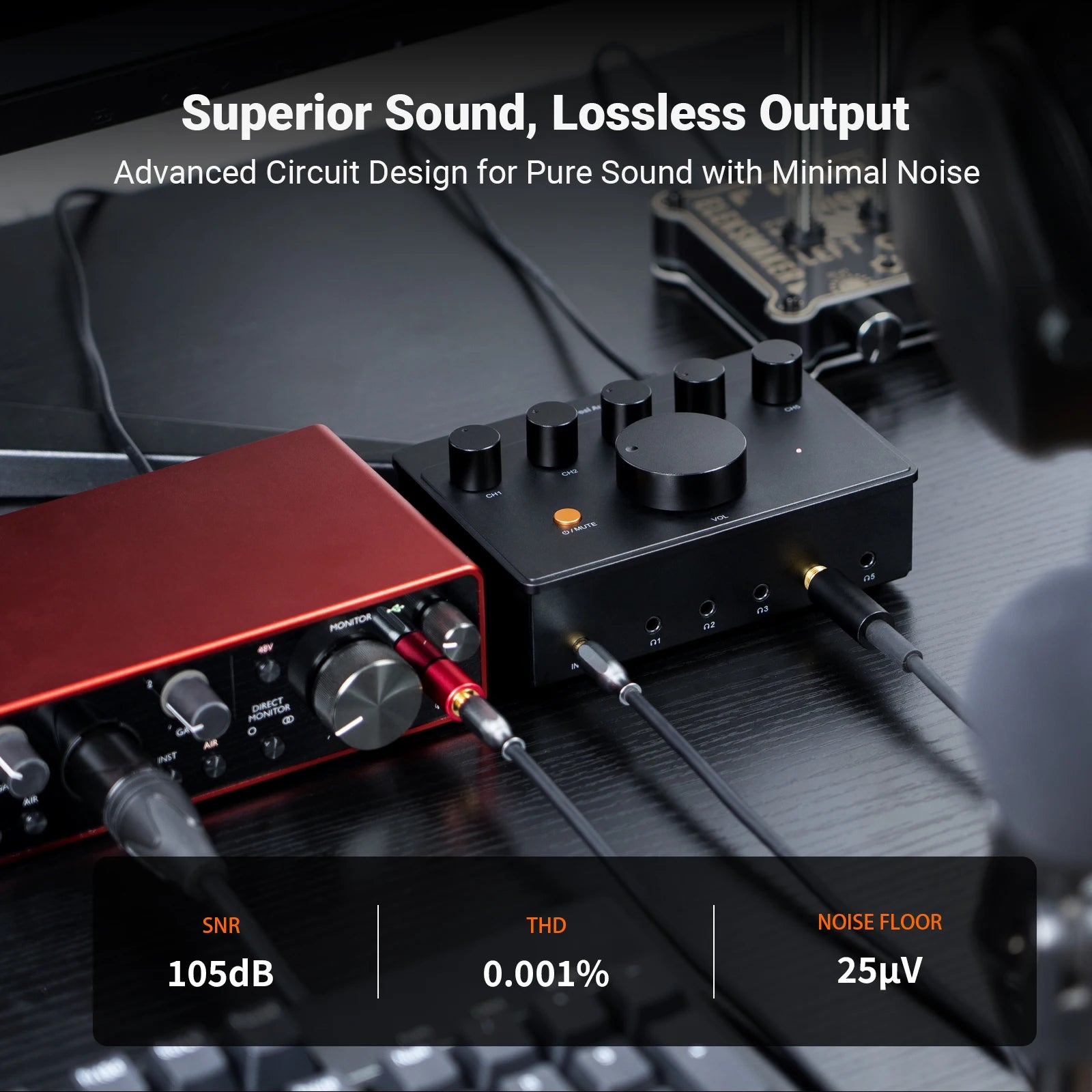

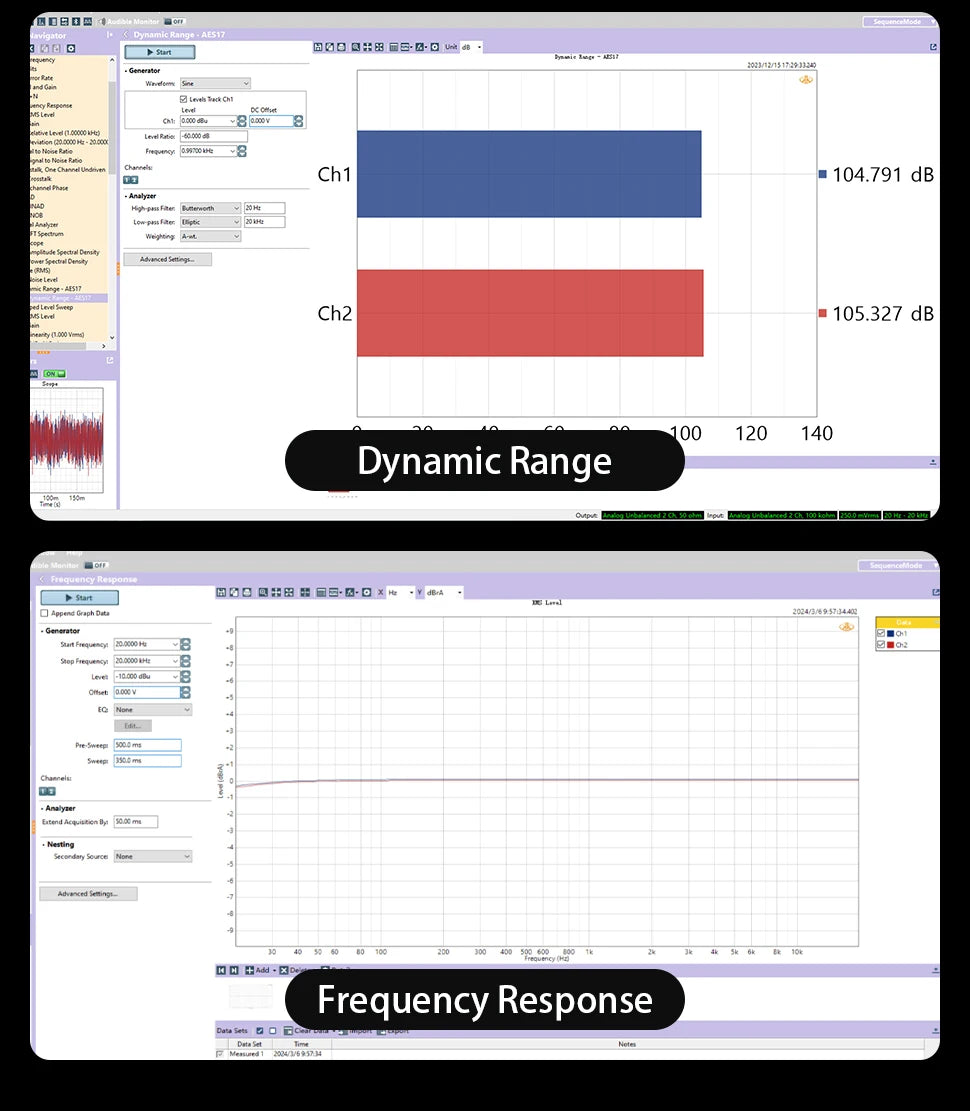

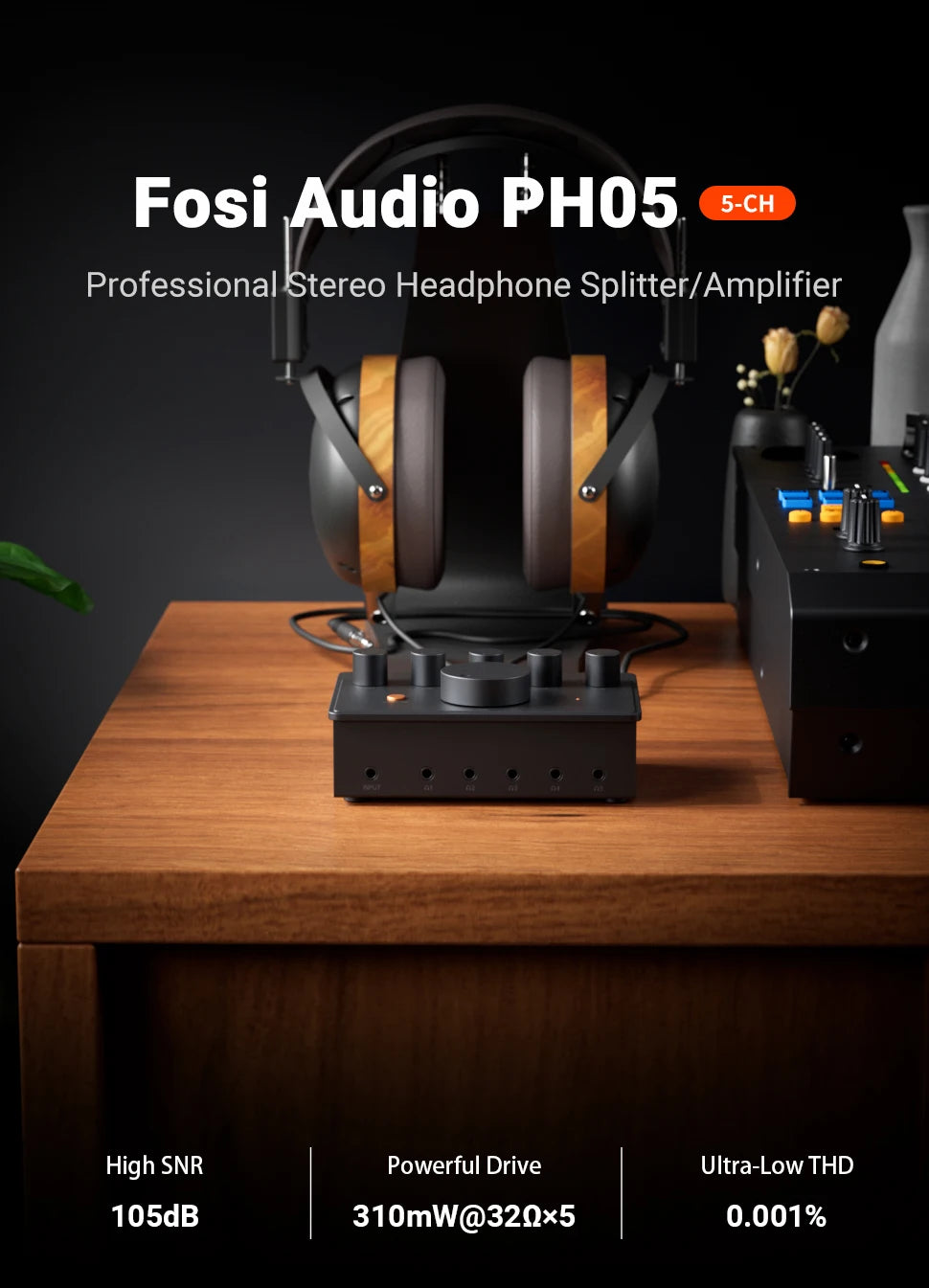

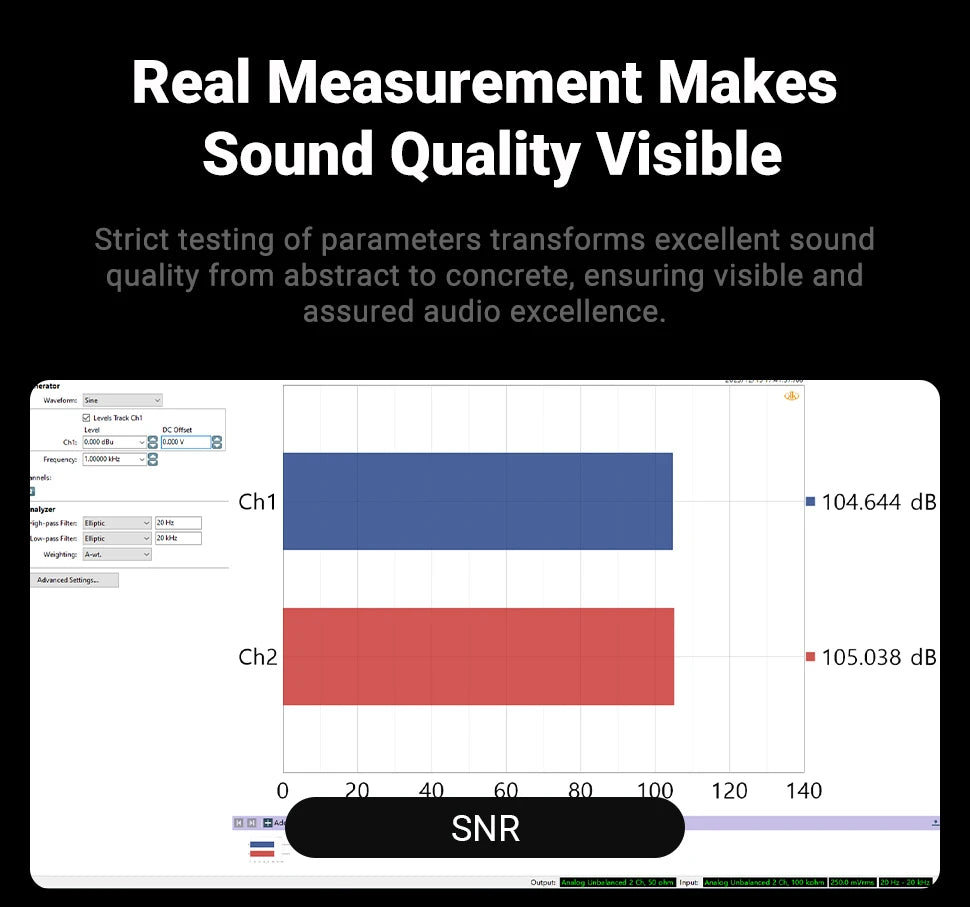

Outstanding Performance: In addition to delivering robust power output, the PH05 boasts an advanced circuitry design internally, ensuring pristine sound. With an SNR of up to 105dB, THD as low as 0.001%, and noise floor as low as 25μV, it guarantees exceptional audio fidelity.

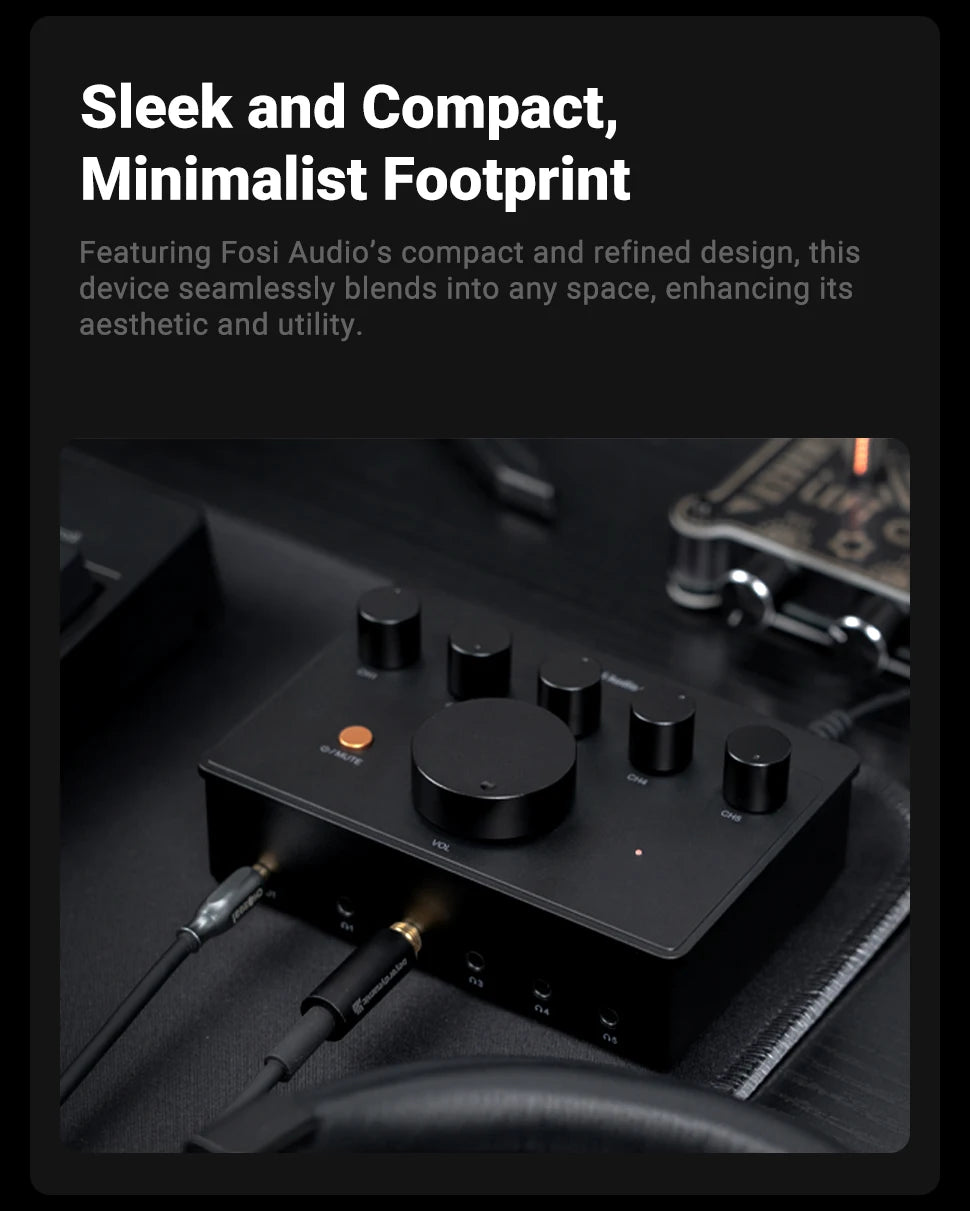

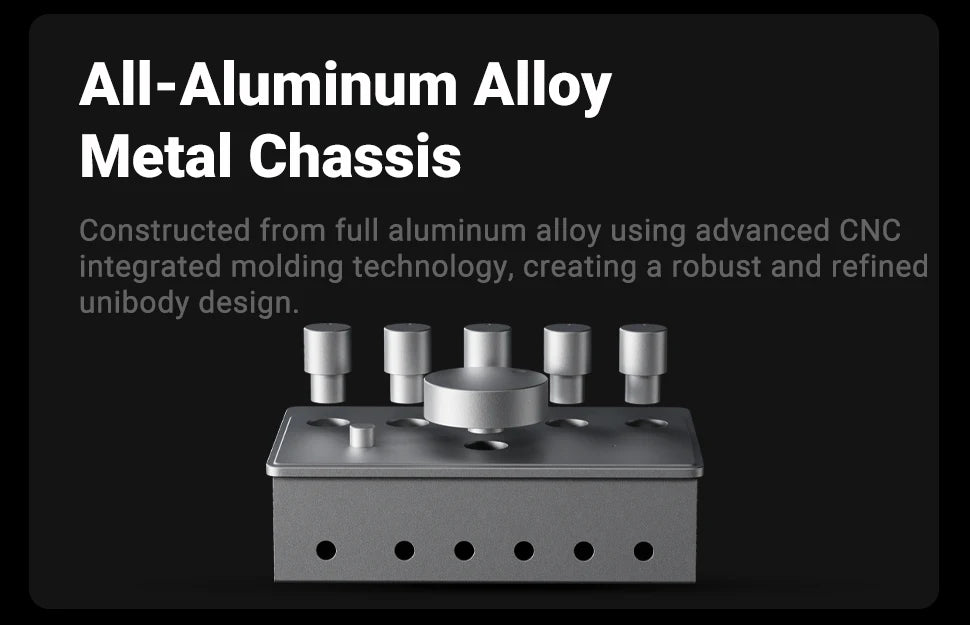

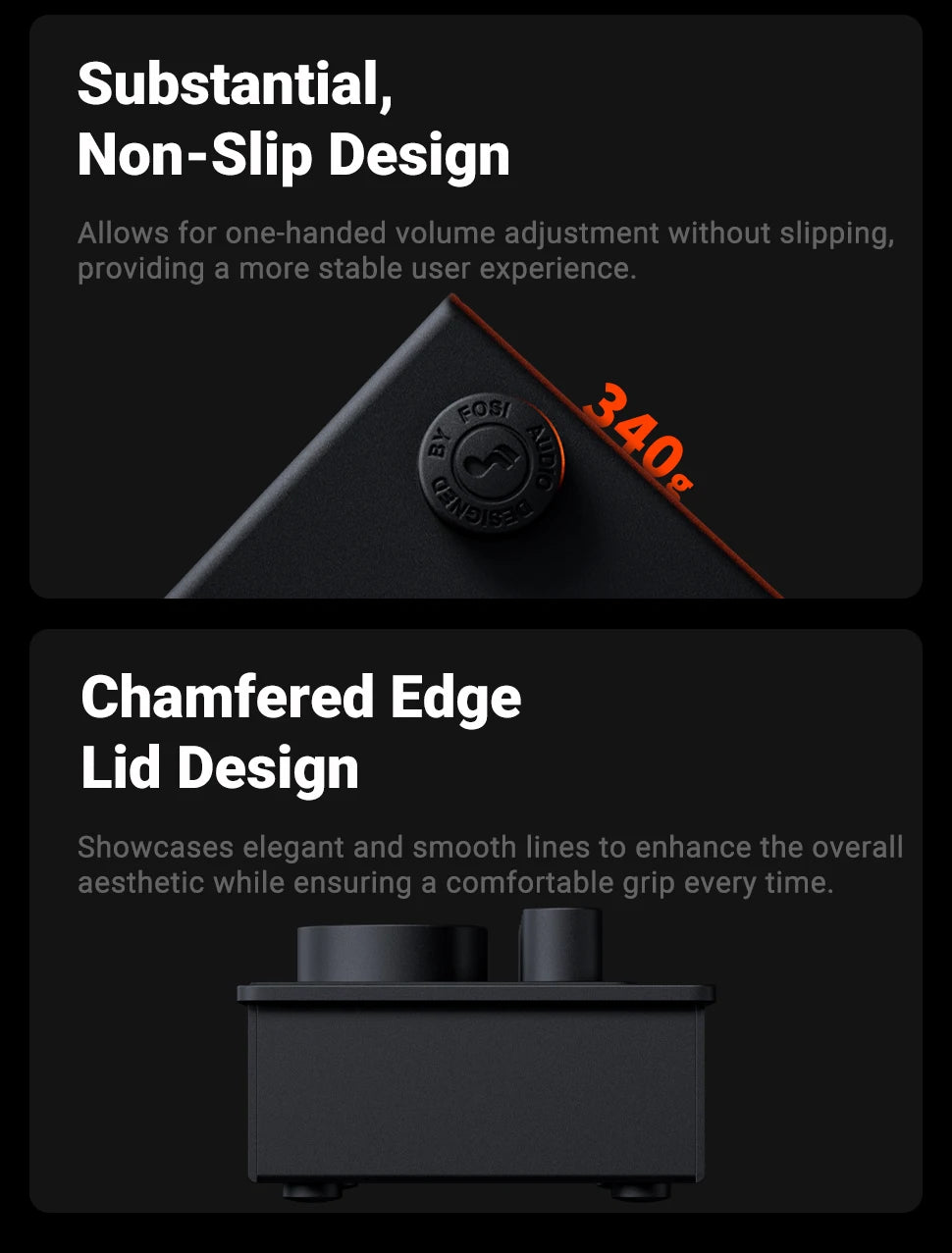

Substantial & Compact: The perfect combination of all-aluminum alloy solid build, exquisite appearance, anti-slip foot pads, and greater stability. Experience the superior quality in every touch, complemented by the peace of mind that comes with Fosi Audio's 24-month warranty.

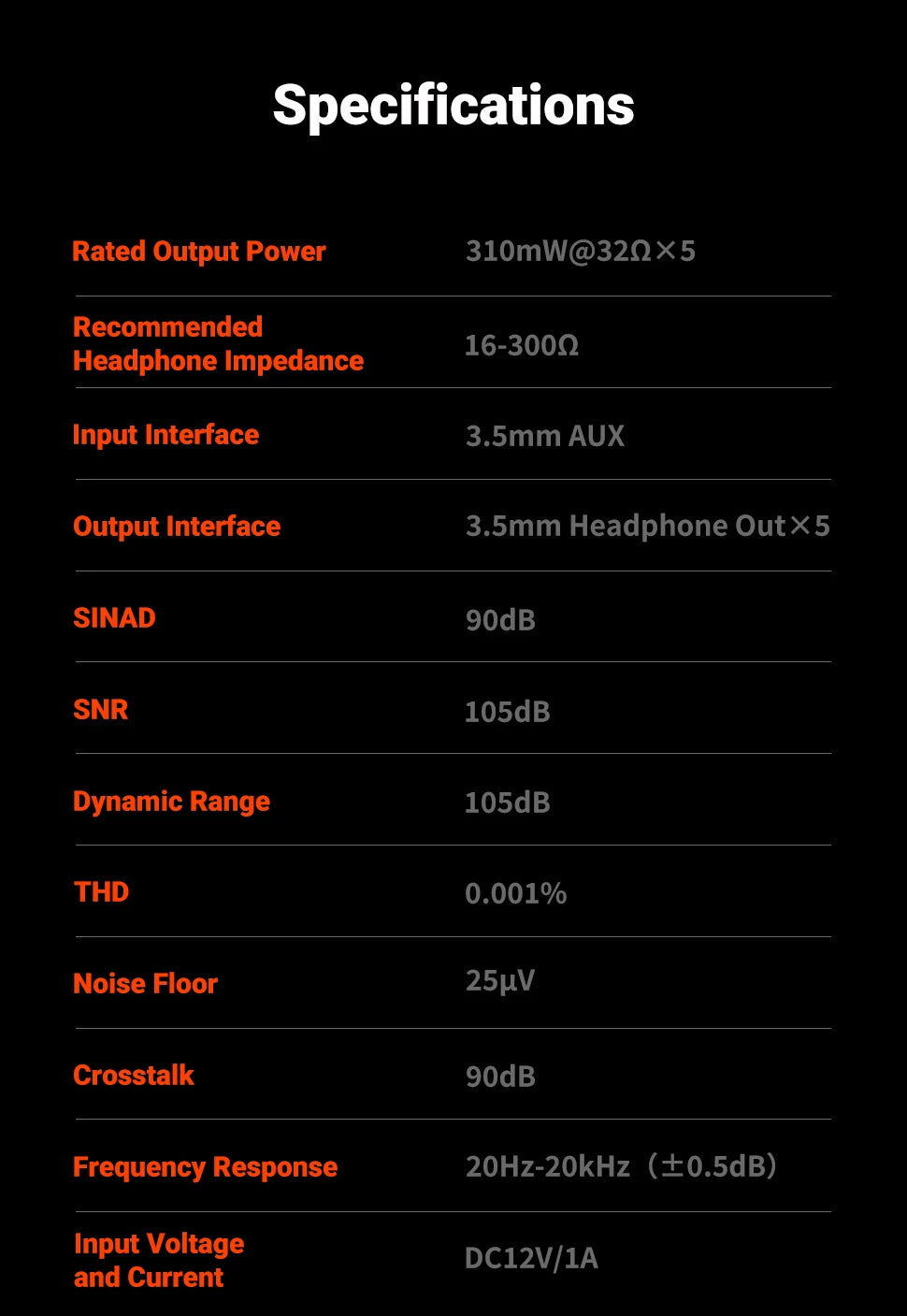

Specifications:
Rated Output Power: 310mW@32Ω×5
Recommended Headphone Impedance: 16Ω-300Ω

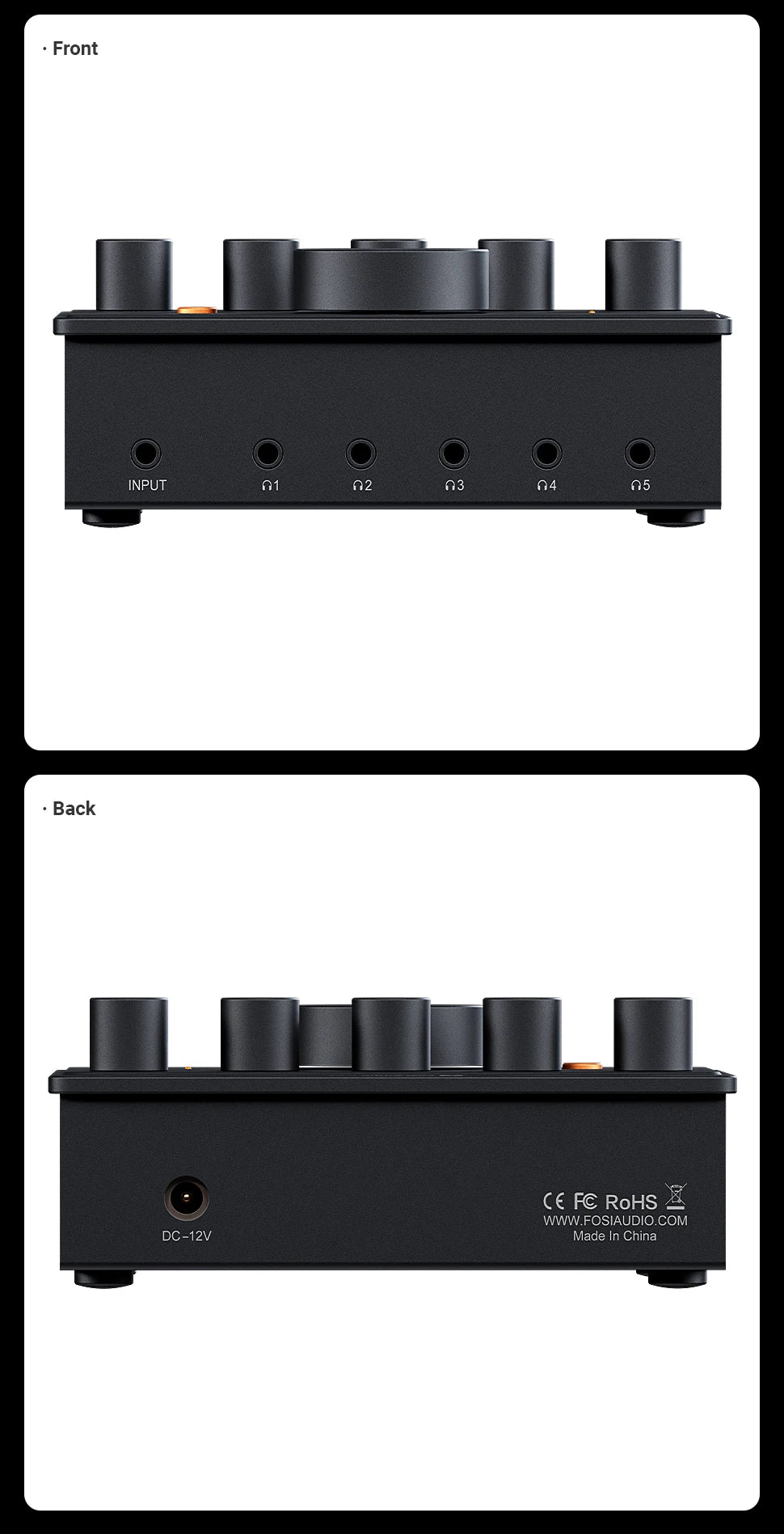

Input Interface: 3.5mmAUX
Output Interface: 3.5mm Headphone Out×5
THD：0.001%
Channel Output: Stereo
Frequency Response: 20-20khz (±0.1d)
SNR: 105dB
Crosstalk: 90dB
SINAD: 100dB
Op-amp chip: NE5532
Ear amplifier chip: HT97220 * 5
Audio input interface: AUX input
Weight: 500g
Product size: 230mmx130mmx90mm
Power supply: DC 12V 1A

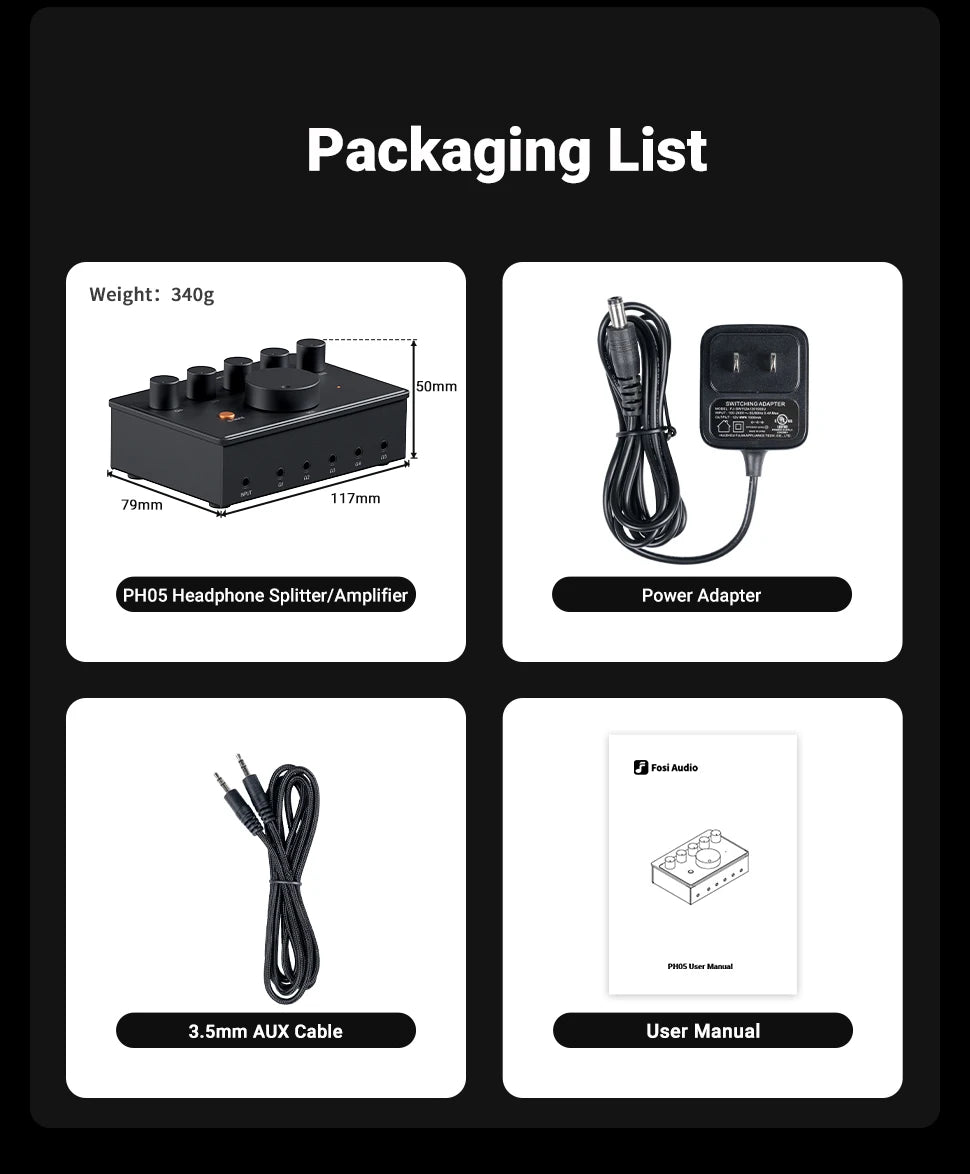

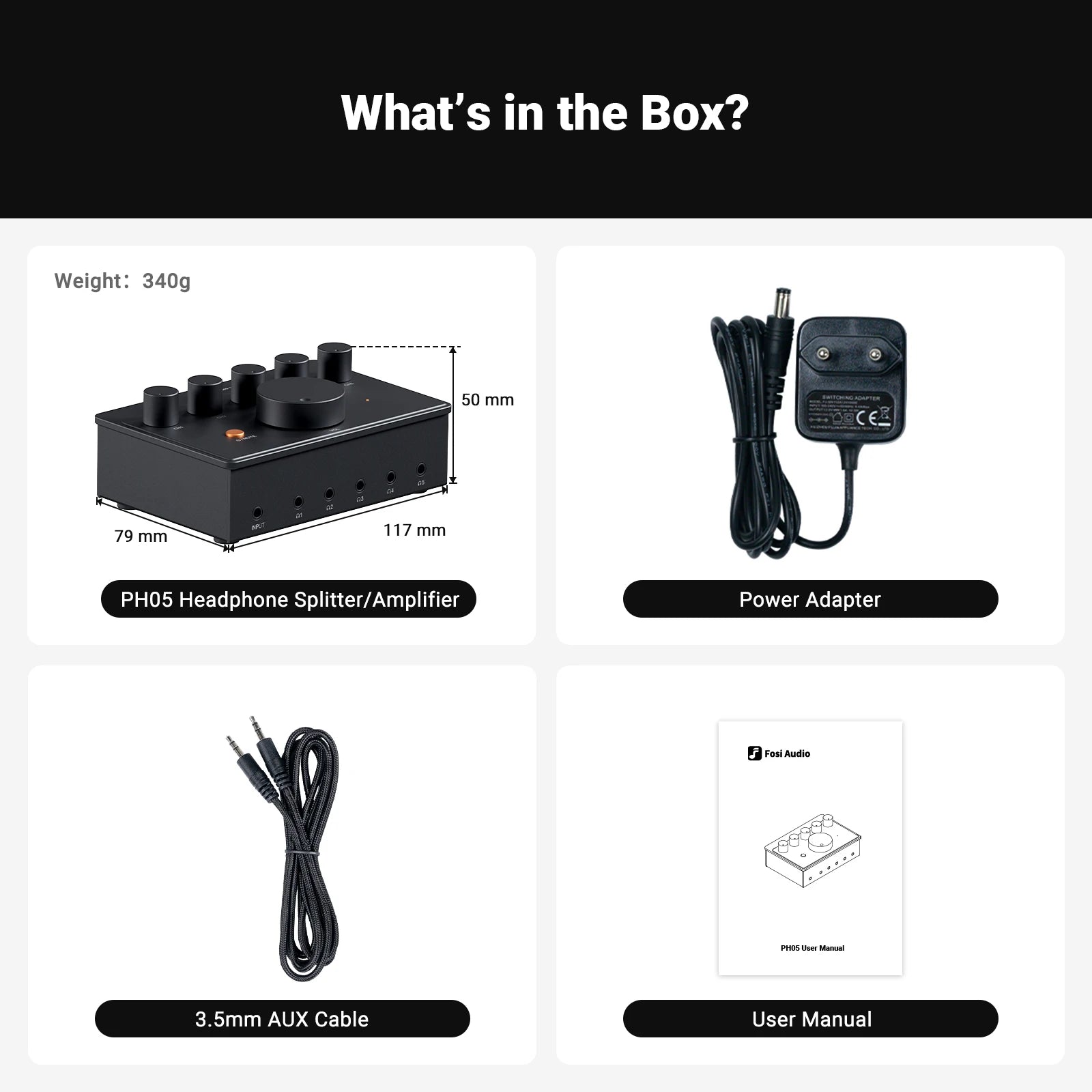

Package Include:
*PH05 Headphone amplifier x1
*User Manual x1
*12V 1A Power Supply x1
