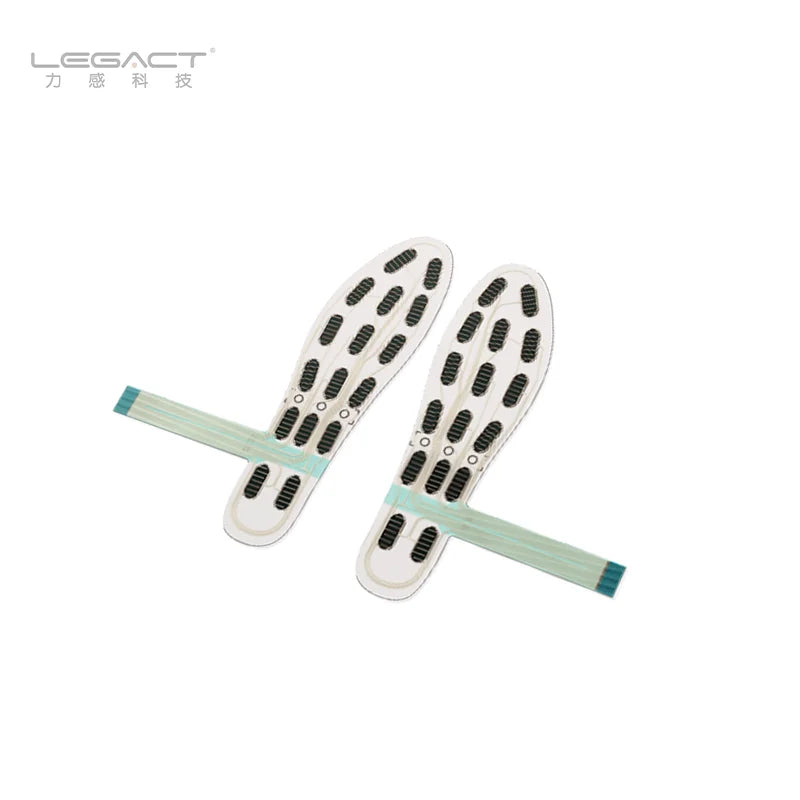

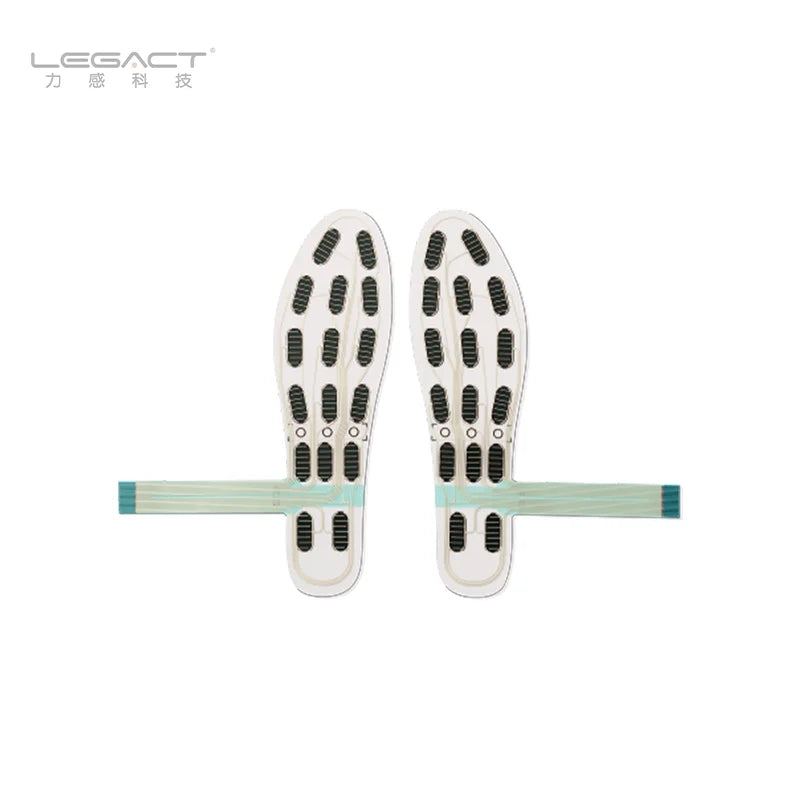

FS-INS-16Z Legact Wearable Smart Insole Sensor 0.4mm Thickness 16 Sensing Points 500g Actuation Force 0.5Kg-10kg Pressure Range
Regular price
$1,119.93
Sale price
$1,119.93
Regular price
$0.00
Unit price
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
🔒 Secure Checkout
💰 Money Back Guarantee
↩️ Free Returns
🚚 Fast Shipping
FS-INS-16Z Legact Wearable Smart Insole Sensor 0.4mm Thickness 16 Sensing Points 500g Actuation Force 0.5Kg-10kg Pressure Range
Product reviews
Product description
Shipping & Return
SPECIFICATIONS
Accuracy: ±15%
Actuation Force: 500g
Brand Name: Legact
Description: plantar pressure sensor,Legact
EMI: Generates no EMI
Features: /
Installation: /
Life time: Over 1 million times of walking (Daily walking in normal situation)
Manufacturing Date Code: /
Model Number: FS-INS-16Z
Mounting Type: easy installation
None-actuated resistance: > 10M Ω
Operating Temperature: /,-20℃~+65℃
Output: /
Place of Origin: Guangdong, China
Port Size: /
Port Style: /
Pressure Range: 0.5Kg~10kg
Pressure Type: /
Resolution Bits: /
Response Time: <10ms
Sensitivity Range: 0.5Kg~10kg soft impressor
Series: FS-INS
Technology: /
Theory: Resistance Sensor
Thickness: 0.4mm
Type: force sensitive resistor,Flexible
Usage: Force Sensitive Resistor
Product Description

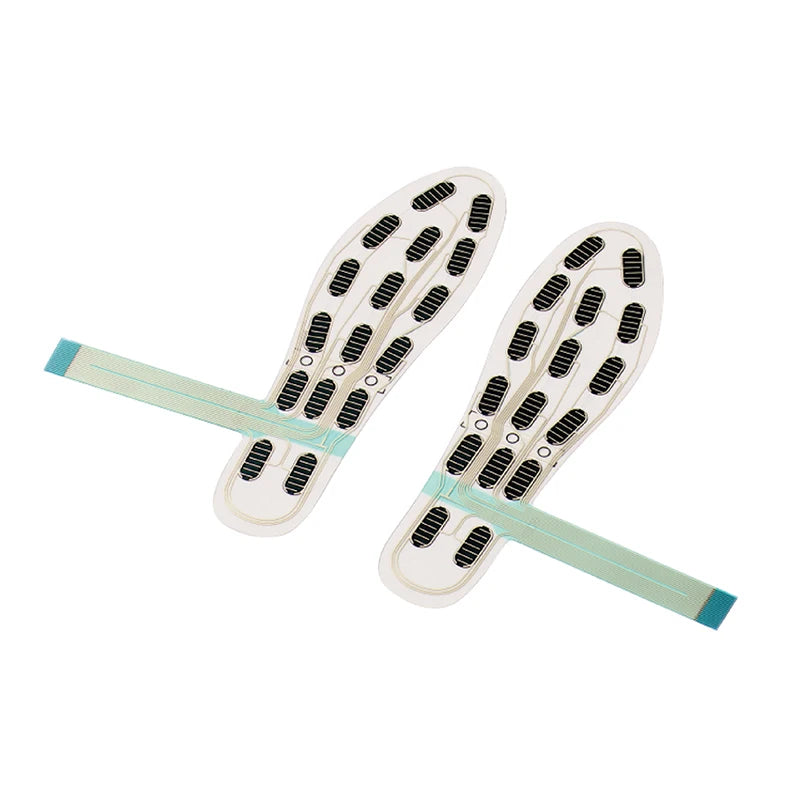

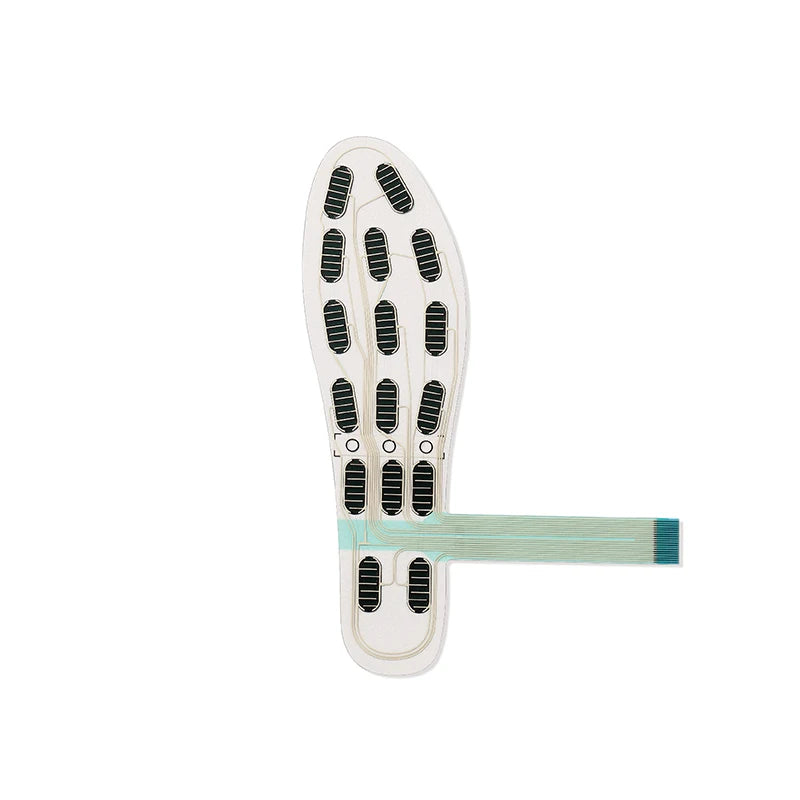

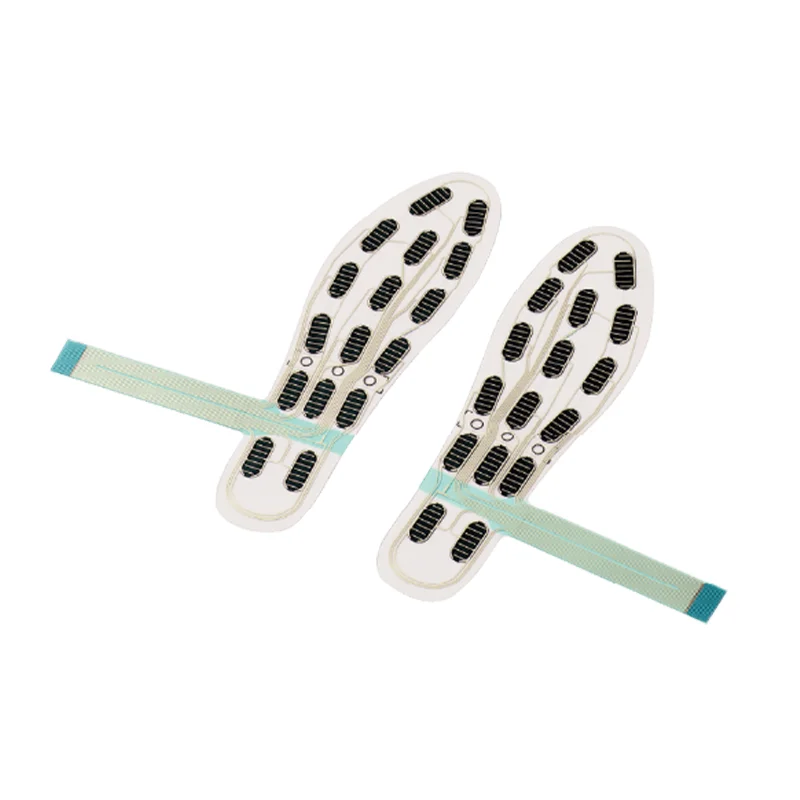

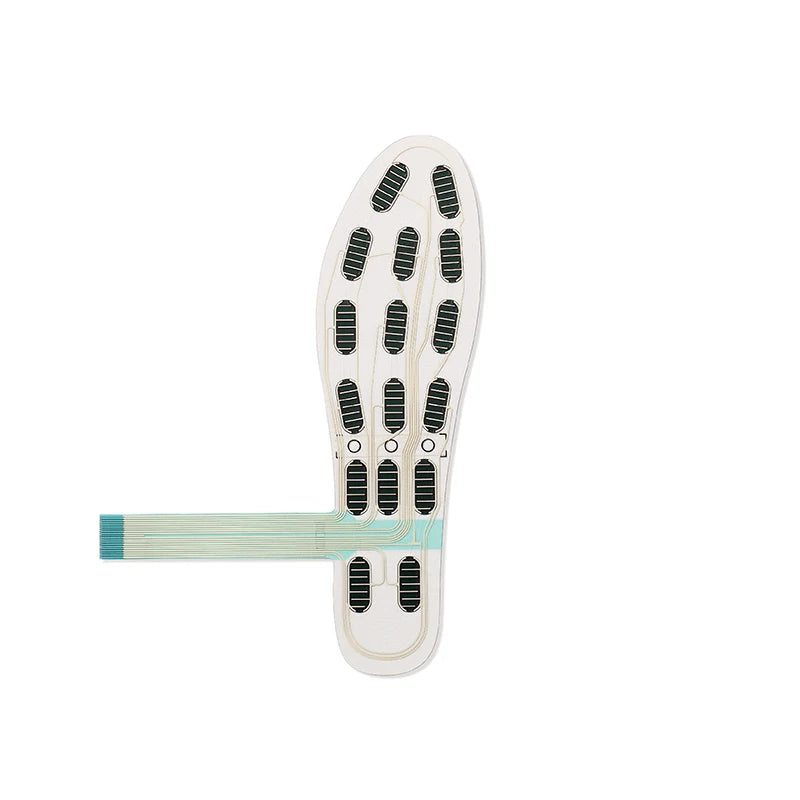

The FS-INS-16Z plantar pressure sensor is a flexible thin film pressure sensor with 16 independent sensing zones, and the output resistance of the sensing zone changes with the change of external pressure.
Reasonable induction area layout, a total of 20 interface leads, interface leads using 1mm spacing, 10Pin, 0.3mm thickness plug interface. Among them, 2 are public lines, 16 are independent leads in the induction area, and 2 are vacant lines.
Technical Data and Physical Properties
Thickness |
0.4mm |
Shape |
flexible |
Actuation force |
500g |
Sensitivity range |
0.5Kg~10kg |
Operating temperature |
|
None-actuated resistance |
>10MΩ
|
Response Time |
<10mS |

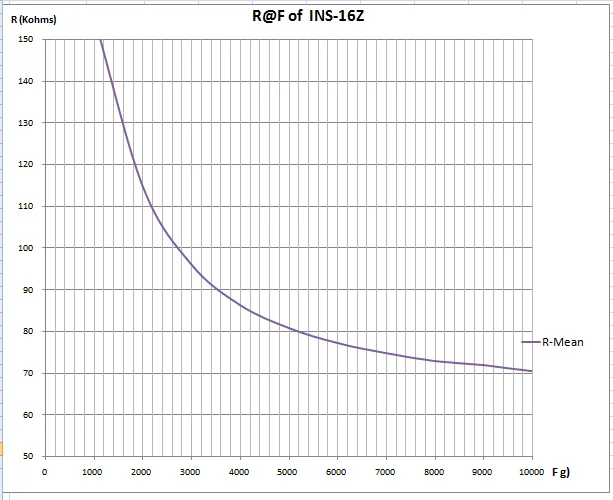

Force curve
The following plot shows an example response resistance curve, when the sensor actuated by a force curve tester.
Application Circuit
1.Voltage Divider
The sensor is placed in series with a fixed resistor (R0), and output voltage is measured across R0. It is given by Vout=Vcc*R0/(R0+Rs).
How to define the fixed resistor value, Basically, R0 is 1/3 to 1/2 of the resistance range of Rs. What’s more, if R0 is appropriate, you can get a near-linear curve of Force vs Vout in a special force range. Depending on the impedance requirements of the measuring circuit, the voltage divider could be followed by an op-amp.
2.Force Threshold Switch
This is an ideal circuit for applications that require on-off switching at a specified force. It consists a Wheatstone bridge circuit and a voltage comparator.
When apply force and Rs becomes to be lower than R1, lead U1+ to be higher than U1-, and Vout becomes to be high. This high level signal can used to be trigger signal of following devices, for example, it can trigger a relay, and then control LEDs, buzzer warning, motor and other load devices.
Custom sensors
We can design specialized sensors to meet the customers’ unique requirements. It is including specialized shape andsize,specialized force vs. resistance characteristic, special material and thickness, unique active area shape and quantity, and also connection options.

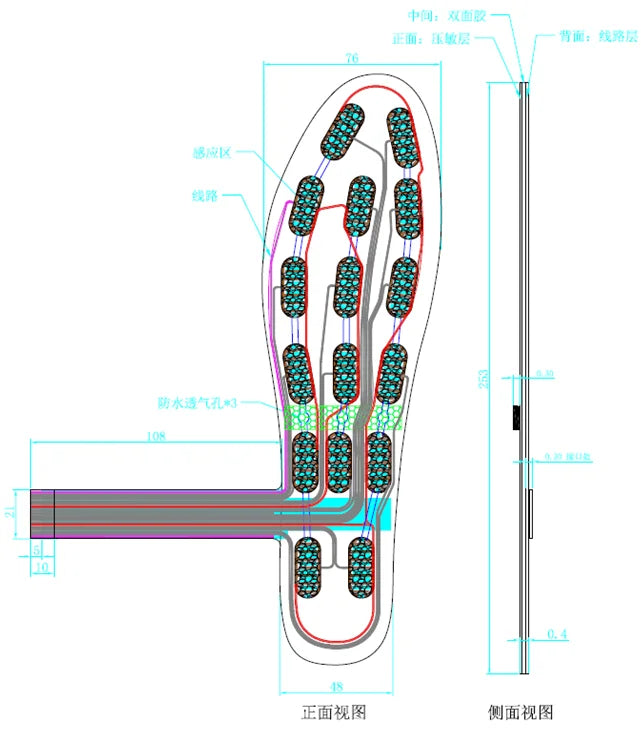

Mechanical data of sensor FS-INS-16Z
Mobile Phone: +8615813728838
Email: denny@film-sensor.com
Click on the picture to send us an inquiry for more information
Product application
Favorable feedback
Customers give us good reviews
Company Introduction
Shenzhen Legact Technology Co., Ltd. is a subsidiary company of Shenzhen Institute of Advanced Technology, Chinese Academy of Sciences.
Our sensing solution products include force sensitive resistor (FSR sensor), piezoelectric film sensor, array sensor,pressure mapping system, sleep monitoring sensor and sleep monitoring system.

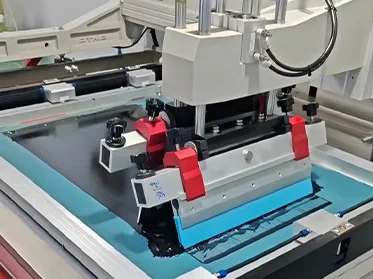

Factory Demonstration
Force sensing resistor ( FSR sensor)
Fiber covering protection
FPC/PCB
SMT/PCBA
FPC/PCB
SMT/PCBA
Office Workplace
This is where we discuss solutions with clients or our internal meetings take place.
What we can do
FSR Sensor R&D Prototype, Development Manufacturing and Customization
Sensor Fiber Cover Protection
Firmware Development
Hardware Design
PCB Production
PCB Assembly
Firmware Development
Hardware Design
PCB Production
PCB Assembly
Exhibition
FSR sensor, pressure distribution and sleep monitoring system products are launched at exhibitions around the world.
frequently asked questions
1.Can thin-film resistance pressure sensors measure accurately?
Thin-film resistance pressure sensors cannot be accurately measured and can qualitatively analyze the trend of pressure changes or the relative magnitude of the test pressure.
2.Can the sensor be folded and bent?
Although the sensor is flexible, folding the pressure-sensitive active area may cause the conductor to break, and it isrecommended not to bend more than 90°.
3.Is the sensor resistant to high temperatures?
Operating temperature range -40°C~+85°C
4.How do flexible sensors feedback pressure? Is the resistance constant, or is it decreasing by a constant value?
Flexible pressure sensors are resistive: the greater the force, the smaller the resistance.
5.Is the sensor waterproof?
The flexible pressure sensor material is not recommended to be in direct contact with the liquid, and the sensor needs to be waterproof.
6.What surface is best for the sensor to place?
Flat and smooth surfaces are optimal, where moist gases or dirt particles can cause false triggering of the sensor.
7.Will the sensor be damaged if it exceeds the range?
Exceeding the range will not damage the sensor, and the sensor can continue to work normally after the range returns to normal.
