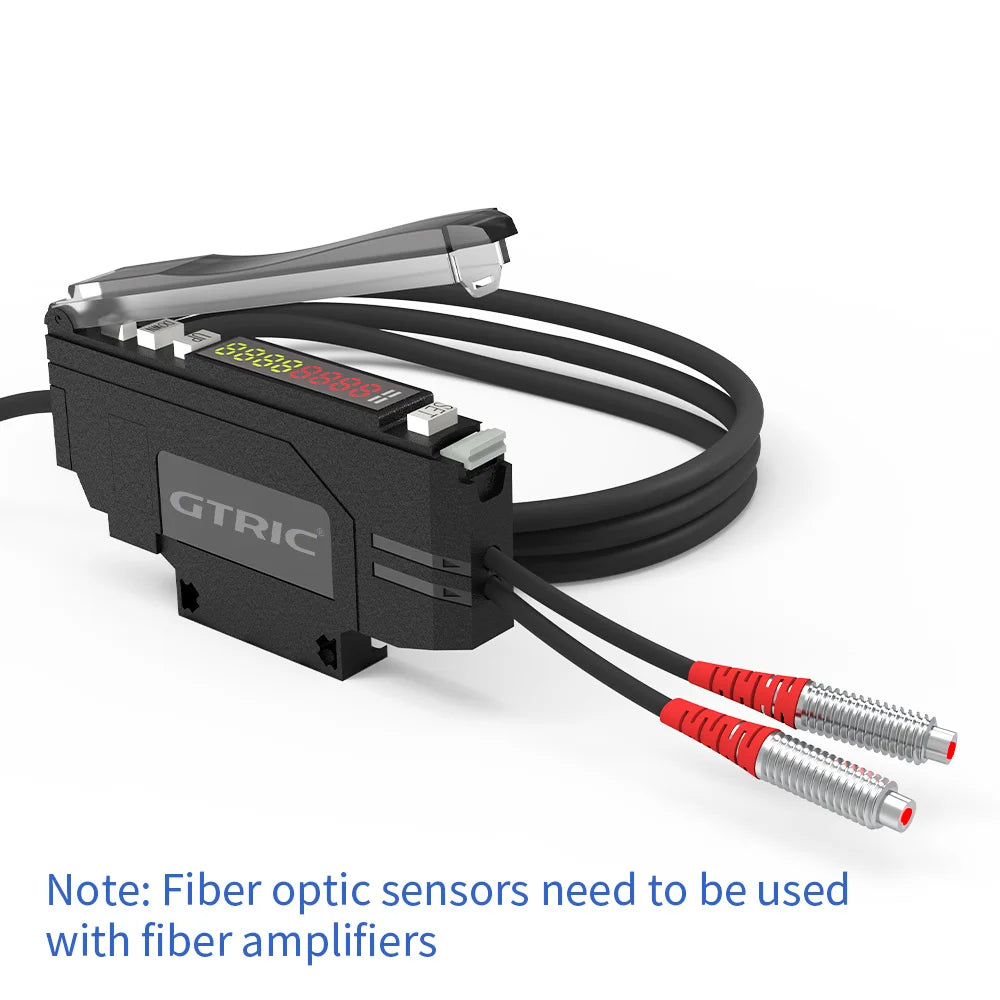

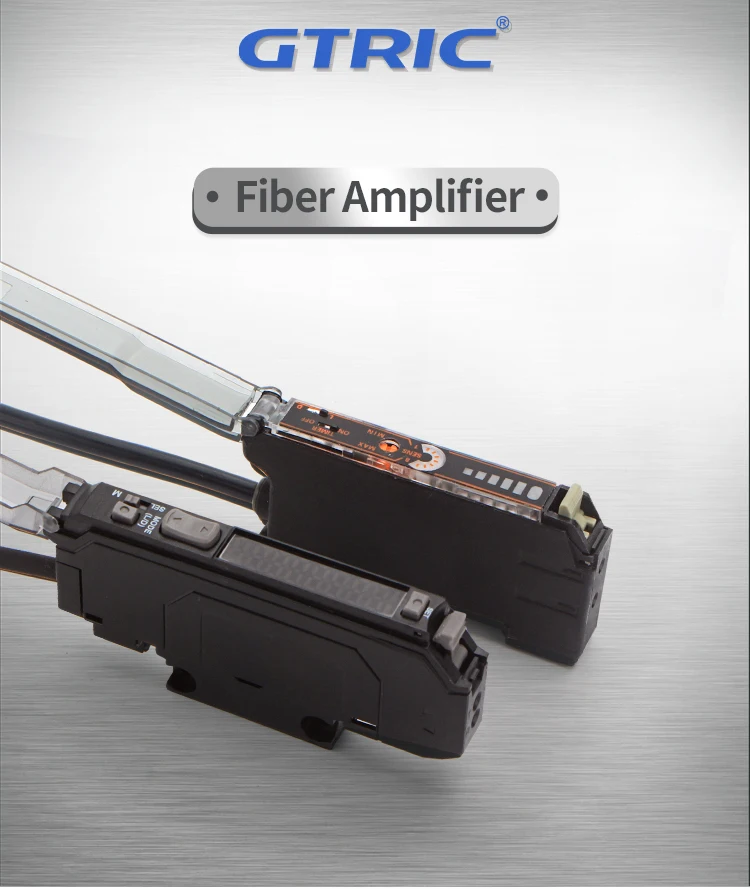

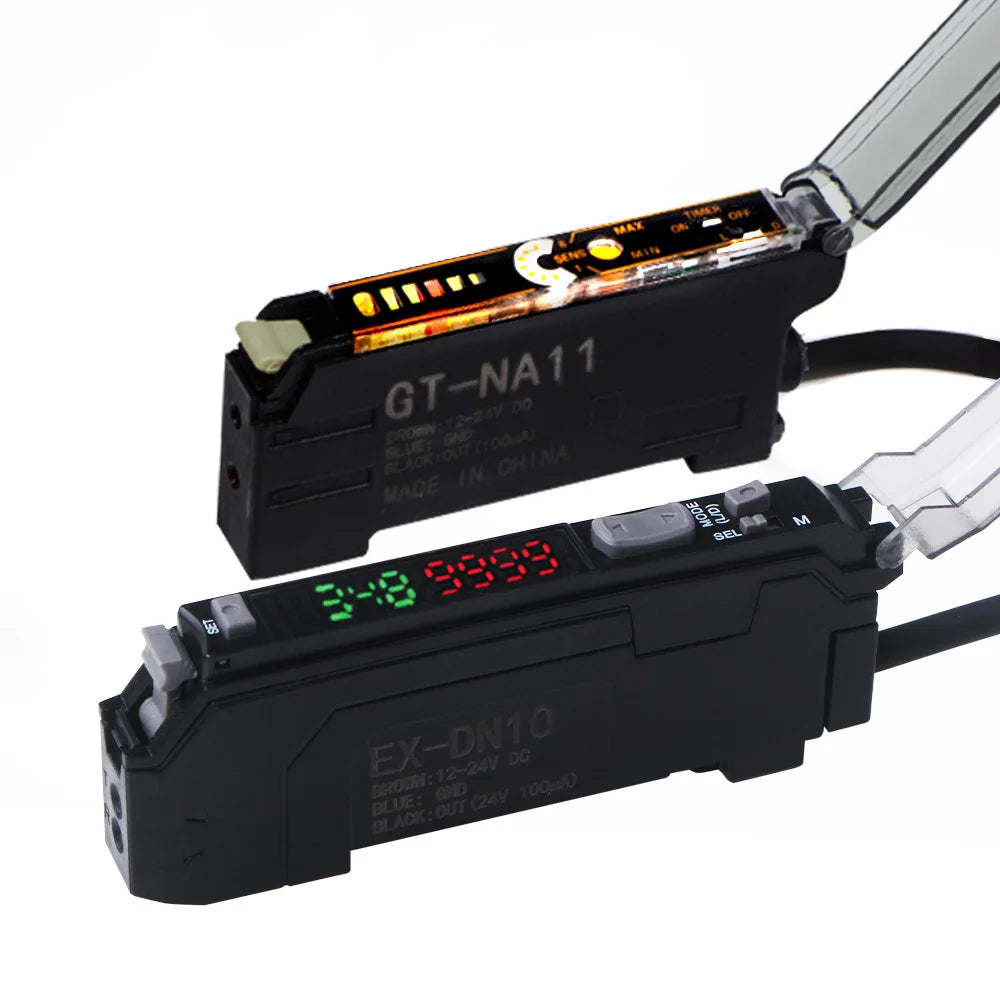

GTRIC high precision General purpose digital optical switch 12-24VDC NPN PNP photoelectric fiber optic amplifier sensor
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
GTRIC high precision General purpose digital optical switch 12-24VDC NPN PNP photoelectric fiber optic amplifier sensor
SPECIFICATIONS
Brand Name: GTRIC
Connection: 1m fiber Cable
Description: Digital Fiber optical Amplifier Sensor,fiber optic sensor amplifier
Features: Sense whether an object is passing by
Function: Emitter power optional Output time delay optional
Minimum sensing distance: 0-0.1MM
Model Number: DN10
Mounting Type: Rail fixed installation
Output: NPN NO/NPN NC/PNP NO/PNP NC
Place of Origin: Zhejiang, China
Residual voltage: DC≤1V
Sensing distance: 0-400MM

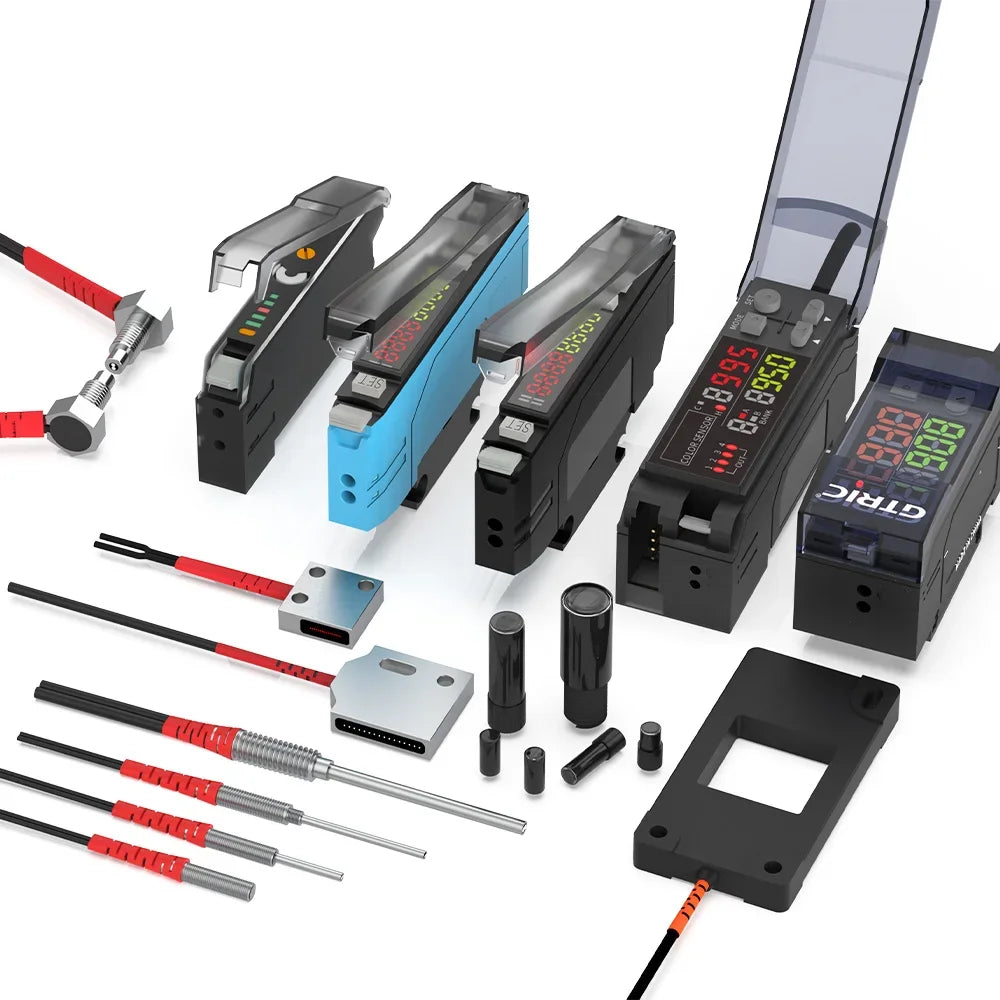

Series: Fiber optic sensor series
Standard targe: White card reflcetion rate 90%
Supply voltage: 12-24 VDC 3-wries
Switching: 600 Hz
Theory: self-induction
Type: Photoelectric Sensor
Usage: Fiber optic sensor
Warranty: 1 Year
corresponding time: 25 μs

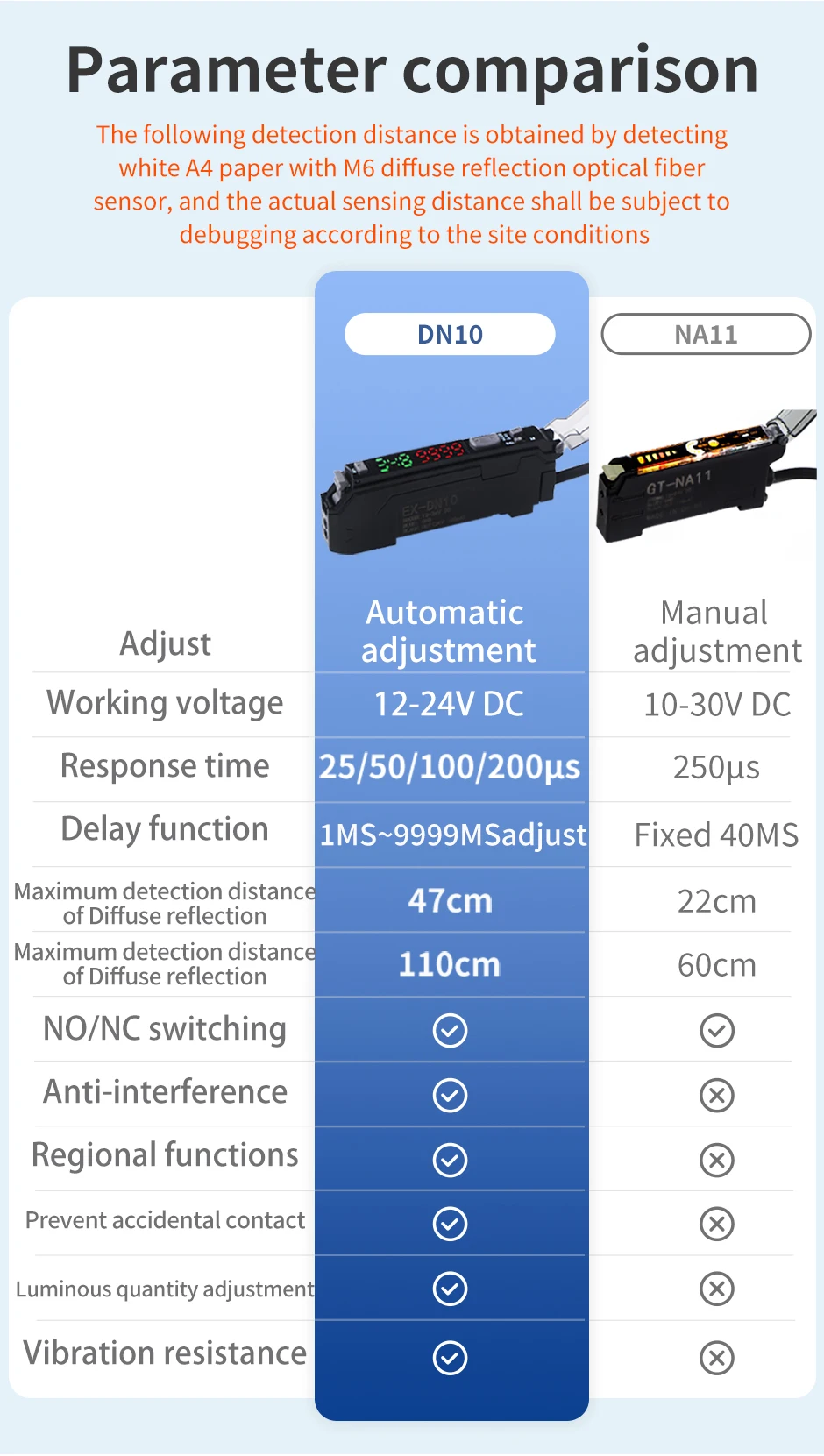

Specifications |
||||||||
Model |

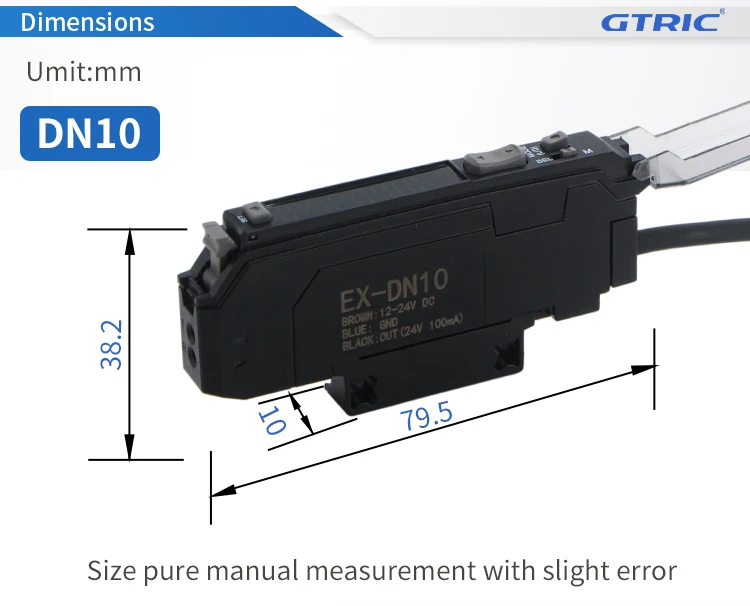

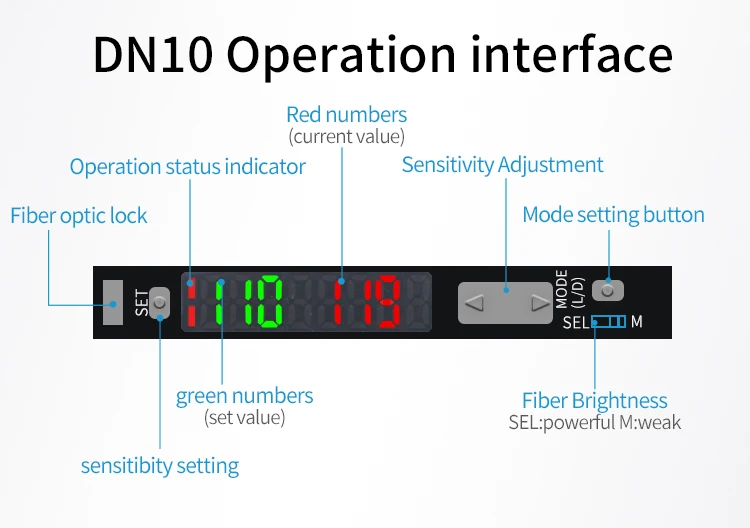

DN10 |
DP10 |

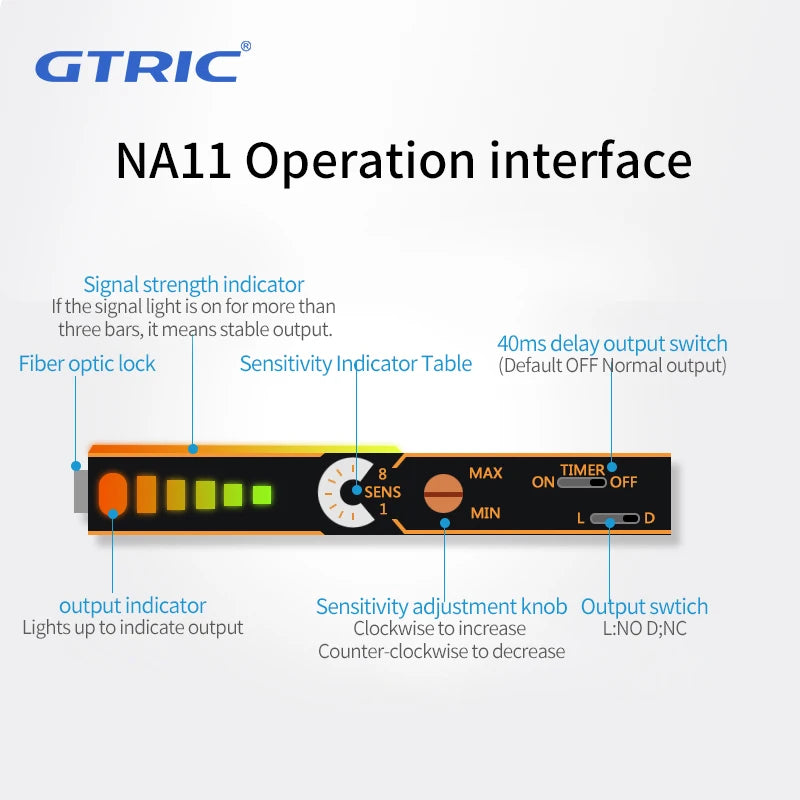

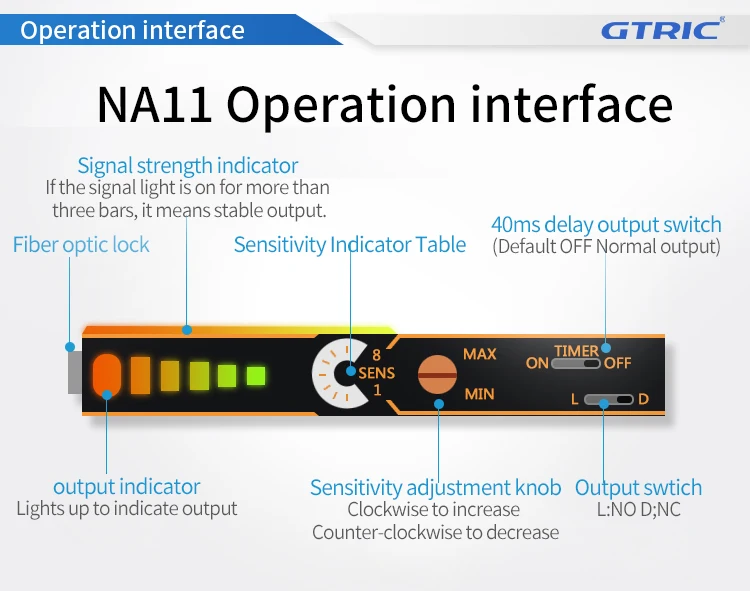

NA11 |
NA41 |
||||
Output type |
NPN |
PNP |
NPN |
PNP |
||||
Operating voltage |
12~24V DC |
|||||||
Light source |
Red LED |
|||||||
Distance regulation |
Automatic adjustment |
Manually adjust |
||||||
Response time |
25/50/100/200μs |
250 μs |
||||||
ON/OFF Time delay function |
1MS-999MS adjustment |
40MS |
||||||
Max sensing distance
Diffuse reflection
|
4700MM |
2200MM |
||||||
Max sensing distance
Through-beam
|
11000MM |
6000MM |
||||||
Switch type |
Selectable L.on/D.on |
|||||||
Operating temperature |
﹣25℃~55℃ |
|||||||
Operating humidity |
35-85% RH |
|||||||
Ambient luminance |
Incandescent lamp:≤3000 lux, Sunlight:≤1000 lux |
|||||||
Anti-vibration |
10-55 Hz, double amplitude 1.5 mm,XYZ three directions,1 hours each |
|||||||
Impact resistance |
(50G)500m/S² X,Y,Z three directions |
|||||||
Connection |

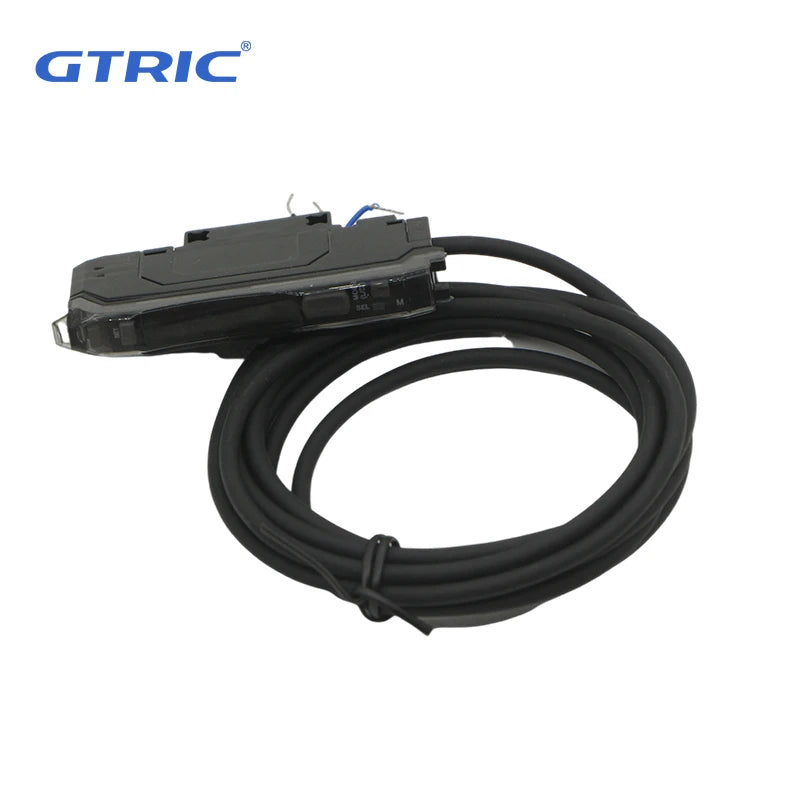

2m 3-Wire cable |
|||||||
