HDH Factory Wholesale 8015 DC 12V 1800RPM Small 12v Fan 80x80x15mm Brushless Fan Dc 80mm Fan Cooling for air Purifiers
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
HDH Factory Wholesale 8015 DC 12V 1800RPM Small 12v Fan 80x80x15mm Brushless Fan Dc 80mm Fan Cooling for air Purifiers
SPECIFICATIONS
Application: power supply
Ball type: ball
Current: 0.13A
Motor type: DC12V
Place of Origin: Beijing,china
Power Source: Electric

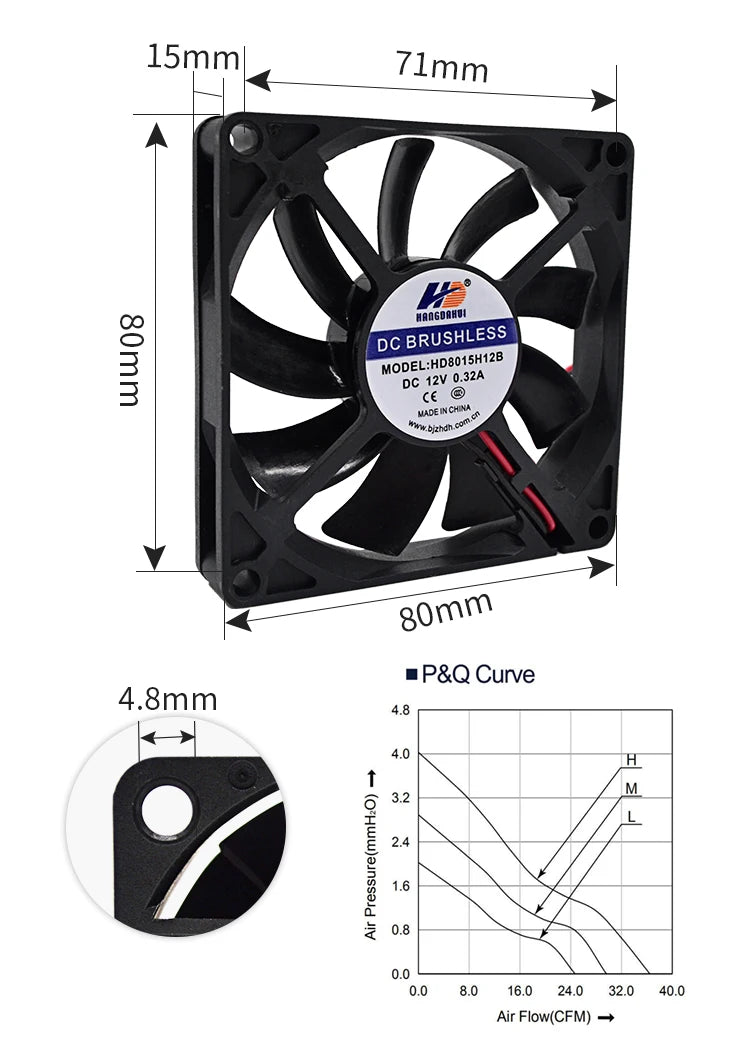

Product Size: 80X80X15MM
Static pressure: 22CFM
Type: Wall-Mounted Axial Fan
Voltage: 12V
after-sales service provided: Online support
bearing type: Ball Bearing
blade material: Plastic
brand name: hang da hui
model number: HD8015L12B
mounting type: Free Standing
name: 80mm Fan cooling for air purifiers
noise: 25dB
place of origin: Beijing, China
type: dc cooling fan
warranty: 3 years
80mm pc fan 8015 80*80*15mm low noise mini 24v Chassis cooling fan 12 volt waterproof fan
| Moldel NO. | Rated Voltage | Operating Voltage | Rated Current | SPeed |
Max .Air Flow |
MAX.Static Pressure | Noise | ||
| VDC | VDC | A | RPM | m³/min | CFM | mmH2O | inH2O | dB | |
| HD8015L05 | 5 | 4.0-5.75 | 0.3 | 2500 | 0.7 | 24.7 | 2.0 | 0.08 | 27.0 |
| HD8015M05 | 5 | 4.0-5.75 | 0.4 | 3000 | 0.84 | 29.6 | 2.9 | 0.11 | 31.5 |
| HD8015H05 | 5 | 4.0-5.75 | 0.5 | 3500 | 1.03 | 36.5 | 4.0 | 0.16 | 35.5 |
| HD8015L12 | 12 | 7.0-13.8 | 0.18 | 2500 | 0.7 | 24.7 | 2.0 | 0.08 | 27.0 |
| HD8015M12 | 12 | 7.0-13.8 | 0.23 | 3000 | 0.84 | 29.6 | 2.9 | 0.11 | 31.5 |
| HD8015H12 | 12 | 7.0-13.8 | 0.32 | 3500 | 1.03 | 36.5 | 4.0 | 0.16 | 35.5 |
| HD8015L24 | 24 | 14.0-27.6 | 0.09 | 2500 | 0.7 | 24.7 | 2.0 | 0.08 |
27.0 |
| HD8015M24 | 24 | 14.0-27.6 | 0.14 | 3000 | 0.84 | 29.6 | 2.9 | 0.11 | 31.5 |
| HD8015H24 | 24 | 14.0-27.6 | 0.18 | 3500 | 1.03 | 36.5 | 4.0 | 0.16 |
35.5 |
8015 80cm 12 volt waterproof fan 12 volt waterproof fan 12 volt waterproof fan 12 volt waterproof fan
1 What are kinds of cooling fan or centrigugal fan supplied by your company?
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan and blower fan.
2 What are kinds of information provided by the customer before inquiry?
Answer : please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.
3 How many types bearing of our cooling fan are there in our compnay at present?
Answer : now we have two types bearing for the fan, sleeve and ball, working time of sleeve is for 30,000 hours, the ball is for 50,000 hours.
4 How to detect the data of cooing fan in your company?
Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel.
5 How to control the quanlity of products in your company.
Answer: 100% total testing before each of fan leaves our factory.
