High Efficiency Water Chiller Injection Mold Temperature Cooling Chiller Cooling From 5 Degree up to 35 Degree

High Efficiency Water Chiller Injection Mold Temperature Cooling Chiller Cooling From 5 Degree up to 35 Degree

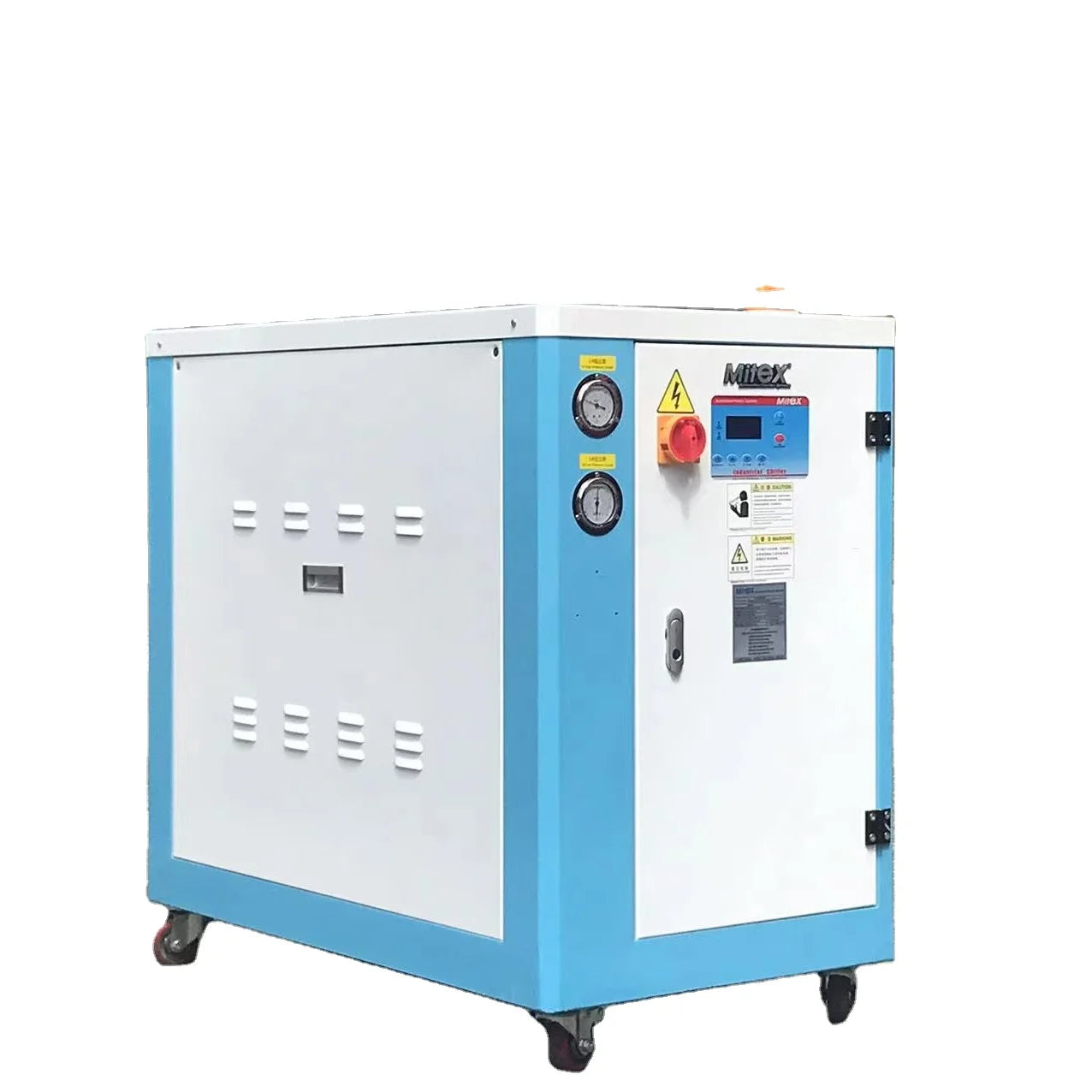

Name: High Efficiency Water Chiller Injection Mold Temperature Cooling Chiller Cooling From 5 Degree up to 35 Degree
Brand: HHRummurz.com
SKU: 100005619:30716968#10 HP;191284229:55859509#Air-Cooled
Price: 40320.0 USD
Availability: InStock

$40,320.00

$40,320.00 ~~$0.00~~

cooling capability(kw): 10 HP

10 HP

15HP

type: Air-Cooled

Air-Cooled

Compare

Ask a question

Size guide

Share

Estimated Delivery:Jun 10 - Jun 14
Free Shipping & Returns: On all orders over $75

🔒 Secure Checkout

💰 Money Back Guarantee

↩️ Free Returns

🚚 Fast Shipping

High Efficiency Water Chiller Injection Mold Temperature Cooling Chiller Cooling From 5 Degree up to 35 Degree

SPECIFICATIONS

Compressor Horse: 2*3.95KW

Condenser: Finned condenser+fan

Evaporator: tube in shell

Flow Rate: 120L/MIN

Freezing capacity: 31.2kw

Pump: 1.5kw

Refrigerant: R22/R407C

Water Tank Capacity: 79L

Weight (KG): 520

brand name: Mitex

core components: Pump,compressor

dimension(l*w*h): 1750x765x1500 MM

key selling points: Easy To Operate

machinery test report: Provided

place of origin: Guangdong, China

power: 10

video outgoing-inspection: Provided

voltage: AC380V /3PHASE 50HZ

warranty: 1 Year

working temperature range: 5-35℃

Product Description

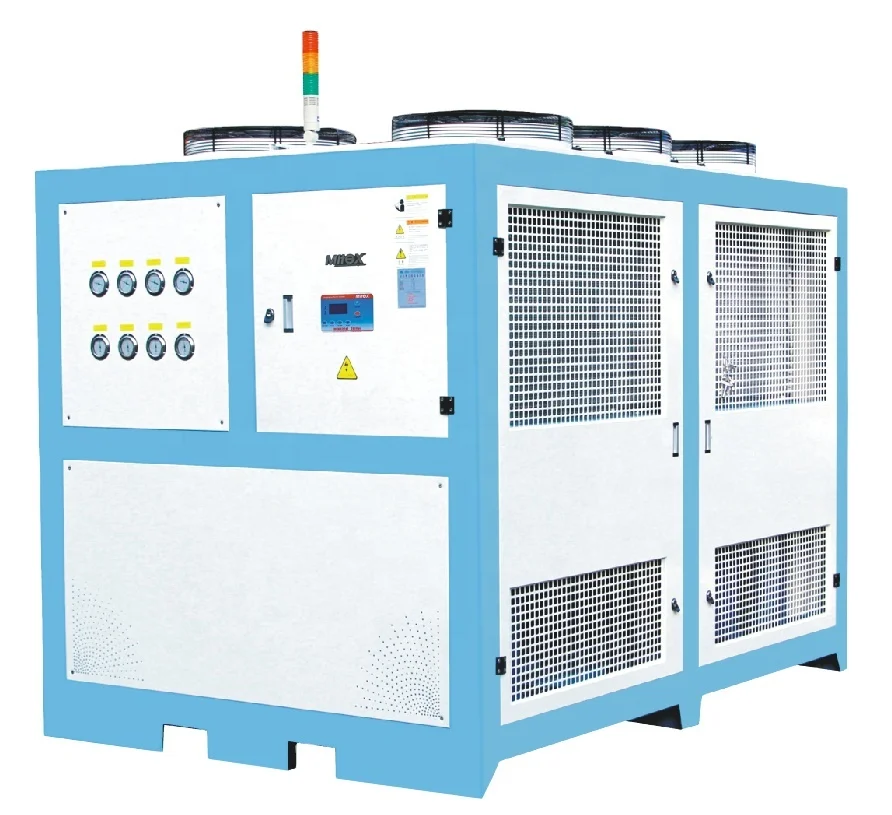

MIC-40A

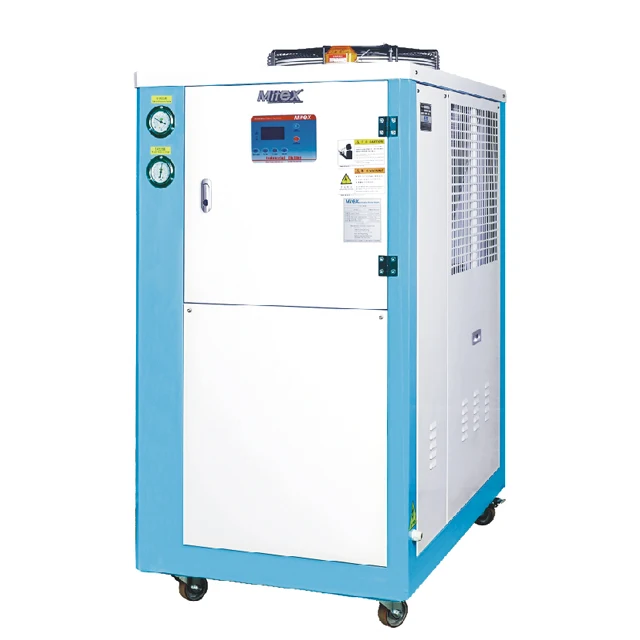

MIC-5A~30A

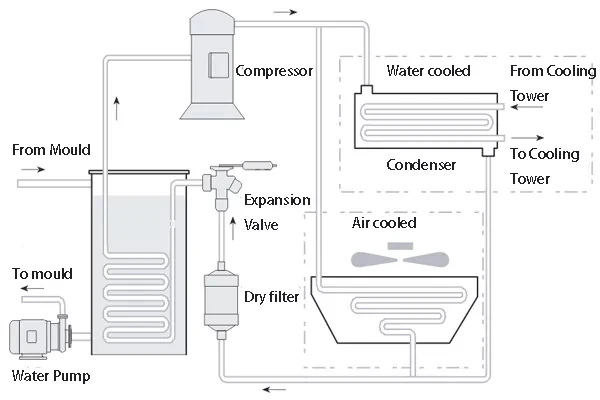

Working Principle of Air Cooled Chiller

When an air-cooled chiller starts, the refrigerant absorbs heat from the cooled object in the evaporator and vaporizes. The compressor continuously extracts the gas produced in the evaporator and compresses it into a high-temperature, high-pressure vapor. The refrigerant vapor is then fed into the condenser where it exchanges heat with air. After releasing heat, it condenses into a liquid. The liquid refrigerant is depressurized by an expansion valve and enters the evaporator, where it is vaporized again and absorbs heat from the object being cooled. This heat exchange process is repeated until the industrial water is cooled to the desired temperature.

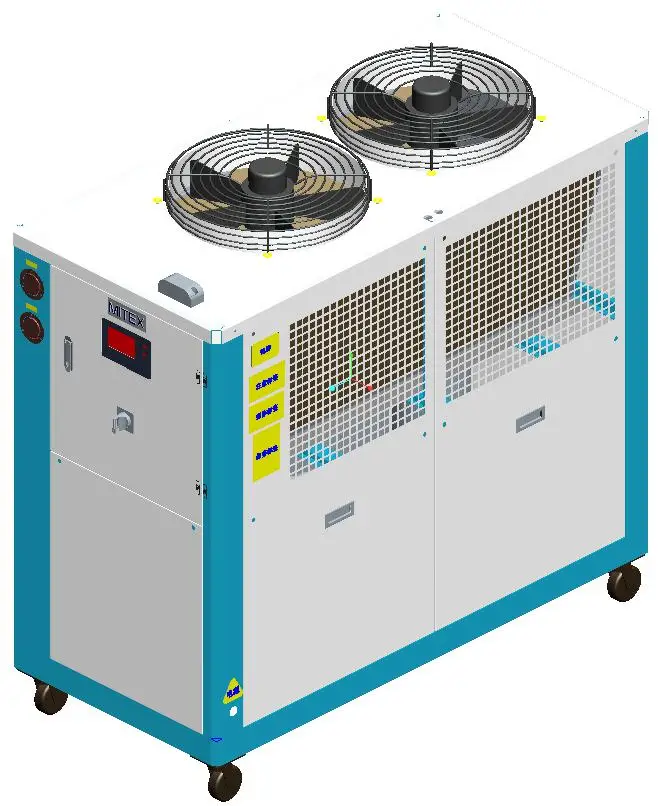

Side View

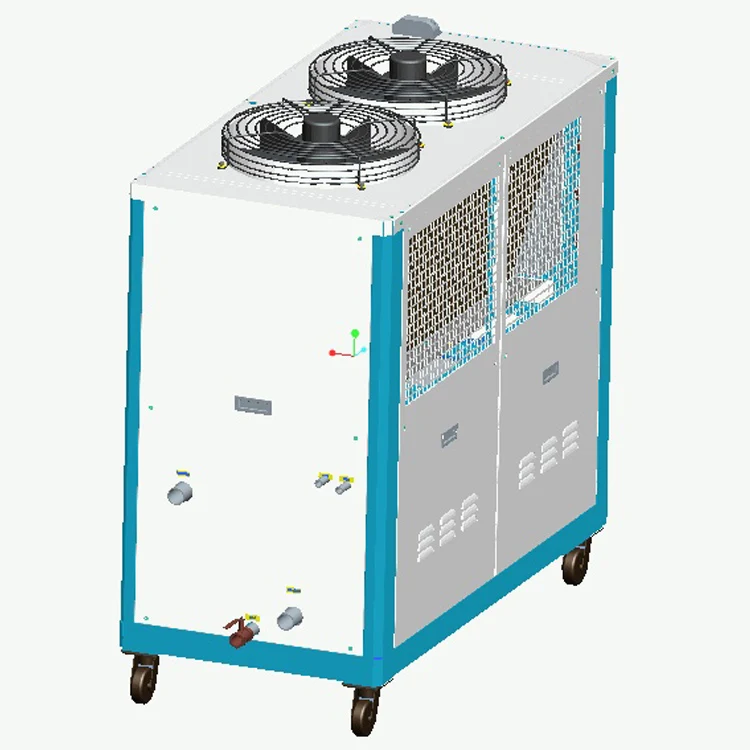

Back View

Features

(1) Compressor is used "COPELAND" brand which made in USA "Danfoss" brand from Denmark or "Panasonic" brand which made in Japan also newly imported license together with the chiller.

(2）High efficiency cooler and evaporator are passed ISO9002 certification, and also able to save more than 30%of electricity.

(3)Complete with safety protection and error indication system, so it is convenience for operation and maintenance.

(4)The copper tube is used the product of oxygen free welding method for reducing impurities in the interior portion of the tube and increasing the efficiency also the lifetime of compressor.

Panasonic brand compressor

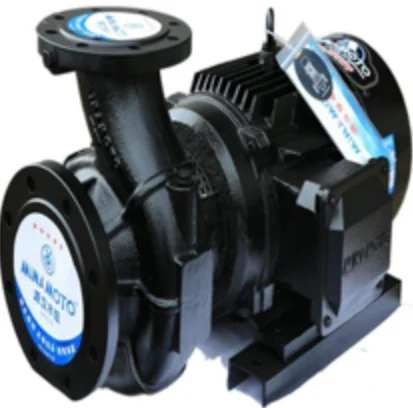

Minamoto brand water pump

Axial Fan-Fast heat dissipation

Microcomputer Controller

The chiller is deployed with P.I.D microcomputer controller, it can control the temperature between +5℃ and +35℃ exactly.

High and Low Pressure Protection

The high and low voltage protection systems are designed to improve the safety and efficiency of pump operation.

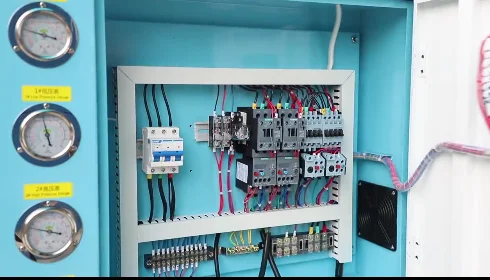

Simens Electric

Obtained CCC certification,fully meet the requirements of national industry standards and relevant norms and local standards.

Product Paramenters

Model		5A	10A	15A	20A	25A	30A
Freezing capacity	KW	15.6	31.2	46.8	7862.4	93.6	93.6
		Kcal/hr	13416	26832	40248	53664	67080	80496
		Btu/hr	532354	106469	159704	212938	266173	319408
Compressor	power (KW)	3.95	2 x 3.95	2 x 6.3	2 x 7.95	2 x 9.1	3 x 7.95
Refrigerant	Weight KW	2.5	2 x 2.5	2 x 5.5	2 x 6.0	2 x 7.5	3 x 6.0
		Control mode	Thermostatic expansion valve
		type	R22/ R407C (Customized)
Evaporator	Type	Tube in shell
Condenser	Type	Fin style
Condenser		Fan (KW)	0.38	2 x 0.38	2 x 0.78	2 x 0.78	2 x 0.78	3 x 0.78
Water Tank	L	62	79	150	175	175	220
Pump	Power (KW)	0.75	1.5	1.5	2.2	3	4
		Flow rate (L/min)	75	120	208	330	330	550
		Pressure (kg/cm2)	2	2	2	2	2	2
Pipe Coupling	Chillerd water outlet (inch)	1	1.5	2	2	2	2.5
		Chilled water inlet (inch)	1	1.5	2	2	2	2.5
		Water supply port (inch)	0.5	0.5	1	1	1	1
		Over flow port of water tank (inch)	0.5	0.5	0.5	0.5	0.5	0.5
		Drainage port of water tank (inch)	0.5	0.5	1	1	1	1
Protective device	Compressor	Overload relay
		Pump	Overload relay
		Refrigerant circuit	HIgh and low pressure switches
		Cooling water circuit	Water level switch / water flow switch (for option)/ by-pass valve (for option)
Power specification			380v, 3 phase , 50hz (can be customized )
Measures exchange			1KW=860kcal/hr 1RT=3024 kcal/hr 10000 btu/hr= 2520 Kcal/hr
Dimension	LXWXH MM	1450x765x1500	1750x765x1500	2150x1005x1700	2150x1005x1700	2550x1005x1700	3150x1005x1800

Application Range

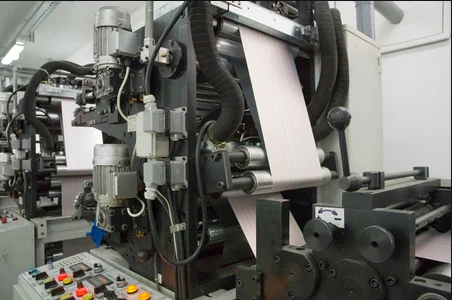

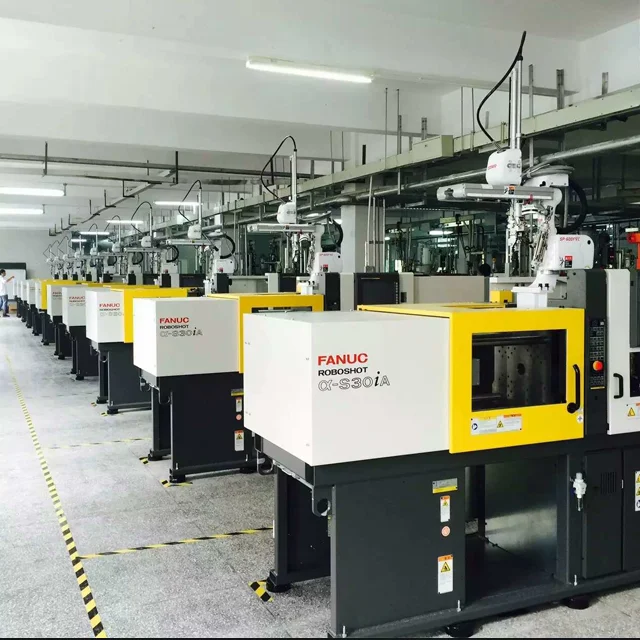

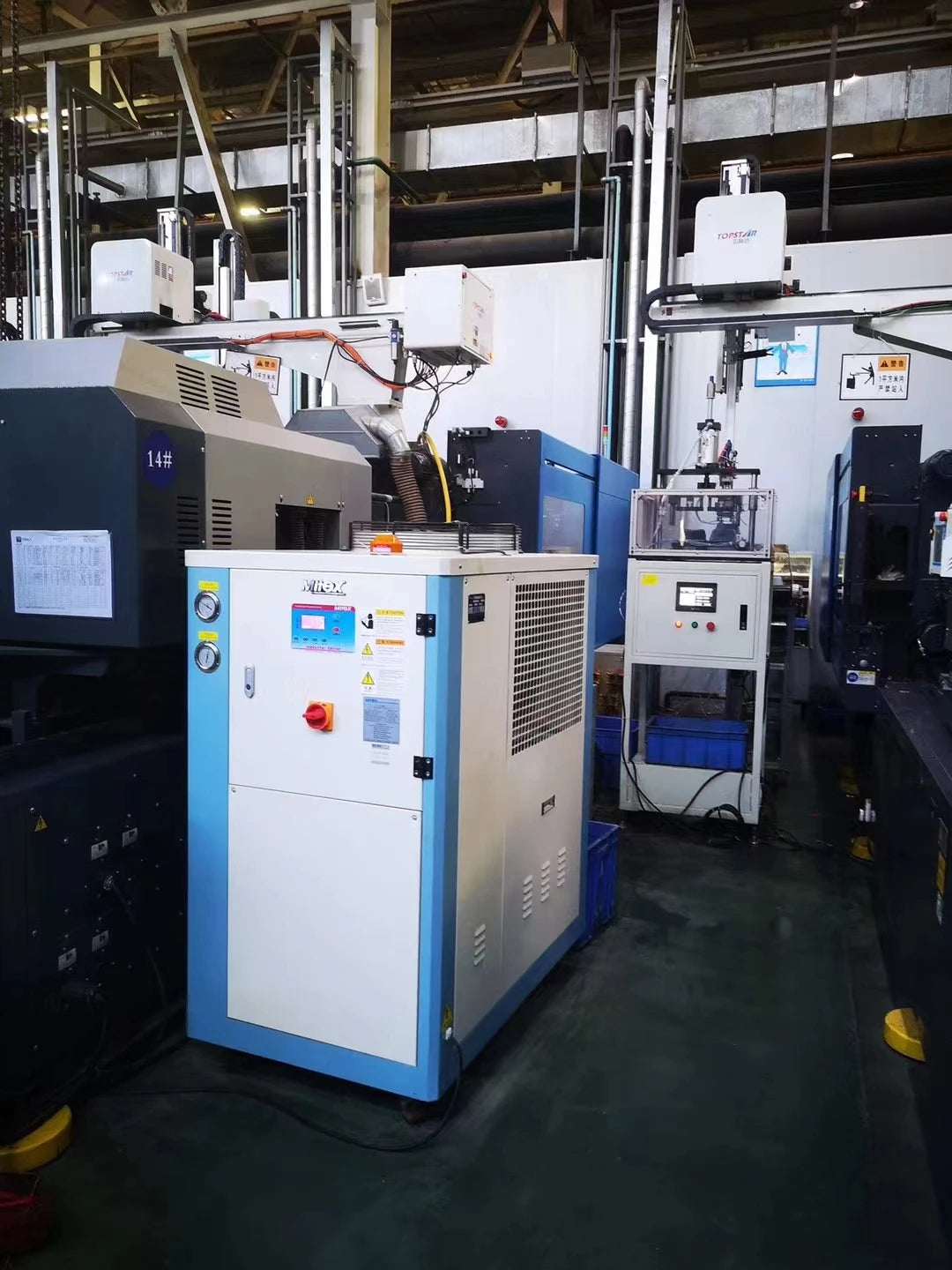

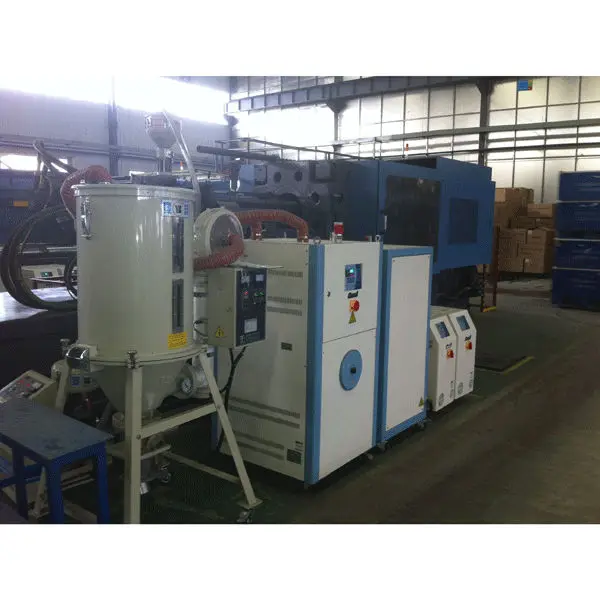

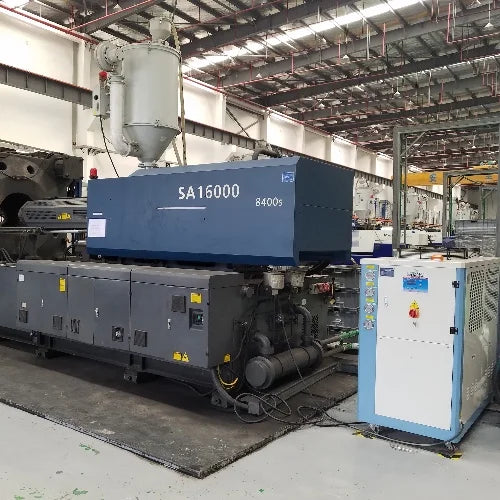

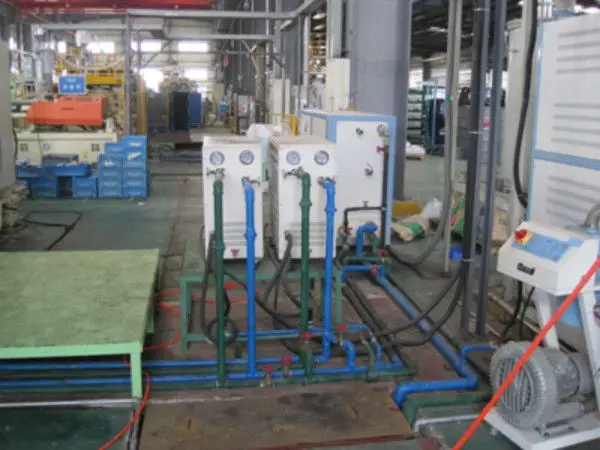

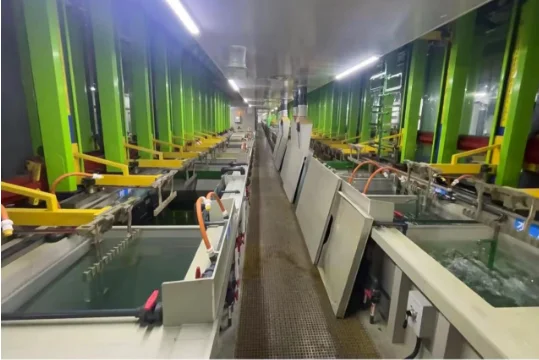

Chillers are widely used in plastics, electronics manufacturing, electroplating,chemical,medical, food, printing and other various industrial production. They are used for the cooling of plastic processing machinery molds, significantly improve the surface finish of plastic products,reduce surface defects and internal stress, prevent shrinkage and deformation, facilitate demolding, accelerate product molding, thereby greatly improving the productivity of plastic molding machines and product quality.
