SPECIFICATIONS

Access Control: unlock

Answering Mode: Hands-free

Brand Name: HomeFong

Camera: COLOR

Camera Sensor type: CMOS

Certification: CE,FCC

Communication Interface: Wired

Connection Method: Wired

Display Screen Size(inch): 7

Display Screen Type: Color Touch Screen

Doorbell: Yes

High-concerned chemical: None

IP Camera Interface: No

Installation: Wall Mounting

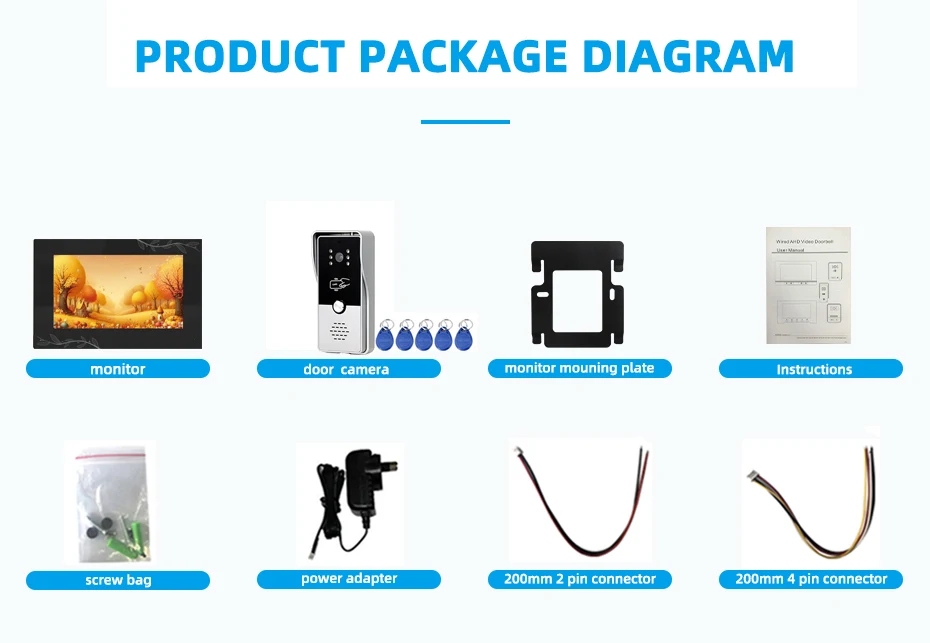

Kit Configuration: One to One video doorphone

Model Number: RA505WIFI-bi

Origin: Mainland China

Power (W): 220v

Resolution: 1080p

Samrt Home Interface: No

Sensor Size(Inch): 1/3

Smart home platform: Tuya

Type: intercom system

Viewing Angle (°): 90/130

Waterproof: Yes

Zone Input: Alarm

Please kindly noted:

The monitor could support wifi signal,and use on mobile via APP.It does not mean that there is no extension cable required.The monitor,doorbell  and lock are still connected with extension cable to ensure signal stability.

Specification

1,Support wifi connection,Mobile App Tuya Smart

2,Multiple system support ,support max 4 monitors 2 doorbells and 2 CCTV Cameras.

3,Screen :7 Inch TFT screen,Touch Screen

4,Monitor Resolution:1024*600

5,Doorbell Resolution:1080p

6,Calling mode:2 way intercom

7,Video Picture Record,Motion Detection Record,SD Card Support max 128GB SD Card

8:Monitor work temperature:-10 ℃ to 50 ℃

9;DoorbellOperation Temperature : -40℃-60℃

10:The system support  English,Korean,Russian,Spanish,Chinese,,Polish,,Arabic,Français,Deutsch，Italiano，Português，Ebraico

11:Call transfer Supported:first monitor must be set as master monitor device ID 1,Slave Monitor ID from 02-04

Monitor Features:

System Capacity:4 monitors+2 doorbells+2 CCTC Cameras

Intercom Mode：2 Way Intercom

Function:Video Communication,Record,Unlock,Monitor,wifi Tuya APP,Motion Detection

Resolution:1024*600

Screen:7 Inch TFT touch Screen

Talkng Time:60 Seconds

Max SD Card Supported:128 GB(Not Included)

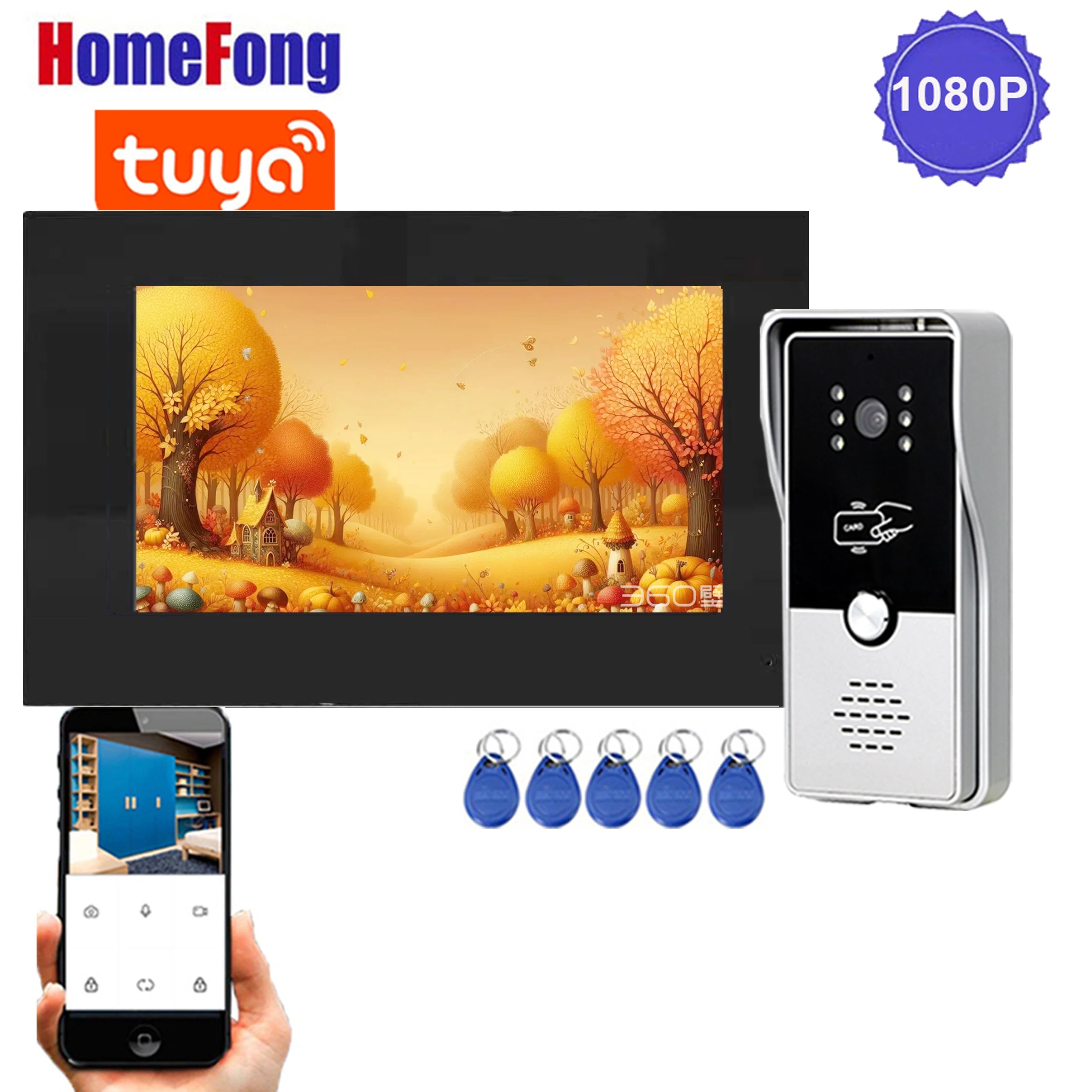

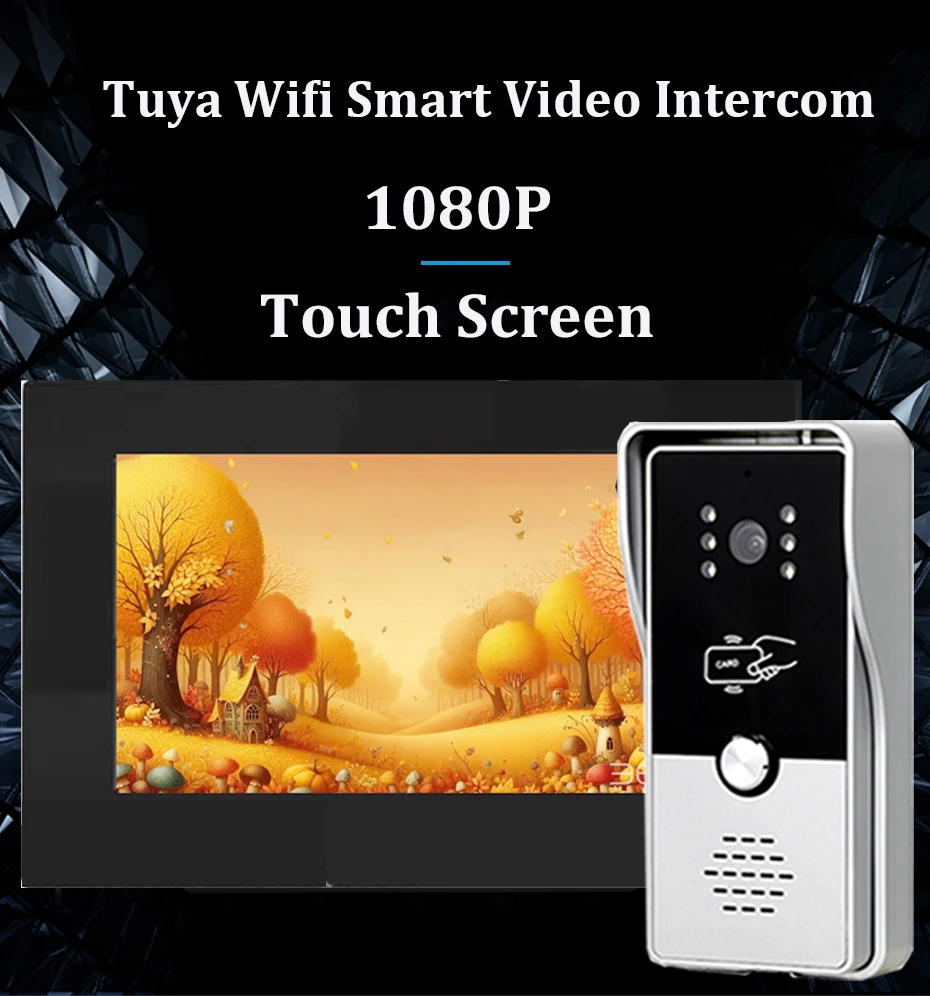

7 Inch Wifi Video Door Phone System

The monitor and doorbell are connected with extension cable to ensure signal stability(Please noted the extension cable is needed for the connection.The extension cable is not included in the package.

It could support wifi connection with tuya smart APP

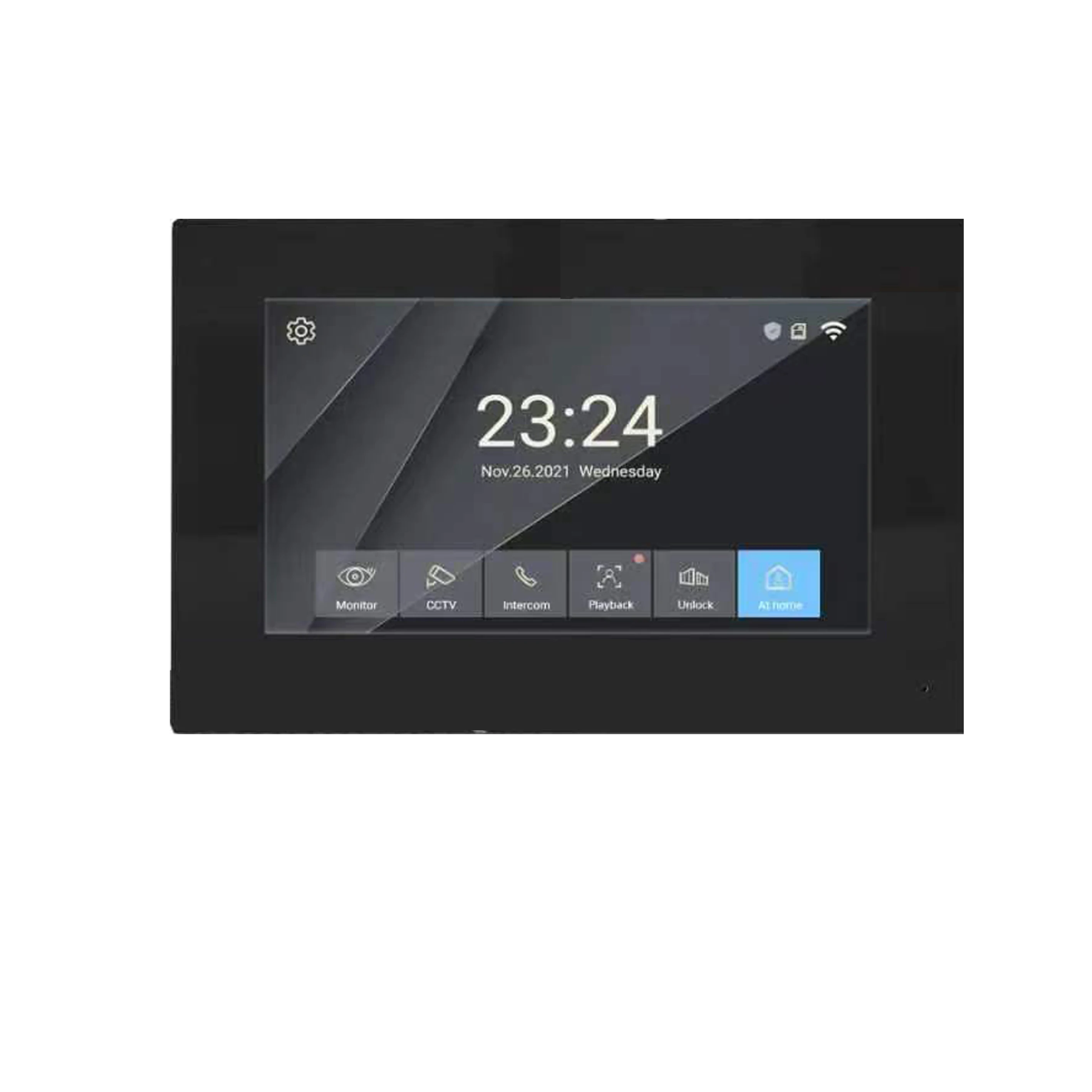

Touch Screen Monitor

1080P HD Resolution

Multiple Language Supported

The system support English,Korean,Russian,Spanish,Chinese,,Polish,,Arabic,Français,Deutsch，Italiano，Português，Ebraico

Communication between monitor doorbell and mobile Phone

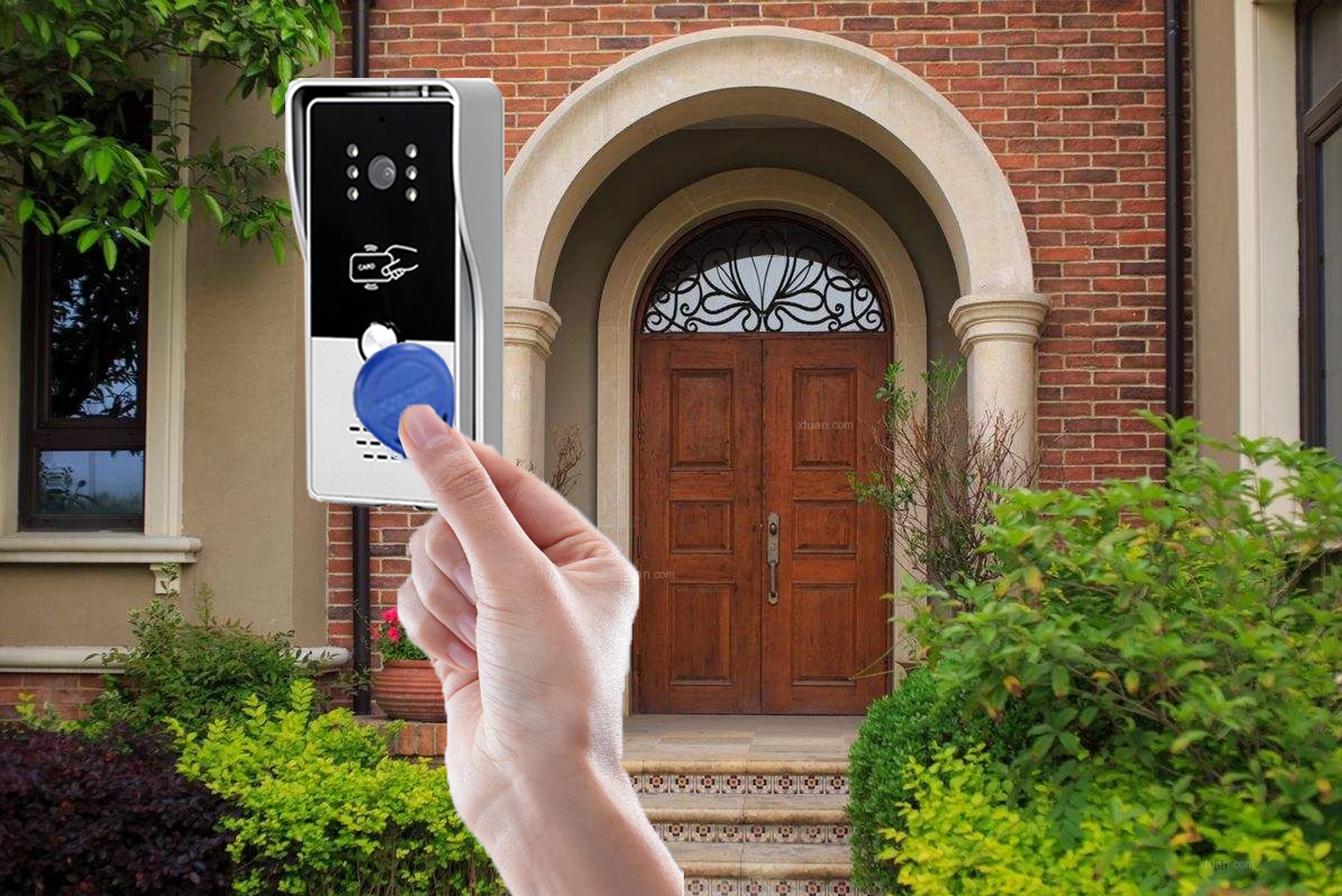

RFID Unlock

Multiple way unlock:

1:unlock from doorbell with RFID Card

2:Unlock from monitor button

3:Unlock from tuya smart app

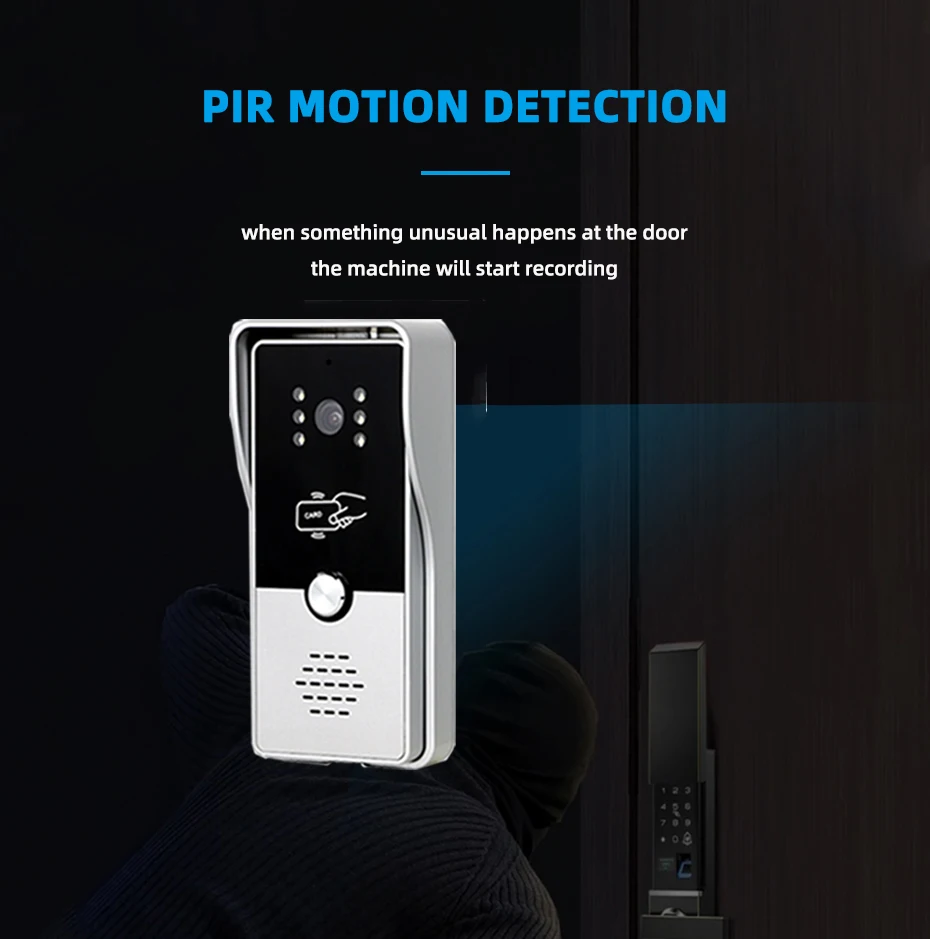

Motion Detection Record Supported

When the monitor detection is alert or doorbell is ringed.,the system will record

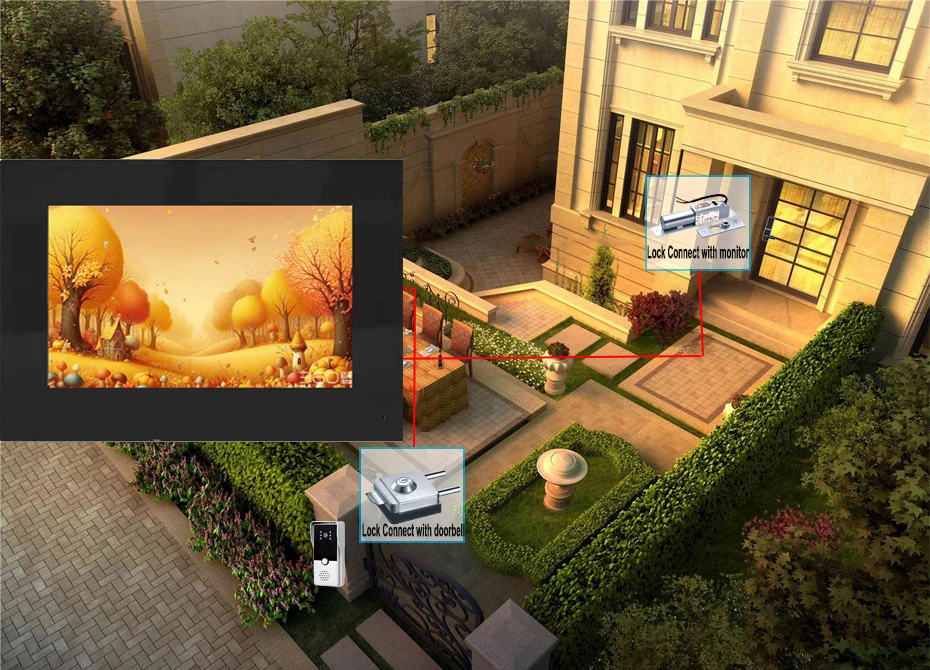

The Wifi Connection

The system support to connect gate lock with monitor directly.Each Doorbell could also connect  1 electronic Lock

3 Mode

The system Support at home,not at home,dormancy mode,you could choose the mode as you require.

At home-Ringtone available.

Not at home-Leave message.Voice on the outdoor station

dormancy-No disturb,no ringtone

Durable

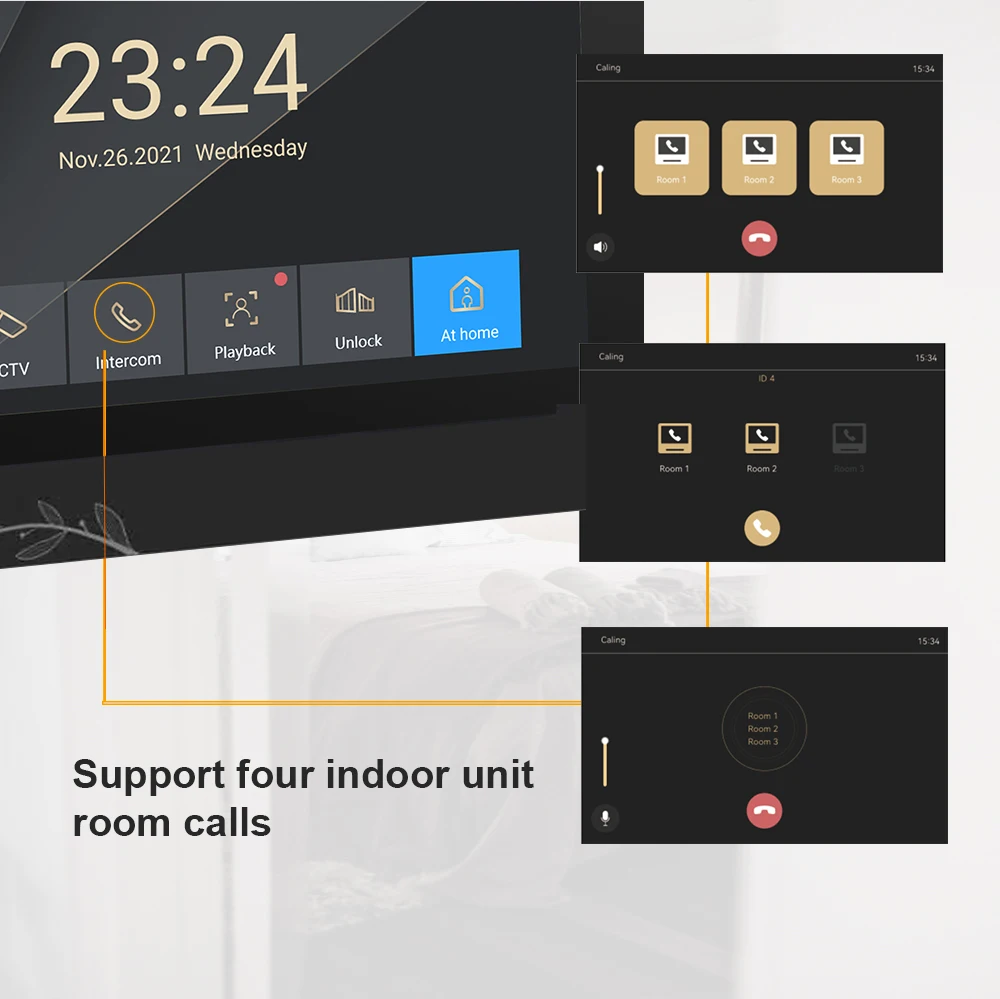

Support Call Transfer among the 4 indoor monitors.

Automatically snapshot and Video Record

The monitor will record video or picture automatically when someone ring the doorbell or motion detection is triggered

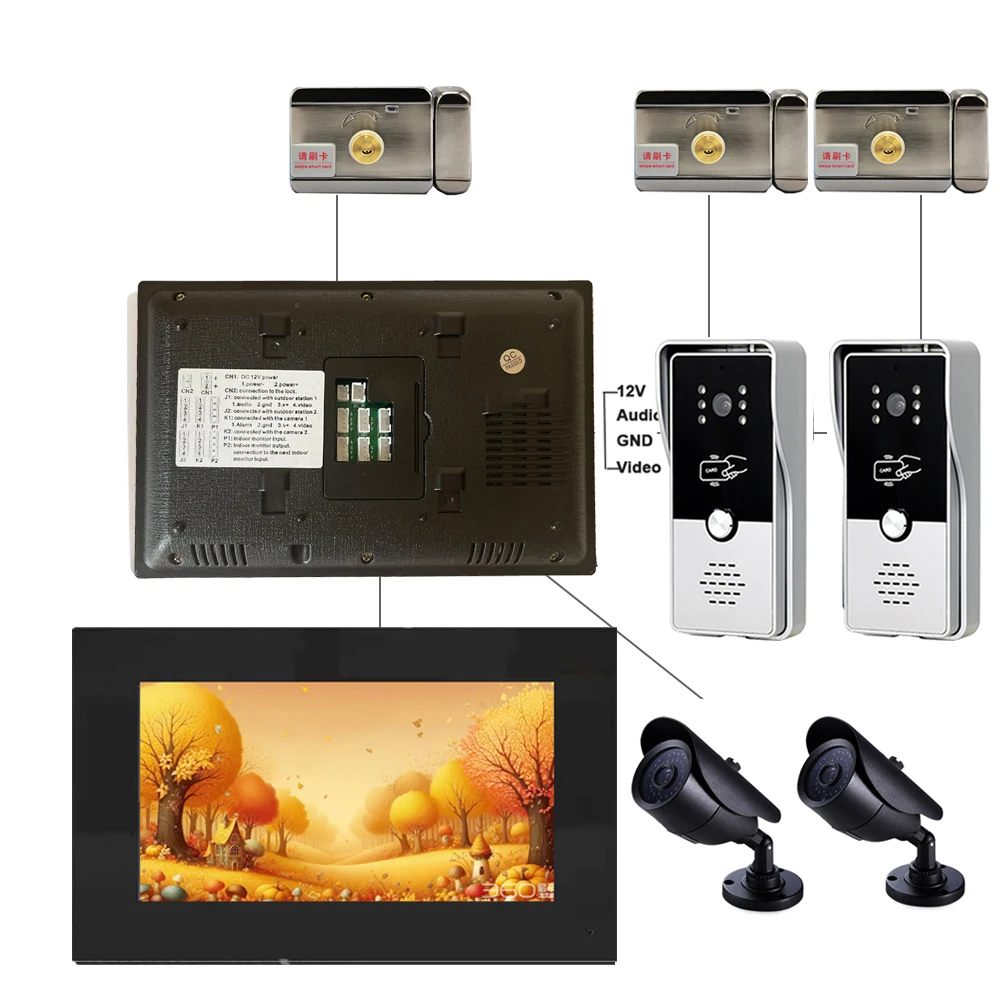

Multiple System Support

The System could support max 4 monitors 2 doorbells and 2 CCTV Camras.The monitor could connect with 1 lock.Each Doorbell could

Support 1 lock to connected.

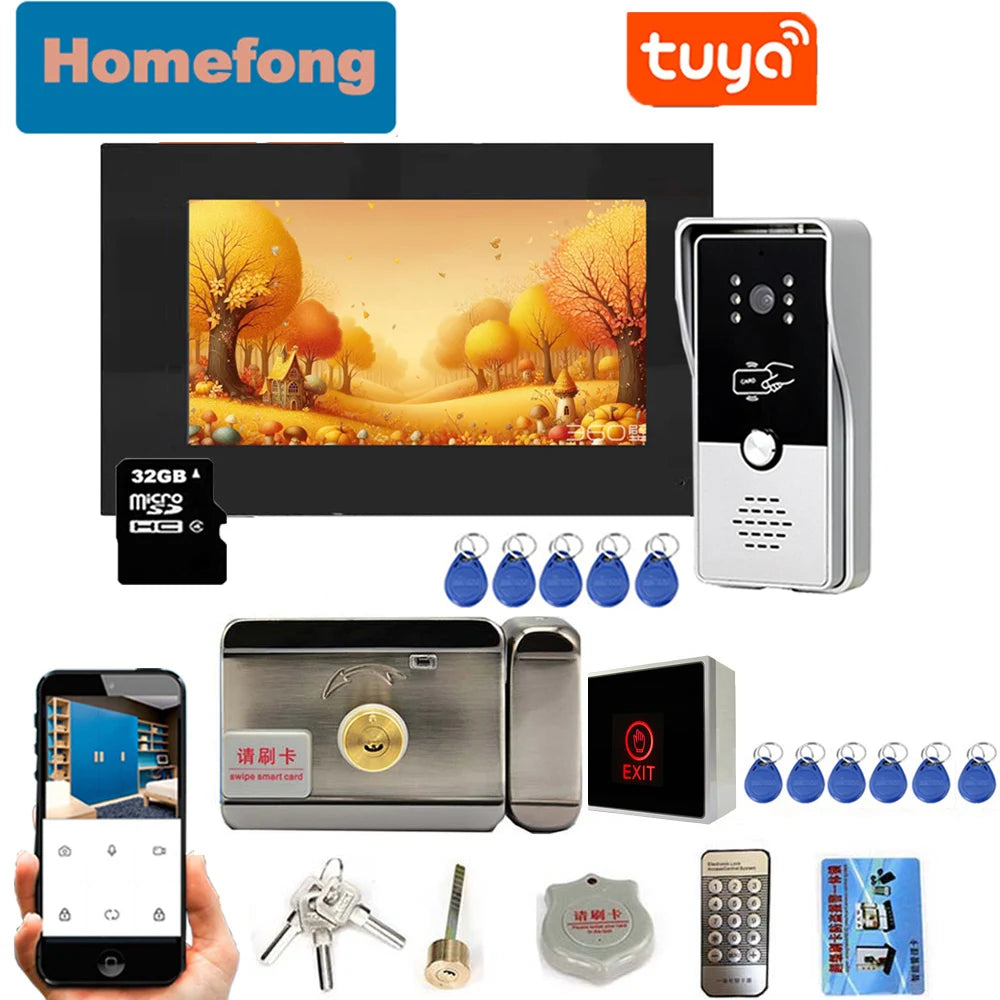

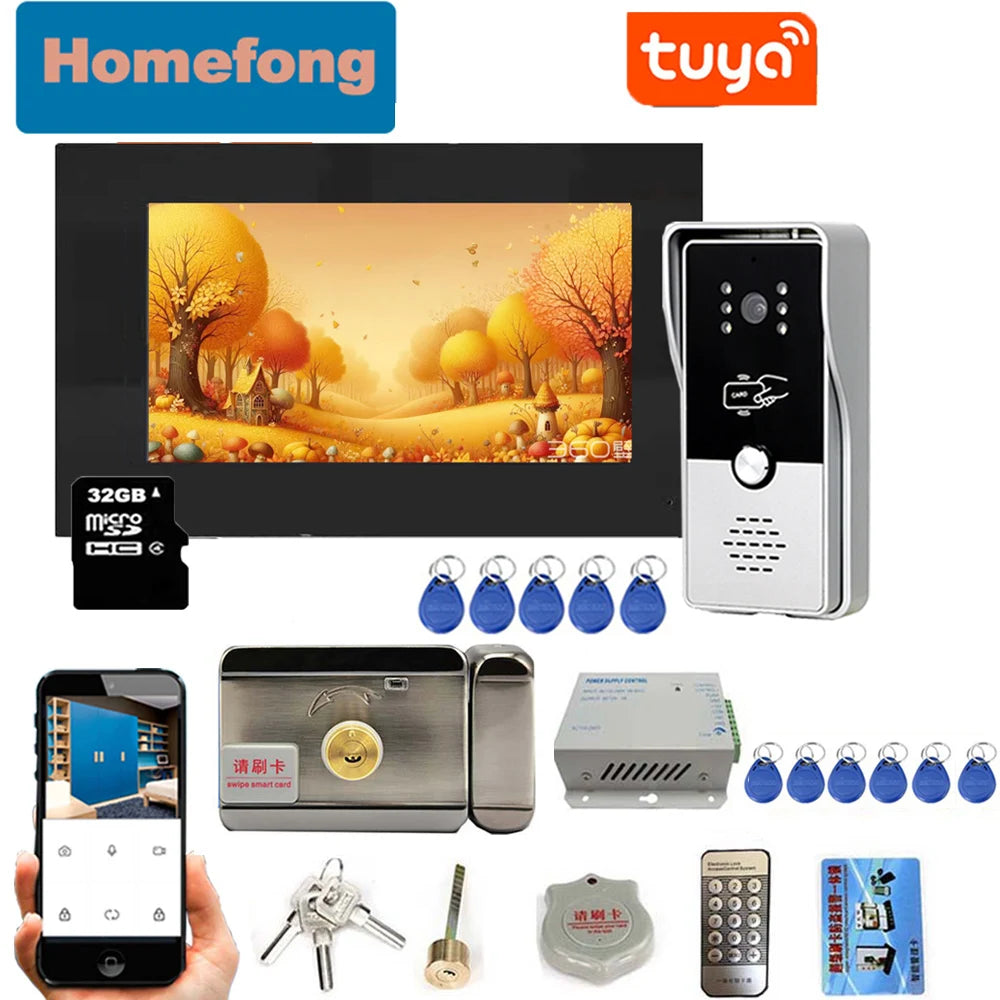

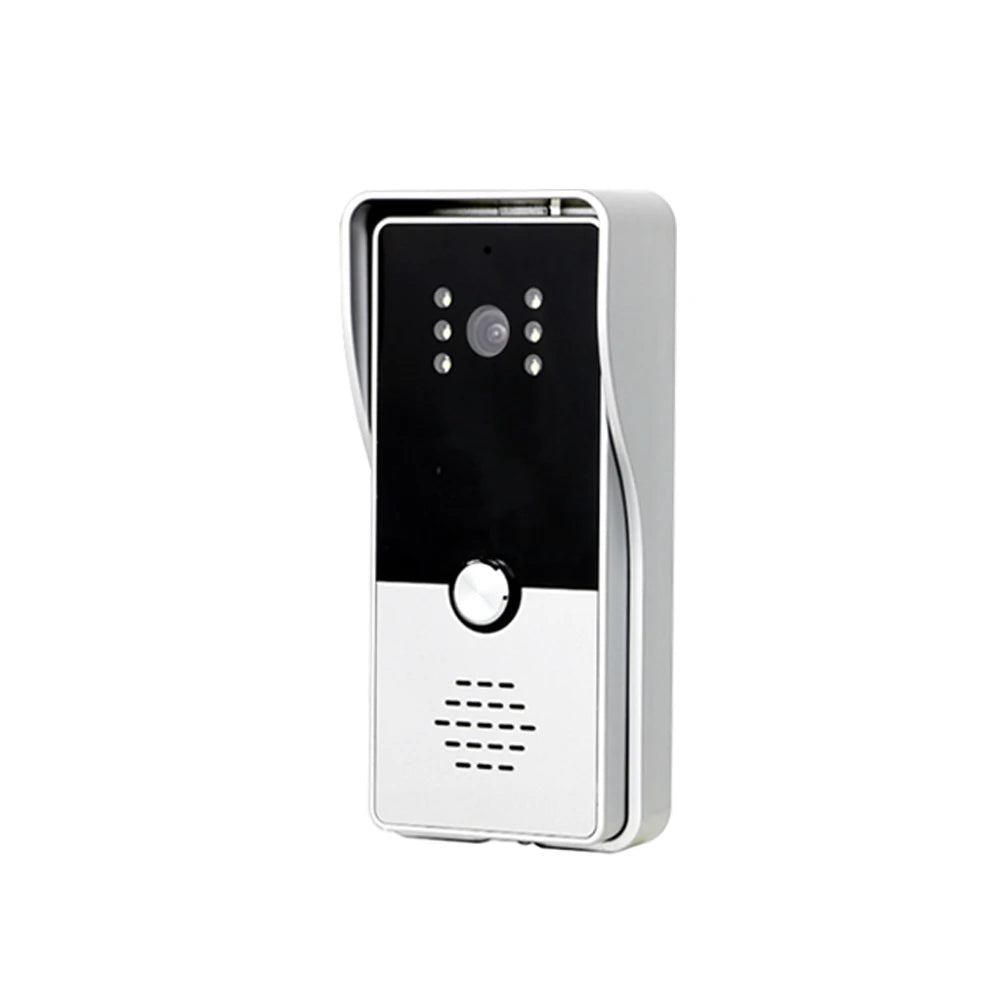

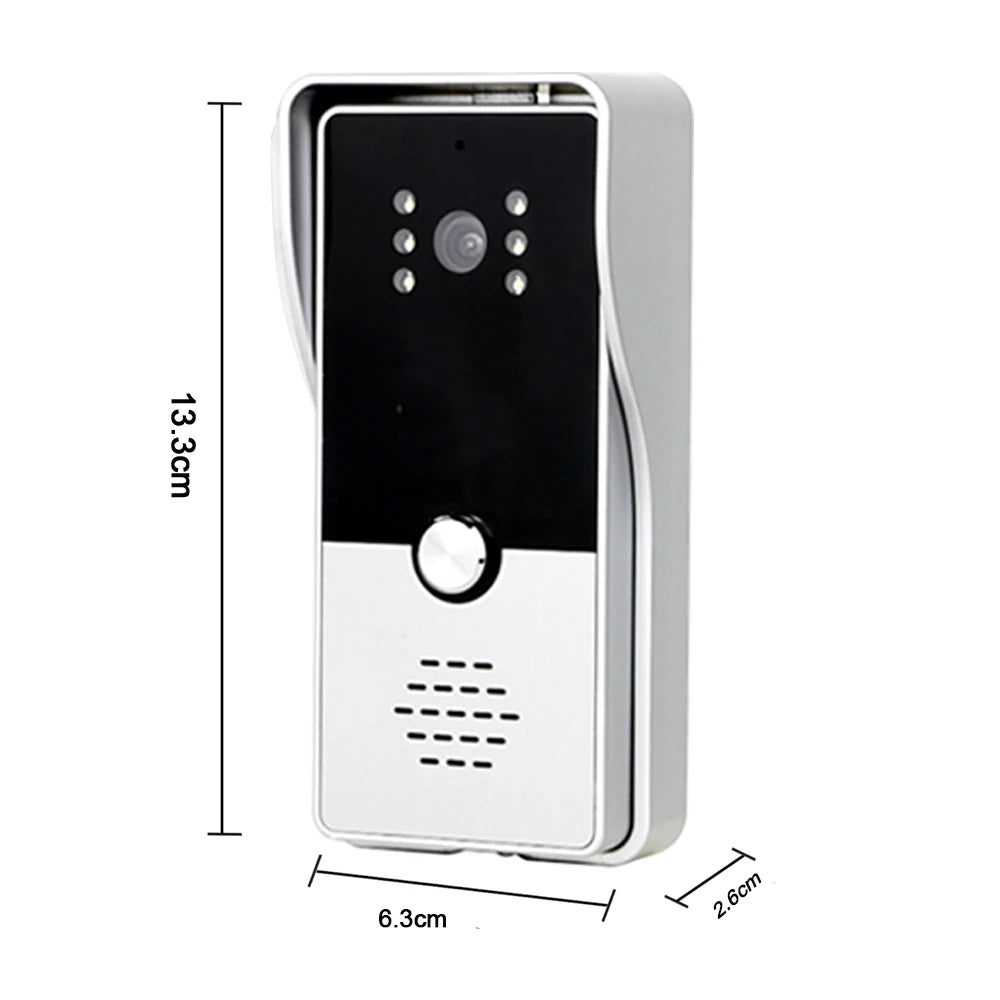

Products Show

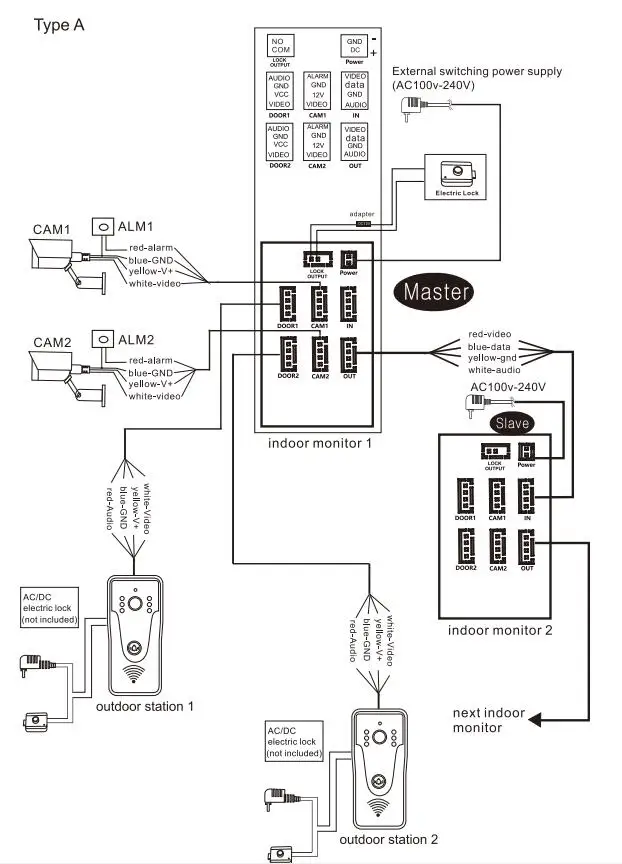

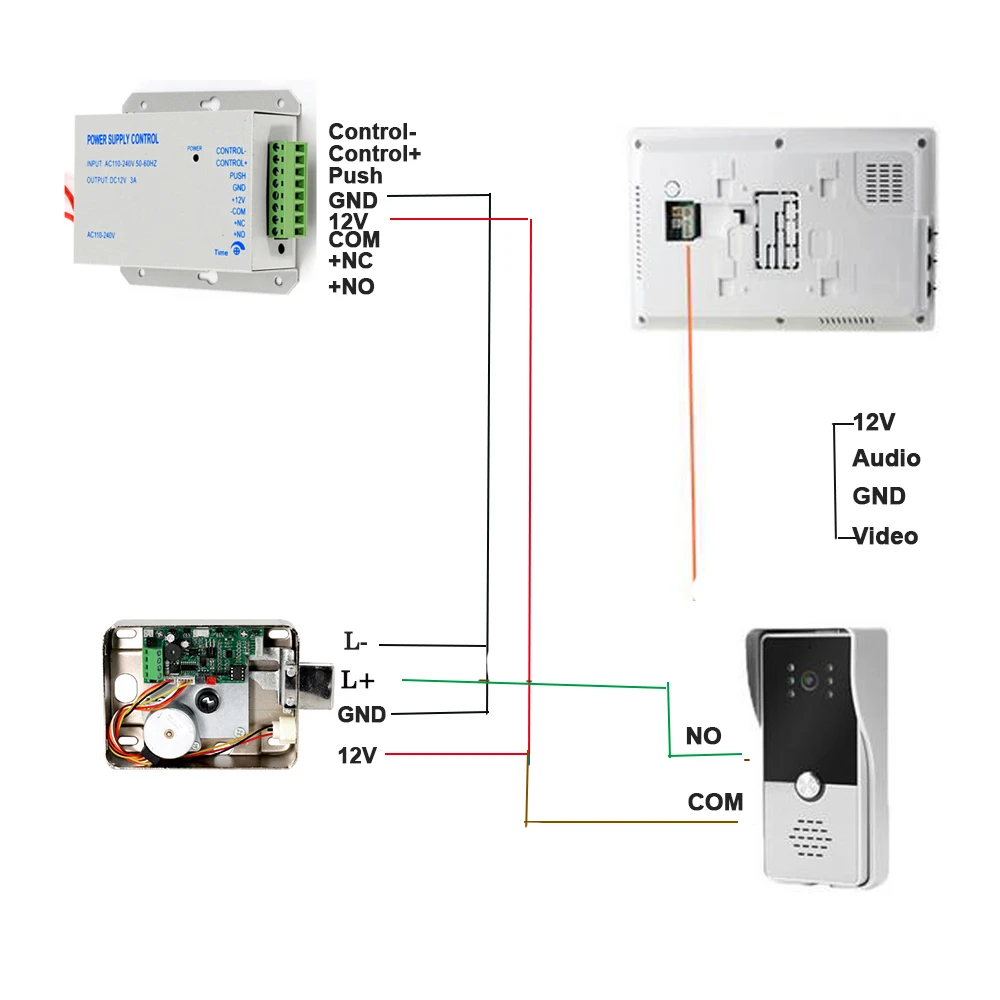

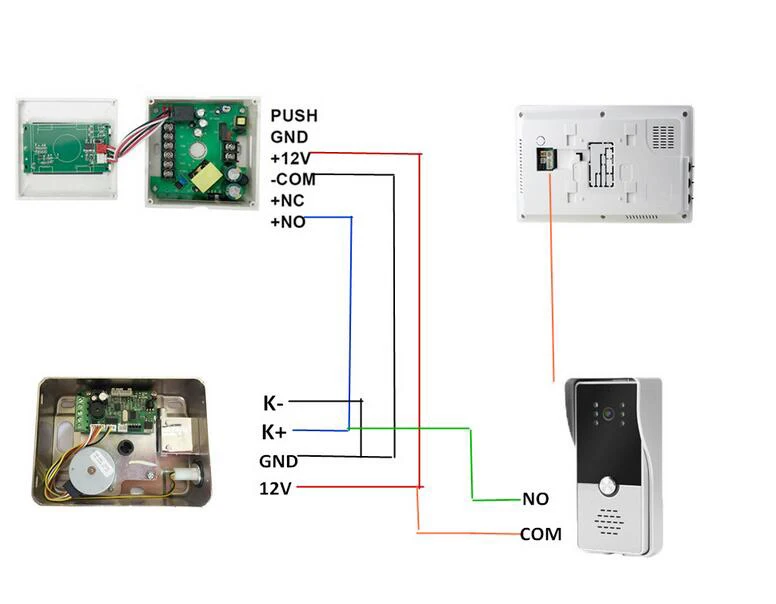

Connection Diagram

c

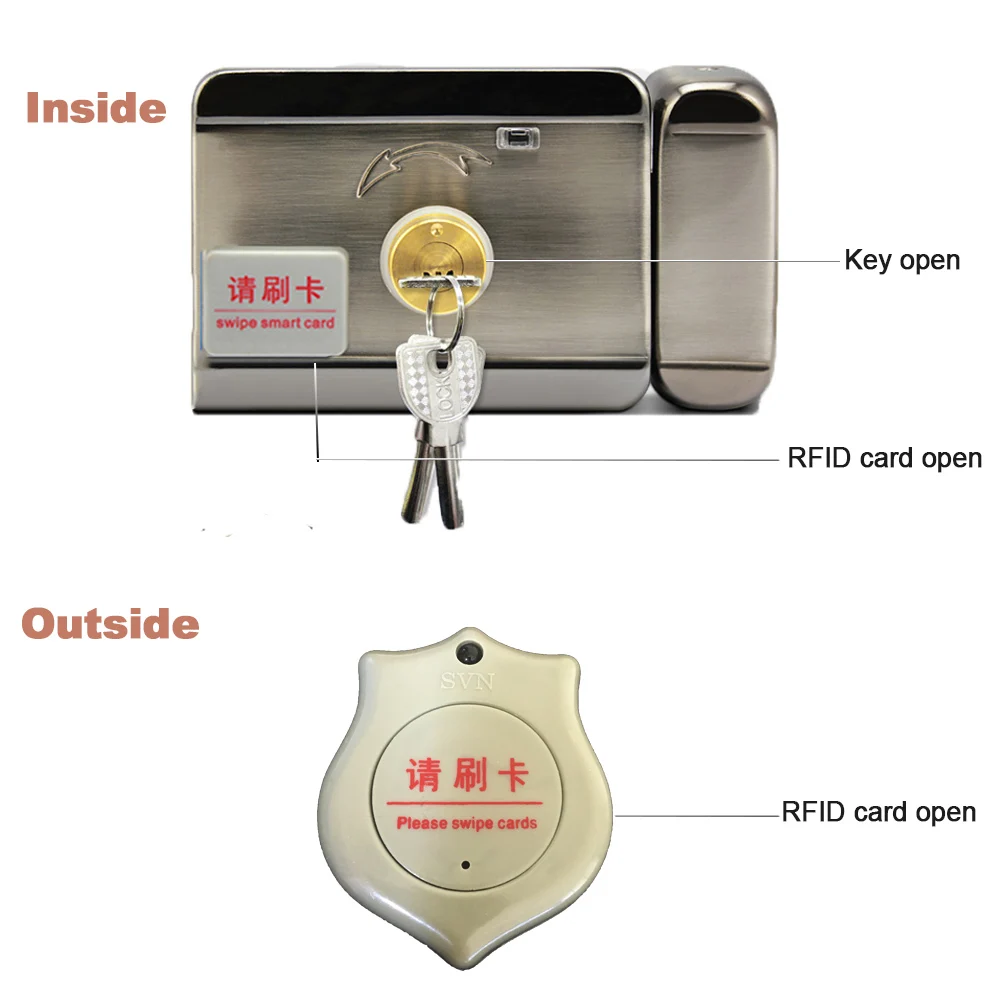

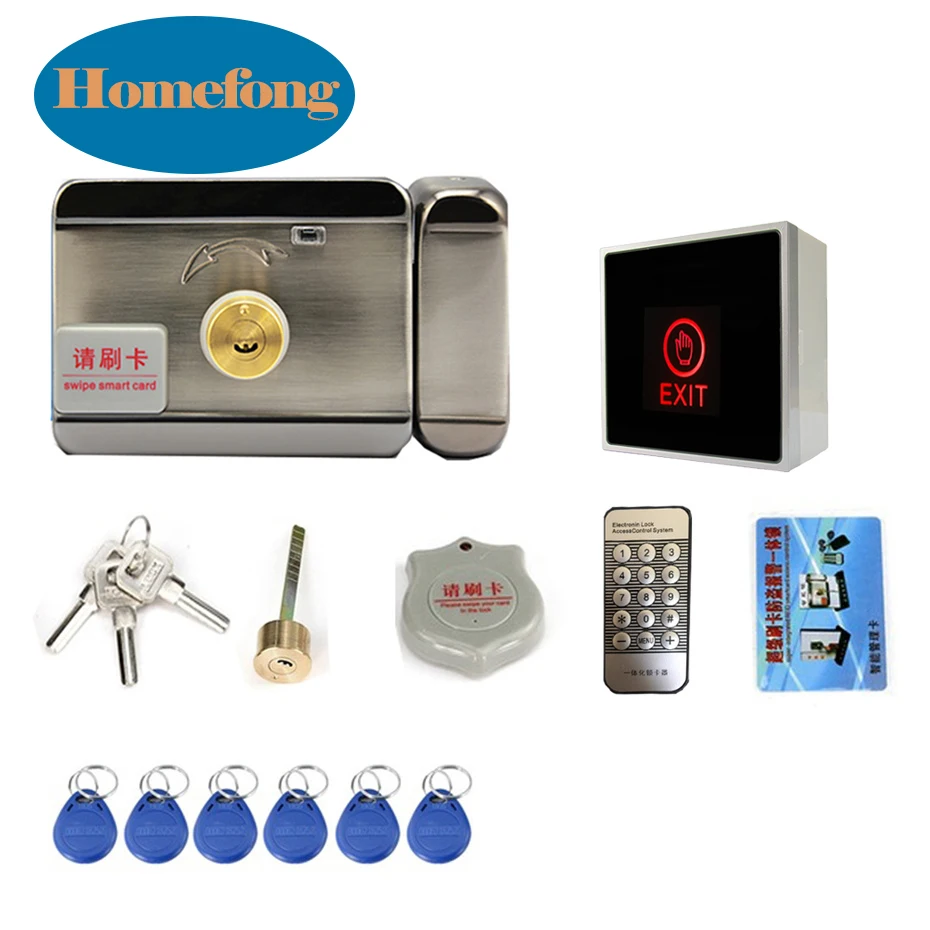

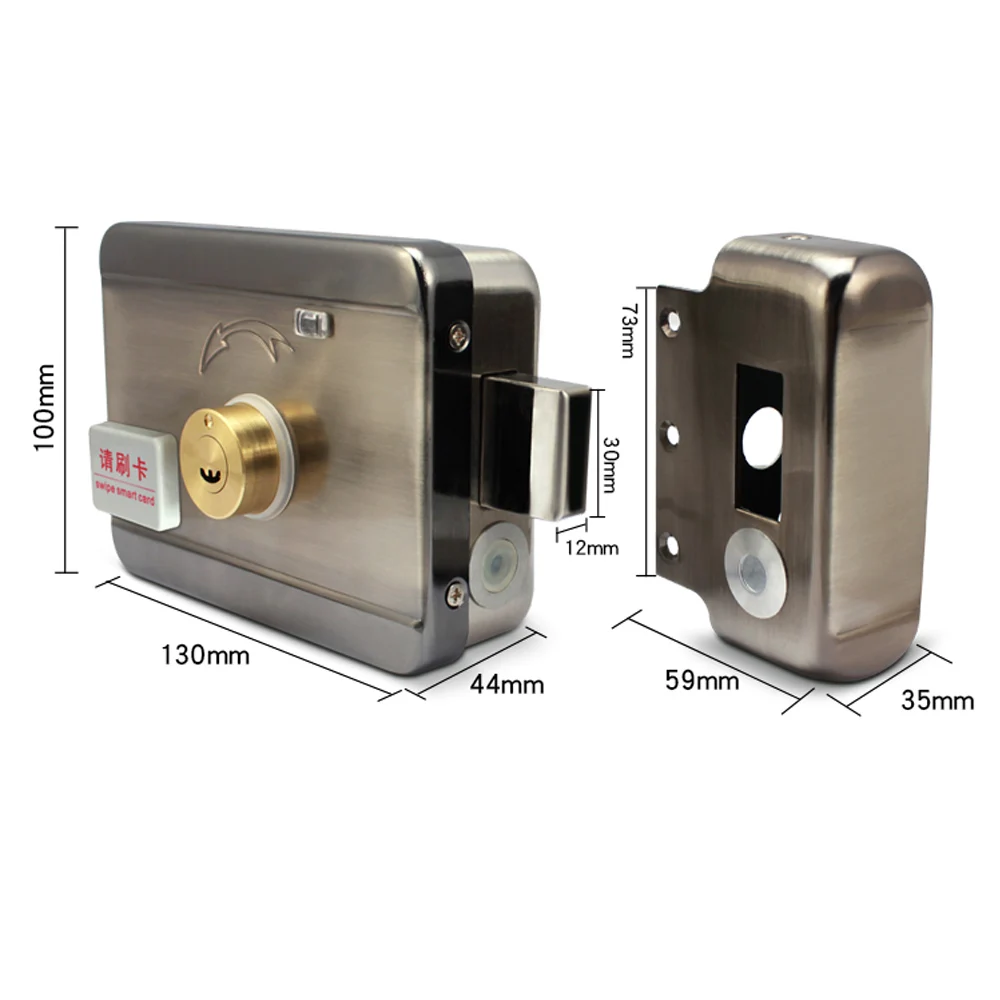

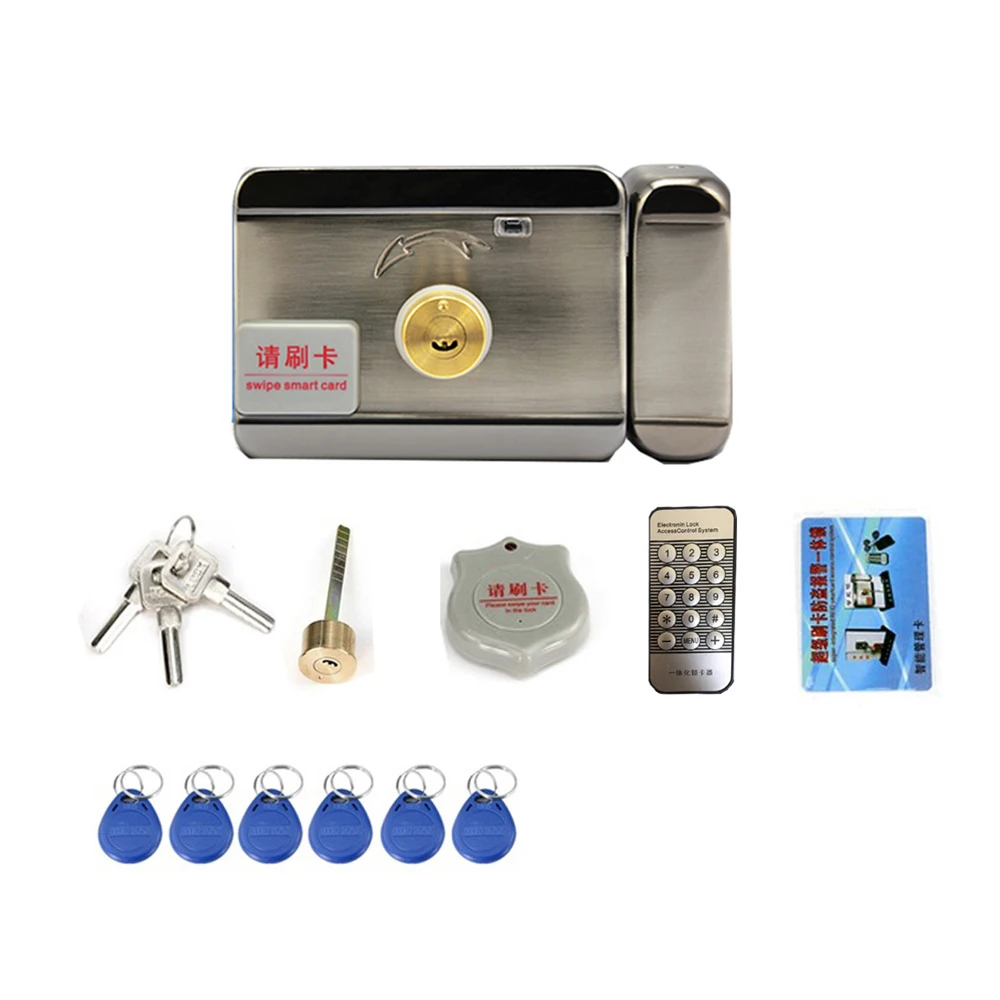

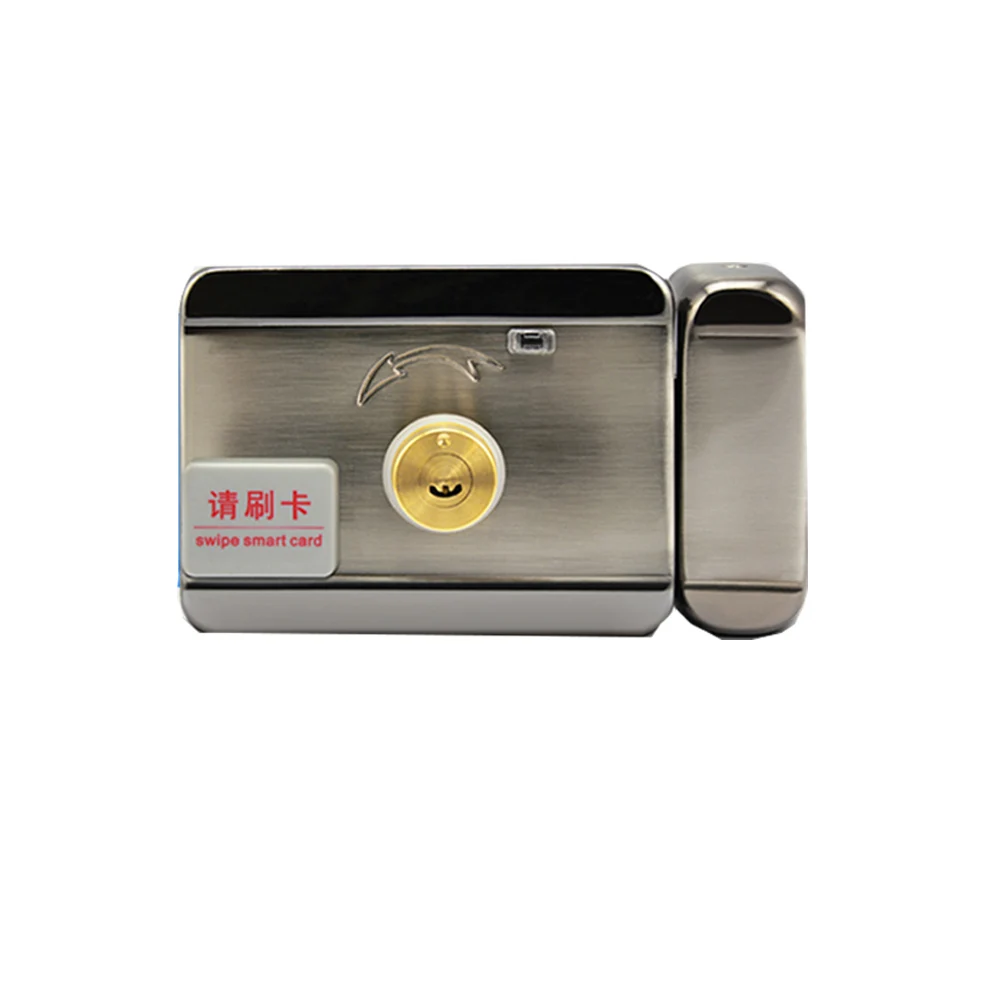

Electronic Lock Specification

Suitable for all sorts of access control systems and Video door systems
Suitable for : home, offices, schools, hotels, factories, warehouses, etc
Voltage:DC12V+-20%
Magnetic distance:≥10mm
Automatically detects door status.
Can be installed on the left door, right door, interior door, outside the door and other doors
Operating Mode: NO

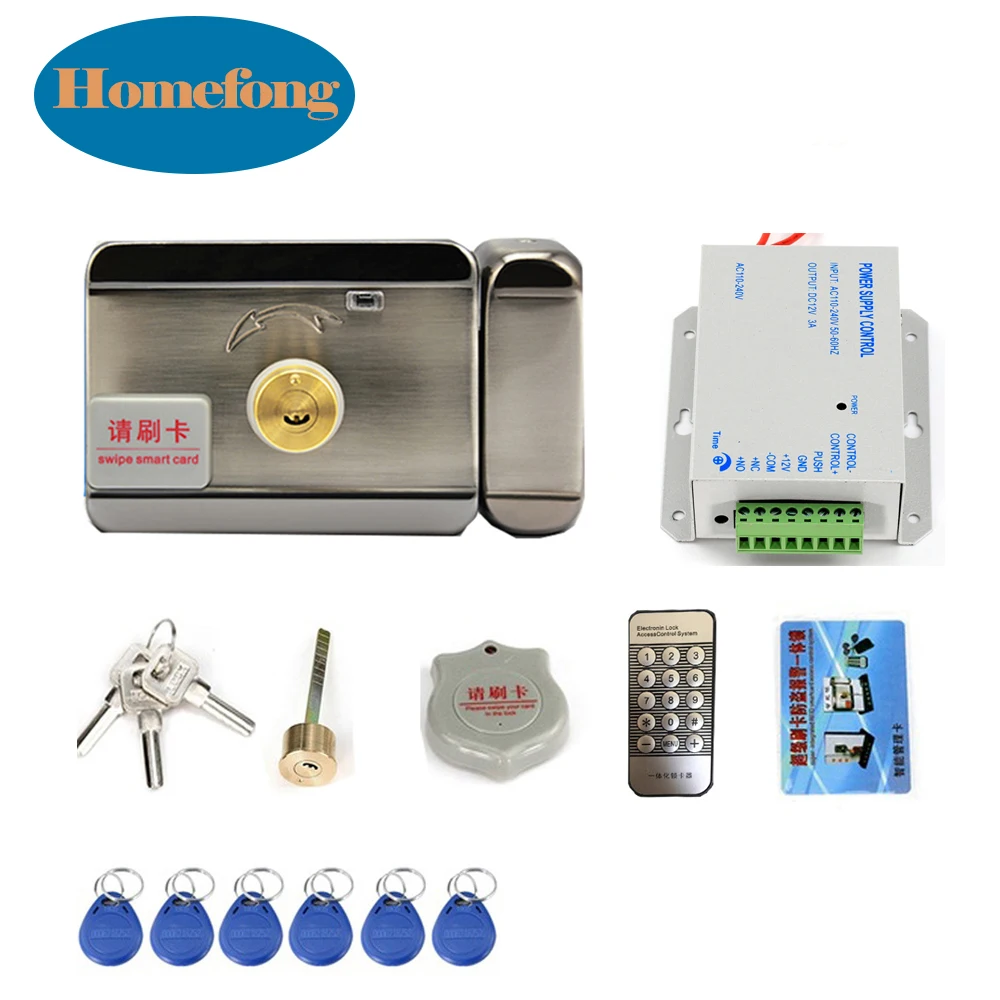

Touch operated one piece Access Control 3A Power Source

This product is designed to be nice and convenient,easy to install,with less wires and built-in high-end intelligent power chip,and is produced by professional and advance process.


Applicable to building intercom,video intercom,video door phone ,various access control units,various electric locks,monitoring probes.


Parameters

1.AC input: AC110-240V 50/60HZ
2.DC input: DC12V/3A
3.With NO/NC/COM port,convenient to connect all kinds of electric locks.
4.With time-delay regulation feature,freely regulated in 0-15 seconds.
5,size:85mmt*85mm*42mm

3A power Source
