Hot Air Solder Station 3 Zones Soldering Machine Honton R490 BGA Rework Station R690 V.3 Touch Screen for Mainboard Chips Repair
-
Estimated Delivery:Jul 08 - Jul 12
-
Free Shipping & Returns: On all orders over $75
Hot Air Solder Station 3 Zones Soldering Machine Honton R490 BGA Rework Station R690 V.3 Touch Screen for Mainboard Chips Repair
SPECIFICATIONS
Brand Name: LY
Certification: CE
High-concerned chemical: None
Model Number: R490/R690 v.3
Origin: Mainland China
is_customized: Yes

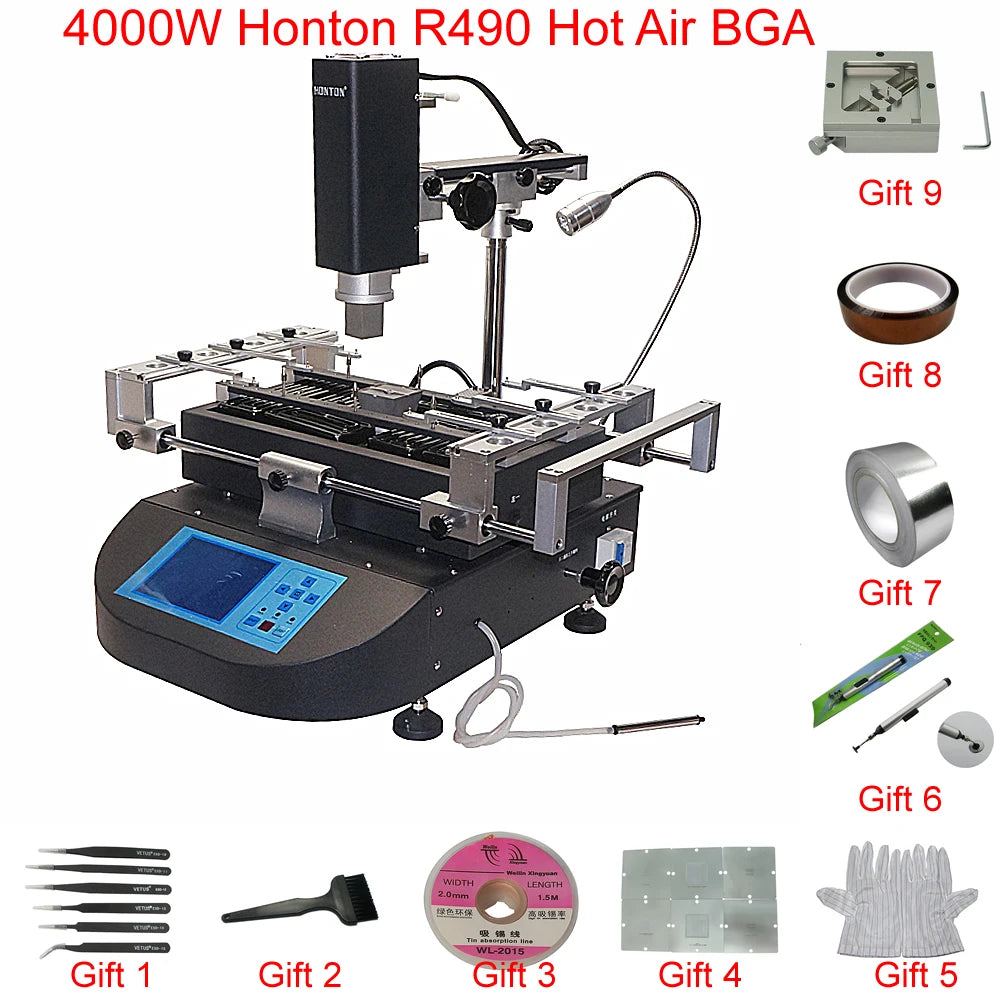

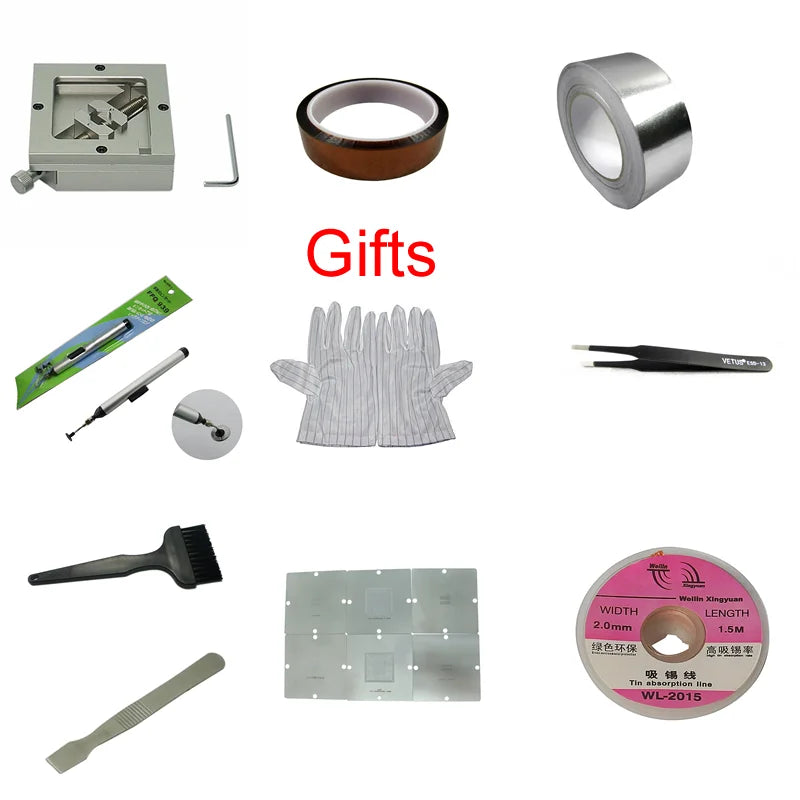

Free gifts:
1pcs HT-90 Reballing station
6pcs 90x90mm PS4 stencil
1pcs High temperature protective tape
1pcs desoldering wick WL-3015
1pcs Vacuum suction pen
1pcs tweezer
1pcs brush
1pcs scraper
2pcs Anti-static glove
1pcs Aluminum film tape

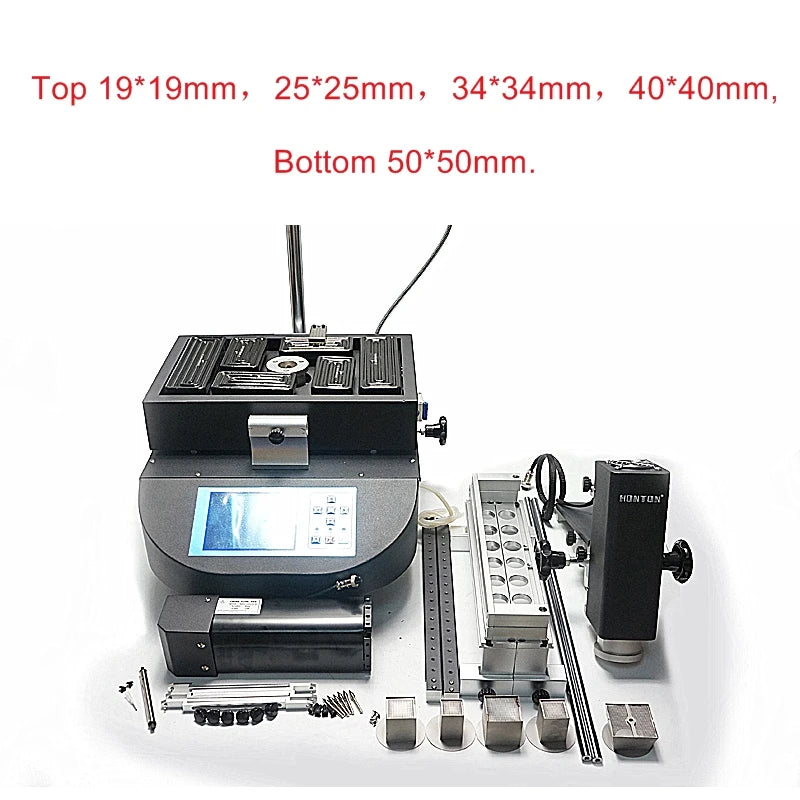

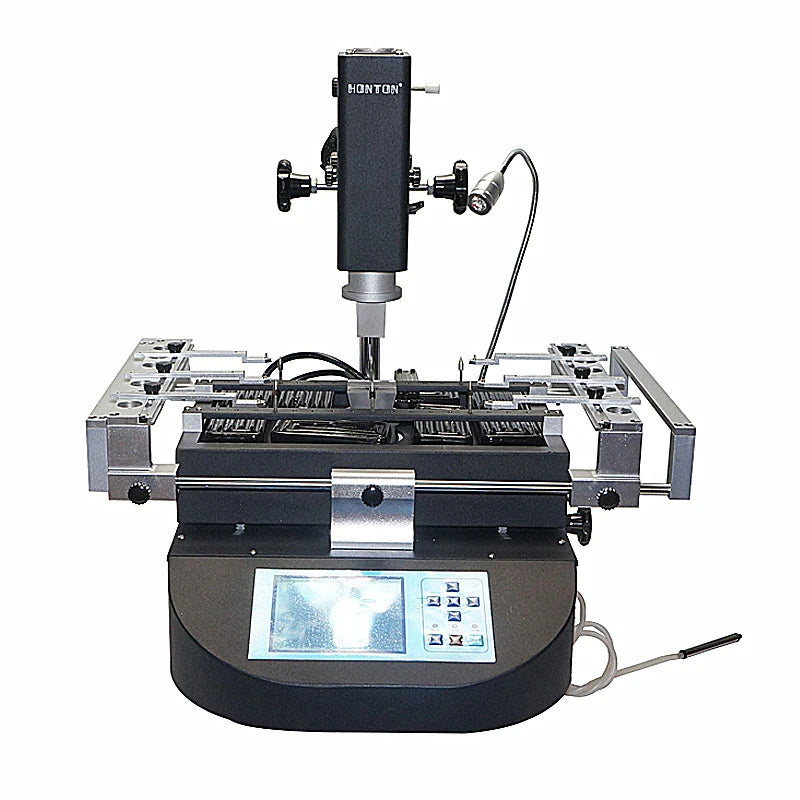

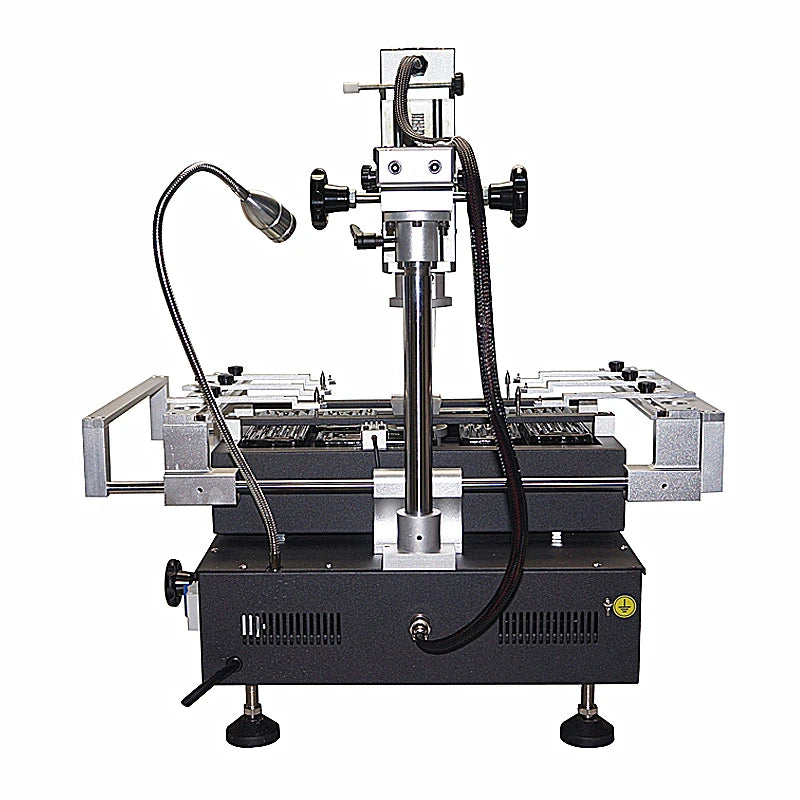

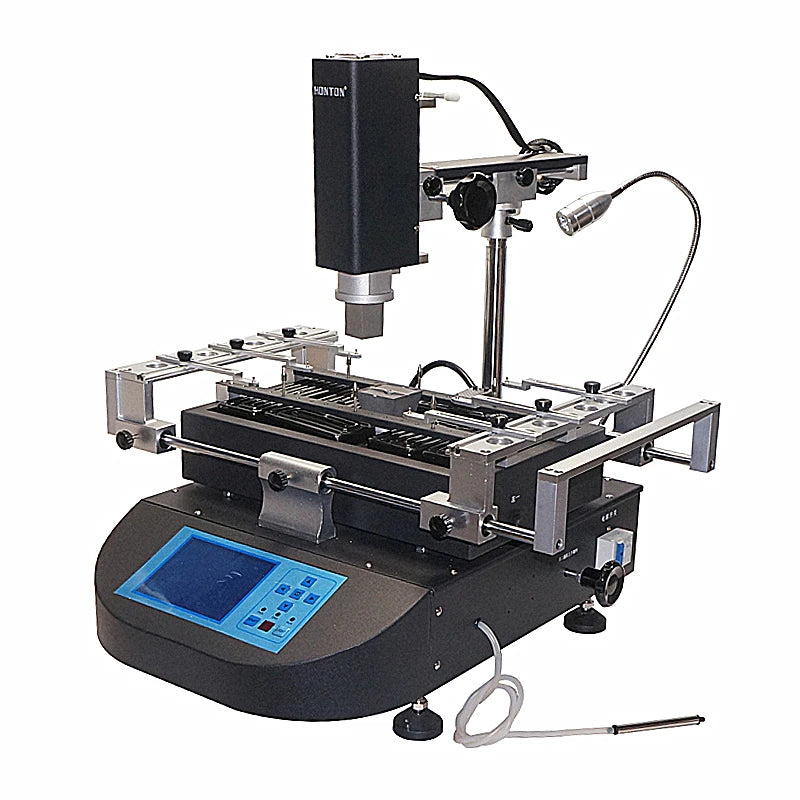

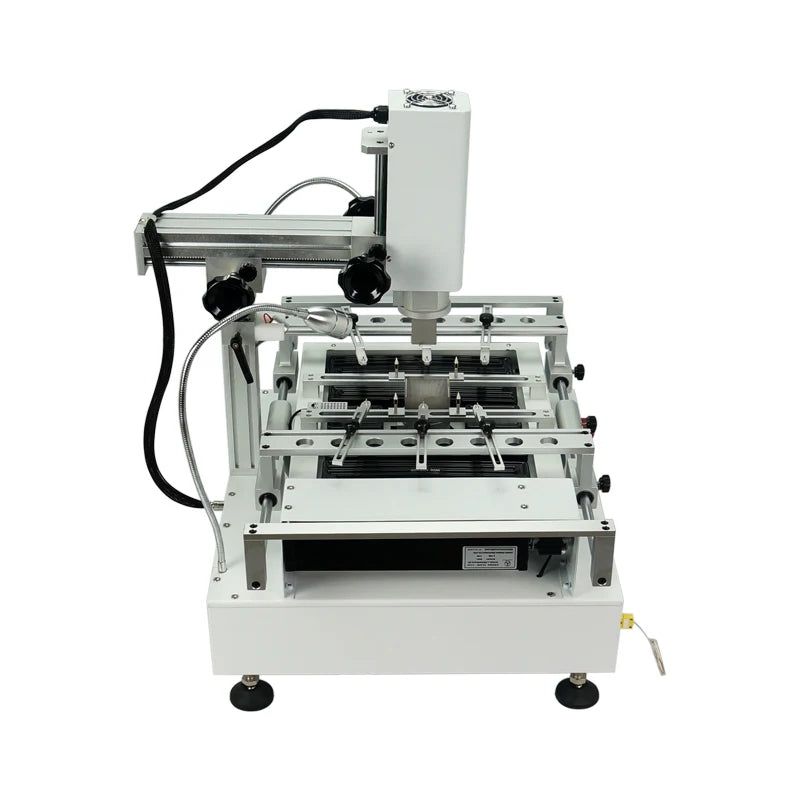

Hot air 3 zones HT-R490 bga solder rework station reballing machine:
RE:110V version not have built-in vacuum pump,will send FFQ939 manual vacuum pen in accessory box.

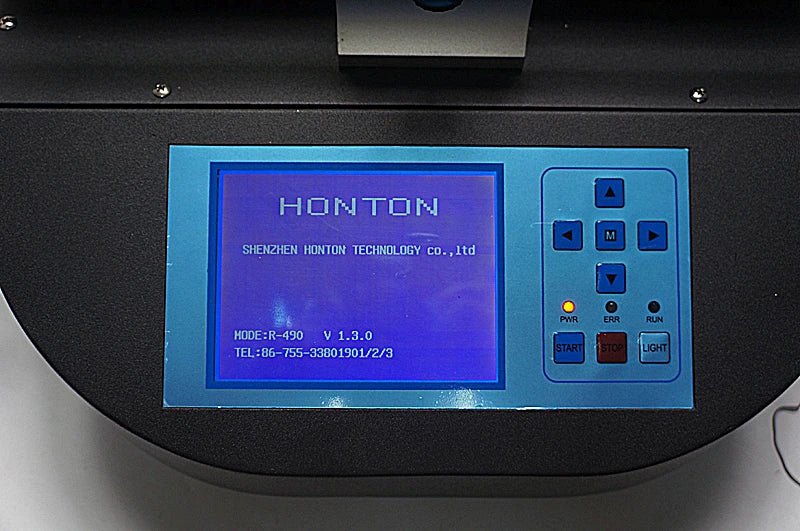

Technical Parameters(R490):
Basic Parameters | |
Heating |
HR |
Dimension |
L580mmx W560mmx H650mm |
Weight |
28kg |
Total weight |
About 35 kg, vary with the differen need of the users |
Electrical Parameters | |
Power |
220V AC |
Upper Heating |
HR |
Size of upper (IR) |
--------------- |
Consumption of upper (IR) |
--------------- |
Nozzle of upper(HR) |
4pcs: 19x19, 29x29,34x34,37x37 mm |
Consumption of upper (HR) |
800W |
Bottom Heating |
HR |
Nozzle of bottom(HR) |
1 pcs: 50x50 mm |
Consumption of bottom (HR) |
800W |
Bottom Preheat |
IR |
Consumption of preheat (IR) |
2400W |
General power |
4KW |
Temperature Control | |
Control mode of Upper |
Independent temperature control, high-precision closed-loop |
Control mode of Bottom |
Independent temperature control, high-precision closed-loop |
Rework Function | |
SMD |
Suit for welding, remove or repair packaged devices |
Size of applicable chips |
≤80mm x80 mm |
Size of applicable PCB |
MIN 10mm*10mm MAX 350mm*400mm |
Packing list:
1× bga rework station
5× nozzles: 4 pcs top(19,29,34,37mm) and 1 pcs bottom(50mm);

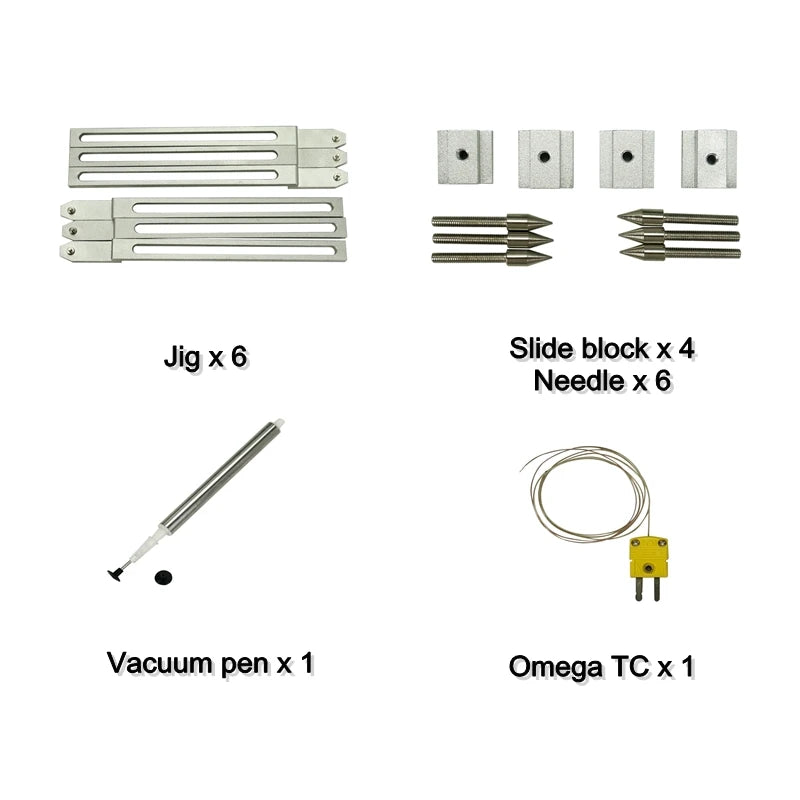

6× pcb jig (with screw)
1x vacuum pen
1× k-type thermocouple
1x socket head wrench
1x Computer Cable
1× CD of manual and software (if not get, may be lost in customs, please contact us)

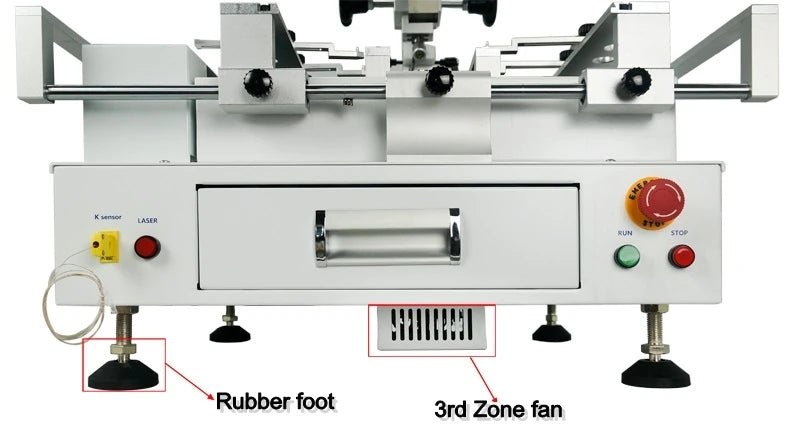

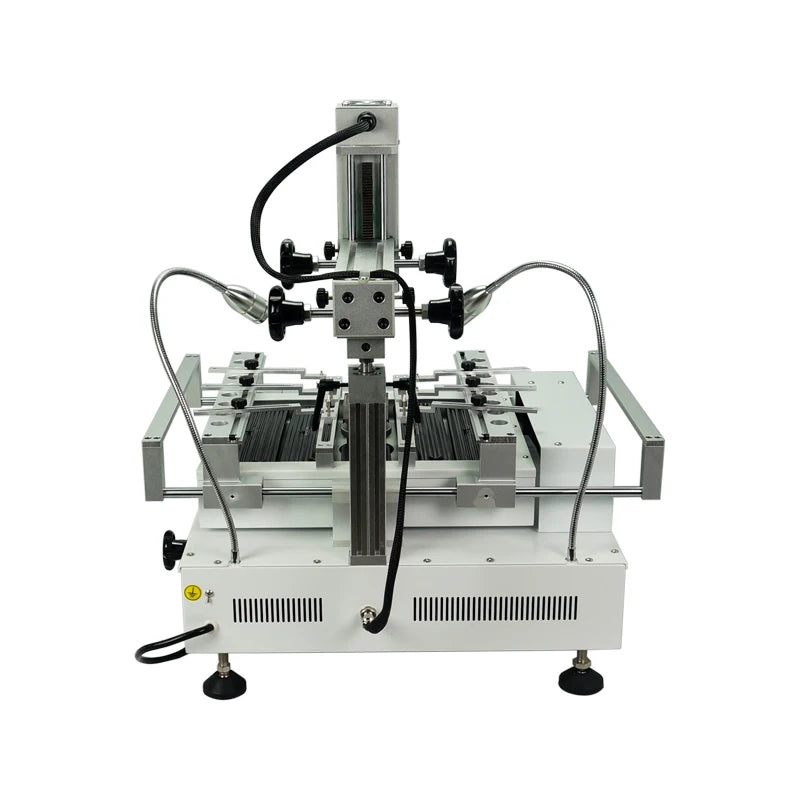

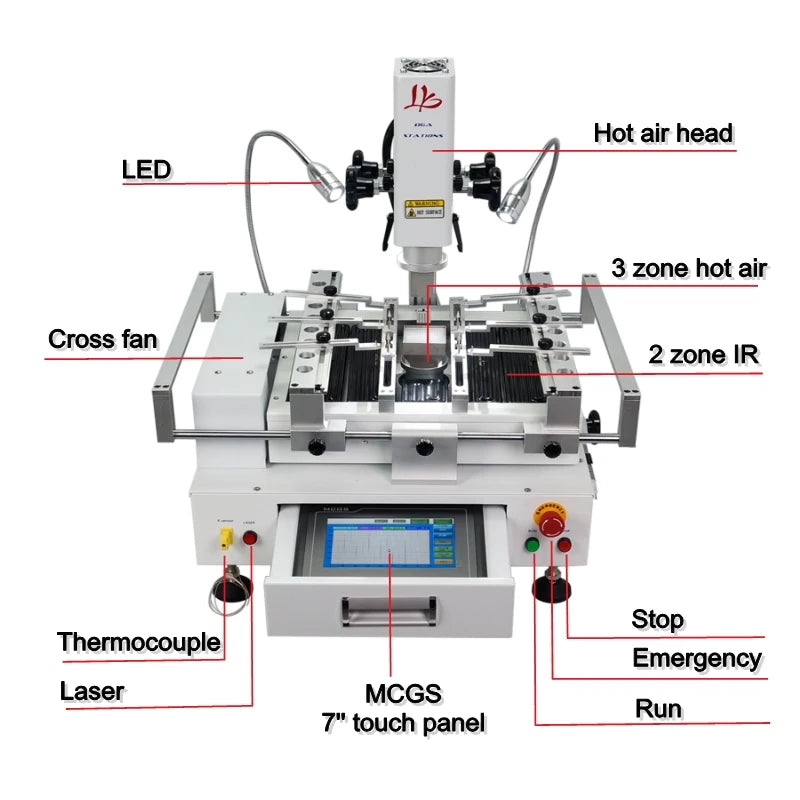

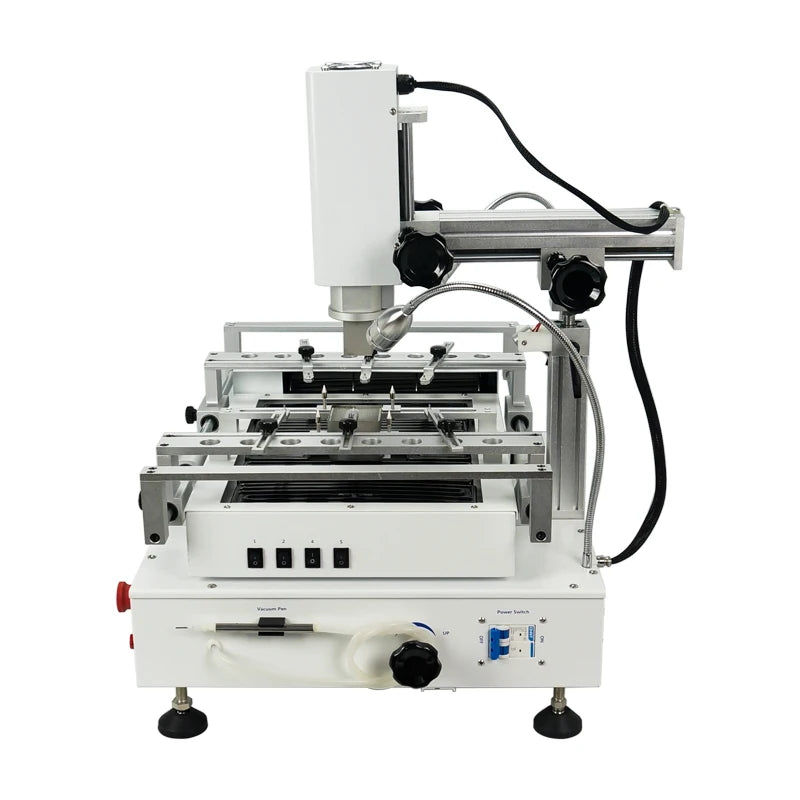

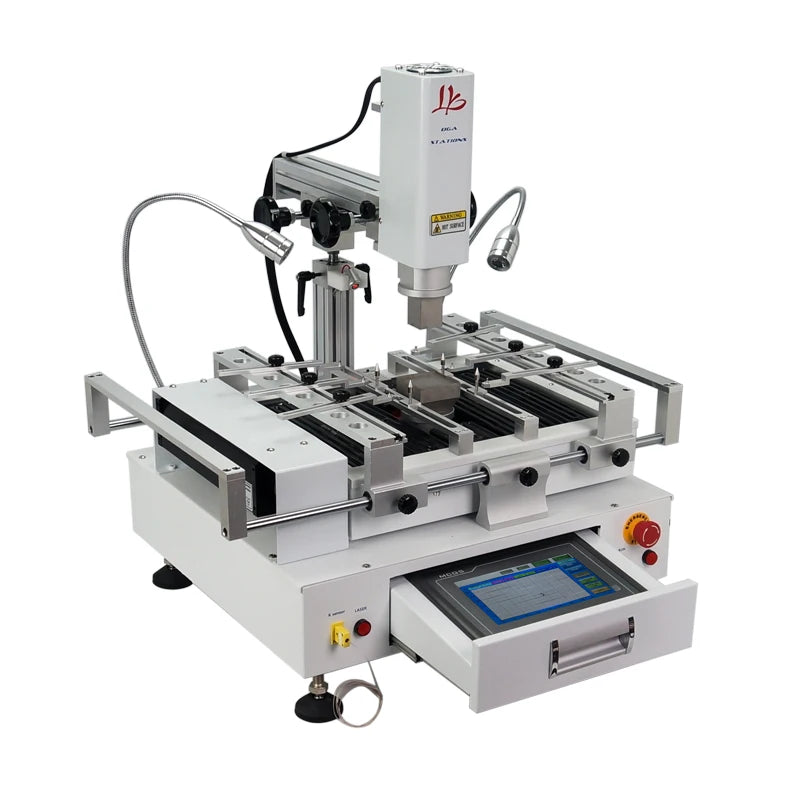

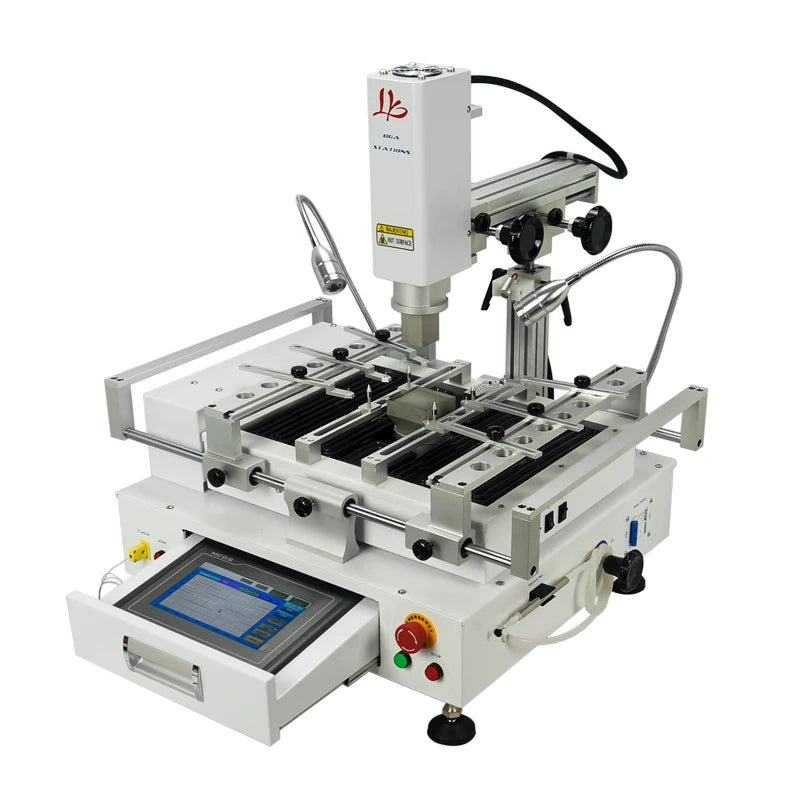

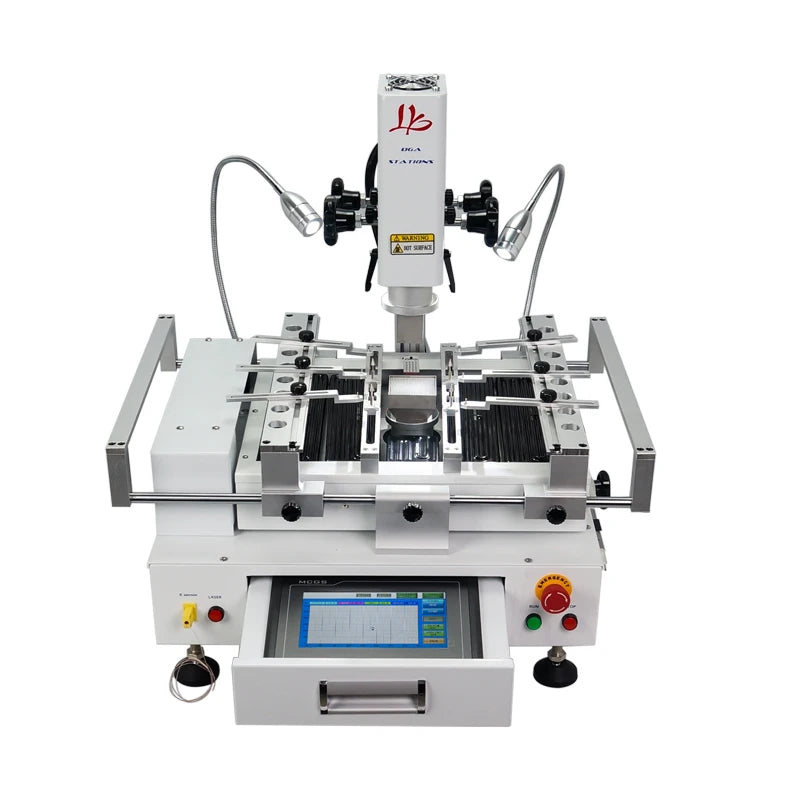

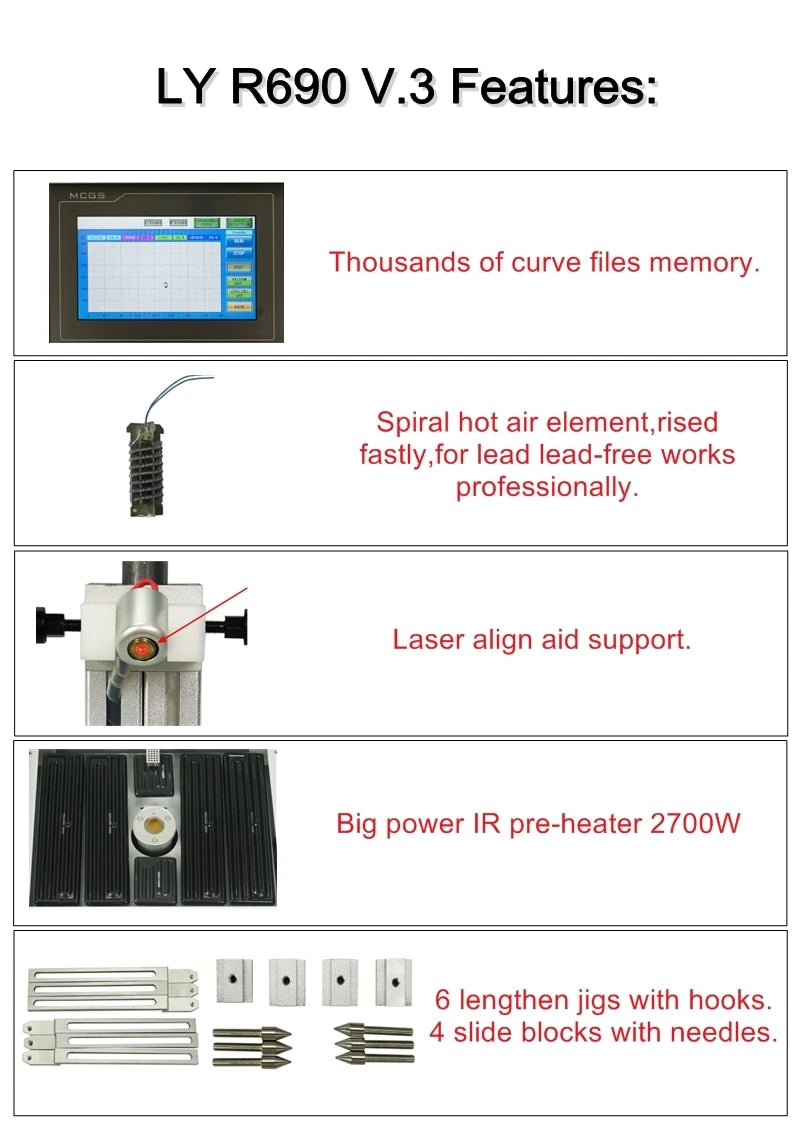

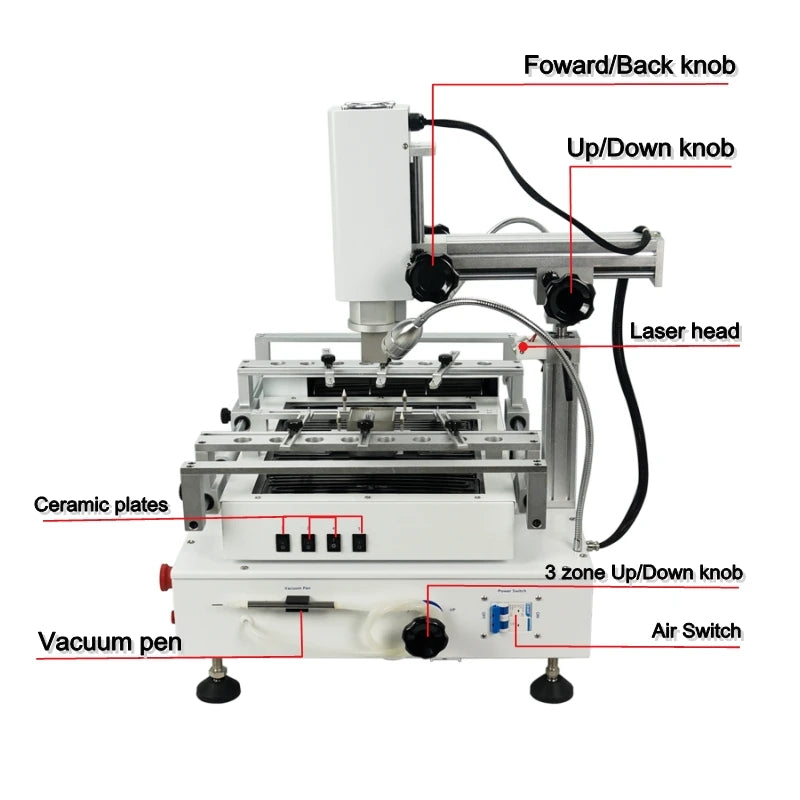

New version LY R690 V.3 BGA Rework Station solder stations 3 zones hot air touch screen with laser point 4300W EU plug
Video: https://www.youtube.com/watch?v=-BHlWuywaiY&feature=youtu.be
Specs:
Model |
LY R690 V.3 BGA Rework Station |
Specs | |
Basic Parameters | |
Color |
Pearl white |
Zones |
3 zones |
Heating |
Hot air,IR pre-heating |
Operations |
Manual,touch screen control |

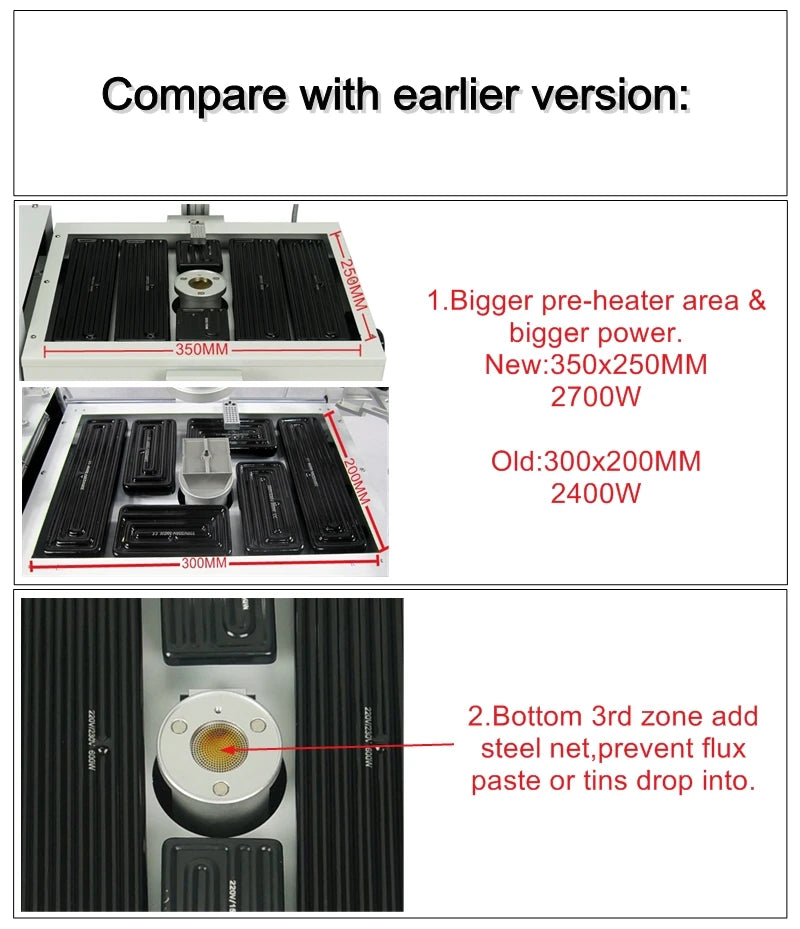

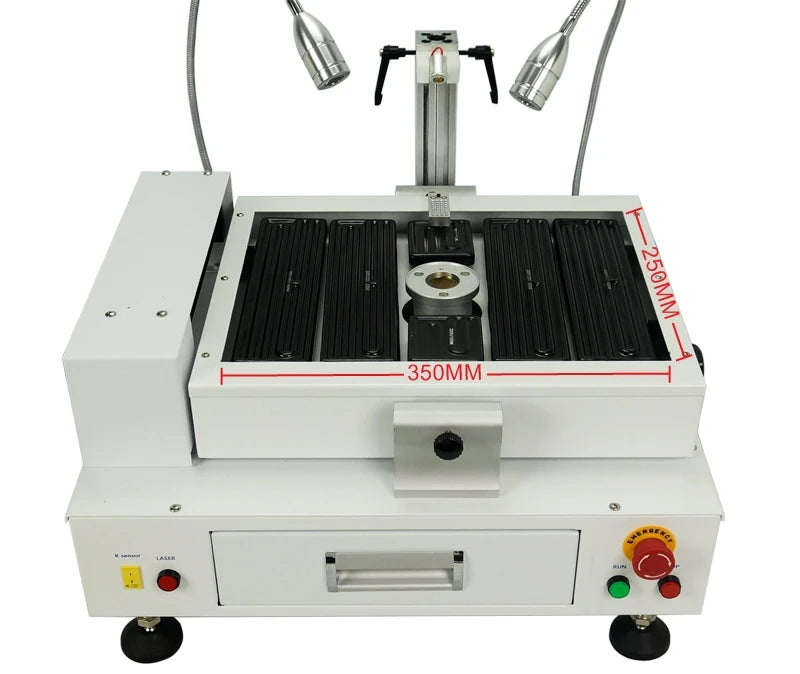

IR area |
350*250MM |

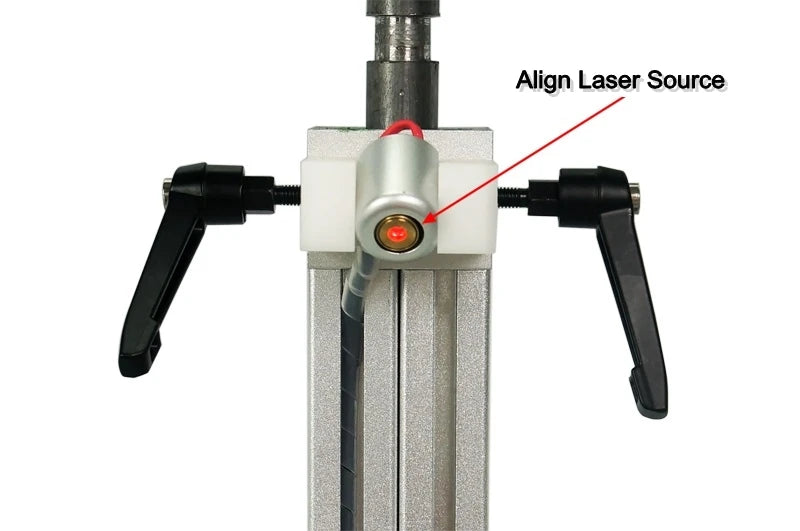

Laser align |
Support |

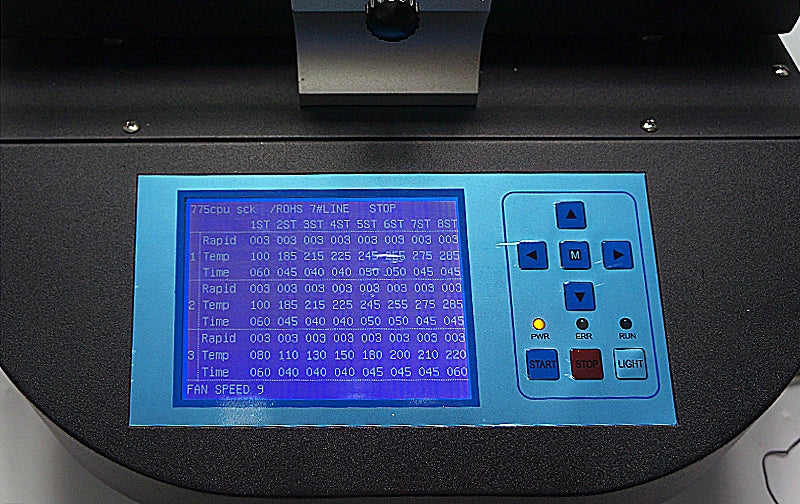

Curves |
Thousands,based on SD card capacity |
Power |
4300W,Top 800W,bottom 800W,IR 2700W |

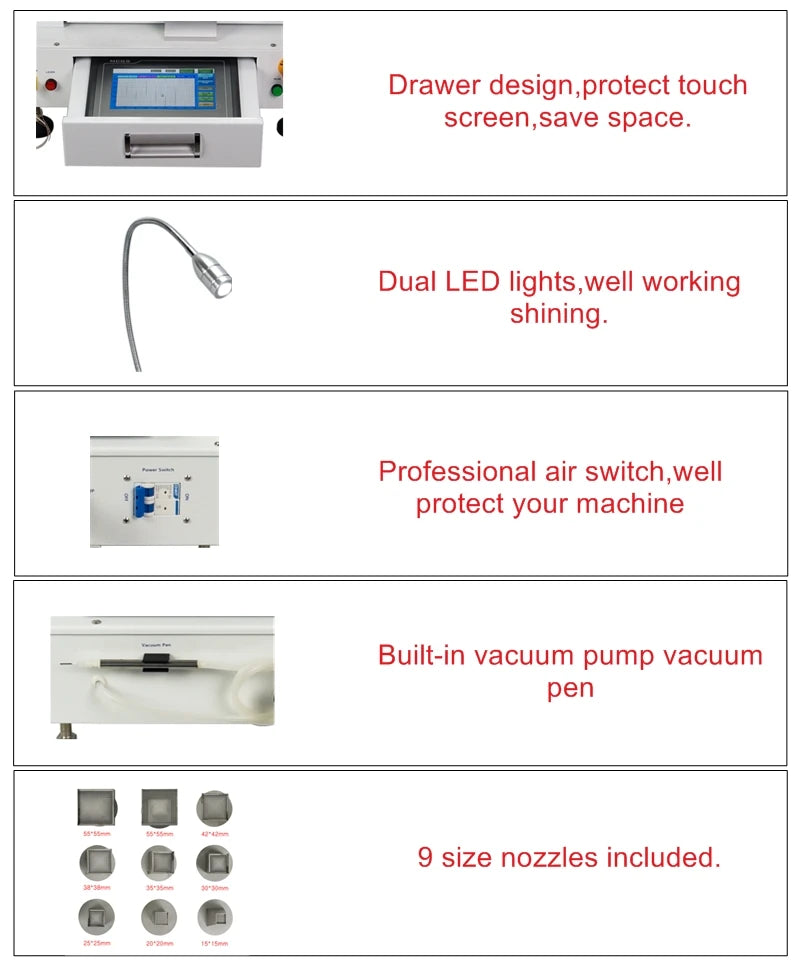

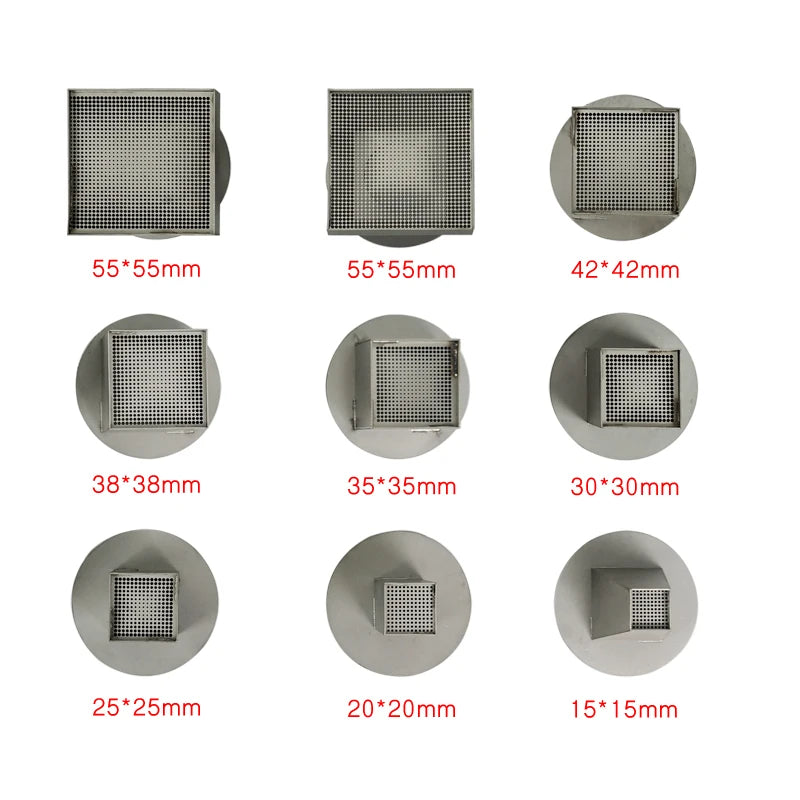

Nozzle |
9 pcs,8 top,1 bottom |
Vacuum pen |
Built-in vacuum pump |

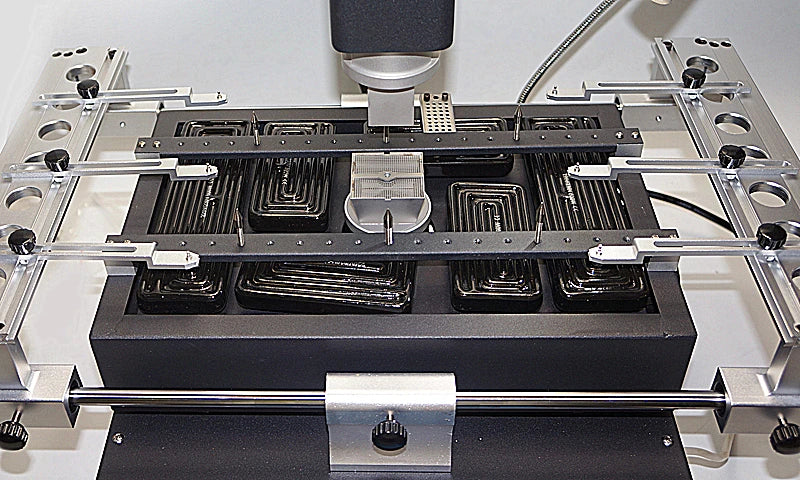

PCB jigs |
6 pcs |

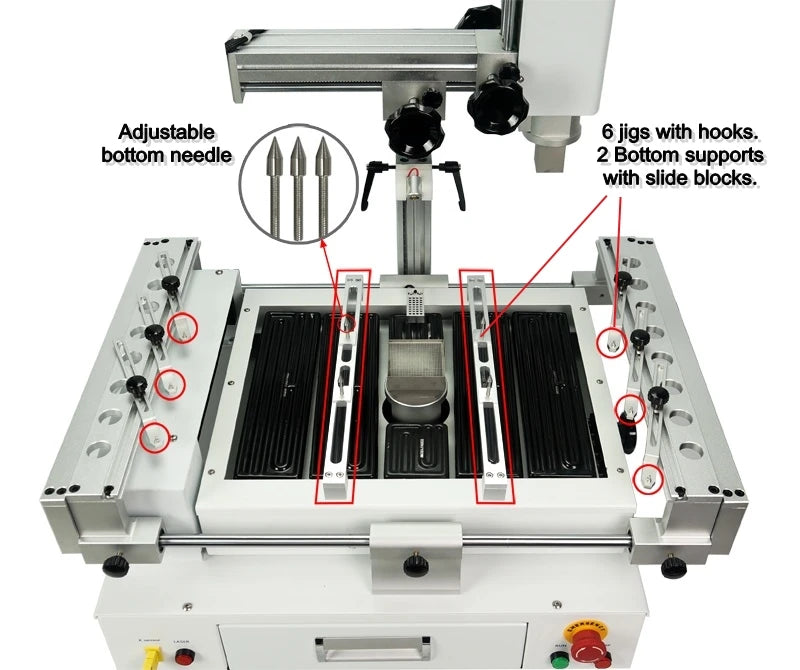

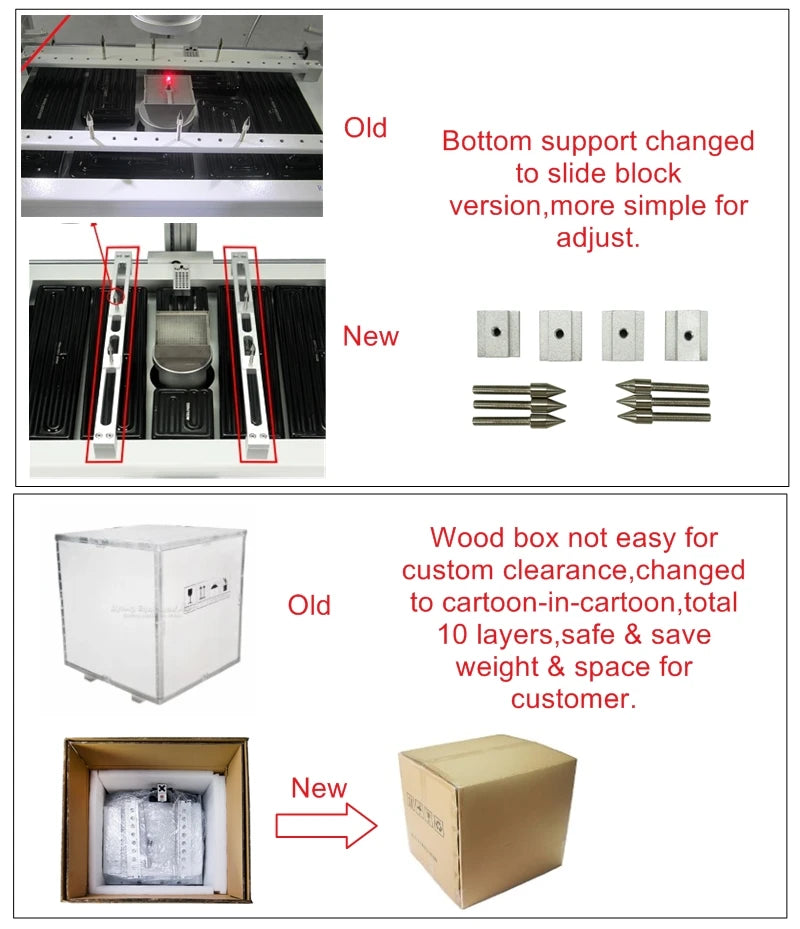

Bottom support jig |
2 pcs |
Weight |
45KG |
Voltage |
220V |
Package |
Cartoon |
Packing list:
1× bga rework station
5× nozzles: 4 pcs top(19,29,34,37mm) and 1 pcs bottom(50mm);
6× pcb jig (with screw)
1x vacuum pen
1× k-type thermocouple
1x socket head wrench
1x Computer Cable
1× CD of manual and software (if not get, may be lost in customs, please contact us)
