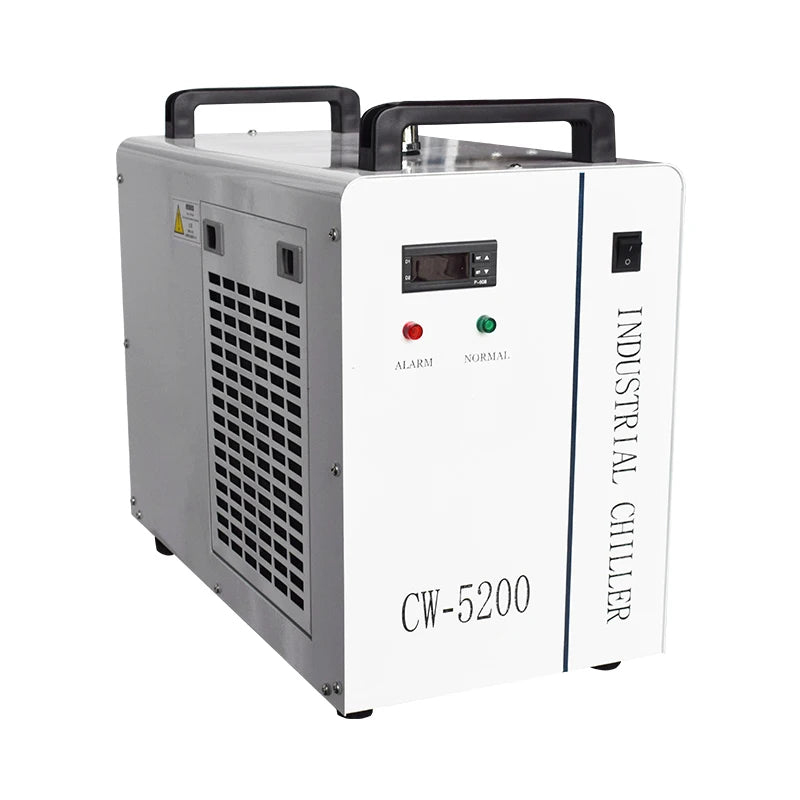

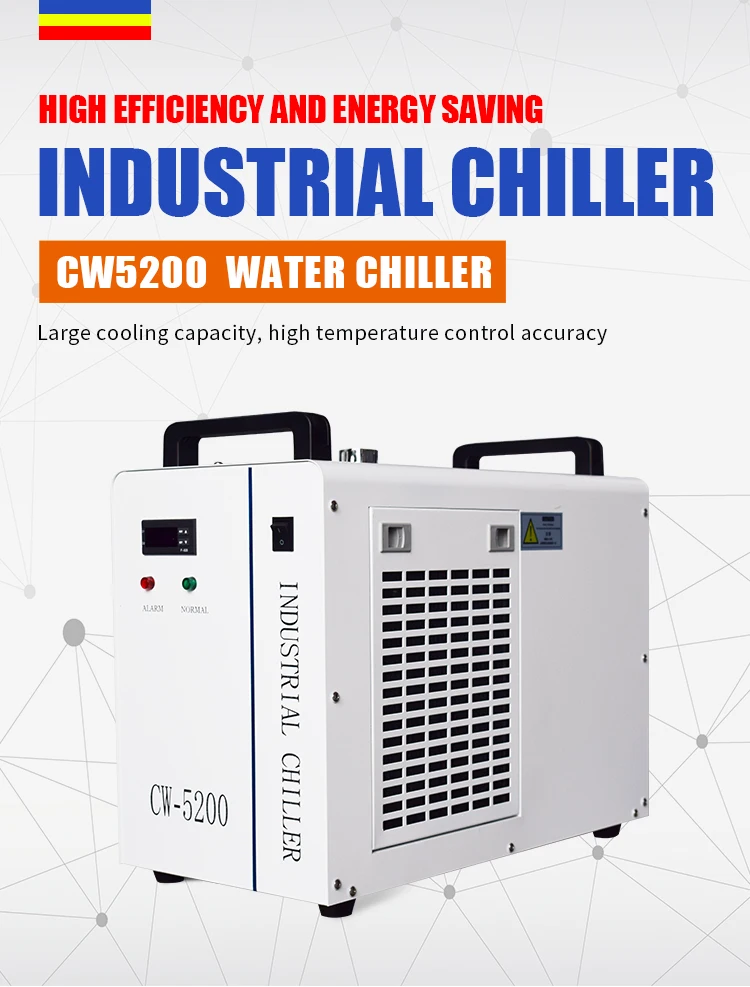

Industrial Machine Cooling Cw3000 Cw5000 Cw5200 Cw6000 Water Cooled Industrial Chiller
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
Industrial Machine Cooling Cw3000 Cw5000 Cw5200 Cw6000 Water Cooled Industrial Chiller
SPECIFICATIONS
Frequency: 50/60Hz
Machine Size: 64X 36 X 54cm (L x W x H)
Max.Pump Flow: 12L/min
Max.Pump Lift: 13m
Voltage: 220V
Weight: 31kg
Weight (KG): 20
brand name: LHCNC
core components: Industrial cooler
dimension(l*w*h): 64X 36 X 54
key selling points: Easy To Operate
machinery test report: Not Available
place of origin: Shandong, China
power: 3 kW
video outgoing-inspection: Provided
voltage: 220V
warranty: 1 Year
The Advantages :
Model |
CW-5200 |
||||
Voltage |
220V AC |
220V AC |
110V AC |
||
Frequency |
50Hz |
60Hz |
60Hz |
||
Electric current |
0.4-4.6A |
0.4-4.2A |
0.4-6.2A |
||
Compressor
power
|
620W |
696W |
425W |
||
0.92HP |
0.92HP |
1HP |
|||

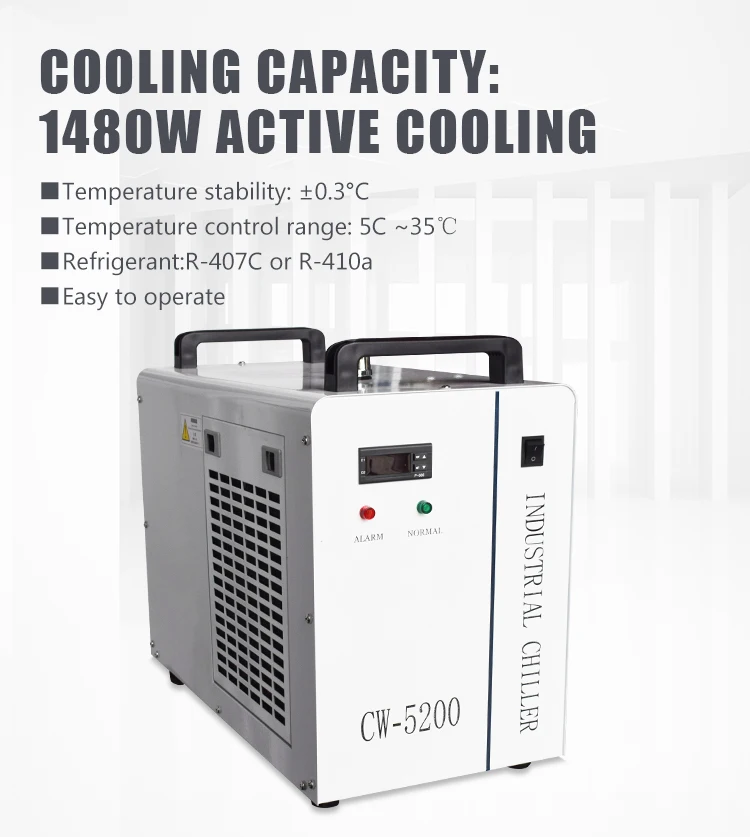

Refrigerating capacity |
1.6kw ±5% |
1.8kw ±5% |
1.5kw ±5% |
||
Refrigerant |
R407C/R410a |
R407C/R410a |
R410a |
||
Amount of refrigerant charged |
R407C 350g/R410a 280g |
R407C 350g/R410a 280g |
480g |
||
restrictor |
capillaries |
||||
Maximum lift |
13m |
15m |
25m |
||
Maximum discharge |
12L/min |
16L/min |
20L/min |
||
Pump power |
30W |
55W |
88W |
||
Water outlet |
Extemal φ10mm brass connector/φ8 quick couplings/φ10 quick couplings/φ12 quick couplings |
||||
Tank capacity |
7L |
||||
Net weight |
27.5kg |
||||
Machine size |
560*290*430mm |
||||
Package size |
640*360*540mm |
||||
1. Open the package to check if the machine is intact and all the necessary accessories are completed.
2. Open the mouth screw on the top of machine, add cooling water (Please don't power the machine without water).
3. According to system conditions, connect the water isnlet and outlet pipe well.
4. Connect the power cable, turn the power switch (Note: Don't let the water overflow).
5. Check the radiator water level again (Keep the distance between water level and mouth is 80-150mm).
PRODUCT DETAILS

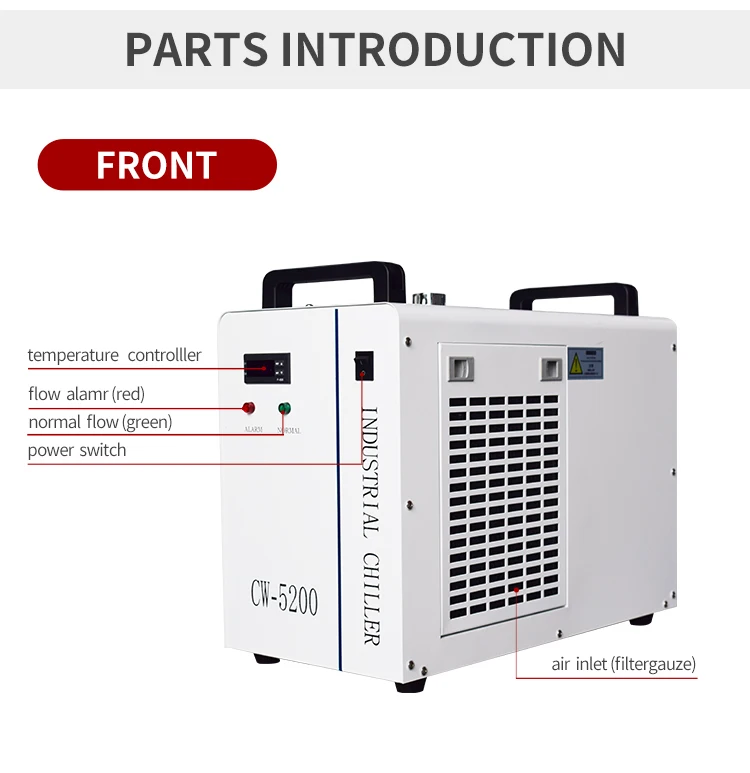

User-friendly control panel

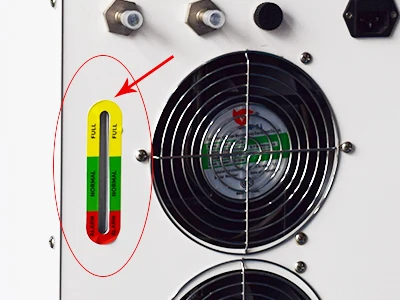

Easy-to-read water level indicator

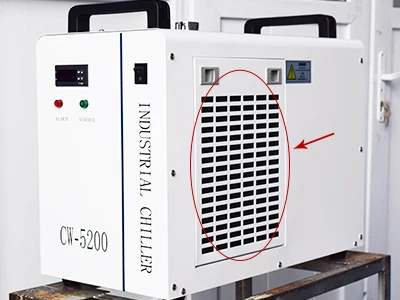

Dust-proof filter

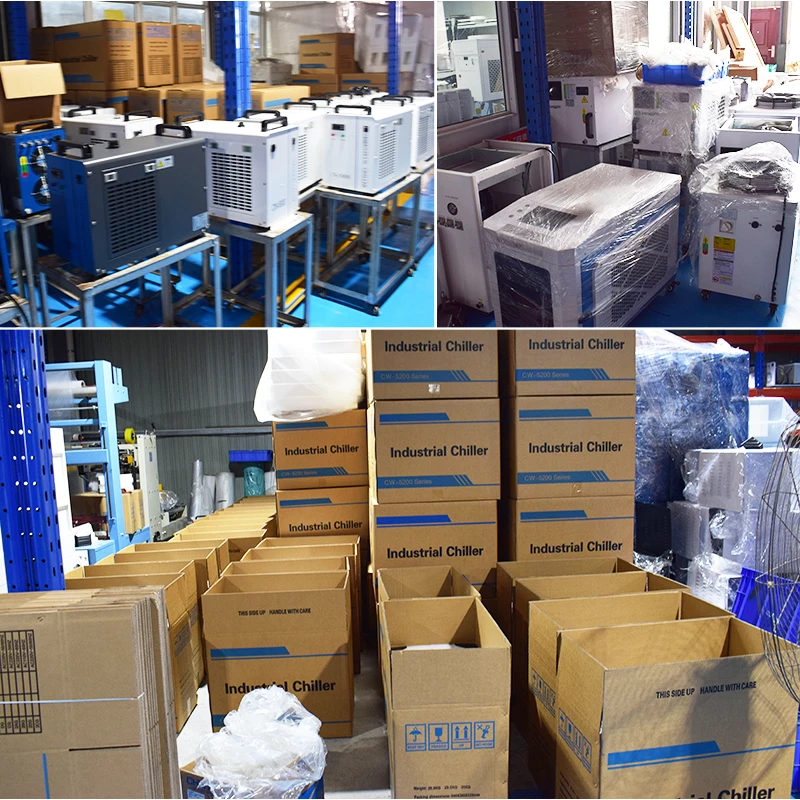

Product Packaging
