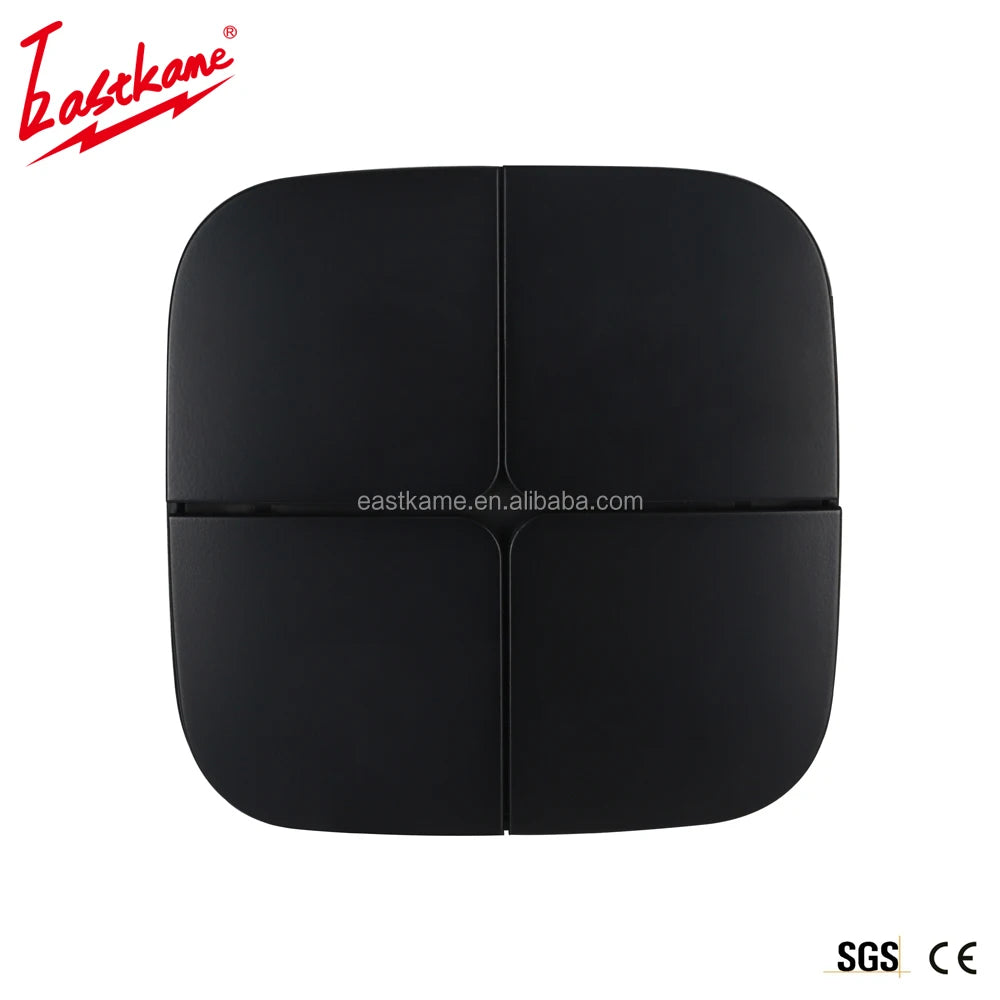

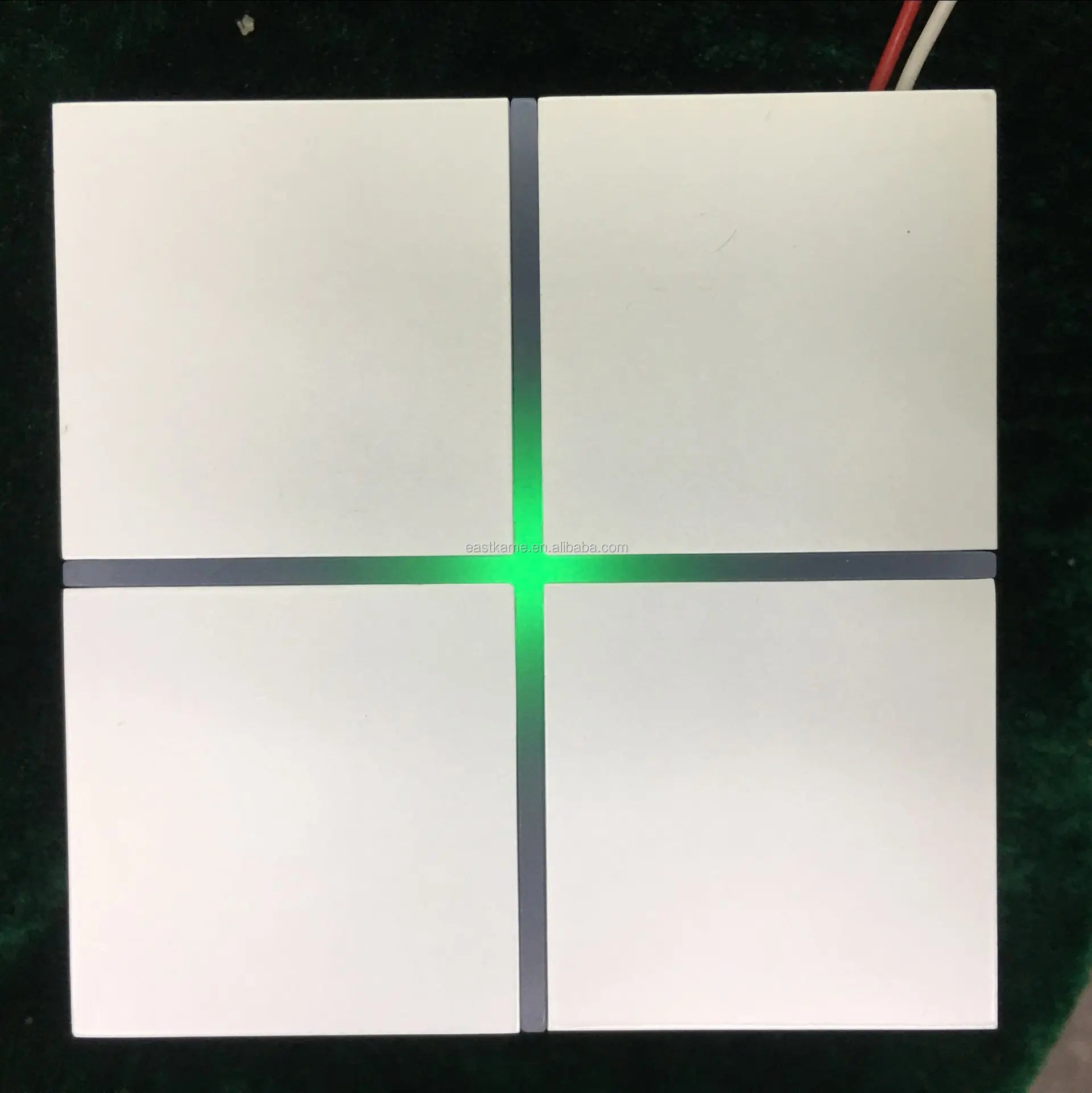

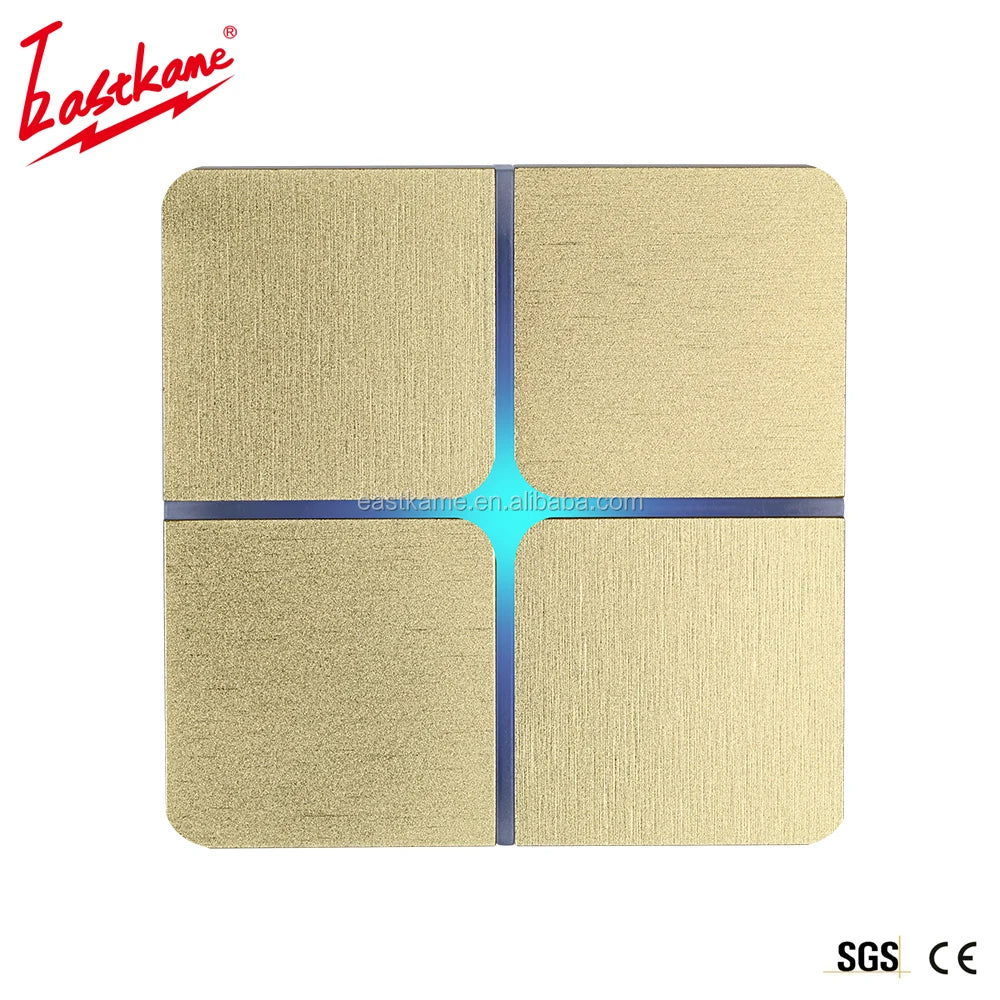

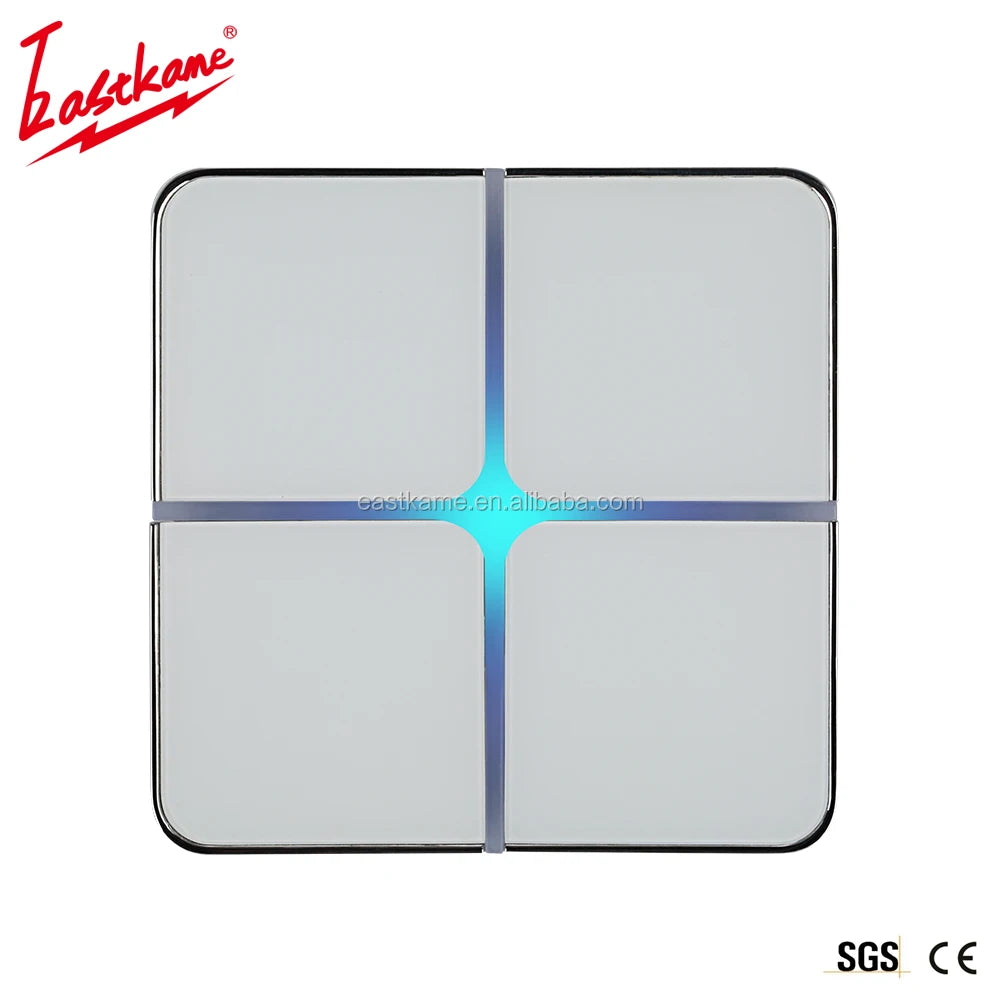

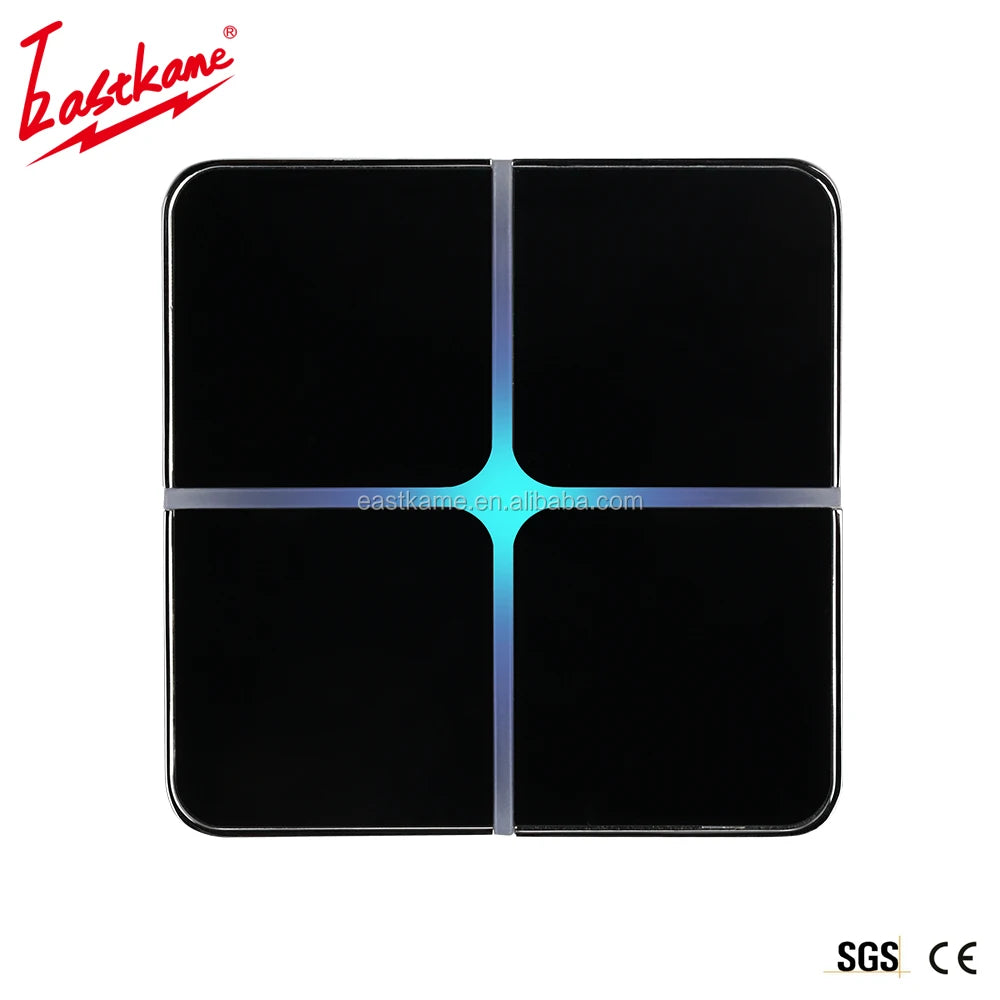

Knx Smart Light Switch for Home Automation Wifi or Mobus Touch Metal Panel for Wall Switches Stylish Design for Modern Home
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
Knx Smart Light Switch for Home Automation Wifi or Mobus Touch Metal Panel for Wall Switches Stylish Design for Modern Home
SPECIFICATIONS
Brand Name: eastkame
Max. Current: Max 12mA
Max. Voltage: 21-30 v
Mechanical Life: 20 years
Model Number: EK-WI4025
Place of Origin: Guangdong, China
Smart Switch: KNX Smart Switch
OEM/ODM smart light switch knx or wifi or mobus touch metal panel switch for home automation
This manual provides you the detailed technical information about the Switch Actuators, not only the installation and programming details, but also the usage explanation in actual application. They can be installed in the distribution boards on 35mm mounting rails according to EN60715.
These switch actuators can be used to control the switch loads, such as:
- intelligent switch
- Lighting
- Heating control
- Signal devices

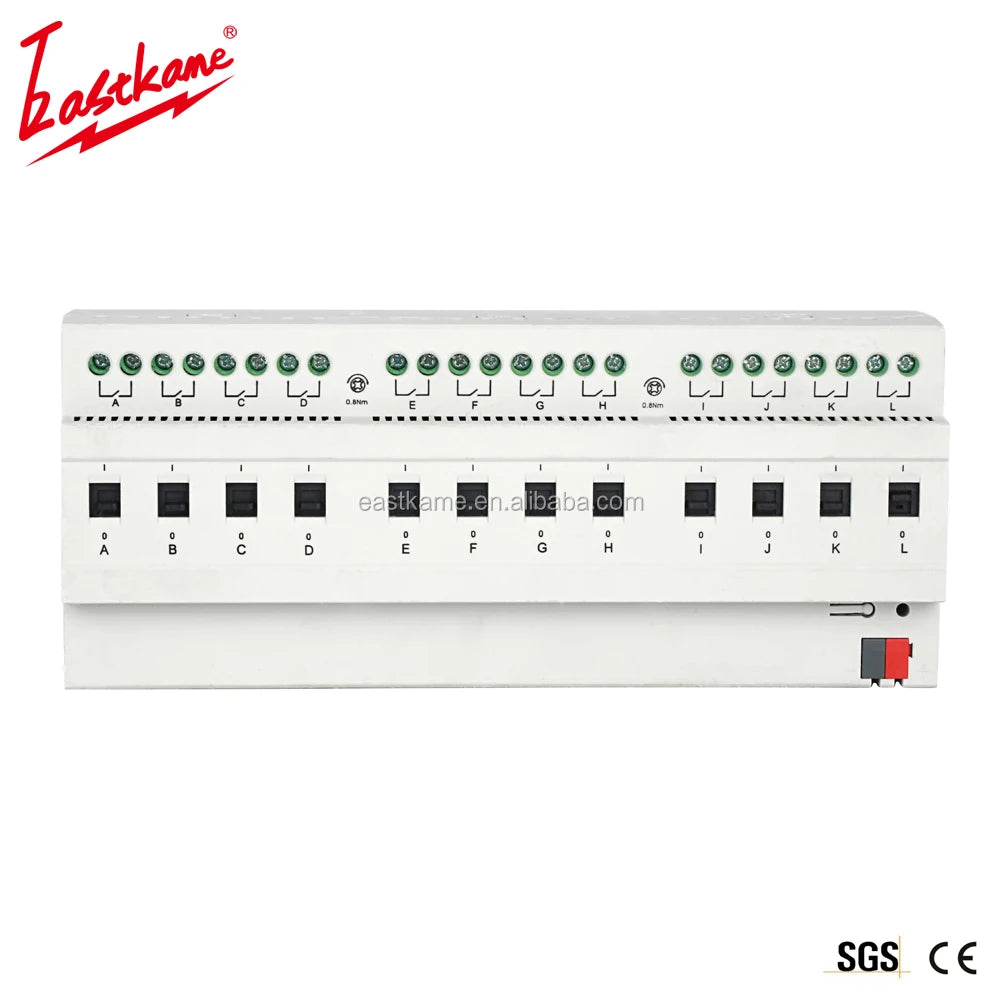

The switch actuators are the modular installation devices, with 8 and 12 outputs for selection, using KNX connection terminals to connect to the system. The switch actuators need to connect an extra 230V AC power supply and provide to 4 outputs. It is able to use the Engineering Tool Software ETS (ETS2 v1.3 or later) with a VD2/VD3 file to allocate the physical address and set the parameters.
If the 230V AC power supply is not connected, all LEDs are flashing for indicating output state on the device.
It is able to switch from 4 to 8 independent electrical AC loads or three-phase loads and 4 electrical AC loads with the same phase of the 230V AC power supply by the switch actuators with maximum output of 6A per output and manual switch, as well as visible switching status via LED indication.
There are same following programming functions for each output:
w time function: on/off delay
w staircase function with the warning and adjustable staircase lighting time
w scene, preset control: 8bit/1bit
w logic operation: AND, OR, XOR, gate function
w status response
w forced operation and safe function
w threshold function setup
w control of electro thermal valve function
w manual operation switch
w indication of switch status (contact position)
Electrical source: work 21 ~ 30 V dc bus voltage electric
The working current: Max 12 ma
Power consumption: Max250mA
Interface: standard EIB interface
Temperature range: - 10 ℃ to 50 ℃
The key way: a capacitive touch sensor
Installation method: standard 86 bottom box installation
