SPECIFICATIONS

Brand Name: LANBAO

Certificate: CE UL

Conenction: 2m PVC cable M12 Connector

Description: Inductive Proximity Sensor,Inductive sensor

Model Number: LR04 LR6.5 LR08 LR12 LR18 LR30

Mounting: Flush or Non-flush

Mounting Type: No

Output: NPN PNP NO/NC,PNP, NPN, NO, NC,NO+NC

Place of Origin: Shanghai, China

Sensing distance: 2mm and 4mm optional

Shell material: Nickel-copper alloy

Size: M4 M5 M6.5 M12 M18 M30

Type: Inductive Proximity Sensor

Usage: Position sensor,Position Sensor

Voltage: 10~30VDC

Warranty: 12 Months

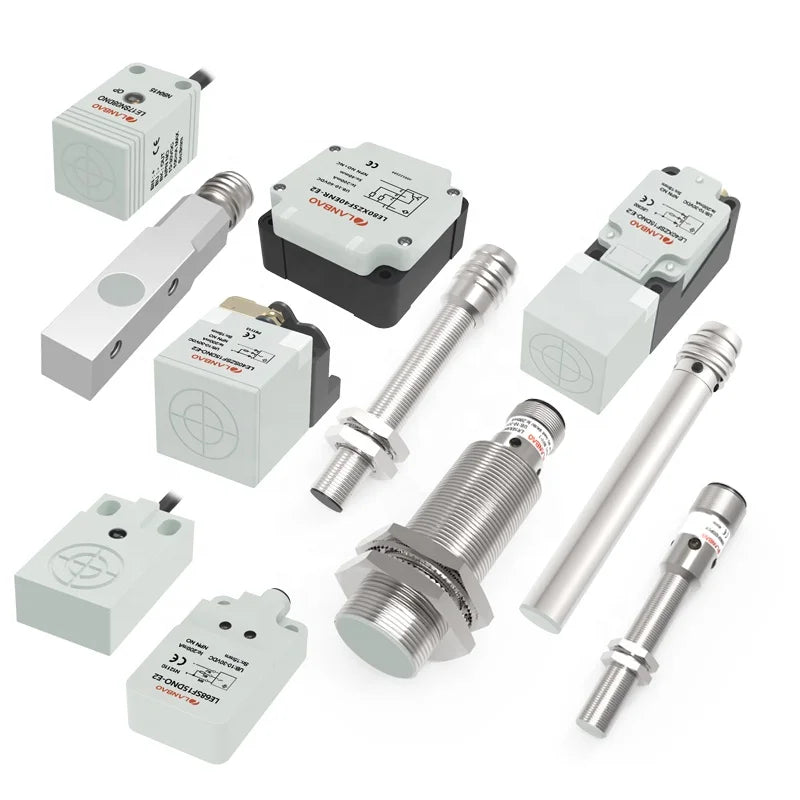

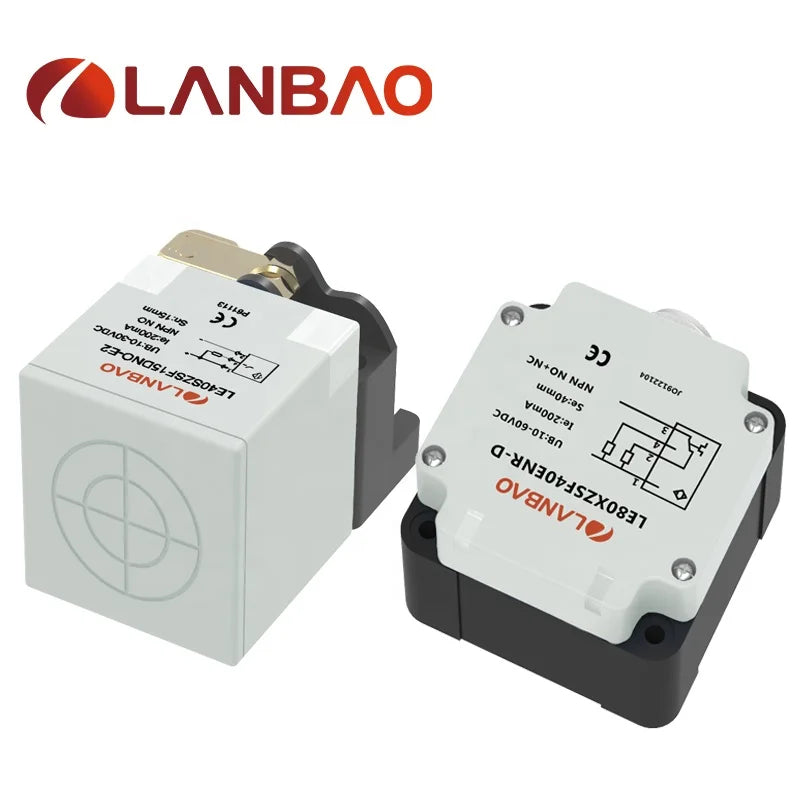

Lanbao NPN PNP  3 Or 4 Wires DC 10-30V M12 Auto Inductive Proximity Sensor With CE UL Certification

Shell code	LR04Q	LR05	LR6.5Q	LR08	LR12X
Dimensions(mm)	04*30 04*54	M5*0.5*3 M5*0.5*40	06.5*40, 06.5*43 06.5*49, 06.5*52	M8*l*40, M8*l*43 M8*l*49, M8*l*52 M8*l*65, M8*l*68	M12*l*51 M12*l*55
Mounting	• Flush	• Flush	• Flush • Non-flush	•Flush  • Non-flush	• Flush • Non-flush
Sensing distance	0.8mm	0.8mm	1.5mm 2 mm	1.5mm 2mm	2mm 4mm
DC 3 Wires	NPN NO  NPN NC  PNP NO  PNP NC
DC 4 Wires	/	/	/	/	NPN NO+NC PNP NO+NC
Output DC 2 Wires	/	/	NO NC	NO NC	NO NC
AC 2 Wires	/	/	/	/	NO NC
AC/DC2Wires	/	/	/	/	/
Supply voltage	10...30 VDC	10...30 VDC	10...30 VDC	10...30 VDC	10.. .30 VDC 20.. .250 VAC
Frequency	2000Hz	2000Hz	2000Hz, 1500Hz	2000Hz, 1500Hz	DC3/4:1500Hzf 1000Hz DC2: 800Hzf 500Hz AC2: 20Hz
Ambient temperature	-25°C...70°C	-25(…7(TC	-25°C...70°C	-25°C...70°C	-25°C...70°C
Protection degree	IP67	IP67	IP67	IP67	IP67
Housing material	Stainless steel	Stainless steel	Stainless steel	Stainless steel Nickel-copper Alloy	Nickel-copper Alloy
Connection	Cable, M8 Connector	Cable, M8 Connector	Cable, M8 Connector	Cable M8/M12 Connector	Cable

Shell code	LR18X	LR30X	LR12X	LR18X	LR30X
Dimensions(mm)	M18*l*51.5	M30*1.5*52	M12*1*63	M18*l*63	M30*1.5*63
	M18*l*59.5	M30*1.5*64	M12*1*67	M18*l*71	M30*1.5*75
Mounting	• Flush •  Non-flush	• Flush • Non-flush	• Flush • Non-flush	• Flush • Non-flush	• Flush • Non-flush
Sensing distance	5mm, 8mm	10mm, 15mm	2mm, 4mm	5mm, 8mm	10mm, 15mm
DC 3 Wires	NPN NO  NPN NC  PNP NO  PNP NC
DC 4 Wires	NPN NO+NC  PNP NO+NC
Output DC 2 Wires	NO NC
AC 2 Wires	NO NC
ACVDC2Wires	NO NC	NO NC	/	NO NC	NO NC
	10...30 VDC		10.. .30 VDC 20.. .250VAC	10...30 VDC	10...30 VDC
Supply voltage	20...250VAC	10...30VDC		20...250 VAC	20...250VAC
	20...250VAC/DC			20...250 VAC/DC	20...250 VAC/DC
	DC3/4:1000Hz, 800Hz	DC3/4:500Hz, 300Hz	DC3/4:1500Hz, 1000Hz	DC3/4:1000Hz, 800Hz	DC3/4:500Hz, 300Hz
Frequency	DC2: 500Hz, 300Hz	DC2: 200Hz	DC2: 800Hz, 500Hz	DC2: 500Hz, 300Hz	DC2: 200Hz
	AC2: 20Hz
Ambient temperature	-25°C...70°C
Protection degree	IP67
Housing material	Nickel-copper Alloy
Connection	Cable	Cable	M12 Connector	M12 Connector	M12 Connector

Our standard products already obtained  ISO9001, ISO14001, ISO45001, OHSAS18001, CE, UL ,CCC,

ROHS certificates.

We are the first Chinese sensor manufacturer who designs our own smart production workshop:totally 40

products  lines including  complete production  lines which worked  with Mitsubishi (Japan).  200 staffsin

production line and 3million products per year.Factory  process

Factory  process

International Exhibitions

We attend about 10 international exhibitions every year , for example, IAS(Shanghai), IMTS (US),

SPS(Germany),SPS (Guangzhou) and other  industrial shows  (textile, robot, elevator, logistic etc.) .As a

professional sensor manufacturer with core  competitiveness and complete value chain, our products sell

well in more than 100 countries in the world, allowing more customers to appreciate the charm of “passing

the world, sensing the future”.

Our advantage

1 day shipping guarantee for stock products
23 years ODM and OEM experience for world top sensor brands
100+ regions and countries
150+ patents and copyrights
500+ employees (110 engineers in R&D center)
100,000 m² factory
5000+ specifications
5,000,000 production capacity per year

Q : What is the MOQ?

A : 1pcs for our own available designs

Q : Can I customize a special sensor?

A : Sure

Q : Can I get a lower price if I order large quantities?

A : Yes, Cheaper prices with bigger size orders

Q : Can I get a sample?

A : Of course, but you need to pay the minimum sample fee

Q : When will you ship my order?

A : 1 day shipping guarantee for stock item and 3-4 weeks for non-stock items.

Q : How about the quality guarantee period ?

A : Our warranty period is one year since from shipping date.

Q : Can I add or delete items from my order if I change mind?

A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.

Q : How can you guarantee the production quality?

A : The quality of our products has passed UL&CE&ISO140001&IS09001certification. We have 20+ years professional

sensor manufacturing history and 18+ years ODM labeling experience with global top sensor brands.
