SPECIFICATIONS
Accuracy: 0.5,Calibrated <0.5% (central position, 25℃)
Bandwidth: 1Hz to 100kHz(-3dB)
Brand Name: MEATROL
Certificate: CE, ROHS 2.0 , IP68(Option)
Communication Interface: /
Current - Sensing: /
Current input: Maximum 100kA
Description: Current sensor,NRC Flexible Rogowski coil
Features: FLEXBEL
Frequency: 50hz
Lead length: 2meter
Linearity: /,±0.2% of reading
Manufacturing Date Code: 2023
Material: /,Flame retardant 94 V-0 rated
Model Number: NRC Current sensor
Mounting Type: OPEN
Number of channels: /
Output: 50mV/kA@50Hz, 85mV/kA@50Hz, 100mV/kA@50Hz
Phase error: ≤0.5°
Place of Origin: Shanghai, China
Position Error: ±1% maximum
Sensitivity: 85mV/kA
Series: NRC
Theory: The principle of electromagnetic induction
Type: Current sensor
Usage: AC current detection and measurement
Voltage - Supply: /
Voltage insulation: Coil: 2000V, Signal cable: 1000V

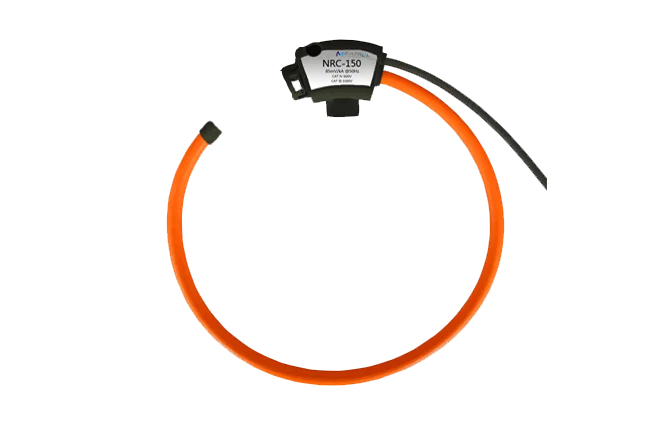

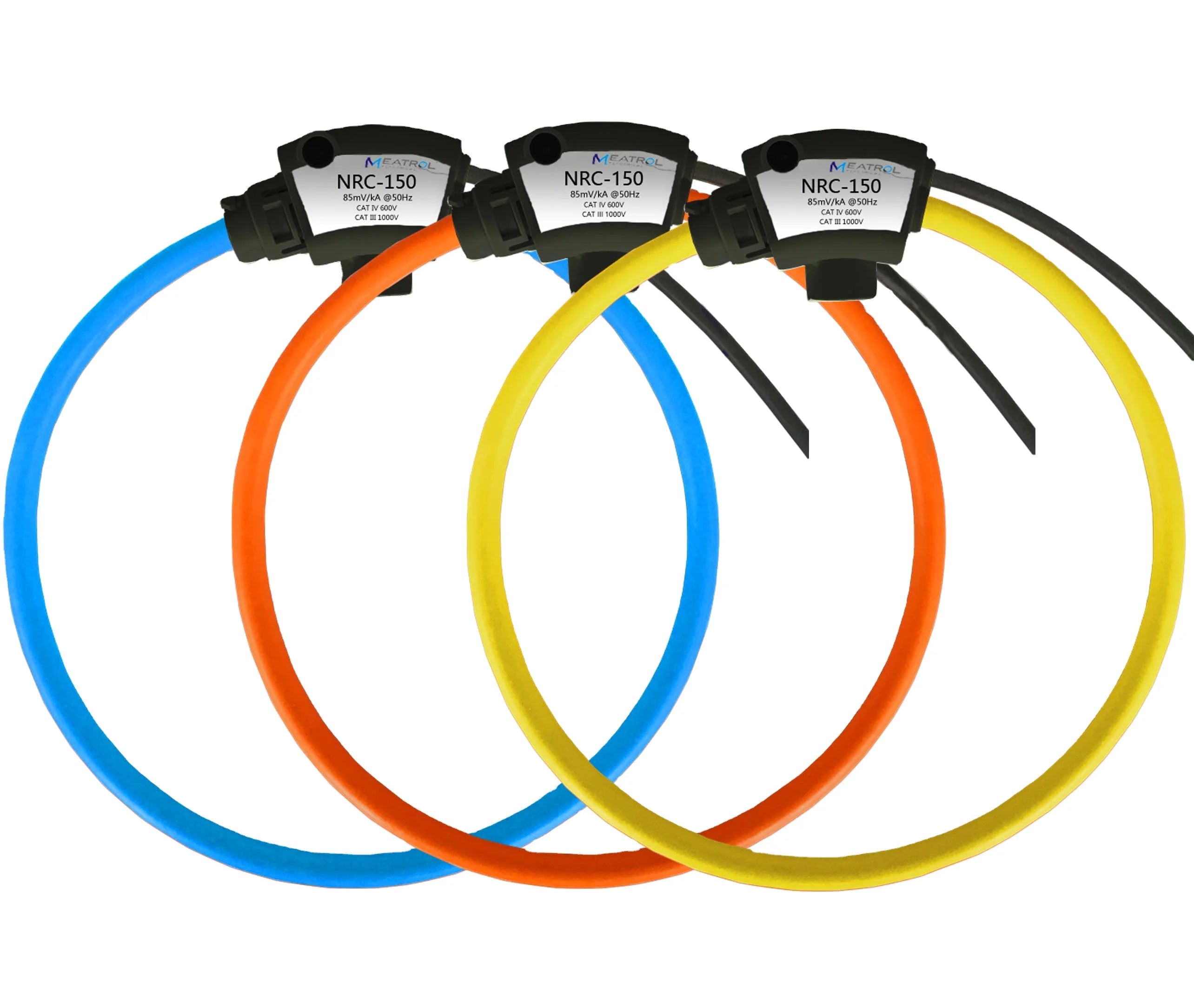

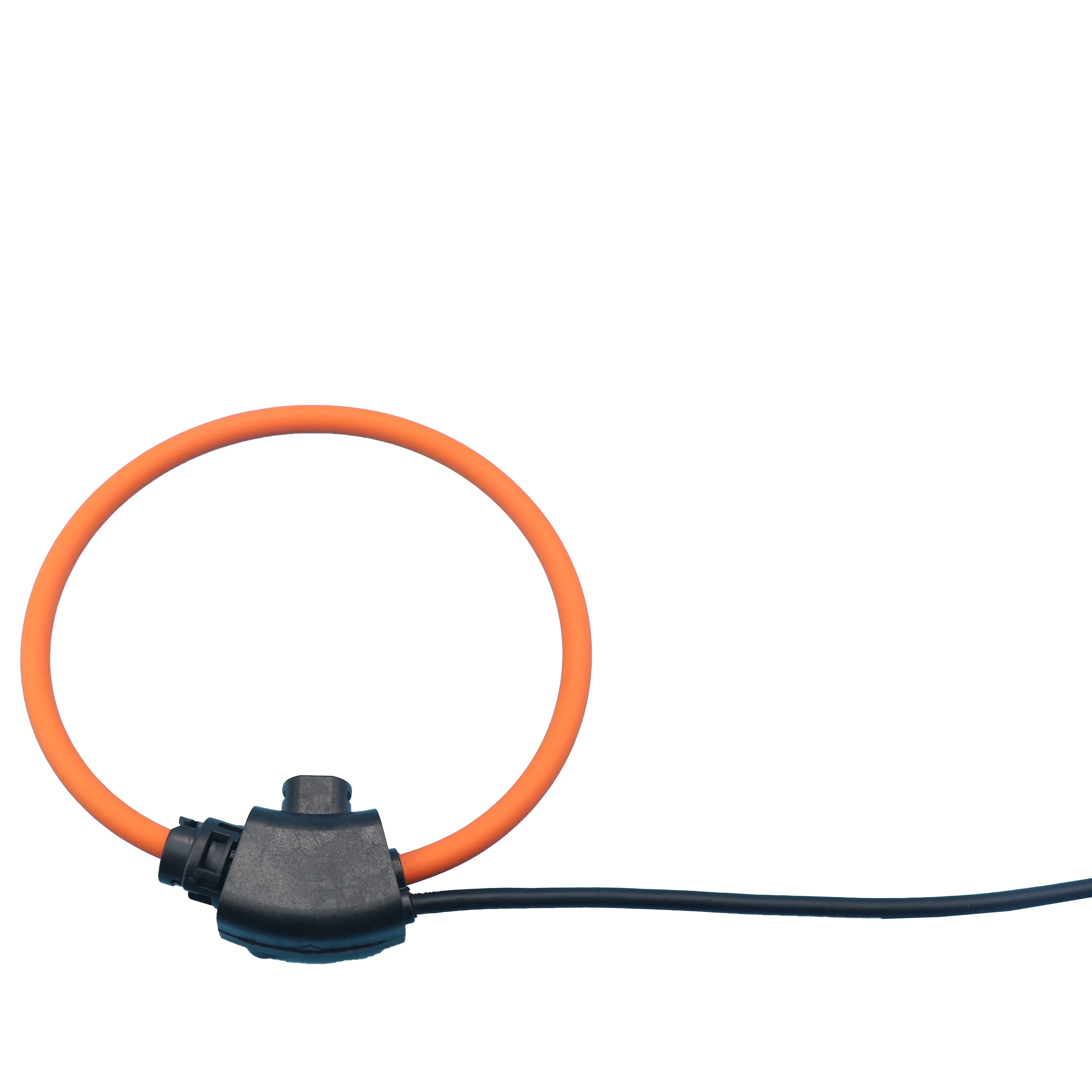

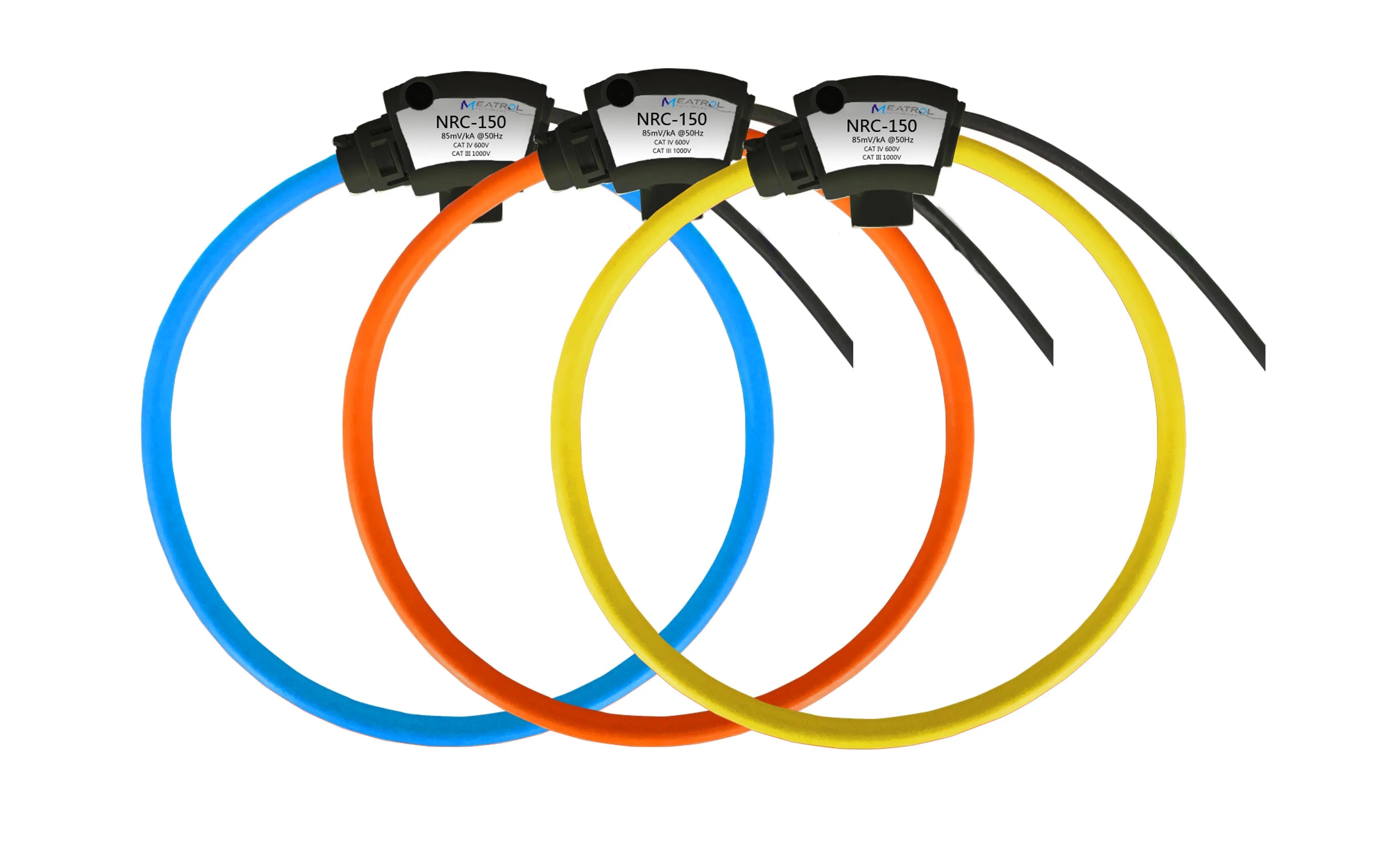

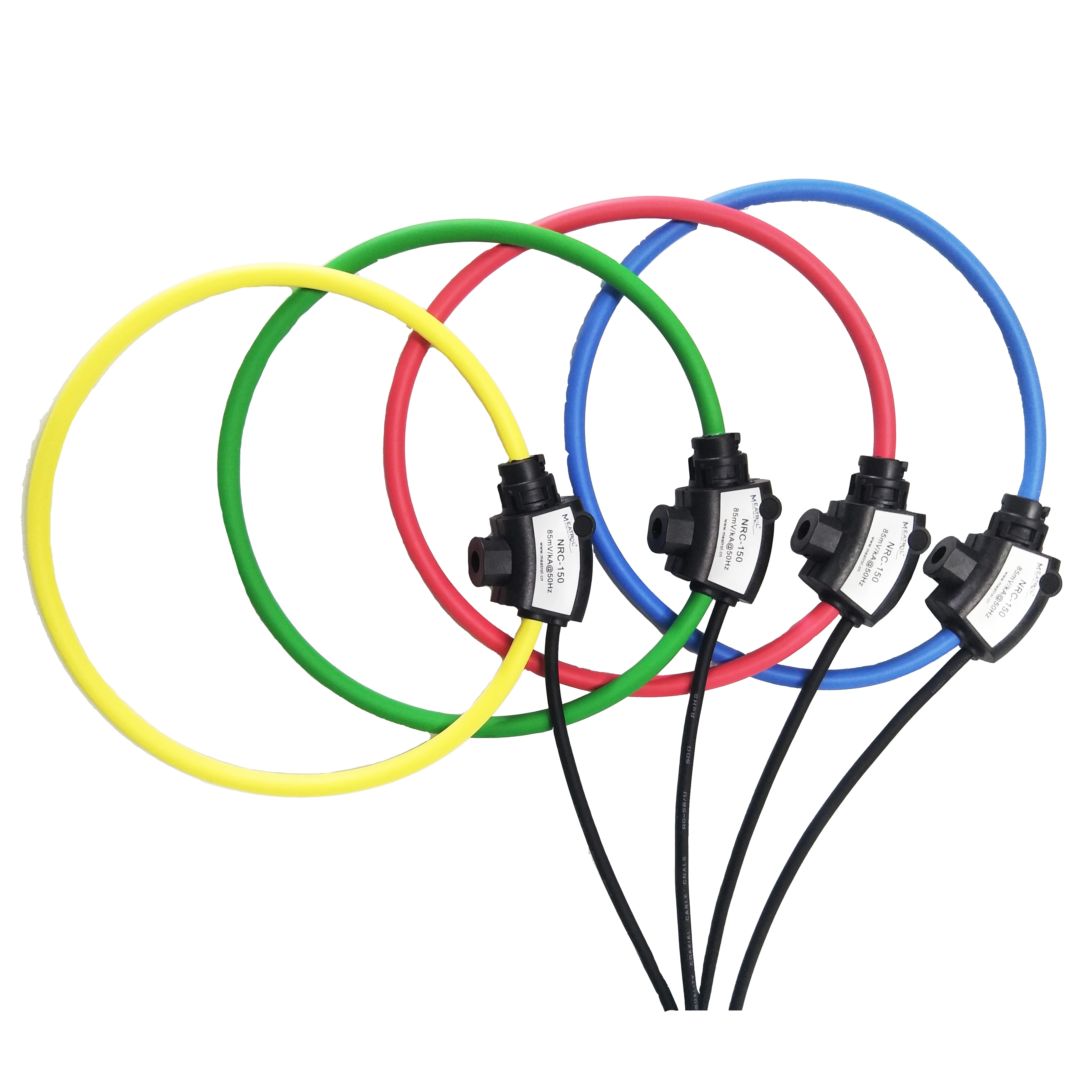

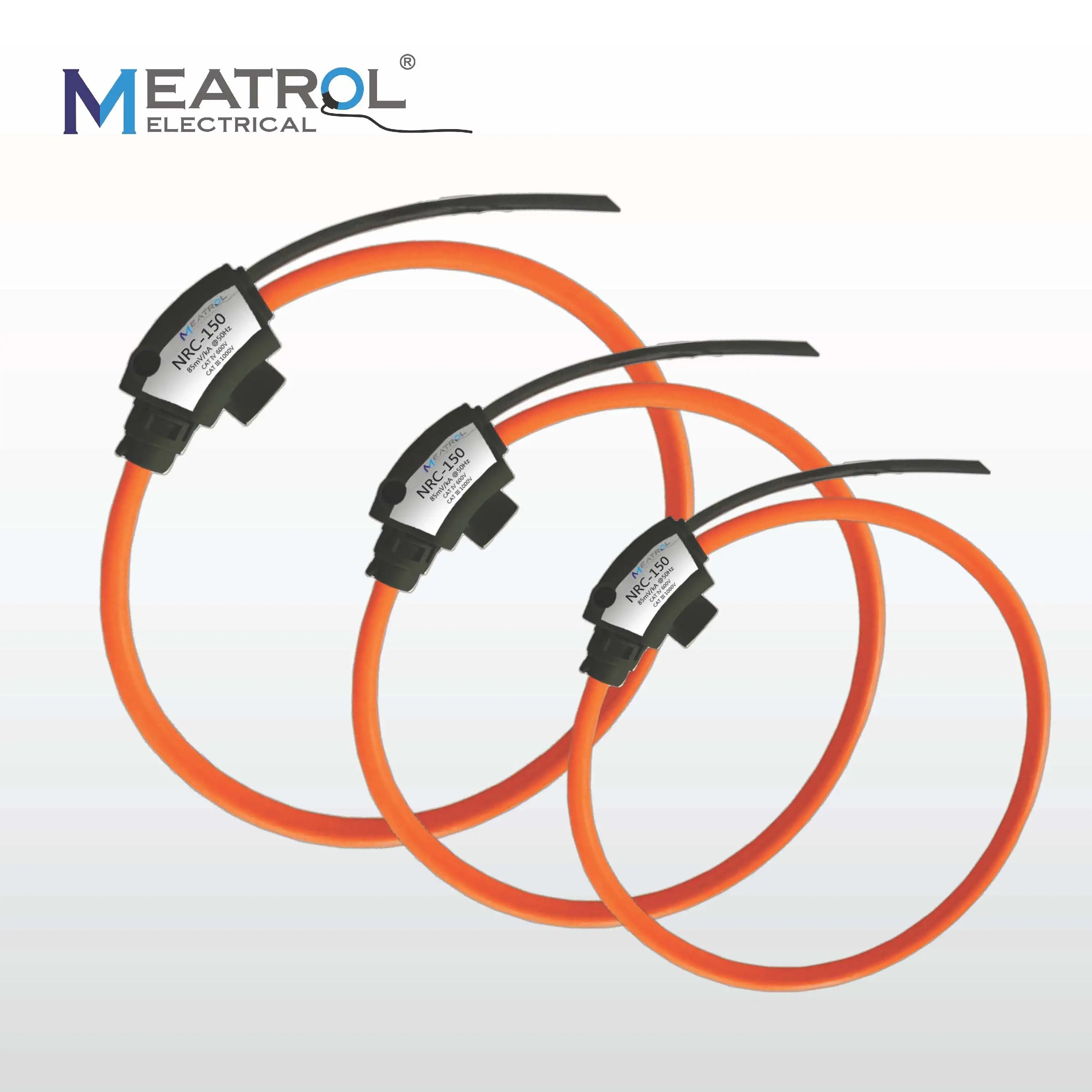

NRC Flexible Rogowski coil 6000A AC current sensor

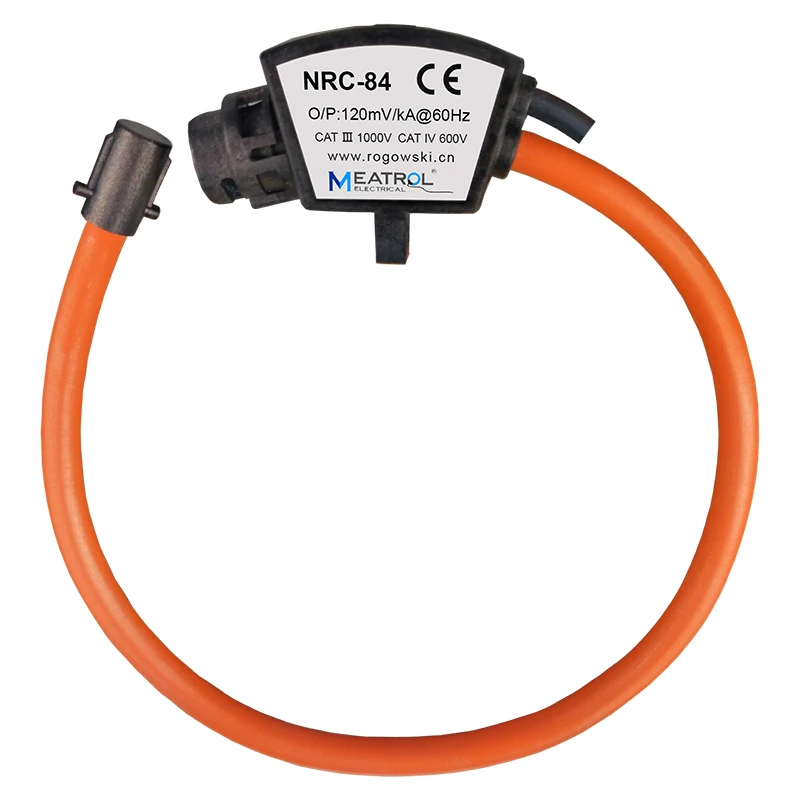

Ø8 screw type flexible Rogowski coil
The new generation of NRC coil strengthens the shielding layer and greatly reduces the influence of external magnetic fields; it can be directly connected to our rail-mounted and panel-type meters without the need for external integrators. NRC series coils have IP68 protection grade, which is extremely suitable for outdoor use.
Advantage
* Excellent linearity
* Wide dynamic range
* Not damaged by large overloads
* Excellent degree of rejection to the external current conductor
* No danger from open-circuited
secondary
* Zero power consumption
* Small position error
* Soft and light, easy to install
* Long-term stability
* Wide dynamic range
* IP68 protection level
* Smart meter
* Rectifier current measurement
* Power quality analysis
* Motor overload/short circuit protection
* Current monitoring of power frequency and intermediate frequency welding machine
* Medium and high voltage switchgear protection system
* Remote Terminal Unit (RTU)
* Synchronous Phasor Measurement Unit (PMU)
* Current measurement on the secondary side of the
electric furnace
MODEL |
NRC-100 |
NRC-150 |
NRC-200 |
Coil length |
395mm |
525mm |
665mm |
Window size |
100mm |
150mm |
200mm |
Reference
Rated current |
1000A |
3000A |
6000A |
Ratio |
Calibrated：85±0.5mV/kA@50Hz
100±0.5mV/kA@50Hz |
|
|
|
Uncalibrated：105±5mV/kA@50Hz |
|
|
Reference Rated current |
|
100A,600A,3000A,6000A...(Unlimited) |
|
Calibrated (Manufacturing tolerance<0.5%) |
...
22.5mV/kA
50mV/kA
85mV/kA
100mV/kA
... |
Sensitivity temperature drift coefficient |
|
Uncalibrated, ＜50ppm/℃ |
|
|
Calibrated, ＜100ppm/℃ |
Internal resistance temperature drift coefficient1） |
|
Uncalibrated, ＜3800ppm/℃ |
Read Accuracy |
|
0.5%class (Vertically centered position) |
Internal resistance |
|
50～250 Ω |

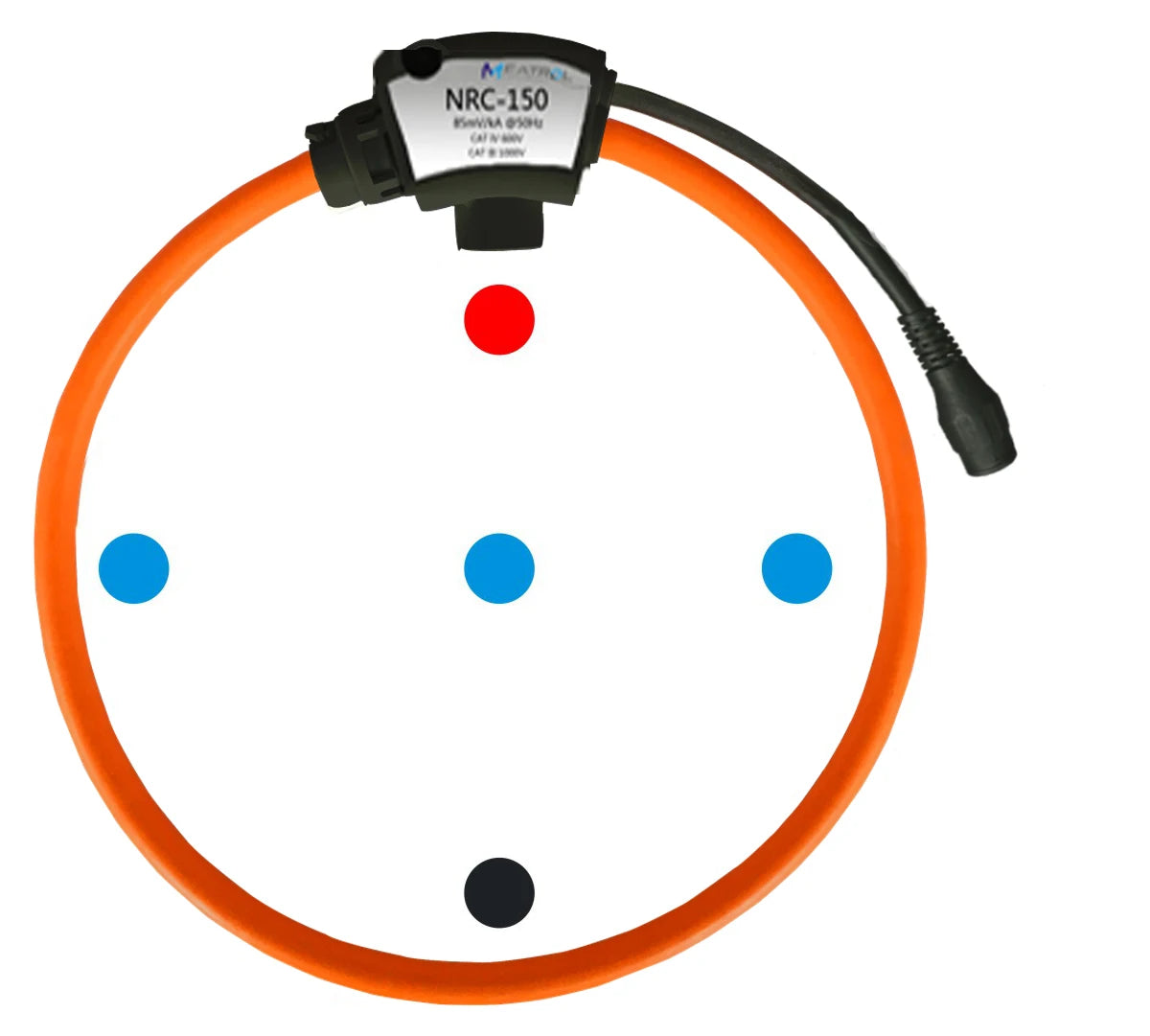

Position Error 2） |
|
＜1% |
Output on 0A (zero drift) |
|
＜0.05mV |
Phase error |
|
＜0.5°(45Hz～65Hz) |
Linearity |
|
±0.1% (1%～100%) |
Bandwidth(3dB) |
|
1Hz～20kHz |
Operating temperature |
|
-40℃～85℃ |
Coil Section |
|
8mm |
Lead length(default) |
|
2 meter |
For other requirements, please contact us for customization. |
|
|

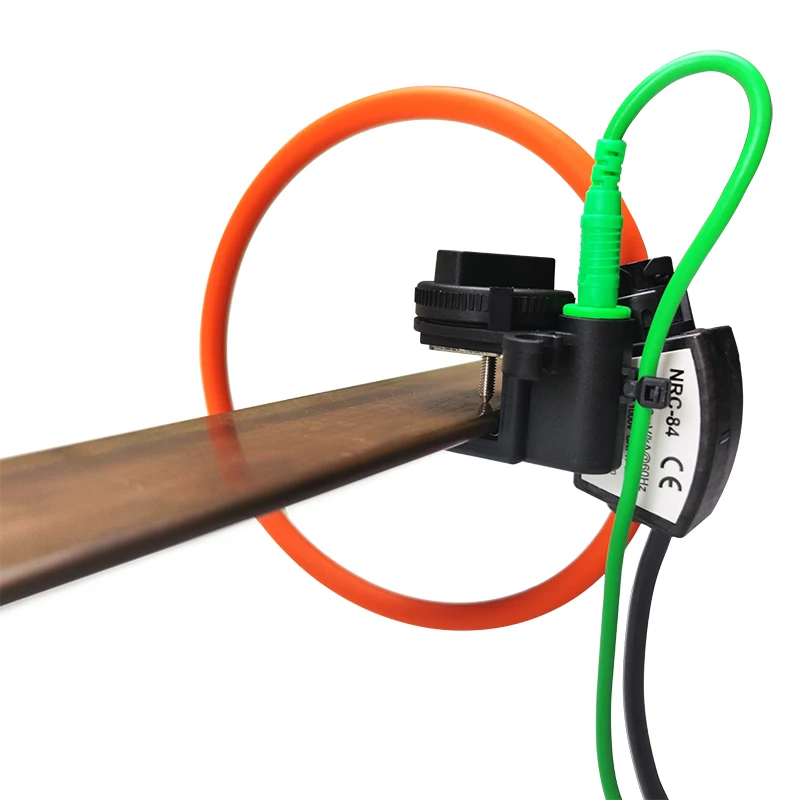

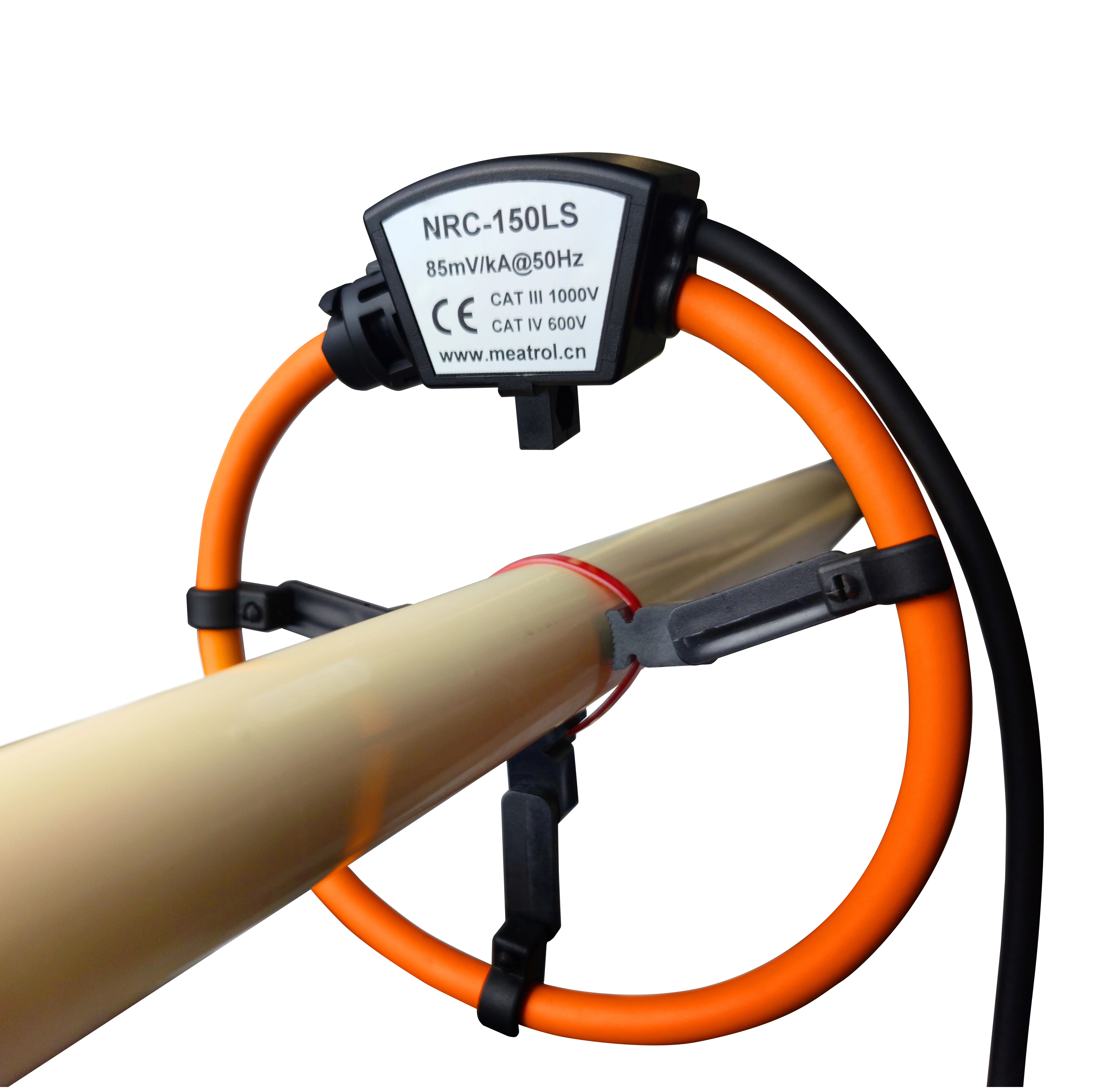

Copper row bracket installation Three-axis bracket installation Fix with tie
current sensor current transformer AC current transformer current clamp current transducer current probe current measuring
instrument current voltage tester flexible CT toriodal toroidal air-cored coil Splitcore currenttransformer converter amplifier
integrator analog converter analog integrator Rogowski Coil Flexible Current Transformer,Rogowski Coil,Flexible Rogowski Coil
