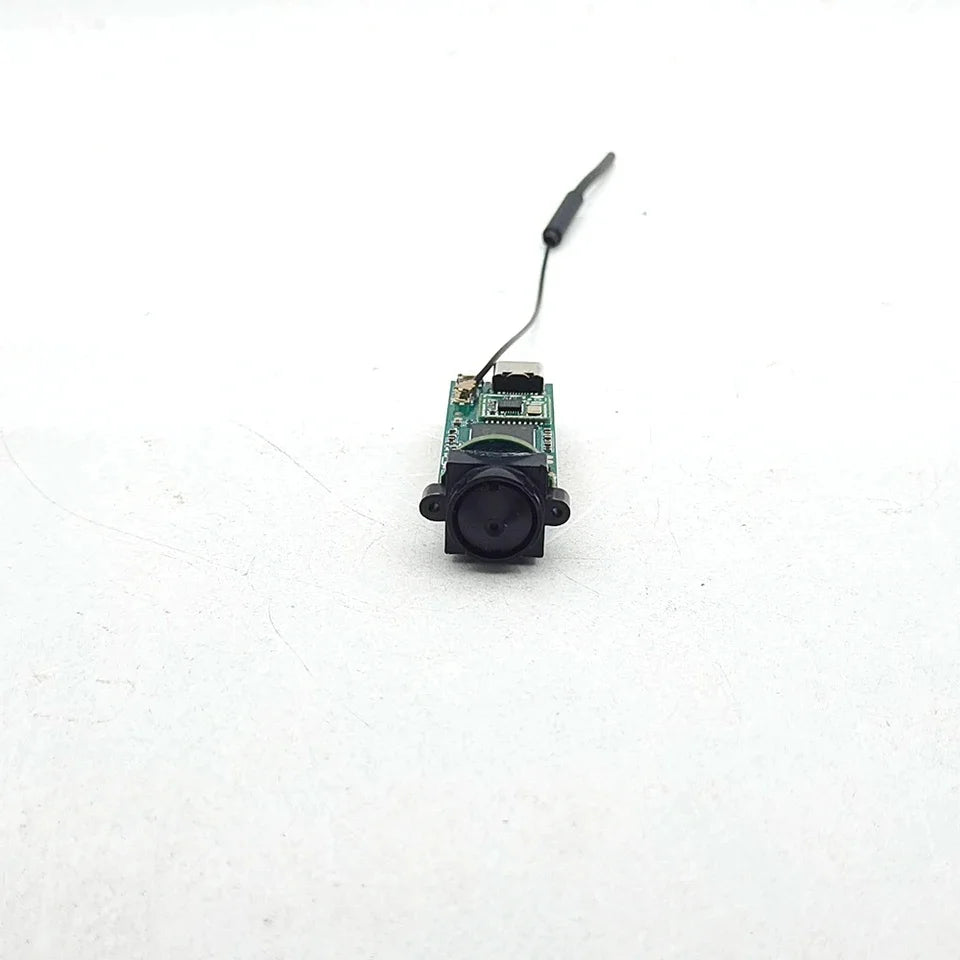

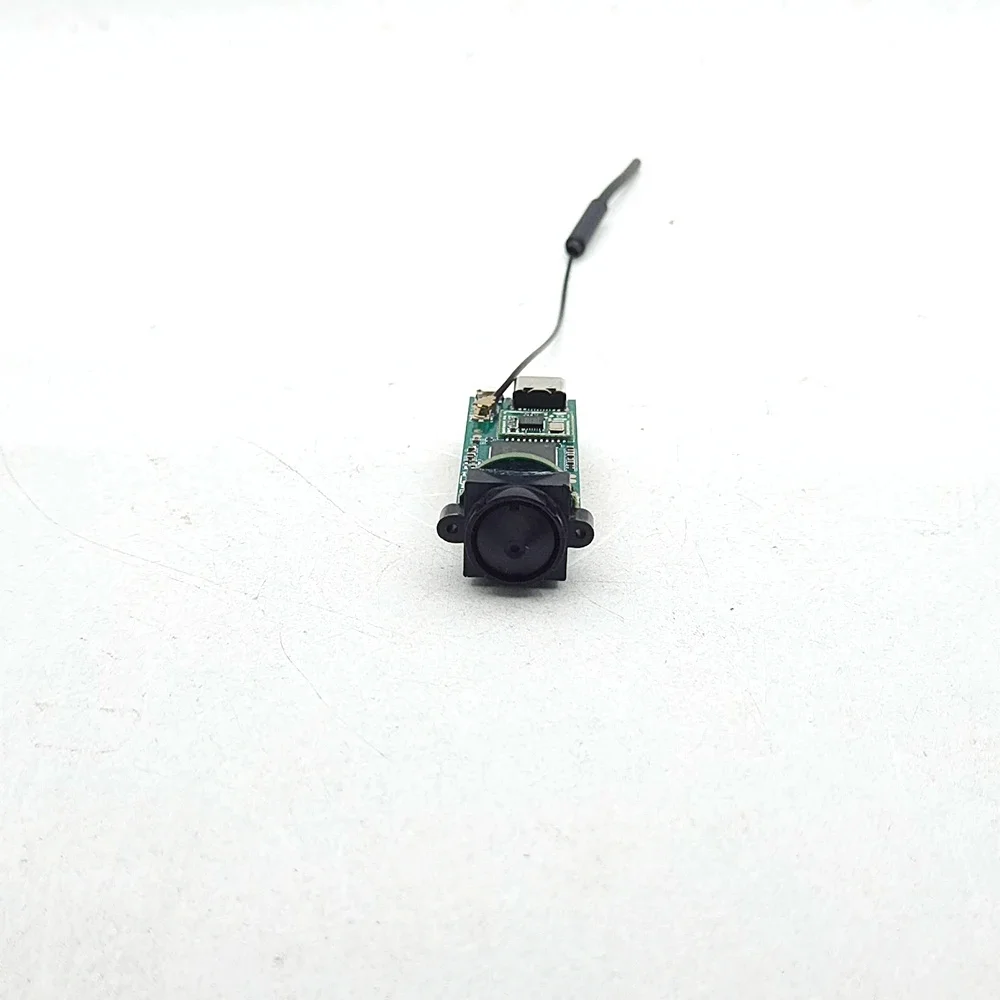

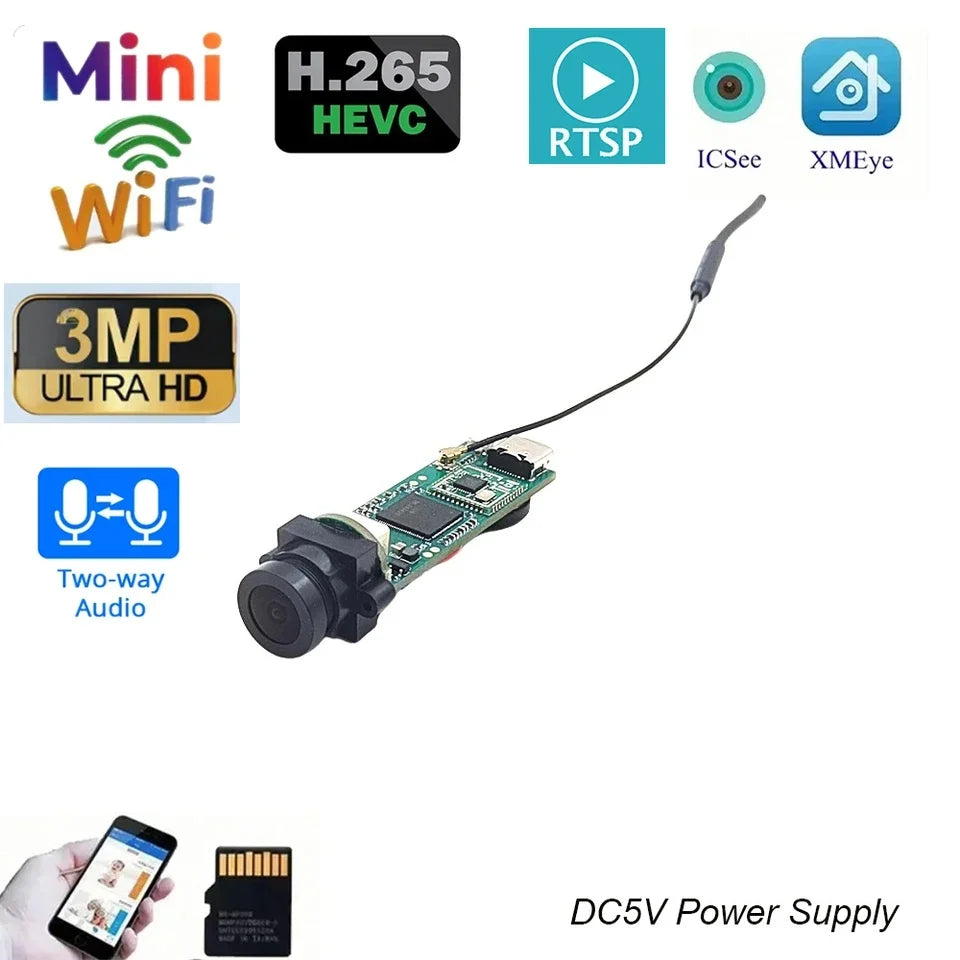

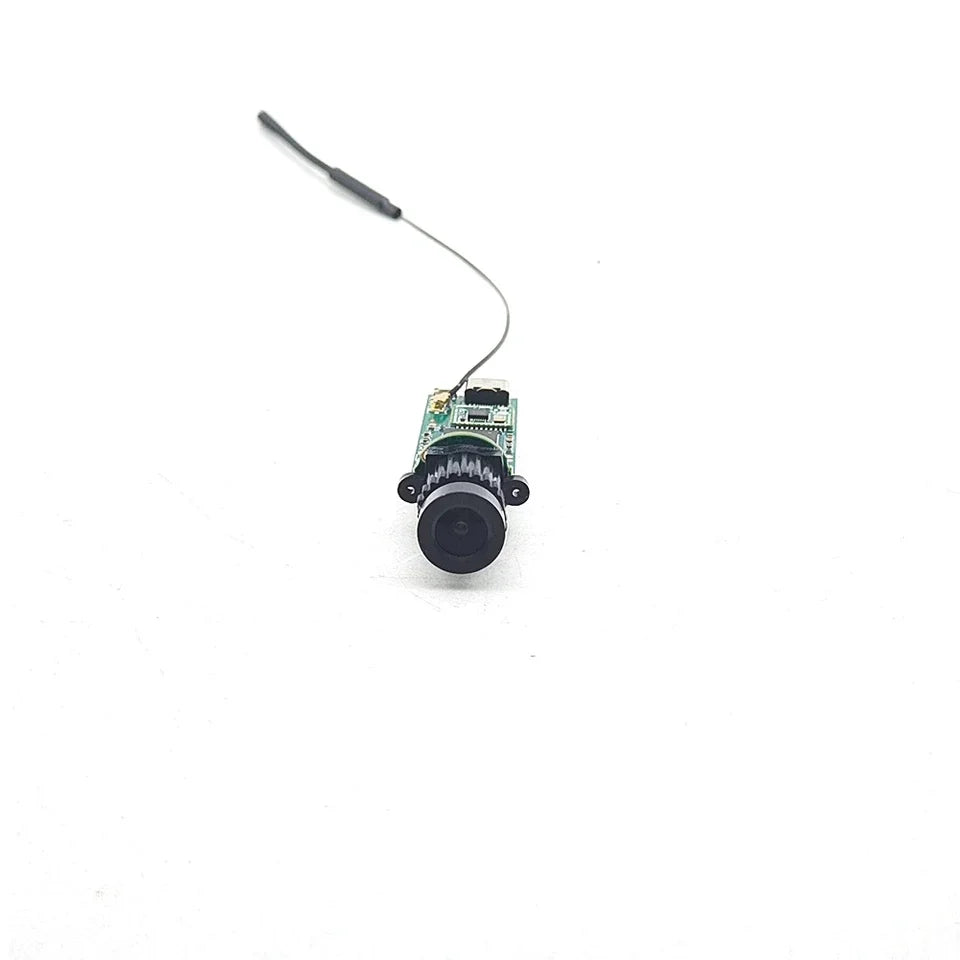

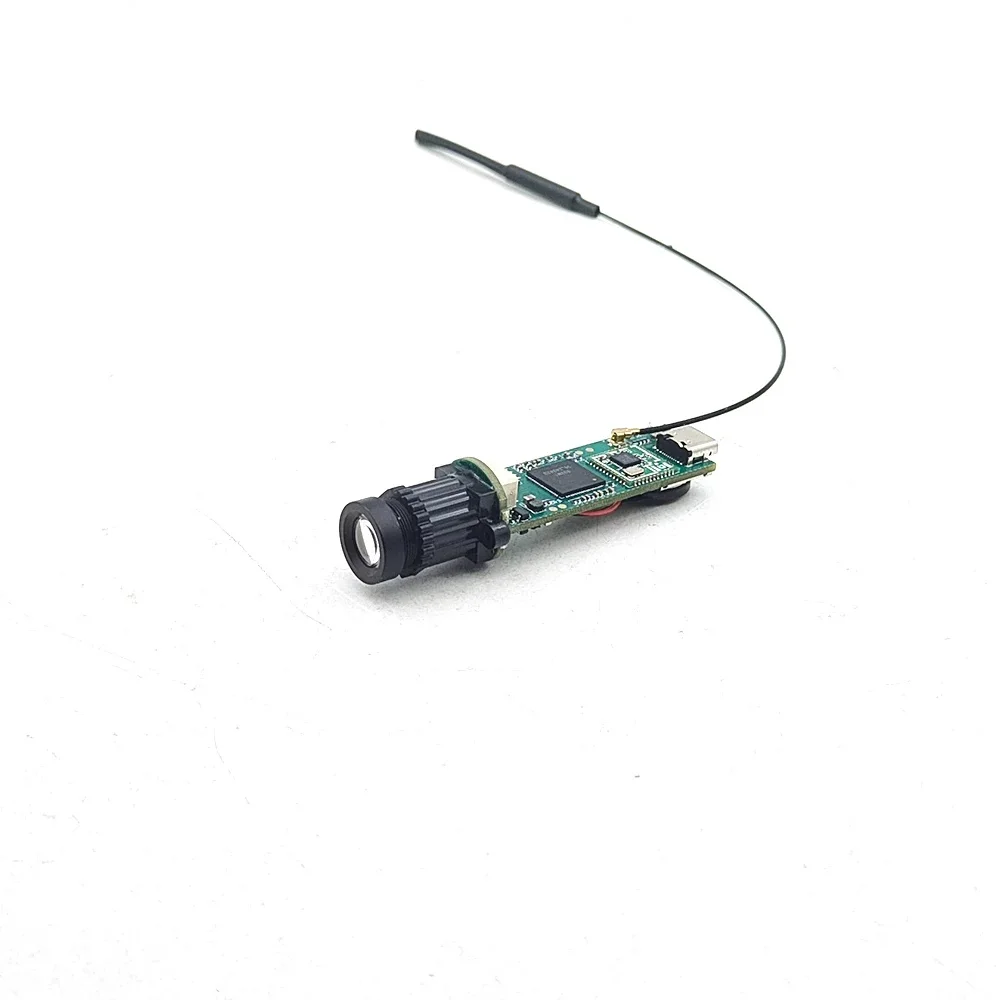

Mini Wifi ICSEE 3MP HD Wireless IP Camera Smart Cloud Security P2P with Two-Way Audio DIY Small Industry PCB Motherboard TF Card
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
Mini Wifi ICSEE 3MP HD Wireless IP Camera Smart Cloud Security P2P with Two-Way Audio DIY Small Industry PCB Motherboard TF Card
SPECIFICATIONS
Aperture: F1.6
Audio: Support 2-way Audio
Brand Name: geniuspy
Customized support: Customized Logo
Data Storage Options: Cloud
Effective Pixels: 3MP(2304*1296)
Function: Two-Way Audio
IP Rating: IP55
Image Sensor: GC2053
Lens: 3.6mm
Material: Plastic
Model Number: GS-5TPBCMW2A-XM
Pixels: 3mp
Place of Origin: Guangdong, China
Power Supply: 5v 1a or 2a
RESOLUTION: 3MP
Sensor: CMOS
Special Features: Motion detection
Style: Mini camera
Video Compression: h.265
Video Compression Format: H.265
Viewing Angle: 90°
Warranty: 2 Years
Wifi: 2.4G WIFI
app: icsee
item: 3mp icsee wifi camera module
tf card slot: max 128g
Mini Wifi ICSEE 3MP HD Wireless IP Camera Smart Cloud Security P2P with Two-Way Audio DIY Small Industry PCB Motherboard TF Card
Why choose our cameras. What are the advantages of my camera advantage.
1.suport H.265,H.265 formate ,NOT H.264

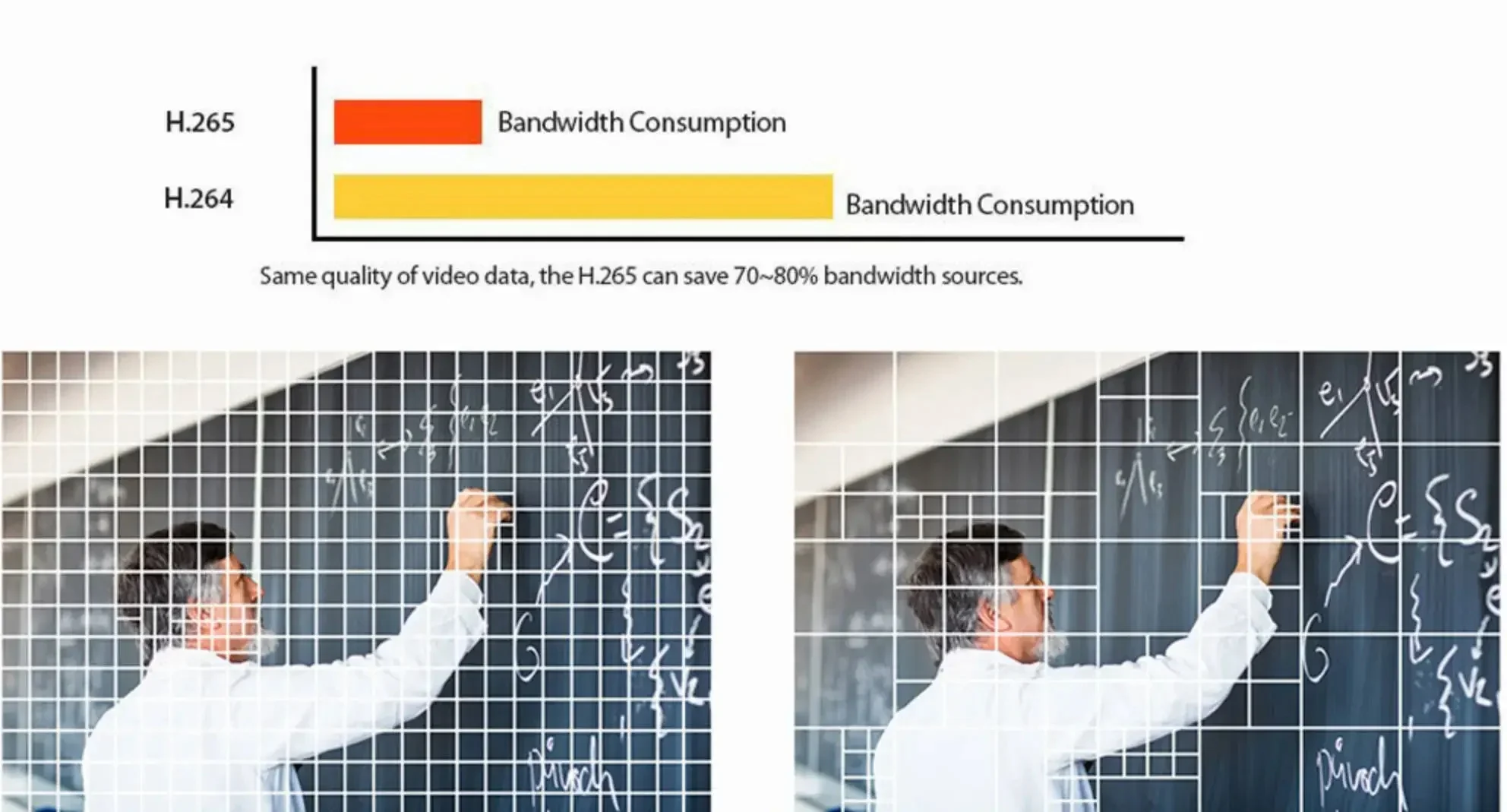

Compression ratio comparison: H.265 has higher compression ratio and half of the traffic
Compared with H.264, the biggest advantage of H.265 is that it has a higher compression rate. This can be seen from the name of H.265. H.265 is also known as HEVC (High Efficiency Video Coding, high efficiency video coding), and its main purpose is to further reduce the traffic required for the video, in order to reduce storage and cost of transmission. Taking H.265 as an example of the most important 3 of the 27 proposals, H.265 requires that in the best coding profile (profile), it can save 1080P videos compressed by H.264 under the premise of maintaining the same PSNR36 % of the data, and can further increase the savings to 50% when the image quality is similar. Therefore, in order to achieve this goal, H.265 adopts a more advanced and flexible coding unit than H.264.
The left picture is the traditional H.264 standard, and the size of each macroblock is fixed; the right picture is the H.265 standard, and the size of the coding unit is determined according to the amount of regional information
2.Our camera support, in the case of WIFI interruption, continue to keep recording, will not lose video files.
3.My camera supports hotspot mode, in the environment without a WiFi router, the mobile phone can be connected to the camera hotspot for close-up viewing
4.Our camera supports direct recording mode, and automatically saves it in the TF memory card in an environment without network.

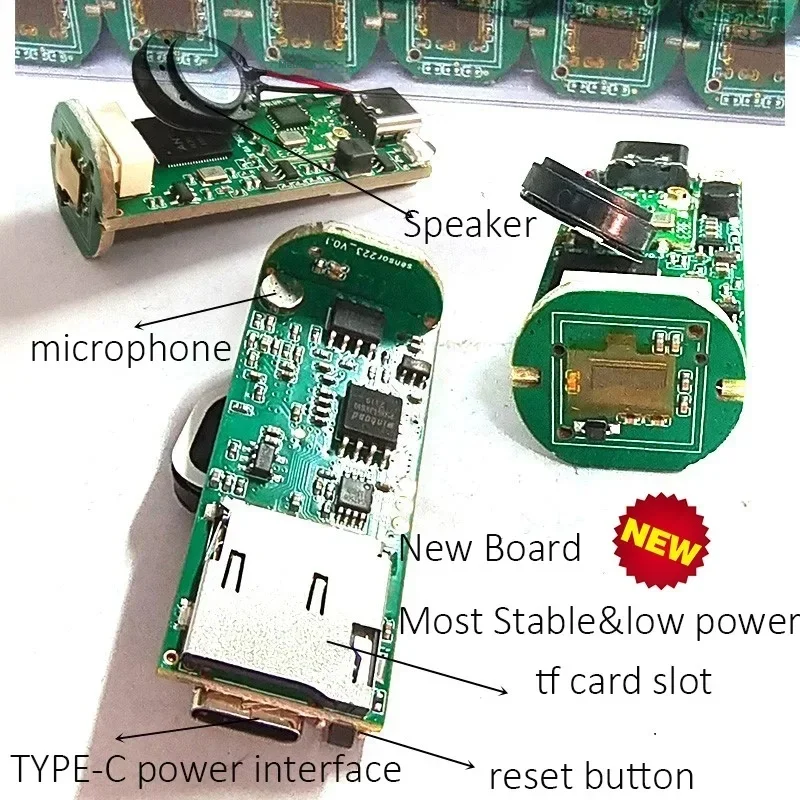

5.Lastest version upgrade new camera board - most stable and with type-c interface for power
6.support RTSP .ONVIF work with nvr ,motion detection alarm record and push to phone via app
7,support 2 way audio , build with microphone in the front of the door and with speaker !
8,xmeye icsee platforme
9.our strengths Quality products and low-end products
Our camera adopts external memory card, high quality technology, with good heat dissipation performance. It can extend the life of camera memory.Camera appearance beautiful atmosphere, good workmanship.
10,support PC and Phone remote view in anywhere

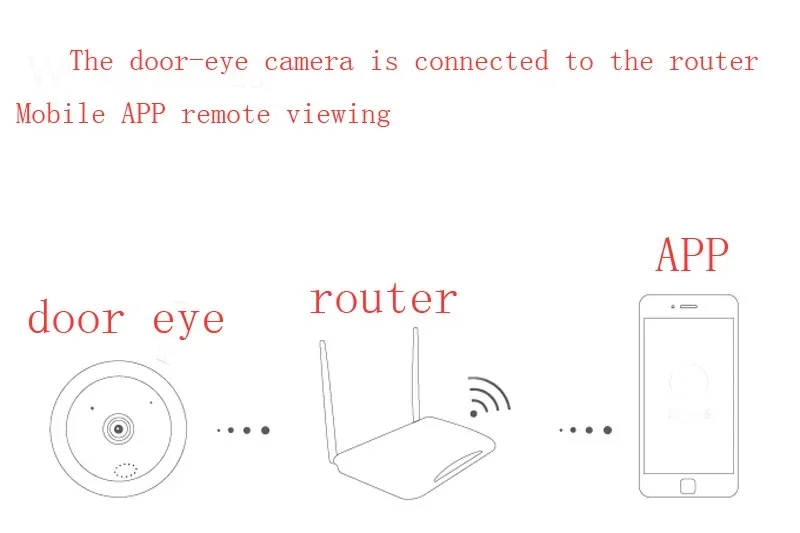

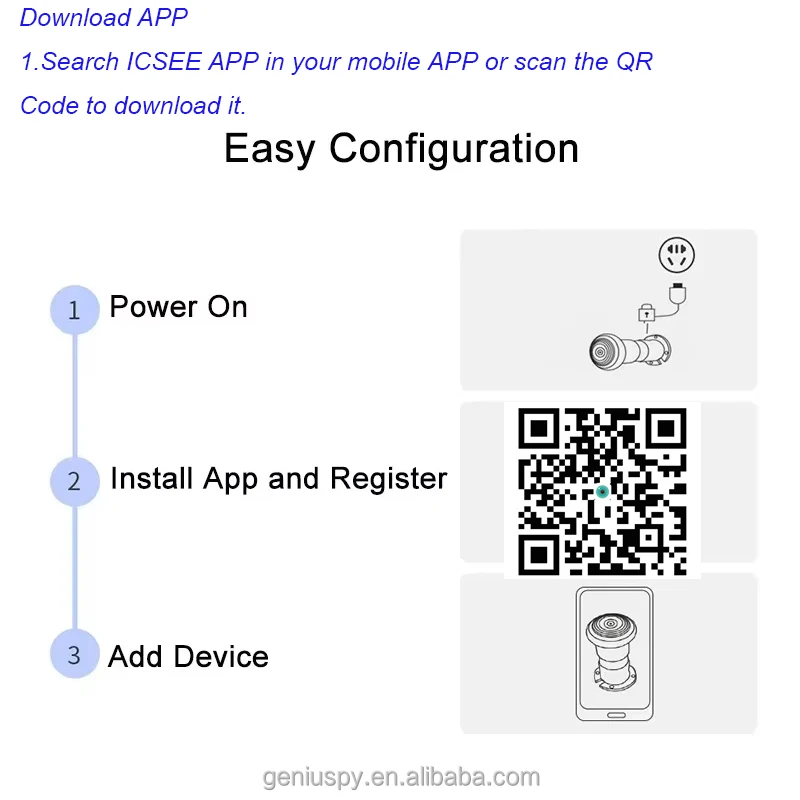

WiFi door camera mobile phone APP to watch
Specification:
*Starlight DSP

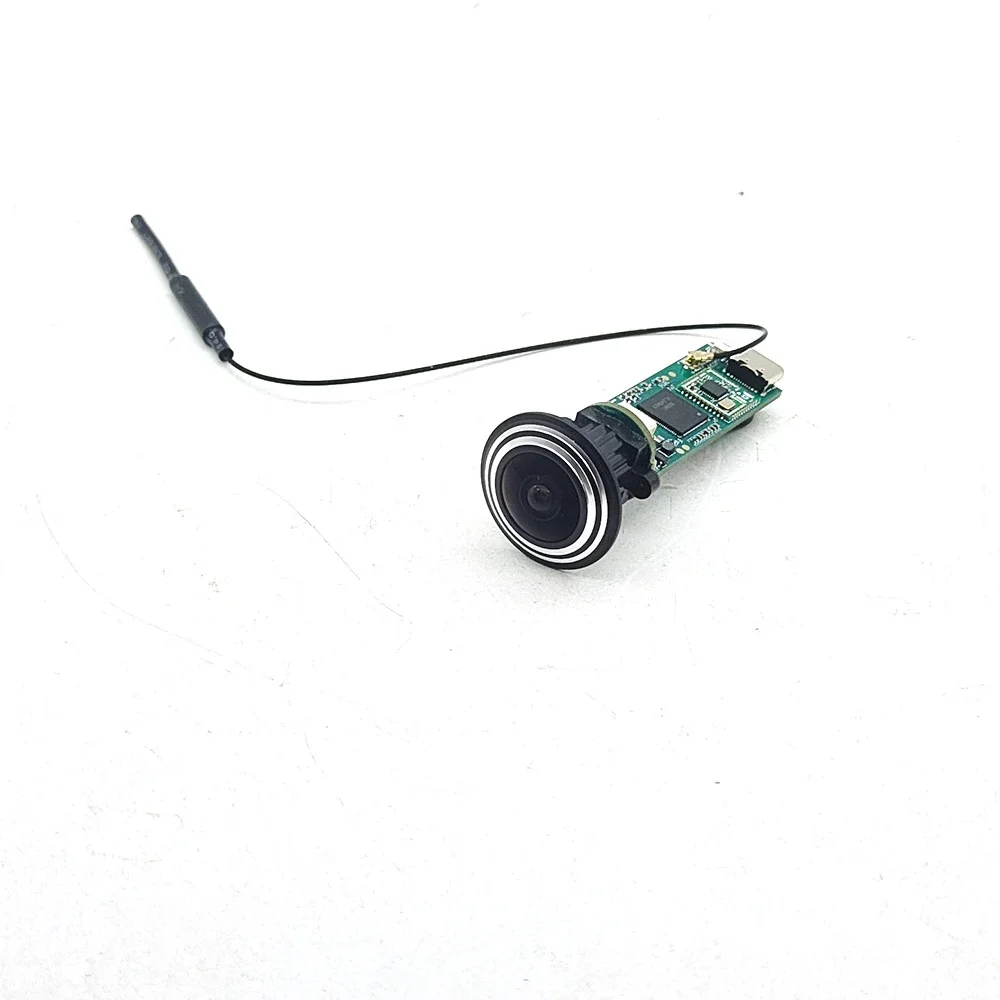

* Fisheye Lens/ lens optional
* Support Phone/PC /Web Browser Remote View Anywhere
* H.265 Formate 1M~8Mpbs variable;1~30f/s variable;
* Color 0.001Lux; B/W 0.01Lux;
* Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc network protocol;
* Support ONVIF, and mobile monitoring;
*TF Card Slot Max128G
Specification :
|
GS-5TPBCMW2A-XM wifi camera module |
|
|
Embedded RTOS,dual-core 32bit DSP,pure hard compression ,watch dog |
|
|
1/2.9" CMOS StarLight image sensor |
|
|
3mp Megapixel |
|
|
1-2fps OPTIONAL |
|
| 2304x1296P | |
|
D1 CIF 704 × 576; 352 × 288 |
|
|
H.265 |
|
|
m12 lens per as your requirement |
|
|
Color 0.001Lux; B/W 0.01Lux; |
|
|
Support 2D/3D |
|
|
not have ir function ,no night vision |
|
|
Via PC/Mobile Phone/NVR With HDD/TF Card slot |
|
|
1/20~1/30000s |
|
|
Support digital |
|
|
XMEYE/ICSEE |
|
|
with audio ,microphone build outside(2 way audio ) |
|
|

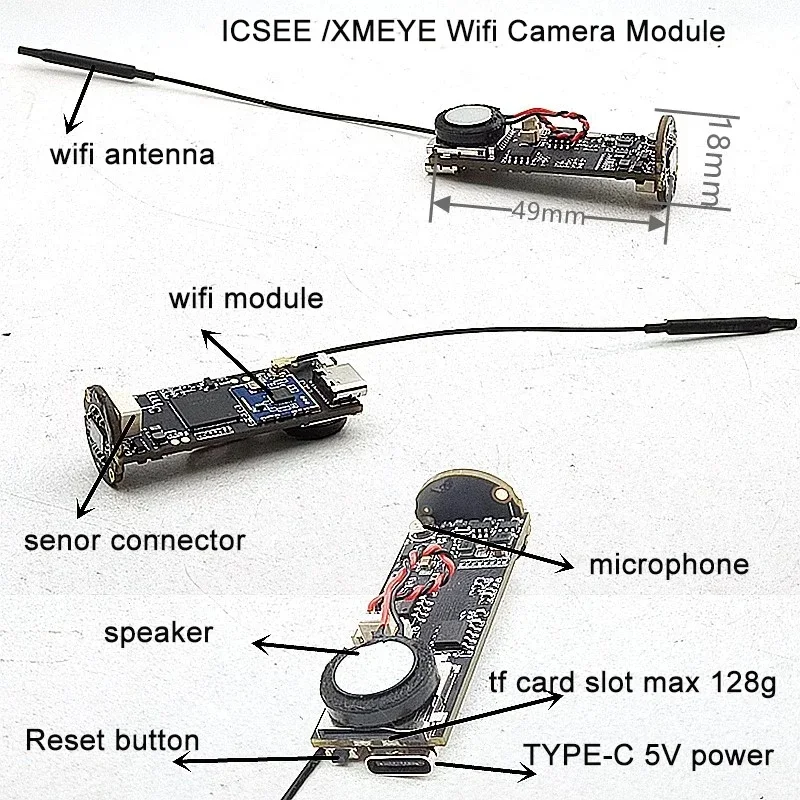

DC5V Port reset button tf card slot |
|
|
support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
|
|
ONVIF Profile S |
|
|
IE6.0 and above,, Mozilla Firefox, Mac Safari |
|
|
iPhone, iPad, Android Phone, Tablets |
|
|
yes, IEEE 802.11 b/g/n |
|
|
Optional |
|
|
Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65'C high temperature stable and reliable testing (including mounted machine testing) |
|
|
1.8W |
|
|
DC 5V 2A |
|
|
IP54 |
|
|
max support 128gb |
|
|
–20°c~70°c |
|
|
20%~85% (non condensation) |
|
|
support |
|
|
/ |
|
|
0.35Kg |
|
|
0.55Kg |
|
|
For More Models pls search''geniuspy''in alibaba Site |
Package list:
1x camera mdoule
1x2meters type-c cable
1x manual
1X dc5v 2a power adapter
(you can use dc5v -power adapter or power bank power the camera )
of the Customer‘s Computer Without CD CD-ROM disk drive,
it is hard to copy the files
from the CD Disk! In addation ,
the CD Disk Polluting the environment after used !

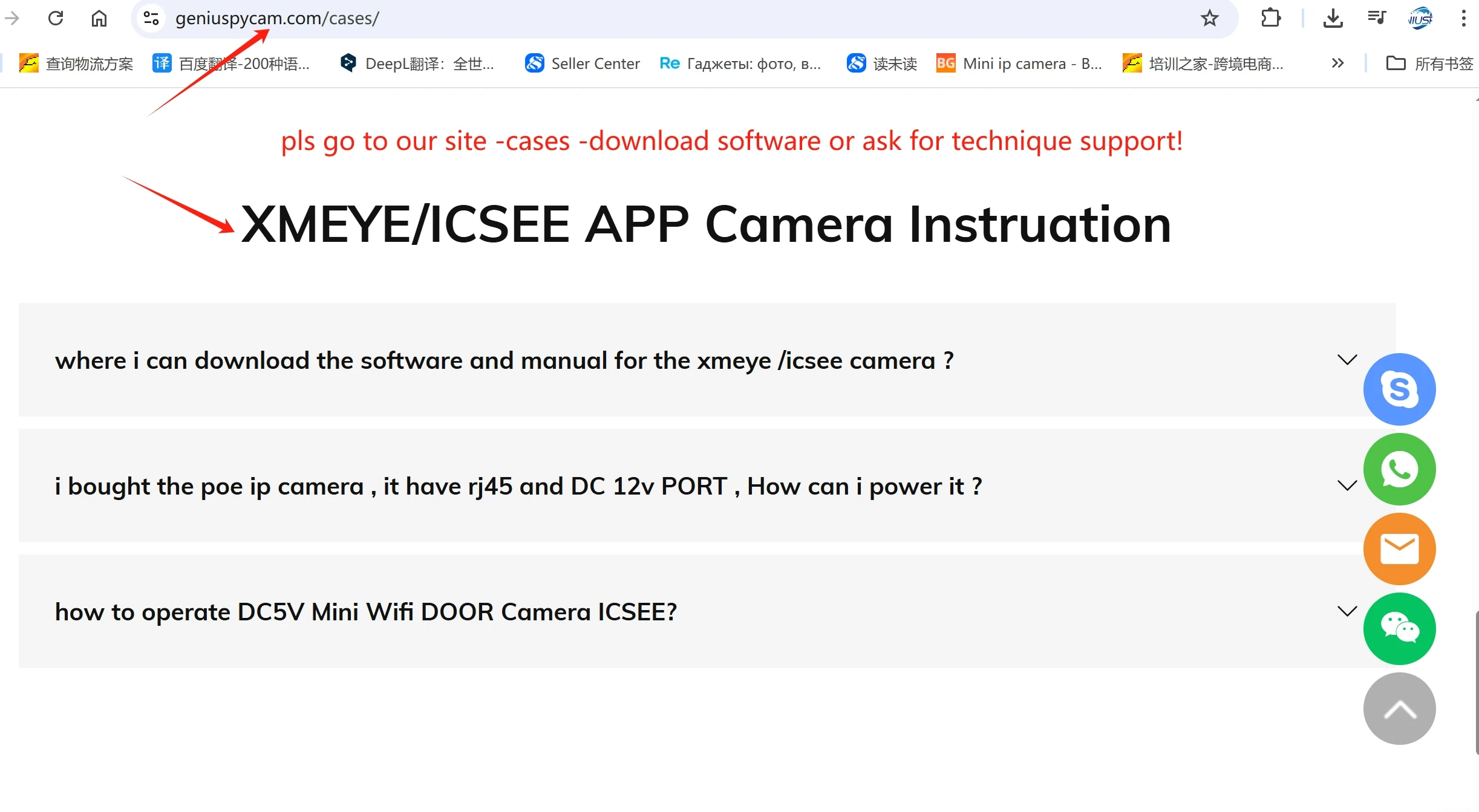

Please download the corresponding software and user manual for this product through the designated link on our website.?
Should you have any questions,?remember to contact our team so we can provide faster technical support and after-sales service."
Q & A
Q:When I finish the steps to add the camera to the CMS list,why it notify " Can't find the Device " even I can see the default ip address 192.168.1.10 in the menu .
F: It is the IP Address conflict ,the default ip address is not in the same network segment as your router.
Please click "Edit Device " to change the camera's ip address to make them in the same network segment !
For example ,if your router's ip address is 192.168.0.1 ,then you need to change the camera's ip address to 192.168.0.XX .
Questions and answers
1Question: How do we choose TF card?
Answer: 32G can store 15 days, 64G can store 1 month, 128G can store 2 months.
2Question: Does the camera support RTSP
Answer: Support
3Question: Does the camera support dynamic recording
Answer: Support
4 Question: Does the camera have a built-in battery
Answer: Not supported
5Question: How long is the camera power USB cable M?
Answer: Standard 2M

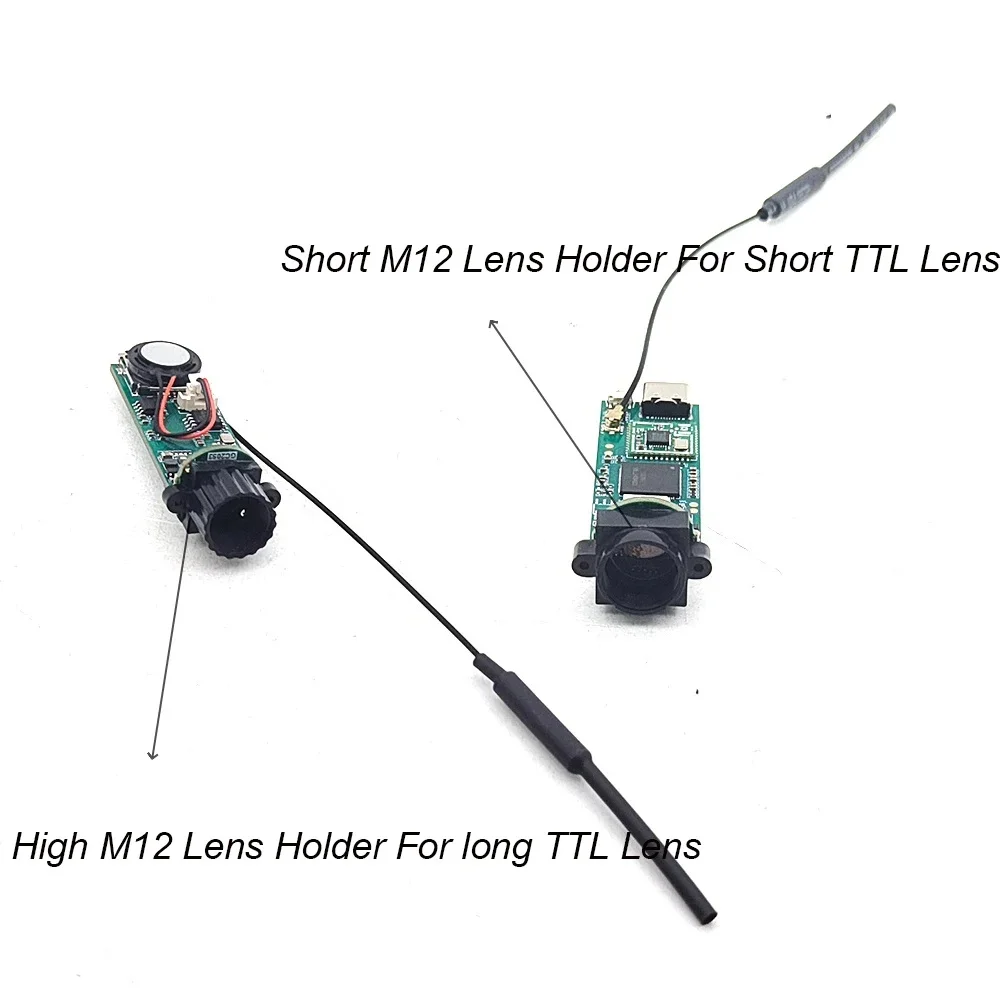

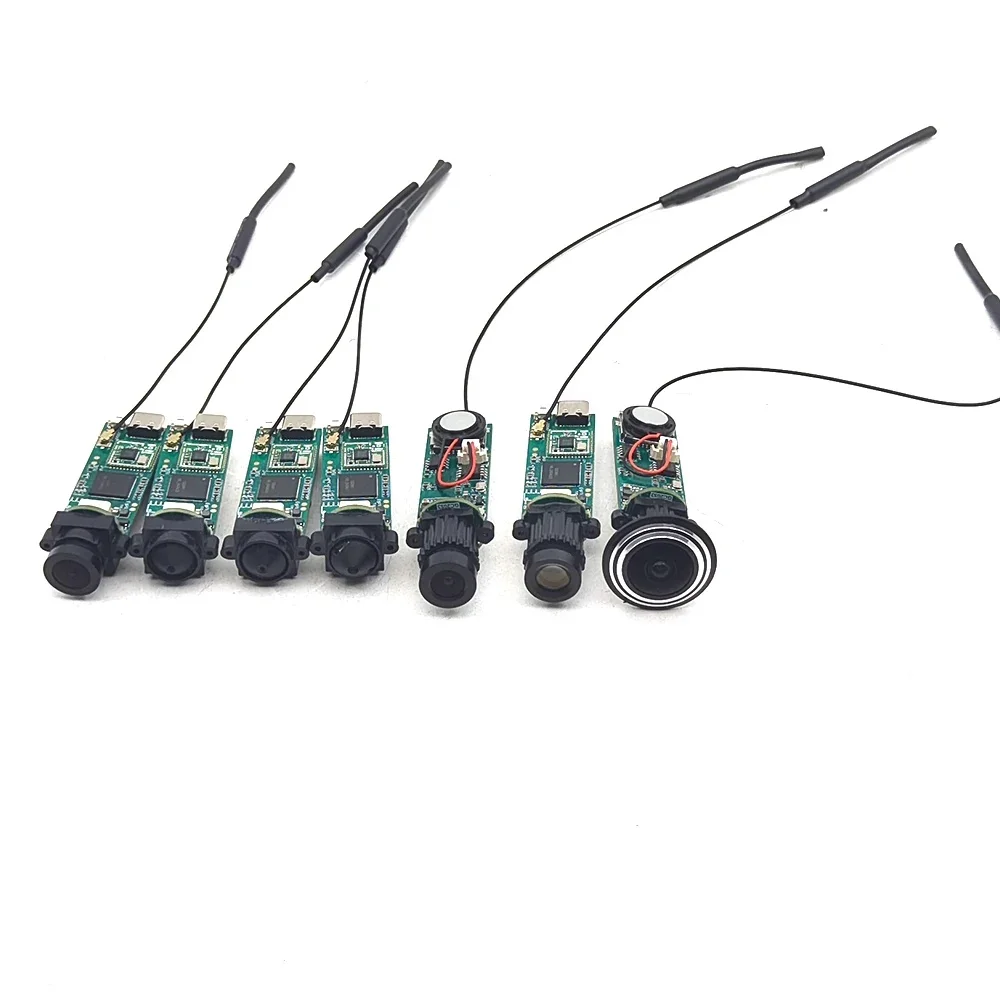

Camera module with different type lens :
how to power it ? default come with dc5v 2a power adapter connect with electric power or connect with external power bank to power it
