SPECIFICATIONS

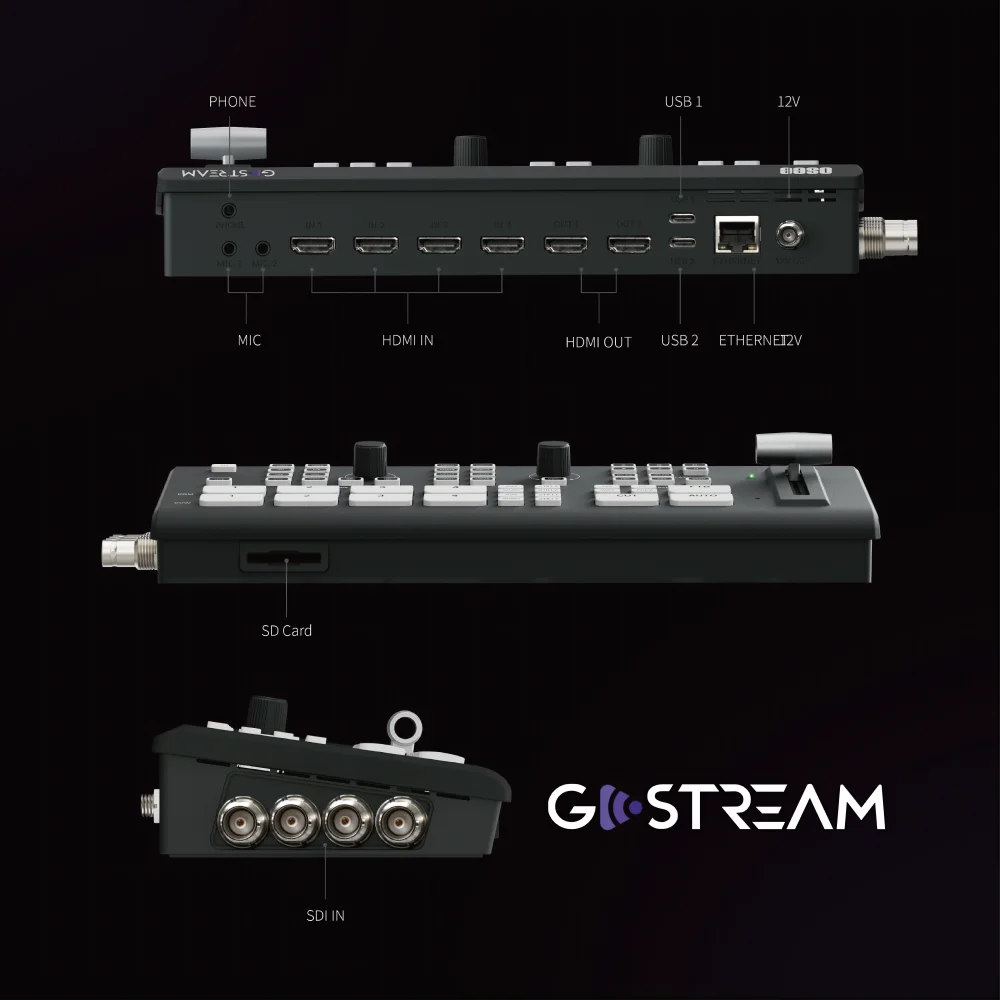

1 Audio Output: PHONE: 3.5mm Jack, selected audio monitoring.

2 Audio Input: MIC 1-2: 3.5mm Jack, MIC, MIC+power and Line configurable.

3 Video Outputs: HDMI OUT 1-2: Selected from 5 video input channels, multiview, PVW or PGM. USB 1: UVC output to OBS, Zoom, Vmix, etc.

5 Video Inputs: Channel 1-4: HDMI/SDI auto-detection, configurable. Channel 5: NDI, UVC, internal video player selectable.

Audio Mixer: 2 Analog Inputs, 4 HDMI/SDI audio, 1 AUX audio. On/Off/AFV control, fader gain, balance, and delays control; 8 audio meter display.

Brand Name: OSEE

Compatible device: Streaming Box,Action Cameras,PTZ Camera,TV box,Cameras,Mixer Sound,Game Consoles,LED Screen,Laptops,Projector,Tablets,Phones,Monitor,player

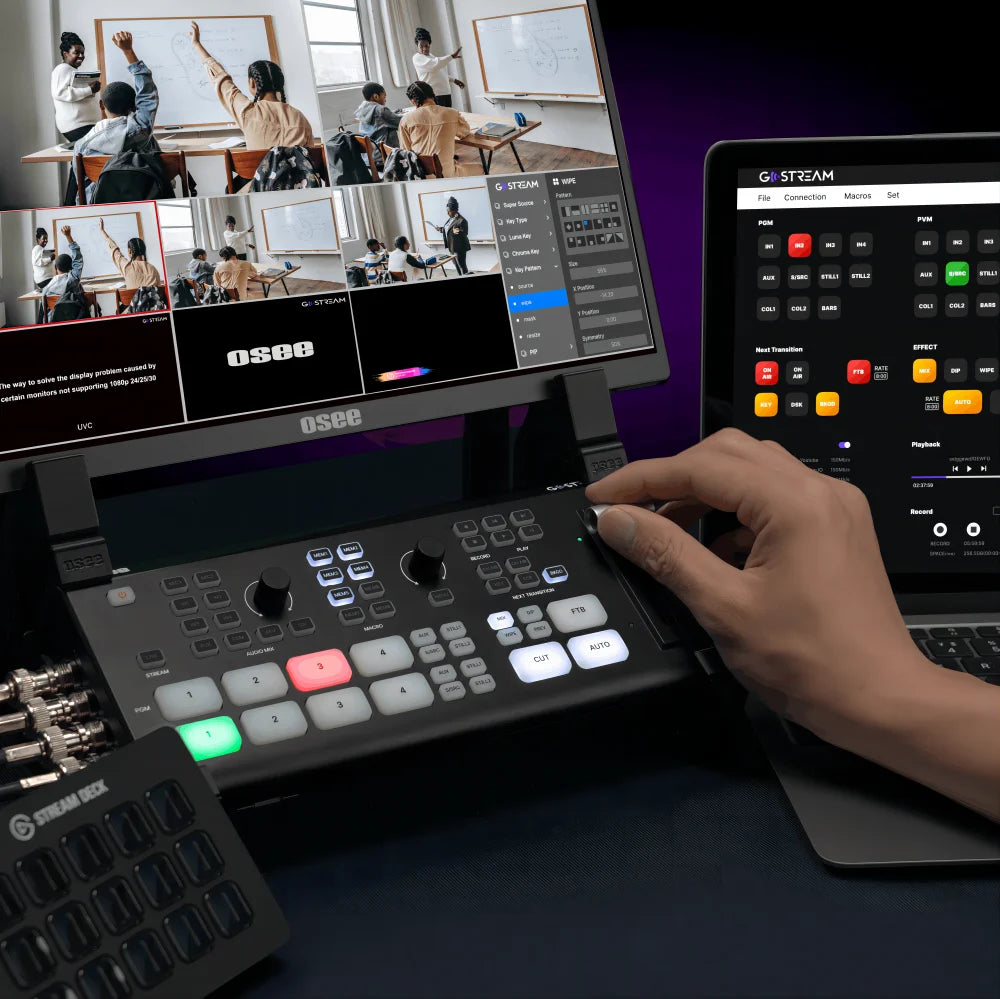

Control: Internal menu, software for PC or MAC, Stream Deck via companion plug-in.

Direct Streaming: Ethernet: 3 platforms simultaneous streaming, RTMP, up to 10Mb/s.

Environmental: Power: 12V DC/14W; Weight: 500g; Dimension (W*H*D): 252.4*49.3*107.3mm; Working Temperature: 5°C to 40°C (41°F~104°F).

High-concerned chemical: None

Input Interface: HDMI,SDI,AUDIO

Input video format: 1280x720p@50/59.94/60,1920x1080p@23.98/24/25/29.97/30/50/59.94/60, 1920x1080i@50/59.94/60

Macro: Up to 8 Macros can be accessed via panel, more via software.

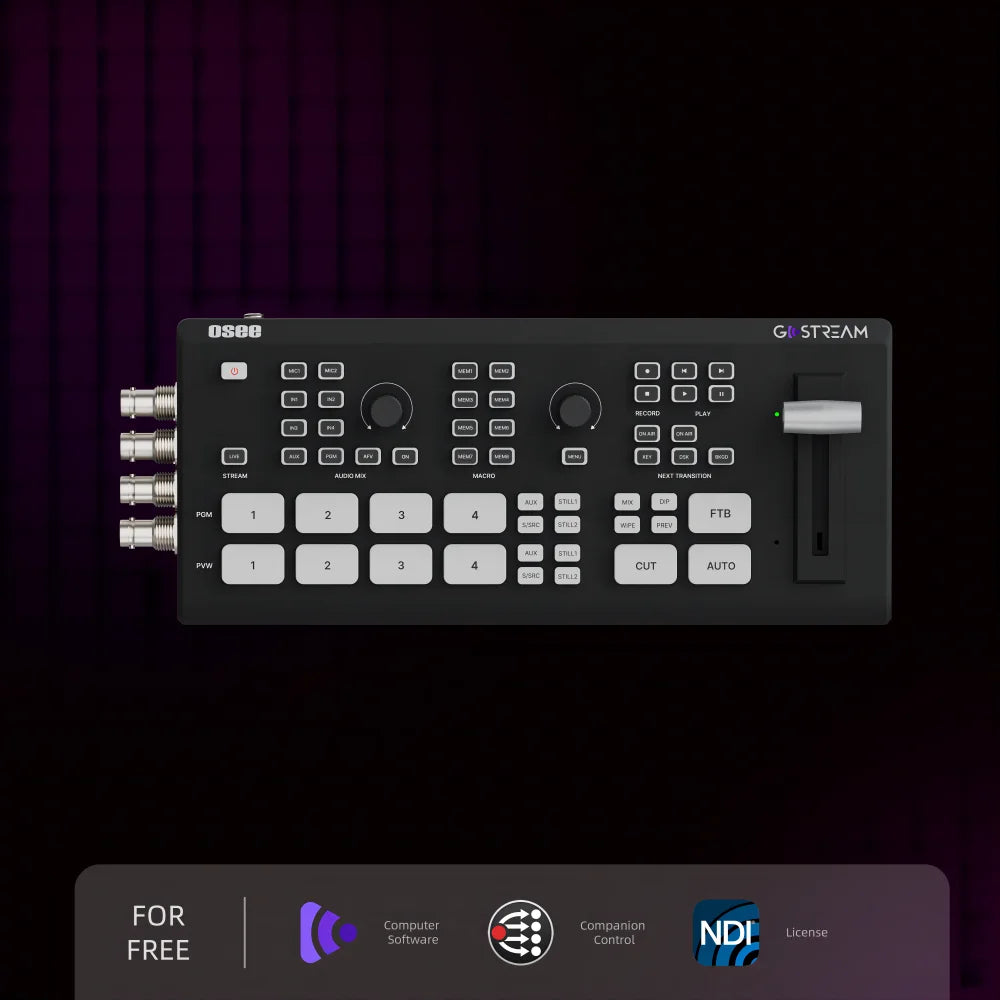

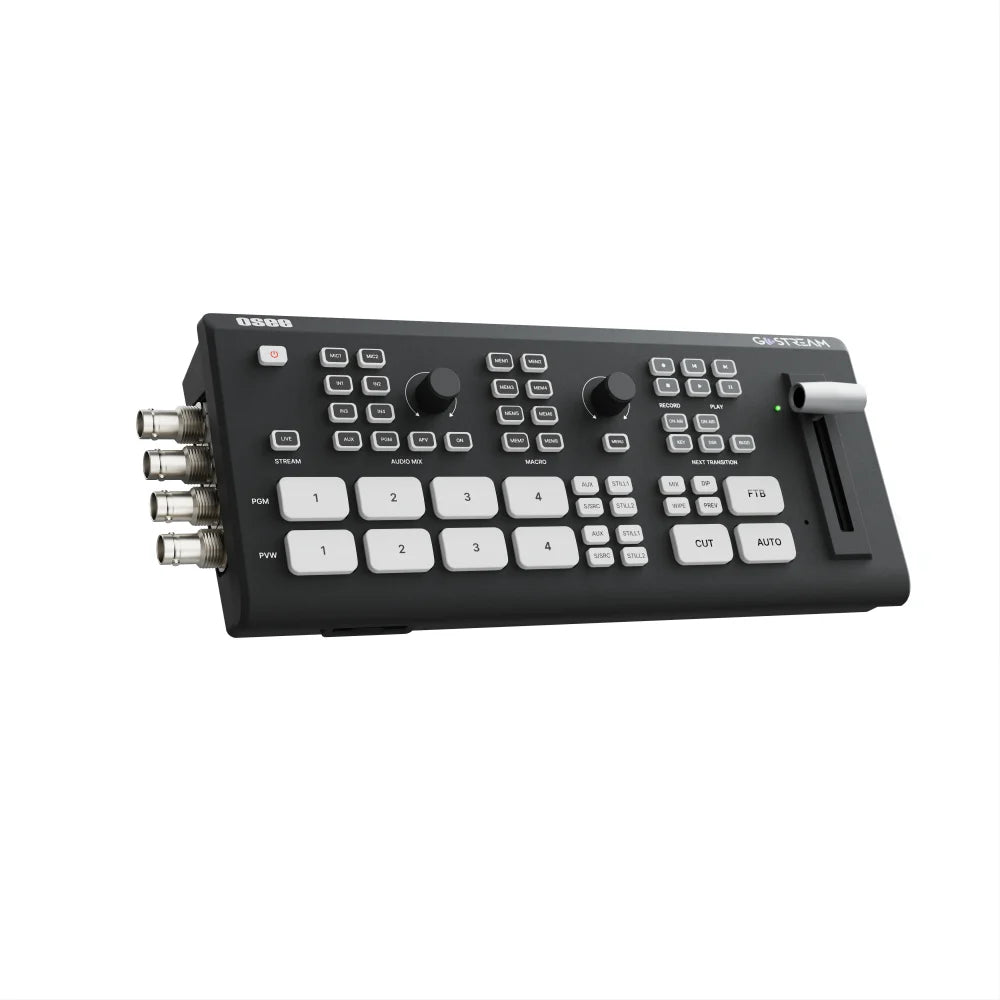

Model: GoStream Duet

Multiview Monitoring: PGM/PVW, 5 channel preview, STILL 1-2 with source label (UMD), tally, marker, audio meter, fade Level, audio on/off and AFV; Recording, playback and streaming status; Control Menu.

Number Of Channels: 12-Channel

Number of HDMI: 4

Number of SDI: 4

Origin: Mainland China

Other Effects: Upstream Key: 1; DSK: 1; Chroma Key: 1, Luma Key: 1, Transition: 18 patterns; Color Generator: 5; Pattern Generator: 2; PIP: 1; Still Image: 2 generators, 32 storage with key and fill, PNG format.

Output Interface: HDMI,AUDIO,USB

Output video format: 1920x1080p@23.98/24/25/29.97/30/50/59.94/60

Recording and Playback: Internal recording and playback high-quality H.264 up to 70Mb/s while streaming. Internal SD card or external SSD is supportted.

Super Source: 2 windows + 1 background, 4 pre-defined layout with modification.

Support CUT hard cutting: Yes

From the brand

Osee Technology Ltd. has been a leading manufacturer of monitoring products for filmmakers in China since its foundation in 2001.

OSEE emphasizes innovation and technology while maintaining high standards for product quality and customer service. We proudly develop and manufacture to accommodate world-class Film product needs. To accomplish this, OSEE maintains a tight partnership with our users, dealers and system integrators in the design process. This partnership allows us to use the latest technologies in our product designs to rapidly respond to changing market needs and develop high performance solutions with innovative feature sets while maintaining competitive pricing.

Helping filmmaker to get better quality image, facilitating their work flow and expressing their creation and imagination without boundary serve Osee's the highest priority.
