P16 HUD Obd2 Display On-board Computer Car Speed Gauge Smart Digital Tachometer Speedometer projector EOBD Water Oil Temperature

Please note:

Friend, please confirm whether your car model is compatible with the OBD protocol before placing an order, otherwise there will be no refund after sales

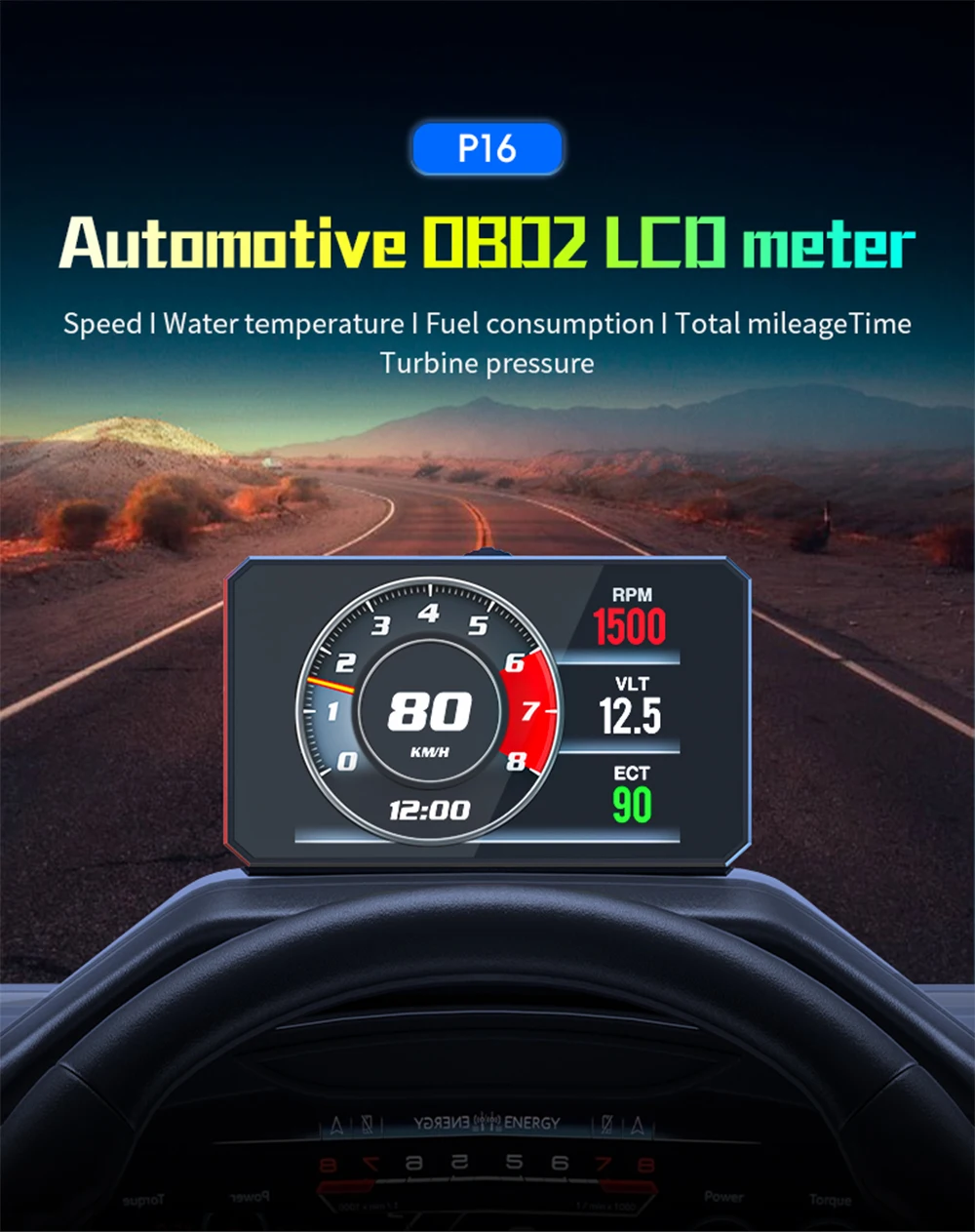

OBD smart digital meter:

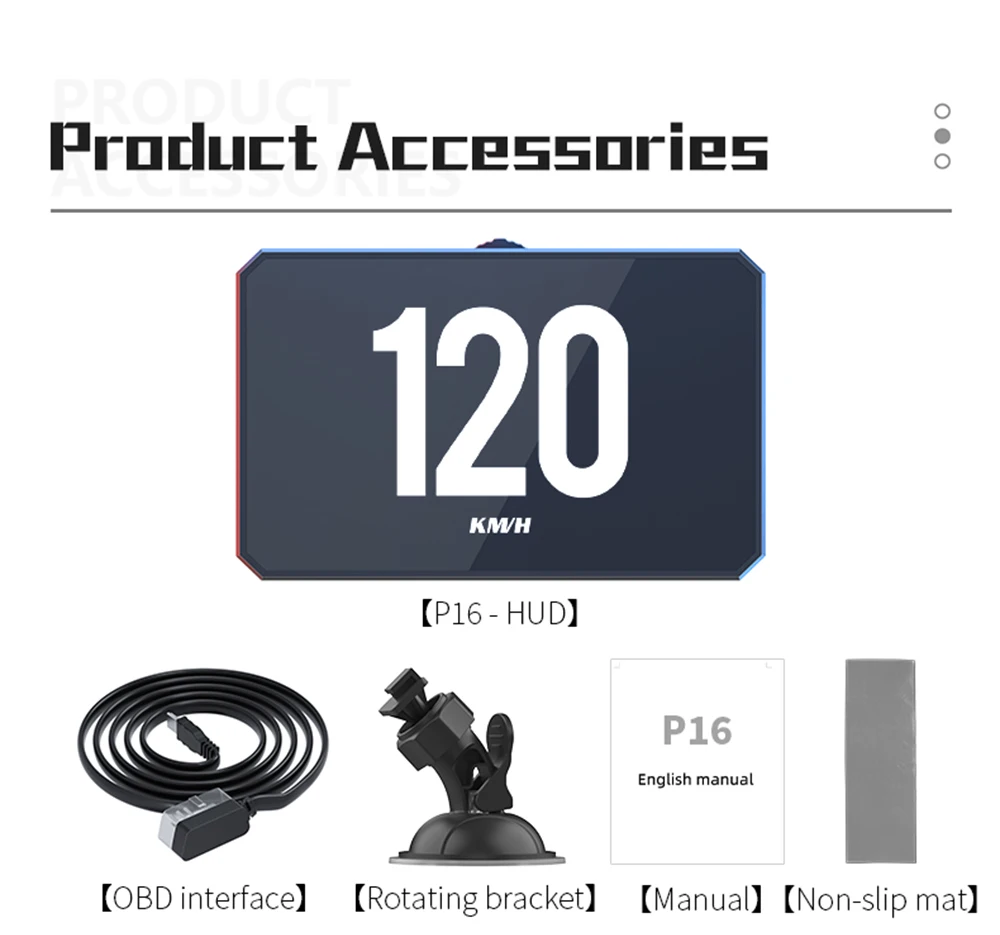

This product connects car OBD2 interface by OBD cable, and display the driving datas, e.g. vehicle speed, engine RPM, water temperature, fuel consumption,voltage etc. It can keep the driver’s eyes always on road to avoid the dangerous of lowering down head to read the dashboard. This product won’t change any car ECU datas.

Main Functions&Features:

1.Work for OBD2 protocol cars,easy installation,plug & play

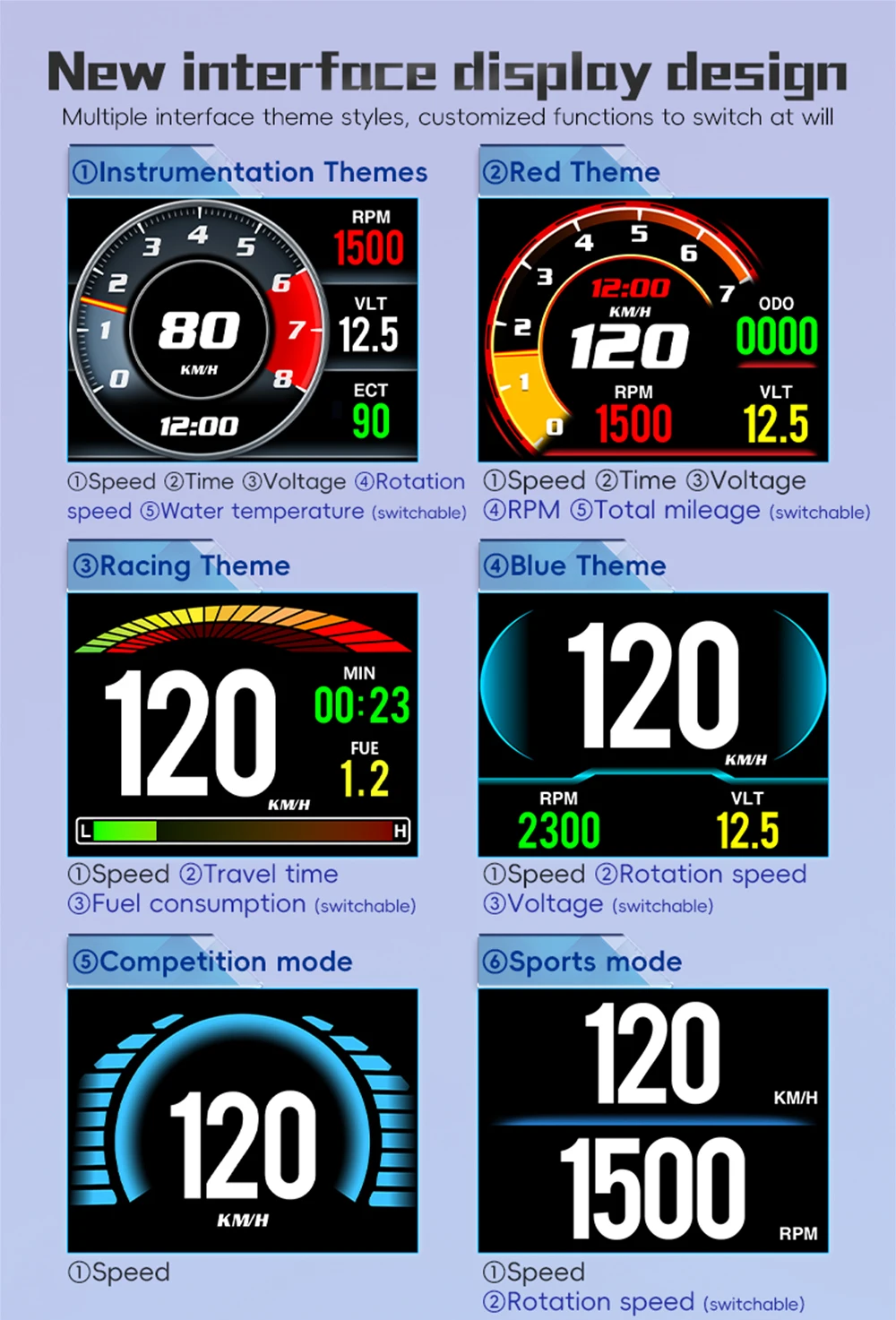

2.TFT LCD multi color smart display
3.The language can be changed(English,Traditional Chinese,Simplified Chinese)

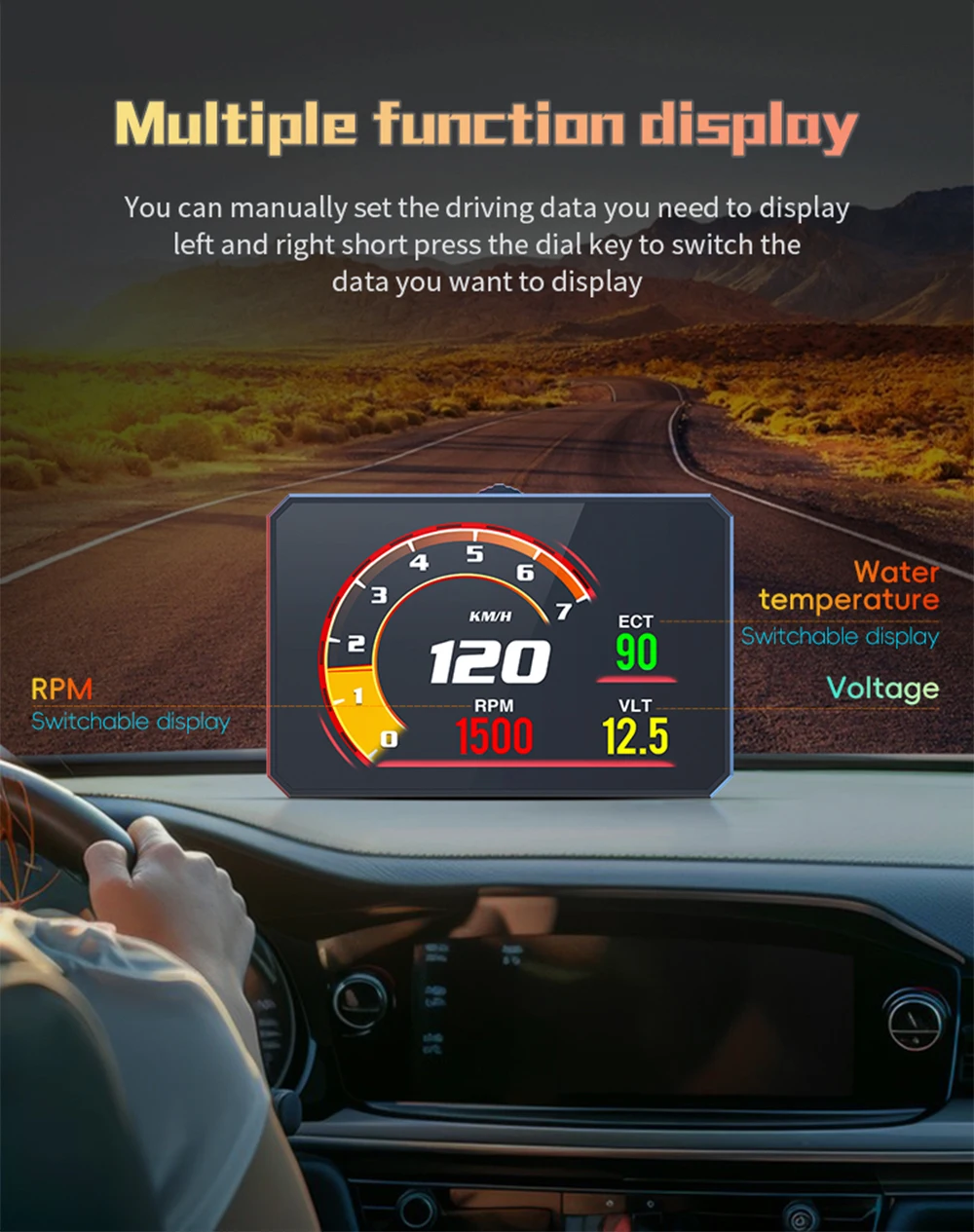

4.Multi / Simple function display mode can be switched
5.Add new functions: accelerating competitive mode ,Brake performance test

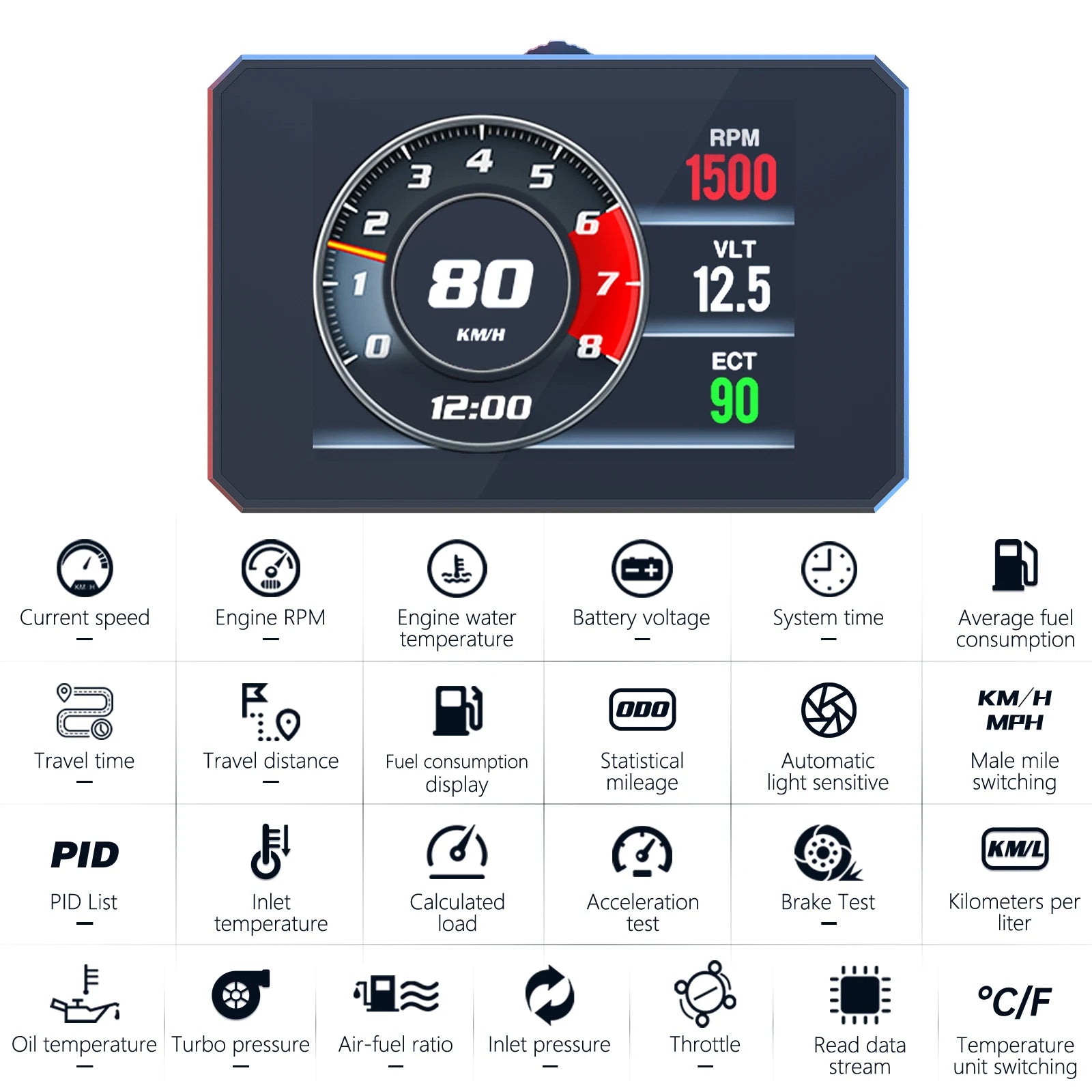

6.Rich Contents:vehicle speed,engine RPM,water temperature,voltage,
voltage,instantaneous fuel consumption,average fuel consumption,sum driving distance, single driving distance and time, low voltage alarm,high water temperature alarm,over speed alarm, engine fault code alarm, eliminate the fault code,turbo pressure,oil temperature, air-fuel ratio,freely switch between kilometers&miles.

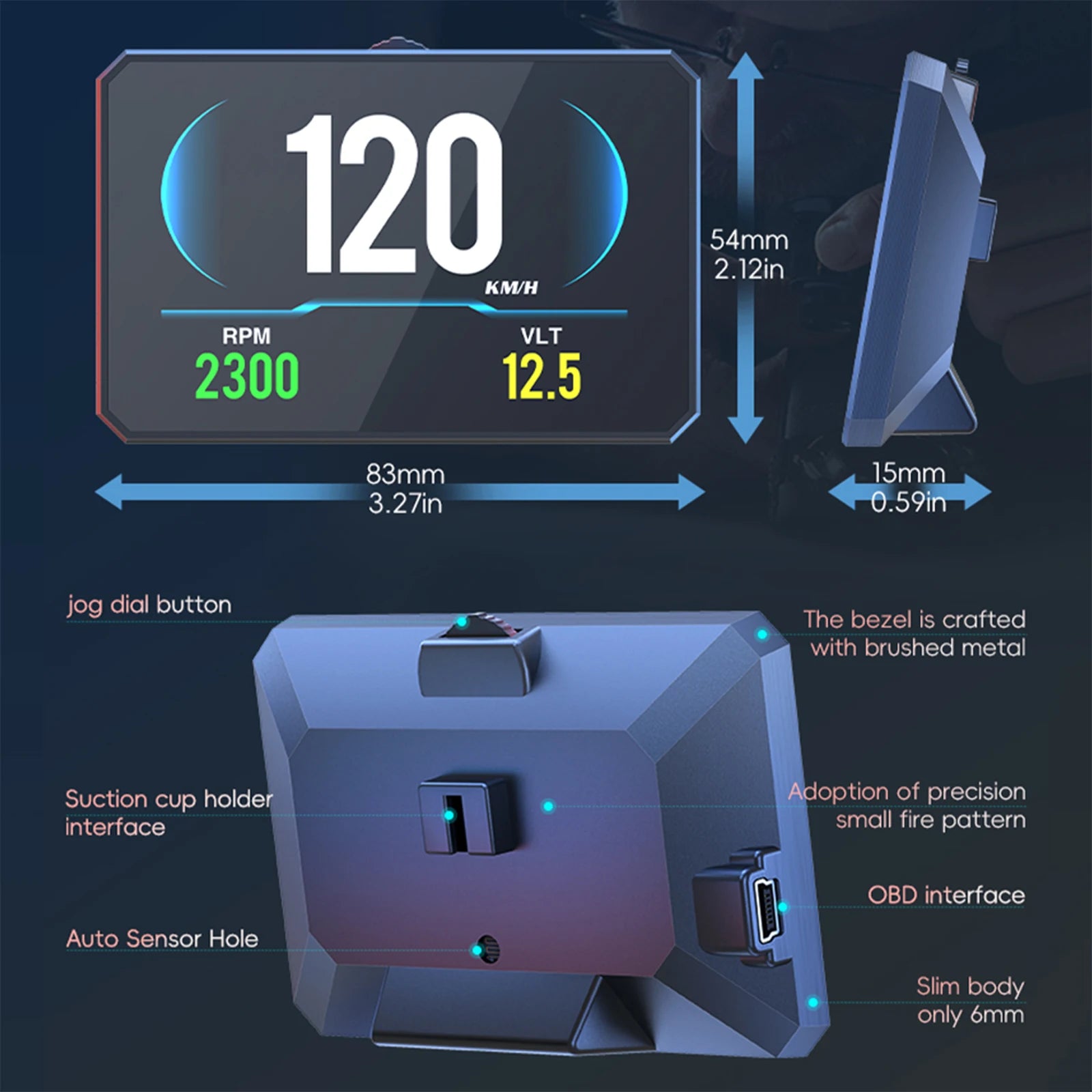

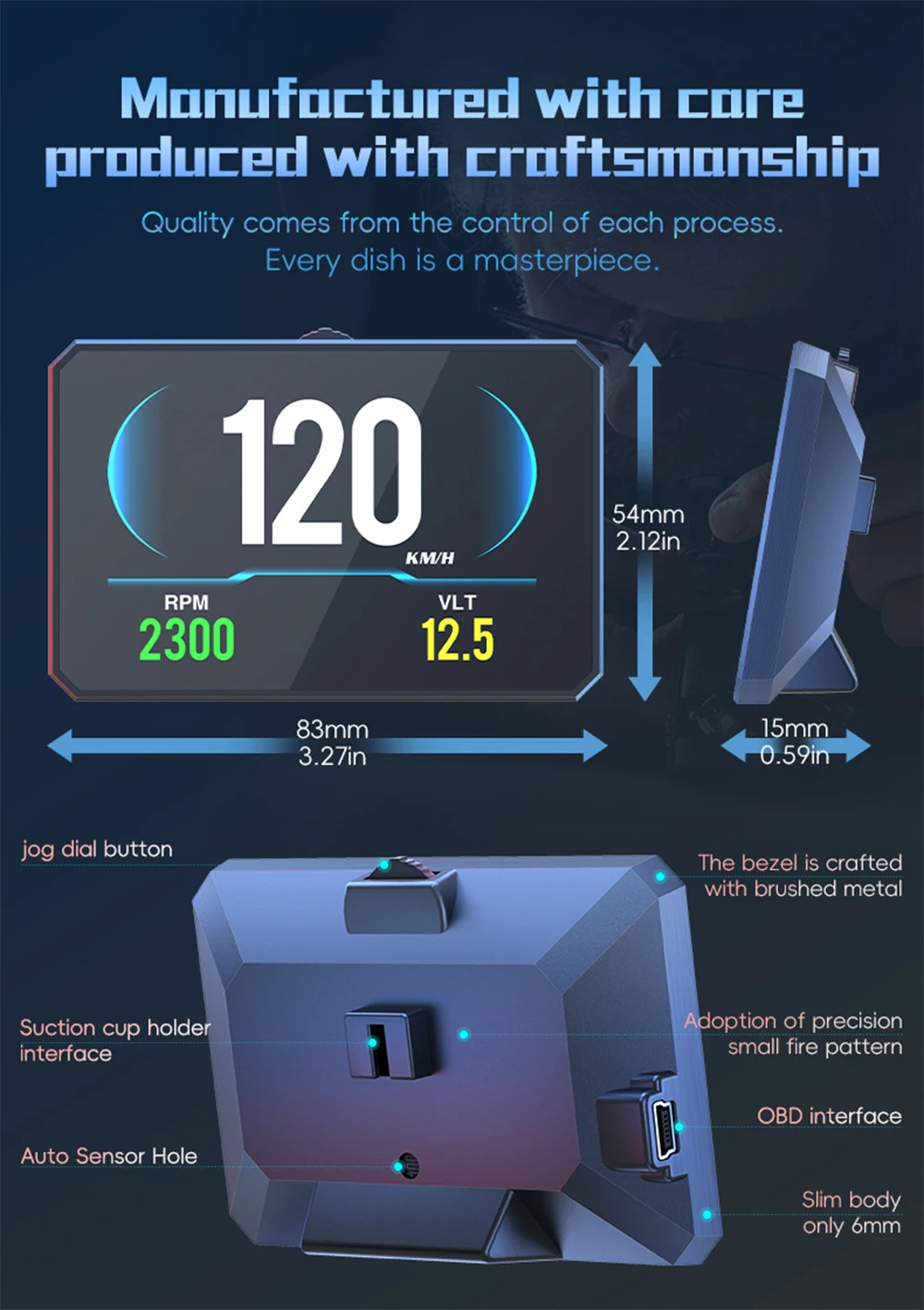

Key functions:

1.Setting button:it can push left / right, short / long press in

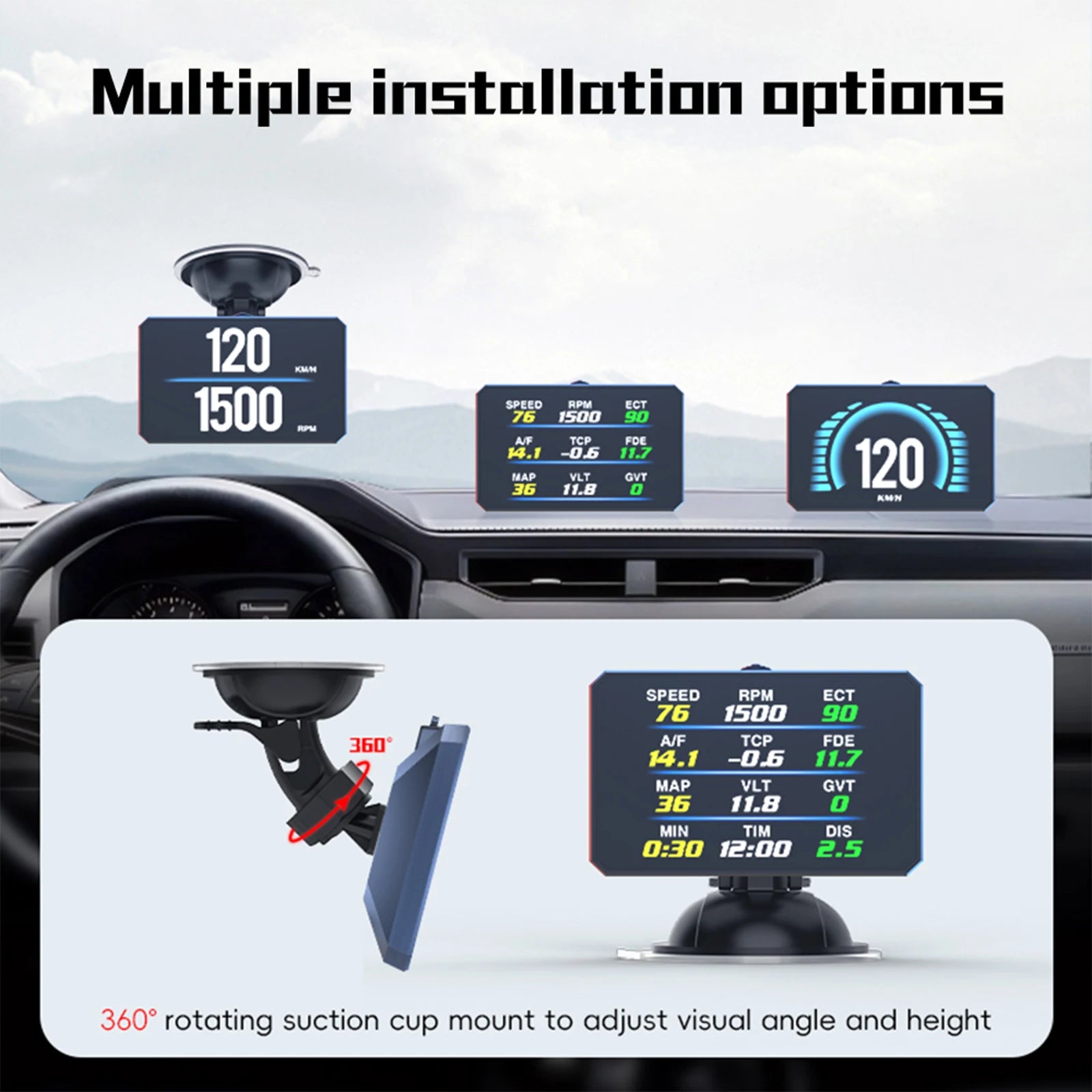

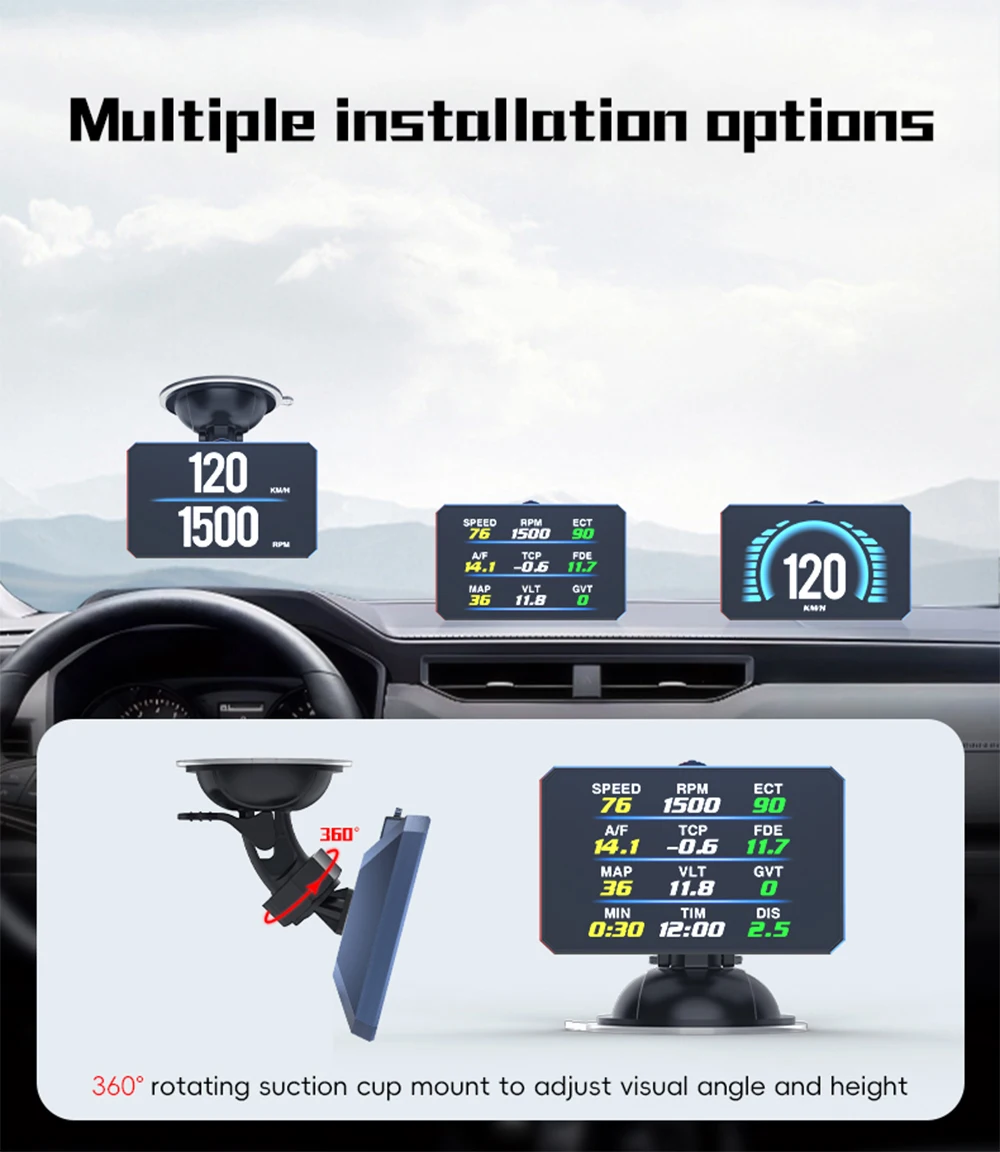

2. Suction cup mount place
3.OBD2 interface
4.Light sensor
5.Host mount

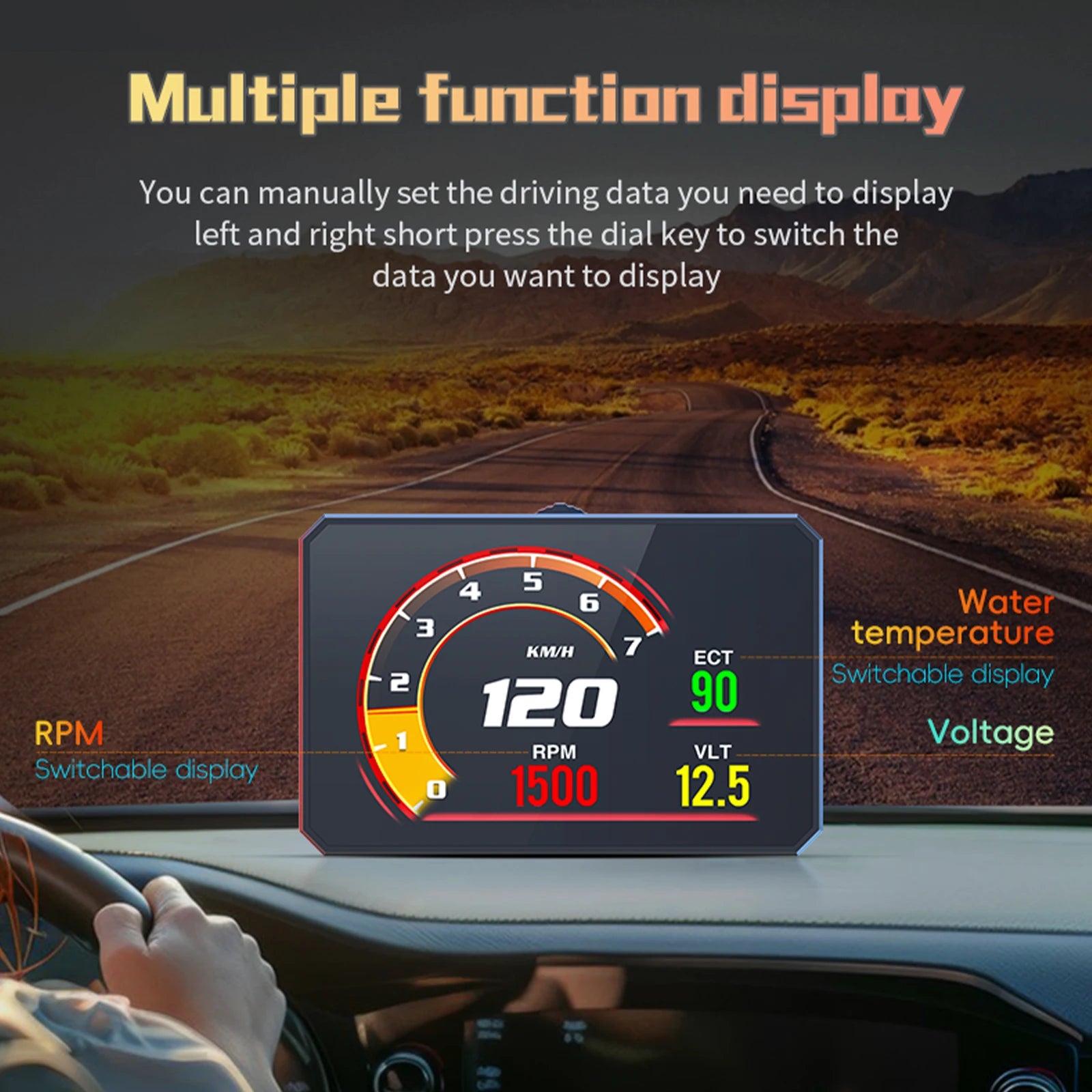

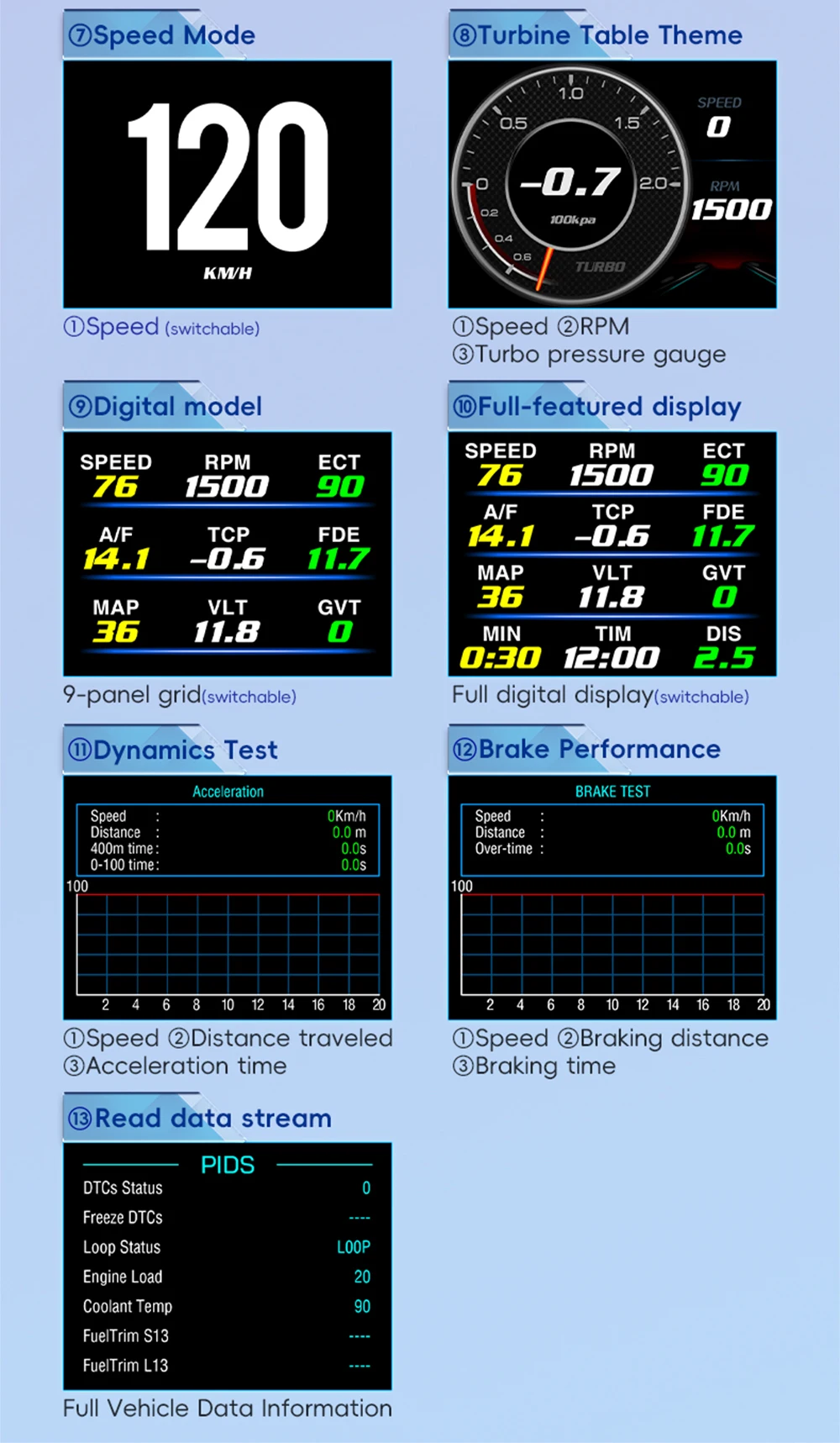

Push left/right to switch function:

Below are function abbreviations
ECT -engine coolant temperature
VLT -Voltage
FUE -fuel consumption
RPM- Revolutions Per minute
ODO -odometer
TIM-driving time
DIS-driving distance
MAP-Intake pressure
OIT -Oil temperature
A/F - Air-fuel ratio

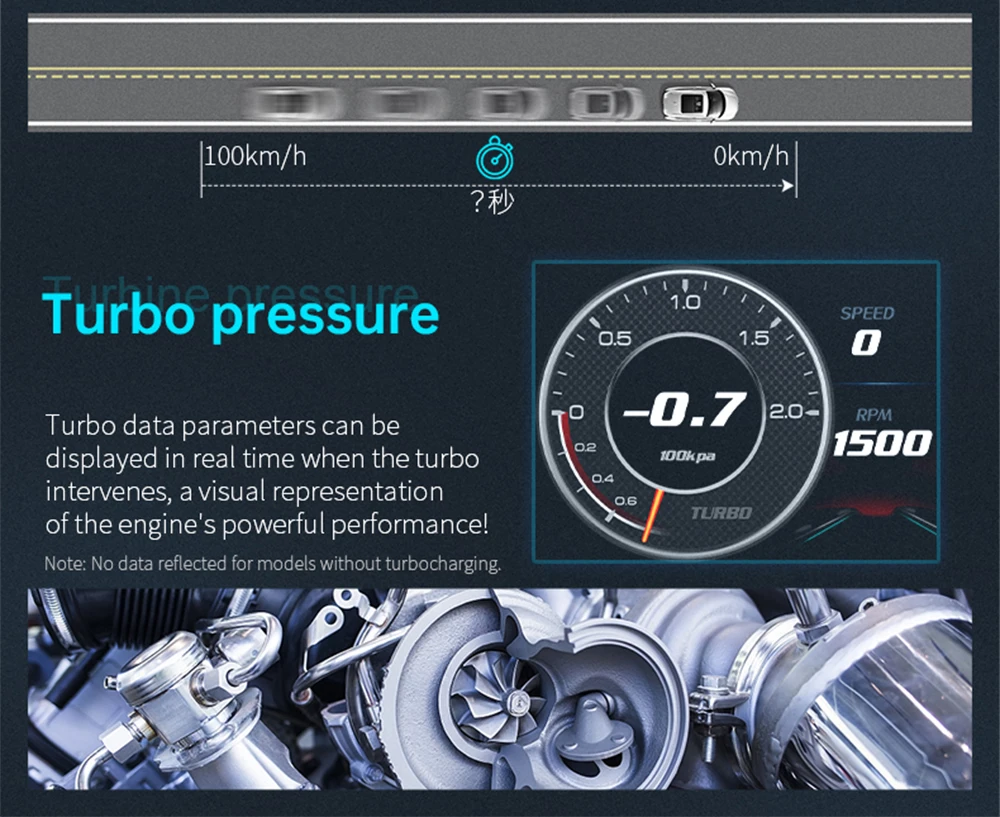

TCP -Turbine pressure

Factory set:
Long press in the setting button,push right to switch to the Settings, and then short press in the button to enter into the menu, push right to switch to the factory set, and short press in to keep and exit.

Eliminate the fault code:
When the device scan the program successfully,long press in the the button to enter into the setting menu,then push right to switch to the troubleshooting,short press in,then find the eliminate the fault code function,long press in to finish.

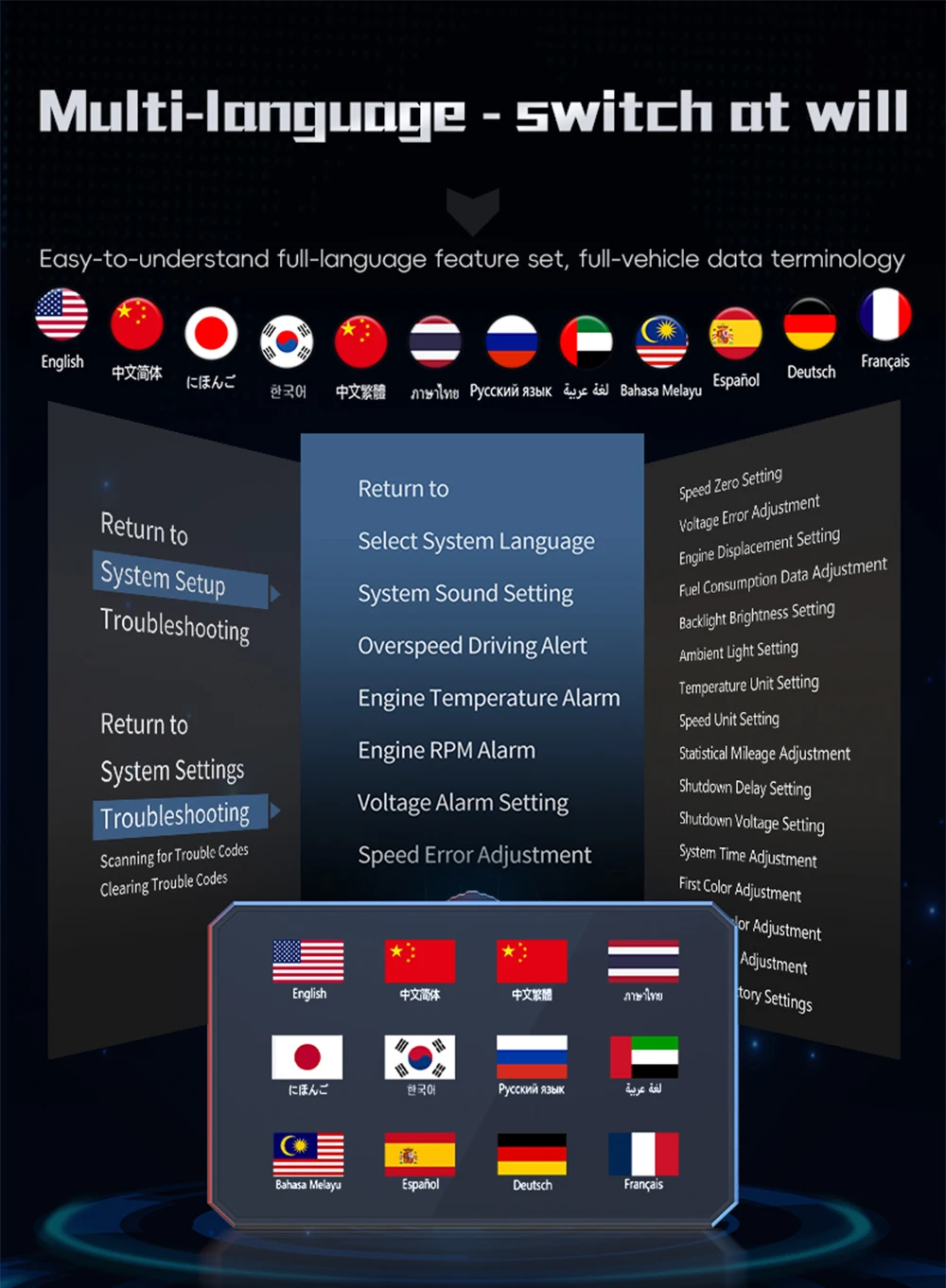

Setting Mode(Menu mode)
Long press in to enter into the setting mode,push right to choose the menu,and short press in to confirm.Once finishing the setting,long press in to exit.

Setting functions:

In the menu(setting) mode,all the default value can be changed,push left is to decrease,push right is to increase
Language Set: Please choose your familiar language(English/Simplified Chinese/Traditional Chinese)
Sound Switch: turn on/off the buzzer

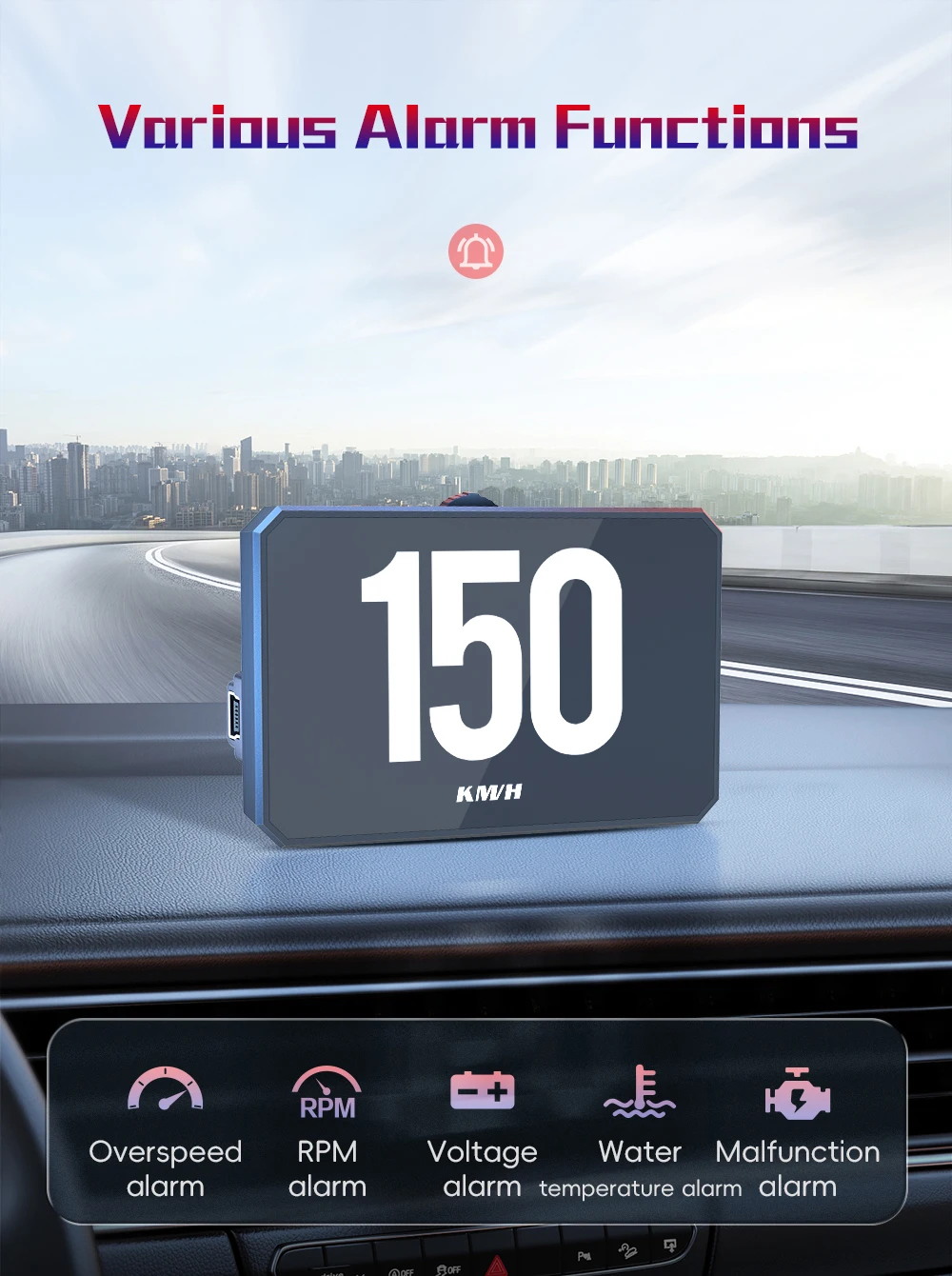

Speed Alarm: the default value is 150 (the default value can be changed,push left is to decrease,push right is to increase)
Coolant alarm: default value is 120°, it means this device will give alarm when Coolant temperature is over 120°
RPM alarm: default value is 6000 r, it means this device will give alarm when RPM over 6000 r
BAT Alarm: default value is 10.5V, it means this device will give alarm when battery voltage is lower than 10.5V
Speed Adjust: adjust the speed according to the dashboard,default value is 107%
Speed Offset: When the vehicle turns off,but the device speed is not 0, then adjust the device Speed Offset value, if the device speed shows 5KM/H, then change the device Speed Offset default value at 5
BAT Adjust:if the battery voltage is different with the vehicle,it can be adjusted.
Engine Size: the default value is 1.6 L, if the fuel consumption is much different with the dashboard,please change it as the Displacement size
Fuel consumption adjust: default value is 100%,it can be adjusted

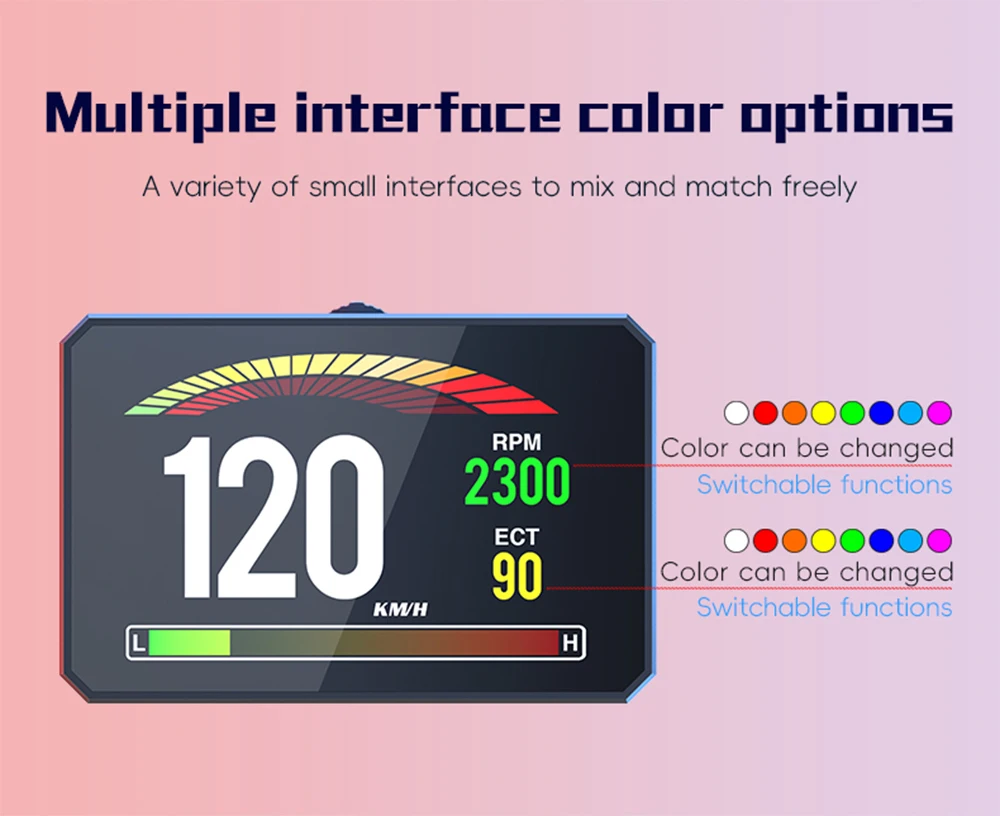

Change Color 1: the top functions color on the screen
Change Color 2:the left side /middle functions color on the screen
Change Color 3:the right side /bottom functions color on the screen
Brightness: default AUTO(Automatic sensitivity),1-6(the brightness will be increased as the digital added)
CWT Unit : default coolant temperature is °C,also can be changed to ℉
Speed unit: default is KM,can be changed to Mile
Sum distance: can make the total driving distance same as dashboard(if the dashboard shows the sum distance is 30000Km,the user can make the device value at 30000KM)
Power off time: default power off time is 10s,for Auto start and stop cars,please make the power off time to 180-240s
Sleep Voltage: default is off ,if the device can’t auto off,please adjust the voltage at 13.2V or higher
Factory set: short press in to do the factory set

Driving test

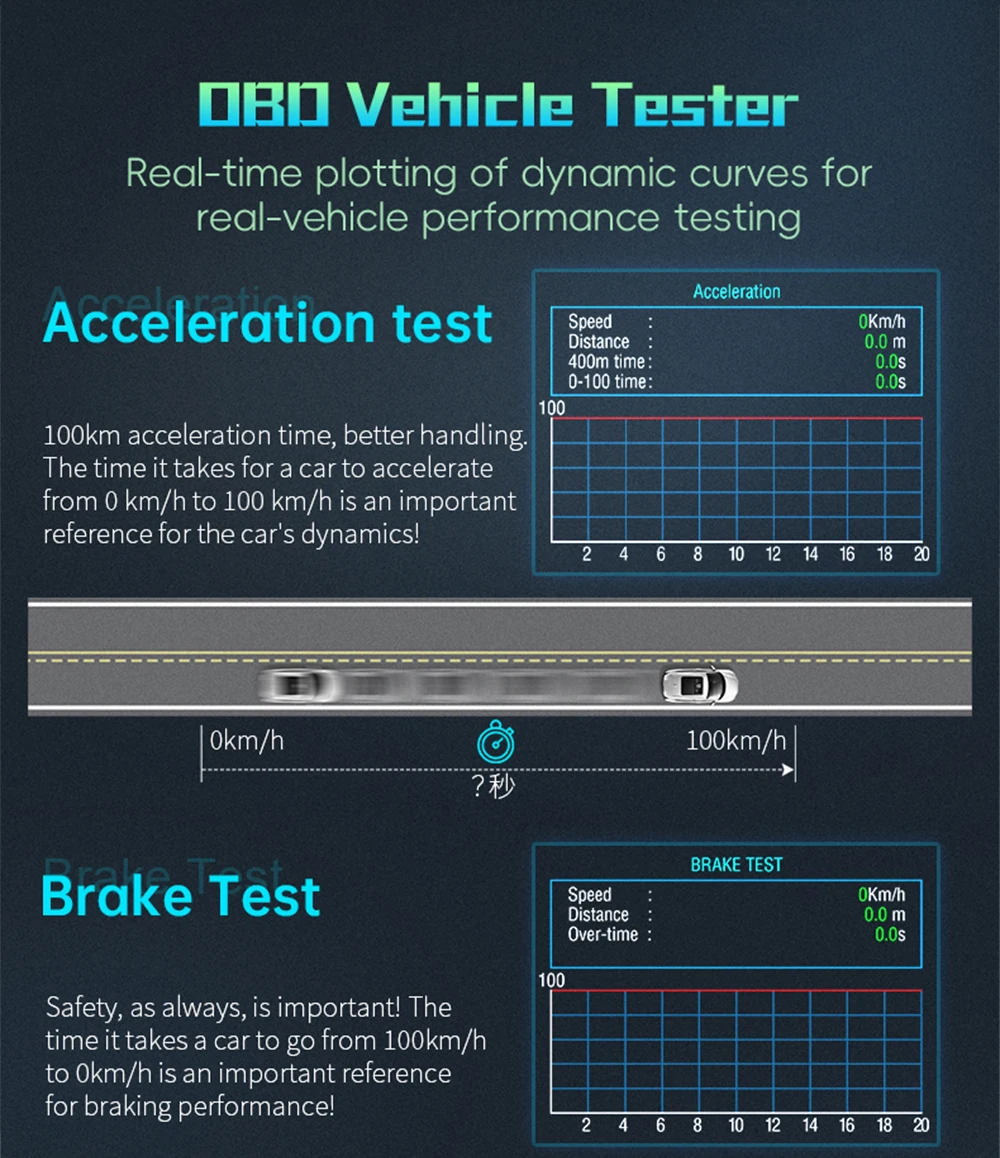

Speedup test:show the speed,distance,the time for 400m and the time for 100KM/H
Brake Test:show the speed,brake distance and time

Error code set
Scan DTCs:scan the ECU to check if there is the error code,and show the error details
Clean DTCs:switch to Clean the DTCs,short press in the button to finish the cleaning

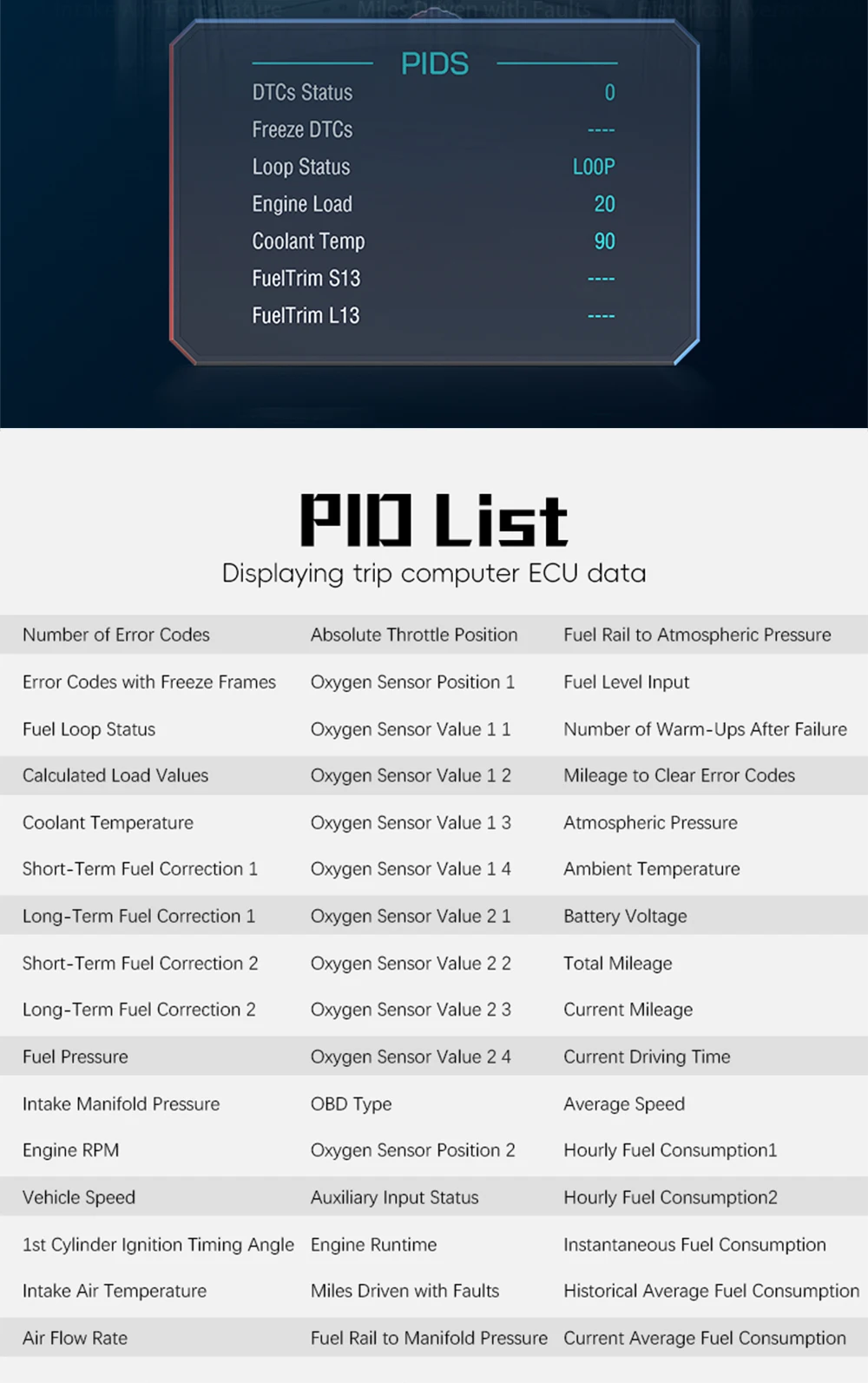

Data Stream
Show all the vehicle data stream
