SPECIFICATIONS

Brand Name: RAYKUBE

Choice: yes

Connectivity: Bluetooth

Doorknob Funcition: Biometric,Key & Keypad

Finish Type: Polished

Handle Direction: Direction Reversible

High-concerned chemical: None

Material: Aluminium alloy

Model Number: V1

Origin: Mainland China

Power Supply: DRY BATTERY

Protection Level: No Waterproof

RAYKUBE Model: V1

Special Features: Support Gateway

Suitable Door Type: Steel Door,Wooden Door,Brass Door,Stainless Stell Door

Ways To Unlock: App,Bluetooth,Mechanical Keys,Card,Password,FINGERPRINT

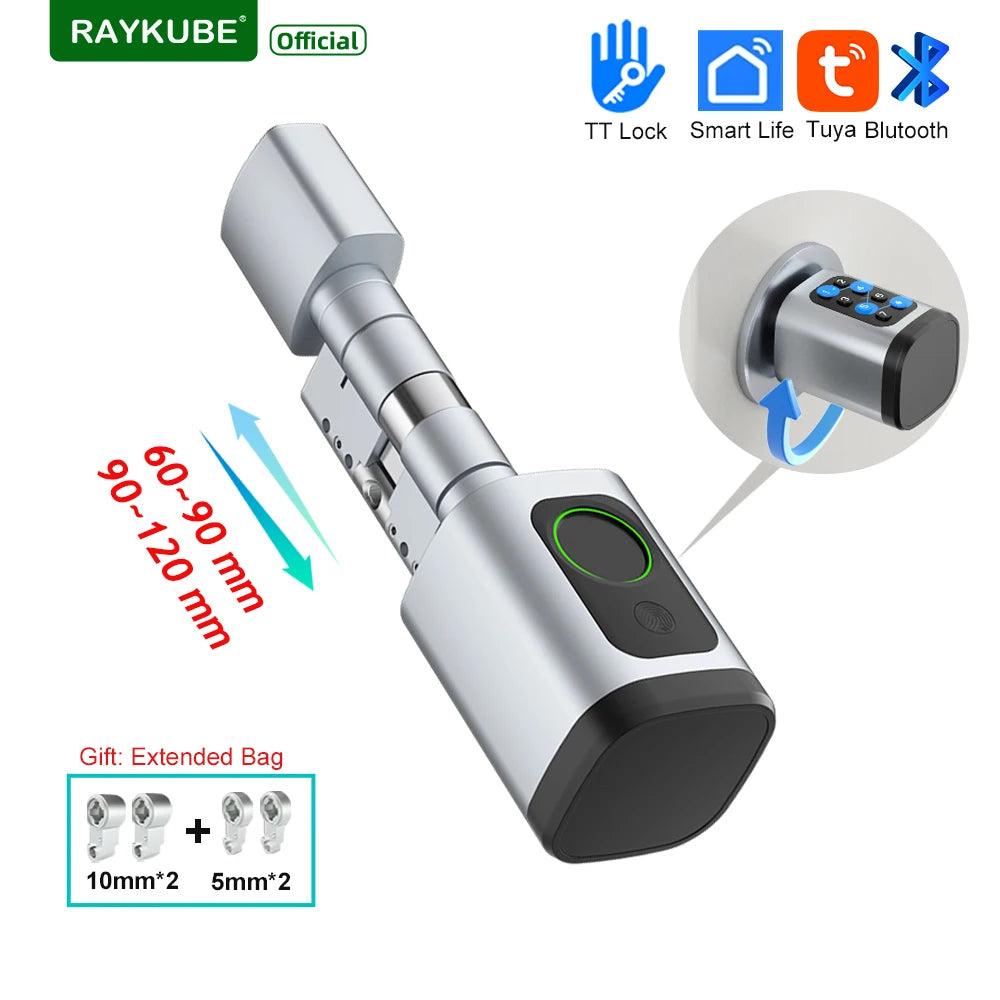

RAYKUBE V1 Adjustable TT Lock/ Tuya Bluetooth Smart Fingerprint Digital Cylinder Lock with APP/Password/RFID Card/Key unlock

Overview-V1

V1 is a cylindrical advanced intelligent fingerprint smart lock, available in Tuya BLE version and TT lock bluetooth version. There are 2 sizes and 2 colors can be selected, applicable to 99% of door types

Reason to Buy

• (Make life more smart): Not need to bring key when go out from Home
• (5 unlock methods): APP(Options: Tuya; TT lock)/ Fingerprint/ IC card/ Password/ Key
• (Set up more easy): Put the phone near the lock to set up via bluetooth
• (More easy DIY installation): Not need drill any hole to installed

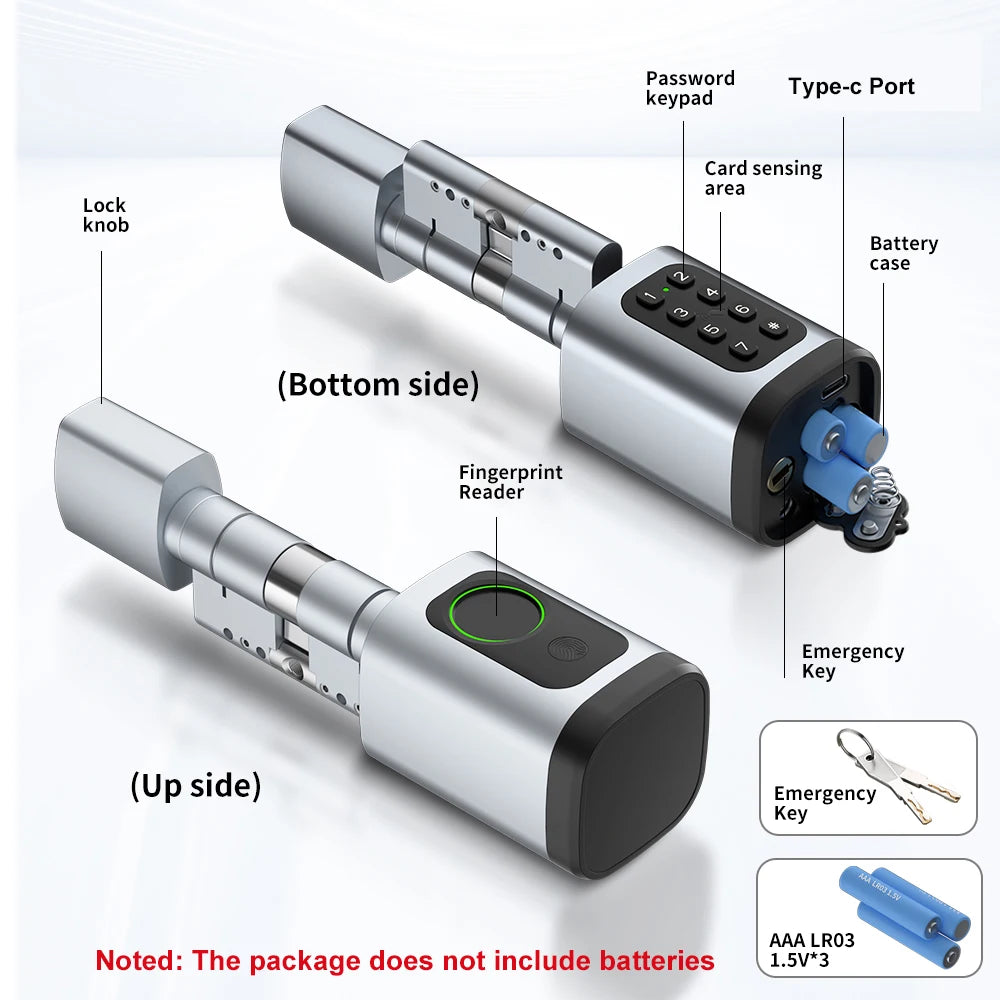

• Mechanical keys and emergency power supply (Type-c) can be used when the door lock is out of power

Specification List

• Model: V1

• Color: Black, Silver

• delReader Dimension: 42x42mm

• Power Source: AAA LR03 1.5V*3

• Meterial: Aluminum Alloy/ Brass

• Installation: Intermediate; Tools required (not include)

• IP Class: IP5X (Dust and Splash Proof)

• Emergency Power: Type C Port

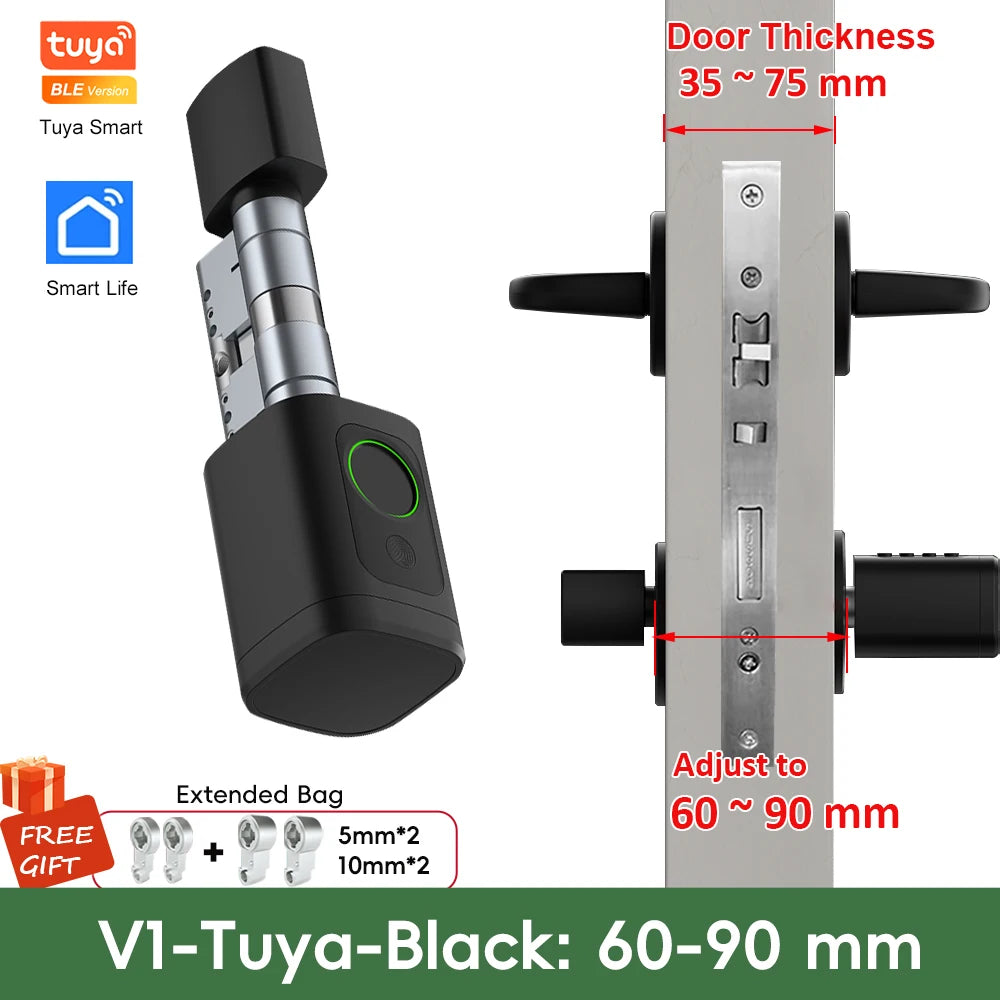

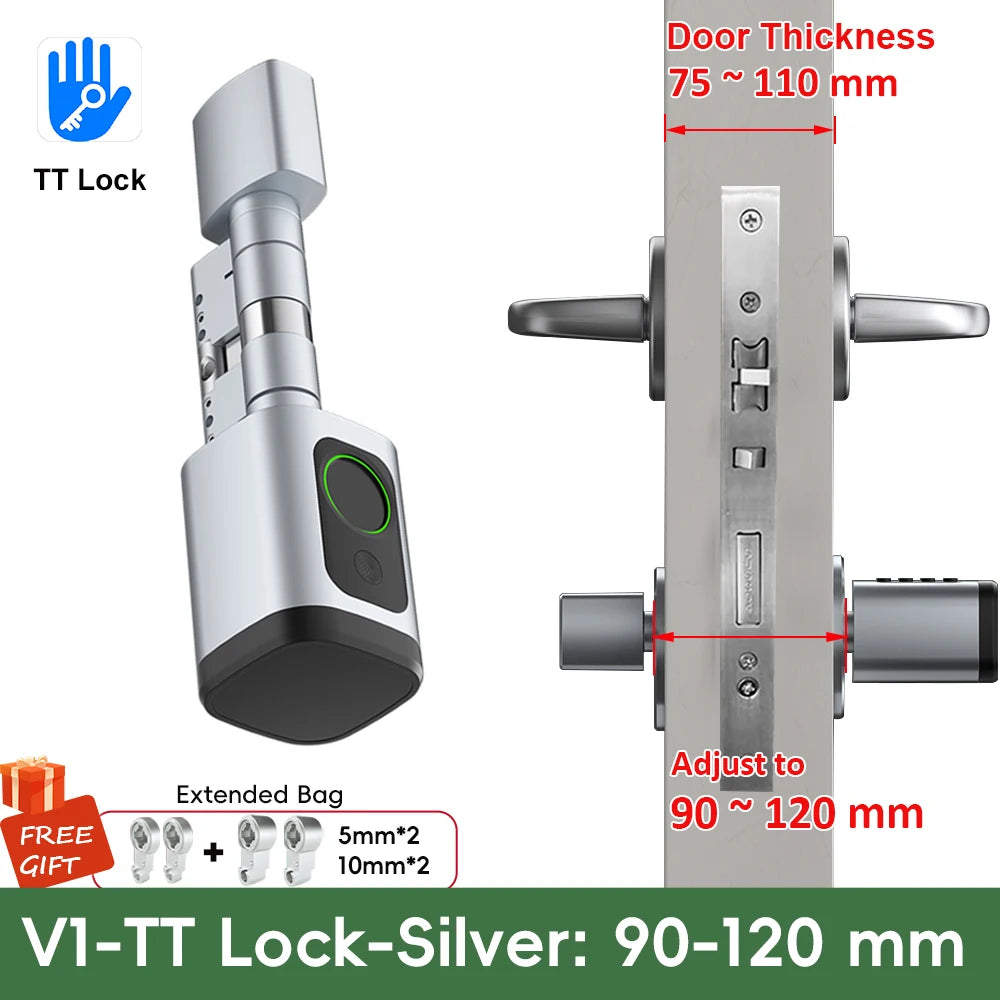

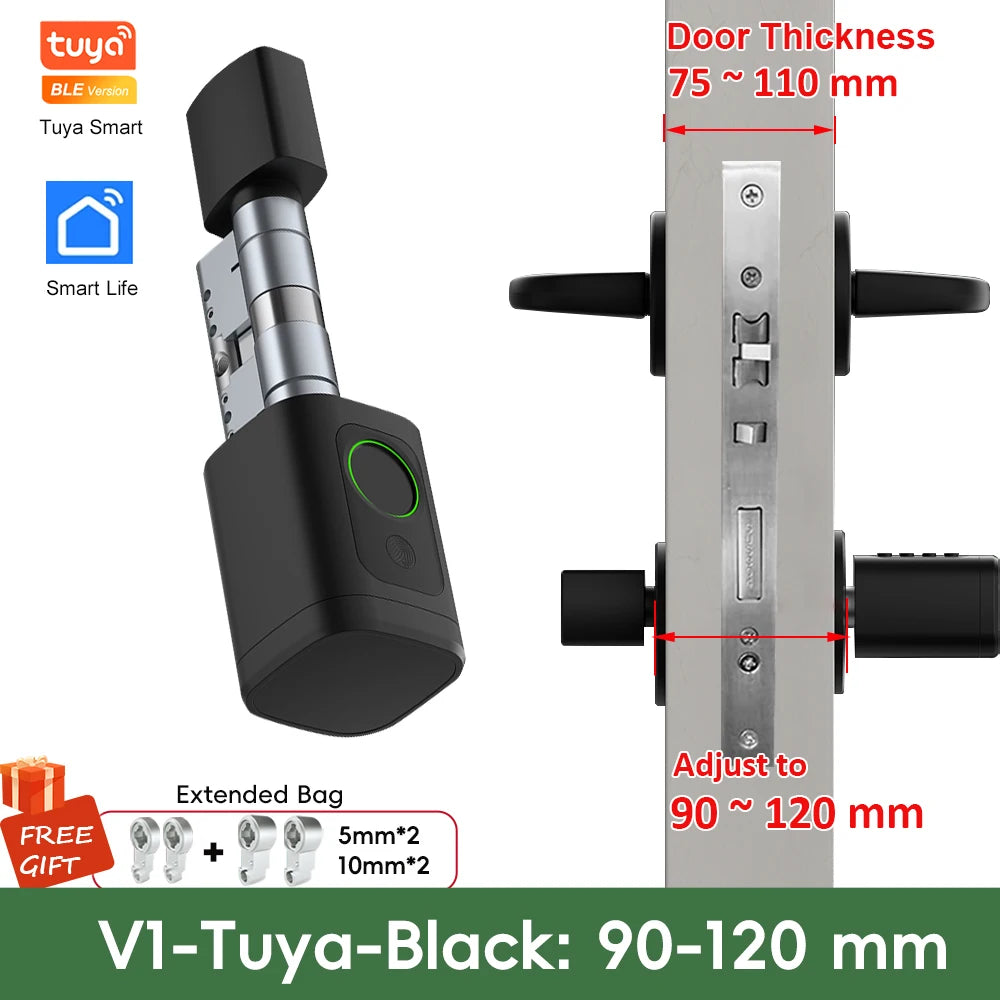

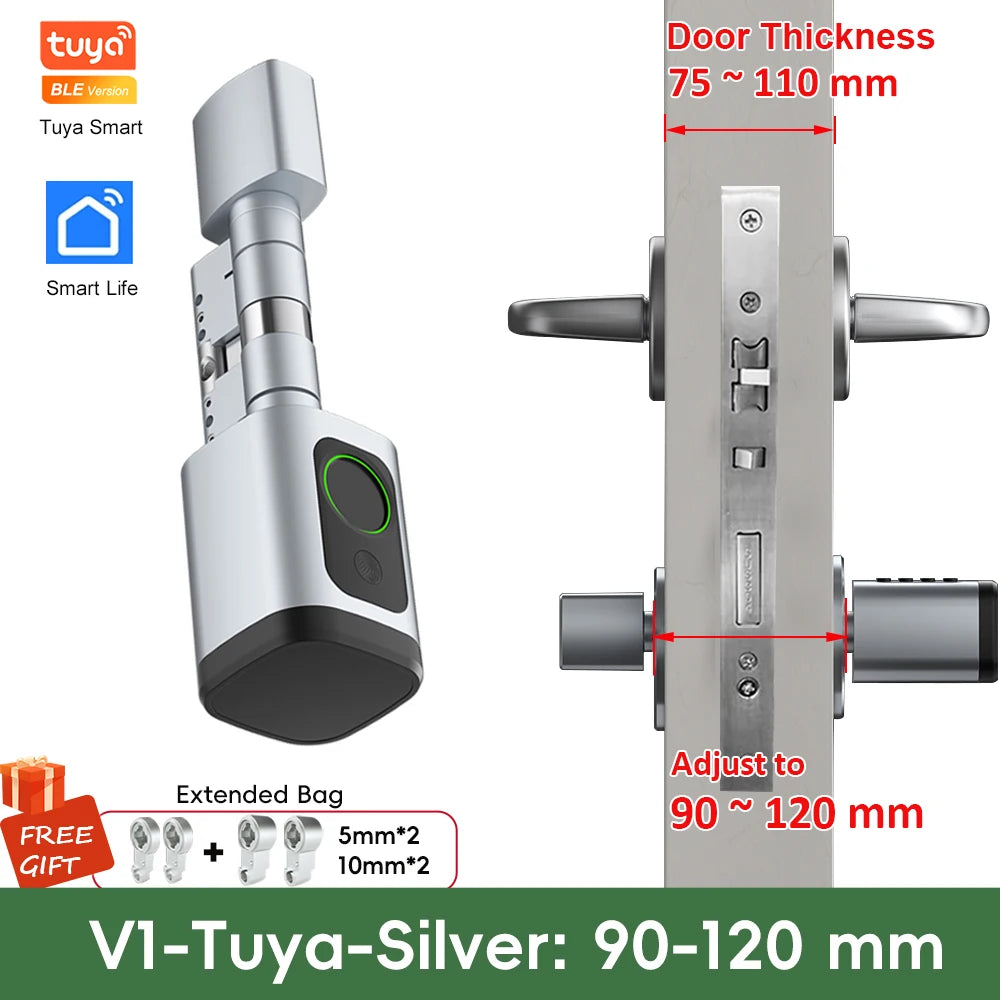

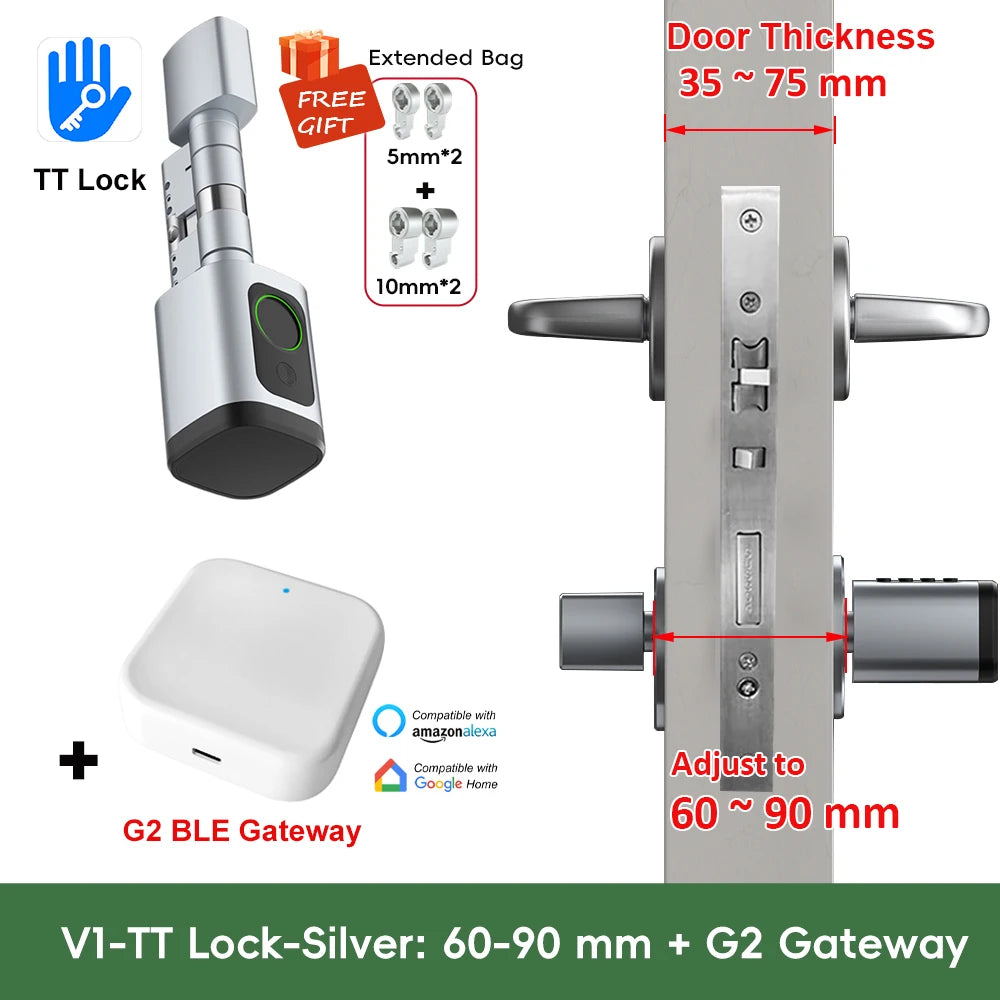

• Door Thickness: 35-75mm or 75mm-110mm(options)

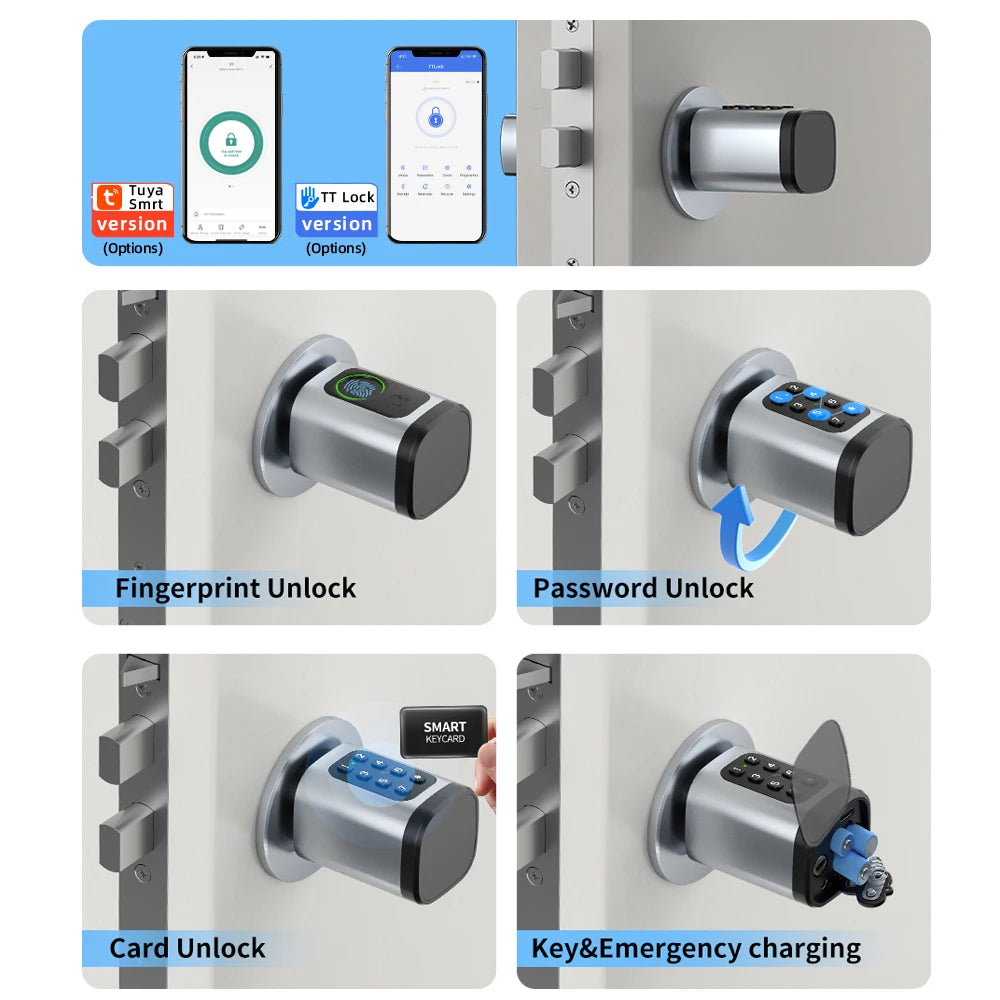

5 Unlock Ways

● Fingerprint Unlock:Max support with 200 fingerprints. Support 100,000 times of rotating reliable test to make sure high stable and safe quality.
● RFID card unlock/ IC Stickers Unlock
● Tuya version: Tuya app one click unlock (Bluetooth);

TT Lock version: TT Lock APP management
● Password unlock

● Mechanical key unlock

Tuya Bluetooth Version

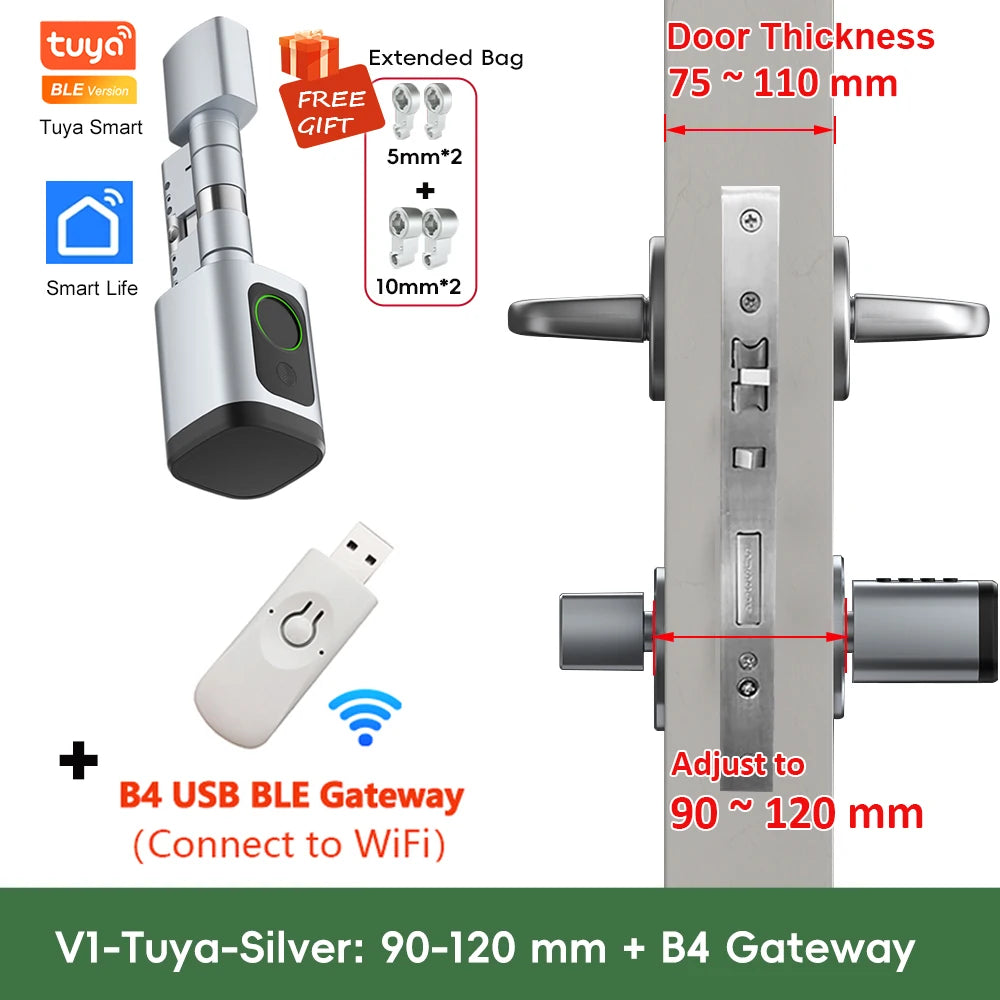

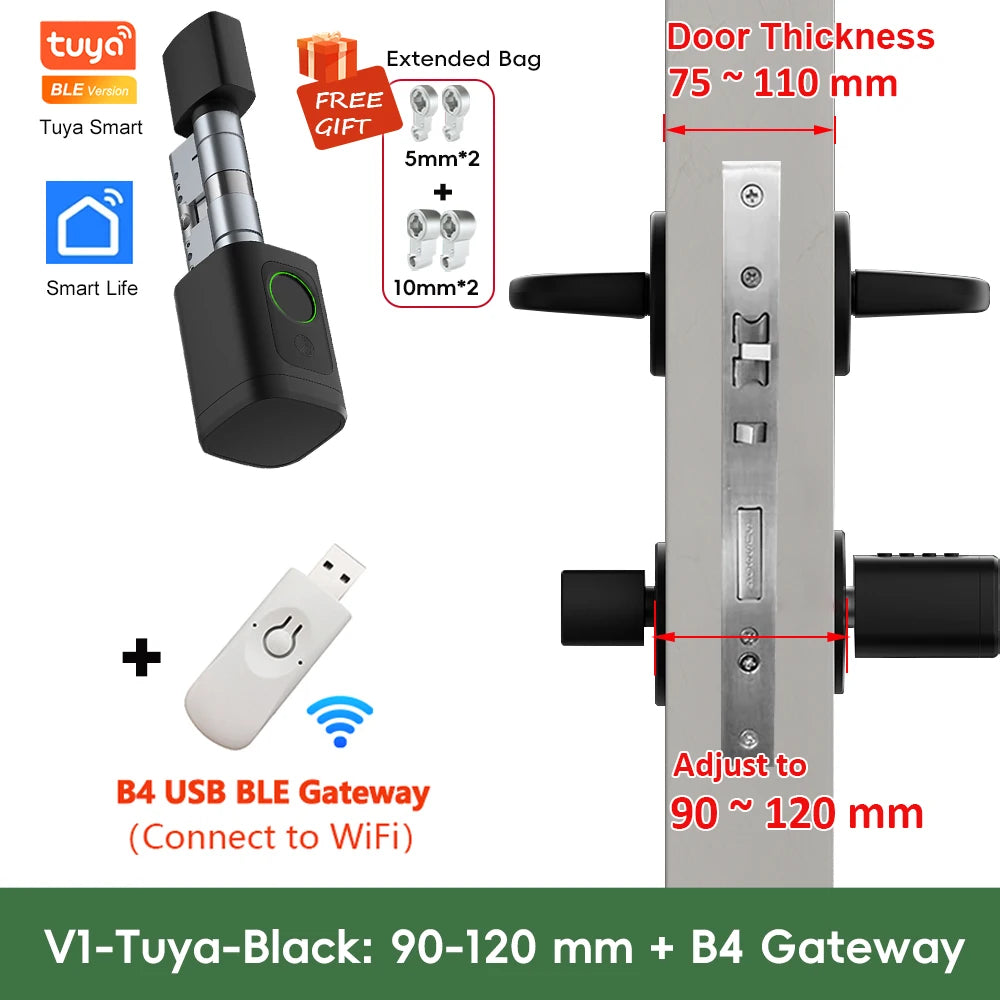

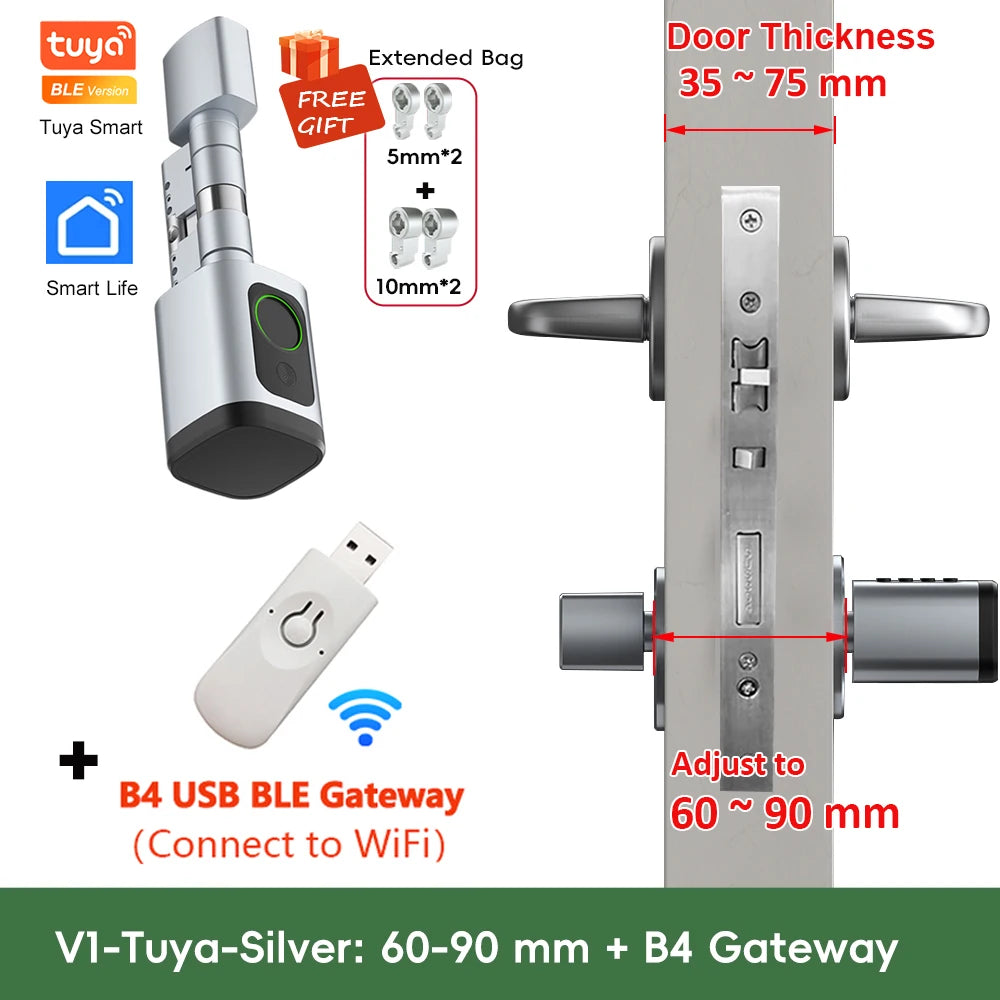

Select the option with gateway to unlock remotely via WiFi

Share Temporary Password

You can send a temporary password to family, friends tenantsor cleaner to get in your house.

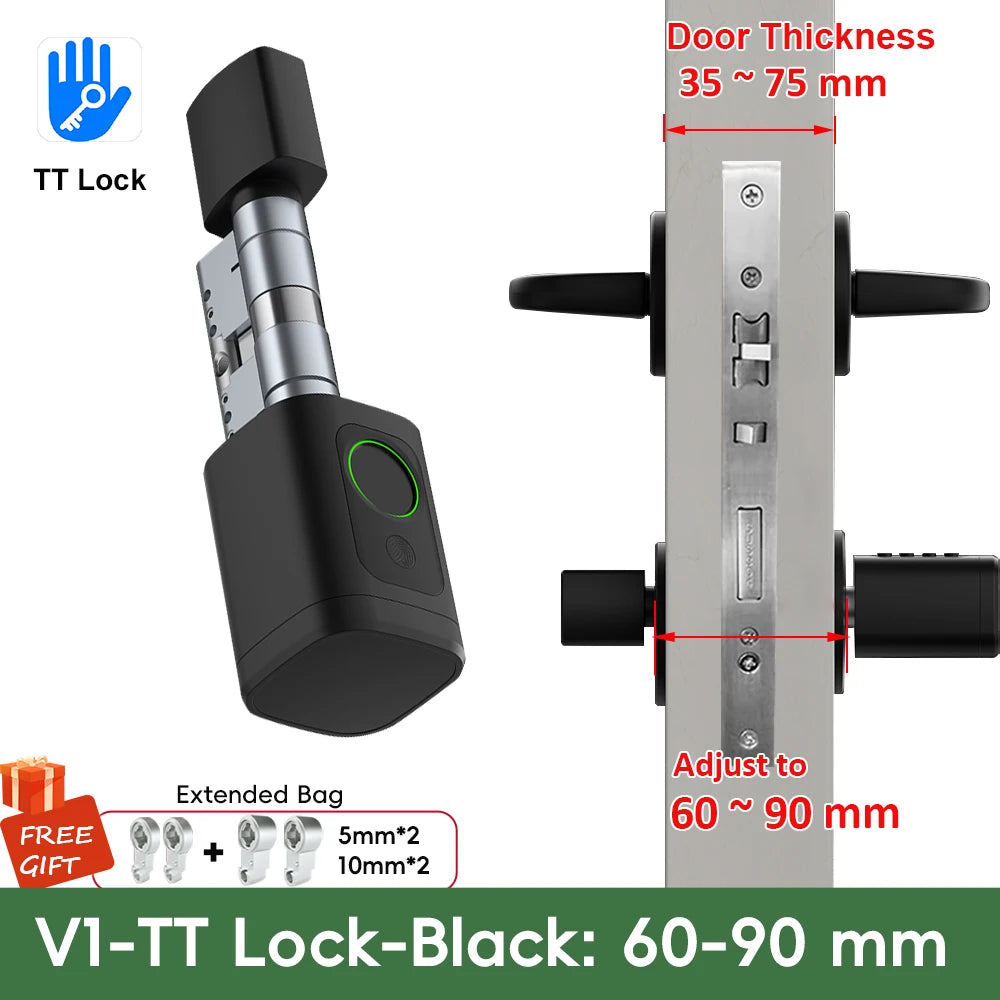

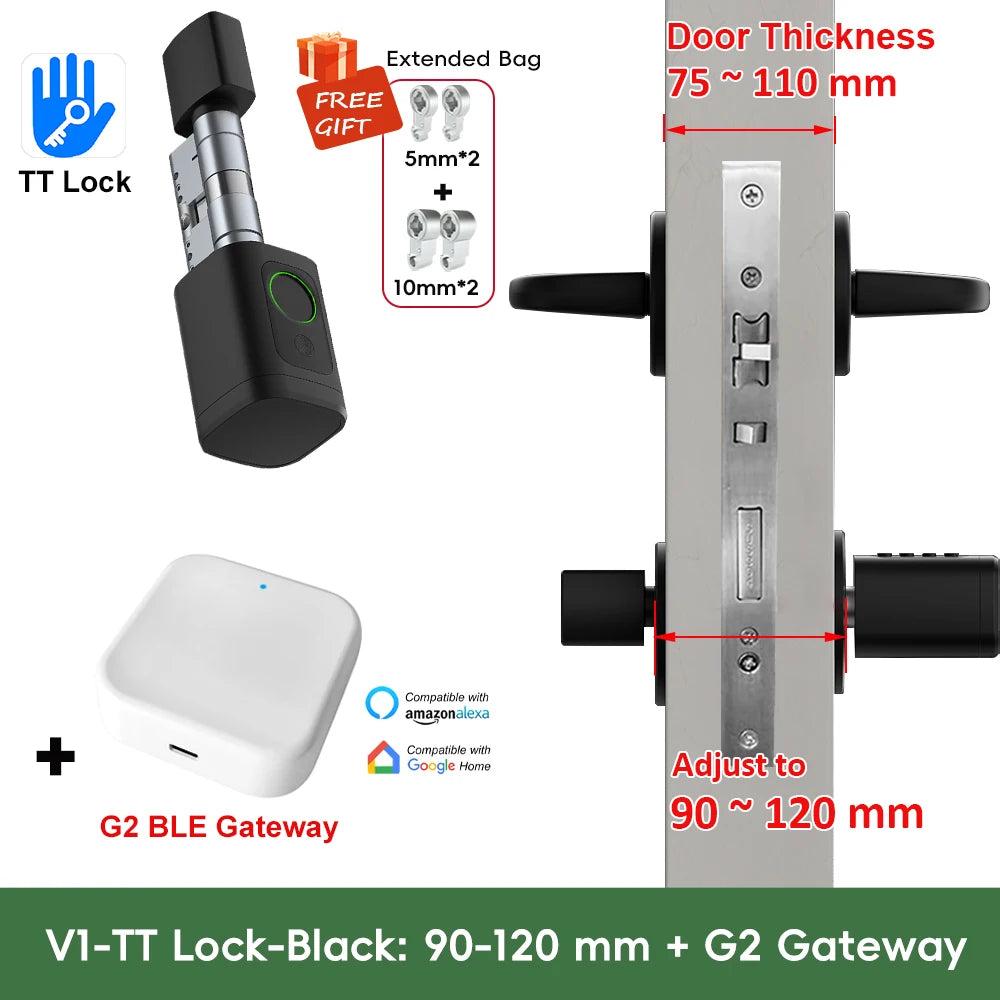

TT Lock Bluetooth Version

                                                With TT-Lock APP,remote unlock for quick access

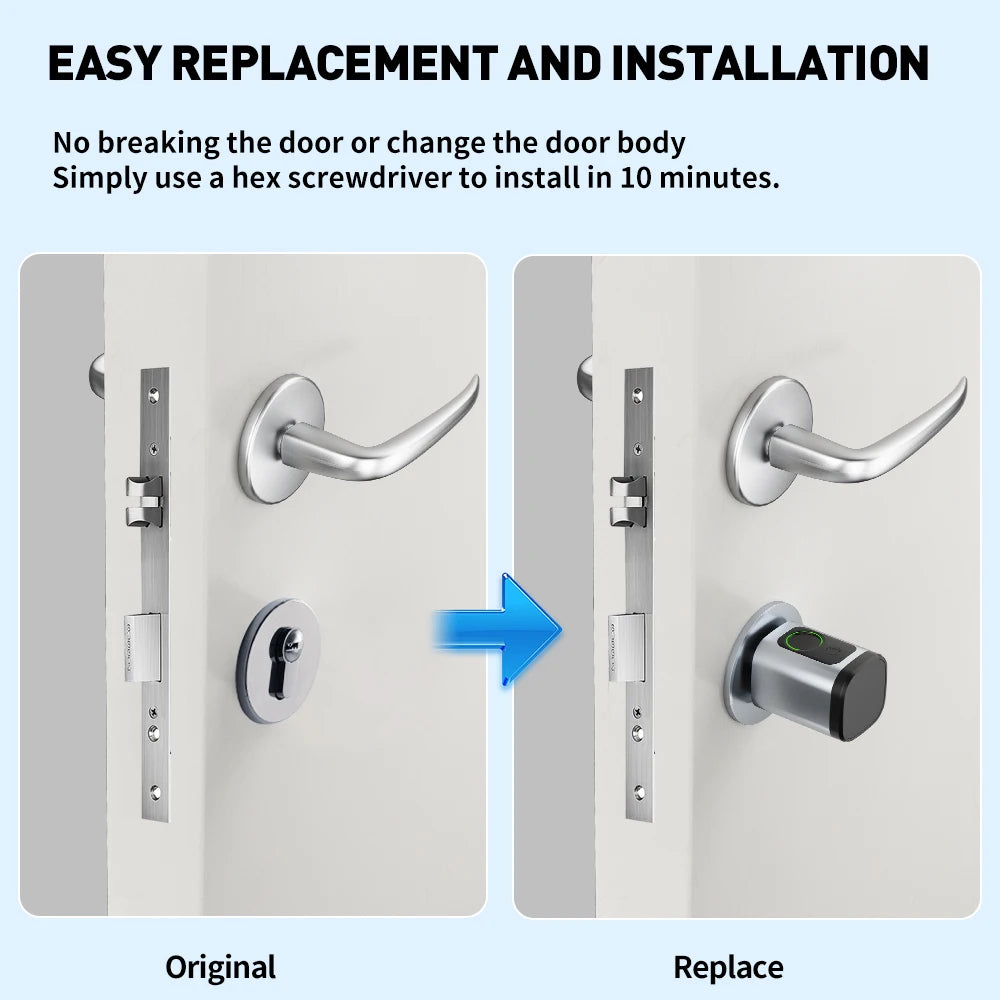

EASY REPLACEMENT AND INSTALLATION

No breaking the door or change the door body Simply use a hex screwdriver to install in 10 minutes.

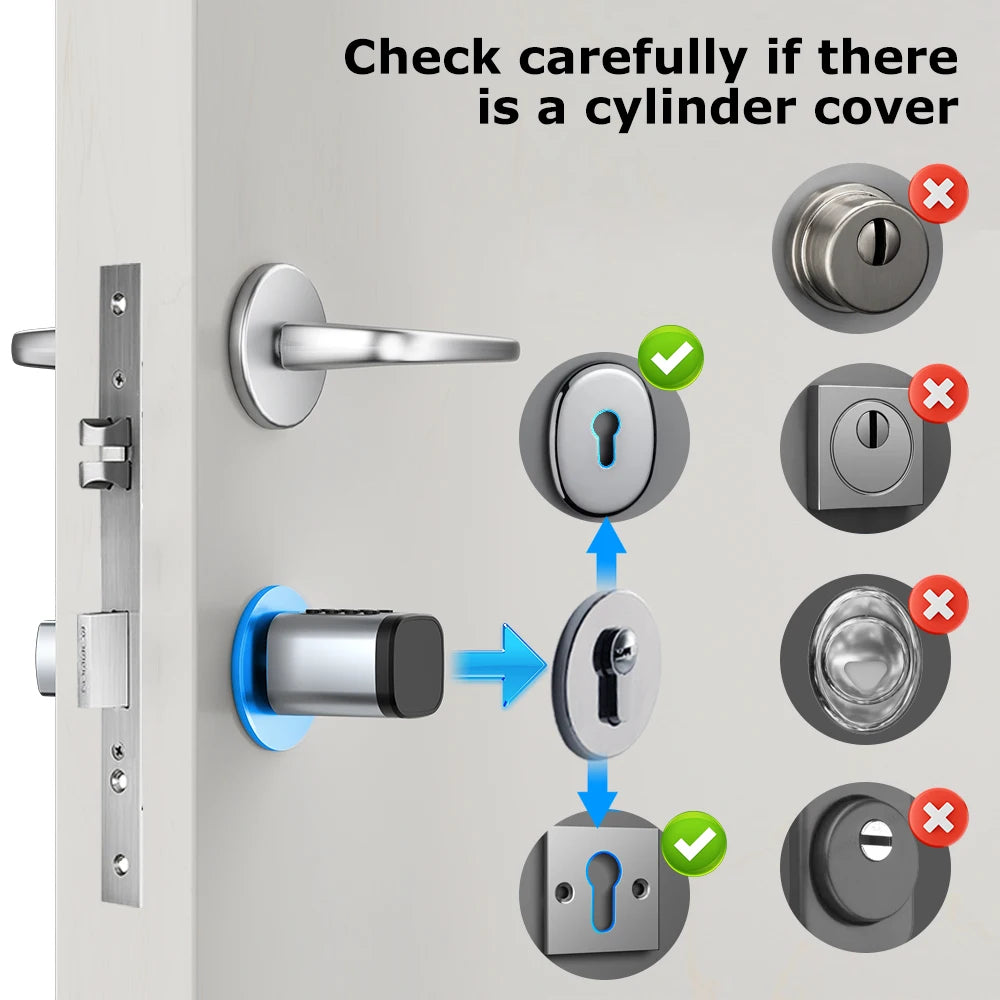

Check carefuly if there is a cylinder cover

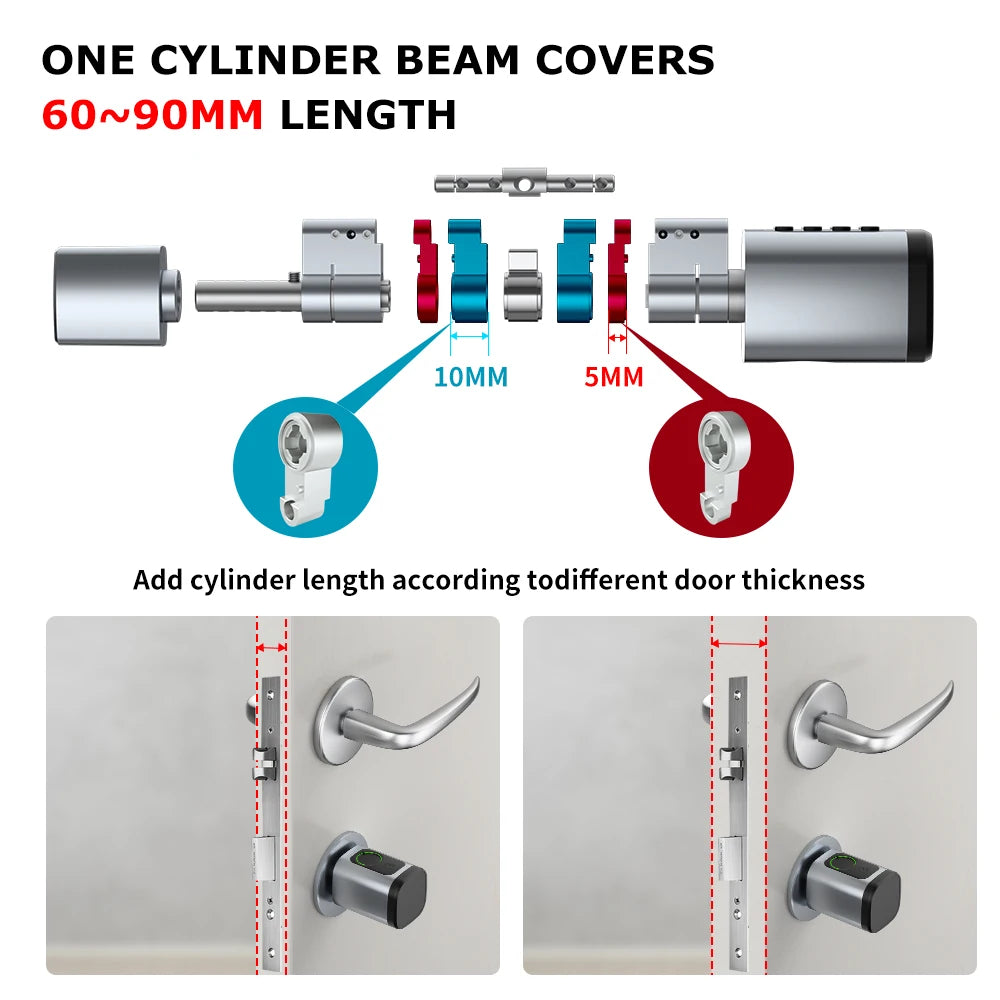

WAY TO MEASURETHE CYLINDER

Based on door thickness A,select the size B of the lock cylinder

Extension packs can help extend the size

COMPATIBLE MORTISER LOCK

Package List

• Smart Lock with mortise Lock V1 x 1

• IC Card x 2

• Mechanical Key x 2

• Screw Kit x 1

• English Manual x 1

• Reset Card x1

• Cupule x2

• Tool x 2

• Extended Bag x1
