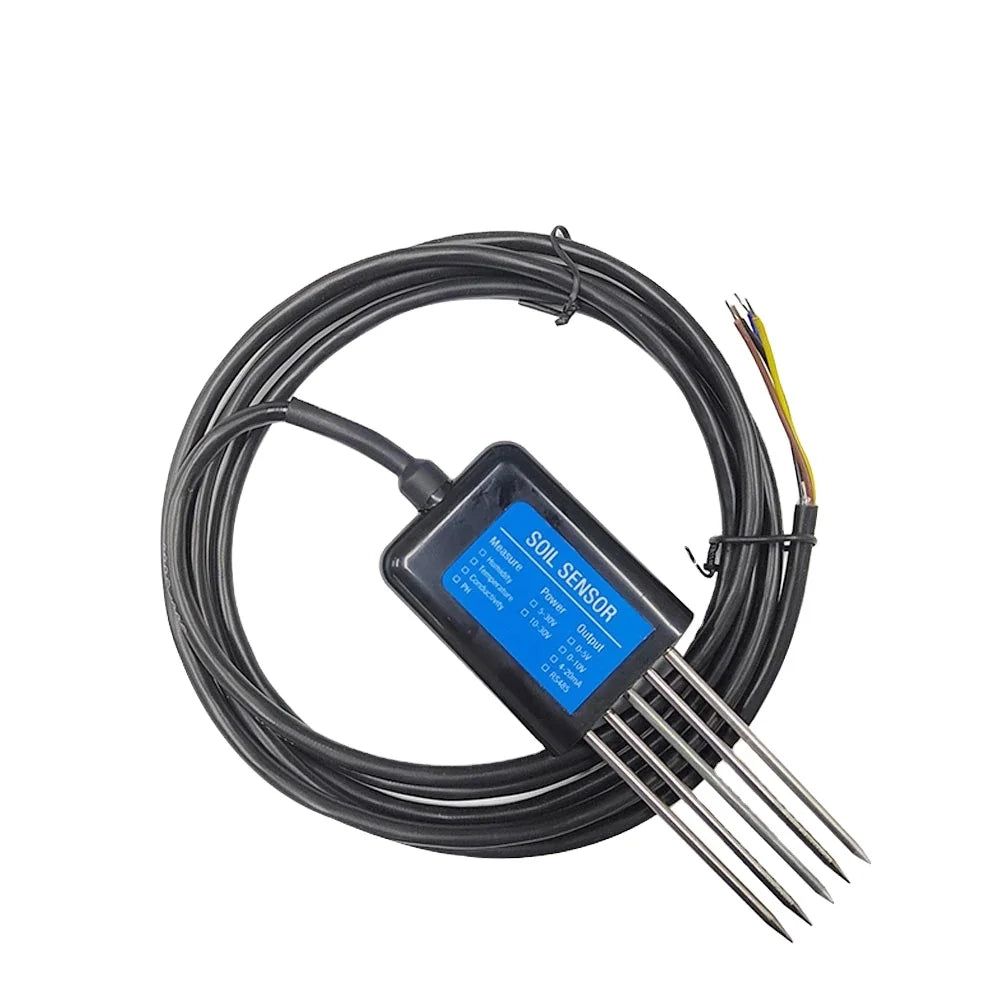

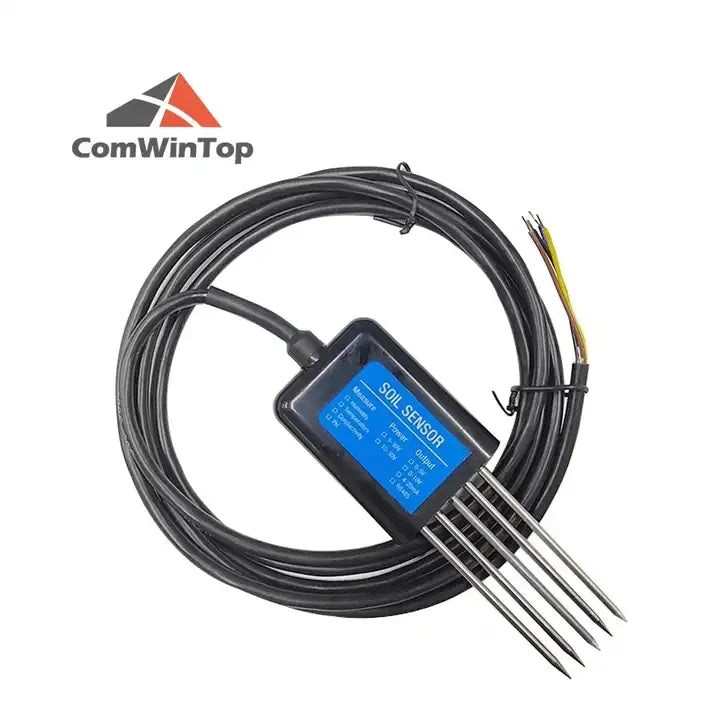

RS485 4-20mA Soil Temperature Humidity Moisture Conductivity EC PH NPK Sensor

SPECIFICATIONS

Name: RS485 4-20mA Soil Temperature Humidity Moisture Conductivity EC PH NPK Sensor
Brand: HHRummurz.com
SKU: 210192334:-1#PH (RS485)
Price: 441.0 USD
Availability: InStock

Acceleration Range: -

Amplifier Type: -

Application: -

Bandwidth: -

Brand: Soil sensor

Brand Name: ComWinTop

Cable length: 2M

Cross Reference: -

Current: -

Current - Output: -

Current - Output (Max): -

Current - Supply: -

Current - Supply (Max): -

Current Rating - AC: -

Current Rating - DC: -

D/C: -

Description: -

Features: -

Flow Sensor Type: -

Frequency: -

Function: -

Humidity Range: -

Interface: -

Manufacturing Date Code: -

Max Power consumption: 0.5W@24V DC

Measuring Range: -

Model Number: CWT-Soil

Mounting Type: -

Operating Force: -

Operating Temperature: -40~80℃

Operating environment: -40℃-80℃

Output: RS485,4-20mA, 0-5V,0-10V

Output Configuration: -

Output Function: -

Output Type: -

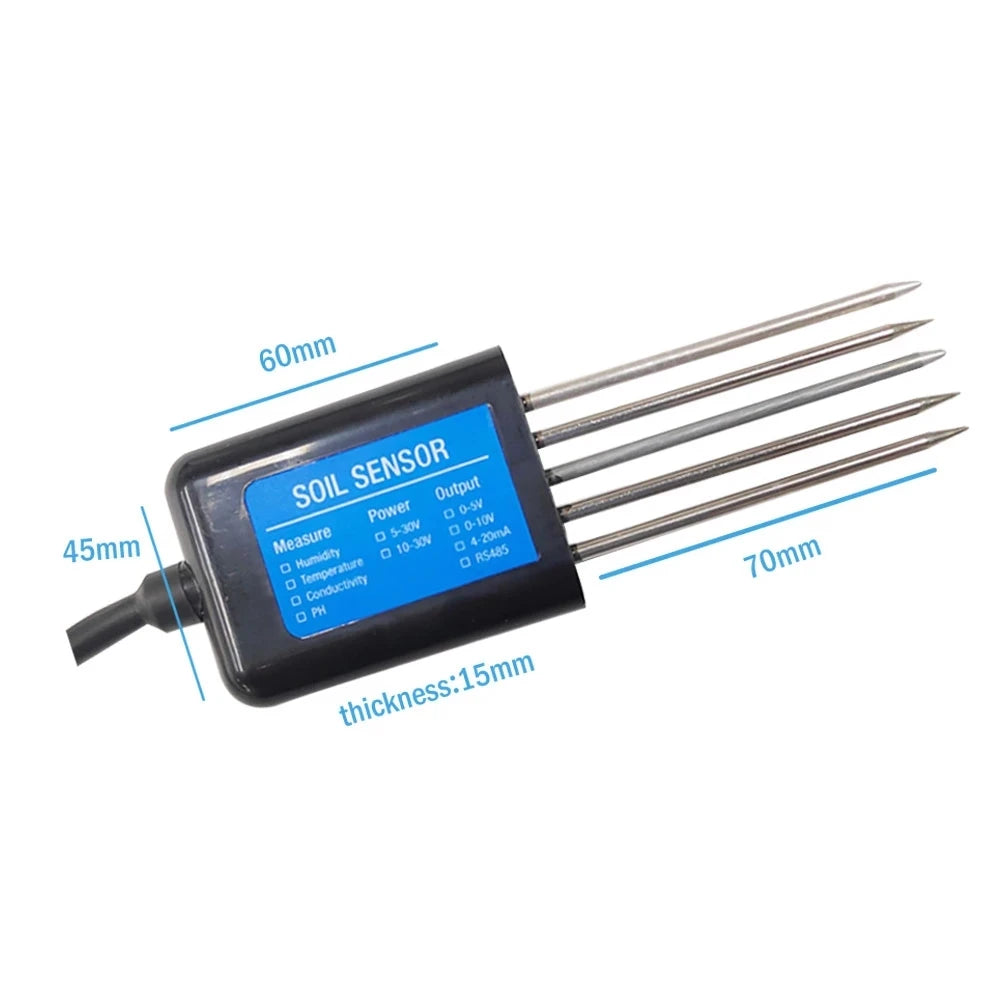

Overall dimensions: 45 * 15 * 123mm

Oxygen Range: -

Packaging: -

Place of Origin: Guangdong, China

Power - Max: -

Power - Rated: -

Power supply: DC4.5-30V

Protection class: IP68, long-term immersion in water use

Resistance: -

Resistance Tolerance: -

Resolution: -

Resolution (Bits): 0.1

Sensing Distance: -

Sensing Light: -

Sensing Object: -

Sensing Range: -

Sensing Temperature - Local: -

Sensing Temperature - Remote: -

Sensitivity (LSB/(°/s)): -

Sensitivity (LSB/g): -

Sensitivity (mV/g): -

Sensitivity (mV/°/s): -

Series: -

Size: -

Size / Dimension: -

Technology: -

Theory: FDR

Tolerance: -

Usage: Soil sensor,Temperature Sensor

Voltage - DC Reverse (Vr) (Max): -

Voltage - Input: -

Voltage - Max: -

Voltage - Output (Typ) @ Distance: -

Voltage - Output Difference (Typ) @ Distance: -

Voltage - Rated: -

Voltage - Supply: -

Voltage Rating: 5-30V

RS485 4-20mA Soil Temperature Humidity Moisture Conductivity EC PH Sensor

CWT-SOIL sensor is for soil temperature and moisture, PH, conductivity (EC),measurement, compared with the original German high-precision sensors and soil drying method of weighing the actual calibration, high precision, fast response, stable output. By the soil salt content of small, suitable for all kinds of soil. Long-term buried in the soil, resistant to long-term electrolysis, corrosion resistance, vacuum potting, completely waterproof.

Soil parameters measuring

Temperature	● Measuring range: -40℃-80℃ ● Accuracy: ±5℃ (25℃) ● Long-term stability: ≤0.1%℃/y ● Response time: ≤15s
Humidity	● Measuring range: 0-100%RH ● Accuracy: 2% within 0-50%, 3% within 50-100% ● Long-term stability: ≤1%RH/y ● Response time: ≤4s
Conductivity (EC)	● Measuring range: 0-200000us/cm ● Accuracy: 0-10000 us/cm range is ±3%; 10000-20000 us/cm range is ±5% ● Long-term stability: ≤1%uS/cm ● Response time: ≤1s
PH	● Measuring range: 3-9 PH ● Accuracy: ±0.3PH ● Long-term stability: ≤5%/year ● Response time: ≤10S
Nitrogen Phosphorus Potassium	● Measuring range: 1-1999 mg/kg(mg/L) ● Accuracy: ±2%FS ● Response time: <1S

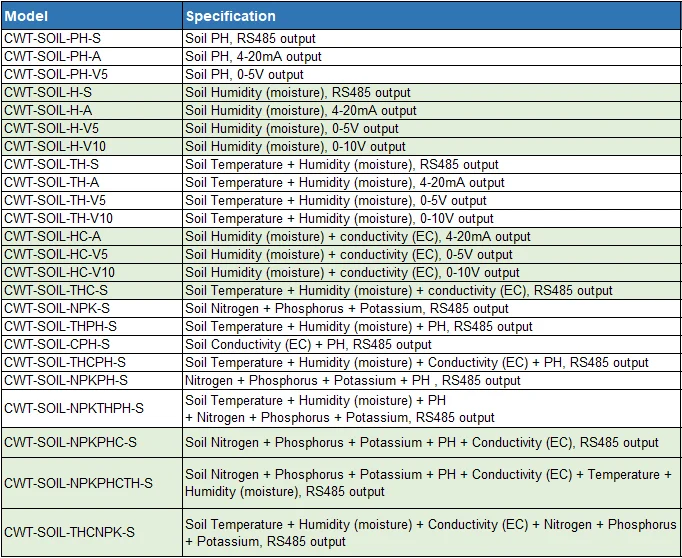

Optional types

Functions and Features

(1) The sensor compact design, easy to carry, installation, operation and maintenance.

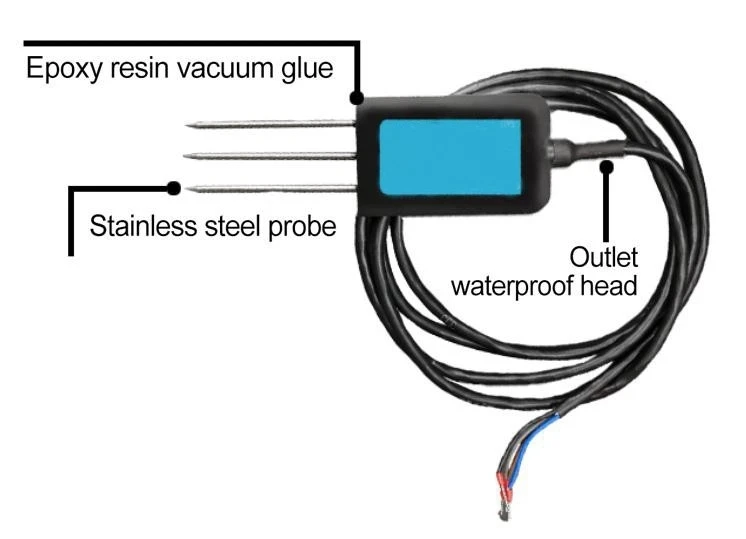

(2) reasonable structure design, stainless steel probe life assurance.
(3) soil less affected areas are widely used.
(4) High measurement accuracy, reliable performance, ensure proper operation
(5) fast response, high data transmission efficiency.

Applicable to the field of water-saving irrigation, greenhouse vegetables, flowers, gardening, grass pastures, soil-speed
measurement, plant cultivation, scientific testing.
