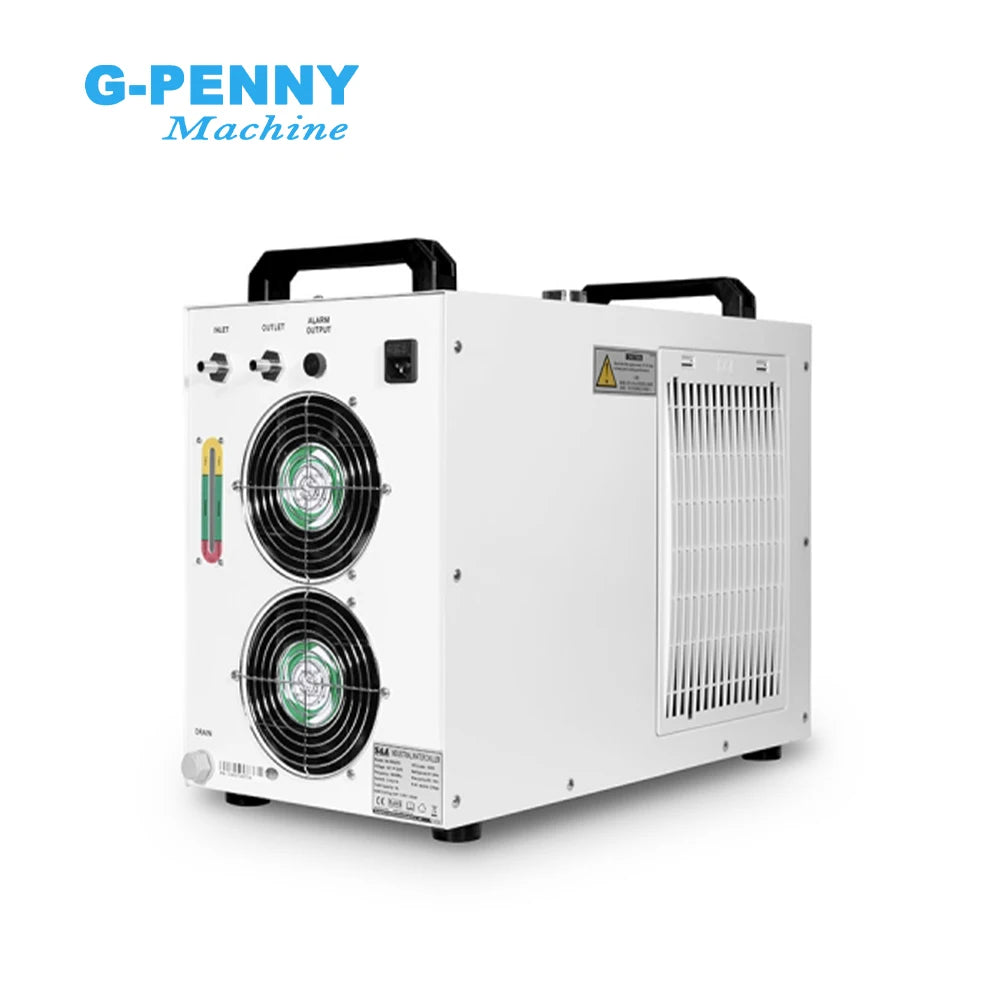

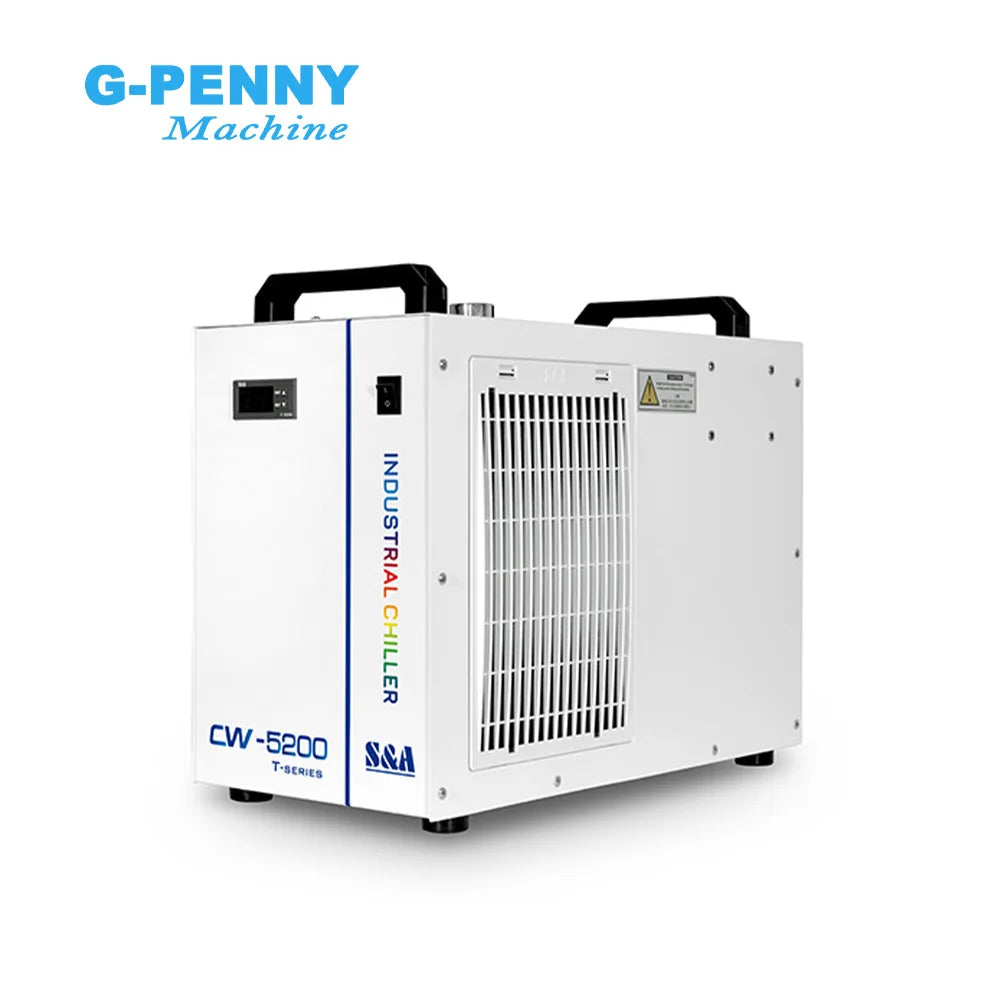

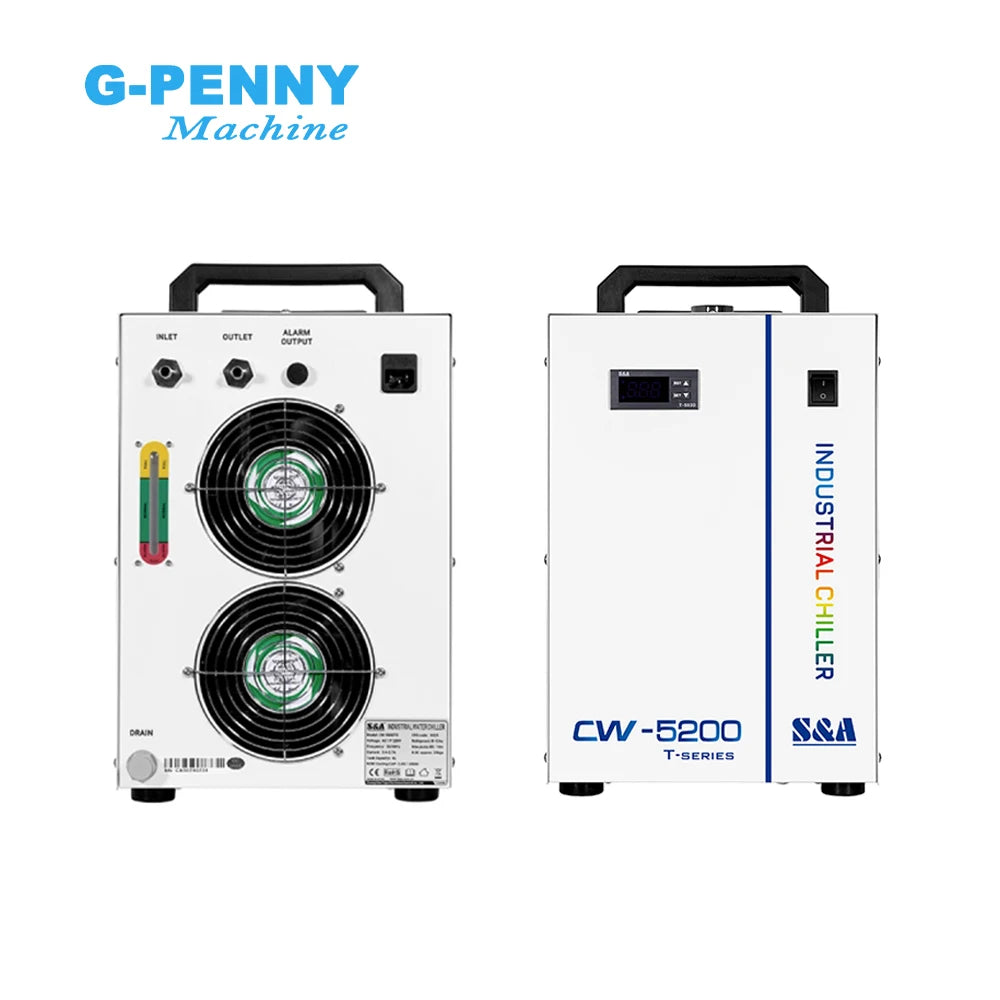

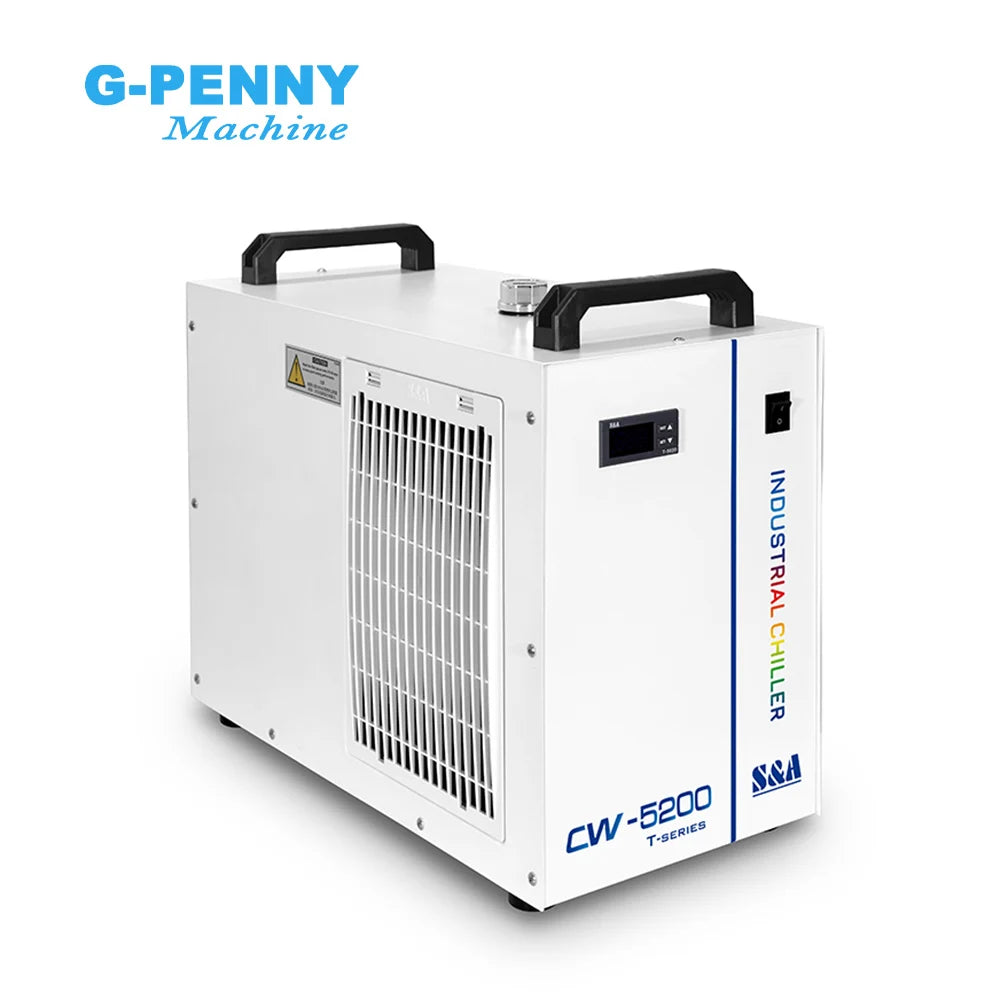

S&A CW-5200 Industrial Chiller 1400W Water Cooling Capacity for CO2 Laser CNC Router Machine
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
S&A CW-5200 Industrial Chiller 1400W Water Cooling Capacity for CO2 Laser CNC Router Machine
SPECIFICATIONS
Container Volume: 6L
Dimension: 58 X29X47 cm (L X W X H)
Frequency: 50/60Hz
Plug Type: Other
Precision: ±0.3℃
Pump Type: other
Refrigerant: No
Tank capacity: 6L
Voltage: AC 1P 110v/220v
Weight (KG): 29
brand name: S&A
compressor brand: S&A
core components: Engine,Motor,Pump
dimension(l*w*h): 580*290*470mm
key selling points: High-Accuracy
machinery test report: Not Available
model number: CW-5200
place of origin: Jiangsu, China
power: 0.6KW
video outgoing-inspection: Not Available
voltage: AC 1P 110V/220V
warranty: 1 Year
CW-5200 laser chiller is used for cooling low-power industrial equipment. It is suitable for cooling high-speed spindles, electric spindles, CNC machine tools, spindle machining centers, laser marking machines, laser engraving machines, non-metallic laser cutting machines and other equipment.
CW-5200TH |
CW-5200DH |
||
Voltage |
AC 1P 220V |
AC 1P 110V |
|
Frequency |
50/60Hz |
60Hz |
|
Current |
0. 5~4.6 A |
0.5~8.9 A |
|
Machine power |
0.74/0.82 kW |
0.77 kW |
|
Compressor power |
0.6/0.62 kW |
0.66 kW |
|
0.82/0.84 HP |
0.9 HP |
||
Nominal cooling
capacity
|
6040/7303 Btu/h |
5699 Btu/h |
|
1.77/2.14 kW |
1.67 kW |
||
1521/1839 Kcal/h |
1435 Kcal/h |
||
Refrigerant charge |
370g |
330g |
|
Pump power |
0.05kW |
||
Max. lift |
12M |
||
Max. flow |
13L/min |
||
Refrigerant |
R-407c |
R-410a |
|
Precision |
±0.3℃ |
||
Reducer |
Capillary |
||
Tank capacity |
6L |
||
Inlet and outlet |
OD 10mm barbed connector |
10mm fast connector |
|
N.W |
26Kgs |
23Kgs |
|
G.W |
29Kgs |
26Kgs |
|
Dimension |
58 X29X47 cm (L X W X H) |
||
Package dimension |
65 X39X56 cm (L X W X H) |
||
CW-5200TI |
CW-5200DI |
||
Voltage |
AC 1P 220V |
AC 1P 110V |
|
Frequency |
50/60Hz |
60Hz |
|
Current |
0. 8~5.8A |
0.8~9.2A |
|
Machine power |
0.77/0.86 kW |
0.82 kW |
|
Compressor power |
0.82/0.95 kW |
0.66 kW |
|
1.1/1.3 HP |
0.9 HP |
||
Nominal cooling
capacity
|
6040/7098 Btu/h |
5699 Btu/h |
|
1.77/2.08 kW |
1.67 kW |
||
1521/1788 Kcal/h |
1435 Kcal/h |
||
Refrigerant charge |
420g |
330g |
|
Pump power |
0.1kW |
||
Max. lift |
25M |
||
Max. flow |
16L/min |
||
Refrigerant |
R-407c |
R-410a |
|
Precision |
±0.3℃ |
||
Reducer |
Capillary |
||
Tank capacity |
6L |
||
Inlet and outlet |
10mm fast connector |
10mm fast connector |
|
N.W |
27Kgs |
26Kgs |
|
G.W |
30Kgs |
29Kgs |
|
Dimension |
58 X29X47 cm (L X W X H) |
||
Package dimension |
65 X39X56 cm (L X W X H) |
||
