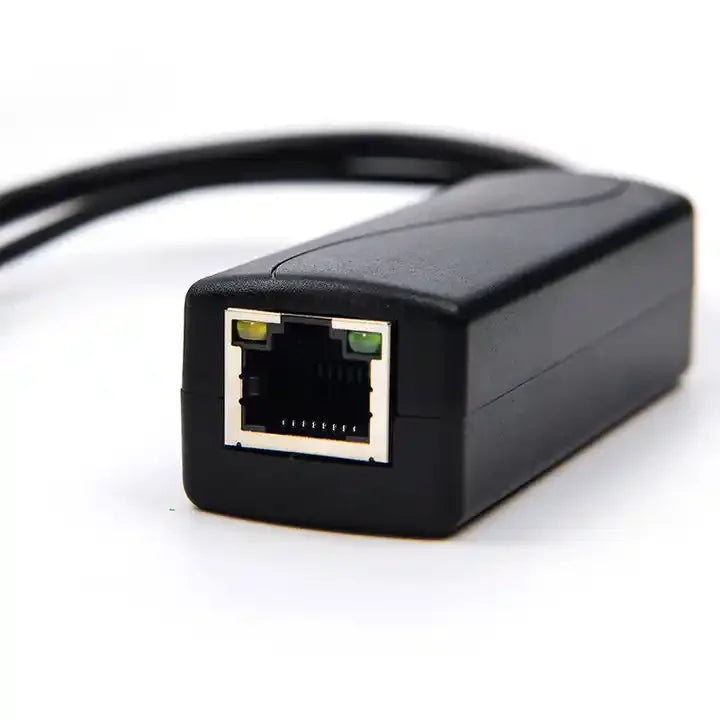

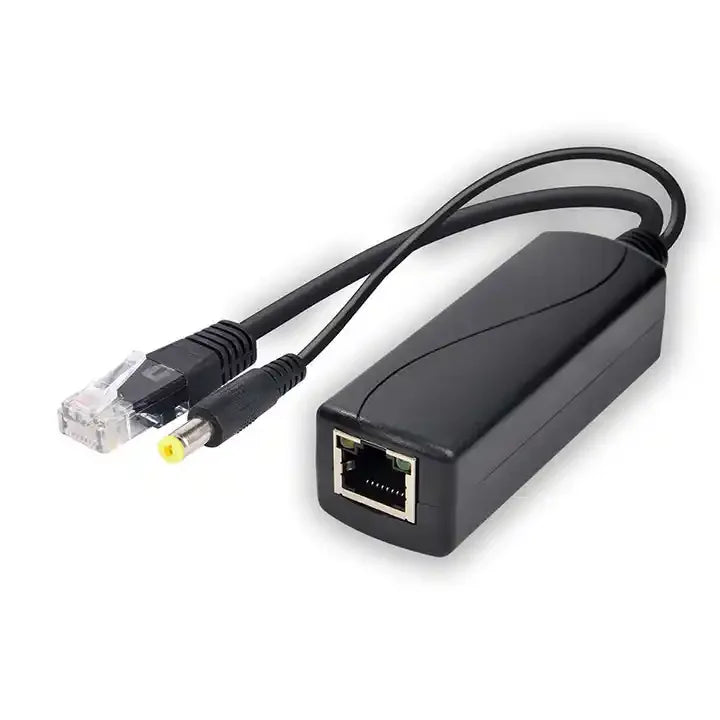

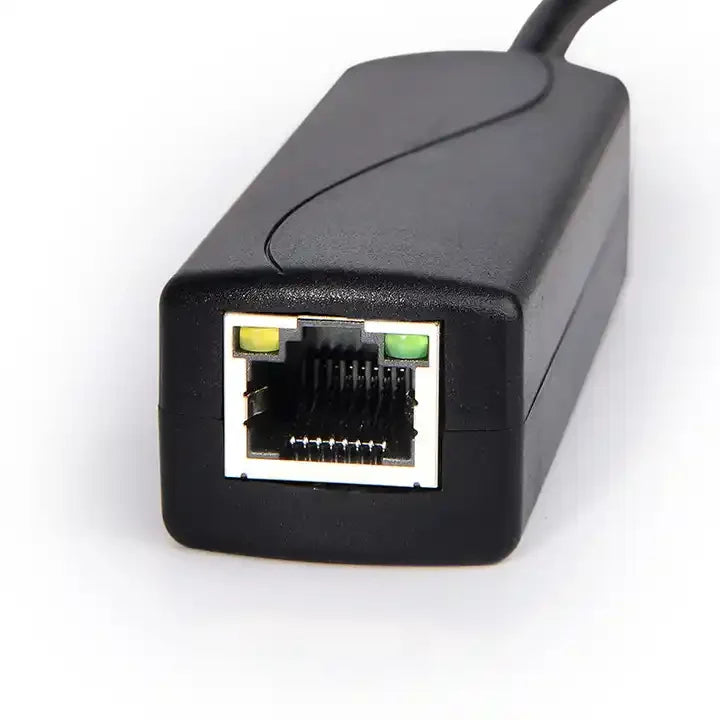

SDAPO PS5712AT POWER OVER ETHERNET POE SPLITTER 12v 10/100M PoE Splitter for cctv cameras
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
SDAPO PS5712AT POWER OVER ETHERNET POE SPLITTER 12v 10/100M PoE Splitter for cctv cameras
SPECIFICATIONS
Application: PoE Splitter
Brand Name: SDaPo
Chipset: no
DC Jack: 5.5*2.1mm
DC/OUT: 12V/2A(24W)
Model: PS5712AT
Model Number: PS5712AT
Place of Origin: Guangdong, China
PoE/IN: 44-57V(30W)
Supplier Type: OEM/ODM
Transfer Rate: 100Mbit each port
total power: 24W

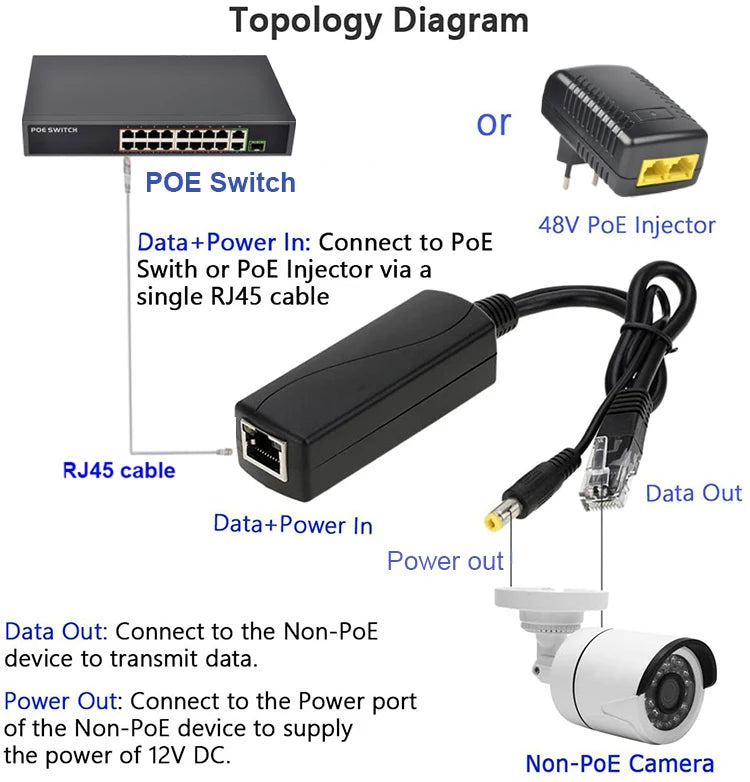

PoE splitter,it is an economical and practical PoE remote power equipment base on IEEE802.3af/at standard. It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af/at ,Provides power and data at the same time for the terminal device does not support PoE.
PoE splitter, output voltage of 12V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.
Features
* Support international standard IEEE802.3 af/at(30W);
* Support 10/100Mdata transmission
* PD support 5V-57V voltage transmission,Automatically detects power supply from PSE power supply module
* 12V power output,easy to access Poe network for non-poe terminal
* Support the isolation circuit protection,can effectively protect electrical equipment.
* Support the short circuit,overvoltage protection
Technical Parameters
Model |
PS5712AT |
Transfer Rate |
10/100M |
Power |
Input 42.5-57V/600mA , Output 12V/2A MAX |
Standard |
IEEE802.3 af/at(30W) |
TRNF |
1/2(+),3/6(-);4/5(+),7/8(-) |

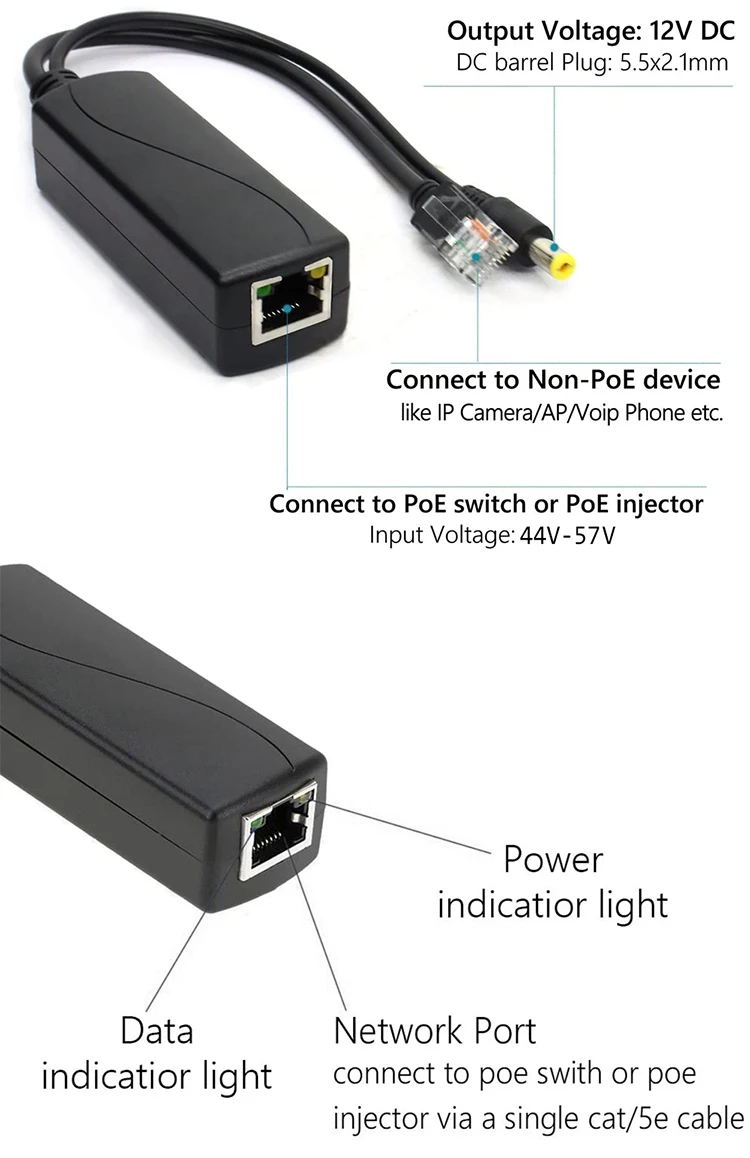

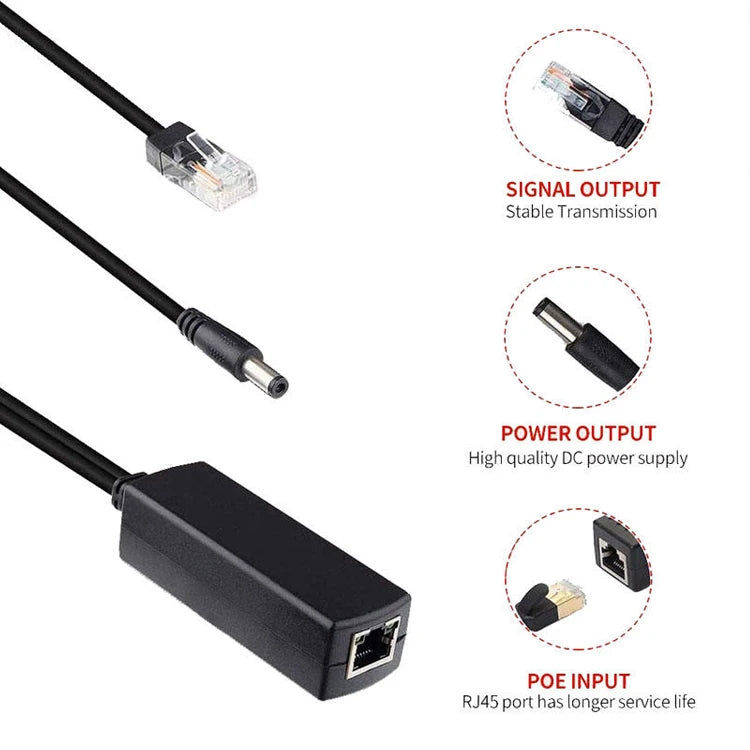

Interface Type |
1 Input RJ45 port, 1 output RJ45 port, 1 DC output |
Standard |
IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE802.3 af ， IEEE802.3at |
LED |
Yellow PoE lamp |
Environment |
Work within -20~50°,Storage within -30~60° Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing |

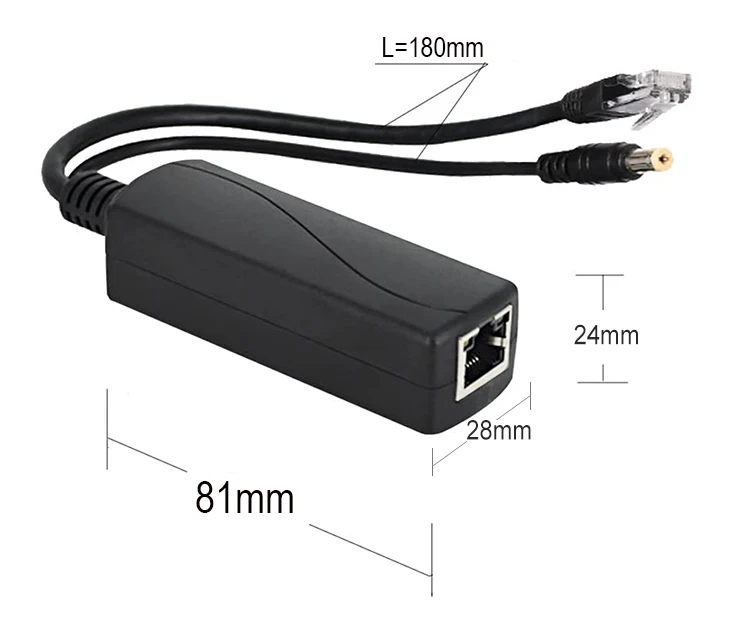

Dimension |
81*28*24mm |
Weight |
0.3kg |
