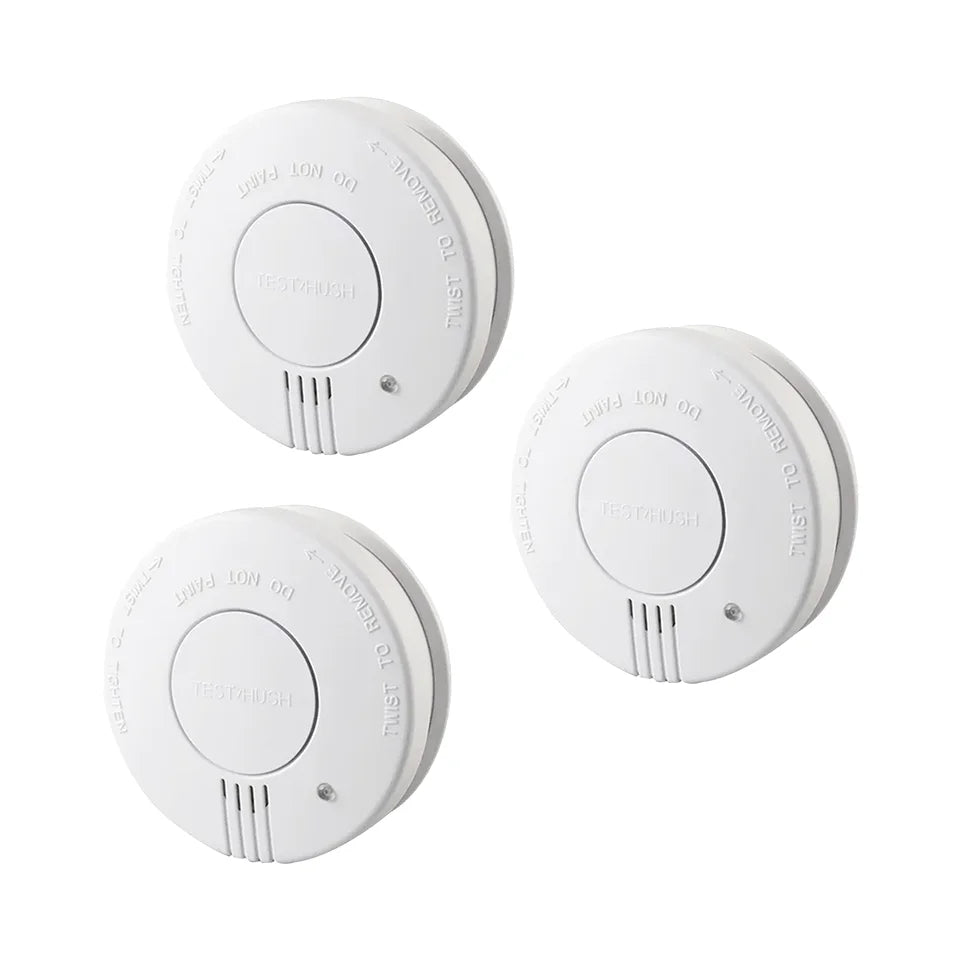

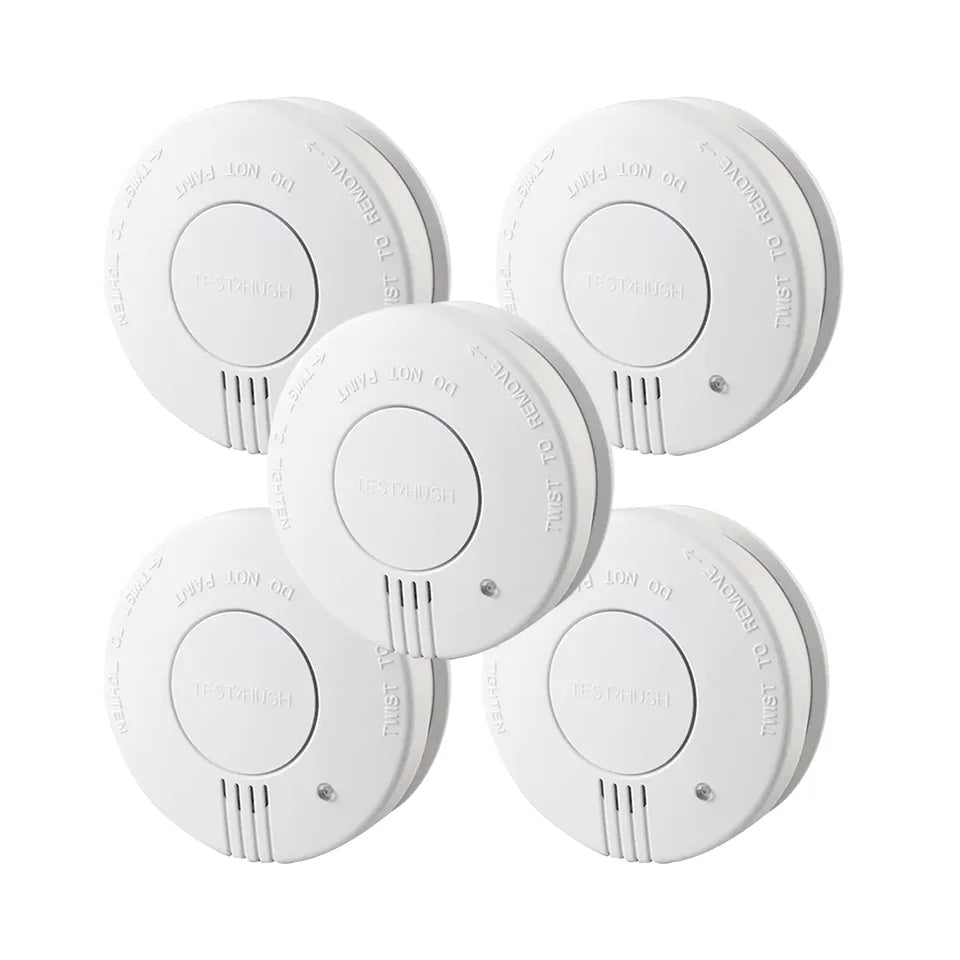

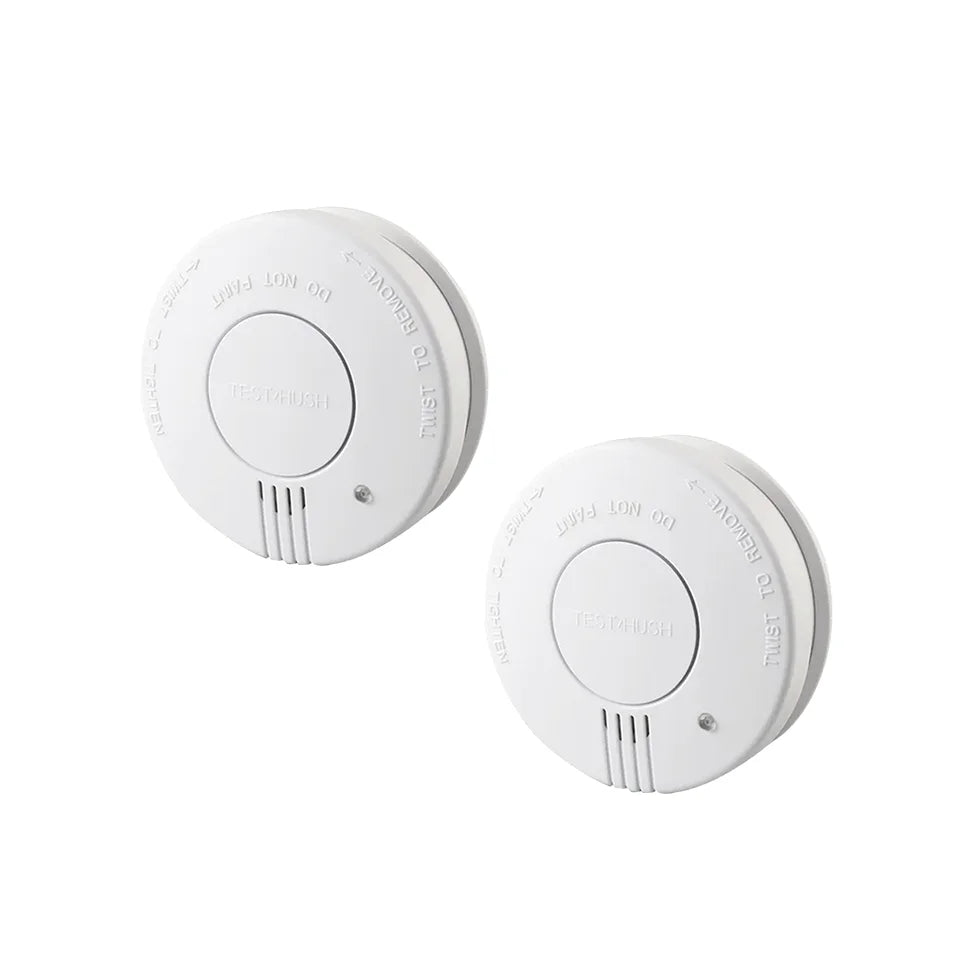

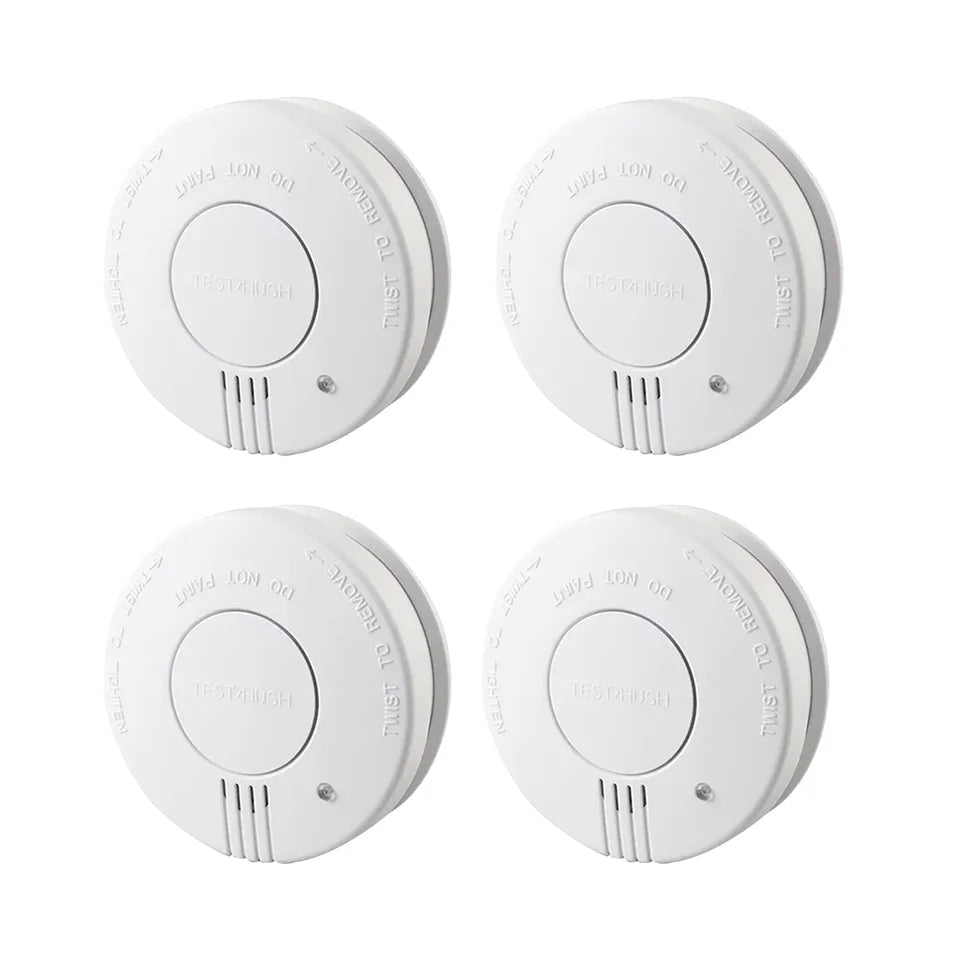

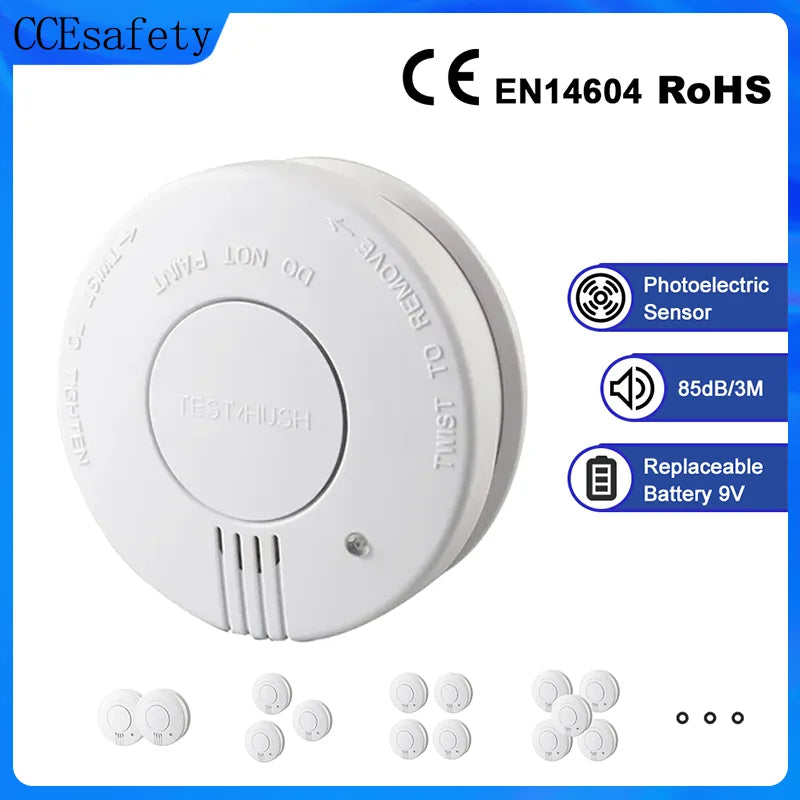

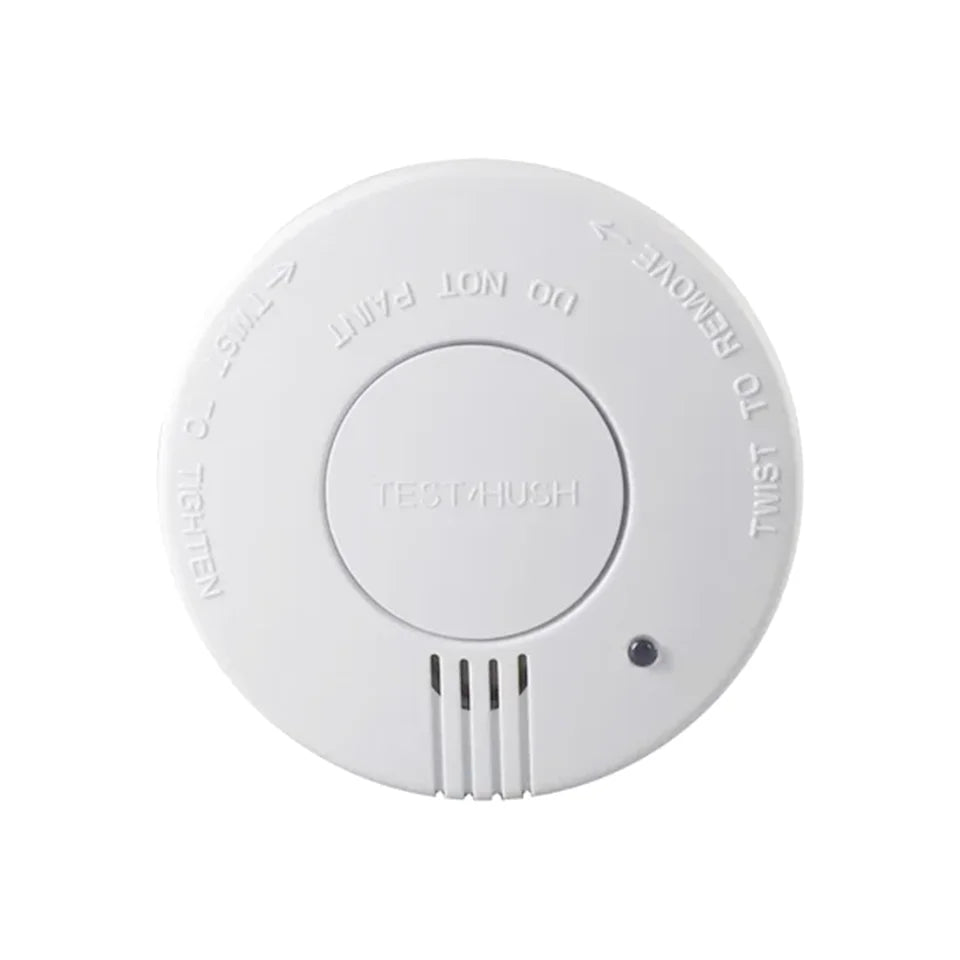

Smoke Detector 9V Replaceable Battery Smoke And Fire Alarm Smoke Sensor Low Battery Beep For Kitchen Bedroom Office CE EN14604
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
Smoke Detector 9V Replaceable Battery Smoke And Fire Alarm Smoke Sensor Low Battery Beep For Kitchen Bedroom Office CE EN14604
SPECIFICATIONS
Alarm current: ≤20mA
Alarm decibel: ≥85dB/3m
Brand Name: CCEsafety
Certification: CE,RoHS, CE14604,Reach,Anpi,
Color: White
High-concerned chemical: None
Model Number: SA10
Origin: Mainland China
Power Source: DC 9V
Quiescent current: ≤12uA
Size: 101x34mm
Type: Smoke Detector
Working Principle: Electro-Optical Type
battery: 9v replaceable battery
Are you still worried about the hidden dangers in your home? SA10 Smoke Detector, 24-hour all-weather protection, give you and your family more peace of mind!
Product highlights:
Technical Parameters:
Working Voltage |
DC9V |
Quiescent Current |
≤12uA |
Alarming Current |
≤ 20mA |
Alarming Decibel |
≥85dB/3m |
HUSH Status |
LED flashes every 10S |
Standby status |
LED flashes every 43S |
Low battery status |
special low battery beep around every 43S |
LED Indicator |
LED（Red） |
Working Humidity |
≤95%RH(no water gel) |
Working Temperature |
-10℃~+40℃ I17 |
Low voltage Alarming |
≤7.35V |
Alarm type |
Sound/light |
Instructions for use
1️⃣、Test and before installation:
Note ： If the battery is not installed correctly, the smoke detector will not work and maybe destroyed.
If the smoke detector operates smoothly, the Red LED will flash once in about 43S.
1、Take the product out of the packaging,take off the installation base from the product via rotating the product on the anti-clockwise direction.

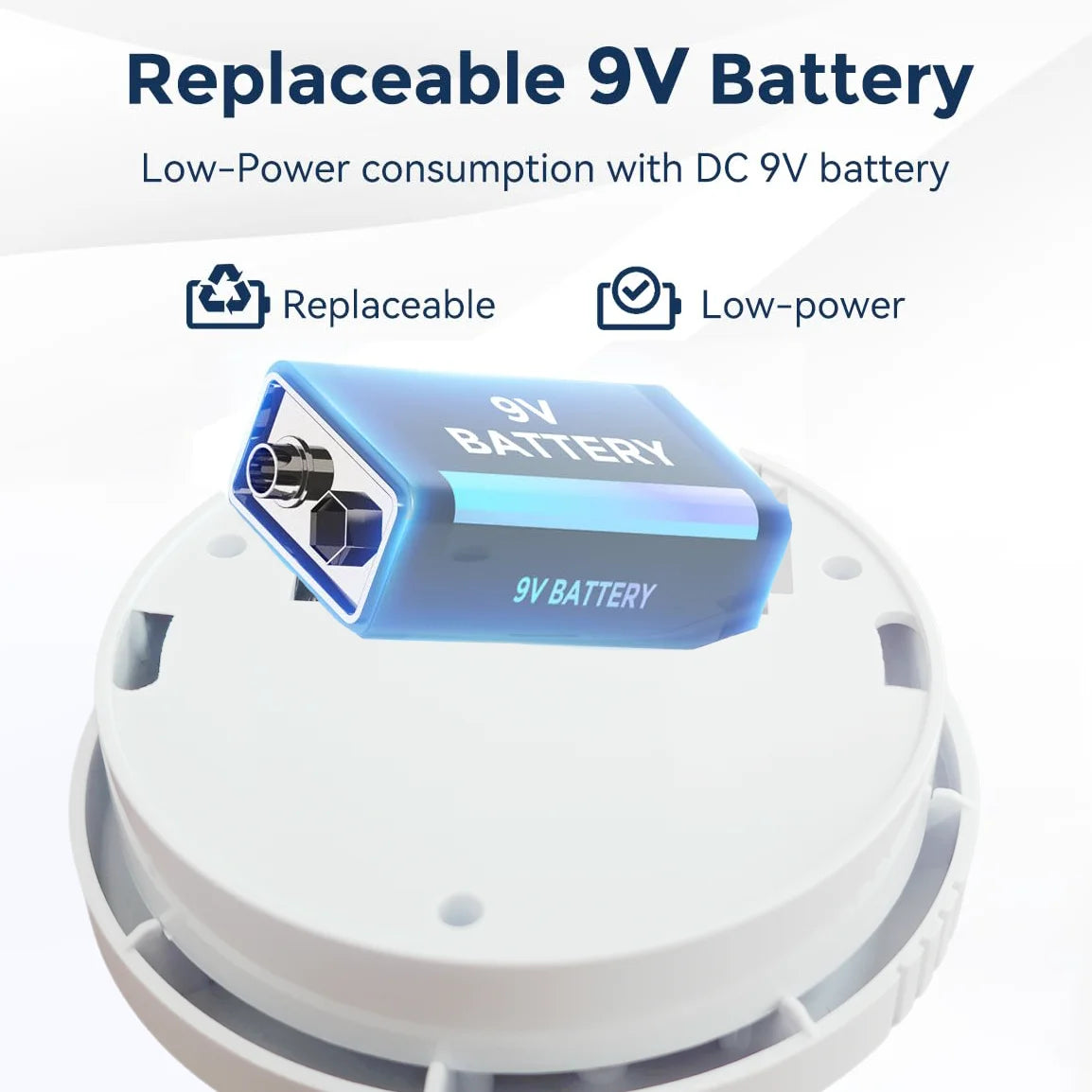

2、Take out the 9V battery from battery compartment, remove the insulation film from the battery, connect the battery to battery buckle and put it back to battery compartment.
3、Depress(keep depressing and release till finish the testing) the test/hush button， the RED LED flashes quickly and in the meanwhile the detector sounds, which means the smoke detector works well. At the same time the product goes into low sensitivity detection mode, round 10 minutes later the product goes into standard sensitivity detection mode again.
2️⃣、Installation
1、Choose a right place to install the smoke detector(this product is not recommanded to be installed in humidity,dusty, high temperature place like Kitchen or bathroom).

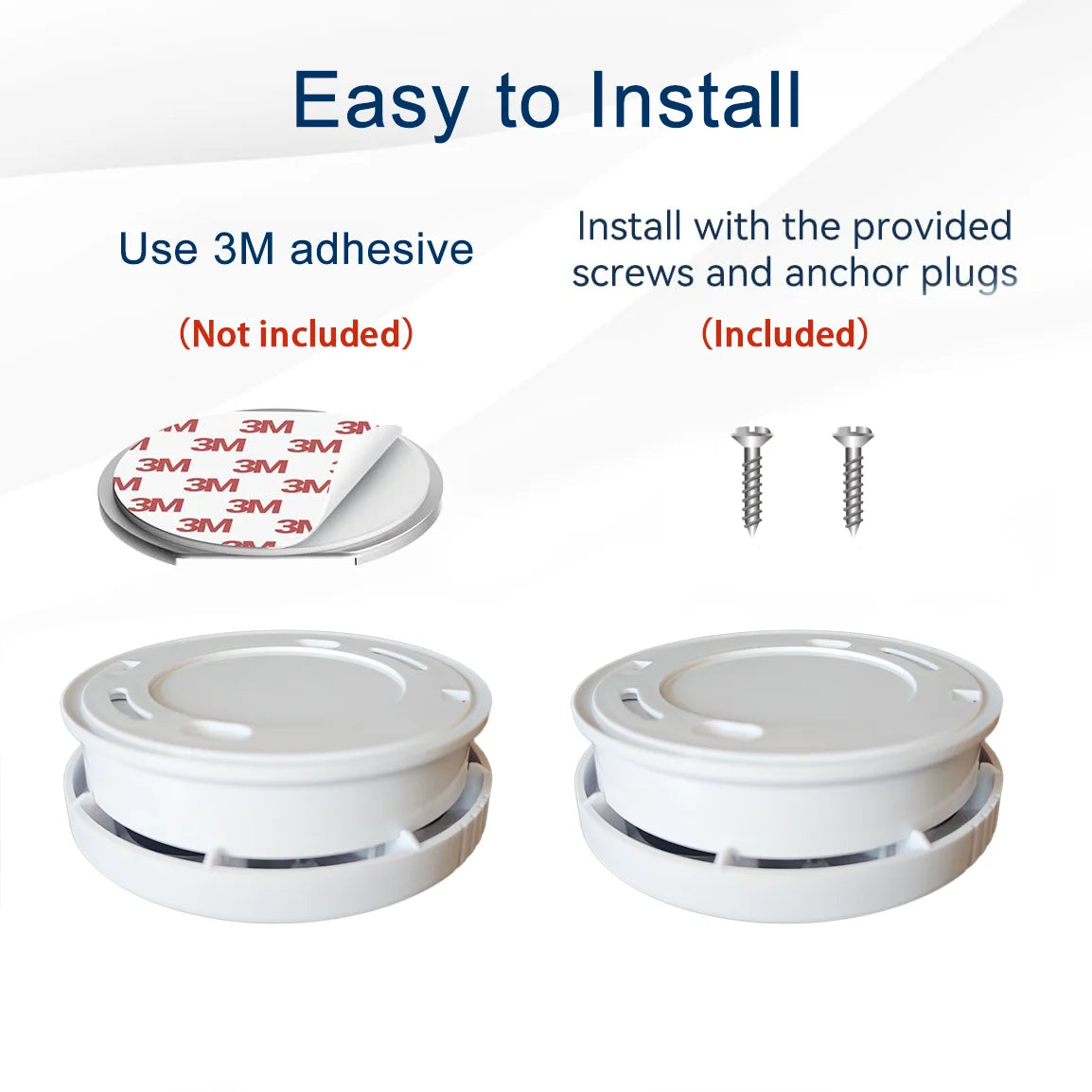

2、Fix two plastic screw base into ceiling according to installation hole position of smoke alarm base
3、Fix the installation base on ceiling via screws at pre-installed screw base.
4、Make sure the battery is installed and well connected to the smoke detector (you may use the test button function to check) and fasten the smoke alarm to pre-installed base via clockwise rotation.
5、Use the test button again to make a final check
3️⃣、Maintain and use
1、Test the smoke detector weekly
2、If the product does not work properly, please check the product according to Failure Analysis and Troubleshooting part as below.If the product still can not work please contact your local dealer and do not open the product by yourself.
4️⃣、Failure Analysis and Troubleshooting
Failure phenomenon |
Cause Analysis |
Remedy |
|
No reaction from product when depress test button |
9V battery may not installed properly |
Installed the 9V battery with right Battery polarity |
|
Low battery beep around every 43S |
Low voltage of 9V battery |
Replace the battery |
