SPECIFICATIONS

Battery Included: No

Brand Name: CG

Choice: yes

Display Size: 1.9 Inches & Under

High-concerned chemical: None

Max Measuring Temperature: 70°C- 99°C

Model Number: STC-3028

Origin: Mainland China

Style: Standing Station

Theory: Temperature Controller

Use: Indoor

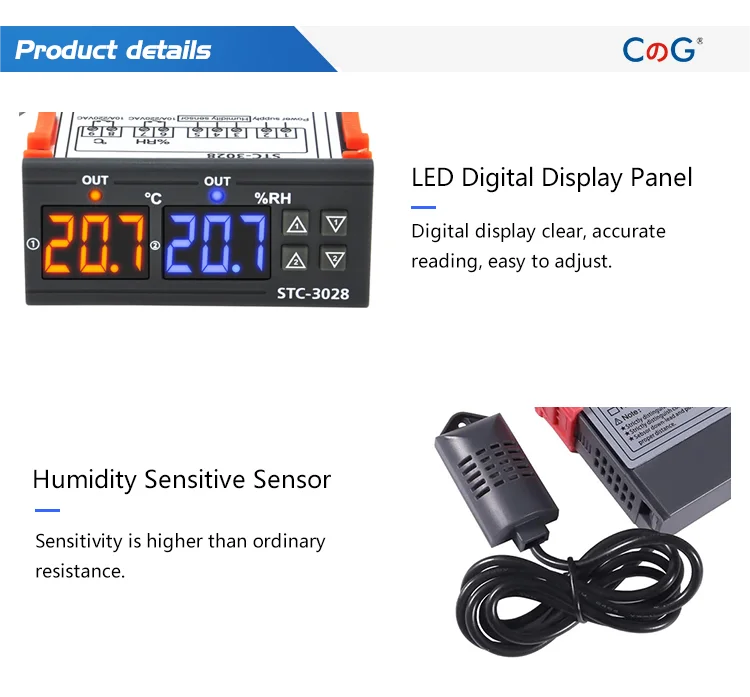

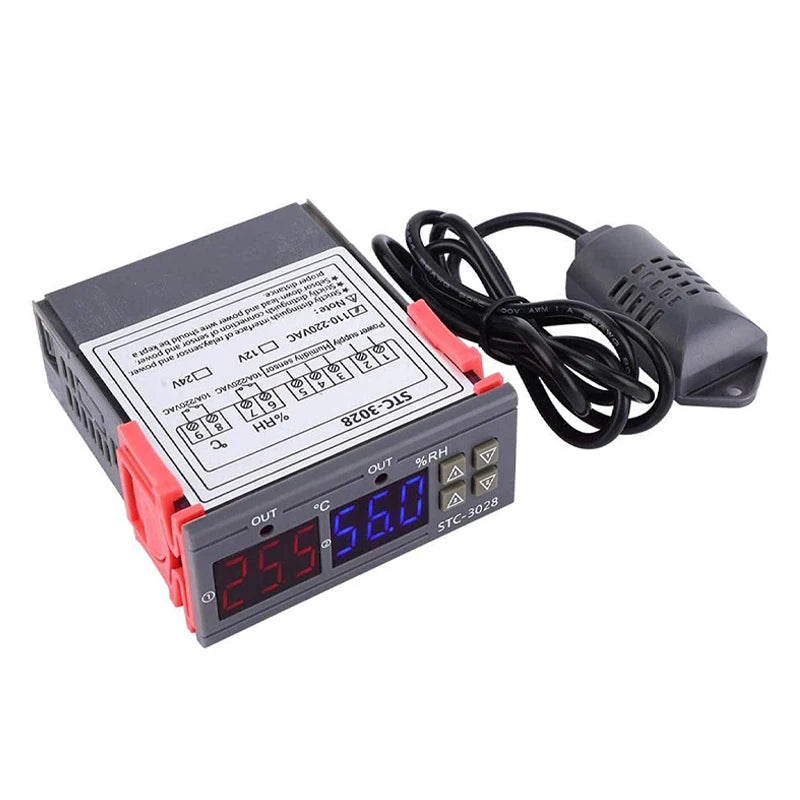

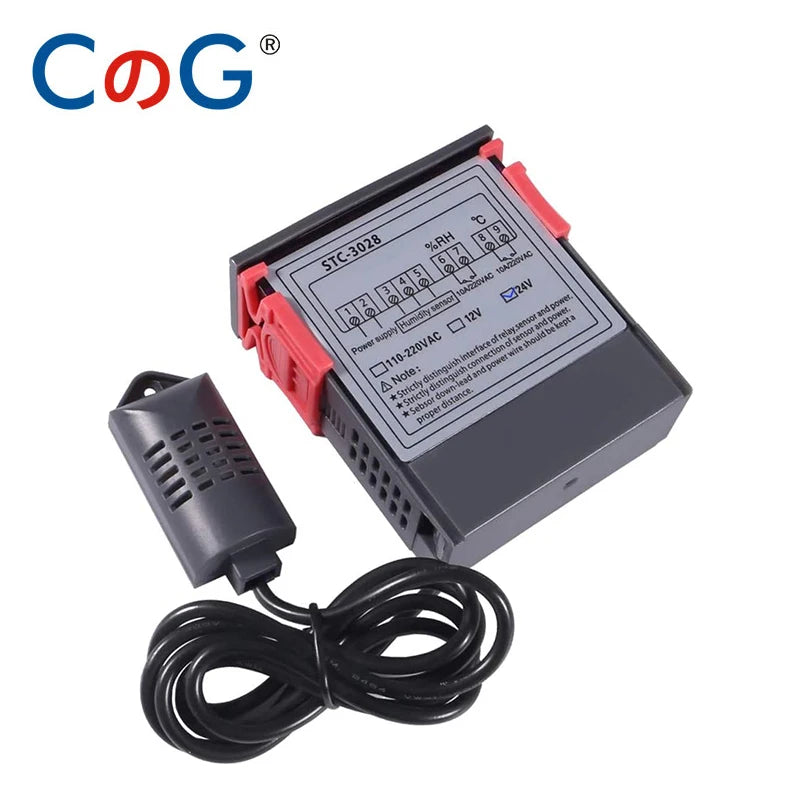

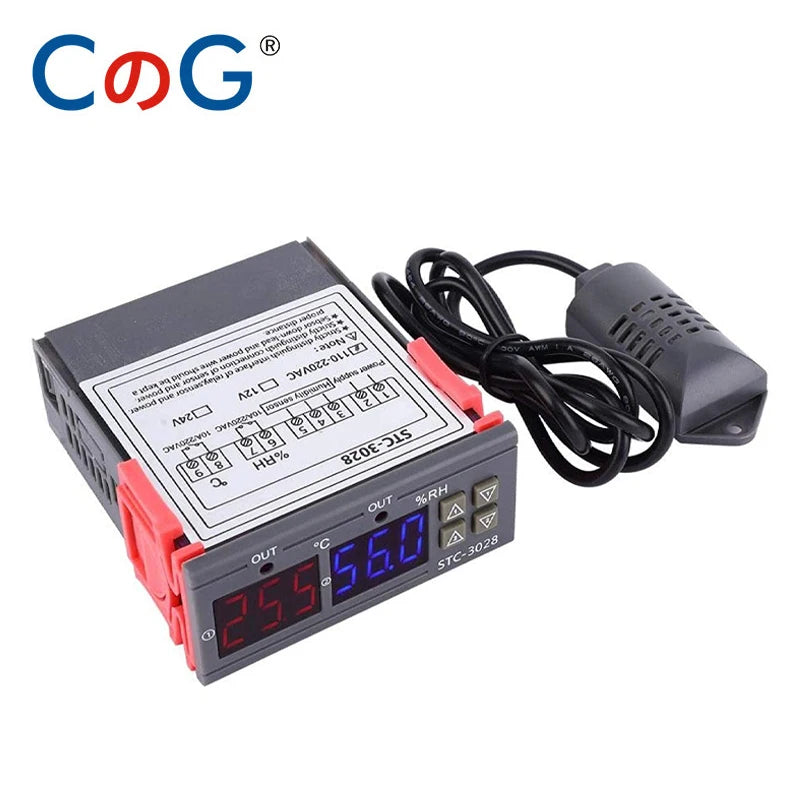

Dual Digital AC Temperature Humidity controller

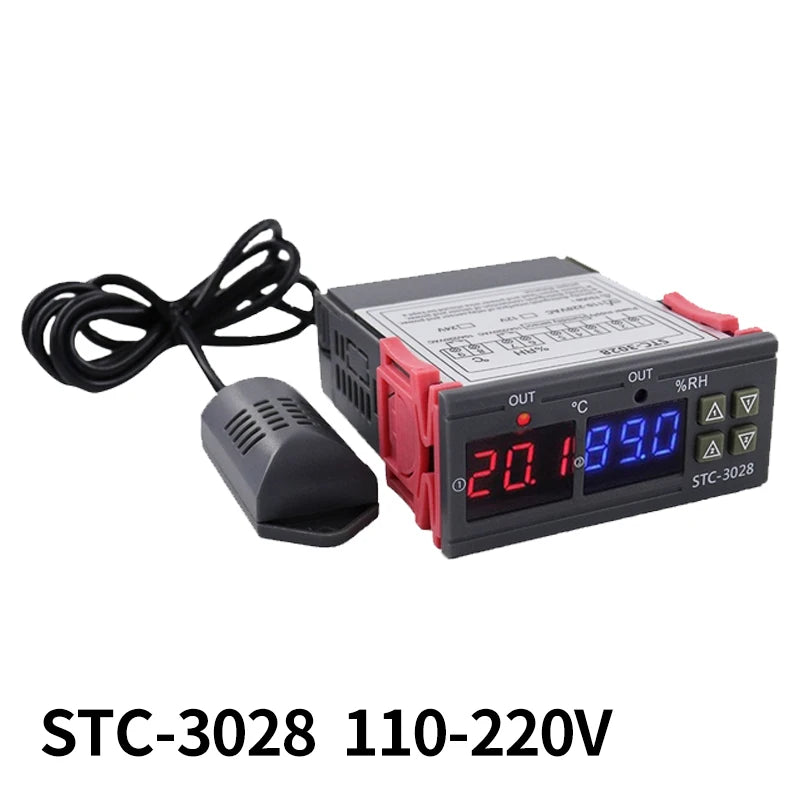

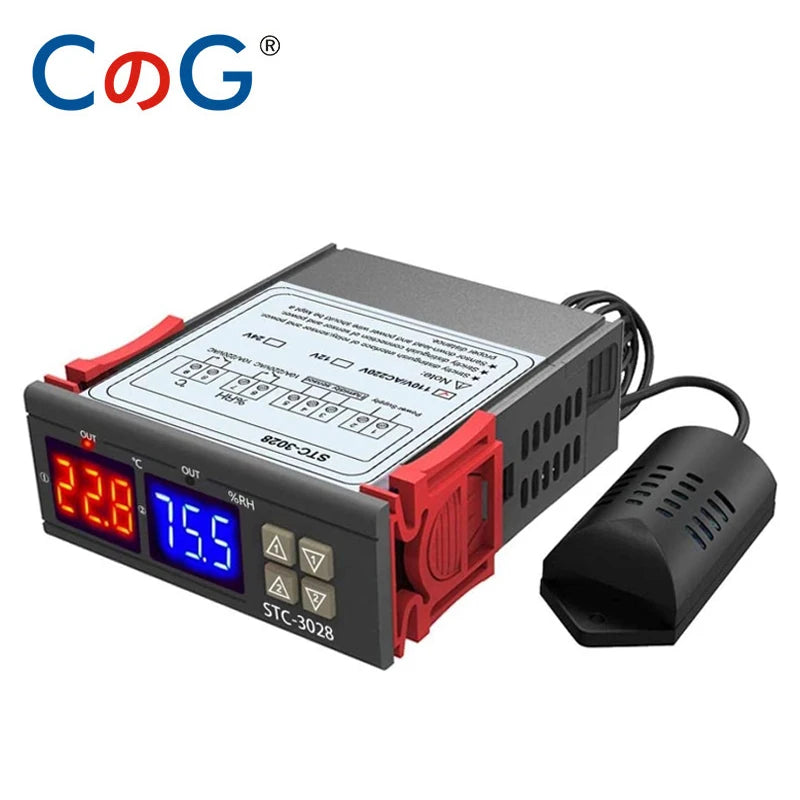

STC-3028 Thermostat Controller

Product Description:

Switch the modes between cool and heat;

Control temperature by etting the temperature setting value and the difference value;

Temperature calibration;

Refrigerating control output delay protection;

Alarm when temperature exceeds, temperature limit or when sensor error.

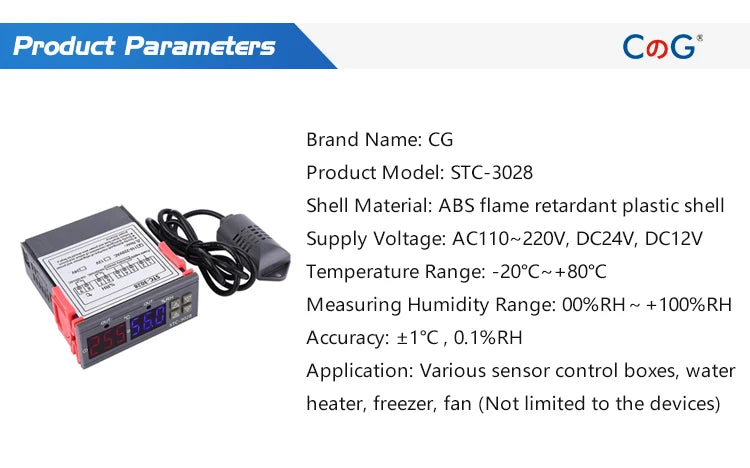

Specifications:

Model: STC-3028

Housing Material: ABS flame retardant plastic shell

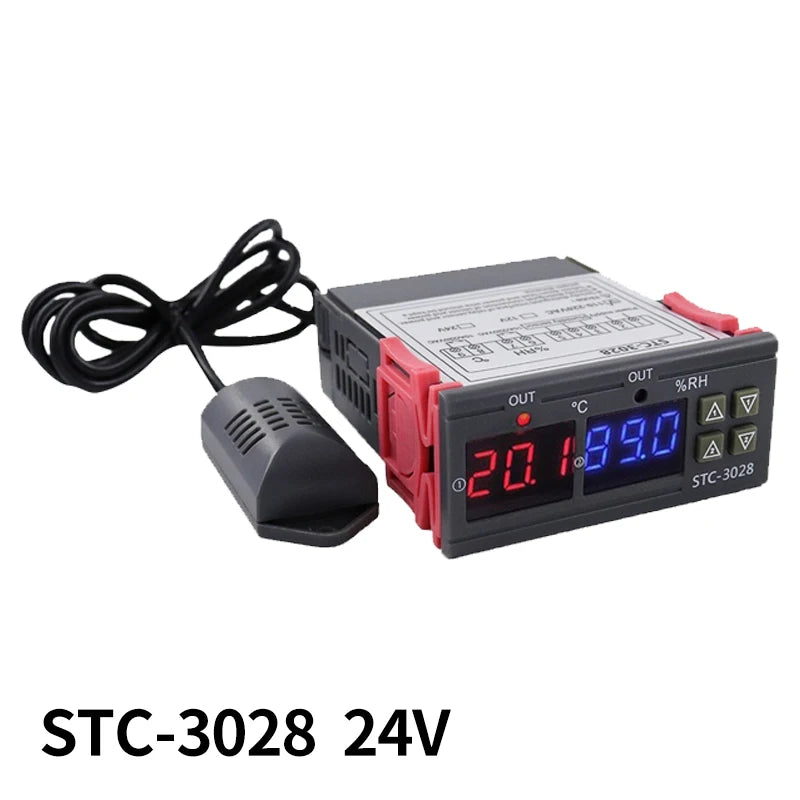

Input Voltage: AC110~220V, DC24V, DC12V

Relay Capacity: : 10A/240VAC

Accuracy: ±1°, 0.1%RH

Measuring Humidity Range: 00%RH～+100%RH

Measuring Temperature Range: -20°C ~ +80°C

Sensor Length: 1m

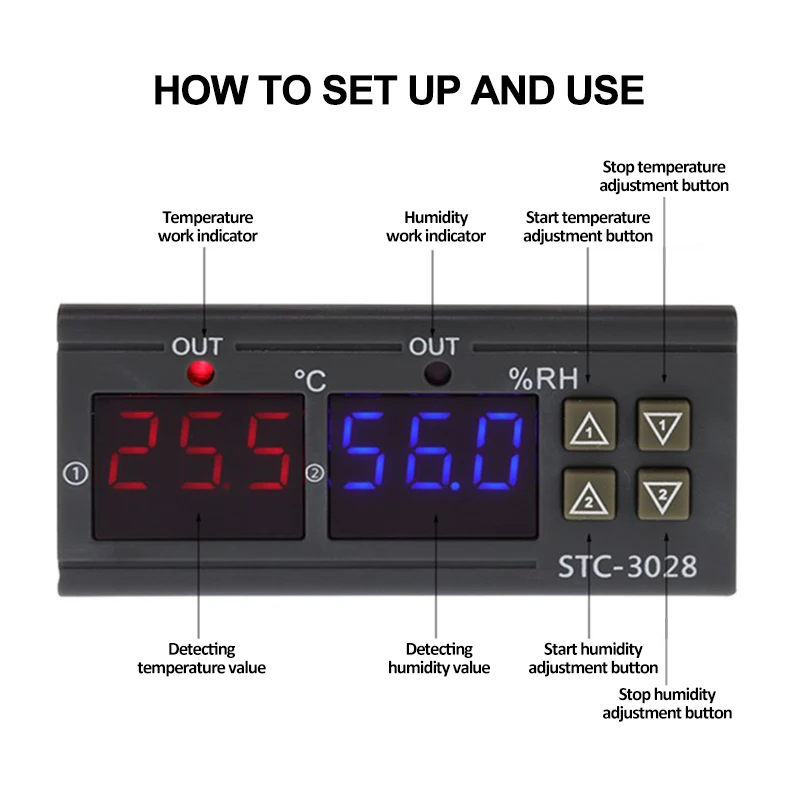

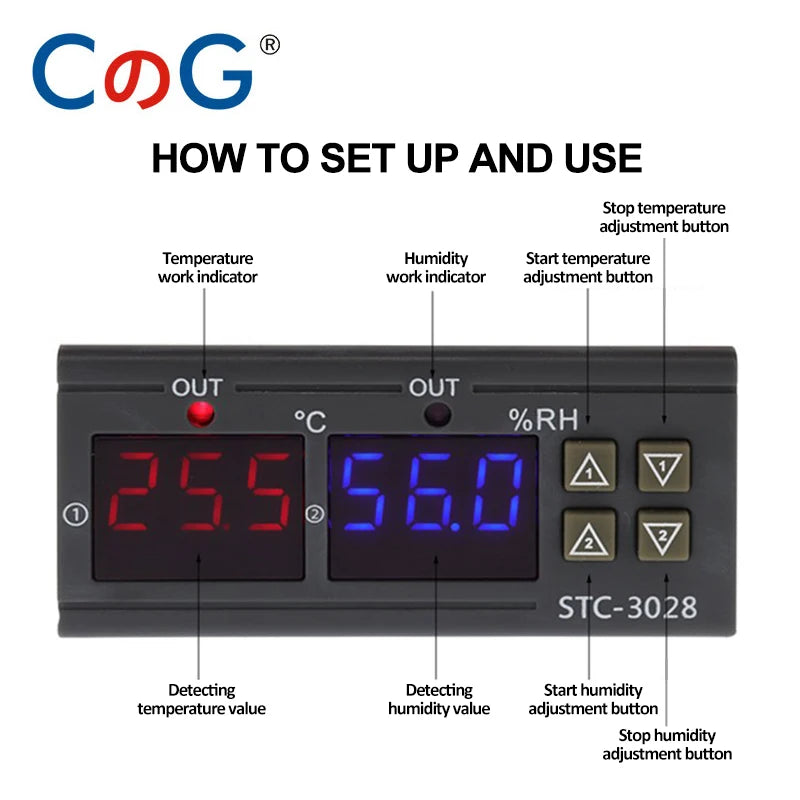

Heating and Cooling Mode Setting

● Setting(Starting Temperature):

Press and hold the▲button 3 seconds to Start Temperature flashing,Use▲▼button to set Start Temperature value

● Setting(Stop Temperature):

Press and hold the▼button 3 seconds to Stop Temperature flashing,Use▲▼button to set Stop Temperature value

● Set startup temperature(humidity):

Press the "up" button once to display the starting temperature(humidity). Long press the "up" button for about 3 seconds,The required temperature(humidity) can be set by the up and down keys

● Set stop temperature(humidity):

Press the "down"button once to display the stop temperature(humidity). Long press the button for about 3 seconds and the stop temperature(humidity) number flashes. The required temperature(humidity) can be set by the up and down keys

● Temperature/humidity correction:

Press "up"  and "down" button at the same time.

Feature:

Be able to control temperature and humidity at the same time.

Be able to connect with humidifier and dehumidifier equipment at the same time.

Be able to connect with refrigeration/ heating and humid
