SPECIFICATIONS

Alarm current: 100mA

Alarm decibel: ≥85dB/3m

Brand Name: CCEsafety

CE: EN 14604:2005/AC:2008

Certification: CE

High-concerned chemical: None

Model Number: SA14

Origin: Mainland China

Power source: 3pcs AA battery

Quiescent current: ≤ 5uA

Size: 85*47mm

Smart home platform: Tuya

Type: Smoke Detector

Worried about fire hazards at home? WiFi Tuya smart smoke alarm, guard your safety 24 hours a day!

Product Description

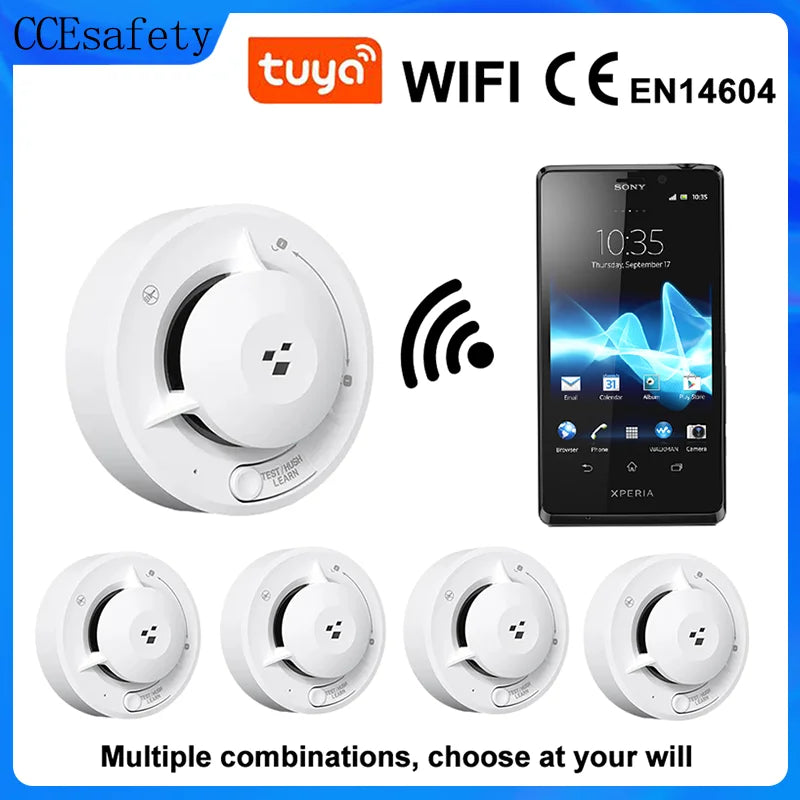

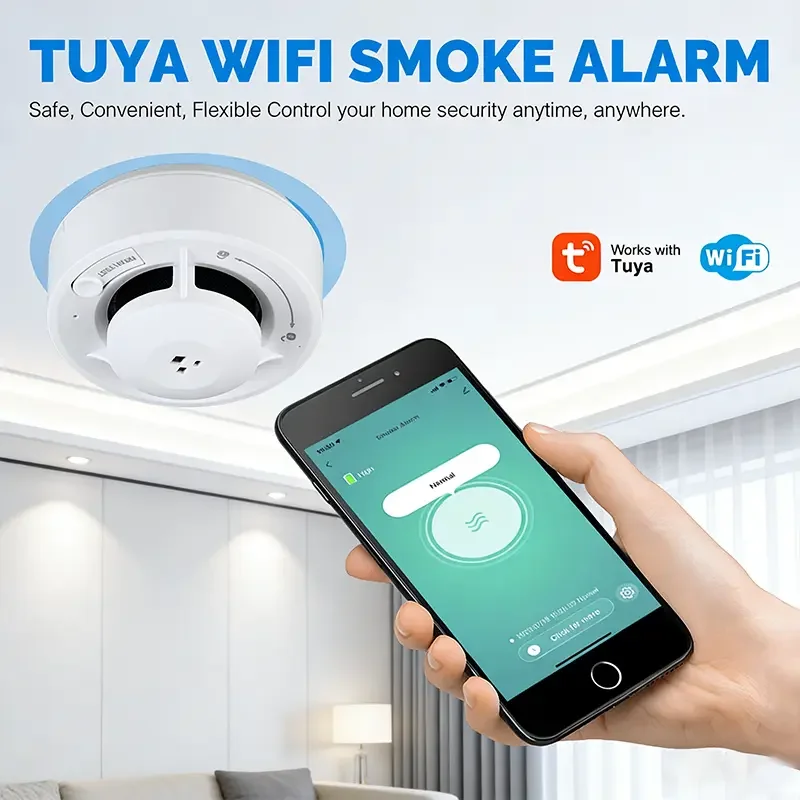

📱 WiFi Tuya Smoke Alarm

Connect to Tuya App in 1 click, real-time check smoke detector status anytime, anywhere. Get instant alerts on your phone once smoke is detected—keep your home safe even when you’re out for travel or work.

⚡3-Year Long-Lasting AA Battery

Replaceable AA battery design, battery life up to 3 years, worry-free and labor-saving.

✅CE Certification

Passed EN14604 official certification—100% compliant for household smoke detector in EU countries. Buy with zero worries!

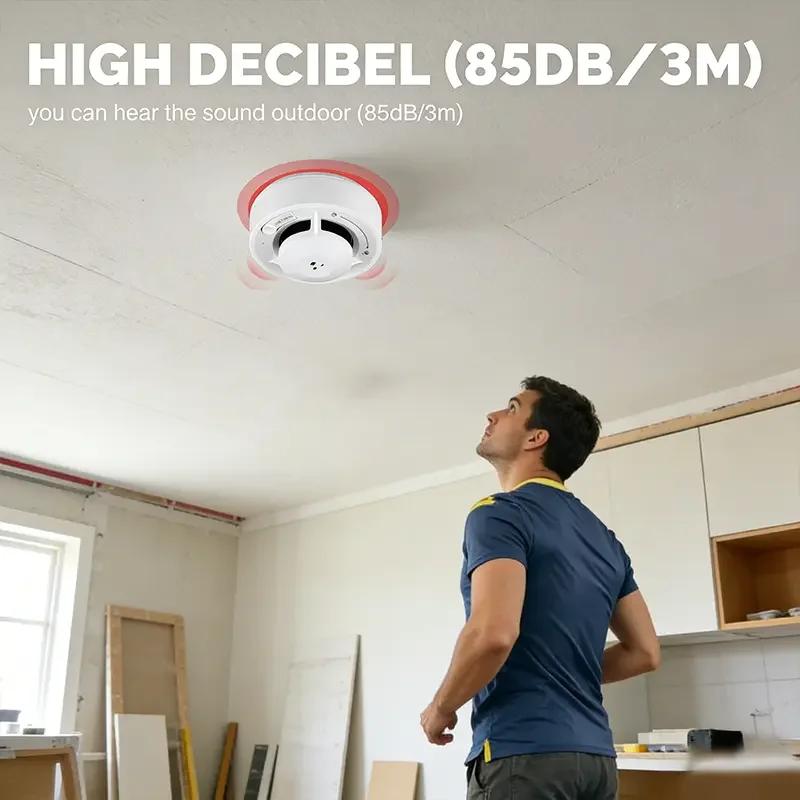

🚨 85dB Loud Sound + Flashing Light Alarm

85-decibel high-pitched alarm paired with eye-catching flash. Strong enough to wake you up from deep sleep, leave no chance for fire hazards to spread.

🔍 10 Years Photoelectric Sensor

Adopt premium photoelectric sensing tech, accurately detect early-stage fire smoke. Minimize false alarms caused by cooking fumes or dust—super reliable for kitchen, bedroom, and living room.

⚠️Smart Reminder

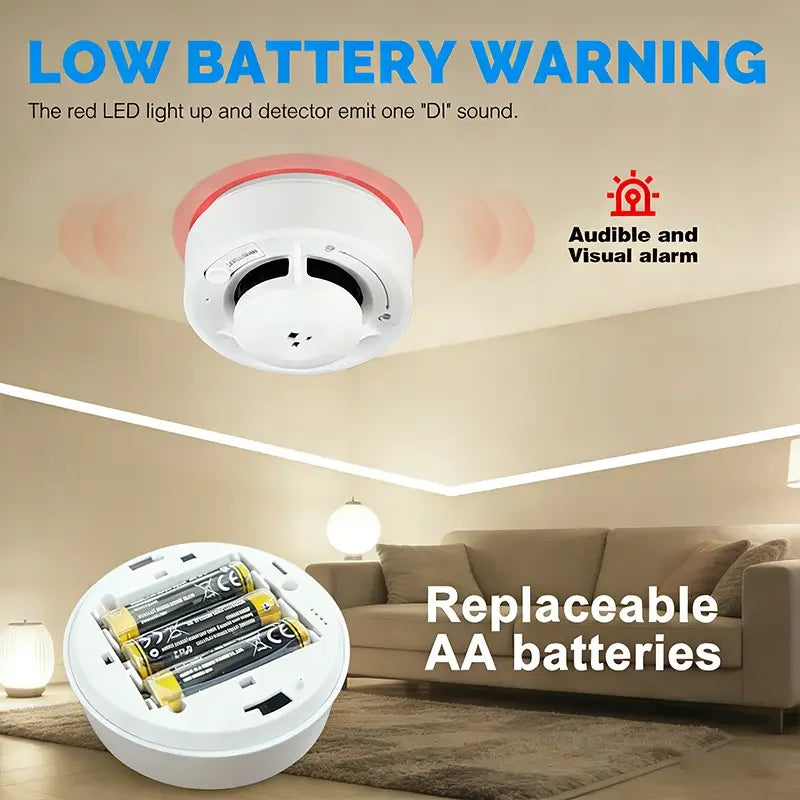

Low battery reminder and end of life reminder, let you replace the battery in time to ensure that the device is always in the best working condition.

🎛️ One-Click Mute & Test

Easy one-button operation: mute false alarms (e.g., burnt toast smoke) to avoid noise, or test device function in seconds. No complex steps, suitable for all ages.

📊Alarm History

Green light flashes 3 times every 43s = past alarm event. Check the detection area for hidden fire risks! Reminder auto clears after 24 hours.

Tips:

● Please test the alarm regularly to ensure it works properly.

● It is recommended to replace the smoke alarm every 10 years.

Technical Parameters

Installation Instructions

a、Hold the mounting plate against the selected installation position on the ceiling, and mark the center of the holes with a pencil. Drill a hole through the pencil marks and use the enclosed screws and anchors to secure the mounting plate.

b、Install the AA batteries according to polarity markings.

c、Insert the hook of the mounting plate to the slot of the alarm, the positioning column should also align with the positioning groove. Rotate the alarm clockwise until it snaps into place.

Link network related issues：

1.Please download the software "Tuya Smart" from the Google Play Store or App Store for the networking APP.

2.The WIFI router must be 2.4G network to connect to the APP.

3.Press the TEST button 2 times in a row and the LED (green) will flash, prompting you to enter the network configuration mode. Network configuration must be completed within 2 minutes. If the network is not successfully configured, please press the TEST button again. If the network configuration is completed, the APP displays this alarm.

4.After the successful completion of the network, when the local fire detection alarm occurs, the alarm information will be uploaded to the APP via WiFi. If the customer purchases a telephone or SMS service, the information can be directly sent to the customer by calling or sending a message after the alarm is triggered.

5.The battery level information on the APP is updated every 24 hours. The battery level is displayed as "Medium / igh / Low". If the battery level is "low", please replace the battery as soon as possible.

Access to the APP allows users to view history and settings.

Testing

Press the TEST button and the product will enter alarm mode. It will make beeps that are louder than 86dB. The alarm indicator (red) will flash. The APP will receive a message of testing, too.

Standby condition

In standby condition, the smoke alarm detects every 10 seconds. The alarm indicator flashes every 344 seconds to indicate that the smoke alarm is operating properly. When it senses products of combustion, the alarm sounds. And the alarm indicator (red) flashes at the same time, until the air is clear. The APP will receive a message of alarming, too.

Silence mode (Low sensitivity)

When it’s in normal working condition, press and hold the TEST/HUSH button for 0.5 second, and the product will enter silence mode. That will last for about 9 minutes. Pressing the TEST/HUSH button again will also end the silence mode.

Alarm history

When the alarm indicator (green) flashes 3 times every 43 seconds, that means alarm has been made before. Please check if there is fire risk in detecting area. This indication will end 24 hours later.

Smoke chamber degeneration warning

The working environment and time will cause the degeneration of smoke chamber. When the product makes 3 short beeps every 43 seconds, it indicates end-of-unit-life. You should replace the smoke alarm with a new one.
