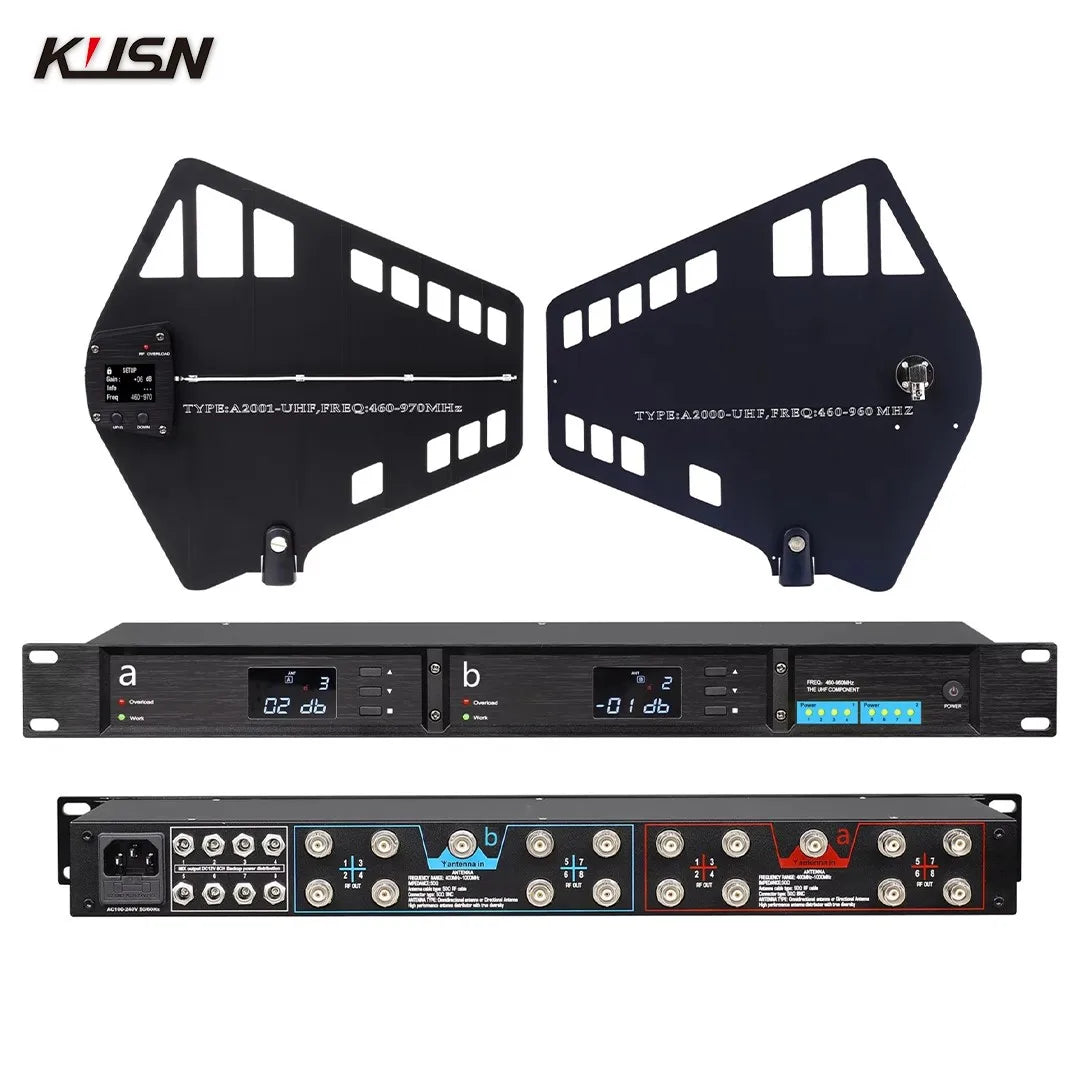

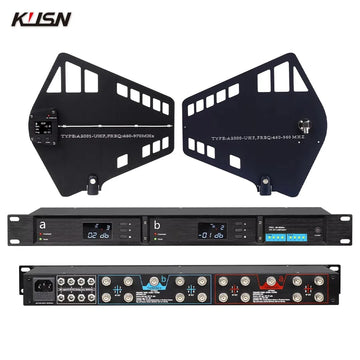

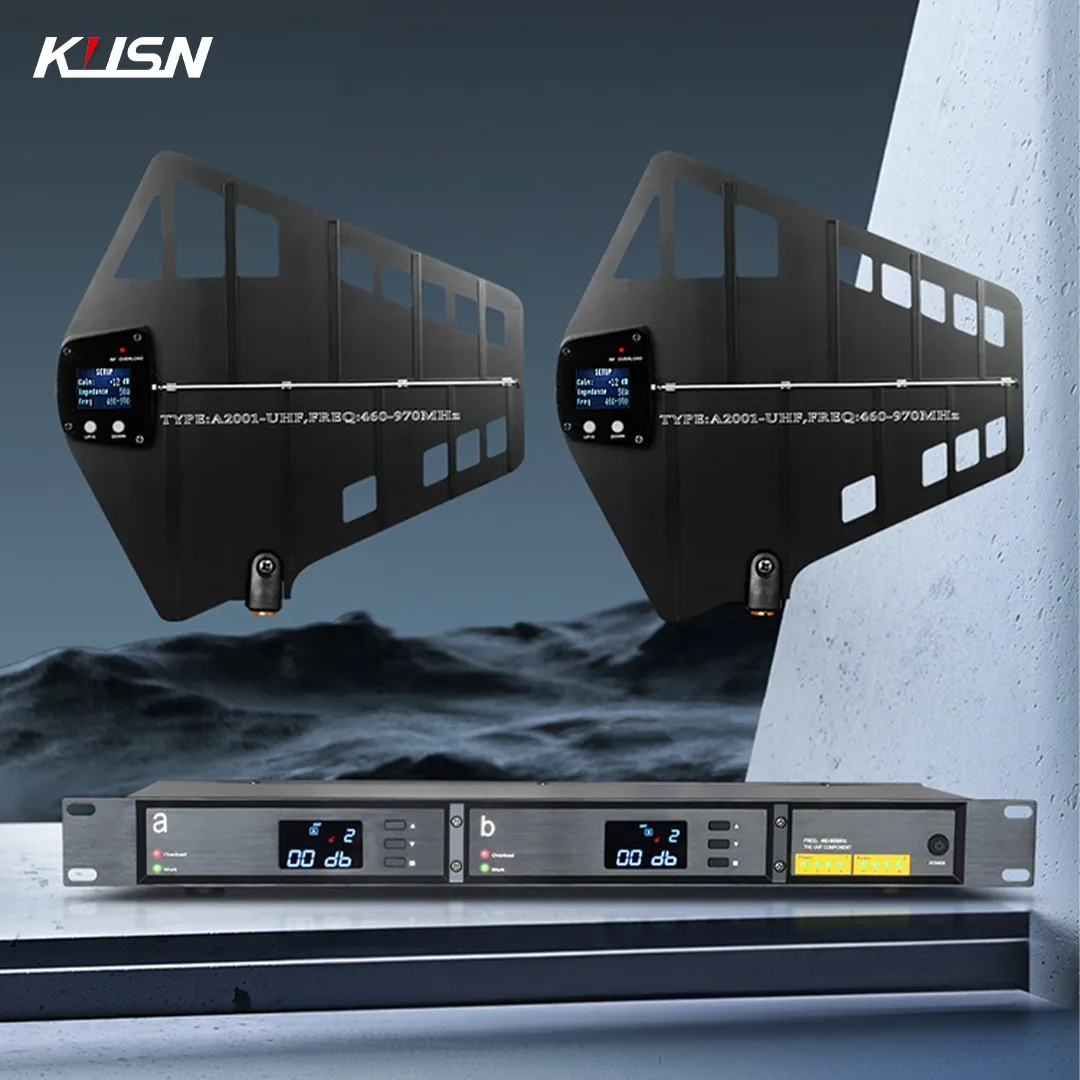

UA80+A2001 UHF Microphone Wideband Antenna Splitter 450-1000MHZ RF Signal Directional 16 Grounps Microphone Amplifier
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
UA80+A2001 UHF Microphone Wideband Antenna Splitter 450-1000MHZ RF Signal Directional 16 Grounps Microphone Amplifier
SPECIFICATIONS
Customized: Yes
Function: Condenser Microphone
Usage: Public address system
Use: Conference Microphone, Other, Church, Public Address System
brand name: KJSN
input voltage: DC12V
intelligent type: Other
model number: UA80+A2001
place of origin: Guangdong, China
warranty: 1 Year
whether with data cable: Yes
with rack or not: No

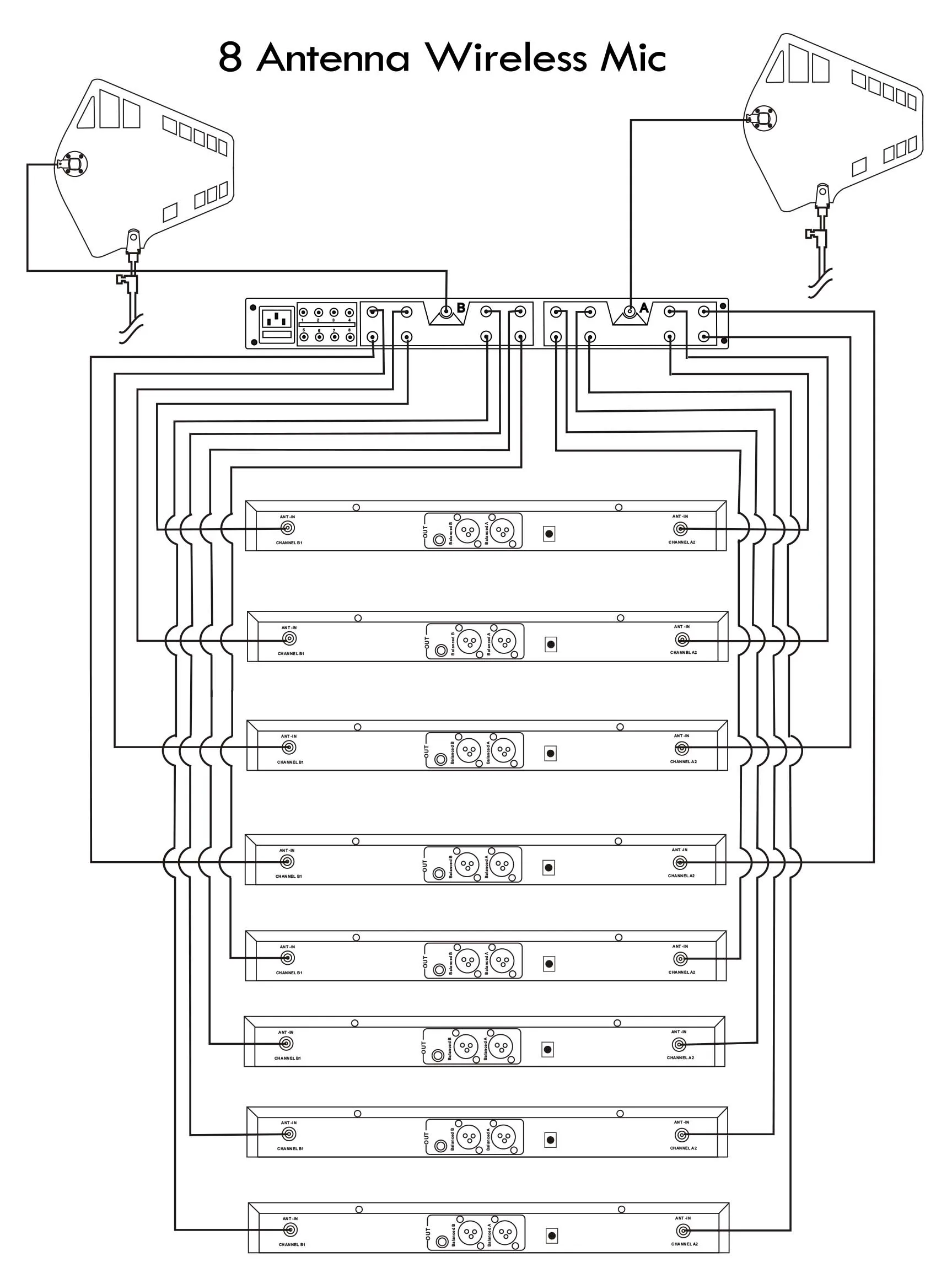

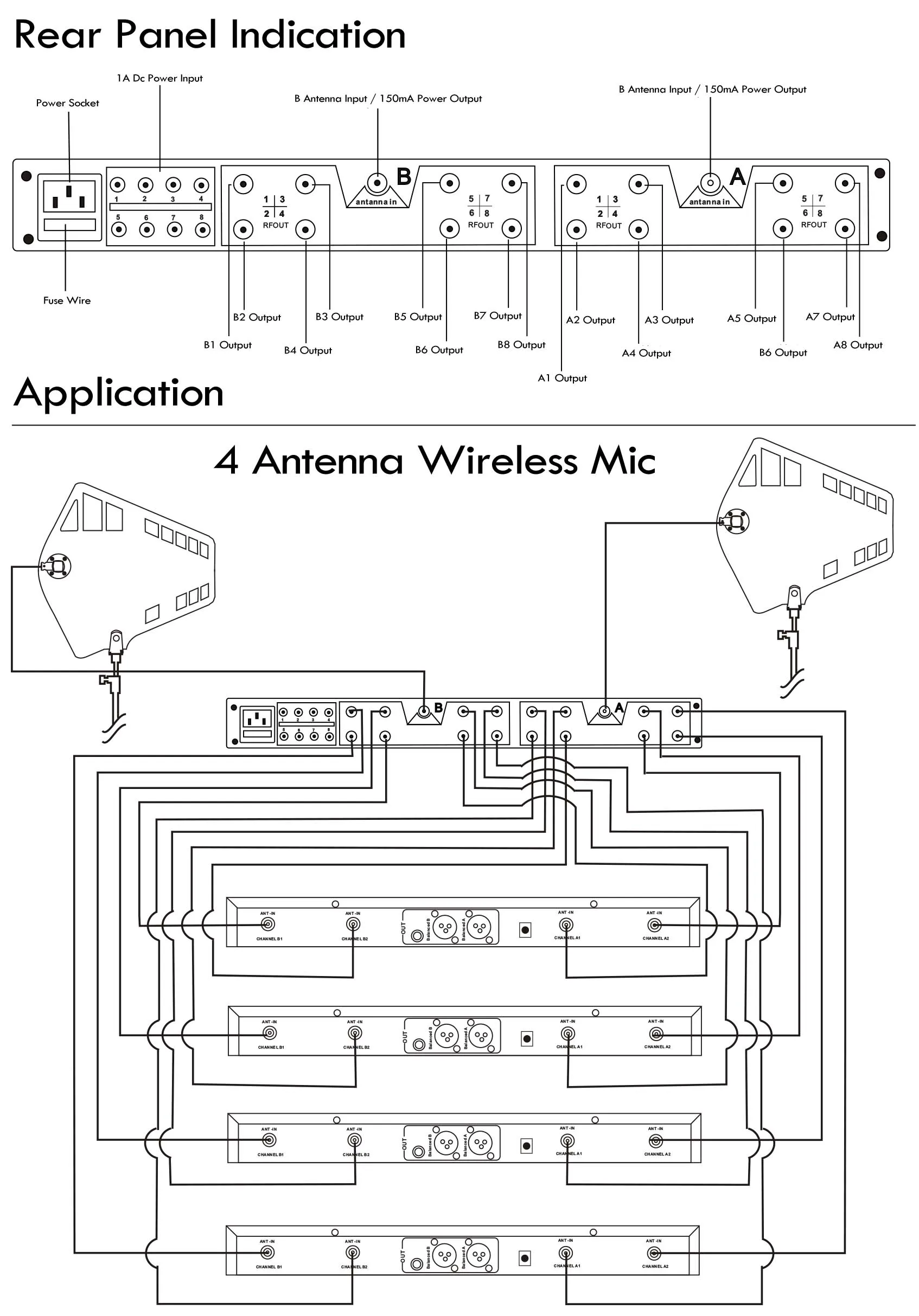

◆ 32-Level Adjustable RF Signal Strength Optimizes reception efficiency when using different types of cables. ◆ Link Output Allows up to 8 wireless receivers to be connected for building a large system. ◆ RF Overload LED Indicator Monitors RF signal quality in real time. ◆ High-Definition LCD Display ◆ Device Code Recording Function ◆ Panel Lock Function Prevents accidental operation during live performances.

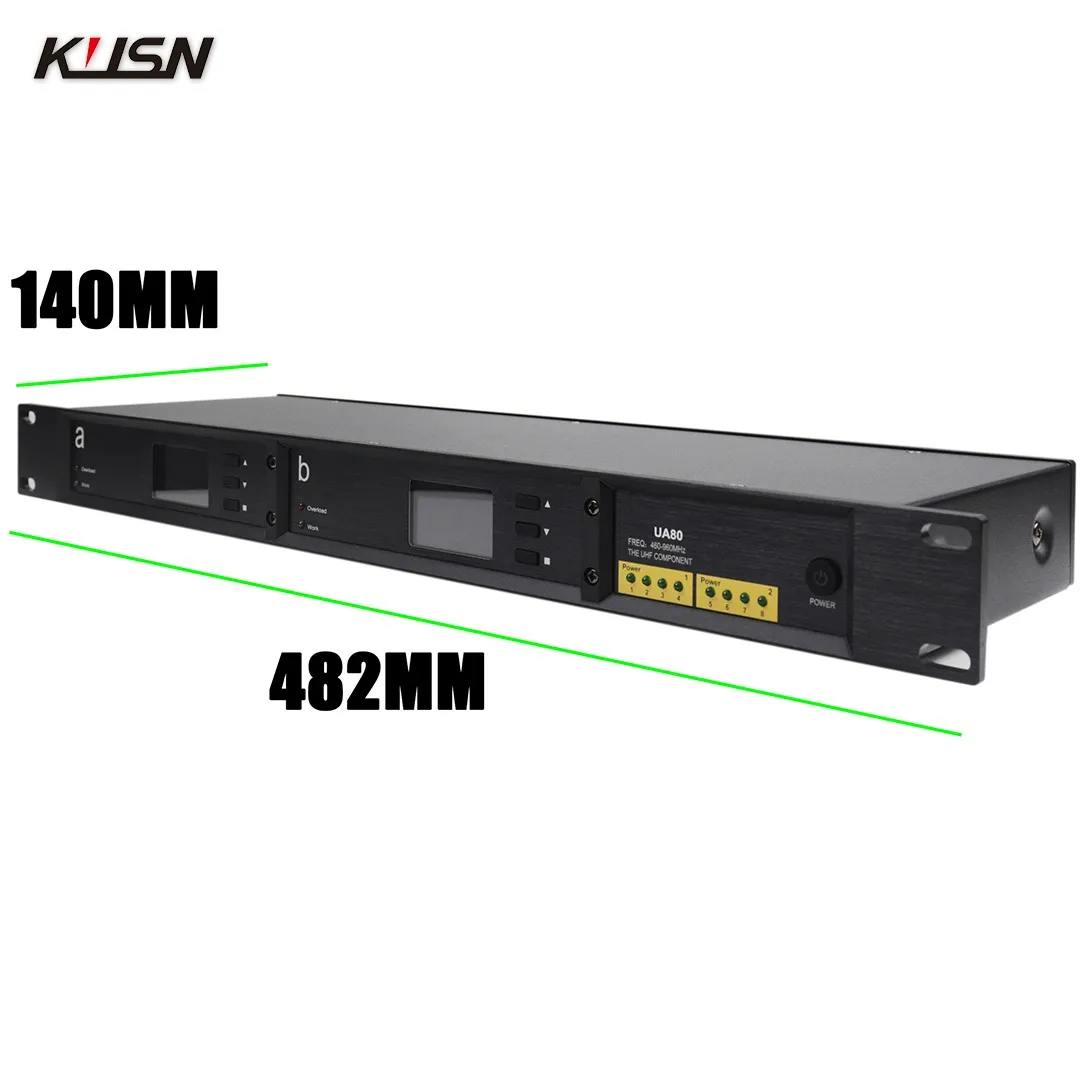

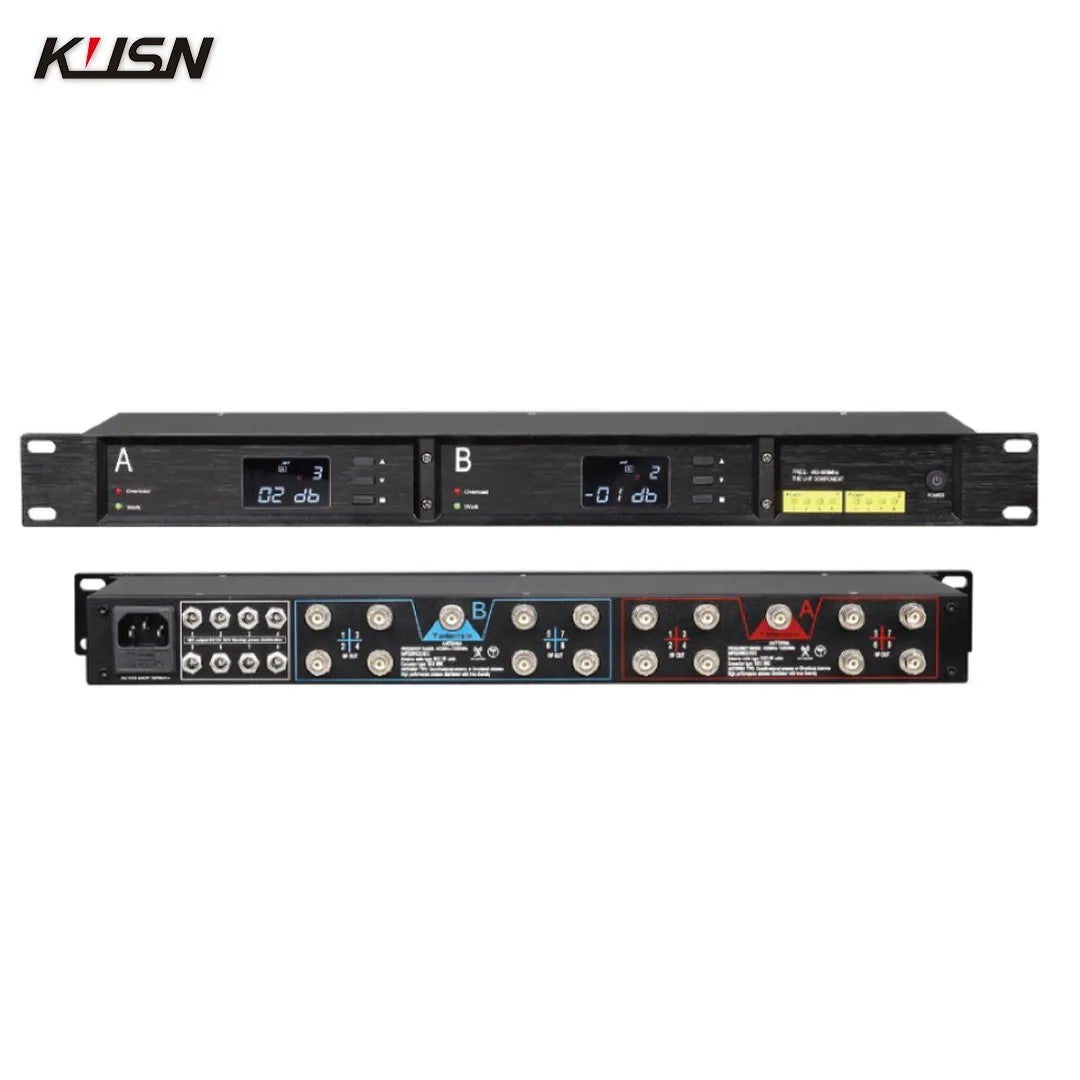

Microphone Amplifier |
||
Frequency Range |
UHF Band 450–1000 MHz |
|
Input/Output Impedance |
50 Ohms |
|
Channels |
2 × 8 (16-channel output) |
|
Display |
High-definition LCD screen |
|
Connector Type |
Type B female socket |
|
Gain |
32-level adjustable: -24 dB to +6 dB (1 dB steps) |
|
3rd Order Intermodulation Intercept Point |
+38 dBm (typical) |
|
Gain Flatness |
±1 dB |
|
Power Output |
DC 8 × 1A |
|
Power Input |
AC 100–260V / T2A, 47–63 Hz |
|

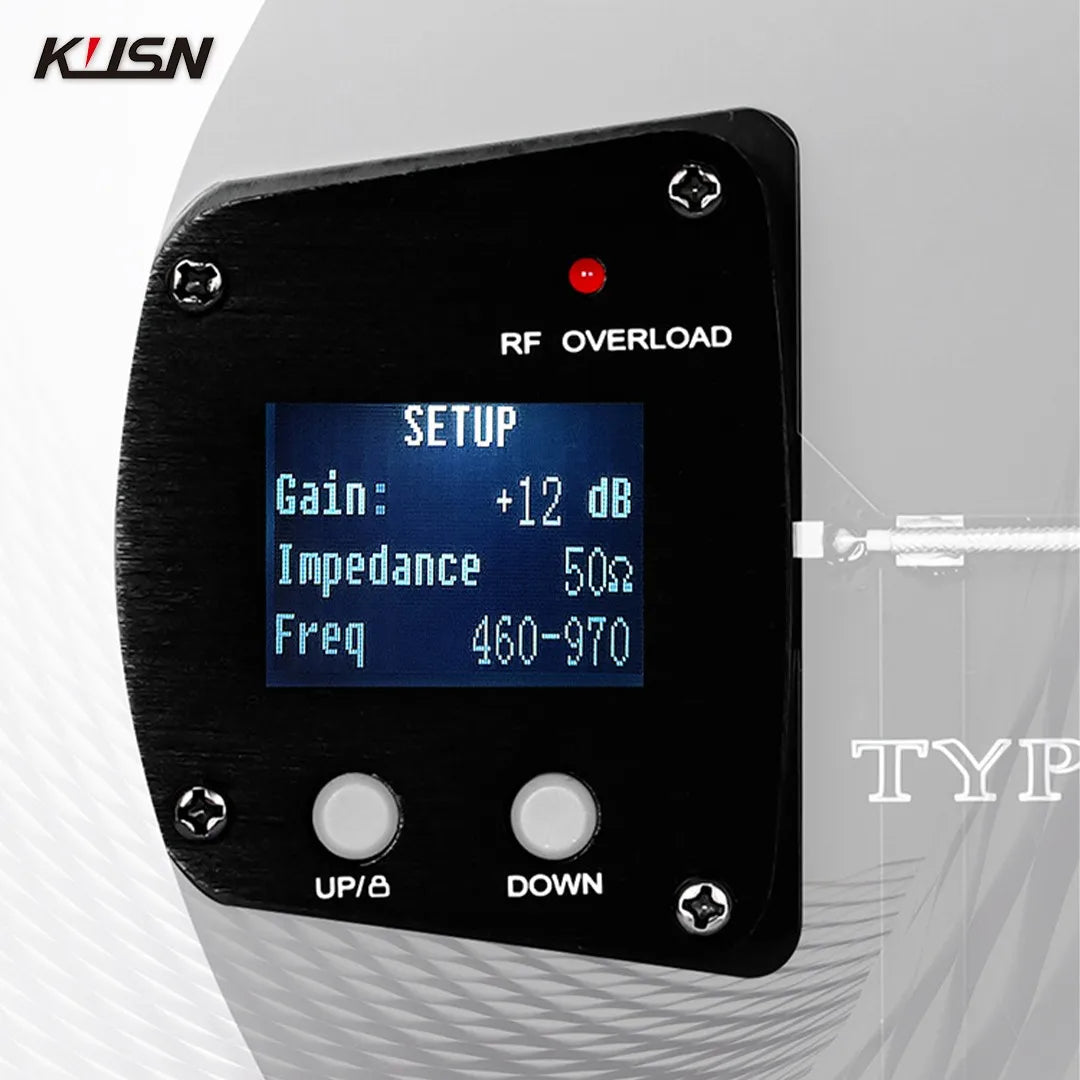

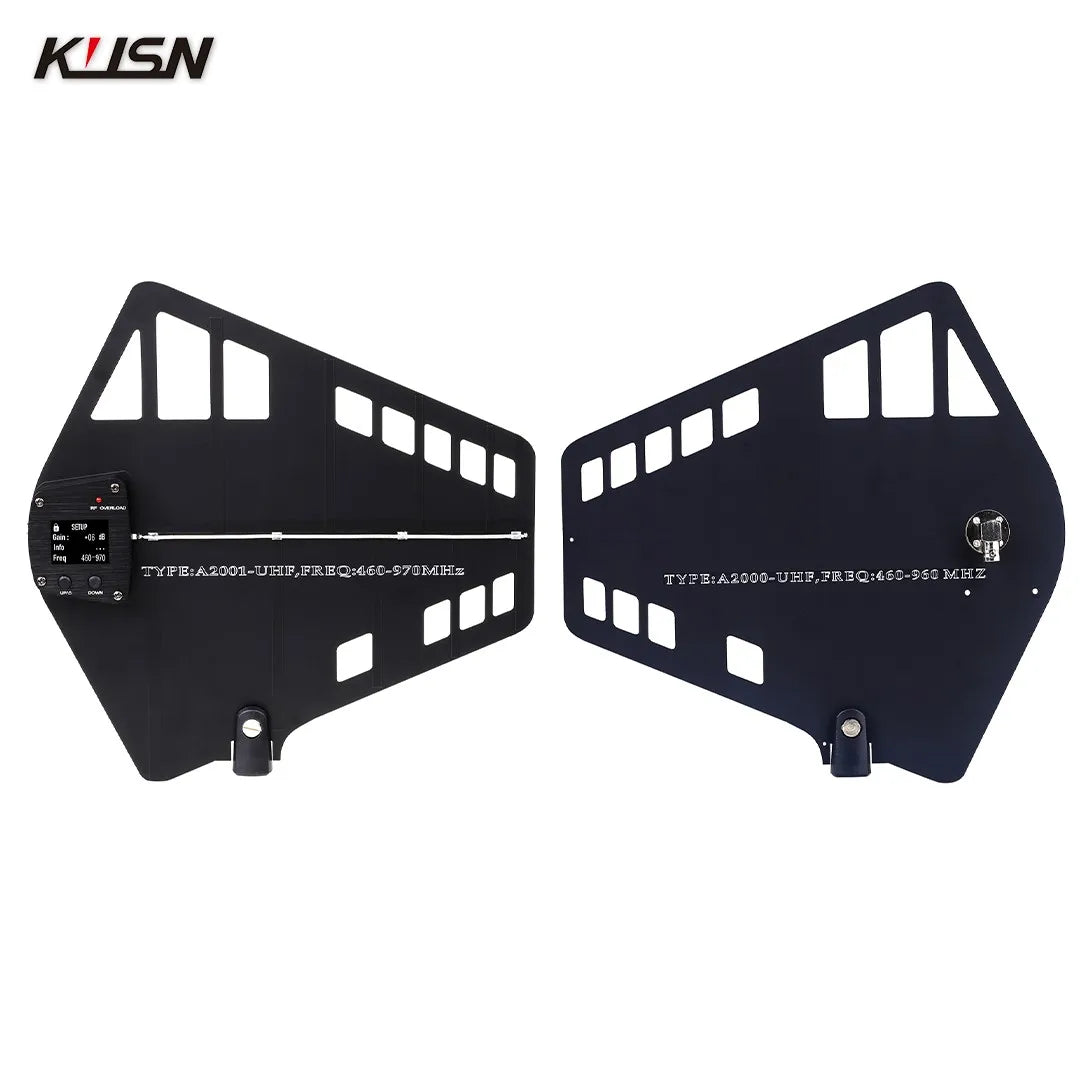

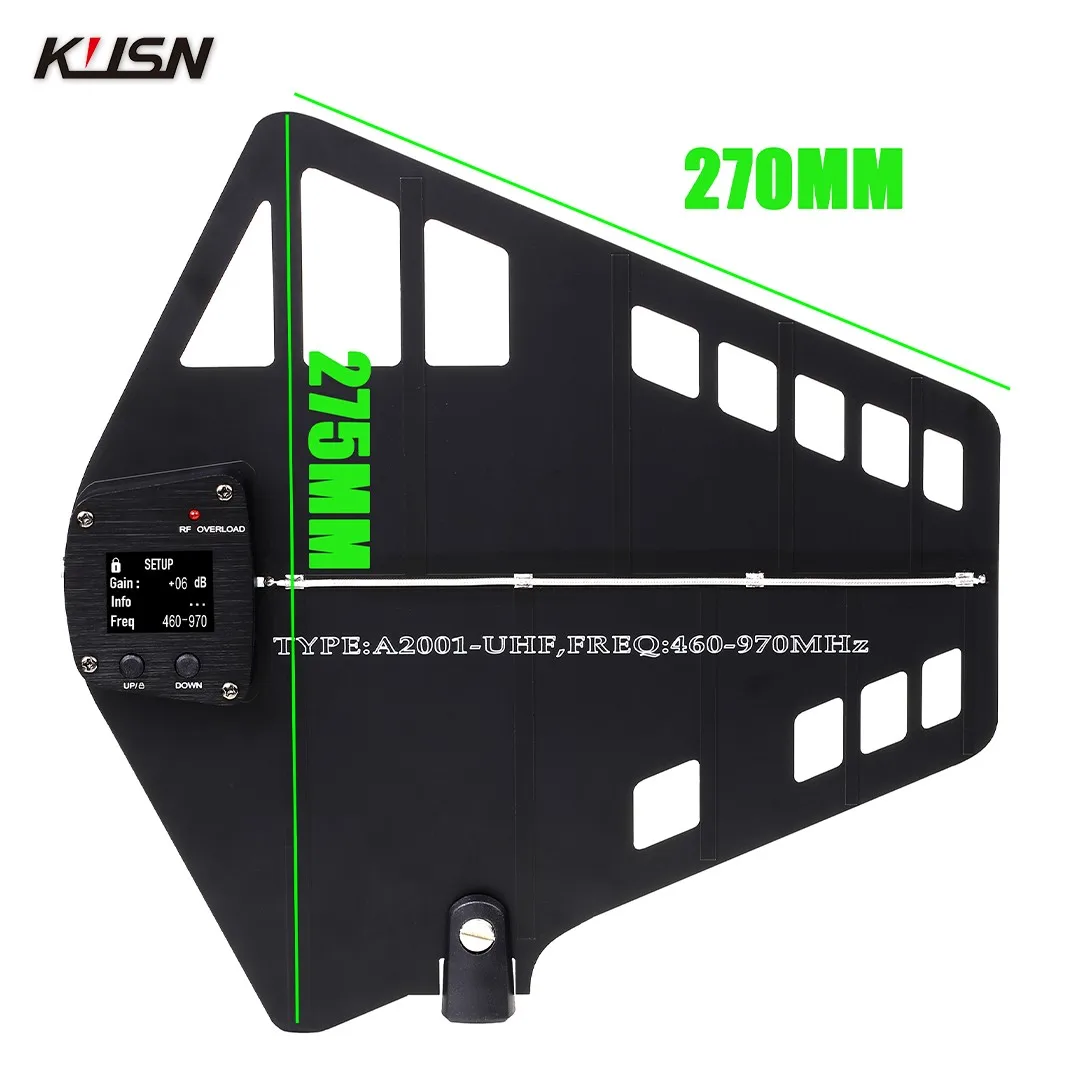

Microphone Antenna |
||
Frequency Range |
UHF Band 460–970 MHz |
|
Display |
High-definition matrix LCD screen |
|
Control Switch |
Tactile push button |
|
Connector Type |
Type B female socket |
|
Output Impedance |
50 Ohms (SWR ≤ 1:1.5) |
|
Maximum Gain |
12 dB |
|
Strongest Radiation Angle |
0–180° |
|
Integrated Digital Gain Adjustment |
-6 to +12 dB |
|
3rd Order Intermodulation Intercept Point |
+45 dBm (typical) |
|
Gain Flatness |
±1 dB |
|
Power Supply |
+9V to +12V (typical), 150 mA |
|
