UA844+UA874 Simple Style Professional Wireless Microphone Signal Amplifier 10 Channels Antenna Distribution System
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
UA844+UA874 Simple Style Professional Wireless Microphone Signal Amplifier 10 Channels Antenna Distribution System
SPECIFICATIONS
Application: Stage Performance
Channel: 10CH
Dimension: 44.5 x 482.6 x 295.3mm
Frequency Response: 450~970MHZ
Input Voltage: DC12V 5A
Keyword: Amplifying RF signal
Material: Pure copper for interface plug/cable
Type: Antenna Distribution system
Use: Ourdoor Activities
Warranty: 3 months ~ 1 year
brand name: XUNGUAN
model number: UA844+UA874
place of origin: Guangdong, China
UA844+UA874 Simple Style Professional Wireless Microphone Signal Amplifier 10 Channels Antenna Distribution System
The UA844+UA874 ensures maximum sensitivity and signal processing to provide the widest range of radio frequencies for a wide range of wireless receivers.

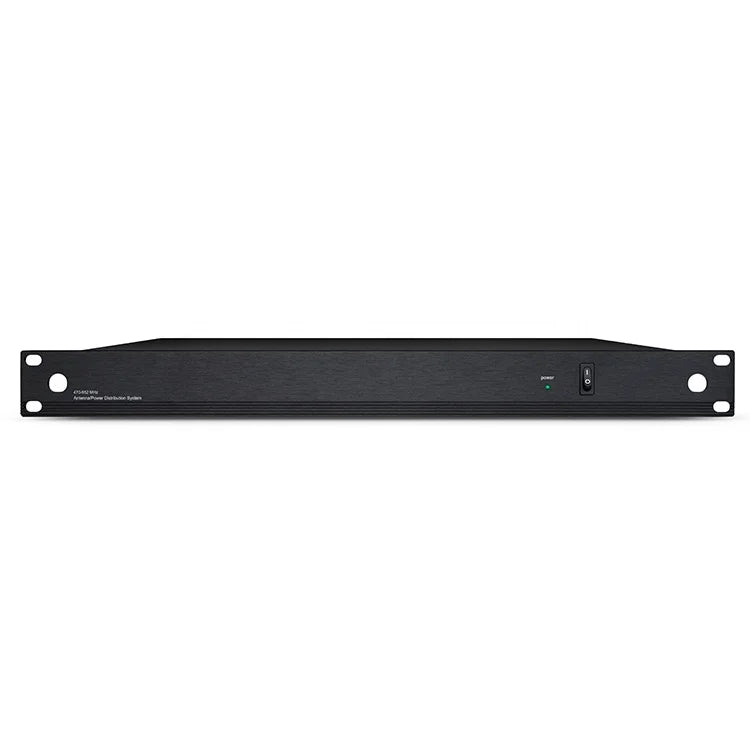

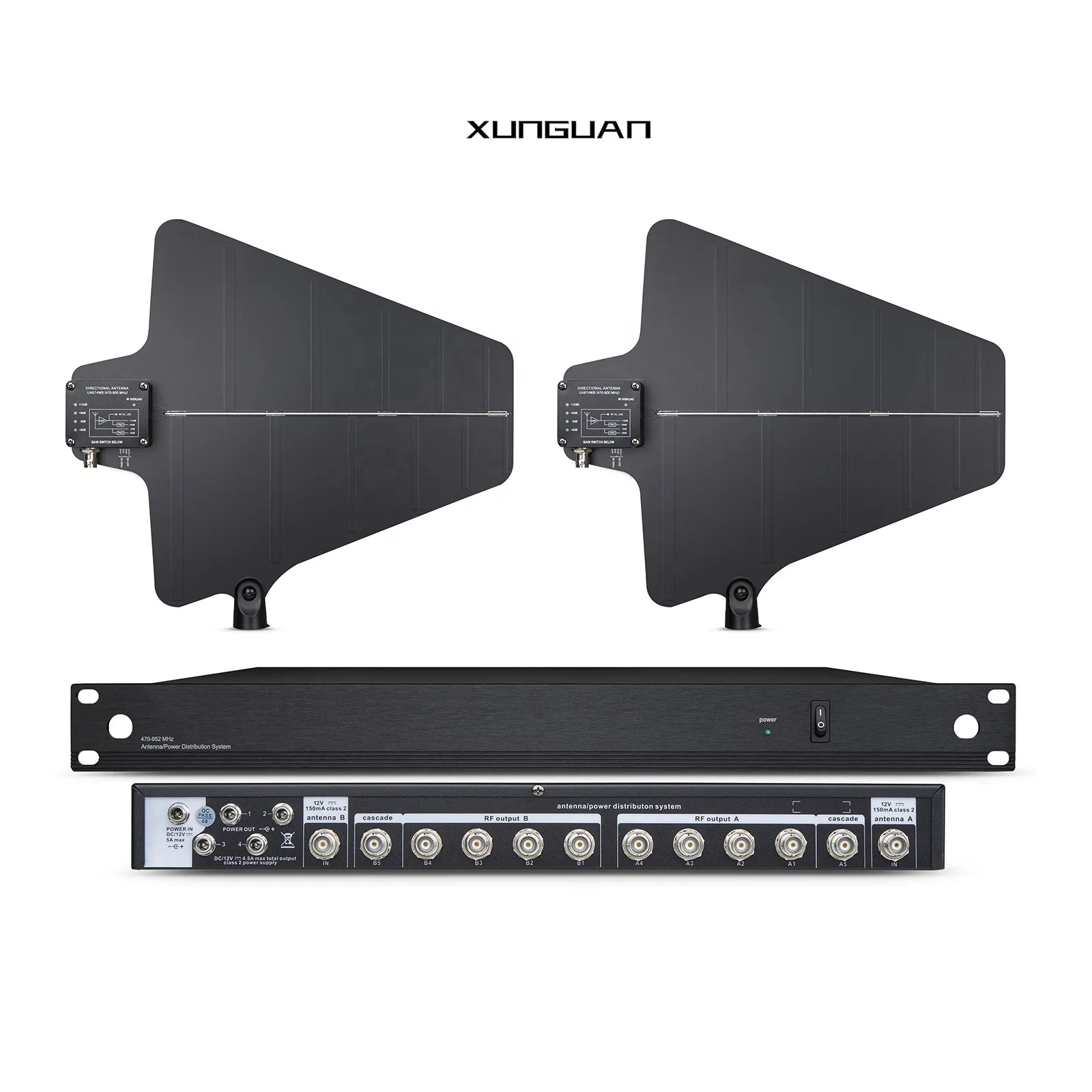

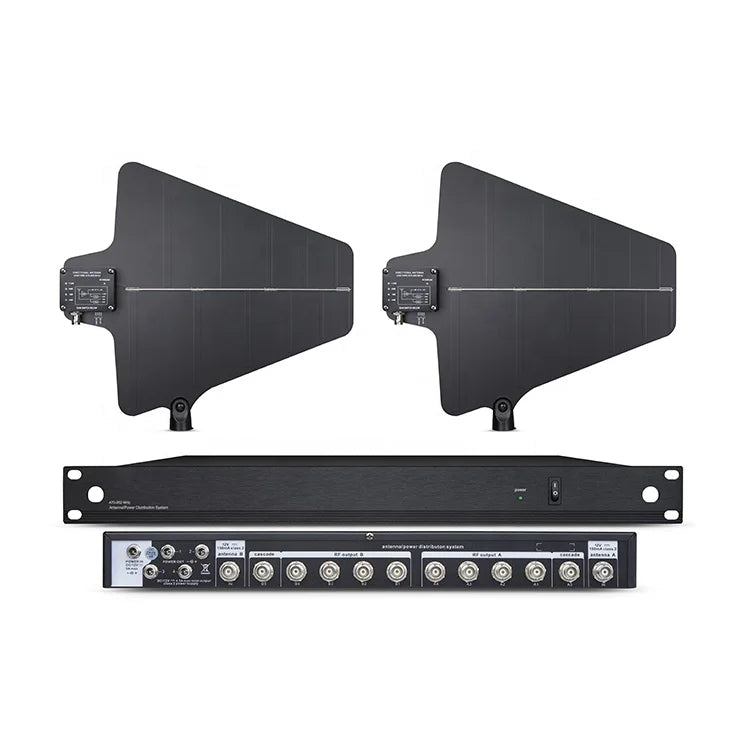

The UA844+UA874 antenna distribution system is designed for large wireless systems. Each unit enables four wireless receivers to use the same two antennas, and the cascade port can be connected to a fifth receiver or a second UA844+UA874.
• Compatibility UA844+UA874 is compatible with all wireless microphone receivers operating in a compatible frequency range.

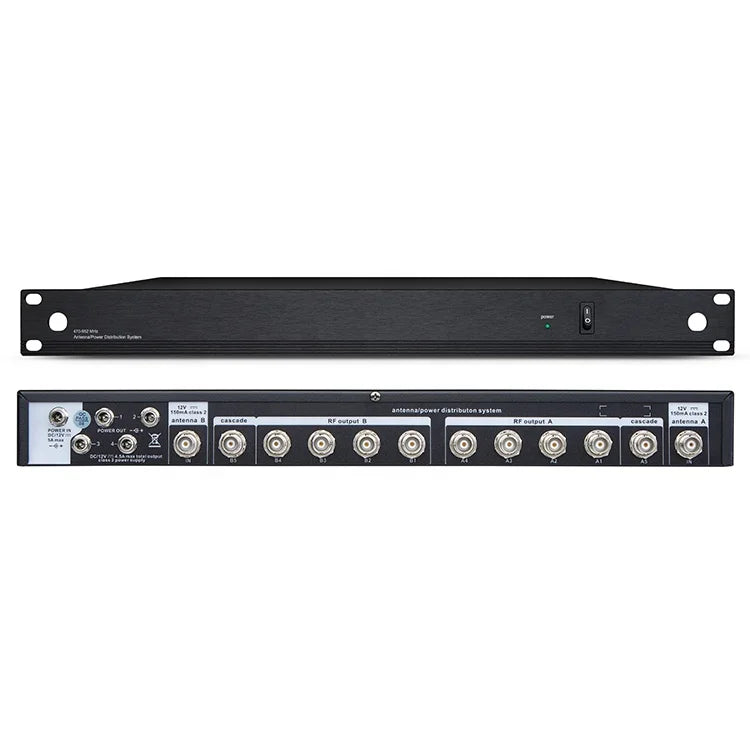

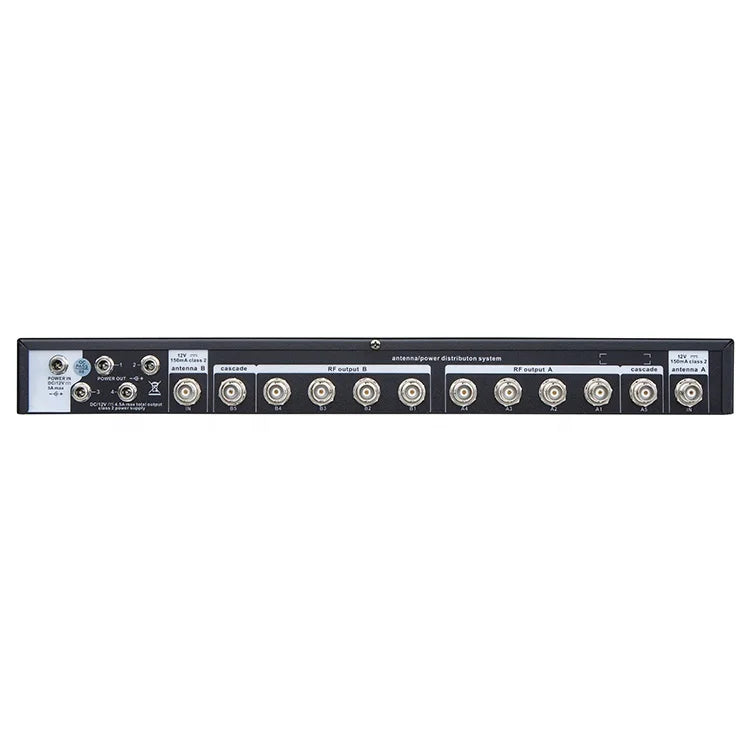

• Expansion port Two 50 ohm BNC antenna expansion ports can be connected to an additional UA844+UA874 unit or a fifth wireless receiver. Large wireless systems can work with a pair of antennas.
• The power output connector can link multiple receivers in a chain on the power output and supply power from a single power supply through the power output connector.
• Low noise and intermodulation distortion UA844+UA874 maintains a clear signal with minimal distortion.
• Insert loss compensation When the signal is split to multiple output ports, the signal strength will decay. The UA844+UA874 is capable of amplifying and compensating the signal to ensure a strong signal for the receiver.
| Model | UA844+UA874 | |
| CHANNEL | 10CH | |
| Feature |
Frequency range :174~1085MHZ Output DC voltage :12V four groups of DC output terminals |
|
| Diamension | 10-channel distributor | 1 piece |
| Parts list |
Antenna transmitter |
1 pair |
| 3m cable to connect the antenna (you can contact us to choose a longer cable) | 2 pcs | |
| 50cm BCN-BNC or BCN-TNC cable | 10 pcs | |
| Power DC cable | 4 pcs | |
| 12V 5A switching power supply | 1 piece | |
| Packaging (kraft color box) | 1 set | |
| Transmitter |  |

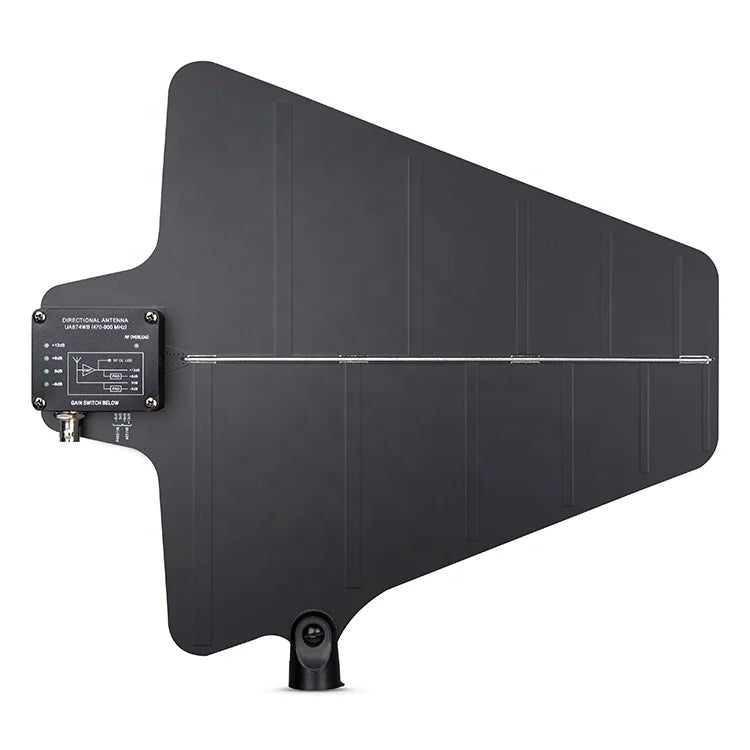

UA874WB active antenna transmitter Impedance: 50Ω |
| Package/CTN | 56X15X40CM/7.5KG | 1 SET |
| 57.5X33.5X42.5CM/16KG | 2 SET | |
| 57X49.5X42.5CM/24KG | 3 SET | |
| 65X58X42.5CM/32KG | 4 SET | |

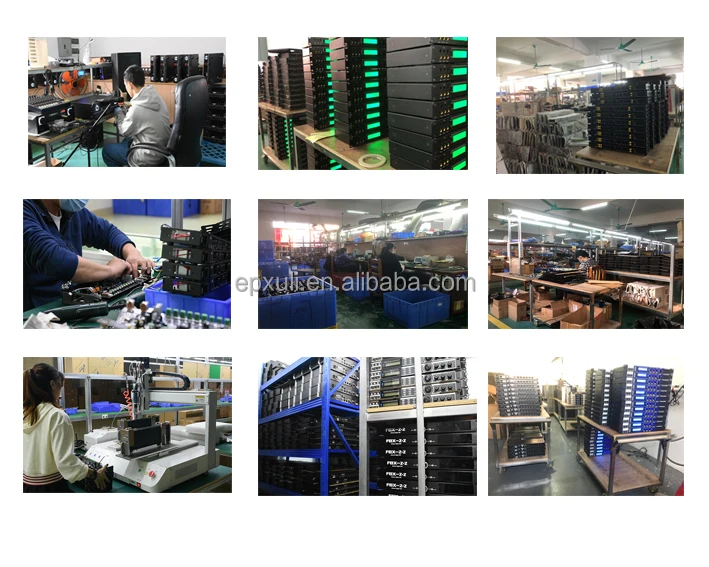

Enping XUNGUAN Electronics Co., Ltd. is located in the audio production base in China - Enping City, Jiangmen, Guangdong Province, with more than 10 years experience in Audio development. Our main products include mixing console, power amplifier, wireless microphone, speaker, wired microphone, feedback suppressor, audio processor, equalizer, compressor, processor, etc. OEM and ODM are welcome.
