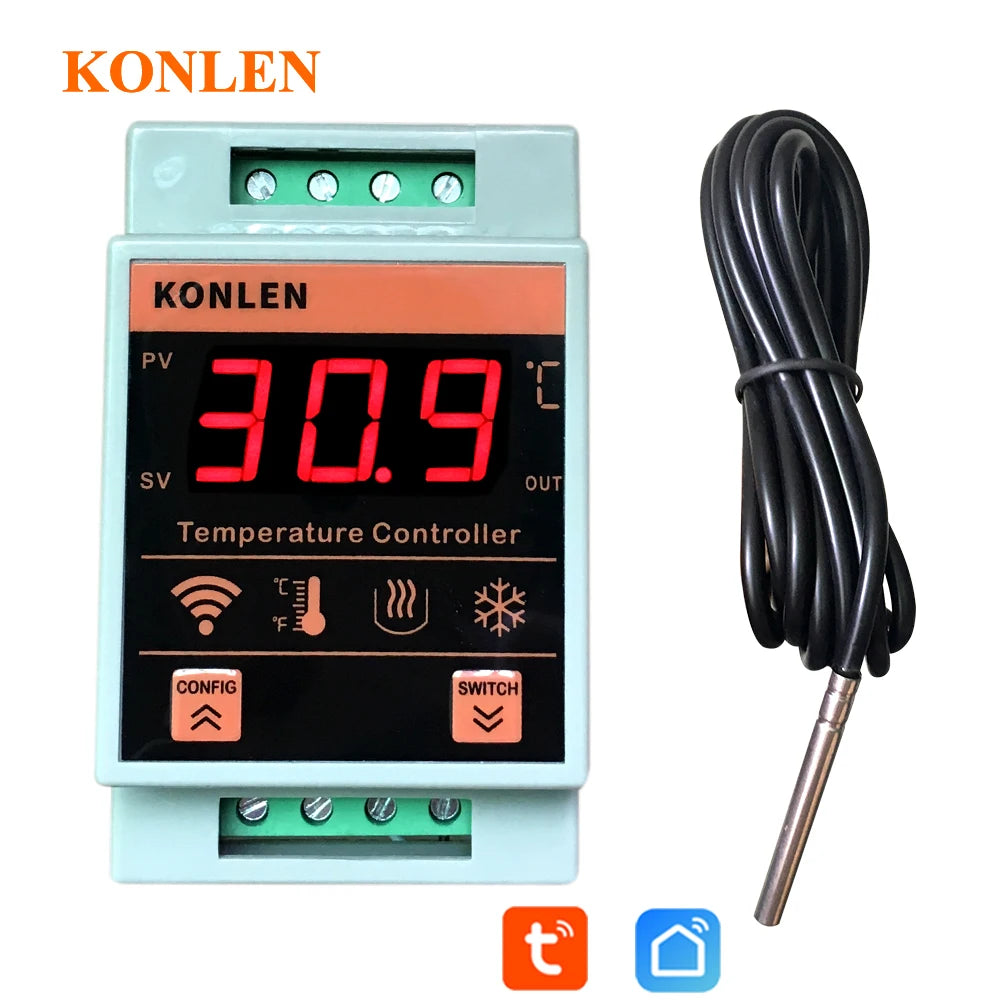

WIFI Tuya Temperature Sensor Heater Freezer Controller Digital Thermometer Monitor Alarm Remote Control Thermostat Smart Life

Regular price $231.21
Sale price $231.21 Regular price $0.00
Unit price
AC220V
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
  • Estimated Delivery:Jun 10 - Jun 14

  • Free Shipping & Returns: On all orders over $75

🔒 Secure Checkout
💰 Money Back Guarantee
↩️ Free Returns
🚚 Fast Shipping
WIFI Tuya Temperature Sensor Heater Freezer Controller Digital Thermometer Monitor Alarm Remote Control Thermostat Smart Life

WIFI Tuya Temperature Sensor Heater Freezer Controller Digital Thermometer Monitor Alarm Remote Control Thermostat Smart Life

Product reviews
Product description
Shipping & Return

SPECIFICATIONS

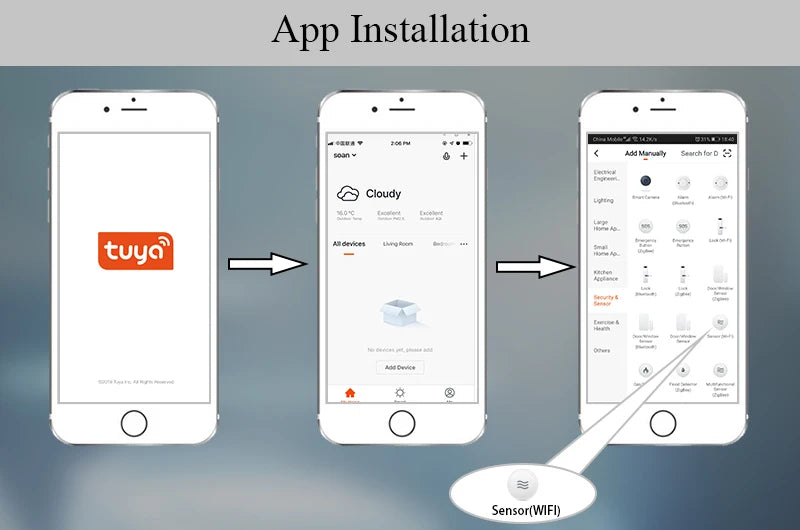

App: Tuya smart or Smart Life

Brand Name: KONLEN

Certification: NONE

Choice: yes

Detecting Temperature: -30℃ to +150℃

High-concerned chemical: None

Measurement error: ±1℃

Model Number: KL-WF96D

Origin: Mainland China

Powered: by AC220V

Sensor cable: 2 meters

Smart home platform: Tuya

WIFI: Wi-Fi 2.4GHZ B/G/N, not support 5G.

relay current capacity: 10A Max

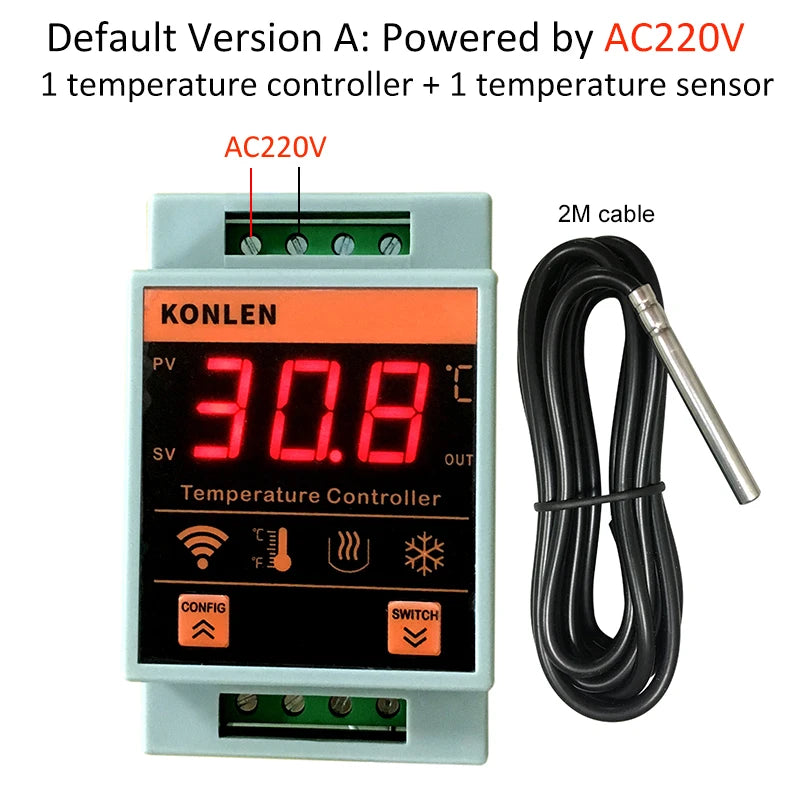

The default version A is: powered by AC220V, can't work with AC110V

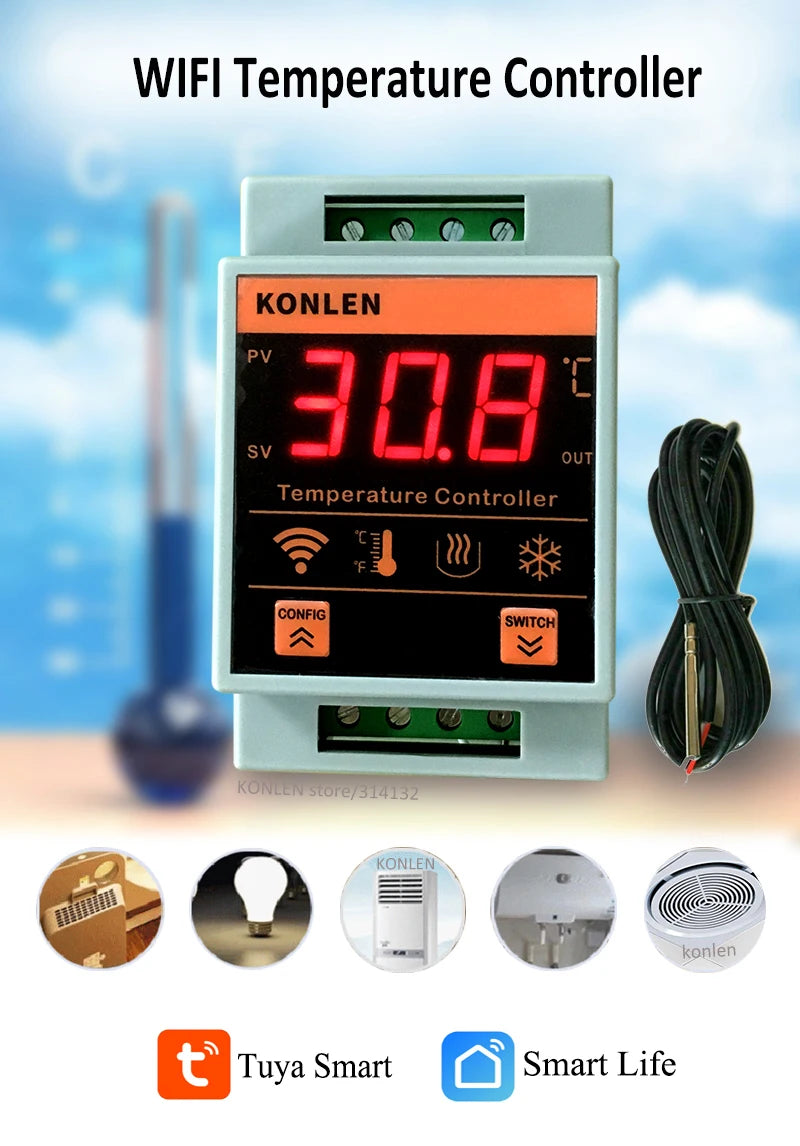

It is a Konlen WIFI timing temperature controller, which can realize temperature monitoring and multi-period timing heating
Or refrigeration control, high or low-temperature APP push alarm. The product is suitable for various commercial and industrial occasions,such as HVAC system, thermal water process, boiler, breeding,  intelligent electromechanical equipment and other heating / cooling control systems.





Main Features:

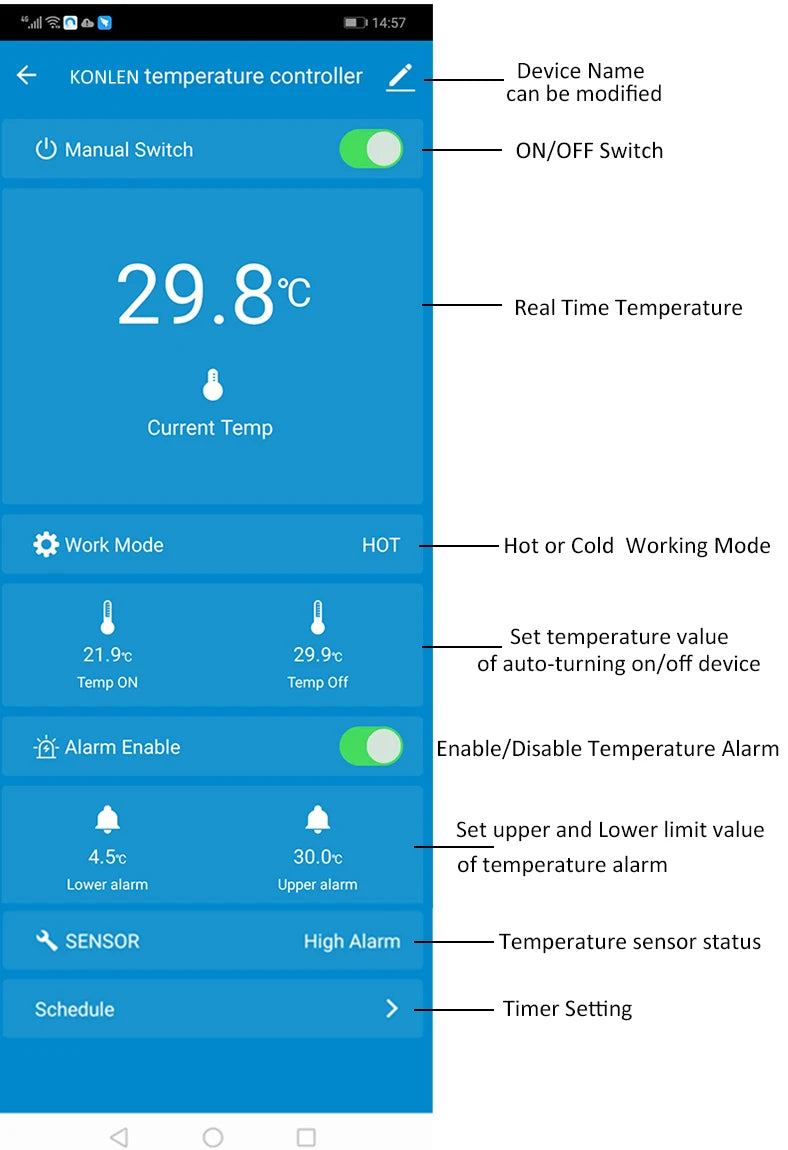

1.Real-Time Supervision: Controller and App display real-time temperature at same time.
2.  Start / stop heating or cooling equipment remotely via App.
3.  Preset Hot or Cold working mode: can auto turn on / off equipment when it reaches to the preset temeprature value.
4. Set upper and Lower limit value of temperature alarm, real-time push alarm notification to users' smartphone.
5. Scheduled on / off, can timing-control equipments.
6. Can use button A and B to turn on / off equipment and set auto-start/stop temperature value manually, so the controller can still work via manual operation when WIFI is offline.
Note:Konlen Temperature alarm notification to App is only available when network is online.

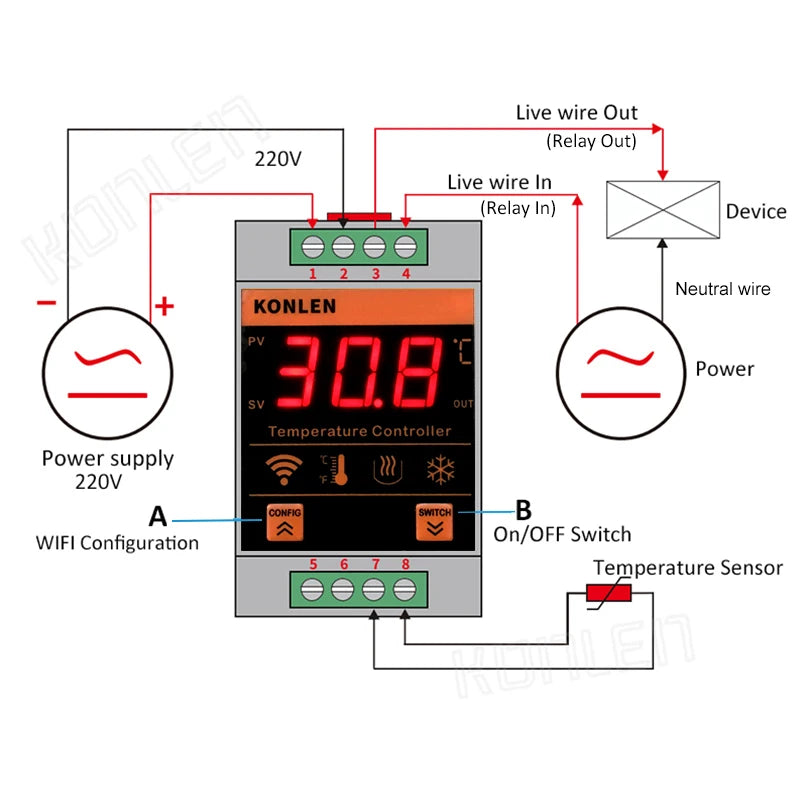

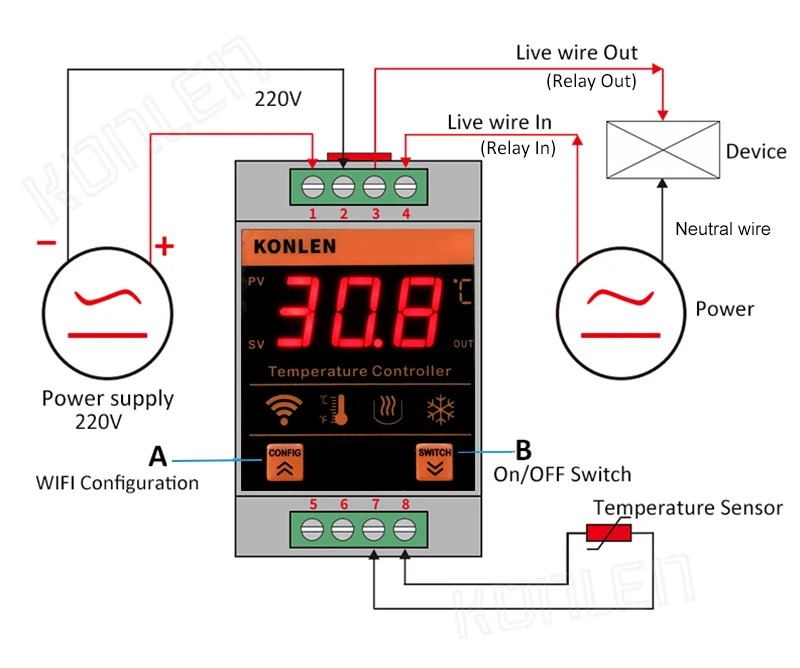

A: WIFI configuration button
B: Turn on/turn off button

The manual switch B is only effective when the current temperature is between the preset start and stop value.

C:Display real time temperature
D: Status LED

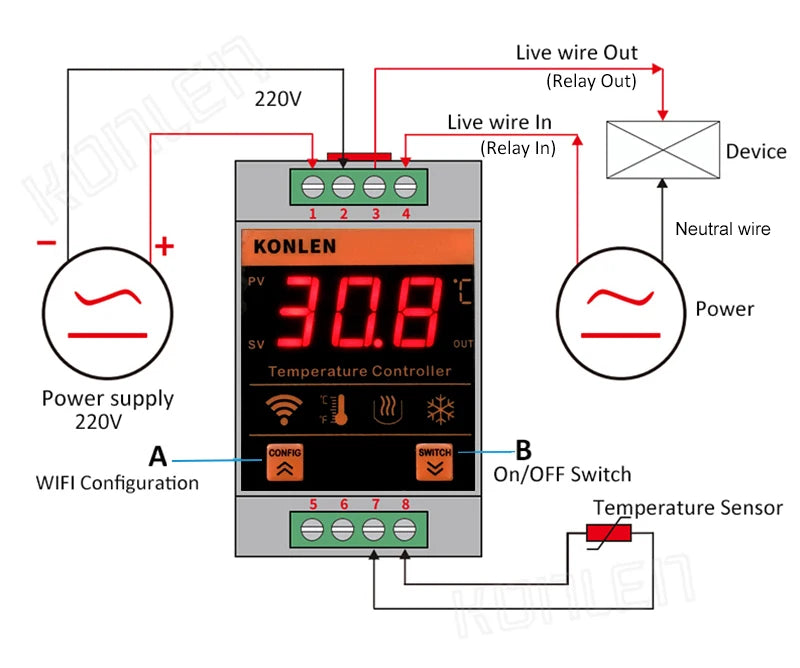

1, 2: Working power input: AC220V (available range from 210V to 240V)
3, 4: Relay normal open output
5, 6: No use
7, 8: Connect with temperature sensor
There is No distinction of positive and negative

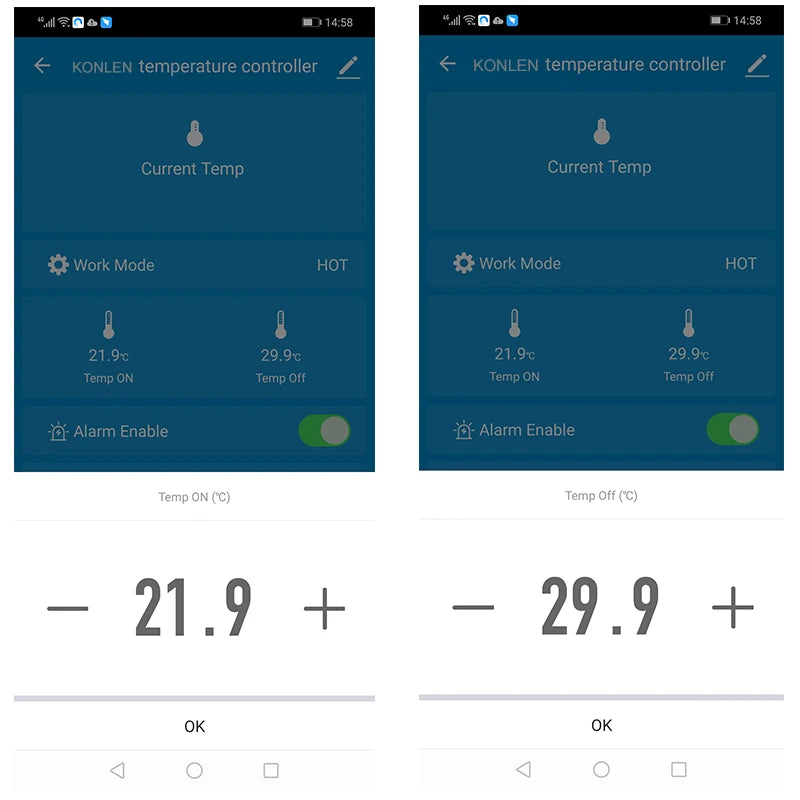

Preset Hot or Cold working mode:

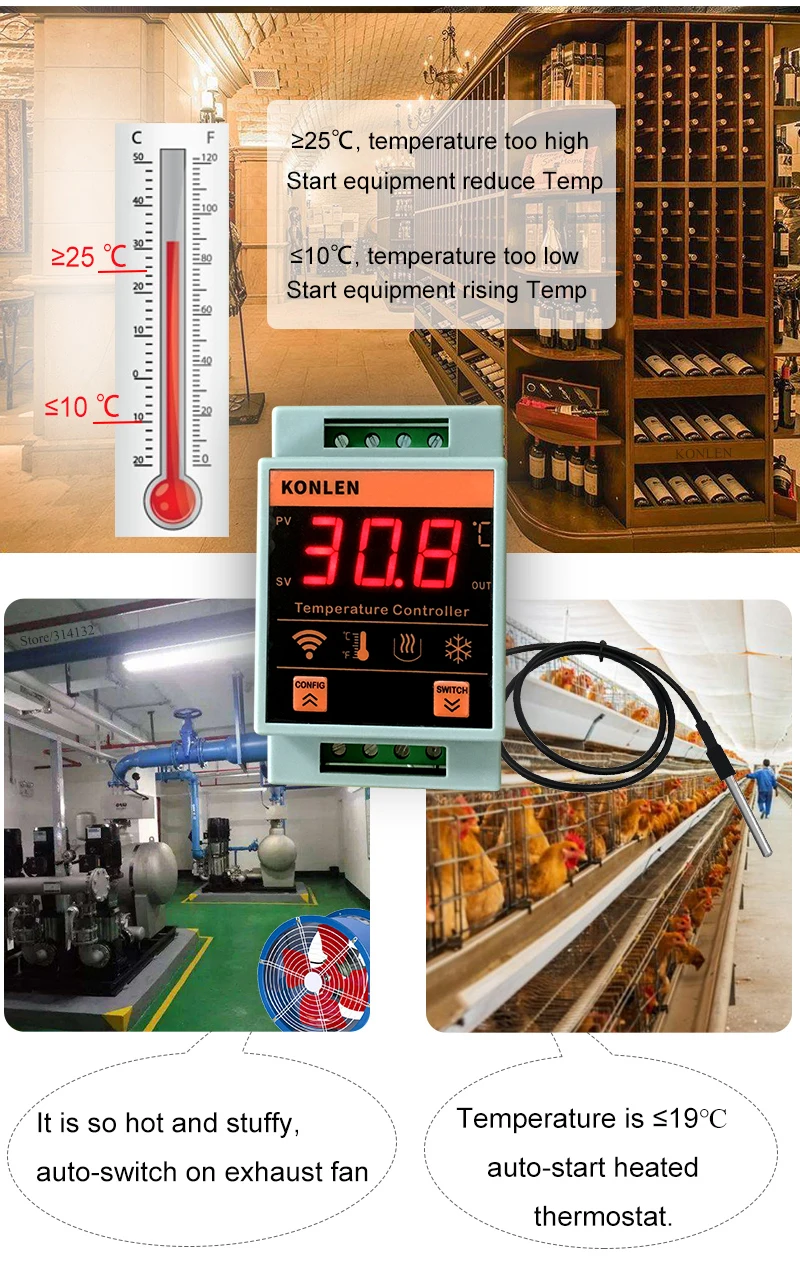

When the preset start temperature is higher than stop value, it is cooling mode. For example,  xx ≥25 °C, start the cooling equipment; xx ≤10°C, stop it.
When the preset start temperature is lower than stop value, it is heating mode. For example, xx ≤5°C, start the heating equipment;  xx ≥20°C, stop it.

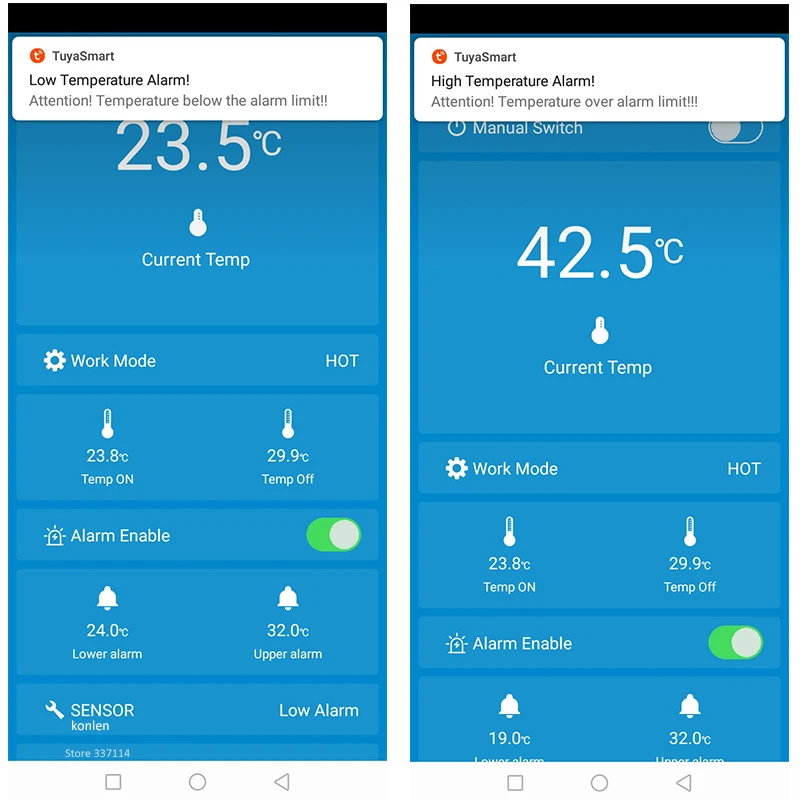

Set upper and Lower limit value of temperature alarm
For example : Set the temperature range ( 25~33 centigrade degree ) .when the temperature in house is within the temperature range , the controller will work normal .  If the temperature is lower than 25 centigrade degree or higher than 33 centigrade degree , it will push alarm notification to users' smartphone via APP.

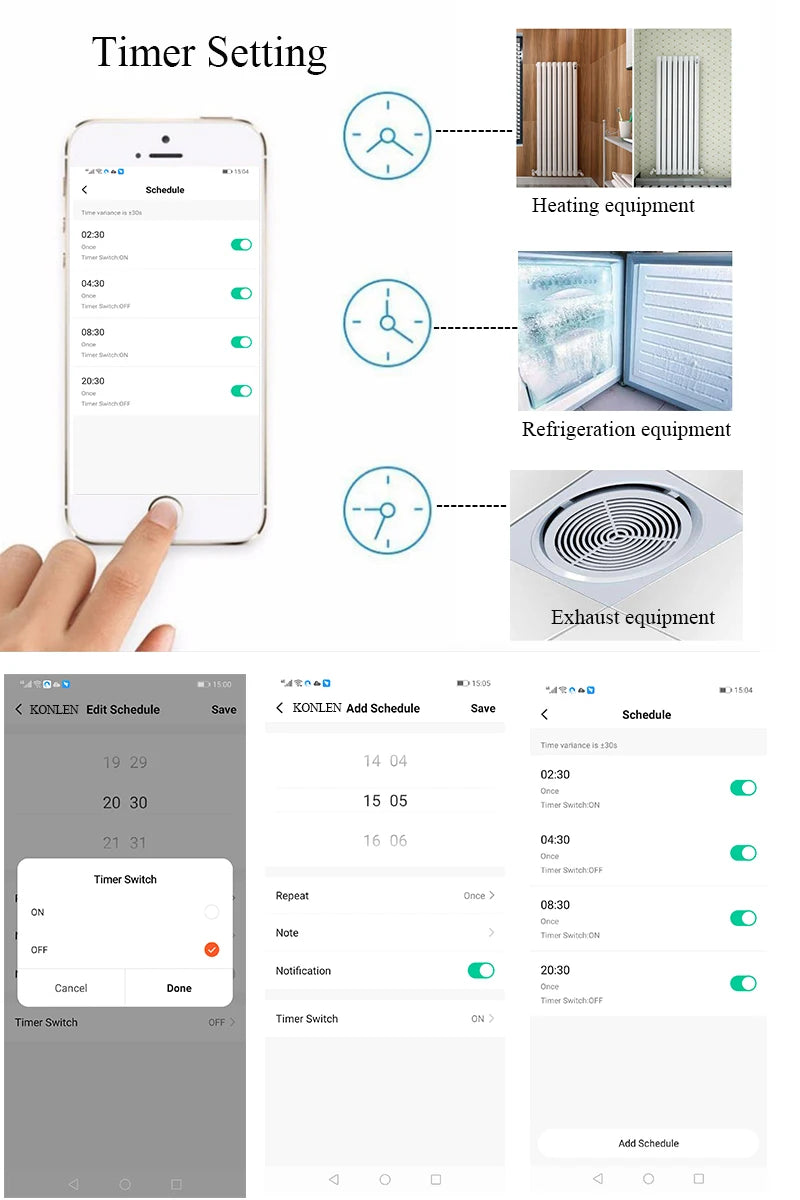

Scheduled on / off, can timing-control equipments.





Packing List:
One temperature controller
One temperature sensor with 2 meter cable.
One English manual instruction.

If you want the probe with longer cable, users can extend it to be about 20 meters Max.




Specification:

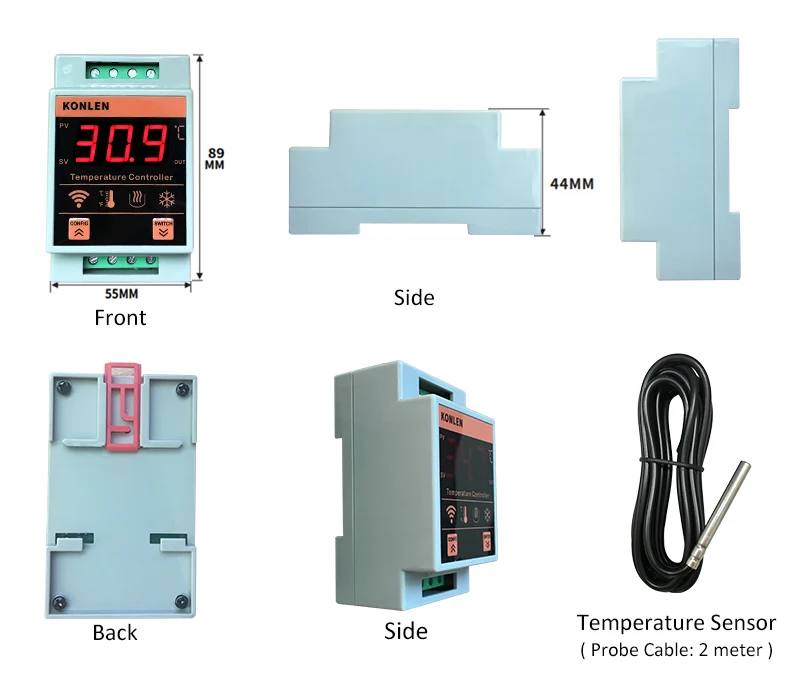

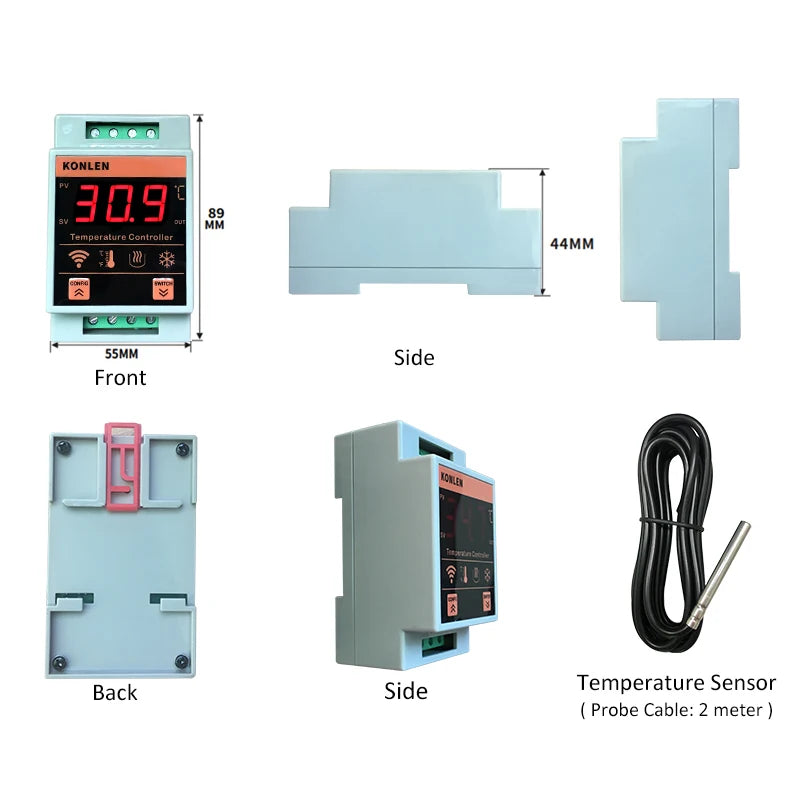

Product Size: 89mm x 55mm x 44mm
Power supply: AC220V (Available range 210V to 240V)

Detecting temperature range: -30℃ to +150℃
Measurement error:  ±1℃
Output: 1 relay output (normal open)
Relay lifespan: 100,000 times.

The contact current capacity is 10A, inductive load 2A,can control 2000W resistive load or 500W motor or water pump.
Need larger loads, please add AC contactors, or it will cause burning danger.

Device working enviroment: -10℃〜50℃
WIFI: Wi-Fi 2.4GHZ B/G/N, not support 5G.
