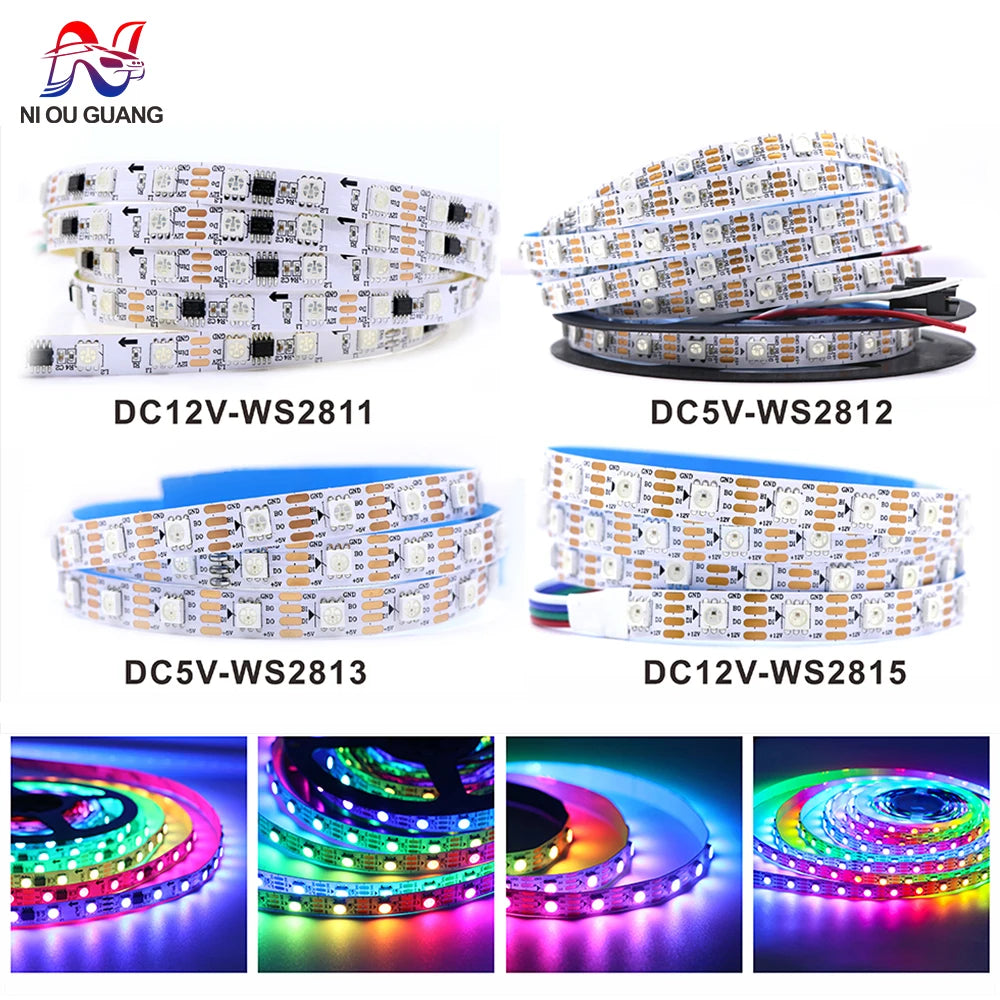

WS2811 WS2812B WS2815 WS2813 RGB IC LED Strip Lights 30/60/144 pixels per meter individually addressable smart lights DC5V/12V
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
WS2811 WS2812B WS2815 WS2813 RGB IC LED Strip Lights 30/60/144 pixels per meter individually addressable smart lights DC5V/12V
SPECIFICATIONS
Brand Name: NONE
Certification: ce,FCC,ROHS,UL,CE,RoHs
Choice: yes
Color Temp(K): RGB
High-concerned chemical: None
Is Batteries Included: No
Is Smart Device: Yes
Item Type: Strip
LED Chip Model: SMD5050
LEDs Number/M: 30/60/144
Luminous Flux: 249-2000
Model Number: 5050
Nominal Voltage: 12 V
Occasion: LIVING ROOM
Origin: Mainland China
Power Generation: light
Power Source: DC
Strip type: SMD
Voltage: 5V/12V
Waterproof: Yes
semi_Choice: yes
Attention
1. Price includes only the LED strip, excluding the power supply or LED controller! Power supplies and smart controllers need to be purchased separately.
2. If you have any questions about the product, feel free to contact us. We will assist you in resolving the issue as soon as possible.
This LED strip link does not include a controller and power supply.
# LED Strip Product Description
## Attention:
1. 0.5m length LED strips are common in electronic products and not a quality issue. If you mind this, please do not order!
2. **IP Ratings:**
- IP30: Non-waterproof
- IP65: Silicon-coated waterproof
- IP67: Silicone tube waterproof (no double-sided tape)

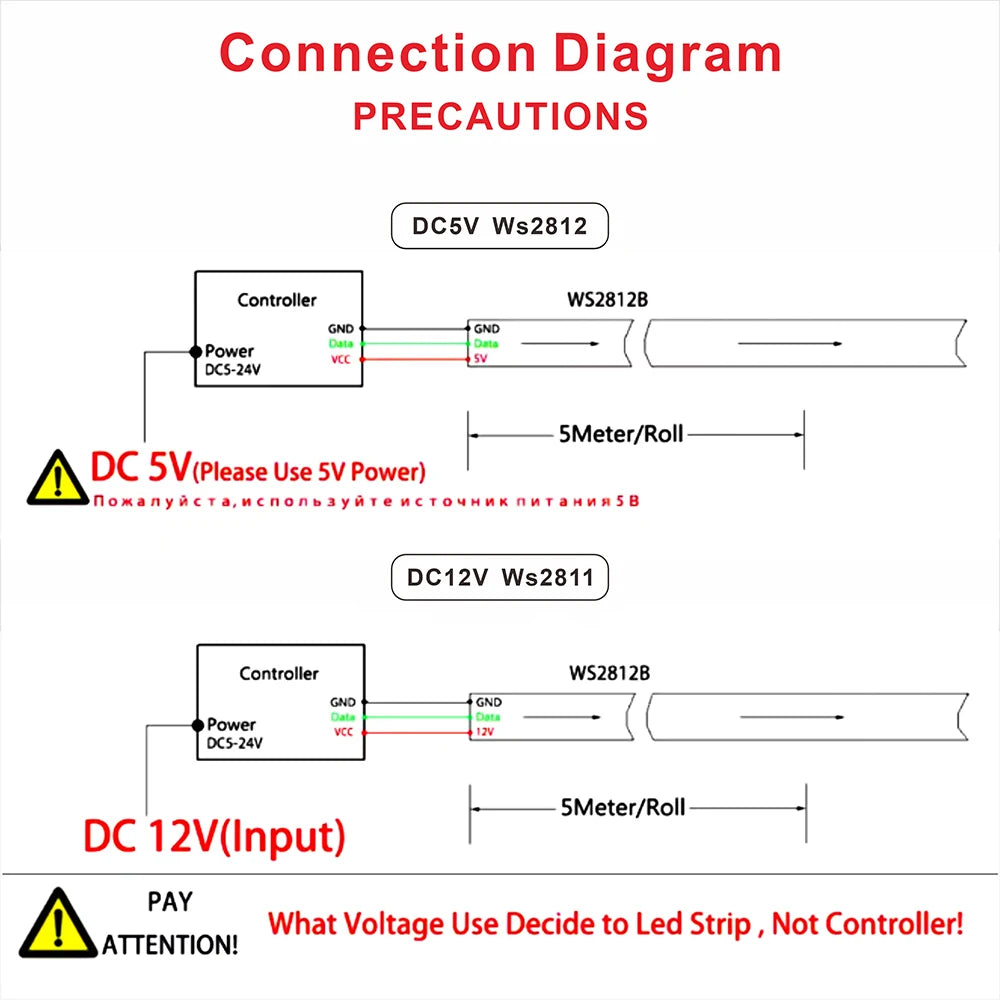

- **Power Requirements:**

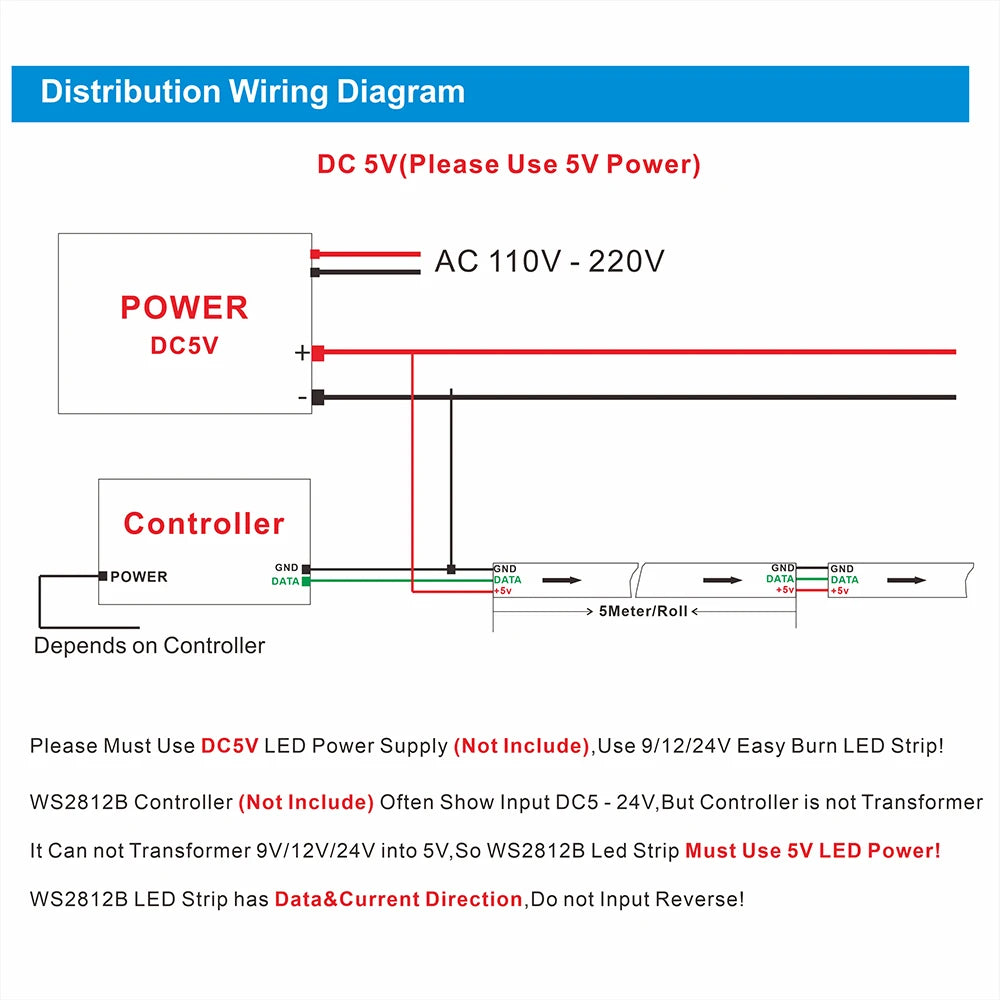

- WS2812B / WS2813: Must use DC5V LED power supply

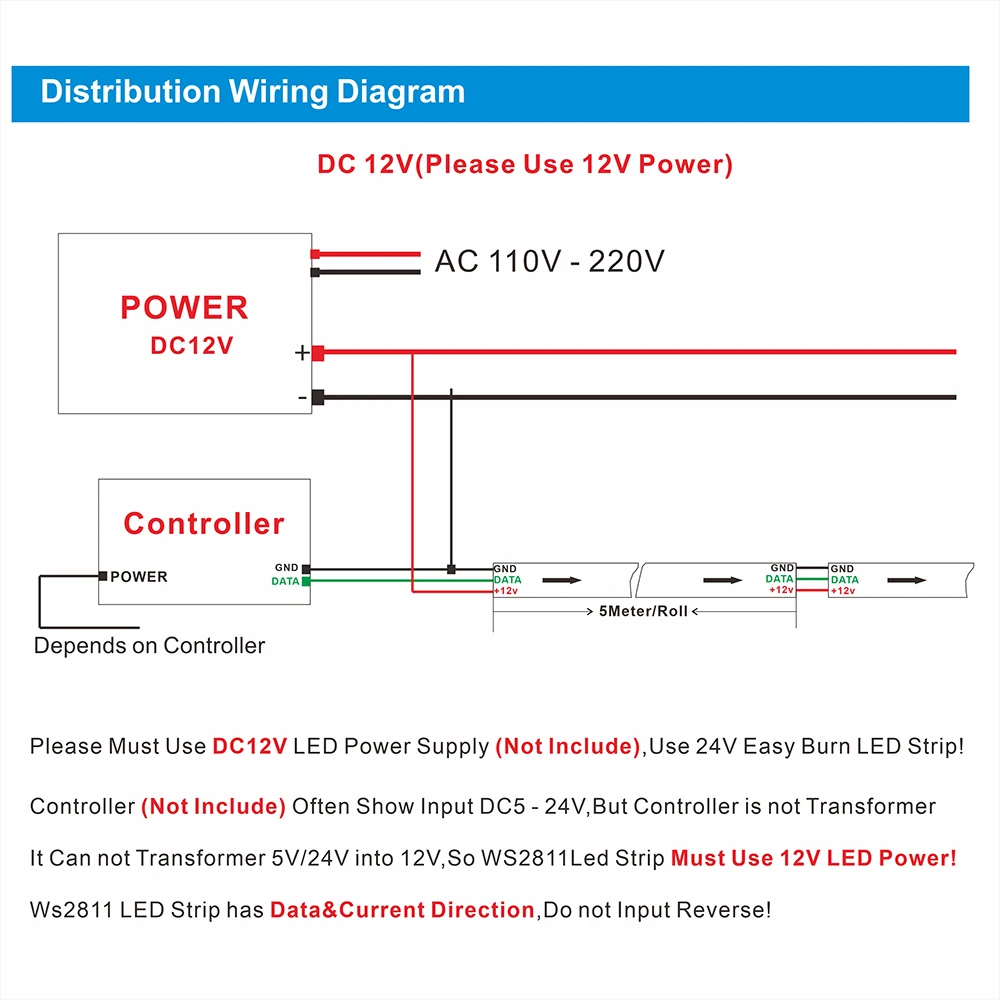

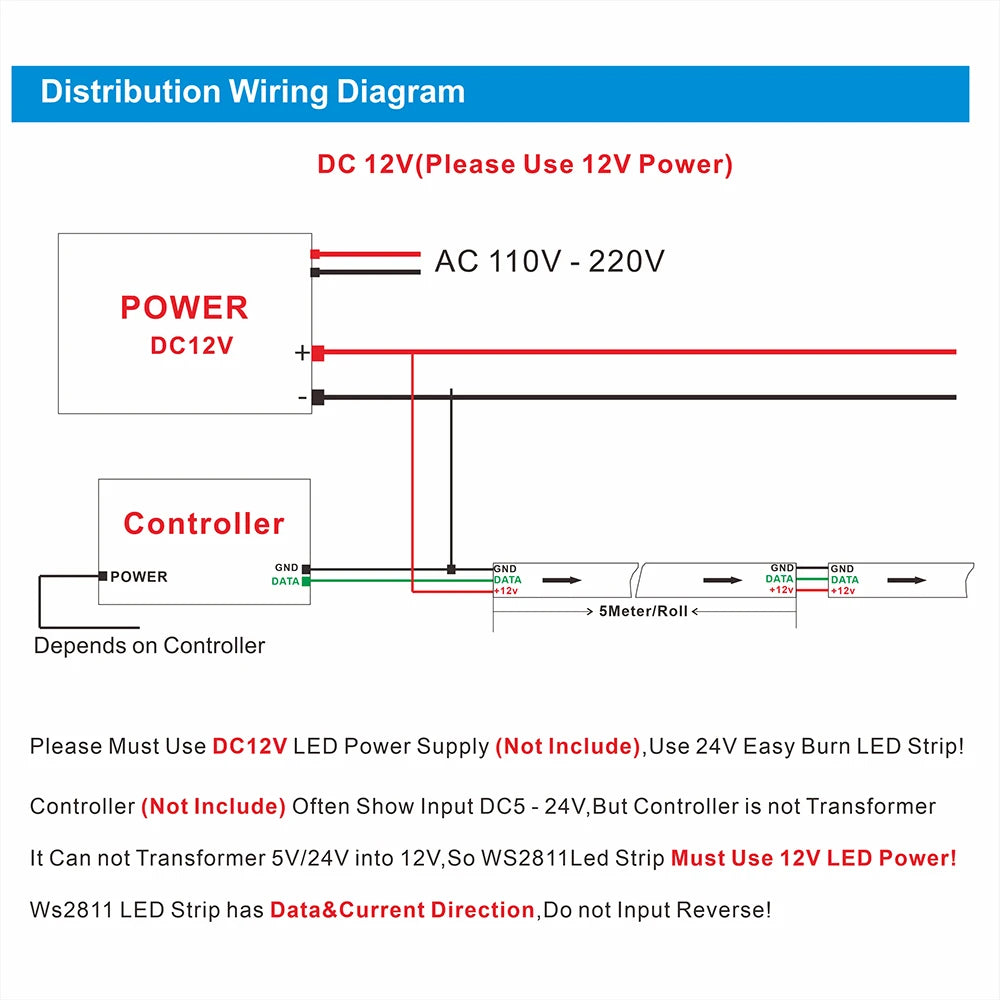

- WS2811 / WS2815: Must use DC12V LED power supply
This listing does **not** include a power supply or LED controller.

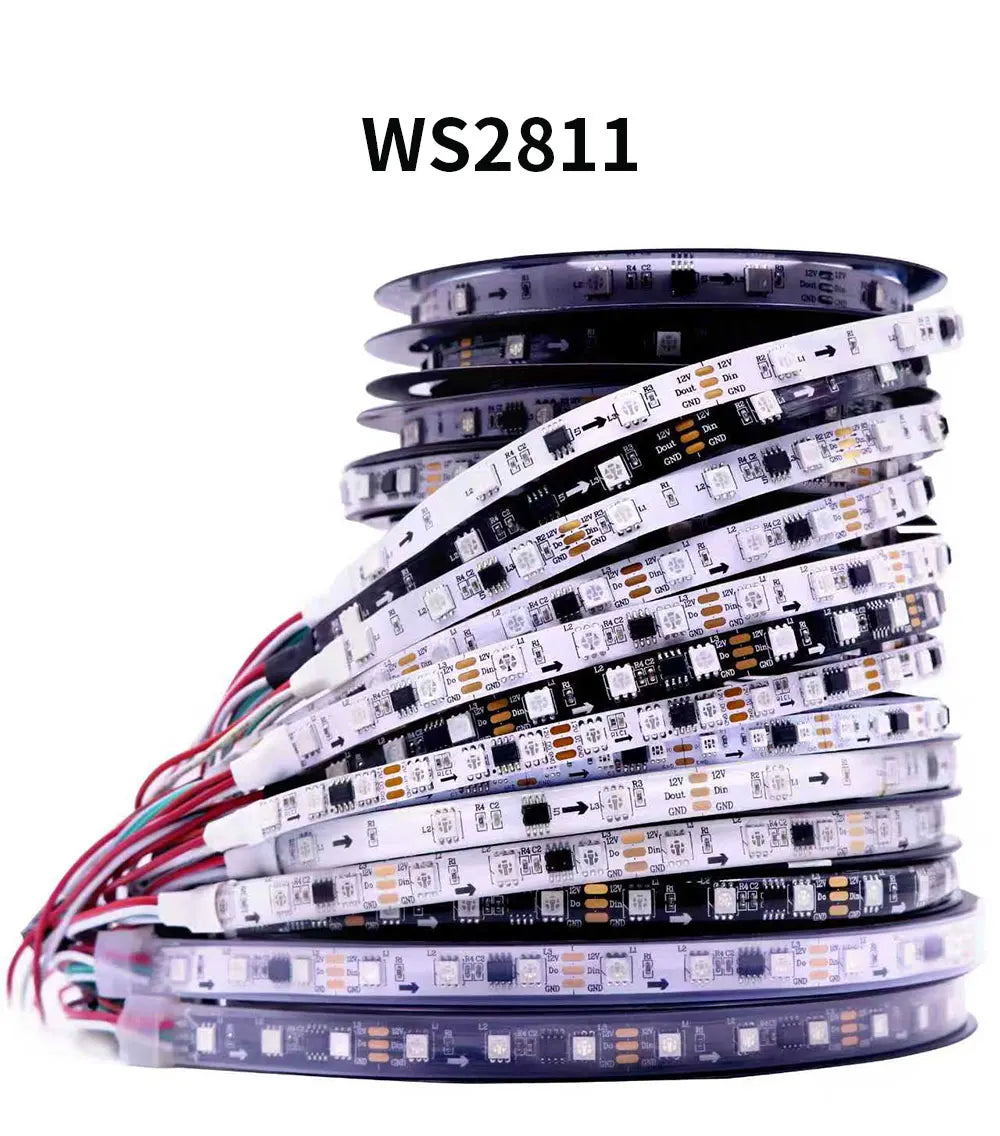

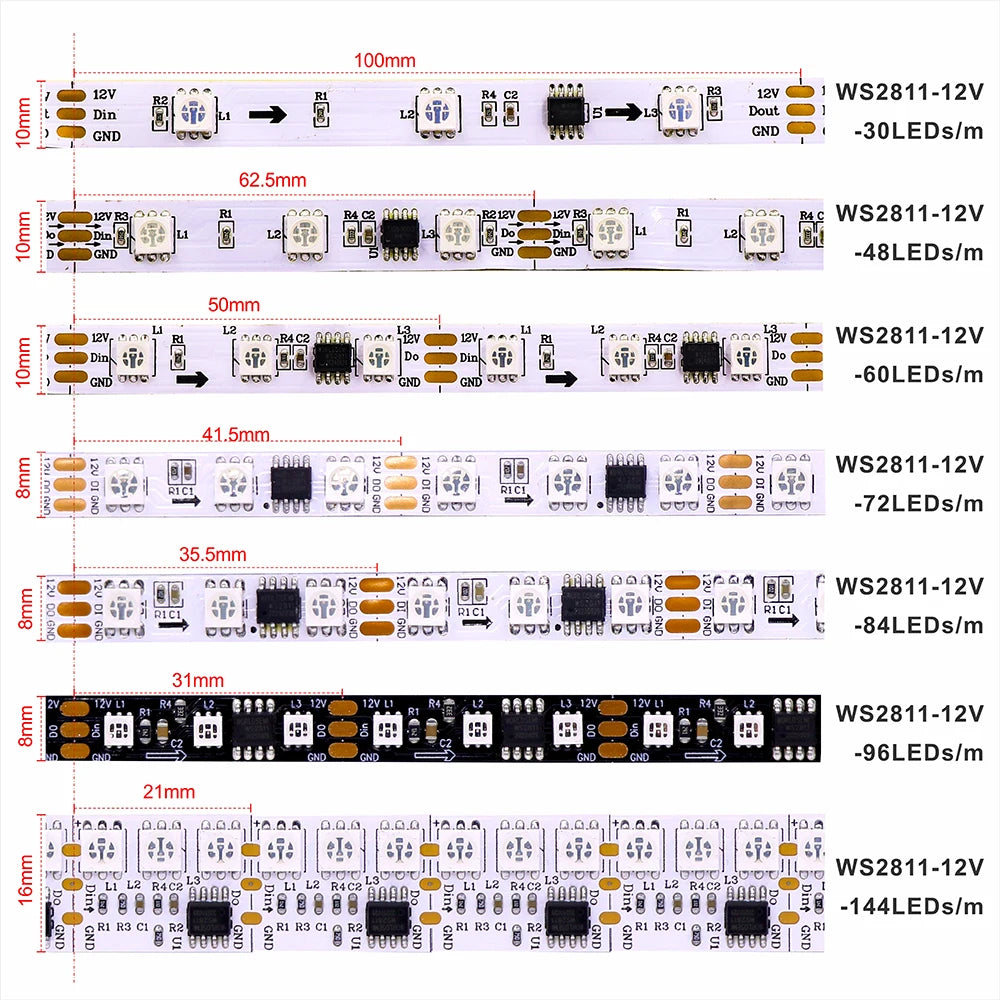

DC12V WS2811 LED:
(1) Operating Voltage: DC12V
(2) LED Source: SMD 5050 RGB
(3) LED Quantity: 30 LEDs/m; 48 LEDs/m; 60 LEDs/m; 84 LEDs/m; 96 LEDs/m
(4) IC Quantity: 10/16/20/24/32 pcs
(5) Power: 7.5/12/14.5/21/24 W/m
(6) Grayscale: 256-level / Full Color
(7) Cuttable Feature: 3 LEDs per cut (similar to WS2811, 1 IC controls 3 LEDs)
(8) Beam Angle: 120°
(9) Color Modes: 133 patterns & 100 speed levels
(10) IP Rating: IP30 (Non-waterproof) / IP65/67 (Waterproof)
(11) Dimension: 5000 x 10 x 2.4 mm

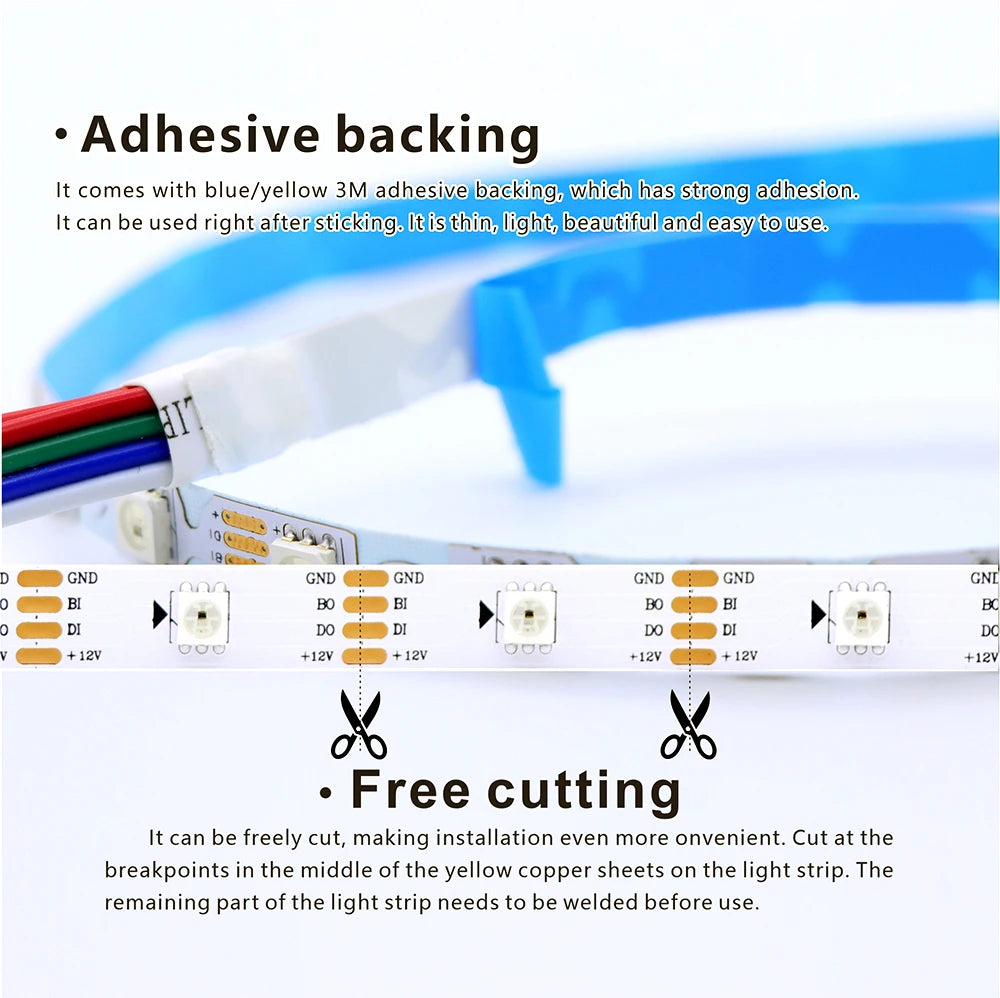

(12) Packaging: Anti-static bag; IP30/IP65 versions with 3M adhesive tape on the back (IP67 version without 3M adhesive tape)
(13) FPC Width:
30 LED/m - 10 mm
48 LED/m - 10 mm
60 LED/m - 10 mm
84 LED/m - 8 mm
96 LED/m - 8 mm
144 LED/m - 16 mm

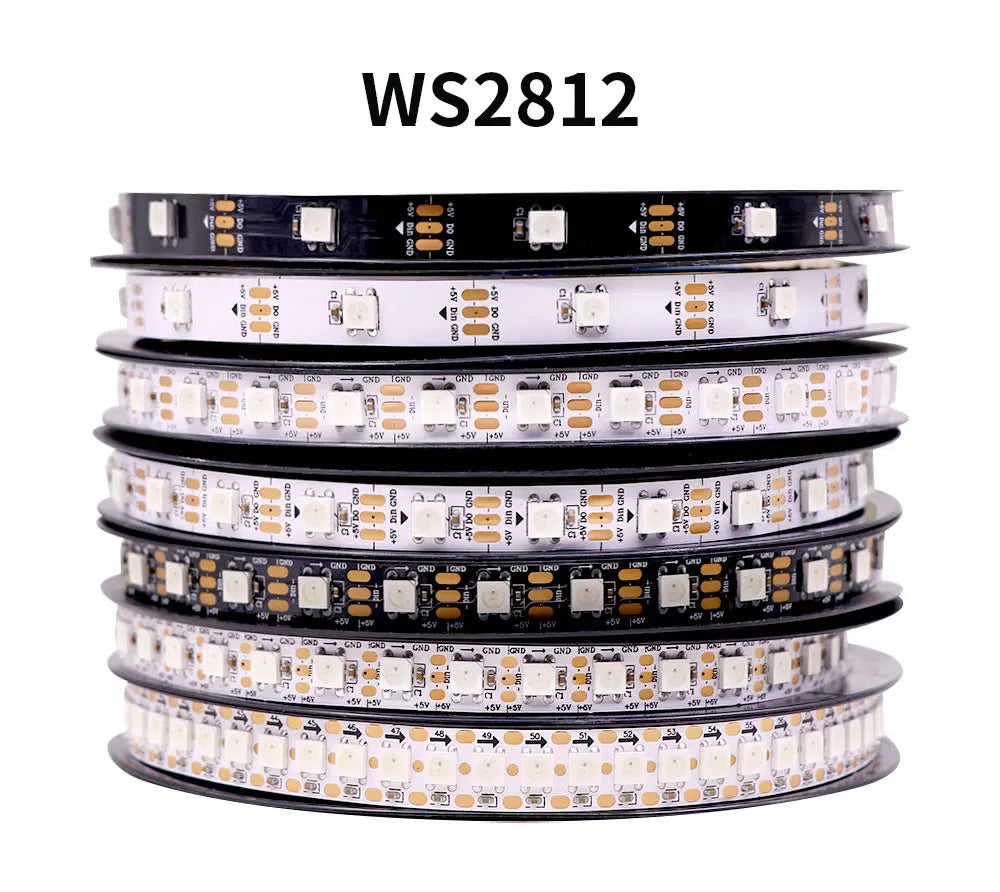

DC5V WS2812 LED
Input Voltage: DC5V
LED Light Source: WS2812B LED

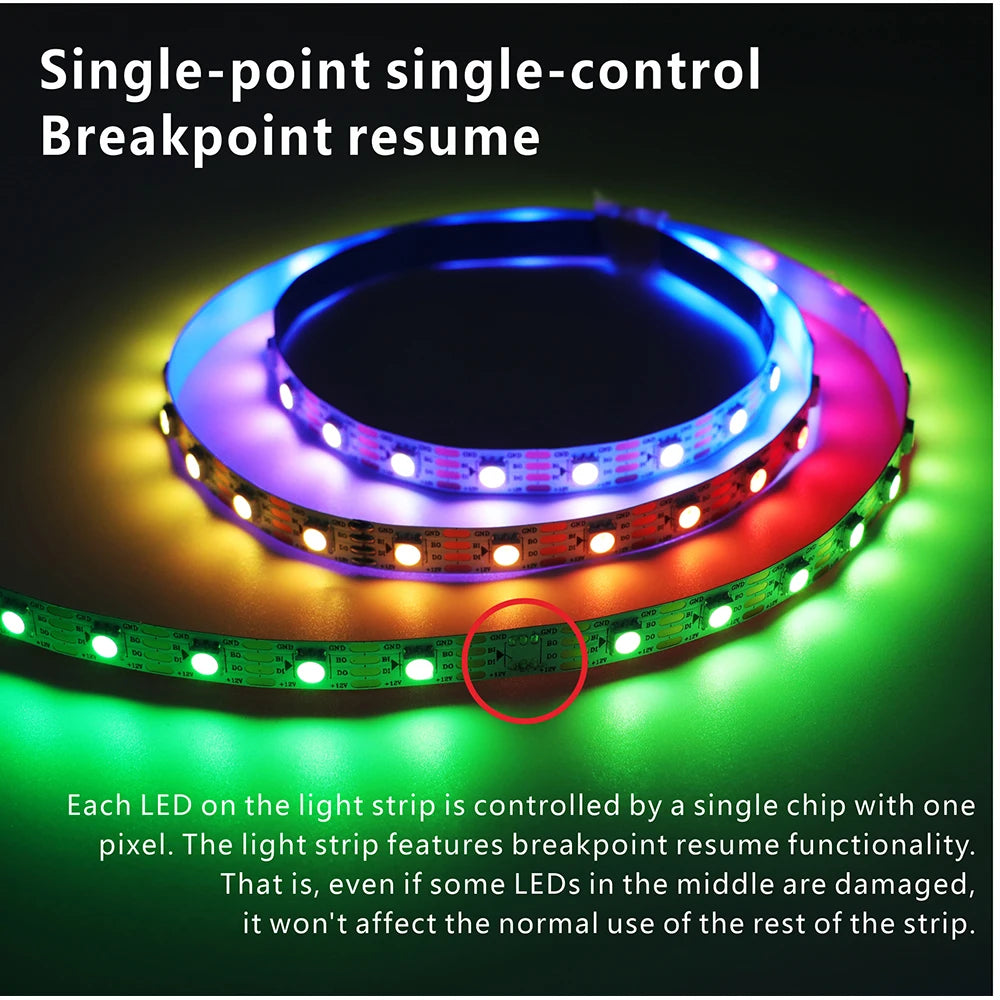

LED Control: Individual control for each LED
IC Type: WS2812 IC (built-in 5050 SMD RGB LED)
IC Quantity: 1 IC drives 1 LED chip
Pixels (LED Quantity): 30 LEDs/m; 60 LEDs/m; 74 LEDs/m; 96 LEDs/m; 144 LEDs/m
Power: 9/18/21/25/35 W/m
Pitch: 16.6mm (1000/60)
Grayscale: 256 levels
Bits per Color: 8 bits/color
-

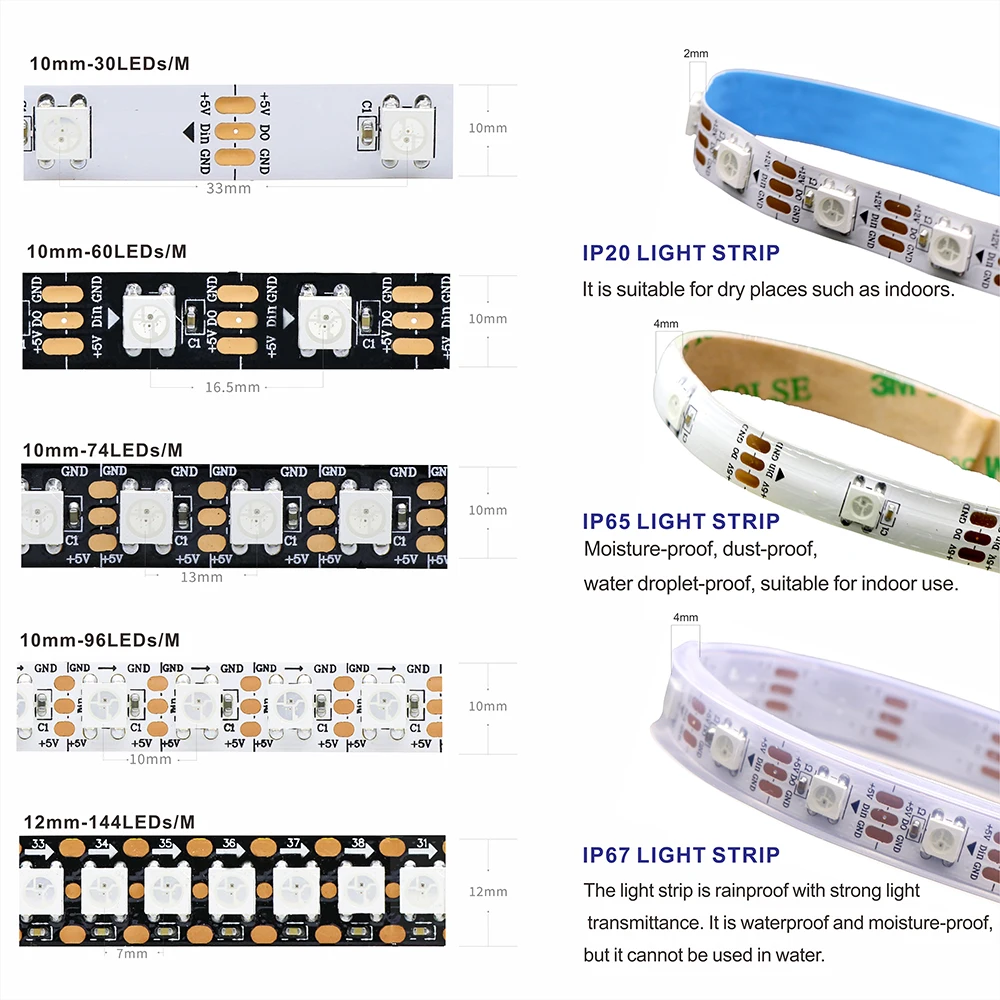

FPC Width:
30 LED/m - 10mm
60 LED/m - 10mm
74 LED/m - 10mm
96 LED/m - 12mm
144 LED/m - 12mm
FPC Color: Black/White
Protection Class (IP Rating): IP30 (Bare Board) / IP65 (Potting) / IP67 (Waterproof)
Color: Full-color RGB with dreamy color changing
Cuttable Feature: Each LED is cuttable
Packaging: Anti-static bag; IP30/IP65 versions with 3M adhesive tape on the back (IP67 version without 3M adhesive tape)

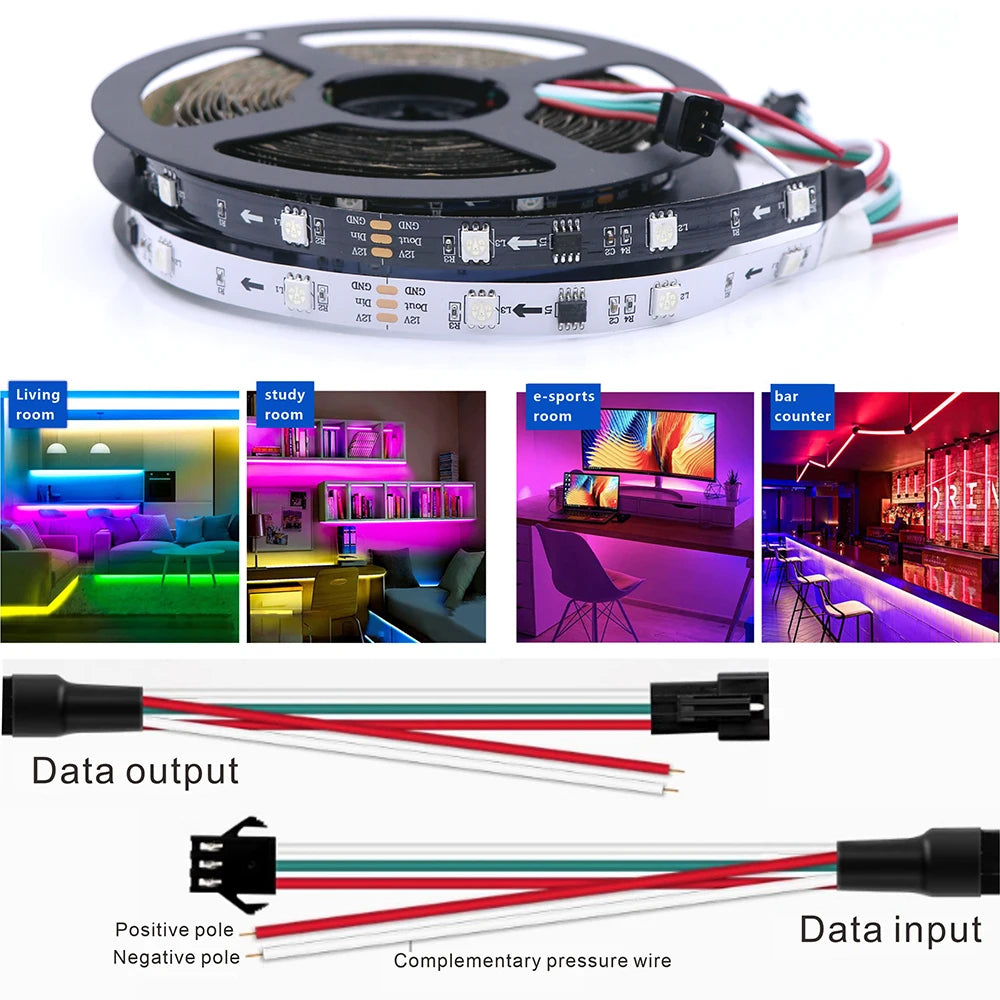

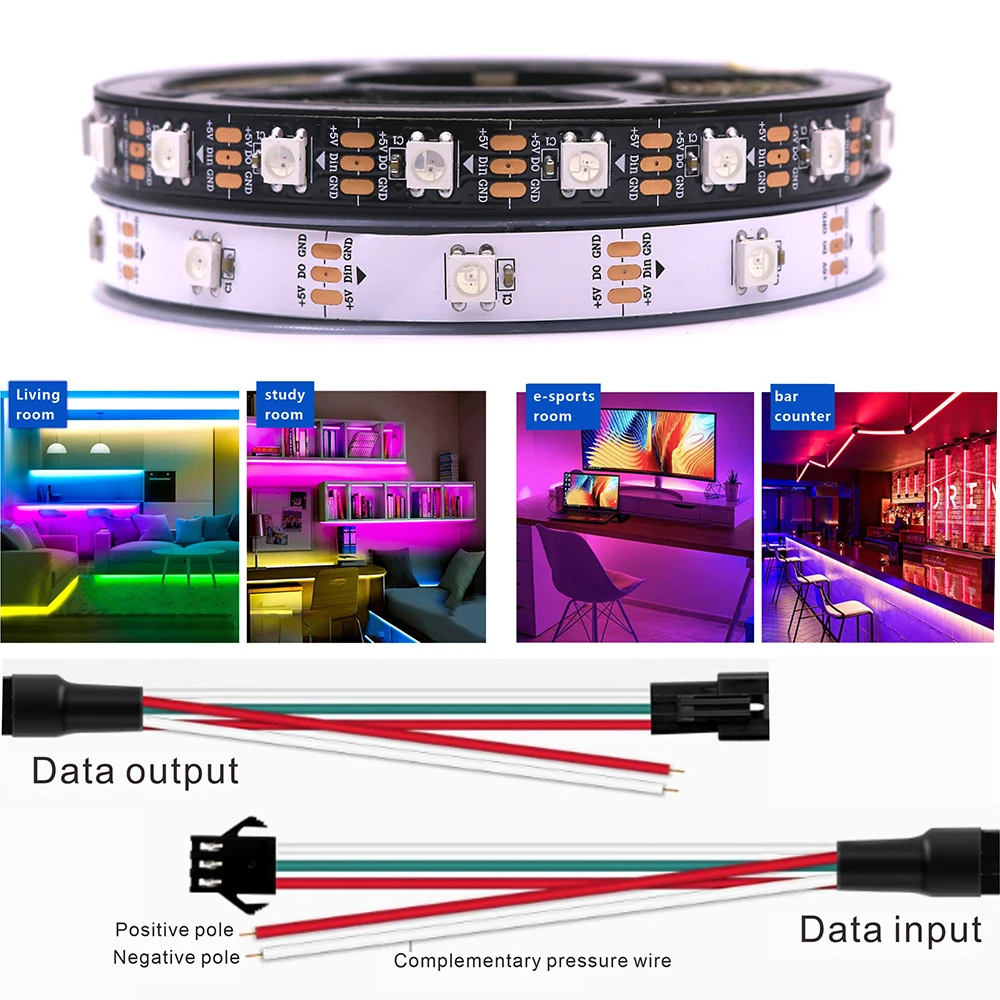

Connector: 3PIN connector pair (Red: Positive Pole, Green: Signal Line, White: Negative Pole)

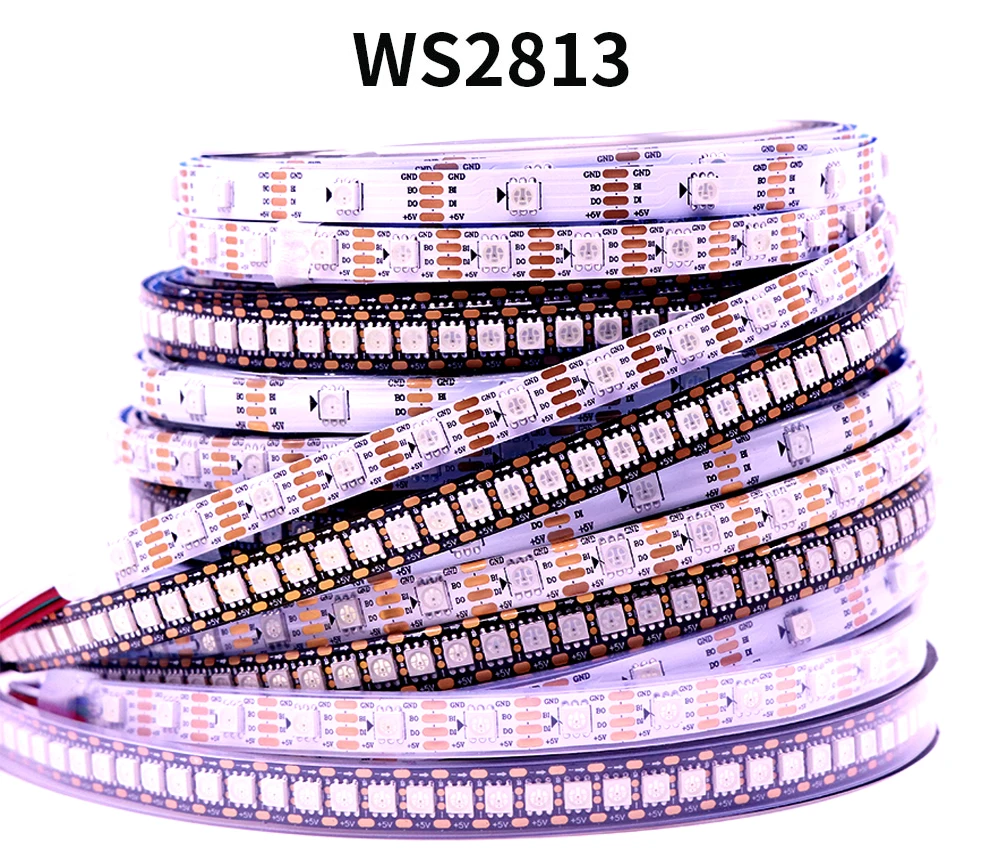

DC5V WS2813 LED
Input Voltage: DC5V
Pixels (LED Quantity): 30 LEDs/m; 60 LEDs/m; 96 LEDs/m; 144 LEDs/m
Power: 9/18/21/25/35 W/m
Pitch: 16.6mm (1000/60)
LED Light Source: WS2813 LED
LED Control: Individual control for each LED
IC Type: WS2813 IC (built into 5050 SMD RGB LED)
IC Configuration: 1 IC drives 1 LED chip
Grayscale: 256 levels
Color: Full-color RGB with dreamy color changing
Bits per Color: 8 bits/color
FPC Color: Black/White
-

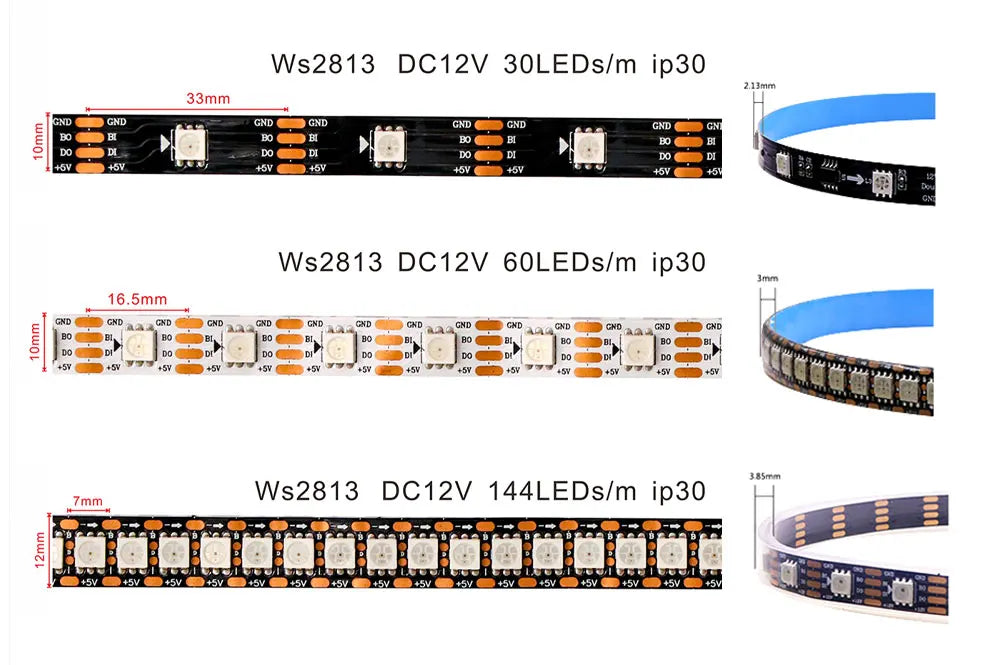

FPC Width:
30 LEDs/m - 10 mm
60 LEDs/m - 10 mm
96 LEDs/m - 10 mm
144 LEDs/m - 12 mm
Protection Class (IP Rating): IP30 (Non-waterproof) / IP65 (Waterproof with silicone coating) / IP67 (Waterproof with silicone tube)
Cuttable Feature: All LEDs are cuttable
Packaging: Anti-static bag; IP30/IP65 versions with 3M adhesive tape on the back (IP67 version without 3M adhesive tape)
Operating Temperature: -40 - 70 °C
Storage Temperature: -50 - 80 °C
Service Life: 50,000 hours

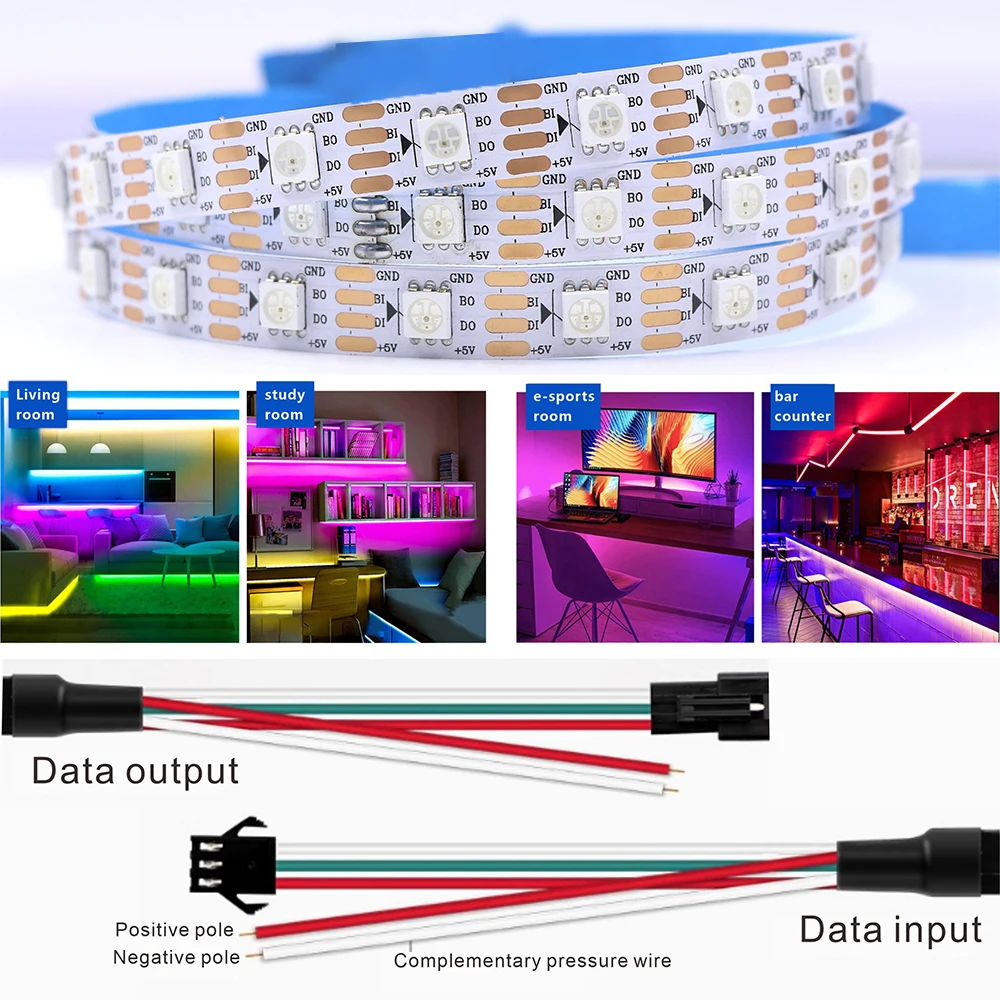

Connector: 4PIN connector pair (Red: Positive Pole, Green: Signal Line, Blue: Secondary Signal Line, White: Negative Pole)

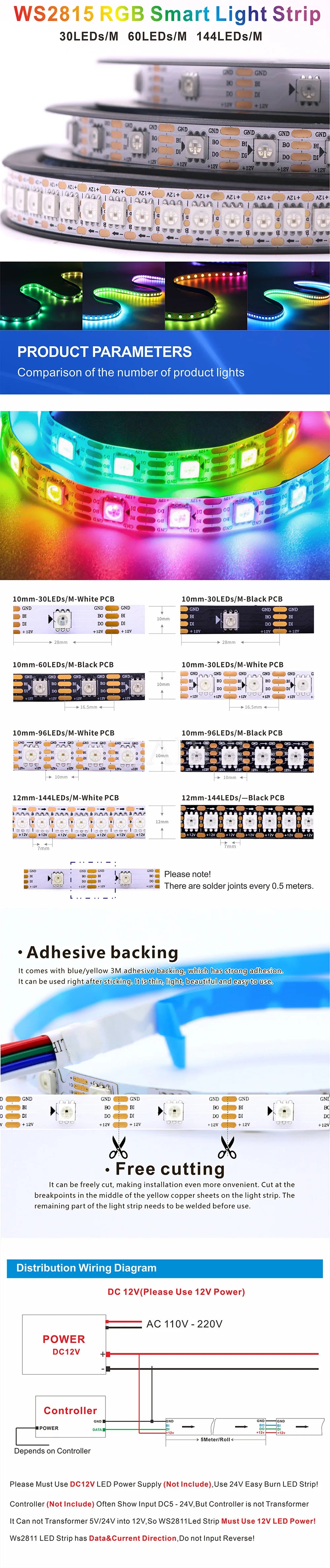

DC12V WS2815 LED Light
Input Voltage: DC12V
Pixels (LED Quantity): 30 LEDs/m; 60 LEDs/m; 96 LEDs/m; 144 LEDs/m
Power: 9/18/25/35 W/m
Pitch: 16.6mm (1000/60)
LED Light Source: WS2815 LED (5050 SMD RGB LED)
LED Control: Individual control for each LED
IC Type: WS2815 IC (built into 5050 SMD RGB LED)
IC Configuration: 1 IC drives 1 LED chip
Grayscale: 256 levels
-
FPC Width:
30 LEDs/m - 10mm
60 LEDs/m - 10mm
96 LEDs/m - 12mm
144 LEDs/m - 12mm
FPC Color: White PCB/Black PCB
Protection Class (IP Rating): IP30 / IP65 / IP67
Color: Full-color RGB with dreamy color changing
Cuttable Feature: All LEDs are cuttable
Packaging: Anti-static bag; IP30/IP65 versions with 3M adhesive tape on the back (IP67 version without 3M adhesive tape)
Operating Temperature: -40 ~ 70 °C
Storage Temperature: -50 ~ 80 °C
Service Life: 50,000 hours
Connector: 4PIN connector pair (Red: Positive Pole, Green: Signal Line, Blue: Secondary Signal Line, White: Negative Pole)
