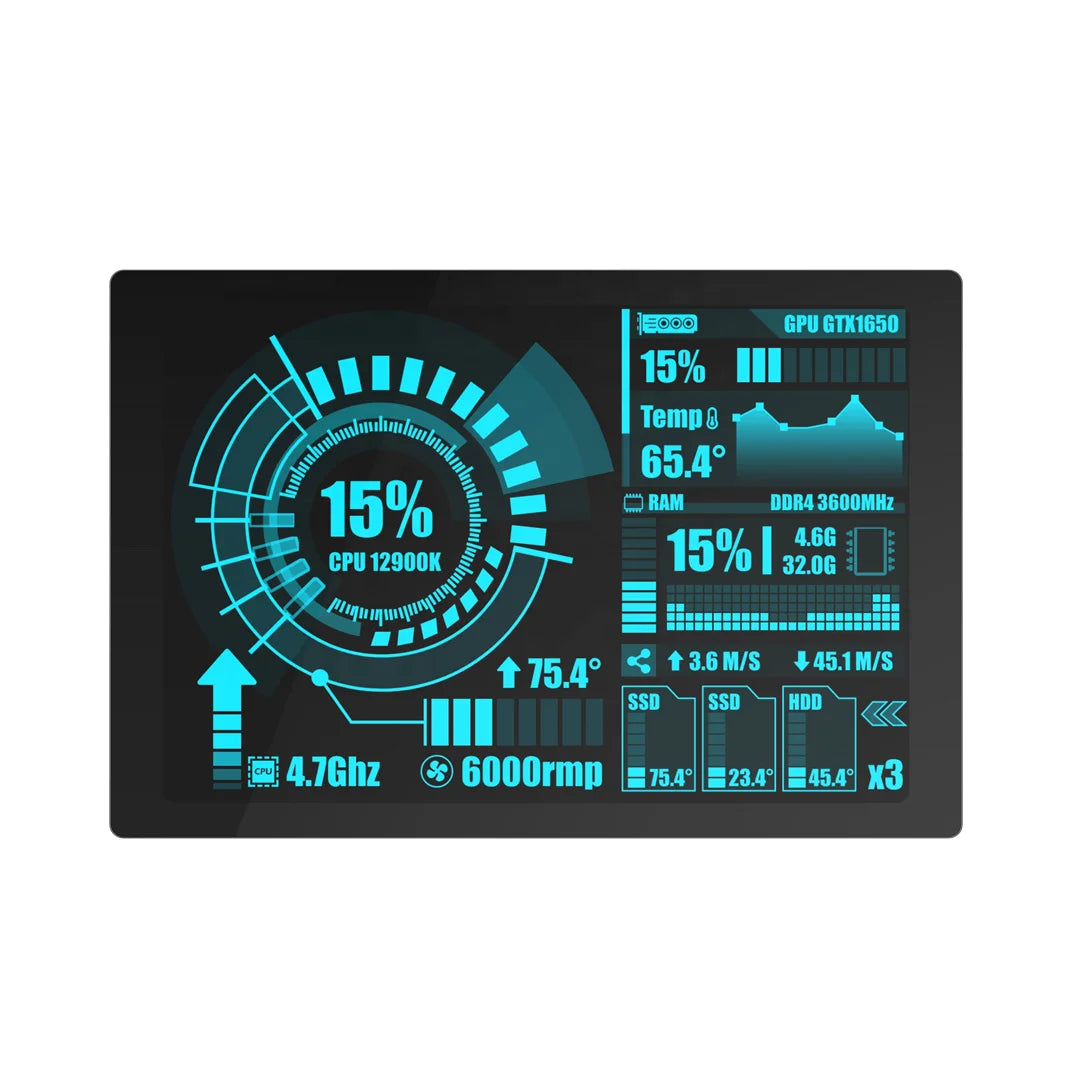

WT32-SC01 PLUS 16MB ESP32 Display IPS LCD Touch Screen Linux 3.5 Inch Esp32-s3 LCD Module All-fit Black Effect Smart Displays
WT32-SC01 PLUS 16MB ESP32 Display IPS LCD Touch Screen Linux 3.5 Inch Esp32-s3 LCD Module All-fit Black Effect Smart Displays
WT32-SC01 PLUS 16MB ESP32 Display IPS LCD Touch Screen Linux 3.5 Inch Esp32-s3 LCD Module All-fit Black Effect Smart Displays
WT32-SC01 PLUS 16MB ESP32 Display IPS LCD Touch Screen Linux 3.5 Inch Esp32-s3 LCD Module All-fit Black Effect Smart Displays
WT32-SC01 PLUS 16MB ESP32 Display IPS LCD Touch Screen Linux 3.5 Inch Esp32-s3 LCD Module All-fit Black Effect Smart Displays
WT32-SC01 PLUS 16MB ESP32 Display IPS LCD Touch Screen Linux 3.5 Inch Esp32-s3 LCD Module All-fit Black Effect Smart Displays

WT32-SC01 PLUS 16MB ESP32 Display IPS LCD Touch Screen Linux 3.5 Inch Esp32-s3 LCD Module All-fit Black Effect Smart Displays

Regular price $483.00
Sale price $483.00 Regular price $0.00
Unit price
Compare Ask a question

Ask a Question

* Required fields

 Size guide Share

  • Estimated Delivery:Jun 10 - Jun 14

  • Free Shipping & Returns: On all orders over $75

🔒 Secure Checkout
💰 Money Back Guarantee
↩️ Free Returns
🚚 Fast Shipping
WT32-SC01 PLUS 16MB ESP32 Display IPS LCD Touch Screen Linux 3.5 Inch Esp32-s3 LCD Module All-fit Black Effect Smart Displays

WT32-SC01 PLUS 16MB ESP32 Display IPS LCD Touch Screen Linux 3.5 Inch Esp32-s3 LCD Module All-fit Black Effect Smart Displays

Product reviews
Product description
Shipping & Return

SPECIFICATIONS

Brand Name: Wireless-tag

CPU: Dual core Xtensa 32 bit LX6 mcu

Certification: ISO9001,ce,Reach,FCC

Dimensions: 60mm*92mm*10.8mm

Display: 3.5 inch, LCD Screen

Display Size: 3.5"

LCD Interface: MCU8080 8Bit

Module: WT32-S3-WROVER-N16R2

Place of Origin: Guangdong, China

Power: DC 5V 2A

Resolition: 480*320

Resolution: 480x320

Screen: All-fit black effect IPS Screen

Supplier Type: Original

Type: IPS

Work Temperature: -20°C~70°C

Product Description

Brief Introduction:
1. WT32-SC01 Plus is a development board for color touch screen, the board is equipped with GUI platform firmware developed independently, support graphic drag and drop programming to help users complete the development of customized control platform.
2. The main controller of WT32-SC01 Plus development board adopts WT32-S3-WROVER-N16R2 module, this module is a general-purpose WiFi + BT + BLE MCU module, 16MB SPI flash and 2MB PSRAM are configured in.
3. WT32-SC01 has been upgraded to WT32-SC01 Plus  that development board can esay to assemble,can be perfectly combined with the user's product through the buckle,all-fit black effect and good heat dissipation.
4.It also develop and debug functions such as buttons, voice and camera through the expansion interfaces on both sides, greatly shorten the development cycle of users.
Product Parameters
1.Specification Details
Product Type
Development board
Product Model
WT32-SC01 Plus
CPU
Dual core xtensa 32 bit LX6 MCU
Module
WT32-S3-WROVER-N16R2
WIFI
2.4GHz WiFi 802.11 B / g / N protocol
Blue-tooth
V4.2 BR/EDR/BLE standard
Display
3.5 inch, LCD screen, two touch
Resolition
480*320
Power
DC 5V 2A
OperatingTemperature
-20~70°C
Interface
Speaker/TP/LCM/RST/Type-C/UART
Clock frequency
80 ~ 240 MHz
Antenna
PCB board
Dimension
92mm*60mm*10.8mm

2. PCB Dimension Diagram
3. Physical Dimension
>> Send me inquiry for price, packing, shipping, sample, OEM & ODM service details!
Related Products
Product Application
Customer Review
Why Choose Us
Why should you buy from us not from other suppliers?
1. Wireless-Tag is original factory and authorized distributor of Espressif for 8 years, a core partner of Sigmastar, and have factory for 14 years.
2. Provide WIFI and BLE wireless chips and modules, HMI, Artificial Intelligence, and Industrial Control embedded products. Ensure best quality and best price.
3. Satisfied service. Support technical support, datasheet, solution and after-sale service.
4. Equipped with full certificate: CE/FCC/RoHs/Red/ISO9001...
5. High R&D ability. More than 50 R&H team.
Company Profile
Wireless-Tag Technology Co., Limited., established in 2013 and located in Shenzhen, China, is a leading provider of Internet of Things communication products and overall solutions. We provide Internet of Things, WIFI and BLE wireless communication chips and modules, Human Machine Interfaces, Artificial Intelligence, and Industrial Control embedded products. The solutions we supplied have served more than 1,000 companies worldwide. Our main markets are smart appliances, home controls and smart customer service.
Since 2013, Wireless-Tag has been the core partner of Espressif System. We won the "Shenzhen High-Tech Enterprise" and the "National High-Tech Enterprise" award. Since 2020, we are a core partner of Sigmastar.
